96
V. Ambrogi et al. / Journal of Physics and Chemistry of Solids 73 (2012) 94–98
source and by a monochromator selecting the excitation wave-
length (330 nm). Samples were irradiated for a period of 2 h.
1.29 nm relative at the KOJꢀ intercalation. The interlayer distance
of 1.58 nm can be attributed to ethanol and KOJꢀ cointercalation.
Indeed, in the dried ZnAl–HTlc–KOJ XRPD this 003 reflection
greatly decreases whereas the 003 reflection at 1.29 nm increases.
The 003 reflection due to the nitrate anions (0.9 nm) decreases
remarkably and the basal space became smaller than that of the
pristine ZnAl-HTlc–NO3 indicating the presence of nitrate ions
oriented in the interlayer with the plane formed by NO3ꢀ parallel
to the layer [23]. The formula of intercalated product was
obtained through many techniques. The content of Al and Zn
(determined by ICP) in the intercalation compound showed a Al
molar fraction¼0.31. Elemental analysis allowed to evaluate the
amount of nitrogen (relative to nitrate anion not exchanged),
sulphur (relative to DMSO) and hydrogen and carbon. The pre-
sence of DMSO was confirmed by 1H NMR spectrum (data not
reported) performed in deuterium chloride. UV KOJ quantifica-
tion, performed after destruction of the HTlc structure in acidic
medium, showed a loading of 25%. This result was confirmed by
TGA (Fig. 3), which showed the weight loss as function of
temperature and was interpreted as follows: from room tem-
perature to ca. 200 1C the sample loses co-intercalated solvents
(ethanol and DMSO), then from 200 to ca. 1000 1C the weight
losses are attributable to KOJ and residue nitrate decomposition
and to water loss coming from inorganic layers dehydroxylation,
while the pattern of the sample heated at 1000 1C is diagnostic for
the presence of ZnO and ZnAl2O4. Thus the final ZnAl–HTlc–KOJ
3. Results and discussion
3.1. Preparation and characterization of ZnAl-HTlc-KOJ
Synthetic ZnAl–HTlc in the carbonate form, prepared as pre-
viously described, was not suitable for KOJ intercalation because
it is well known that carbonate ions are strongly held in the
interlayer region [19] making very difficult its replacement with
other anions. Therefore, since monovalent anions, as NO3ꢀ, are
more easily replaced than carbonates, ZnAl–HTlc–CO3 was con-
verted into its nitrate form [16,20] and KOJ intercalation was
performed via ionic exchange in water at pH 11.0. Unfortunately
the first attempt failed, since XRPD spectra (data not reported)
showed a peak at 0.76 nm typical of hydroxyl or carbonate forms
and KOJ intercalation did not occur probably because of the acid-
base properties of KOJꢀ anions, which, behaving as relatively
strong Bro¨nsted base (pKa¼7.9 [21]), deprotonate the water
molecules of the solvent by giving rise to OHꢀ intercalation.
Moreover, despite the intercalation process has been performed
using CO2ꢀ free deionized water and the procedure was con-
ducted under nitrogen atmosphere, the complete absence of CO2
could not be assured during all steps. However, the intercalation
product was successfully prepared by working in anhydrous
conditions, generating KOJꢀ through the strong base EtOꢀ in a
mixture of ethanol and DMSO suitable to solve the organic acid. In
this case ZnAl–HTlc–KOJ XRPD showed an increase of the inter-
layer distance as a consequence of KOJꢀ intercalation. The
intercalation product was washed with CO2-free deionized water
to eliminate the inorganic ions and the organic material even-
tually adsorbed (KOJ or its anions). Unfortunately, during this
process KOJꢀ de-intercalation occurred, phenomenon associated
to its basic nature. Thus, in order to prevent KOJꢀ de-intercala-
tion, instead of water, the anhydrous mixture of ethanol and

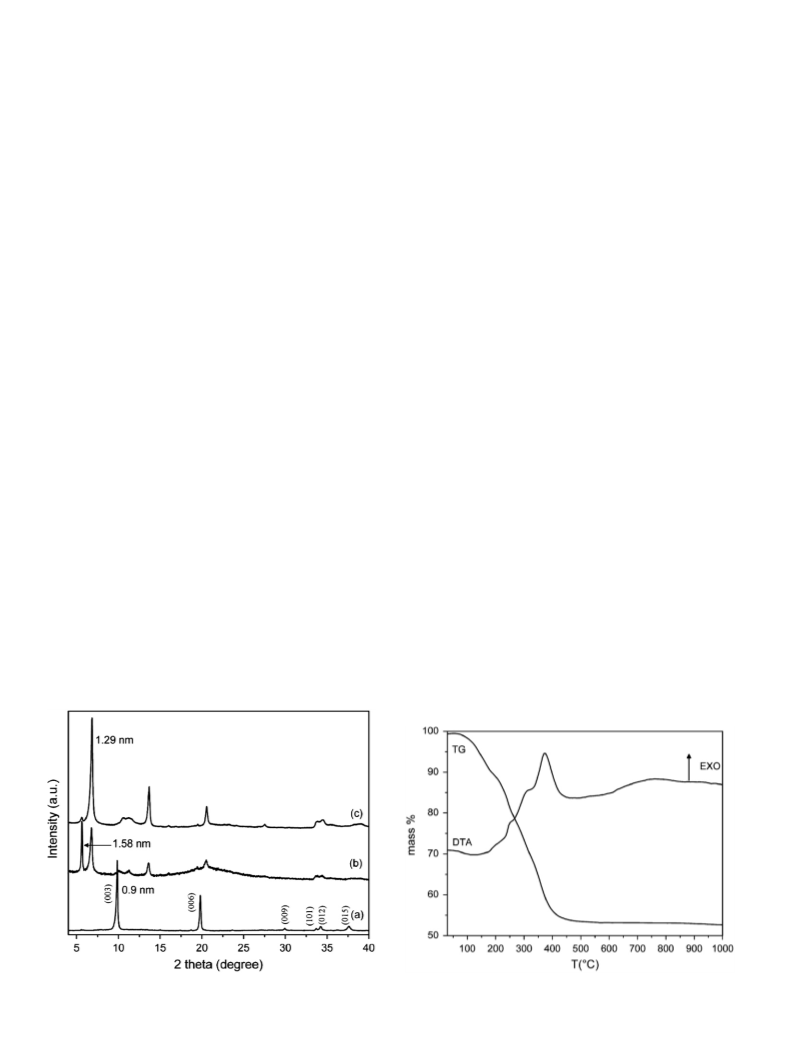

DMSO was used to wash ZnAl–HTlc–KOJ. Fig. 2 shows the XRPD of
ZnAl–HTlc–KOJ wet (Fig. 2b) and dried at 40 1C under vacuum
compared with that of pristine ZnAl-HTlc–NO3 (Fig. 2a). The
peaks of ZnAl-HTlc–NO3 were indexed by comparing them with
the patterns of ZnAl-HTlc in chloride form, which has already
been indexed based on its structural parameters [22]. The pattern
of the wet ZnAl–HTlc–KOJ shows two 003 reflections at 1.58 and
formula resulted Zn0.69Al0.31(OH)2KOJ0.25(NO3)0.06
ꢂ
0.28EtOH
ꢂ
0.04DMSO (percentages of C, H, N, S: experimental values C
18.1, H 3.6, N 0.7, S 0.9; calculated values C 18.2, H 3.8, N 0.6,
S 0.9).

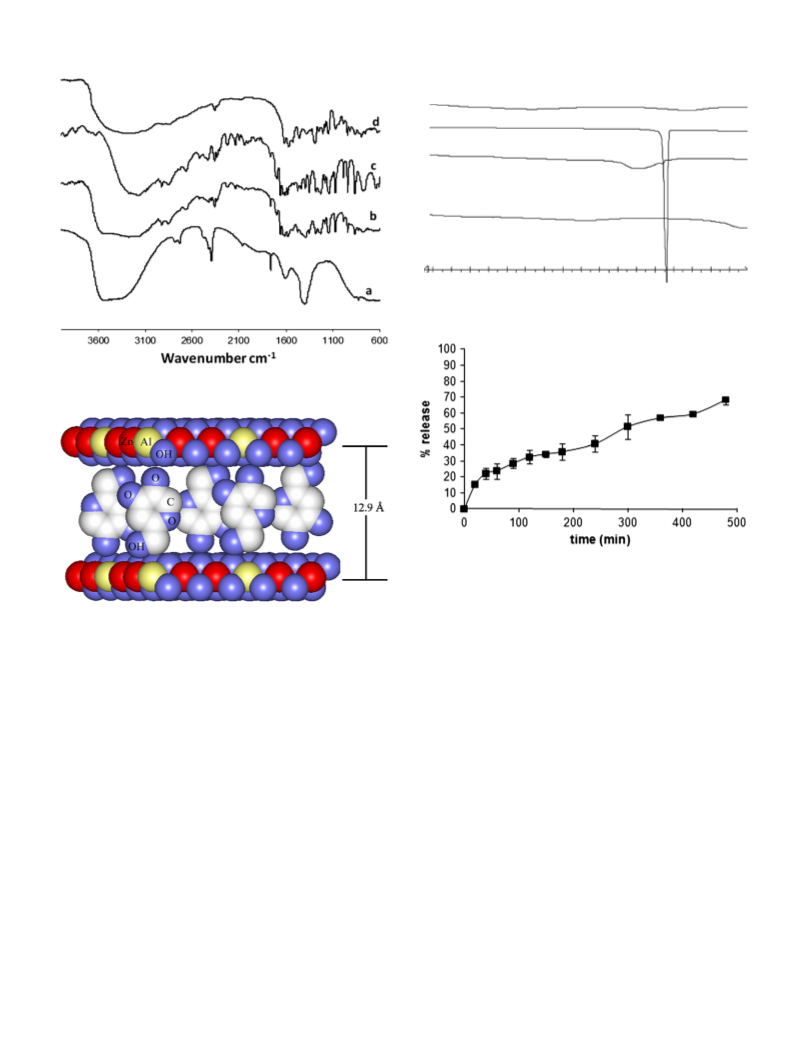

FT-IR ZnAl-HTlc-NO3 spectrum (Fig. 4) shows a broad band
between 3200 and 3800 cmꢀ1, due to the stretches of hydrogen-
bonded hydroxyl groups of hydroxide layers and interlayer water,
an adsorption peak at ca. 1620 cmꢀ1, relative to the co-inter-
calated water bending and a great peak at 1420 cmꢀ1 due to the
intercalated nitrate. It is worthy that this band almost disap-
peared in ZnAl-HTlc-KOJ spectrum, meaning that nitrate anions
underwent to almost complete exchange by KOJ anions. The very
broad band between 3000 and 3600 cmꢀ1 is diagnostic for
hydrogen-bonded hydroxyl groups of hydroxide layer stretches
with the intercalated compound.
Fig. 5 reports a computer generated model of ZnAl–HTlc–KOJ,
obtained with the Hypherchem program, on the basis of the
structural data of the host and the interlayer distance of the
intercalation compound. The presence in the interlayer region of a
Fig. 2. XRPD patterns of ZnAlHTlc-NO3 (a), wet (b) and dried (c) ZnAlHTlc-KOJ.
Fig. 3. TGA profile of ZnAlHTc-KOJ.
