In Depth Analysis of Photovoltaic Performance of
Chlorophyll Derivative-Based “All Solid-State”
Dye-Sensitized Solar Cells
Michèle Chevrier 1,2, Alberto Fattori 3 , Laurent Lasser 4, Clément Kotras 1,4, Clémence Rose 1,
Michela Cangiotti 3 , David Beljonne 4 , Ahmad Mehdi 1 , Mathieu Surin 4, Roberto Lazzaroni 4,
Philippe Dubois 2 , Maria Francesca Ottaviani 3, Sébastien Richeter 1,*, Johann Bouclé 5,
*
and
Sébastien Clément 1,
*
1
ICGM, Univ. Montpellier, CNRS, ENSCM, CC1701, Place Eugène Bataillon, 34095 Montpellier, France;
Michele.chevrier@stepaneurope.com (M.C.); clement.kotras@umontpellier.fr (C.K.);
clemence.rose@umontpellier.fr (C.R.); ahmad.mehdi@umontpellier.fr (A.M.)
2
Service des Matériaux Polymères et Composites (SMPC), Centre d’Innovation et de Recherche en Matériaux
et Polymères (CIRMAP), Université de Mons, 20 Place du Parc, 7000 Mons, Belgium;
philippe.dubois@umons.ac.be
Department of Pure and Applied Sciences (DiSPeA), University of Urbino, 61029 Urbino, Italy;
alberto.fattori@uniurb.it (A.F.); michela.cangiotti@uniurb.it (M.C.); maria.ottaviani@uniurb.it (M.F.O.)
Laboratory for Chemistry of Novel Materials, CIRMAP, University of Mons UMONS, 20 Place du Parc,
7000 Mons, Belgium; laurent.lasser@umons.ac.be (L.L.); david.beljonne@umons.ac.be (D.B.);
mathieu.surin@umons.ac.be (M.S.); roberto.lazzaroni@umons.ac.be (R.L.)
3
4
5
CNRS, Univ. Limoges, XLIM, UMR 7252, F-87000 Limoges, France
*
Correspondence: sebastien.richeter@umontpellier.fr (S.R.); johann.boucle@unilim.fr (J.B.);
sebastien.clement1@umontpellier.fr (S.C.); Tel.: +33-(0)4-67-14-39-71 (S.R. & S.C.); +33-(0)5-87-50-67-62 (J.B.)
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editors: Ahmad Mehdi and Sébastien Clément
Received: 27 November 2019; Accepted: 28 December 2019; Published: 3 January 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract:
Chlorophyll
a
derivatives
were
a
integrated
mesoporous TiO2 electrode and
in
“all
solid-state”
dye sensitized solar cells (DSSCs) with
20,20,7,70-tetrakis[N,N-di(4-methoxyphenyl)amino]-9,90-spirobifluorene as the hole-transport
material. Despite modest power conversion efficiencies (PCEs) between 0.26% and 0.55% achieved
for these chlorin dyes, a systematic investigation was carried out in order to elucidate their main
limitations. To provide a comprehensive understanding of the parameters (structure, nature of the
anchoring group, adsorption . . . ) and their relationship with the PCEs, density functional theory
(DFT) calculations, optical and photovoltaic studies and electron paramagnetic resonance analysis
exploiting the 4-carboxy-TEMPO spin probe were combined. The recombination kinetics, the frontier
molecular orbitals of these DSSCs and the adsorption efficiency onto the TiO2 surface were found to
be the key parameters that govern their photovoltaic response.
Keywords: solid state dye sensitized solar cells; spirulina; chlorophyll; anchoring groups; EPR
1. Introduction
Fossil fuel resource exhaustion, increasing energy demands and environmental problems have
triggered an intensification of research for sustainable energy sources, which lead to the development
of photovoltaic devices, fuel cells, wind turbines, etc. Photovoltaic conversion of solar energy is
considered to be one of the most significant ways of addressing the growing global energy crisis [1].
In this context, utilizing biomass resources for the conversion of solar energy has been receiving
increasing attention from industry, academia and governments and will become a major challenge of
Molecules 2020, 25, 198; doi:10.3390/molecules25010198
www.mdpi.com/journal/molecules

Molecules 2020, 25, 198
2 of 20
our future [
Indeed, protein-pigment complexes in plants, green algae, and cyanobacteria convert solar energy into
chemical energy through oxygenic photosynthesis with high efficiency [ ]. Calvin showed through
2–4]. Biomass has a great potential as a renewable feedstock for producing solar energy [5,6].
7–9
a model based on a photosynthetic electron transport system containing membranes, carotenoids and
pigments that electric energy can be obtained by conversion of sunlight [10]. A similar approach based
on an artificial photosynthesis led in 1991 to dye-sensitized solar cells (DSSCs, also known as Grätzel
cells) [11]. A DSSC consists of a mesoporous nanocrystalline n-type semiconductor (typically TiO2)
sensitized with a dye, deposited onto an anode and immersed in redox active electrolyte (generally
triiodide/iodide), completed by a counter-electrode (cathode) [12]. Upon illumination, dye molecules
anchored onto the TiO2 surface absorb incoming photons, allowing the photoinduced electron-transfer
from their excited state into the TiO2 conduction band. Then, the electrons are transferred to the counter
electrode, thus creating a current. The redox electrolyte reduces the oxidized dye molecules back to
their ground state to enable continuous electron production. Even if power conversion efficiencies
(PCEs) above 13% have been reached for liquid-electrolyte DSSCs [13,14], improvements are still
required in order to be commercially viable.
First, there is a crucial need for solid-state approaches since the use of liquid electrolytes is a
major hurdle for commercialization by industry due to the corrosive nature of the commonly used
I3−/I− redox shuttle [15
been actively investigated [17
by molecular and inorganic HTMs combined with state-of-the-art organic dyes [20
,
16]. DSSCs incorporating solid-state hole transport materials (HTMs) have
19], and decent efficiencies close to 12% have been already achieved
21]. Additionally,
–
,
solid-state DSSCs (ssDSSCs) led to a major breakthrough by using hybrid lead halide perovskite
sensitizers such as CH3NH3PbIxCl3-x, enabling the advent of perovskite solar cells with efficiencies
now above 25% [22]. However, important issues concerning the device stability and the toxicity of the
components still remain.
Secondly, it is highly required to use efficient and cost-effective dyes in place of expensive and
scarce ruthenium complexes [23
In contrast, natural organic dyes and their derivatives are promising candidates for developing DSSCs
due to their low cost, abundance and non-toxicity [ ]. An important biomass resource developed in the
,24] or elaborated organic dyes requiring numerous synthetic steps [15,25].
5
south of France is spirulina, a green algae mainly used as food supplement. One of the most valuable
compound that can be extracted from spirulina is chlorophyll a, (Chl a—12 g/kg) [26] a photo- and
electroactive chlorin-type macrocycle involved in photosynthesis, because it efficiently absorbs light in the
400–450 nm and the 600–700 nm regions and up to 800 nm depending of its aggregation state [27]. The use
of chlorophyll derivatives as sensitizers has been investigated in liquid electrolyte-based DSSCs leading
to energy-to-electricity conversion efficiency (η) up to around 8% [28–30]. Concerning solid-state DSSC,
there are only a few reports in the literature describing the use of chlorophyll a derivatives as dye [31
–33].
Herein, we report the preparation of all-solid state DSSCs using a series of Chl a derivatives
(Figure 1) as sensitizers with different anchoring groups to graft to the TiO2 surface and
20,20,7,70-tetrakis[N,N-di(4-methoxyphenyl)amino]-9,90-spirobifluorene (spiro-OMeTAD) as HTM.
The choice of spiro-OMeTAD HTM was motivated by its facile implementation and high performance
rendering it particularly suitable for testing DSSCs. To elucidate the relationship between the molecular
structure of the dye and the photovoltaic efficiency, UV-Vis absorption spectroscopy, density functional
theory (DFT) calculations, incident photon-to-current efficiency (IPCE), transient photovoltage decay
measurements and EPR analysis exploiting the spin probe 4-carboxy-2,2,6,6-tetramethylpiperidine
1-oxyl (4-carboxy-TEMPO, indicated as 4C-T) have been carried out.
2. Results
2.1. Synthesis of the Dyes Derived from Chlorophyll a
The chemical structures of chlorophyll a-based dye sensitizers depicted in Scheme 1 were obtained
from methyl pyropheophorbide-a (MPPa). MPPa was prepared in four steps: (i) extraction of Chl a from

Molecules 2020, 25, 198
3 of 20
spirulina biomass with ethanol, (ii) demetallation of Chl a, (iii) acid-catalyzed transesterification of the
phytyl chain in methanol, and (iv) decarboxylation of the ester moiety located on the 13-position with
2,4,6-collidine [34
depending on the localization of the anchoring group. All the chlorins have one carboxylic acid for
grafting onto the TiO2 surface. Chlorins M1 M2 exhibit a non-conjugated alkyl anchoring group while
,35]. Three families of corresponding free-base and zinc chlorins can be distinguished
–
the others possess either a conjugated vinyl anchoring group (M3
the Qy axis of the chlorin skeleton (M5–M6).
–M4) or a cyanoacrylic group along
Scheme 1. Synthesis of chlorins M1
MeOH/THF; (c) OsO4, NaIO4, dioxane-AcOH-water; (
and (f) NCCH2COOH, piperidine-THF.
–
M6 from MPPa
:
(
a
) HCl, acetone; (
b
) Zn(OAc)2
·
2H2O,
d
) Ph3P=CHCOOtBu, CH2Cl2; (
e) CF3COOH;
M1 was synthesized through the acid hydrolysis of MPPa with hydrochloric acid in acetone.
Methyl pyropheophorbide-d (MPPd) was prepared by cleavage of the alkene in the presence of osmium
tetroxide (OsO4) and sodium periodate (NaIO4) [35]. Trans-32-carboxy-pyropheophorbide-a (M3) was
synthesized in two steps: (a) a Wittig reaction with MPPd and (b) the hydrolysis with TFA of the
corresponding Chlorin-1. A Knoevenagel reaction of MPPd with cyanoacetic acid in piperidine/THF
yielded chlorin M5. Finally, metalation reactions of the free base chlorins M1
, M3, and M5 with
Zn(OAc)2 in MeOH/THF afforded the corresponding zinc complexes M2, M4, and M6.

Molecules 2020, 25, 198
4 of 20
2.2. Optical Properties of Chlorin Derivatives
The UV-Visible absorption spectra of chlorins M1
–
M6 both in THF and grafted on the TiO2 surface
through carboxylate bonding are presented in Figure 1. Table 1 summarizes their characteristics
in THF and on TiO2. The shape of the UV-Visible absorption spectra in THF are relatively similar,
with five observed bands when going from blue to red: Soret, Qx (0,1), Qx (0,0), Qy(0,1), and Qy(0,0).
The Qy peaks position of the vinyl-substituted chlorins M3
comparison with chlorins M1 M2 due to the introduction of electron-withdrawing groups on the vinyl
moiety at the C3 position. The bathochromic shifts of the Qy peaks of chlorins M5 M6 are larger than
those observed for M3 (7–15 nm) and M4 (1–4 nm) because of the higher electron-withdrawing ability
of the cyano group. Upon zinc metalation, the Soret absorption bands are redshifted (chlorins M2
M4, and M6), implying an increase of the conjugated -electron delocalization along X axis while the
–M6 are redshifted by about 10–20 nm in
–
–
,
π
hypsochromic shift of the Qy indicates a decrease of the extent of conjugated
along Y axis [36].
π-electron delocalization
Figure 1. (a) UV-Visible absorption spectra of chlorins M1–M6 in THF and (b) grafted onto the TiO2 surface.

Molecules 2020, 25, 198
5 of 20
The binding of the chlorin dyes onto the TiO2 surface leads to a broadening of the absorption
bands, probably due to stacking interactions between chlorin dye molecules, as extensively studied
π
in previous investigations [37]. The comparison of the chlorin absorption spectra in THF solutions as
the monomeric species (Figure 1a) and on TiO2 as aggregates also reveal that the QY bands shift to
longer wavelengths suggesting the formation of J aggregates [31].
Table 1. Spectral characteristics of chlorin derivatives M1–M6 in THF solution and grafted on the
TiO2 surface.
λ
/nm
max
Compound
Solvent
Soret
Qx(0,1)/(0,0)
QY(0,1)/(0,0)
M1
M2
M3
M4
M5
M6
THF
TiO2
THF
TiO2
THF
TiO2
THF
TiO2
THF
TiO2
THF
TiO2
414
507/536
520/553
524/570
524/541
513/545
518/560
531/576
524/541
515/550
518/560
532/579
527/595
610/668
620/673
609/657
633/681
621/681
632/685
621/671
631/681
636/688
632/691
625/672
635/689
427
417
436
409
434
2.3. Photovoltaic Performance of Chlorin Derivatives
2.3.1. Influence of the Co-Adsorbent
The
absorption spectra, as discussed above. Such aggregation is known to affect the photoelectron injection
efficiency and thus, the overall conversion efficiency [38 39]. A typical way to lower the dye aggregation
at the semiconductor interface consists in using co-adsorbents such as chenodeoxycholic acid (CDCA),
the most commonly used additive in DSSC preparation [40 42]. Indeed, its strong binding to the TiO2
π stacking of dyes when grafted onto the TiO2 surface was evidenced from the UV-Visible
,
–
surface partly displaces dye molecules, reducing their self-aggregation. Nevertheless, the addition
of co-adsorbent molecules also reduces the dye loading and thus, photon harvesting. It is therefore
crucial to judiciously adjust the amount of co-adsorbent used during the impregnation. To optimize
the loading of the co-adsorbent in the dye solution, the impregnation was performed for 15 h using
different concentrations of CDCA (from 0 to 3 mM) in a 0.3 mM THF solution of the dye. The choice of
THF was motivated by the good solubility of the free-base and zinc-metalated chlorin in that solvent.
To determine the amount of dye M2 grafted onto the TiO2 surface as a function of the concentration
of co-adsorbent, UV-Visible absorption measurements were performed (Figure 2). Dye M2 grafted
from a 0.3 mM solution shows an absorbance of 0.55 for the Soret absorption band at around 420 nm
and 0.25 for the lower energy Q band at around 665 nm. This value dramatically decreased when
the concentration of co-adsorbent was increased up to 3 mM and this spectral evolution is in good
agreement with previous studies reported in the literature [43,44]. Indeed, the co-adsorbent tends to
decrease the adsorption of dye M2 via a competitive anchoring process, thereby decreasing the dye
concentration and thus, the dye aggregation onto the TiO2 surface.
The current density–voltage (J–V) characteristics of the corresponding devices were then measured
and are depicted in Figure 3. The extracted photovoltaic parameters are presented in Table 2. To evaluate
the efficiency of our fabrication process and thus, the accuracy of the collected data, a solar cell based
on the well-known organic dye, D102, was used as reference [45,46].

Molecules 2020, 25, 198
6 of 20
Figure 2. UV-Visible absorption spectra of TiO2 films impregnated with M2 (0.3 mM in THF) and
increasing co-adsorbent concentration (0 mM: blue line; 0.3 mM: red line; 1.5 mM: green line, and 3
mM: purple line in THF).
Figure 3. Current–voltage characteristics of solid-state dye sensitized solar cells (ssDSSCs) sensitized
with dye M2 depending on the co-adsorbent concentration.
The performance obtained for the reference cell is in agreement with those previously reported
in the literature [45,46]. Modest photovoltaic performances are observed for dye M2 compared to
liquid DSSCs, where the short-circuit current density (JSC) was found to be reduced by a factor of about
10. This finding could mainly be attributed to the reduction in the electrode thickness for solid-state
devices, leading to a lower light harvesting efficiency of the active layer. The devices where the TiO2
electrode was sensitized with the dye M2 alone, gave photovoltaic efficiencies of 0.19%. When M2
was combined with CDCA, the PCE increased up to 0.56% for the 1:5 molar ratio. Further increase in

Molecules 2020, 25, 198
7 of 20
co-adsorbent to the 1:10 molar ratio caused a decrease in efficiency (
η
= 0.42%), attributed to the dye
loading reduction.
Table 2. Photovoltaic parameters of ssDSSCs sensitized with M2 or D102 under simulated solar
emission (100 mW
cm−2, AM1.5G) as a function of the co-adsorbent concentration: short-circuit current
density (JSC), open-circuit voltage (VOC); fill factor (FF), and power conversion efficiency (η).
·
JSC (mA·cm−2
)
Concentration
VOC (V)
FF
η
Best η
0 mM
0.3 mM
1.5 mM
3 mM
0.54 ± 0.01
0.52 ± 0.02
0.65 ± 0.03
0.56 ± 0.02
0.76 ± 0.01
0.73 ± 0.10
1.27 ± 0.24
1.73 ± 0.19
1.96 ± 0.24
10.01 ± 0.19
47 ± 4
36 ± 3
48 ± 5
40 ± 0
49 ± 3
0.18 ± 0.01
0.23 ± 0.02
0.53 ± 0.03
0.39 ± 0.03
3.73 ± 0.26
0.19
0.25
0.56
0.42
3.99
D102
The incident photon-to-current efficiency (IPCE) recorded for the above mentioned ssDSSCs
indicates that the photocurrent response of M2-based DSSC impregnated with 1.5 mM of co-adsorbent
exceeds 4% for the last Q band at 675 nm, which is higher than the response without co-adsorbent
(2% at the same wavelength; Figure 4). The estimated photocurrent, obtained by integrating the IPCE
spectra over the AM1.5G solar spectrum, was consistent with the photocurrent measured under solar
simulator and reported in Table 2. Adding 1.5 mM of co-adsorbent for the impregnation enabled
to double the current density value from 0.60 to 1.30 mA
·
cm−2 (0.73 vs. 1.73 mA cm−2 in Table 2,
·
respectively). The increased quantum yield was ascribed to the reduction of dye aggregation in the
presence of CDCA as co-adsorbent, which minimized the intermolecular energy transfer and increased
the electron injection efficiency. This effect compensated the loss of light harvesting caused by the
lower dye content of the TiO2 photoanode with CDCA as co-adsorbent and led to the improvement of
the current density. Based on this result, a concentration of 1.5 mM of co-adsorbent was chosen for
the preparation of ssDSSCs since it offered the best compromise between light harvesting and power
conversion efficiency.
10
9
8
1.5 mM
0 mM
7
6
5
4
3
2
1
0
400
450
500
550
600
650
700
750
800
Wavelength (nm)

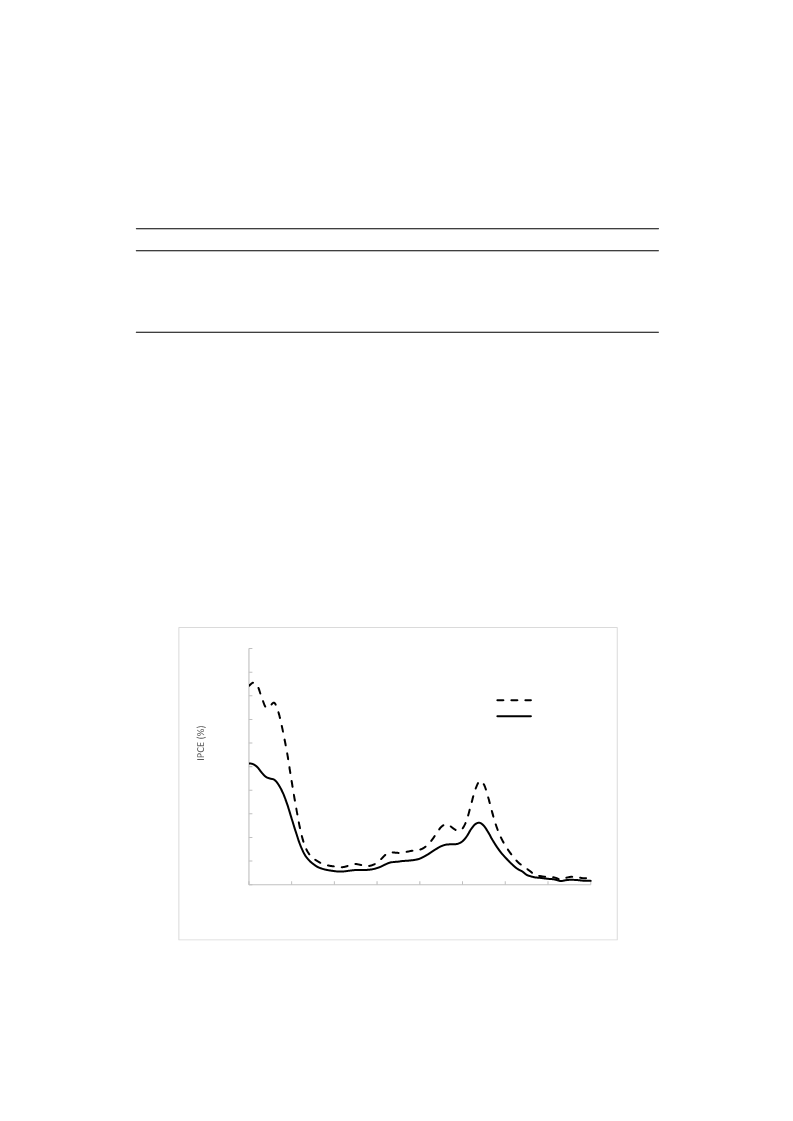

Figure 4. Incident photon-to-current efficiency (IPCE) spectra of all-solid state DSSCs sensitized with
M2 in the presence/absence of co-adsorbent.

Molecules 2020, 25, 198
8 of 20
2.3.2. Photovoltaic Measurements for the Other Chlorin Derivatives
Figure 5 shows the J–V characteristics of the ssDSSCs prepared from dyes M1 to M6 (0.3 mM
in THF) and CDCA co-adsorbent (1.5 mM in THF). The corresponding photovoltaic data are listed
in Table 3.
Figure 5.
Current-voltage characteristics of ssDSSCs sensitized with chlorins M1–M6
under illumination.
Table 3. Photovoltaic parameters of ssDSSCs sensitized with chlorins M1–M6 and D102 under
simulated solar emission (100 mW
cm−2, AM 1.5G): short-circuit current density (JSC), open-circuit
voltage (VOC), fill factor (FF), and power conversion efficiency (η).
·
JSC (mA·cm−2
)
Compound
VOC (V)
FF
η
Best η
M1
M2
M3
M4
M5
M6
0.54 ± 0.03
0.65 ± 0.03
0.53 ± 0.05
0.54 ± 0.04
0.54 ± 0.02
0.53 ± 0.02
1.99 ± 0.27
1.73 ± 0.19
2.31 ± 0.63
1.62 ± 0.20
1.16 ± 0.12
0.97 ± 0.15
42 ± 3
48 ± 5
46 ± 4
49 ± 4
54 ± 6
52 ± 4
0.45 ± 0.15
0.53 ± 0.03
0.55 ± 0.12
0.43 ± 0.08
0.34 ± 0.05
0.26 ± 0.07
0.60
0.56
0.67
0.51
0.39
0.33
Compared to the D102 performances, those obtained with chlorin dyes were low (Table 3).
Nevertheless, only a few publications have described the fabrication of ssDSSCs with chlorophyll
derivatives and the values obtained here are in line with those reported [31]. They were even better
than the performances obtained in some liquid-DSSCs with other chlorophyll derivatives [47–50].
ssDSSCs based on dye M3 gave the highest PCE (0.67%) due to the highest short-circuit current (JSC),
while the open-circuit photovoltage (VOC) and fill factors (FF) were found to be similar to other chlorin
dyes, except for M2, which showed the highest VOC value. In terms of grafting groups, the PCE values
for ssDSSCs based on chlorin dyes exceed 0.26% in the following order: acrylic acid > alkyl acid >
cyanoacrylic acid. The introduction of cyano electron-withdrawing groups in chlorins M5–M6 indeed
strongly decreased the JSC values, resulting in the ssDSSCs with the lower performances. This trend
has been already observed when such chlorin dyes were used in liquid DSSCs [51]. Nevertheless,
the difference observed in ssDSSCs was not as dramatic as in liquid DSSCs. For instance, the presence

Molecules 2020, 25, 198
9 of 20
of cyano groups on the free base chlorin M3 drastically decreased the PCE in liquid DSSCs by around
75% while the decrease represents only 37% in ssDSSCs.
2.3.3. Recombination Kinetics
To examine the recombination kinetics of chlorin-based ssDSSCs, transient photovoltage decay
measurements (TPV) measurements were carried out and compared to D102. Since the porous
electrode and the anchoring groups of the dyes are quite similar (i.e., same fabrication process and
only one carboxylic anchoring function on each dye), TPV measurements reflect the direct influence
of the dye on the TiO2/dye/spiro-OMeTAD interface. The observed differences in recombination
kinetics could mainly be attributed to the chemical nature and/or steric conformation of the dye at
the TiO2 surface as well as the contribution from the dye/spiro-OMeTAD interface. The observed
difference in slope between D102 and the chlorin dye sensitizers indicates that different recombination
mechanisms took place in ssDSSCs sensitized with these compounds (Figure 6). The recombinations
for chlorin-sensitized solar cells appeared to be faster than that with D102, thus leading to a VOC
loss. This result was coherent with the photovoltaic parameters obtained under illumination. Indeed,
chlorin-based ssDSSCs exhibited VOC values around 550 mV, except for M2 whereas that based on the
D102 dye sensitizer led to a VOC of 760 mV.
Figure 6. Electron recombination lifetime as a function of Voc in chlorin- and D102 based ssDSSCs.
Besides, chlorin dyes M3 and M5 show an enhanced electron lifetime in comparison with the M1
analog. Electron lifetime associated with dye M3 was also slightly larger than that of dye M5, which
suggests acrylic acid anchoring group was more favorable than cyanoacrylic acid anchoring group to
decrease the charge recombination at the TiO2/electrolyte interface. However, the performances of
ssDSSCs based on M5 were lower than those based on M1. Since the dye M1 contains a non-conjugated
anchoring group, M1 may lie rather flat on the TiO2 surface due the larger flexibility of the alkyl
spacer, whereas the more rigid conjugated spacer of M3 and M5 probably favors tilted or up-right
adsorption. Finally, the influence of the zinc metal center was more difficult to interpret: on one
hand, M2 presented a significant increase in electron lifetime compared to M1; on the other hand,
M3 and M4 were in the same range. These findings were coherent with the photovoltaic parameters

Molecules 2020, 25, 198
10 of 20
obtained under illumination. As discussed above, M2 exhibited a higher Voc than M1 while the Voc
was approximately the same for M3 and M4.
2.4. DFT Calculations
To elucidate the relationship between the nature of the anchoring group and the photovoltaic
performances observed, density functional theory (DFT) calculations were performed. The calculations
show that all the LUMO + n orbitals had a significant contribution from the acrylic group for M4 and
from the cyanoacrylic acid group for M6 while only the LUMO + 3 orbital covered the alkyl carboxylic
group for M2 (Figure 7). This is critically important since the orbital overlap between the LUMO + n
of the dye and the TiO2 conduction band edge should be as large as possible in order to maximize the
electron transfer probability. M4 and M6 dyes exhibited similar
π-electron systems leading to similar
electron density on the -conjugated anchoring group for LUMO, LUMO + 1, and LUMO + 2 orbitals.
π
Figure 7. HOMO-1, HOMO, LUMO, LUMO + 1, LUMO + 2, and LUMO + 3 molecular orbitals for M2
(top) and M4 (middle) and M6 (bottom) dyes. The anchoring groups are circled in black.
However, introducing the electron-withdrawing cyano group on the acrylic acid anchoring results
in a strong stabilization of the unoccupied orbitals (Figure 8). Indeed, the M6 LUMO moved down
below the TiO2 conduction band edge energy level, no longer allowing exergonic electron injection to
TiO2 upon (HOMO
→
LUMO) optical transition, thus, explaining the decrease in PCE of M6 compared
to M4. The energy levels of HOMO and LUMO of M2, M4, and M6 dyes are in the same range as
those previously reported in the literature [31,33,52].

Molecules 2020, 25, 198
11 of 20
Figure 8. LUMO, LUMO + 1, and LUMO + 2 energy levels of chlorin dyes M2, M4, and M6. The
values for the conduction band edge of the semiconductor calculated from a Ti38O76 cluster is added
for comparison (dashed line).
2.5. Dye Adsorption
To get insight into the relationship between the observed performances and the dye structure,
the dye adsorption of free-base chlorins M1 M3, and M5 was investigated by the use of electron
,
paramagnetic resonance spectroscopy (EPR). This experimental technique allowed us to compare
the cells performance with the dye adsorption on the TiO2 thanks to a paramagnetic radical probe
4-carboxy TEMPO (coded as 4C-T). This molecule grafts onto the TiO2 surface without perturbing the
system and is able to monitor its molecular surrounding through spin–spin interactions. As described
more in depth elsewhere [53], the main parameters extracted from the spectra are as follows: (i) Aii,
which is the component of the hyperfine coupling tensor between the electronic and nuclear spin that
provides a measurement of the probe environmental polarity; (ii) the correlation time for the radical
rotational diffusion motion,
turn, increases due to interactions between the radical and its environment; (iii) the intrinsic line width,
its increment in slow motion conditions being due to dipole dipole spin spin interactions (through
τ, that is related to the radical environmental microviscosity, which, in
−
−
this parameter, interactive close sites can be identified); and (iv) the Heisenberg exchange frequency,
Wex, which increases when radicals swap each other the unpaired electrons due to collisions in a fluid
medium (this parameter is related to a high radical local concentration on the TiO2 surface). In many
cases, the EPR spectra are constituted by two well-identifiable components characterized by probes at
different polarity and mobility. In order to extract the two components and to evaluate the relative
percentages, experimental spectra were subtracted from each other and then the components were
separately simulated and doubly integrated to evaluate the relative percentages. If subtraction of
experimental spectra cannot be performed, one component is simulated and the other one is determined
by subtraction of the simulated spectrum from the total one. Afterwards, the second component is
also simulated. The accuracy for all the parameters in the EPR analysis was between 2% and 3%,
based on the fitting between the experimental and the computed line shapes, slightly increasing if line
broadening occurs.
Figure 9 shows the EPR spectra obtained for DSSCs built with the different dyes M1, M3, and M5
and containing the spin probe 4C-T. These spectra were considered good if reproducible at least for
three different cells built in the same experimental conditions.

Molecules 2020, 25, 198
12 of 20
5000
4000
3000
2000
1000
0
Fast
Component
M1
M3
M5
DSSC Cells
Slow
Component
-1000
-2000
-3000
-4000
3460
3480
3500
3520
3540
3560
Magnetic Field (G)

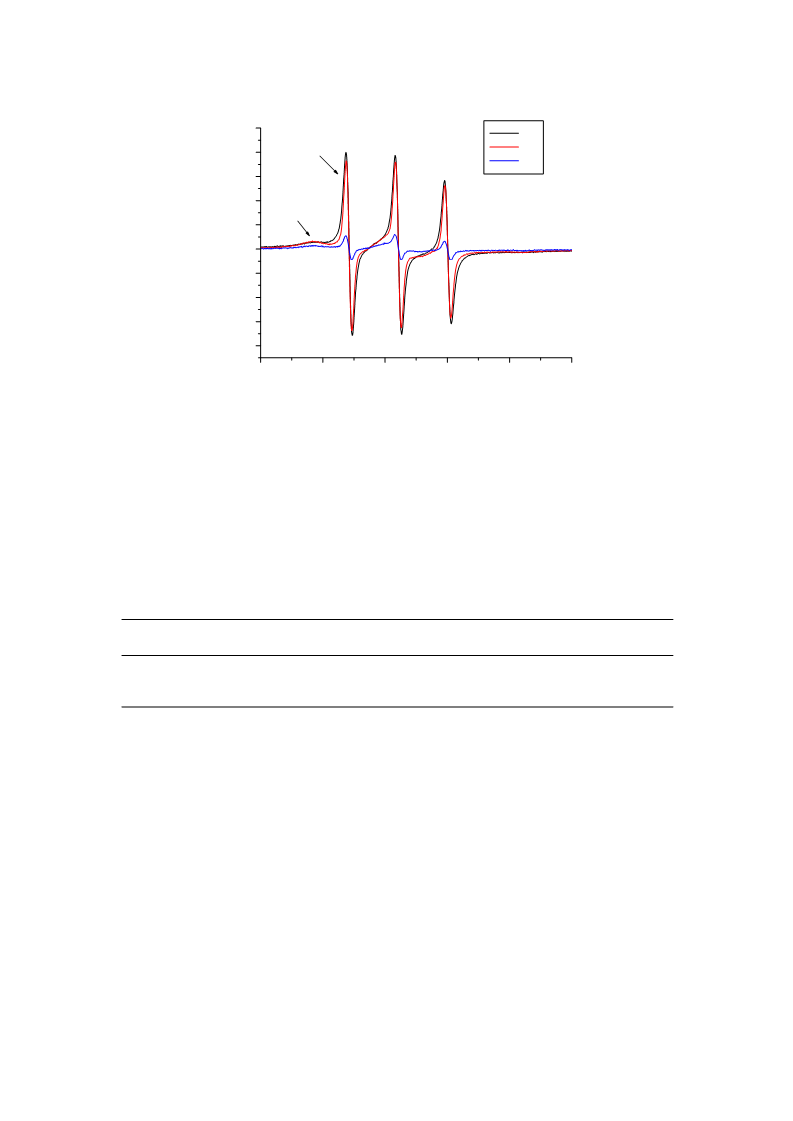

Figure 9. Electron paramagnetic resonance spectroscopy (EPR) spectra of DSSCs sensitized with the
chlorine dyes M1 (black line), M3 (red line) and M5 (blue line). The relative fast component and free
component of the spectra are shown in the graph.
From Figure 9, we could determine that: (i) the intensity significantly decreased for DSSC-M5
with respect to the other DSSC-dyes. The intensity was evaluated by double integrating the spectra
(Table 1). We also noticed that the intensity largely decreased when compared to devices containing
only the spin probe (results not shown) and (ii) the spectra were constituted by two components
whose main features are indicated in the figure. These two components were extracted and quantified
(Table 4).
Table 4. Values of the total intensity and the relative percentage for the slow and fast component.
Total Intensity (Integrated;
Arbitrary Unit)
% of Slow Component
with Respect to the Fast
% of Slow Component with
Respect to the Total
Dye
M1
M3
M5
64
52
14
5
35
69
3
18
10
Each component was then computed as shown in Figure 10 for the different cells. The figure also
shows the main parameters used for the computation, which are the <A> value (=(Axx + Ayy + Azz)/3)
measuring the polarity, the correlation time for the rotational motion,
the basis of the slowing down of mobility, and the line width, measuring the local concentration of the
radicals. Based on the correlation time for the rotational motion, , obtained from the computations,
τ, measuring the interactions on
τ
the two components were termed “fast” and “slow”, since they originated from spin probes quite free
to move at the interface and interacting with the TiO2 surface, respectively.

Molecules 2020, 25, 198
13 of 20
M1
Computation Fast component:
<A>=15.85 G; τ = 0.14 ns; Line width=1.5 G
M1 - Slow component
Computation: <A>=17 G; τ = 6.5 ns; Line width=5 G
3460
3480
3500
3520
3540
3560
3460
3480
3500
3520
3540
3560
Magnetic Field (G)
Magnetic Field (G)
M3-M5 - Slow component
Computation: <A>=17 G; τ = 11 ns; Line width=5 G
M3-M5 - Fast component
Computation: <A>=16 G; τ = 0.10 ns; Line width=1.1 G
3460
3480
3500
3520
3540
3560
3460
3480
3500
3520
3540
3560
Magnetic Field (G)
Magnetic Field (G)
Figure 10. Experimental and computed spectra (extracted slow and fast component) for the probe 4C-T
interacting with the dyes M1, M3, and M5.
The low intensity of the spectrum of DSSC-M5 if compared to the other DSSCs clarified the
behavior of these dyes: M5 was poorly adsorbed, but the probes and M5 preferentially interacted
with the surface (slow component) and only a small amount of dyes remained at the interface (free
component). In other words, the total amount of adsorbed dye M5 as well as the amount of interacting
probes + M5-dyes were small. That amount was obviously smaller than the amount of probes and dye
M3 adsorbed at the TiO2 surface. Considering the slow component, it was the same for M5 and M3
corresponding to strongly interacting dyes at polar, quite close sites. Conversely, the fast component
shows a high mobility and the environment was less polar than that of the slow component. These
results also explained why dye M3 exhibited better performances than M5
dye, not only marked by the lowest percentage of slow (interacting) component compared to the other
dyes, but also because the slow component is slower (lower ) in comparison with the other dyes. It is
. M1 was the less interacting
τ
also interesting to note that the fast component for M1 shows a slightly lower mobility, lower polarity
and higher line width compared to the fast component from the other dyes. This indicates a higher
local concentration of M1 dyes in solution, in line with a lower adsorption at the TiO2 surface.
3. Materials and Methods
3.1. Instrumentation and Methods
Spirulina powder was provided from Phyco-Biotech (Montpellier, France). Titania paste (99%
anatase), titanium(IV) chloride (99,9%), chenodeoxycholic acid (96%), bis(trifluoromethane)sulfonimide

Molecules 2020, 25, 198
14 of 20
lithium salt (99%), 4-tert-butylpyridine (98%) were purchased from Sigma-Aldrich Chemie S.a.r.l.
(Saint-Quentin Fallavie, France). Spiro-OMeTAD and FTO-coated conducting glass substrates were
purchased from Solaronix SA (Aubonne, Switzerland). Reactions were performed under argon
using oven-dried glassware and Schlenk techniques. Dry solvents were obtained by using a solvent
purification system, PureSolve MD5 purchased from Inert Technology (Amesbury, MA, USA). 1H and
13C{1H} NMR spectra were recorded either on a Bruker Avance-300, 400, or 600 spectrometers (Bruker,
Billerica, MA, USA) for each synthetic intermediates and were calibrated to tetramethylsilane (TMS)
on the basis of the relative chemical shift of the solvent as an internal standard. Chemical shifts (δ) are
expressed in parts per million (ppm) and coupling constants (J) are expressed in Hertz. Abbreviations
1
used for H-NMR spectra are as follow: s singlet, d doublet, and m multiplet. Mass spectra (MS)
were recorded on MicroTOF QII t and RAPIFLEX instruments (Bruker France SAS, Marne la Vallée,
France) in the positive mode for ESI and MALDI-ToF, respectively. UV-Visible absorption spectra were
obtained at room temperature on a Shimadzu UV2401 PC (Shimadzu Corporation, Kyoto, Japan) and
on a SAFAS D.E.S. PC UV/Vis scanning spectrometers (Safas, Monaco).
3.2. Synthesis of Dyes M1, M3, and M5
Methyl pheophorbide-a
[
34], methyl pyropheophorbide-a MPPa
(
)
[34], methyl
pyropheophorbide-d (MPPd) [35], M1 [28]
,
M2 [54] M3 [28] M4 [55], M5 [56], and M6 [55]
,
,
were synthesized as reported in the literature (see Scheme 1 for the synthetic route).
M1: Methyl pyropheophorbide-a (150 mg, 2.74 mmol) was dissolved in acetone (15 mL) and
concentrated hydrochloric acid (HCl 37%, 5 mL) was added slowly. After 30 min under stirring,
the mixture was poured into water and extracted with CH2Cl2. The organic layer was then washed
with a saturated solution of NaHCO3 and water until neutrality. The organic layer was dried over
MgSO4, filtered, and concentrated under reduced pressure. The obtained solid was then recrystallized
1
from a CH2Cl2/n-pentane mixture to give the title compound as a dark solid (129 mg, 88%). H-NMR
(300 MHz, CDCl3):
δ
= 9.50, 9.39, 8.58 (s, each 1H, 5-, 10-, and, 20-H), 7.98 (dd, 3JH-H = 17.8, 11.5 Hz, 1H,
31-H), 6.22 (m, 2H, 32-CH), 5.18 (m, 2H, 132-CH2), 4.49, 4.41 (m, each 1H, 17- and 18-H), 3.64 (m, 3H,
81-CH2 and 121-CH3), 3.40 (2-CH3), 3.23 (s, 3H, 7-CH3), 2.70–2.30 (m, 4H, 171 and 172-CH2), 1.82 (d,
3JH-H = 7.1 Hz, 3H, 181-CH3), 1.68 (t, JH-H = 7.5 Hz, 4H, 82-CH3) ppm. 13C{1H} NMR (101 MHz,
3
pyridine-d5):
δ = 196.0, 176.1, 172.8, 162.4, 155.7, 151.7, 149.5, 145.8, 142.0, 138.7, 137.0, 136.7, 136.3,
132.5, 131.7, 130.0, 128.9, 123.0, 107.4, 104.9, 97.9, 94.5, 52.7, 50.7, 48.8, 32.3, 31.1, 23.7, 20.0, 18.1, 12.5,
12.3, 11.6 ppm. Maldi-ToF MS: calcd for C33H34N4O3 m/z 534.263, found 534.290. UV-Visible (THF):
λmax (ε) 414 (77500), 507 (8200), 536 (6600), 310 (5300), 668 (33600) nm.
M3 Chlorin-1 (117 mg, 0.180 mmol) was dissolved in trifluoroacetic acid (6.5 mL). The green
:
solution was stirred for 3 h at room temperature and then, poured into water. The organic layer
was extracted with CH2Cl2, dried over MgSO4, filtered and concentrated under reduced pressure.
The brown residue was purified by column chromatography on silica gel (CH2Cl2/MeOH, 19:1) to give
1
the title compound as a black solid (68 mg, 64%). H-NMR (600 MHz, CDCl3/pyridine-d5): δ = 9.4
1
(s, 1H, 10-H), 9.37 (s, 1H, 5-H), 9.03 (d, 1H, 3JH-H = 16.1 Hz, 32-CH), 8.56 (s, 1H, 20-H), 7.04 (d, 1H,
3JH-H = 16.1 Hz, 31-CH), 5.17, 5.01 (d, each 1H, 3JH-H = 19.2 Hz, 132-CH2), 4.40, 4.20 (m, each 1H, 17-,
and 18-H), 3.54, 3.48, 3.36, 3.10 (s, each 3H, 21-, 71-, and 121-CH3, 172-COOMe), 3.53 (m, 2H, 81-CH2),
2.60, 2.50 (m, each 1H, 172-CH2), 2.20 (m, 2H, 171-CH2), 1.72 (d, 3H, J = 7.5 Hz, 181-CH3), 1.57 (t, 3H,
3JH-H = 7.7 Hz, 82-CH3), 0.08, 1.97 (s, each 1H, NH) ppm. 13C{1H} NMR (151 MHz, CDCl3/Pyr):
−
δ = 195.6, 173.1, 170.7, 169.1, 160.7, 154.7, 151.0, 149.4, 148.5, 144.7, 140.3, 138.1, 136.3, 135.5, 135.4, 133.5,
131.9, 130.7, 128.5, 126.3, 123.2, 106.2, 103.6, 96.7, 93.5, 51.6, 51.3, 49.6, 47.8, 30.7, 29.6, 22.9, 19.2, 17.2,
12.4, 11.8, 11.0 ppm. ESI-ToF HR-MS: calcd for C35H36N4O5 [M + H]+ m/z 593.2841, found 593.2845.
UV-Visible (THF): λmax (ε) 417 (33000), 513 (4600), 545 (3600), 621 (2700), 681 (17000) nm.
M5: To a solution of methyl pyropheophorbide-d (200 mg, 0.363 mmol) and cyanoacetic acid
(6.18 g, 72.6 mmol) in THF (20 mL) was added ammonium acetate (2.80 g, 36.3 mmol). The mixture
was refluxed for 1 h, poured into water and extracted with CH2Cl2. The extract was dried over MgSO4,

Molecules 2020, 25, 198
15 of 20
filtered, and concentrated under vacuum. The residue was then recrystallized from a CH2Cl2/n-pentane
1
mixture to give the title compound as a dark solid (145 mg, 65%). H NMR (400 MHz, DMSO-d6):
3
δ = 9.62, 9.32, 9.13, 8.62 (s, each 1H, 5-, 10-, and 20-H, 31-CH), 5.14, 5.06 (d, each 1H, JH-H = 19.9
Hz, 131-CH2), 5.06, 4.54 (m, each 1H, 17-, and 18-H), 3.75 (m, 2H, 81-CH2), 3.59, 3.53, 3.31, 3.23 (s,
each 3H, 21-, 71-, and 121-CH3, 172-COOMe), 2.60, 2.24 (m, each 2H, 171-, and 172-CH2), 1.77 (d,
3H, 3JH-H = 7.5 Hz, 181-CH3), 1.67 (t, 3H, 3JH-H = 7.7 Hz, 82-CH3) ppm. 13C{1H} NMR (101 MHz,
DMSO-d6): δ = 195.2, 176.5, 172.9, 167.7, 163.2, 160.1, 156.6, 152.0, 149.8, 147.1, 145.3, 145.0, 143.0, 142.7,
137.2, 135.1, 133.1, 132.9, 131.6, 120.5, 119.1, 105.3, 105.1, 98.4, 92.7, 66.4, 66.2, 66.0, 65.7, 65.5, 51.0, 50.1,
47.7, 47.6, 29.9, 29.2, 24.0, 23.8, 23.6, 23.5, 23.4, 23.0, 18.5, 17.2, 13.2, 12.0, 10.4 ppm. ESI-ToF HR-MS:
calcd for C36H36N5O5 [M + H]+ m/z 618.2716, found 618.2717. UV-Visible (THF):
λ
max
(ε) 409 (33000),
515 (5000), 550 (4000), 636 (4500), 688 (13000) nm.
3.3. General Procedure for the Zinc Metalation to Obtain Dyes M2, M4 and M6
A saturated methanol solution of zinc acetate dihydrate (Zn(OAc)2 2H2O; 10 mL) was added to a
solution of metal-free chlorin (50 mg) in THF (50 mL). After stirring overnight, the solution turned
from brown to green. The mixture was filtered off and the filtrate was concentrated under vacuum.
The crude material was then recrystallized from a CH2Cl2/n-pentane mixture to afford the desired
zinc complex.
1
M2: (80%). H-NMR (400 MHz, Pyridine-d5):
δ = 9.84, 9.69, 8.83 (each s, each 1H, 5-, 10-, and
20-H), 8.19 (dd, 3JH-H = 17.8, 11.6 Hz, 1H, 31-H), 6.35, 6.15 (m, each 1H, 32-CH2), 5.56, 4.61 (m, each
1H,132-CH2), 4.61, 4.48 (m, each 1H, 17-, and 18-H), 3.70 (m, 5H, 81-CH2, and 121-CH3), 3.36 (21-CH3),
3.22 (s, 3H, 71-CH3), 2.93, 2.73 (m, each 2H, 171-, and 172-CH2), 1.85 (d, 3JH-H = 7.2 Hz, 3H, 181-CH3),
1.67 (t, 3JH-H = 7.6 Hz, 4H, 82-CH3) ppm. MALDI-ToF MS: calcd for C33H32N4O3Zn m/z 596.177, found
596.180. UV-Visible (THF): λmax (ε) 405 (23800), 427 (39500), 570 (2500), 609 (4400), 657 (22000) nm.
1
M4: (87%). H-NMR (400 MHz, CDCl3/Pyridine-d5):
δ = 9.41 (s, 1H, 10-H), 9.37 (s, 1H, 5-H), 9.03
(d, 1H, 3JH-H = 16.1 Hz, 32-CH), 8.56 (s, 1H, 20-H), 7.04 (d, 1H, 3JH-H = 16.1 Hz, 31-CH), 5.17, 5.01 (d,
each 1H, 3JH-H = 19.2 Hz, 132-CH2), 4.40, 4.20 (m, each 1H, 17-, and 18-H), 3.54, 3.48, 3.36, 3.10 (s, each
3H, 21-, 71-, and 121-CH3, 172-COOMe), 3.53 (m, 2H, 81-CH2), 2.60, 2.50 (m, each 1H, 172-CH2), 2.20 (m,
2H, 171-CH2), 1.72 (d, 3H, 3JH-H = 7.5 Hz, 181-CH3), 1.57 (t, 3H, 3JH-H = 7.7 Hz, 82-CH3) ppm. ESI-ToF
HR-MS: calcd for C35H34N4O5Zn [M + H]+ m/z 655.1899, found 655.1901. UV-Visible (THF):
λ
max
(ε)
414 (37600), 436 (54500), 531 (3500), 576 (4900), 621 (7900), 671 (40100) nm.
1
M6: (78%). H-NMR (400 MHz, DMSO-d6):
δ = 9.62, 9.13, 8.62 (s, 1H each, 5-, 10-, 15-, and 20-H),
9.32 (s, 1H, 30-H), 5.14, 5.05 (d, 1H each, JH-H = 19.9 Hz, 150-H), 4.55 (dd, 1H, 3JH-H = 7.4, 2.5 Hz,
3
3
18-H), 4.28 (d, 1H, JH-H = 8.2 Hz, 17-H), 3.59, 3.53, 3.31, 3.23 (s, 3H each), 2.60, 2.24 (m, 4H), 1.76
(d, 3H, 3JH-H = 7.7 Hz, 181-CH3), 1.65 (t, 3H, 3JH-H = 7.6 Hz, 82-CH3) ppm. ESI-ToF HR-MS: calcd
for C36H35N5O5Zn [M + H]+ m/z 680.1852, found 680.1851. UV-Visible (THF):
λ
max
(ε) 434 (48300),
532 (3800), 579 (4700), 625 (7900), 670 (36800) nm.
3.4. DFT Calculations
The ground-state geometry and electronic structure of all dyes and a large TiO2 cluster
(representative of the bulk) were obtained at the density functional theory (DFT) level using the
B3LYP hybrid functional and the 6-311G(d,p) basis set. All calculations were performed using
Gaussian09 [57]. Solvent effects were taken into account by employing the polarizable continuum
model (PCM) using the chloroform solvent as a proxy for the dielectric effects in the DSSC device.
3.5. Fabrication of Solar Cells
FTO-coated conducting glass substrates were cleaned by an ultrasonic treatment with water,
acetone and isopropanol for 10 min each before being treated for 5 min by UV-ozone. A compact layer
of TiO2 was deposited by spray-pyrolysis at 450 ◦C from a solution of titanium tetra-isopropoxide
and acetylacetone in ethanol following by annealing at 450 ◦C for 20 min (Film thickness 200 nm).

Molecules 2020, 25, 198
16 of 20
A nanoporous TiO2 layer was applied by spin-coating from a solution of a commercial TiO2 paste
(DSL 18NRT, Dyesol) in ethanol containing nano-sized anatase particles (Film thickness 1.6 m).
µ
The layers were then gradually annealed from 250 to 500 ◦C over 45 min. The substrates wer◦e then
treated in a 0.02 M TiCl4 aqueous solution for 2 h, rinsed with water and annealed at 450 C for
45 min. The electrodes were finally immersed in dye solutions that may hold chenodeoxycholic acid as
co-adsorbent for 15 h in the dark. After rinsing the electrodes, the hole conductor layer was deposited
by spin-coating from a spiro-OMeTAD (Solaronix) solution in chlorobenzene (180 mg.mL−1) containing
tert-butylpyridine and LiTFSI as additives, following a reported recipe [45]. Gold top electrodes were
finally evaporated under vacuum (10−6 mbar) using shadow masks that define two active areas per
substrate (around 0.15 cm2 each).
3.6. Characterization of Solar Cells
The J–V measurements, in the dark and under illumination, were performed in air using a Keithley
model 2400 digital source meter by applying independent external voltage to the cell and by measuring
the photogenerated current out from the cell. The spectral mismatch between the emission solar
simulator (Newport 1600W) and the global AM1.5G solar spectrum was corrected using a mismatch
factor and the solar simulator irradiance was adjusted accordingly using a certified silicon reference
cell in order to achieve an equivalent AM1.5G irradiance of one sun (100 mW
cm−2) on the test cells.
·
The incident photon to current efficiency (IPCE) was estimated using a monochromated 75 W xenon
lamp (Newport). The photocurrent, measured in static regime by a calibrated picoammeter (Keithley
485), was compared to the calibration current response recorded using a certified calibrated photodiode
(Newport). All data shown in this work were the average values of at least four parallel tests.
3.7. Fabrication of Solar Cells for EPR Experiments
FTO slides were washed and sonicated five times for 15 min each in water, ethanol, twice in
isopropanol and finally, analytical grade ethanol. FTO–TiO2 (18 NRT Solaronix) films were prepared
by “doctor blading” (uniformly spreading TiO2 paste on a pre-defined area of 1.25 cm2 on FTO glass
with a glass bar). The FTO electrode was then left for 30 min on an oven at 450 ◦C in order to sinter
the anatase crystals. The dye adsorption on FTO–TiO2 film electrodes was carried out by heating the
electrodes for 10 min at 75 ◦C on a hot plate, followed by immersion into a single dye solution in 50%
acetonitrile 50% tBuOH for a given time of 16 h. The DSSCs were electrically characterized by the use
of a solar simulator (Newport model 96,000 Oriel), equipped with a 150 W ozone free xenon lamp,
and a digital multimeter (Keithley 2600A) connected to a computer that used dedicated software for
test running.
3.8. EPR Characterization of Solar Cells
Before performing the EPR analysis of the complete DSSC, it was necessary to measure the solar
cell electrical performance in the absence and the presence of the spin probe. Indeed, only cells
showing well-measurable and reproducible electrical performances (not reported) were tested by EPR.
After measuring their electrical functionality, the cells were placed on the EPR cavity where a static
magnetic field is applied while a source of microwaves is also applied to the sample. This allows the
resonance condition that is necessary to promote the probe (4C-T) signal. EPR spectra were recorded
with an EMX-Bruker spectrometer operating at the X band (9.5 GHz) and interfaced with a PC (software
from Bruker for handling and recording the EPR spectra). The EPR spectra were simulated with the
NLSL software [58].
3.9. Transient Photovoltage Decay Mesurements
Transient photovoltage measurements were done on the cells illuminated by a bias light provided
by white LED of variable intensity [59]. An additional light pulse was superimposed using a 550 nm
green LED, and the transient electrical response of the cell was recorded in open-circuit conditions

Molecules 2020, 25, 198
17 of 20
using the high impedance input of a digital oscilloscope (Tektronix DPO4032, Tektronix, Bracknell, UK)
Transient photovoltage curves were fitted using mono-exponential functions, ensuring a perturbing
regime where the transient photogenerated charge density was kept below 1% of the stead-state
photogenerated charge density.
4. Conclusions
A series of chlorophyll derivatives M1–M6 equipped with either a non-conjugated carboxy or
a conjugated acrylic or cyanoacrylic anchoring group was prepared for their use as dye component
in all-solid state DSSCs. The use of a co-adsorbent was found to be crucial to improve the device
performance by avoiding the chlorin dye aggregation. The solar energy conversion efficiencies of
DSSCs bearing the acrylic group (M3
–
M4) were larger than those bearing the cyanoacrylic group
M6 compared to M3 M4 were attributed to several
(
M5 M6). The weakest performances of M5
–
–
–
factors: (i) a faster recombination kinetic at the titania/electrolyte interface, (ii) the position of the
LUMO below the TiO2 conduction band is not suitable for electron injection, and (iii) a lower amount
adsorbed onto the TiO2 surface. Nevertheless, although M1
terms of recombination kinetics and dye adsorption, higher PCEs were obtained which may suggest
that M1 M2 molecules have a suitable orientation on the TiO2 surface due the larger flexibility of the
–M2 exhibited not suitable features in
–
alkyl spacer, which may lead to improved charge transfer. This question will be addressed in future
investigations as well as their long-term stability.
Author Contributions: M.C. (Michèle Chevrier) carried out the synthesis of the chlorophyll derivatives, prepared
the chlorin-based DSSCs, analyzed their photovoltaic performances and wrote a part of this paper. C.K. and
C.R. participated to the synthesis of MPPa precursor. M.S. participated to the study of the optical properties of
the chlorin dyes. A.F. performed the EPR analysis and wrote the related part in the manuscript. M.C. (Michela
Cangiotti) helped to record the EPR spectra. M.F.O. simulate the EPR spectra. L.L. and D.B. performed the DFT
calculations. R.L. (PhD co-supervisor of M.C. (Mich
è
le Chevrier) in Belgium), P.D. (PhD co-supervisor of M.C.
le Chevrier) in France) participated to
(Mich le Chevrier) in Belgium) and A.M. (PhD supervisor of M.C. (Mich
è
è
the early research. J.B. supervised the ssDSSC fabrication and characterization, including TPV measurements. S.R.
and S.C. participated to the early research, supervised the research and wrote the paper. All authors have read
and agreed to the published version of the manuscript.
Funding: This research was funded by CNRS, PEPS “Caesar” from the 2017 call from l’INSIS and Région
Languedoc-Roussillon (Research Grant “Chercheur(se)s d’Avenir-2015–005984) and the FEDER program
(Fonds Européen de Développement Régional).
Acknowledgments: The authors thank the Université de Montpellier for financial support. S.R and S.C. also
thanks Phyco-biotech for providing spirulina. Research in Mons is supported by FNRS-FRFC (through the
Excellence of Science ‘2Dto3D’ project and Consortium des Equipements de Calcul Intensif—CECI) and the
European Commission and Région Wallonne (through the FEDER BIORG-EL project). M.S and D.B. are FNRS
senior research associate and research director, respectively. J.B. acknowledges the PLATINOM technologic
platform at XLIM (and common facility of the University of Limoges), as well as the SIGMALIM Laboratory
of Excellence.
Conflicts of Interest: The authors declare no conflict of interest.
References and Note
1.
Barnham, K.W.J.; Mazzer, M.; Clive, B. Resolving the energy crisis: Nuclear or photovoltaics? Nat. Mater.
2006, 5, 161–164. [CrossRef]
2.
Blankenship, R.E.; Tiede, D.M.; Barber, J.; Brudvig, G.W.; Fleming, G.; Ghirardi, M.; Gunner, M.R.; Junge, W.;
Kramer, D.M.; Melis, A.; et al. Comparing Photosynthetic and Photovoltaic Efficiencies and Recognizing the
Potential for Improvement. Science 2011, 332, 805. [CrossRef] [PubMed]
3.
4.
Zhang, T.; Liu, C.; Dong, W.; Wang, W.; Sun, Y.; Chen, X.; Yang, C.; Dai, N. Photoelectrochemical Complexes
of Fucoxanthin-Chlorophyll Protein for Bio-Photovoltaic Conversion with a High Open-Circuit Photovoltage.
Chem. Asian J. 2017, 12, 2996–2999. [CrossRef] [PubMed]
Yu, Z.; You, S.; Wang, C.; Bu, C.; Bai, S.; Zhou, Z.; Tai, Q.; Liu, W.; Guo, S.; Zhao, X.-z. Efficient dye-sensitized
solar cells employing highly environmentally-friendly ubiquinone 10 based I2-free electrolyte inspired by
photosynthesis. J. Mater. Chem. A 2014, 2, 9007–9010. [CrossRef]

Molecules 2020, 25, 198
18 of 20
5.
6.
7.
Calogero, G.; Bartolotta, A.; Di Marco, G.; Di Carlo, A.; Bonaccorso, F. Vegetable-based dye-sensitized solar
cells. Chem. Soc. Rev. 2015, 44, 3244–3294. [CrossRef] [PubMed]
Ammar, A.M.; Mohamed, H.S.H.; Yousef, M.M.K.; Abdel-Hafez, G.M.; Hassanien, A.S.; Khalil, A.S.G.
Dye-Sensitized Solar Cells (DSSCs) Based on Extracted Natural Dyes. J. Nanomater. 2019, 2019, 10. [CrossRef]
Quintana, N.; Van der Kooy, F.; Van de Rhee, M.D.; Voshol, G.P.; Verpoorte, R. Renewable energy from
Cyanobacteria: Energy production optimization by metabolic pathway engineering. Appl. Microbiol. Biotechnol.
2011, 91, 471–490. [CrossRef]
8.
9.
Sarma, M.K.; Kaushik, S.; Goswami, P. Cyanobacteria: A metabolic power house for harvesting solar energy
to produce bio-electricity and biofuels. Biomass Bioenergy 2016, 90, 187–201. [CrossRef]
Wondraczek, L.; Batentschuk, M.; Schmidt, M.A.; Borchardt, R.; Scheiner, S.; Seemann, B.; Schweizer, P.;
Brabec, C.J. Solar spectral conversion for improving the photosynthetic activity in algae reactors. Nat. Commun.
2013, 4, 2047. [CrossRef]
10. Calvin, M. Solar Energy by Photosynthesis. Science 1974, 184, 375. [CrossRef]
11. O’Regan, B.; Grätzel, M. A low-cost, high-efficiency solar cell based on dye-sensitized colloidal TiO2 films.
Nature 1991, 353, 737–740. [CrossRef]
12. Grätzel, M. Recent Advances in Sensitized Mesoscopic Solar Cells. Acc. Chem. Res. 2009, 42, 1788–1798.
[CrossRef] [PubMed]
13. Mathew, S.; Yella, A.; Gao, P.; Humphry-Baker, R.; Curchod, B.F.E.; Ashari-Astani, N.; Tavernelli, I.;
Rothlisberger, U.; Nazeeruddin, M.K.; Grätzel, M. Dye-sensitized solar cells with 13% efficiency achieved
through the molecular engineering of porphyrin sensitizers. Nat. Chem. 2014, 6, 242. [CrossRef]
14. Kakiage, K.; Aoyama, Y.; Yano, T.; Oya, K.; Fujisawa, J.-i.; Hanaya, M. Highly-efficient dye-sensitized solar
cells with collaborative sensitization by silyl-anchor and carboxy-anchor dyes. Chem. Commun. 2015, 51,
15894–15897. [CrossRef] [PubMed]
15. Hardin, B.E.; Snaith, H.J.; McGehee, M.D. The renaissance of dye-sensitized solar cells. Nat. Photonics 2012, 6,
162–169. [CrossRef]
16. Jung, H.S.; Lee, J.-K. Dye Sensitized Solar Cells for Economically Viable Photovoltaic Systems. J. Phys.
Chem. Lett. 2013, 4, 1682–1693. [CrossRef] [PubMed]
17. Chevrier, M.; Hawashin, H.; Richeter, S.; Mehdi, A.; Surin, M.; Lazzaroni, R.; Dubois, P.; Ratier, B.; Boucl
Cl ment, S. Well-designed poly(3-hexylthiophene) as hole transporting material: A new opportunity for
solid-state dye-sensitized solar cells. Synth. Met. 2017, 226, 157–163. [CrossRef]
é, J.;
é
18. Benesperi, I.; Michaels, H.; Freitag, M. The researcher’s guide to solid-state dye-sensitized solar cells. J. Mater.
Chem. C 2018, 6, 11903–11942. [CrossRef]
19. Bouclé, J.; Ackermann, J. Solid-state dye-sensitized and bulk heterojunction solar cells using TiO2 and
ZnO nanostructures: Recent progress and new concepts at the borderline. Polym. Int. 2012, 61, 355–373.
[CrossRef]
20. Cao, Y.; Saygili, Y.; Ummadisingu, A.; Teuscher, J.; Luo, J.; Pellet, N.; Giordano, F.; Zakeeruddin, S.M.;
Moser, J.E.; Freitag, M.; et al. 11% efficiency solid-state dye-sensitized solar cells with copper(II/I) hole
transport materials. Nat. Commun. 2017, 8, 15390. [CrossRef]
21. Zhang, W.; Wu, Y.; Bahng, H.W.; Cao, Y.; Yi, C.; Saygili, Y.; Luo, J.; Liu, Y.; Kavan, L.; Moser, J.-E.;
et al. Comprehensive control of voltage loss enables 11.7% efficient solid-state dye-sensitized solar cells.
Energy Environ. Sci. 2018, 11, 1779–1787. [CrossRef]
22. Best Research-Cell Efficiencies. Available online: https://www.nrel.gov/pv/assets/pdfs/best-research-cell-
efficiencies.20190923.pdf (accessed on 2 January 2019).
23. Adeloye, A.O.; Ajibade, P.A. Towards the Development of Functionalized PolypyridineLigands for Ru(II)
Complexes as Photosensitizers inDye-Sensitized Solar Cells (DSSCs). Molecules 2014, 19, 12421–12460.
[CrossRef]
24. Qin, Y.; Peng, Q. Ruthenium Sensitizers and Their Applications in Dye-Sensitized Solar Cells. Int. J. Photoenergy
2012, 2012, 21. [CrossRef]
25. Ji, J.-M.; Zhou, H.; Kim, H.K. Rational design criteria for D–π–A structured organic and porphyrin sensitizers
for highly efficient dye-sensitized solar cells. J. Mater. Chem. A 2018, 6, 14518–14545. [CrossRef]
26. The yield of 12 g of chlorophyll an extracted from 1 kg of spirulina is based on an ethanolic extraction of
spirulina obtained as a dry green powder from Algosud®.

Molecules 2020, 25, 198
19 of 20
27. Agostiano, A.; Catucci, L.; Cosma, P.; Fini, P. Aggregation processes and photophysical properties of
chlorophyll a in aqueous solutions modulated by the presence of cyclodextrins. Phys. Chem. Chem. Phys.
2003, 5, 2122–2128. [CrossRef]
28. Wang, X.-F.; Tamiaki, H.; Wang, L.; Tamai, N.; Kitao, O.; Zhou, H.; Sasaki, S.-I. Chlorophyll-a Derivatives with
Various Hydrocarbon Ester Groups for Efficient Dye-Sensitized Solar Cells: Static and Ultrafast Evaluations
on Electron Injection and Charge Collection Processes. Langmuir 2010, 26, 6320–6327. [CrossRef]
29. Sasaki, S.-i.; Wang, X.-F.; Ikeuchi, T.; Tamiaki, H. Synthesis of carboxylated chlorophylls and their application
as functional materials. J. Porphyr. Phthalocyanines 2015, 19, 517–526. [CrossRef]
30. Tamiaki, H.; Hagio, N.; Tsuzuki, S.; Cui, Y.; Zouta, T.; Wang, X.-F.; Kinoshita, Y. Synthesis of carboxylated
chlorophyll derivatives and their activities in dye-sensitized solar cells. Tetrahedron 2018, 74, 4078–4085.
[CrossRef]
31. Li, Y.; Zhao, W.; Li, M.; Chen, G.; Wang, X.-F.; Fu, X.; Kitao, O.; Tamiaki, H.; Sakai, K.; Ikeuchi, T.; et al.
Chlorophyll-Based Organic–Inorganic Heterojunction Solar Cells. Chem. Eur. J. 2017, 23, 10886–10892.
[CrossRef]
32. Zhao, W.; Sasaki, S.-I.; Tamiaki, H.; Sanehira, Y.; Wei, Y.; Chen, G.; Wang, X.-F. Enhancement of performance
in chlorophyll-based bulk-heterojunction organic-inorganic solar cells upon aggregate management via
solvent engineering. Org. Electron. 2018, 59, 419–426. [CrossRef]
33. Cui, Y.; Zhao, W.; Ogasawara, S.; Wang, X.-F.; Tamiaki, H. Fabrication and performance of all-solid-state
dye-sensitized solar cells using synthetic carboxylated and pyridylated chlorophyll derivatives. J. Photochem.
Photobiol. A 2018, 353, 625–630. [CrossRef]
34. Smith, K.M.; Goff, D.A.; Simpson, D.J. The meso substitution of chlorophyll derivatives: Direct route for
transformation of bacteriopheophorbides d into bacteriopheophorbides c. J. Am. Chem. Soc. 1985, 107,
4946–4954. [CrossRef]
35. Tamiaki, H.; Amakawa, M.; Shimono, Y.; Tanikaga, R.; Holzwarth, A.R.; Schaffner, K. Synthetic Zinc and
Magnesium Chlorin Aggregates as Models for Supramolecular Antenna Complexes in Chlorosomes of Green
Photosynthetic Bacteria. Photochem. Photobiol. 1996, 63, 92–99. [CrossRef]
36. Sun, L.; Wang, S. Spectral and nonlinear optical properties of chlorophyll b depends on distortion of
two-dimensional electron configuration along one axis. Dyes Pigm. 2004, 61, 273–278. [CrossRef]
37. Li, Y.; Sasaki, S.-i.; Tamiaki, H.; Liu, C.-L.; Song, J.; Tian, W.; Zheng, E.; Wei, Y.; Chen, G.; Fu, X.; et al. Zinc
chlorophyll aggregates as hole transporters for biocompatible, natural-photosynthesis-inspired solar cells.
J. Power Sources 2015, 297, 519–524. [CrossRef]
38. Jungsuttiwong, S.; Sirithip, K.; Prachumrak, N.; Tarsang, R.; Sudyoadsuk, T.; Namuangruk, S.; Kungwan, N.;
Promarak, V.; Keawin, T. Significant enhancement in the performance of porphyrin for dye-sensitized solar
cells: Aggregation control using chenodeoxycholic acid. New J. Chem. 2017, 41, 7081–7091. [CrossRef]
39. Kay, A.; Graetzel, M. Artificial photosynthesis. 1. Photosensitization of titania solar cells with chlorophyll
derivatives and related natural porphyrins. J. Phys. Chem. 1993, 97, 6272–6277. [CrossRef]
40. Lee, K.-M.; Suryanarayanan, V.; Ho, K.-C.; Justin Thomas, K.R.; Lin, J.T. Effects of co-adsorbate and additive
on the performance of dye-sensitized solar cells: A photophysical study. Sol. Energy Mat. Sol. Cells 2007, 91,
1426–1431. [CrossRef]
41. Yum, J.-H.; Jang, S.-r.; Humphry-Baker, R.; Grätzel, M.; Cid, J.-J.; Torres, T.; Nazeeruddin, M.K. Effect of
Coadsorbent on the Photovoltaic Performance of Zinc Pthalocyanine-Sensitized Solar Cells. Langmuir 2008
24, 5636–5640. [CrossRef]
,
42. Lu, H.-P.; Tsai, C.-Y.; Yen, W.-N.; Hsieh, C.-P.; Lee, C.-W.; Yeh, C.-Y.; Diau, E.W.-G. Control of Dye Aggregation
and Electron Injection for Highly Efficient Porphyrin Sensitizers Adsorbed on Semiconductor Films with
Varying Ratios of Coadsorbate. J. Phys. Chem. C 2009, 113, 20990–20997. [CrossRef]
43. Qu, S.; Wu, W.; Hua, J.; Kong, C.; Long, Y.; Tian, H. New Diketopyrrolopyrrole (DPP) Dyes for Efficient
Dye-Sensitized Solar Cells. J. Phys. Chem. C 2010, 114, 1343–1349. [CrossRef]
44. Nazeeruddin, M.K.; Humphry-Baker, R.; GrÄTzel, M.; WÖHrle, D.; Schnurpfeil, G.; Schneider, G.; Hirth, A.;
Trombach, N. Efficient Near-IR Sensitization of Nanocrystalline TiO2 Films by Zinc and Aluminum
Phthalocyanines. J. Porphyr. Phthalocyanines 1999, 3, 230–237. [CrossRef]
45. Melhem, H.; Simon, P.; Beouch, L.; Goubard, F.; Boucharef, M.; Di Bin, C.; Leconte, Y.; Ratier, B.;
Herlin-Boime, N.; Bouclé, J. TiO2 Nanocrystals Synthesized by Laser Pyrolysis for the Up-Scaling of
Efficient Solid-State Dye-Sensitized Solar Cells. Adv. Energy Mater. 2011, 1, 908–916. [CrossRef]

Molecules 2020, 25, 198
20 of 20
46. Schmidt-Mende, L.; Bach, U.; Humphry-Baker, R.; Horiuchi, T.; Miura, H.; Ito, S.; Uchida, S.; Grätzel, M.
Organic Dye for Highly Efficient Solid-State Dye-Sensitized Solar Cells. Adv. Mater. 2005, 17, 813–815.
[CrossRef]
47. Erten-Ela, S.; Ocakoglu, K.; Tarnowska, A.; Vakuliuk, O.; Gryko, D.T. Performance of zinc chlorophyll based
molecules for dye sensitized solar cell. Dyes Pigm. 2015, 114, 129–137. [CrossRef]
48. Ocakoglu, K.; Erten-Ela, S.; Saleem Joya, K.; Harputlu, E. Artificial zinc chlorin dyes for dye sensitized solar
cell. Inorg. Chim. Acta 2016, 439, 30–34. [CrossRef]
49. Dhafina, W.A.; Daud, M.Z.; Salleh, H. The sensitization effect of anthocyanin and chlorophyll dyes on optical
and photovoltaic properties of zinc oxide based dye-sensitized solar cells. Optik 2019, 163808. [CrossRef]
50. Panda, B.B.; Mahapatra, P.K.; Ghosh, M.K. Application of Chlorophyll as Sensitizer for ZnS Photoanode in a
Dye-Sensitized Solar Cell (DSSC). J. Electron. Mater. 2018, 47, 3657–3665. [CrossRef]
51. Wang, X.-F.; Kitao, O.; Zhou, H.; Tamiaki, H.; Sasaki, S.-i. Extension of π-conjugation length along the Qy
axis of a chlorophylla derivative for efficient dye-sensitized solar cells. Chem. Commun. 2009, 1523–1525.
[CrossRef]
52. Sun, Y.; Wang, X.-F.; Chen, G.; Zhan, C.-H.; Kitao, O.; Tamiaki, H.; Sasaki, S.-i. Near-infrared absorption
carboxylated chlorophyll-a derivatives for biocompatible dye-sensitized hydrogen evolution. Int. J.
Hydrog. Energy 2017, 42, 15731–15738. [CrossRef]
53. Fattori, A.; Cangiotti, M.; Fiorani, L.; Lucchi, S.; Ottaviani, M.F. Characterization of the TiO2/Dye/Electrolyte
Interfaces in Dye-Sensitized Solar Cells by Means of a Titania-Binding Nitroxide. Langmuir 2014, 30,
13570–13580. [CrossRef] [PubMed]
54. Boucher, L.J.; Katz, J.J. Aggregation of metallochlorophylls. J. Am. Chem. Soc. 1967, 89, 4703–4708. [CrossRef]
55. Tamiaki, H.; Yagai, S.; Miyatake, T. Synthetic zinc tetrapyrroles complexing with pyridine as a single axial
ligand. Bioorg. Med. Chem. 1998, 6, 2171–2178. [CrossRef]
56. Wang, X.-F.; Koyama, Y.; Wada, Y.; Sasaki, S.-i.; Tamiaki, H. A dye-sensitized solar cell using
pheophytin–carotenoid adduct: Enhancement of photocurrent by electron and singlet-energy transfer and
by suppression of singlet–triplet annihilation due to the presence of the carotenoid moiety. Chem. Phys. Lett.
2007, 439, 115–120. [CrossRef]
57. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.;
Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Electronic Supplementary Material(ESI) for Chemical
Science. Available online: http://www.rsc.org/suppdata/c5/sc/c5sc02423d/c5sc02423d1.pdf (accessed on
2 January 2019).
58. Khairy, K.; Budil, D.; Fajer, P. Nonlinear-least-squares analysis of slow motional regime EPR spectra.
J. Magn. Reson. 2006, 183, 152–159. [CrossRef]
59. O’Regan, B.C.; Lenzmann, F. Charge Transport and Recombination in a Nanoscale Interpenetrating Network
of n-Type and p-Type Semiconductors: Transient Photocurrent and Photovoltage Studies of TiO2/Dye/CuSCN
Photovoltaic Cells. J. Phys. Chem. B 2004, 108, 4342–4350. [CrossRef]
Sample Availability: Samples of the compounds M1–M6 are available from the authors.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
