conceptual idea for designing solution processed organic semi-
conductors capable of forming highly ordered thin films in
large areas.
This work is supported by National Basic Research Program
of China (973 Project, No. 2009CB623603) of Chinese Ministry
of Science and Technology, NSFC (No. 20921061 and
50833004).
Notes and references
ꢀ

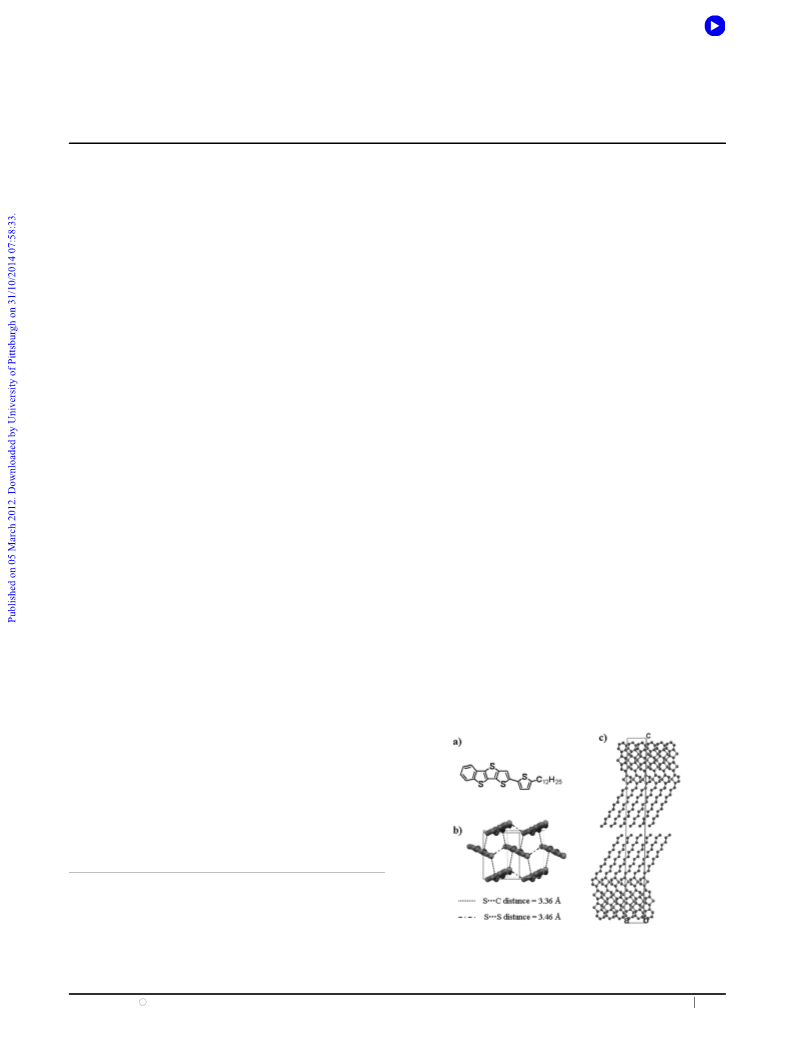

z Crystal data: C28
32 4
H S , M = 496.76, triclinic, space group P1, a =
.8660(7) A, b = 7.5451(9) A, c = 56.721(7) A, a = 91.309(2)1, b =
˚
˚
˚
5
9
1
3
˚
1.191(2)1, g = 90.093(2)1, V = 2509.2(5) A , T = 185(2) K, Z = 4,
2 251 reflections measured, 8584 unique (Rint = 0.0261). R = 0.1367,
1
2
wR = 0.3014. CCDC 863201.
1
K. Takimiya, S. Shinamura, I. Osaka and E. Miyazaki, Adv.
Mater., 2011, 23, 4347.

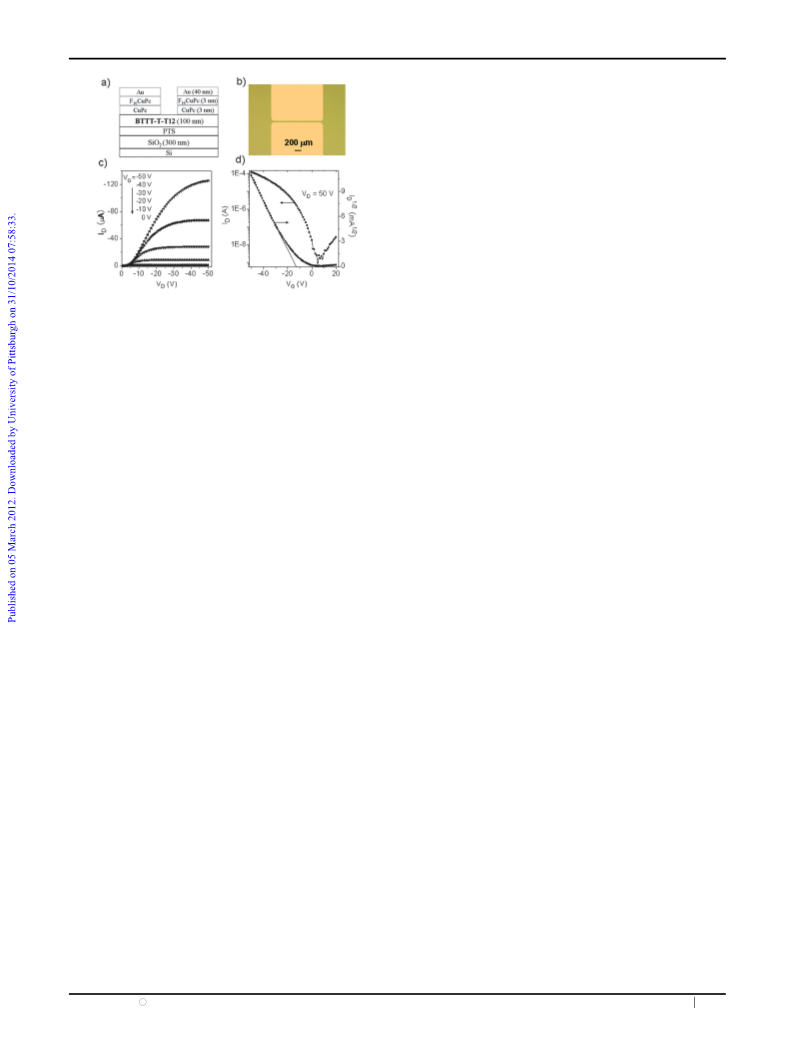

Fig. 5 The top-contact device geometries (a). (b) The photographic
image of an OTFT device. The width and length of the channel are 1500
and 50 mm, respectively. Typical output (c) and transfer (d) curves of the
OTFTs.
2
3
4
H. Dong, C. Wang and W. Hu, Chem. Commun., 2010, 46, 5211.
W. Wu, Y. Liu and D. Zhu, Chem. Soc. Rev., 2010, 39, 1489.
A. C. Arias, J. D. MacKenzie, I. McCulloch, J. Rivnay and
A. Salleo, Chem. Rev., 2010, 110, 3.
5
6
(a) J. Yang and D. Yan, Chem. Soc. Rev., 2009, 38, 2634; (b) W. Shao,
H. Dong, L. Jiang and W. Hu, Chem. Sci., 2011, 2, 590.
L. Jiang, H. Dong and W. Hu, J. Mater. Chem., 2010, 20, 4994.

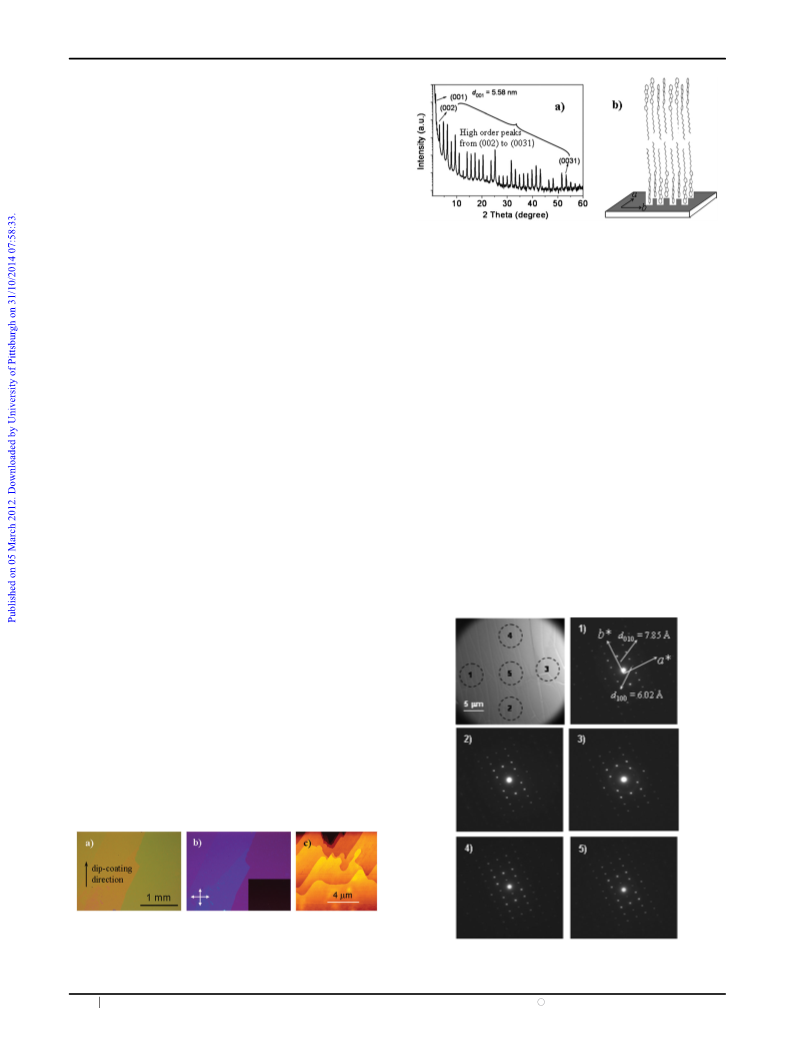

normal, allowing the preparation of B100 nm thick single
crystal films. In contrast, DTBDT-C9 and condensed benzo-
17
20
thiophene derivative adopt a 1D p–p stacking motif in the
crystals and the thin film prepared by dip-coating shows a rod or
dendritic-like morphology.
7 R. Li, W. Hu, Y. Liu and D. Zhu, Acc. Chem. Res., 2010, 43, 529.
8
9
C. Reese and Z. Bao, J. Mater. Chem., 2006, 16, 329.
(a) V. C. Sunder, J. Zaumseil, V. Podzorov, E. Menard, R. L. Willett,
T. Someya, M. E. Gershenson and J. A. Rogers, Science, 2004,
303, 1644; (b) S. Haas, Y. Takahashi, K. Takimiya and
T. Hasegawa, Appl. Phys. Lett., 2009, 95, 022111; (c) M. M. Islam,
F. Valiyev, H. Lu, M. Kuo, I. Chao and Y. Tao, Chem. Commun.,
Top-contact SCOTFTs with a configuration as shown in
Fig. 5a were fabricated on the entrained single crystal films by
vacuum deposition of a hexadecafluorophthalocyanine/copper
phthalocyanine (F16CuPc (3 nm)/CuPc (3 nm)) buffer layer
and Au source and drain electrodes (40 nm) in succession
through a shadow mask. The resulting devices have a channel
width (W) of 1500 mm and a channel length (L) of 50 mm
2011, 47, 2008; (d) J. H. Oh, H. W. Lee, S. Mannsfeld,
R. M. Stoltenberg, E. Jung, Y. W. Jin, J. M. Kim, J. Yoo and
Z. Bao, Proc. Natl. Acad. Sci. U. S. A., 2009, 106, 6065; (e) W. Jiang,
Y. Zhou, H. Geng, S. Jiang, S. Yan, W. Hu, Z. Wang, Z. Shuai and
J. Pei, J. Am. Chem. Soc., 2011, 133, 1.
1
1
0 (a) Y. Zhou, T. Lei, L. Wang, J. Pei, Y. Cao and J. Wang, Adv.
Mater., 2010, 22, 1484; (b) I. Bae, S. J. Kang, Y. J. Shin, Y. J. Park,
R. H. Kim, F. Mathevet and C. Park, Adv. Mater., 2011, 23, 3398;
(
Fig 5b). Since BTTT-T-C12 exhibits a deep highest occupied
molecular orbital (HOMO) energy level at ꢀ5.57 eV as
(
c) R. Li, L. Jiang, Q. Meng, J. Gao, H. Li, Q. Tang, M. He,
estimated by cyclic voltammogram measurement (Fig. S4,
W. Hu, Y. Liu and D. Zhu, Adv. Mater., 2009, 21, 4492.
1 H. Minemawari, T. Yamada, H. Matsui, J. Tsutsumi, S. Haas,
R. Chiba, R. Kumai and T. Hasegawa, Nature, 2011, 475, 364.
2
1
ESIw), the F16CuPc/CuPc buffer layer was used in order to
reduce the contact resistance. At least 6 devices were fabri-
cated for confirming the reliability. Device performance
measurements were done in an ambient atmosphere. The typical
output and transfer curves of the devices are shown in Fig. 5c
and d, and the mobility was calculated from the saturation
regime. For the devices with the channel length along the
12 M. L. Tang, M. E. Roberts, J. J. Locklin, M. M. Ling, H. Meng
and Z. Bao, Chem. Mater., 2006, 18, 6250.
1
3 Y. Y. Lin, D. J. Gundlach, S. F. Nelson and T. N. Jackson, IEEE
Electron Device Lett., 1997, 18, 606.
14 H. Ebata, T. Izawa, E. Miyazaki, K. Takimiya, M. Ikeda,
H. Kuwabara and T. Yui, J. Am. Chem. Soc., 2007, 129, 15732.
15 T. Yamamoto and K. Takimiya, J. Am. Chem. Soc., 2007,
2
ꢀ1 ꢀ1
dip-coating direction, a mobility of 0.6–0.7 cm V
threshold voltage of ꢀ10 to ꢀ15 V and a current on/off ratio of
s with a
1
29, 2224.
16 C. W. Sele, B. K. C. Kjellander, B. Niesen, M. J. Thornton, J. Bas,
P. H. van der Putten, K. Myny, H. J. Wondergem, A. Moser,
R. Resel, A. J. J. M. van Breemen, N. van Aerle, P. Heremans,
J. E. Anthony and G. H. Gelinck, Adv. Mater., 2009, 21, 4926.
5
0 was achieved. The mobility perpendicular to the dip-coating
1
2
direction was 0.2–0.3 cm V
ꢀ1 ꢀ1
s , one third of that along the
dip-coating direction. It is found that a non-linear drain current
increases at a low-drain voltage even with the F16CuPc/CuPc
buffer layer. A similar phenomenon was also observed in other
1
7 L. Li, P. Gao, K. C. Schuermann, S. Ostendorp, W. Wang, C. Du,
Y. Lei, H. Fuchs, L. De Cola, K. Mullen and L. Chi, J. Am. Chem.
Soc., 2010, 132, 8807.
¨
1
0a,b,22
18 L. Jiang, H. Dong, Q. Meng, H. Li, M. He, Z. Wei, Y. He and
W. Hu, Adv. Mater., 2011, 23, 2059.
SCOFETs.
at the metal/organic-semiconductors interface
resistance of the films itself from the metal to the conductive
This should be ascribed to the injection barrier
10a,b
or the high
1
9 (a) E. Menard, A. Marchenko, V. Podzorov, M. E. Gersherson,
D. Fichou and J. A. Rogers, Adv. Mater., 2006, 18, 1552;
(b) T. Minato, H. Aoki, H. Fukidome, T. Wagner and K. Itaya,
Appl. Phys. Lett., 2009, 95, 093302.
22
channel.
In conclusion, we have shown that the single crystal film with
lateral dimensions of several millimetres can be prepared from a
highly asymmetric conjugated oligomer by a dip-coating method.
2
2
2
0 N. Liu, Y. Zhou, L. Wang, J. Peng, J. Wang, J. Pei and Y. Cao,
Langmuir, 2009, 25, 665.
1 X. Yan, J. Wang, H. Wang, H. Wang and D. H. Yan, Appl. Phys.
Lett., 2006, 89, 053510.
2 (a) D. Braga and G. Horowitz, Adv. Mater., 2009, 21, 1473;
2
ꢀ1 ꢀ1
A high mobility of 0.7 cm V
s along with the high current
on/off ratio has been realized with a device structure generally
used in solution processed OTFTs. These results provide a
(b) L. Jiang, W. Hu, Z. Wei, W. Xu and H. Meng, Adv. Mater.,
2009, 21, 3649.
This journal is c The Royal Society of Chemistry 2012
Chem. Commun., 2012, 48, 3557–3559 3559
