Heteroaryl phosphonates as non-covalent inhibitors
of both serine and metallo-carbapenemases
Orville Antonio Pemberton, Priyadarshini Jaishankar, Afroza Akhtar,
Jessie L Adams, Lindsey N. Shaw, Adam R. Renslo, and Yu Chen
J. Med. Chem., Just Accepted Manuscript • DOI: 10.1021/acs.jmedchem.9b00728 • Publication Date (Web): 04 Sep 2019
Downloaded from pubs.acs.org on September 5, 2019
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 53
Journal of Medicinal Chemistry
1
2
3
4
5
Heteroaryl phosphonates as non-covalent inhibitors of both serine-
and metallo-carbapenemases
6
7
8
9
Orville A. Pemberton1, Priyadarshini Jaishankar2, Afroza Akhtar1, Jessie L. Adams3, Lindsey N. Shaw3,
Adam R. Renslo2*, & Yu Chen1*
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1Department of Molecular Medicine, University of South Florida Morsani College of Medicine, 12901
Bruce B. Downs Blvd, MDC 3522, Tampa, Florida 33612, United States
2Department of Pharmaceutical Chemistry and Small Molecule Discovery Center, University of California
San Francisco, 600 16th Street, Genentech Hall N574, San Francisco, California 94158, United States
3Department of Cell Biology, Microbiology & Molecular Biology, University of South Florida, 4202 E.
Fowler Ave., Tampa, Florida 33620, United States
*Address correspondence to Adam R. Renslo, adam.renslo@ucsf.edu; Yu Chen, ychen1@health.usf.edu
ACS Paragon Plus Environment

Journal of Medicinal Chemistry
Page 2 of 53
1
2
3
Abstract
4
5
6
7
8
9
Gram-negative pathogens expressing serine β-lactamases (SBLs) and metallo-β-lactamases (MBLs),
especially those with carbapenemase activity, threaten the clinical utility of almost all β-lactam antibiotics.
Here we describe the discovery of a heteroaryl phosphonate scaffold that exhibits non-covalent cross-
class inhibition of representative carbapenemases, specifically the SBL KPC-2 and the MBLs NDM-1 and
VIM-2. The most potent lead, compound 16, exhibited low nM to low µM inhibition of KPC-2, NDM-1, and
VIM-2. Compound 16 potentiated imipenem efficacy against resistant clinical and laboratory bacterial
strains expressing carbapenemases, while showing some cytotoxicity toward human HEK293T cells only
at concentrations above 100 µg/mL. Complex structures with KPC-2, NDM-1, and VIM-2 demonstrate how
these inhibitors achieve high binding affinity to both enzyme classes. These findings provide a structurally
and mechanistically new scaffold for drug discovery targeting multidrug resistant Gram-negative
pathogens, and more generally highlight the active site features of carbapenemases that can be leveraged
for lead discovery.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment

Page 3 of 53
Journal of Medicinal Chemistry
1
2
3
Introduction
4
5
6
7
8
9
The penicillins were among the first effective antibiotics, and current generation β-lactams such
as the cephalosporins and carbapenems remain crucial agents in the treatment of serious, life-
threatening bacterial infections1. Resistance to β-lactam antibiotics most commonly involves the
production of β-lactamase enzymes that hydrolyze the β-lactam ring2. There are four classes of β-
lactamase (A, B, C, and D), which differ from one another based on their amino acid sequence and
mechanism of action. Classes A, C, and D are serine β-lactamases (SBLs), whereas class B are metallo-β-
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
lactamases (MBLs) that use either one or two zinc ions to promote the hydrolysis reaction3, 4
.
Carbapenems (e.g., imipenem, meropenem, doripenem, and ertapenem) are often considered
to be “last-resort” antibiotics on account of their effectiveness in treating serious, multidrug resistant
infections5-7. Unfortunately, the recent emergence of carbapenem-resistant Enterobacteriaceae (CRE)
and multidrug resistant Pseudomonas aeruginosa threatens the utility of all currently available β-lactam
antibiotics. CRE and P. aeruginosa infections are associated with high rates of morbidity and mortality
worldwide due to limited treatment options8-10. Carbapenem resistance in CRE and P. aeruginosa can be
mediated by several factors, especially by the production of carbapenemases11-13. Carbapenemase
activity is exhibited by some class A and D SBLs and by all class B MBLs14, 15. Most serine carbapenemases
are versatile enzymes that can hydrolyze nearly all β-lactam substrates7, 14. While MBLs also have a
broad substrate spectrum, they are unable to catalyze the hydrolysis of monobactams4, 16, 17. Among
carbapenemases, of greatest concern currently are the class A SBL KPC-2 and the MBLs NDM-1 and VIM-
2, all of which are commonly isolated from CRE, P. aeruginosa, and other Gram-negative pathogens16.
A number of β-lactamase inhibitors have been developed to address the growing problem of β-
lactam antibiotic resistance, although currently marketed agents target only SBLs and not MBLs16, 18
Classical β-lactamase inhibitors like clavulanic acid are active against many class A SBLs but possess
limited activity against class C and D SBLs, and no activity against most serine or metallo-
.
carbapenemases16, 19. Newer, non-β-lactam derived compounds like avibactam20 cover an expanded
ACS Paragon Plus Environment

Journal of Medicinal Chemistry
Page 4 of 53
1
2
3
4
5
6
7
8
spectrum of class A, C, and D SBLs, including KPC-2, but are inactive against MBLs21, 22. Notwithstanding
some recent progress with boronic acid-based inhibitors23, 24, finding cross-class inhibitor leads remains a
significant and challenging problem25.
9
In this study, we used structure-based design, synthetic chemistry, and X-ray crystallography to
identify and explore common features of non-covalent small molecule binding by SBLs and MBLs. We
identified a heteroaryl phosphonate scaffold with low μM to low nM affinities against KPC-2, NDM-1,
and VIM-2, that also exhibits promising cell-based activity and good lead-like properties. Complex
crystal structures of several analogs have revealed underappreciated structural features that likely
underlie the broad substrate spectrum of carbapenemases. Taken together, these data offer a new
chemotype and actionable information to guide development of new agents to counter carbapenemase-
mediated resistance in pathogenic Gram-negative bacteria.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Results
A novel inhibitor chemotype for the KPC-2 serine carbapenemase
To develop novel inhibitor chemotypes, we sought to identify fragment- or lead-sized
compounds that bound with high ligand efficiency (L.E.) (defined as binding enthalpy per non-H atom)26
to the SBL KPC-2. The decision to start with KPC-2 was based on the expectation that ligand affinity for
KPC-2 would derive from non-covalent interactions with active-site residues, while screening against
MBLs could be dominated by chelation-driven interactions 27. We thus performed molecular docking of
KPC-2 using the ZINC database28 and identified several hits, including the coumarin-4-
methylphosphonate 1 that is the focus of the current study (Table 1).
Using a biochemical assay with the nitrocefin substrate, we observed 1 to be a moderately
potent and ligand-efficient inhibitor of KPC-2 (Ki = 32.9 µM; L.E. = 0.34 kcal mol-1 heavy atom-1). To probe
SAR around this hit, we identified five related commercial analogs (2-6) that differed in substitution at
positions C5-C7 of the coumarin ring. The potencies and ligand efficiencies of analogs 2-5 revealed that
ACS Paragon Plus Environment

Page 5 of 53
Journal of Medicinal Chemistry
1
2
3
4
5
6
7
8
9
substitution at C7, as well as a lack of substitution at C6, were important for activity. Thus, regioisomers
4 and 5 bearing methyl groups at C7 or C6, respectively, exhibited Ki (and L.E.) values of 23.3 µM (0.38
kcal mol-1 HA-1) and 154.4 µM (0.31 kcal mol-1 HA-1) against KPC-2. Analogs 2 and 6, both unsubstituted
at C6, were the most potent and ligand efficient of the commercial analogs, with Ki values in the low-µM
regime and L.E. values of 0.39 and 0.45, respectively.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Having established an apparent preference for substitution at both C5 and C7 (as in compound
6), we evaluated additional, similarly substituted synthetic analogs. First, the steric and electronic
Table 1. Biochemical activities of phosphonate compounds against KPC-2, NDM-1 and VIM-2.
Compound a
Ki
Ki
Ki
L.E. a
(KPC-2)
X
Y
Z
R1
R2
R3
(KPC-2)
µM
(NDM-1)
µM
(VIM-2)
µM
32.9 ± 3.3
1
O
C=O
C
Me
Me
H
H
0.34
44.3 ± 7.3
2.1 ± 0.1
8.4 ± 0.4
15.3 ± 2.5
23.3 ± 4.6
154.4
2
3
O
O
O
O
O
C=O
C=O
C=O
C=O
C=O
C
C
C
C
C
OMe
H
H
0.39
0.35
0.38
0.31
0.45
123.7 ± 3.6
N/A b
2.1 ± 0.2
N/A
OCH2O
4
5c
Me
H
H
Me
H
H
N/A
N/A
H
N/A
N/A
6
Me
Me
1.4 ± 0.2
33.8 ± 3.8
0.82 ± 0.1
7
8
O
O
C=O
C=O
C=O
C=O
C=O
C
C
C
C
C
C
Me
F
H
H
H
H
H
H
OMe
F
11.9 ± 1.1
9.3 ± 1.8
0.36
0.39
0.49
0.39
0.33
0.32
N/A
N/A
No inhib
3.3 ± 0.1
1.2 ± 0.16
3.3 ± 0.03
6.4 ± 0.04
7.5 ± 0.02
9
O
Me
Me
H
Br
F
0.246 ± 0.047
8.5 ± 0.3
34.2 ± 8.0
230.2 ± 3.2
190.2 ± 22.6
81.0 ± 12.8
10
11
12
O
NH
H
142.3 ± 22.3
101.5 ± 8.6
NMe C=O
H
H
13
14
15
NH
C=O
C
N
C
Me
H
H
H
H
Me
-
2.2 ± 0.8
0.43
0.27
0.30
56.2 ± 4.3
741.3 ± 53.1
No inhib
3.4 ± 0.03
22.3 ± 1.3
30.3 ± 3.2
C=C
N=C
730.4 ± 87.4
326.1 ± 56.8
H
H
16
NH
C=O
C
Br
H
Br
0.020 ± 0.007
0.59
31.4 ± 1.9
0.316 ± 0.015
a L.E. = Ligand Efficiency in units of kcal mol-1 number of heavy atom-1 or kcal mol-1 HA-1
b N/A, not tested.
c Compound 5 was tested only once due to limited availability.
ACS Paragon Plus Environment

Journal of Medicinal Chemistry
Page 6 of 53
1
2
3
4
5
6
7
8
9
character of the C5 substituent was modified systematically in analogs sharing a C7-Me group
(compounds 7, 9, 10). Increasing the size of the C5 substituent from –F to –CH3 to –Br improved potency
and ligand efficiency, with the C5-Br analog 9 providing a new benchmark in potency and ligand
efficiency (Ki = 0.246 µM; L.E. = 0.49 kcal mol-1 HA-1). With respect to the electronic nature of the
coumarin ring, the dimethyl substitution as in compound 6 was preferred over the more electron rich
(compound 7) or electron deficient (compound 8) coumarin analogs.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Next, we explored replacement of O1 of the coumarin ring with nitrogen to produce the 1,2-
dihydroquinolin-2-one (DHQ) analogs 11-13. This change was well tolerated, with 5,7-dimethyl-DHQ
analog 13 (Ki = 2.2 µM; L.E. = 0.43 kcal mol-1 HA-1) essentially equipotent to its coumarin congener 6.
Substitution on the ring N atom in the DHQ scaffold was also tolerated, with analogs 11 and 12
exhibiting comparable potencies and ligand efficiencies. The favorable effect of C5/C7 substitution
noted in the coumarin series is true as well in DHQ analogs, with dimethyl analog 13 notably more
potent than unsubstituted DHQ comparators 11 and 12. Quinoline analogs 14 and 15 lacking the ring
carbonyl of the DHQ scaffold exhibited very weak potencies and ligand efficiencies 2-5 times inferior to
the relevant DHQ comparator 11, suggesting that the carbonyl group is involved in recognition and
binding by KPC-2. Finally, the introduction of bromine substituents at C5 and C7 of the DHQ scaffold
produced compound 16, with activity ~7,000-fold improved over the parent DHQ analog 11, and an
impressive Ki of 20 nM against KPC-2 that is to our knowledge the highest affinity non-covalent inhibitor
of any SBL reported to date.
To define key residues and interactions that contribute to inhibitor binding by KPC-2, we
determined complex crystal structures with compounds 1, 2, 3, 6, and 9 (Fig. 1 and Fig. S2) at resolutions
of 1.45 Å and better. All ligands were unambiguously identified in the composite simulated annealing
ACS Paragon Plus Environment

Page 7 of 53
Journal of Medicinal Chemistry
1
2
3
4
5
6
a
b
wat
wat
wat
H274
R220
H274
C238
R220
T235
T237
T235
T237
C69
wat
7
C238
8
9
C69
Compound 1
K234
Compound 6
K234
S130
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
T216
T216
S70
K73
S70
S130
E166
K73
W105
L167
L167
N132
E166
W105
P104
P104
d
c
H274
H274
C238
R220
R220
C238
T235
T237
C69
T235
T237
C69
Sulfate
Compound 1
E166
Compound 1
Compound 6
K234
T216
K234
S130
T216
S70
K73
S70
K73
S130
L167
N132
E166
N132
L167
W105
W105
P104
P104
Figure 1. Crystal structures reveal binding mode of coumarin phosphonate analogs 1 and 6 to KPC-2.
The composite simulated annealing mFo-DFc omit maps are colored in gray and contoured at 3 σ.
Water molecules are shown as red spheres. Black dashed lines represent hydrogen bonds. (a)
Compound 1 bound to KPC-2 (PDB ID 6D15). (b) Compound 6 bound to KPC-2 (PDB ID 6D18). (c)
Compound 1 complex (white and green) superimposed onto KPC-2 apo structure (purple, PDB ID
5UL8). (d) Compound 1 complex (white and green) superimposed onto compound 2 complex (purple).
mFo-DFc omit maps contoured at 3 σ. Interestingly, for the complex with compound 1, there appears to
be additional density corresponding to a potential second copy of 1; however, the occupancy was too
low to confidently model in. In each complex structure, the phosphonate moiety establishes hydrogen
bonds (HB) with S70, S130, T235, T237, and forms a water-mediated HB with the backbone carbonyl of
T216. Notably, the carbonyl oxygen atom of the inhibitor forms a water-mediated HB with R220 and
ACS Paragon Plus Environment

Journal of Medicinal Chemistry
Page 8 of 53
1
2
3
4
5
H274, perhaps revealing why quinoline analogs 14 and 15 that lack such carbonyl functionality are
weaker inhibitors of KPC-2.
6
7
8
9
Also revealed in these structures were some important details concerning the KPC-2 active site.
The unfavorable effect of C6-Me substitution is explained by a potential steric clash between the C6
methyl group and N132, which restricts the binding mode of 1 (Fig. 1a). Moving this substituent to the
C5 position as in 6 and 9 avoids the steric occlusion and allows the coumarin ring to swing towards
W105 (Fig. 1b). Concomitantly, a conformational change in W105 brings the side chain closer to the face
of the coumarin ring, forming a π-π stacking interaction. At the same time, the C5-Me substituent in
compounds 6 and 9 itself contributes to binding affinity by forming non-polar interactions with W105.
Regarding KPC-2 enzymology, the large hydrophobic surface of W105, coupled with a conformational
flexibility revealed in our complex and apo structures (Fig. 1c, 1d), appears to endow KPC-2 with
significant versatility in interacting with small molecule substrates and inhibitors.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The SAR analysis and complex crystal structures also highlight the contribution to ligand binding
of a non-polar surface consisting of P104 and especially L167, which is in contact with the C7-Me or C7-
Br substitutions in 6, 9 and 16 (Fig. 1 and S2). Replacing the C7-Me in 9 by –Br in 16 increases the activity
by ~12-fold, through increasing the interactions with this non-polar surface.
Cross-class inhibition of metallo-β-lactamases
Having established that heteroaryl phosphonates are recognized by the active site of KPC-2, we
next asked whether the clinically relevant MBLs NDM-1 and VIM-2 might also recognize these
compounds, as SBLs and MBLs clearly do with their shared β-lactam substrates 29. We first tested a
subset of the coumarin, DHQ, and quinoline analogs for biochemical activity against NDM-1 and VIM-2.
Notably, inhibition of NDM-1 and VIM-2 was generally strongest for analogs with substitution at both C5
and C7, mirroring our findings with KPC-2 (Table 1). Thus, compounds 6, 8, 9, 13, and 16 were better
ACS Paragon Plus Environment

Page 9 of 53
Journal of Medicinal Chemistry
1
2
3
4
5
6
7
8
9
inhibitors of the MBLs than comparators lacking C5 and C7 substituents (11, 12, 14, 15). Compounds 9
and 16, the most potent KPC-2 inhibitors, were also two of the most potent inhibitors of NDM-1 (Ki =
34.2 µM and 31.4 µM) and VIM-2 (Ki = 1.2 µM and 0.316 µM). While the compounds inhibited VIM-2
more potently than NDM-1, rank-order activity of the compound series was similar for the two enzymes.
Generally, and across all three enzymes, inhibitor potency improved with increasing hydrophobic
surface area. There is a particularly striking correlation between the activities for KPC-2 and VIM-2
(Table 1, e.g. comparing 15, 6 and 16). However, compared with KPC-2, the MBLs were less sensitive to
the positioning of ring substituents (e.g., C5 vs C6, comparing 1 and 6). Ring fluorination as in analogs 8
and 10 was unexpectedly detrimental to NDM-1 activity, an observation that will require further
investigation.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Complex structures were determined for NDM-1 with compounds 1-3, 6-9, and 11-14, and for
VIM-2 with compounds 8 and 14, all solved at resolutions of 1.70 Å and better (Fig. 2, Fig. S3-S4), initially
using soaking conditions at acidic pH (pH 3.8) to maintain stability of NDM-1 (vide infra). The binding
orientation of the inhibitors was unambiguously identified in the composite simulated annealing mFo-
DFc omit maps contoured at 3 σ (Fig. 2, Fig. S3-S4). In each structure, the phosphonate group bridges
the zinc ions in NDM-1 and VIM-2, displacing a hydroxide ion that is essential for catalysis4. For NDM-1,
the coumarin, DHQ, and quinoline analogs all form common interactions within the active site. These
interactions include HBs from the phosphonate group to N220 and D124, the latter of which forms a
similar interaction with the hydroxide ion in apo structures30, 31. The heteroaryl ring of all three scaffolds
form non-polar interactions with M67, W93 and V73. An edge-face interaction between the heteroaryl
ring and F70 is evident in many NDM-1 complex structures.
One interesting and unexpected aspect revealed in the NDM-1 structures is the ability of the
enzyme to bind similar ligands in one of two distinct orientations: one pointing the ring carbonyl group
away from V73 (pose 1, e.g., compound 1, Fig. 2a) and the other towards it (pose 2, e.g., 6, Fig. 2b).
ACS Paragon Plus Environment

Journal of Medicinal Chemistry
Page 10 of 53
1
2
3
4
5
6
7
8
9
Pose 1 is observed in the complex structures of compounds lacking C5 substitution (e.g., 1, Fig. 2 and 2,
3, 11, 12 Fig. S3). In contrast, pose 2 is favored for compounds with C5 substitutions as it allows
additional interactions with H122 (e.g., pi-sigma interaction with -Me in 6 (distance 3.67 Å), Fig. 2b; pi-
alkyl interaction with -Br in 9 (distance 3.78 Å), Fig. S3d). This small pocket near H122 in NDM-1 is
analogous to the slot adjacent to W105 in KPC-2, which similarly accommodates the C5 substituent.
Also, of note, is that the side chain of F70 in NDM-1 exhibits significant conformational mobility,
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
a
b
H189
Zn1
H120
H189
Acetate
H120
H122
N220
Zn1
H122
N220
Acetate
C208
Zn2
C208
Zn2
H250
D124
D124
H250
Compound 1
Compound 6
M67
W93
V73
W93
M67
F70
F70-conf A
F70-conf B
V73
c
d
H189
H122
N220
H196
H118
Zn1
H120
Acetate
Zn1
Compound 8
F70-conf B
H116
C221
N233
Compound 8
C208
Zn2
D120
D124
Zn2
H263
W87
H250
F61
M67
W93
F70-conf A
R228
Y67
V73
Figure 2. X-ray crystal structures of NDM-1 and VIM-2 bound to coumarin phosphonate derivatives.
The composite simulated annealing mFo-DFc omit maps, determined at 1.15-1.50 Å resolutions, are
colored in gray and contoured at 3 σ, except panel d, which has been contoured at 2 σ. Black dashed
lines represent hydrogen bonds. Zinc coordination is shown as thin sticks. (a) NDM-1 with 1 (PDB ID
6D1A). (b) NDM-1 with 6 (PDB ID 6D1D). (c) NDM-1 with 8 (PDB ID 6D1F). (d) VIM-2 with 8 (PDB ID
6DD0). F70 of NDM-1 adopts two conformations (labeled F70-conf A and F70-conf B) in the complex
structures of 6 and 8.
ACS Paragon Plus Environment

Page 11 of 53
Journal of Medicinal Chemistry
1
2
3
4
5
6
7
8
9
allowing the formation of favorable CH-π interactions with the C7-Me of 1 (Fig. 2a) and edge-face
interactions with compounds 11 and 12 (Fig. S3). Overall the relative openness of the NDM-1 active site
and the flexibility of the M67-F70 loop accommodates distinct binding orientations depending on ligand
substitution pattern32. To some extent this echoes the role of W105 in KPC-2 while affording more
plasticity in ligand binding33. However, as described earlier, KPC-2 is more sensitive than NDM-1 to the
positions of the substituents on the heteroaryl ring, as demonstrated by the different activities of
compounds 1 (C6/C7 substitution) and 6 (C5/C7 substitution) against KPC-2, in contrast to the similar Ki
values against NDM-1.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
We solved structures of the 5,7-difluoro compound 8 (Fig. 2) and the smaller quinoline analog
14 (Fig. S3) bound to both NDM-1 and VIM-2, also at pH 3.8, to compare how these two MBLs interacted
with a common ligand. Although compound 8 did not show inhibition of NDM-1 under our standard
experimental conditions, pre-incubation of the compound with NDM-1 demonstrated weak inhibitory
activity (data not shown), suggesting the compound does interact with NDM-1. In both structures with
NDM-1 and VIM-2, compound 8 adopts pose 2, with the phosphonate group forming a HB with N233
and D120 in VIM-2 (Fig. 2d). The coumarin ring of compound 8 forms a π-π stacking interaction with Y67
of VIM-2, van der Waals interactions with W87, and an edge-face interaction with H263, analogous to
the contacts made by other analogs with F70/W93/H250 in NDM-1. Unique to VIM-2 is the presence of
R228 near the active site, which can establish a HB with the carbonyl oxygen of compound 8 and may
enhance binding and constrain the orientation of the compound, particularly in comparison to NDM-1.
In addition, the stacking interactions between the inhibitor and Y67 in VIM-2 may be more favorable
than contacts with similarly positioned residues M67 or F70 in NDM-1 and can also contribute to
stronger binding affinity for VIM-2.
The observed displacement of the active site hydroxide by phosphonate-bearing inhibitors in
the structures described above, together with the low pH of the soaks, suggested that the phosphonate
ACS Paragon Plus Environment

Journal of Medicinal Chemistry
Page 12 of 53
1
2
3
4
5
6
7
8
9
group was in the protonated monoanionic state, and therefore was able to form a HB with the
negatively charged D124, similar to the hydroxide. The use of these conditions was required as the WT
NDM-1 crystals were only stable at low pH. We hypothesized that this was due to the need for a

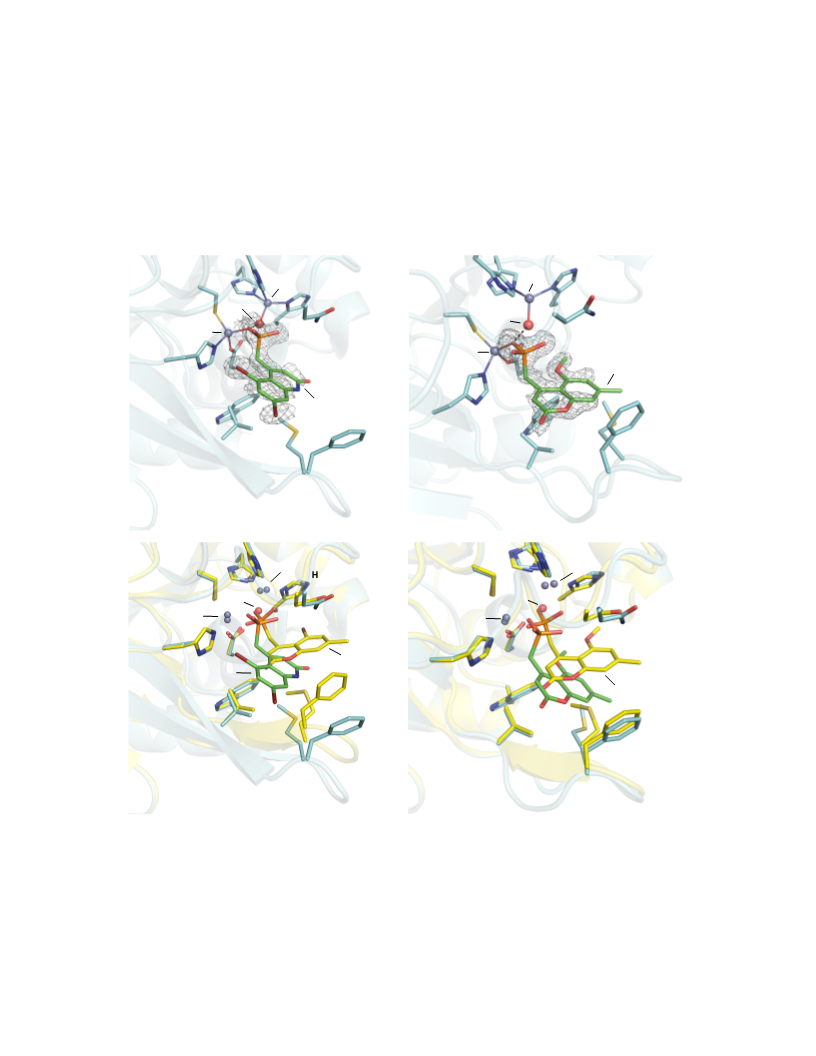

neutral/protonated D199 at the crystal packing interface. We subsequently constructed a D199N
mutant and were able to determine the complex structures of 7 and 16 at physiological pH (pH 7.5) (Fig.
10
