Synthesis and physiochemical properties of novel gemini surfactants with phenyl-1,4-bis(carbamoylmethyl) spacer

Article abstract of DOI:10.1039/c5ra13616d

A series of novel gemini surfactants, namely, phenyl-1,4-bis[(carbamoylmethyl) N,N-dimethylalkyl ammonium chloride)] (a, b and c), was synthesized systematically and characterized by FTIR, ¹H NMR, ¹³C NMR and MS. The surface and bulk

Full text of DOI:10.1039/c5ra13616d

View Article Online
View Journal
RSC Advances
This article can be cited before page numbers have been issued, to do this please use: L. Wang, Z. Yue,
D. Limin, L. Jia, Z. Bing, D. Qigang and Y. Tie, RSC Adv., 2015, DOI: 10.1039/C5RA13616D.
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Accepted Manuscripts are published online shortly after
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. This Accepted Manuscript will be replaced by the edited,
formatted and paginated article as soon as this is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the Ethical guidelines still
apply. In no event shall the Royal Society of Chemistry be held
responsible for any errors or omissions in this Accepted Manuscript
or any consequences arising from the use of any information it
contains.
www.rsc.org/advances

Page 1 of 13
RSC Advances
View Article Online
DOI: 10.1039/C5RA13616D
Synthesis and physiochemical properties of novel gemini surfactants with
phenyl-1,4-bis (carbamoylmethyl) spacer
a,b
a
c
a
a
a
b
Liyan Wang , Yue Zhang , Limin Ding , Jia Liu , Bing Zhao , Qigang Deng * and Tie Yan *
a
College of Chemistry and Chemical Engineering, Qiqihar University, Qiqihar, 161006, P. R. China
b
Key Laboratory of Enhanced Oil & Gas Recovery, Ministry of Education, Northeast Petroleum University, Daqing,163318,P. R. China
c
Cadre ward, Qiqihaer first Hospital, Qiqihar 161005, P. R. China
*
Correspondent. Eꢀmail: wlydlm@126.com
A series of novel gemini surfactants, namely phenyl-1,4-bis [(carbamoylmethyl) N,N- dimethylalkyl ammonium chloride)] (a, b and c) were
1
13
synthesized systematically and characterized by FT IR, H NMR, C NMR and MS. Their surface and bulk properties were evaluated by surface
tension, conductivity, viscosity, dynamic light scattering (DLS) and transmission electron microscopy (TEM) measurements. These surfactants have
been found to have low surface tension (γCMC) values as compared to other categories of gemini cationic surfactants and to form vesicles in solution at
low concentration. The DLS and TEM studies showed that the aggregations of the above surfactants changed from larger globule vesicles and smaller
globule micelles to network aggregates and then to globule vesicles with the increase of the surfactant concentration. It is assumed that this unusual
aggregation behavior is related to the transformation of molecular conformation, phenyl-1,4-bis(carbamoylmethyl) spacer with rigidity and a
hydrogen-bonding capability. The thermodynamic parameters of micellization process, namely, standard Gibbs free energy (ꢀGº
m m
), enthalpy (ꢀHº )
and entropy (ꢀSº ) were derived from conductivity measurement at different temperatures. Krafft points of three gemini surfactants are very low.
m
Gemini surfactants are amphiphilic molecules containing two hydrophilic head groups and two hydrophobic tails connected by a spacer at
two head groups. Many studies have been carried out on gemini surfactants, focusing on their unique surface and bulk properties such as
high surface activity, low critical micelle concentration(CMC), and more abundant selfꢀassembly morphologies than the corresponding
1
ꢀ4
traditional singleꢀchain surfactants. Owing to these unique properties, gemini surfactants have been widely used in industrial detergency,
5
ꢀ10
the construction of highꢀporosity materials, templates for the synthesis of nanoparticles, nanorods, etc.
surfactants attract great attention in academic research.
The chemical structures of the gemini surfactants play an important role in their aggregation behavior.
So, aggregation behavior of
Especially, the nature of the
11, 12
spacer group (length, flexibility, polarity) has been shown to be of the utmost importance in determining the solution properties of aqueous
1
3, 14
gemini surfactants.
These effects lead to the synergism of two alkyl tails of a gemini molecule, the change in the charge density of its
headgroup, the variation of its molecule geometry by which rich structures and morphologies of aggregates yield, etc. More detailed, the
6
,15
flexible spacer influences the above functions of the gemini mainly depending on its length. Too long flexible spacer can bend toward the
alkyl tails so as to meet the chemical environment around the molecule, by which the molecule selfꢀassembly is influenced. The effect of the
1
6
short rigid spacer is almost identical with that of the flexible spacer having a similar length. However, the long rigid spacer yields quite
different effects from the flexible spacer owing to the two alkyl tails are inhibited to be close, which leads to the columnꢀlike molecular shape
1
7,18
and the identical probability for the cis/trans configuration of the two alkyl tails around the spacer.
long rigid spacer change aggregates morphology with increasing the gemini surfactant concentration or adding a few additives.
chemical modification for the spacer is also discussed, which is expected to promote molecular selfꢀassembly, or give some new functions to
These make the gemini surfactant with
1
9,20
The
21ꢀ24
the aggregates.
The most widely studied gemini surfactants are cationic alkanediylꢀα,ωꢀbis (alkyldimethyl ꢀ ammonium) dibromide, which are referred to
as CMC , where m and s stand for the carbon atom number in the tail alkyl chain and in the methylene spacer, respectively. Previous
studies had shown that the variation of the spacer and the tail alkyl chain usually affects the aggregation behavior of CMC
s m
C
2,25
s
C
m
,
and the
CMC
micelles.
s
C
m
2
series (4 ≤ s ≤ 12, 12 ≤ m ≤16) tends to form higherꢀcurvature aggregates in aqueous solutions, such as spherical or elongated
6,27
Therefore, to design and synthesize a series ofnew gemini surfactants with phenylꢀ1,4ꢀbis (carbamoylmethyl) as spacer
(phenyl possesses rigidity and NꢀH can easy to form hydrogen bond) tend to form larger aggregates (vesicles and network aggregations) than
micelles in aqueous solutions. Their properties such as surface activity, selfꢀaggregation behavior were investigated, which would contribute
to extend the potential application, such as templates for the synthesis of nanoparticles, nanorods, the synthesis of mesoporous material and
so on.
In this paper, Gemini surfactants phenylꢀ1,4ꢀbis [(carbamoylmethyl) N,Nꢀ dimethylalkyl ammonium chloride)] (a, b and c) have been
synthesized. Their surface activity, thermodynamic property and aggregation behavior were evaluated by surface tension, electrical
conductivity, transmission electron microscopy (TEM) and dynamic light scattering (DLS) techniques.
Experimental
Materials and instruments
All reagents were of analytical grade and used directly without further purification. Melting point (m.p) was measured by using Xꢀ6 micro
melting point apparatus, Beijing Tektronix Instrument Company; FTꢀIR was obtained through using Nicolet750 infrared spectrometer,
1
13
American Nicolet Company; H NMR and C NMR were recorded by using Avance 400 superconducting NMR, Switzerland Bruker

RSC Advances
Page 2 of 13
View Article Online
DOI: 10.1039/C5RA13616D
Company, DMSO and CDCl
spectrometer, American Agilent Company; surface tension was tested on a K100 Tensionmeter, Germany Kruss Company; conductivity was
measured on Leici DDSꢀ11A conductivity analyzer, Shanghai Leici Instrument Company; krafft temperature (T ) was determined by heating
the surfactant solution until a clear solution was obtained. All solution concentrations of these surfactants were 1 wt.% (i.e. well above the
3
used as the solvents; mass spectral analyses were carried out on an Agilent 7500 ESIꢀIon Trop Mass
K
1
5
CMC of the investigated surfactants) using visual observation method. DLS measurements were performed on a Malvern autosizer,
Malvern, UK Company; TEM was obtained with an Hꢀ7650, Sitachi Instruments Company; relative viscosities were measured in two
Ubbelohde viscometers thermostatted, Shanghai Huake equipment Company.
Synthesis of 1,4-bis(chloroethylamido)benzene
28
1
,4ꢀbis(chloroethylamido)benzene was synthesized according to the literature. 2ꢀchloroacetyl chloride (2mL, 25.0 mmol) was dissolved in
chloroform (15 mL), then added dropwise to a stirred solution of 1,4ꢀphenylene diamine (1.103 g, 10.0 mmol) and pyridine (2.1 mL, 25.0
mmol) in chloroform (30 mL). The pale purple solid was precipitated immediately. After stirred for 4 h under nitrogen atmosphere at room
temperature, the pale purple solid was filtered, washed by saturated sodium bicarbonate solution and water respectively, dried and yielded
2.436 g of 1,4ꢀbis(chloroethylamido)benzene. The synthesis of the gemini surfactants (a, b and c) is illustrated in Scheme 1.
O
O
Cl
R
Cl
N
NH2
HN
HN
O
N
+
2
Cl
+
2
Cl
N
R
r.t,4h
80℃ 7h
NH2
HN
HN
Cl
R
Cl
N
O
O
1
,4ꢀbis(chloroethylamido)benzene
gemini surfactants (a, b, c)
R=CnH2n+1, a: n=12, b: n =14, c: n=16
Scheme 1 Synthetic routes of gemini surfactants (a, b and c).
Characterization of 1,4-bis(chloroethylamido)benzene
,4-bis(chloroethylamido)benzene yield. 92.98%. FT IR (KBr pellet) v (cm ): 3 420 (NꢀH stretching, amino), 3 096 (CꢀH stretching,
benzene ring), 2 952 (CꢀH stretching, methyl), 1 668 (C=O stretching, carbonyl), 1 595, 1 514, 1 407 (C=C stretching, benzene ring), 739
ꢀ
1
1
1
(
Z 2
CꢀCl bending). H NMR (600 MH , DMSO), δ: 10.31 (s, 2H, NH), 7.53 (s, 4H, PhH), 4.21 (s, 4H, O=CꢀCH ꢀ).
Synthesis of the gemini surfactants (a, b and c)
0.0 mmol of 1,4ꢀbis(chloroethylamido)benzene and 30 mL of N,Nꢀdimethylformamide (DMF) were added to a threeꢀneck roundꢀbottom
flask, and 25.0 mmol of N,Nꢀdimethyl alkylamine (CH ) NC H (n = 12, 14, and 16) was added dropwise into the flask, then the mixture
1
3
2
n
2n+1
was stirred and reacted at 80℃ under nitrogen for 6ꢀ7 h. The resulting crude mixtures were cooled to 25℃. DMF was removed from the
crude reaction mixture under reduced pressure in rotary flash evaporator at 80℃. It was then allowed to cool. The solid product was purified
by recrystallization from mixtures of ethyl acetate and chloroform for five times to give each the gemini surfactants (a, b and c) as white
solids and then dried in a vacuum oven for 5ꢀ6 h at 40℃. The yields were 68.82%, 71.64%, and 72.97% for a, b and c, respectively. The
1
13
synthesis process was shown in Scheme 1. The structures of all products were confirmed by the characterization of FIꢀIR, H NMR,
C
NMR and ESIꢀMS.
Characterization of the gemini surfactants (a, b and c)
Phenyl-1,4-bis[(carbamoylmethyl)-N,N-dimethyldodecyl ammonium chloride)] a: White solid, m.p.: 204.2ꢀ205.4℃. FT IR (KBr
ꢀ
1
pellet) v (cm ): 3 497 (NꢀH stretching, amino), 3 027 (CꢀH stretching, benzene ring), 2 920 (CꢀH stretching, methyl), 2 851 (CꢀH stretching,
methylene), 1 680 (C=O stretching, carbonyl), 1 563, 1 520, 1 470 (C=C stretching, benzene ring), 1 418 (CꢀH bending, methyl), 721 (alkyl
1
+
chain bending, methylene). H NMR (400 MH
Z
, CDCl
3
),
δ
: 11.09 (s, 2H, NH), 7.51 (s, 4H, PhH), 4.87 (s, 4H, CH
2
N ), 3.69 (br s, 4H,
+
+
+
13
N CH
2
CH
2
), 3.48 (s, 12H, N CH
3
), 1.80 (m, 4H, N CH
2
CH
2
), 1.24ꢀ1.34 (m, 36H, alkyl chain), 0.87 (t, J = 6.8 Hz, 6H, CH
3
). C NMR (150
ꢀ6
MH , CDCl
Z
3
),
δ
(*10 ): 161.12, 134.18, 120.58, 65.78, 63.87, 51.98, 31.90, 29.58, 29.43, 29.38, 29.32, 29.14, 26.26, 22.96, 22.68, 14.13.
ESI MS (positive ions) m/z: found 615. 6 for [Mꢀ2ClꢀH] , 308.3 for [Mꢀ2Cl] .
+
2+
Phenyl-1,4-bis[(carbamoylmethyl)-N,N-dimethyltetradecyl ammonium chloride)] b: White solid, m.p.: 210.1ꢀ212.2℃. FT IR (KBr
ꢀ
1
pellet) v (cm ): 3 456 (NꢀH stretching, amino), 3 080 (CꢀH stretching, benzene ring), 2 917 (CꢀH stretching, methyl), 2 850 (CꢀH stretching,
methylene), 1 683 (C=O stretching, carbonyl), 1 588, 1 517, 1 470 (C=C stretching, benzene ring), 1 415 (CꢀH bending, methyl), 720 (alkyl
1
+
chain bending, methylene). H NMR (400 MH
Z
, CDCl
3
),
δ
: 11.11 (s, 2H, NH), 7.52 (s, 4H, PhH), 4.88 (s, 4H, CH
2
N ), 3.69 (br s, 4H,
+
+
+
13
N CH
2
CH
2
), 3.49 (s, 12H, N CH
3
), 1.81 (m, 4H, N CH
2
CH
2
), 1.21ꢀ1.35 (m, 44H, alkyl chain), 0.87 (t, J = 6.8 Hz, 6H, CH
3
). C NMR (150
ꢀ6
MH , CDCl
Z
3
),
δ
(*10 ): 161.13, 134.16, 120.59, 65.80, 63.88, 51.97, 31.93, 29.67, 29.65, 29.59, 29.44, 29.39, 29.36, 29.15, 26.26, 22.96,
2.69, 14.13. ESI MS (positive ions) m/z: found 671.6 for [Mꢀ2ClꢀH] , 336.3 for [Mꢀ2Cl] .
+
2+
2
Phenyl-1,4-bis[(carbamoylmethyl)-N,N-dimethylhexadecyl ammonium chloride)] c: White solid, m.p.: 204.1ꢀ205.4℃. FT IR (KBr
ꢀ
1
pellet) v (cm ): 3 434 (NꢀH stretching, amino), 3 019 (CꢀH stretching, benzene ring), 2 955, 2 921 (CꢀH stretching, methyl), 2 851 (CꢀH
stretching, methylene), 1 682 (C=O stretching, carbonyl), 1 574, 1 513, 1 469 (C=C stretching, benzene ring), 1 404 (CꢀH bending, methyl),

Page 3 of 13
RSC Advances
View Article Online
DOI: 10.1039/C5RA13616D
1
+
7
8
23 (alkyl chain bending, methylene). H NMR (400 MH
Z
, CDCl
3
),
δ
: 11.25 (s, 2H, NH), 7.55 (s, 4H, PhH), 4.89 (s, 4H, CH
CH
(*10 ): 161.12, 134.15, 120.60, 65.80, 63.89, 51.98, 31.93, 29.71, 29.69, 29.67, 29.65, 29.60, 29.45, 29.40,
2
N ), 3.68 (t, J =
+
+
+
13
.0 Hz, 4H, N CH
NMR (150 MH , CDCl
9.37, 29.16, 26.27, 22.97, 22.70, 14.13. ESI MS (positive ions) m/z: found 727.7 for [Mꢀ2ClꢀH] , 364.4 for[Mꢀ2Cl] .
2
CH
2
), 3.50 (s, 12H, N CH
3
), 1.81 (m, 4H, N CH
2
2 3
), 1.25ꢀ1.36 (m, 52H, alkyl chain), 0.88 (t, J = 6.8 Hz, 6H, CH ). C
ꢀ6
Z
3
),
δ
+
2+
2
Krafft point
The Krafft temperature (T
K
) was determined by heating the surfactant solution until a clear solution was obtained. All solution concentrations
15
of these surfactants were 1 wt.% (i.e. well above the CMC of the investigated surfactants) using visual observation method.
Surface tension

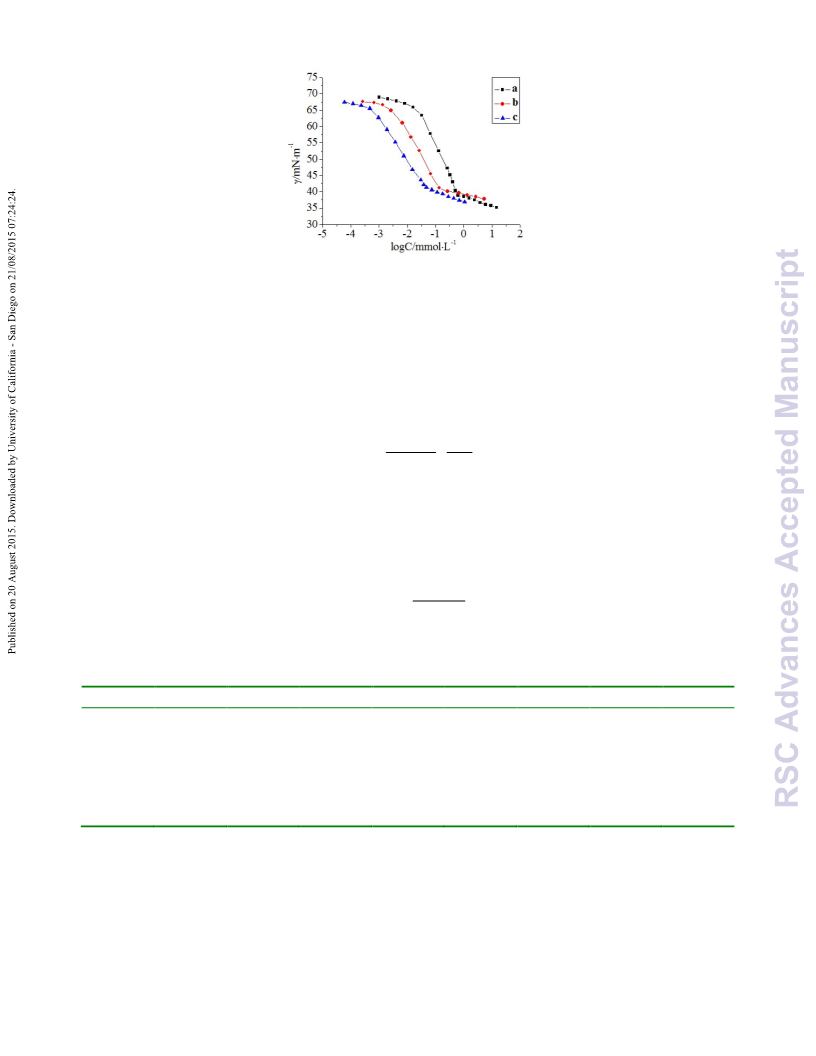

The surface tension of the surfactant solutions were measured by the ring method using Krüss K100 Tensiometer (Krüss, Germany). The
measurement temperature was controlled at 25.0±0.1℃ using a thermostatic bath. The tensiometer was calibrated using ultrapure water. The
experiment was conducted from high concentrations to low concentrations.
Conductivity

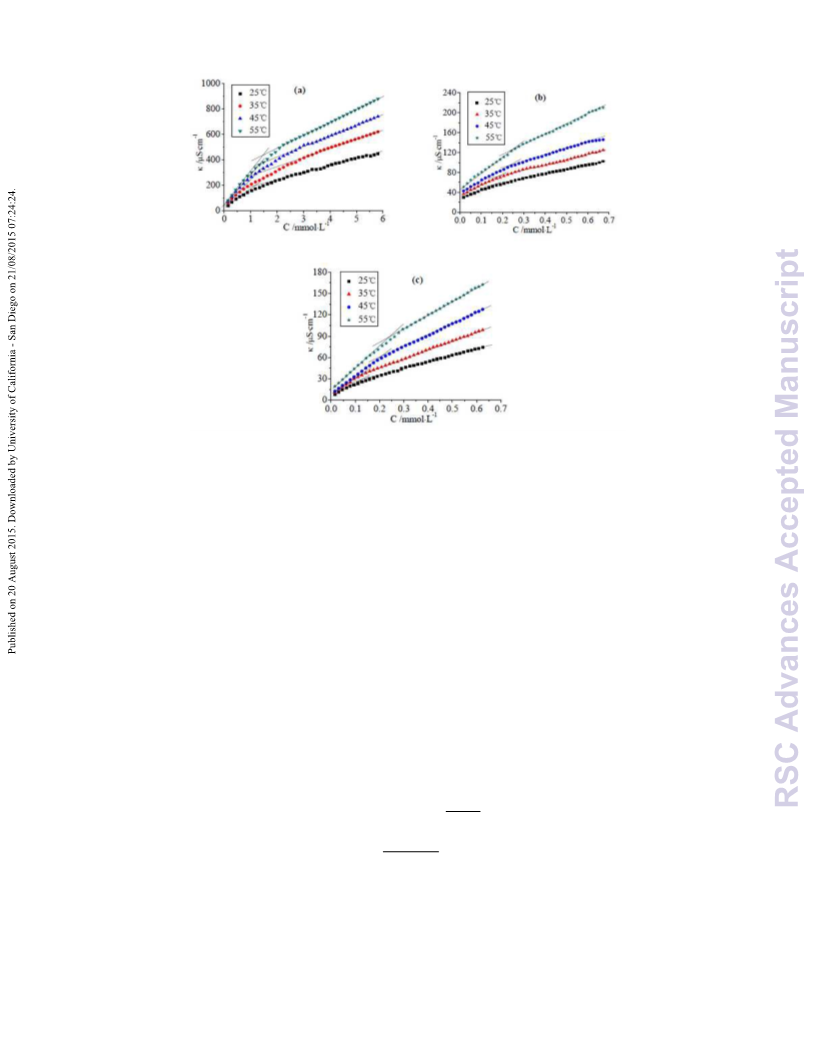

The conductivity of the surfactant solutions was measured using a DDSꢀ11A conductivity meter (Shanghai Leici Instrument Co.) with a
Shanghai Leici DJSꢀ1 conductivity electrode. Ultrapure water was added to the surfactant solution in order to change the surfactant
concentration. The solutions were thermostated at 25.0±0.1, 35.0±0.1, 45.0±0.1 and 55.0±0.1℃ in a thermostatic bath.
Dynamic light scattering (DLS)
DLS measurements were performed on a Malvern autosizer (ZETASIZER nano series Nano ZSꢀ90, Malvern, UK) at 90° scattering angle.
All measurements were performed at 25.0±0.1℃.
Transmission electron microscopy (TEM)
Micrographs were obtained with an Hꢀ7650 (SITACHI Co.) transmission electron microscope at a working voltage of 100 kV. The TEM
samples were prepared by the negativeꢀstaining method. Phosphotungstic acid solution (2%) was used as the staining agent. A carbon
Formvarcoated copper grid (200 mesh) was placed on one drop of the sample solution for 5 min, and the excess solution was wiped away
with filter paper to form a thin liquid film on the copper grid. Next, the copper grid was placed onto one drop of phosphotungstic acid
solution for 2 min. The excess liquid was also wiped away with filter paper, and then the samples were dried in air.
Viscosity measurement
The relative viscosities of the surfactant solutions were measured in two Ubbelohde viscometers thermostatted at 25℃. The viscosities of all
solutions were found to be independent of the capillary diameter and thus the flow rate.
Results and discussion
Krafft point
Krafft points of three gemini surfactants (a, b and c) were measured to insure the absolute dissolution in water at the experimental
temperature. The krafft points of all of the Gemini surfactants (a, b and c) have been determined and found to be less 5℃ (Table 1), which
2
9
are lower than that of the bisꢀN,N,Nꢀdodecyldimethylꢀpꢀphenylene diammonium dichloride, it may result from the amide group being
inserted into the spacer of gemini surfactants (a, b and c). Thus, the gemini surfactants have good solubility in water.
Table 1 Krafft points of three gemini surfactants (a, b and c)
gemini surfactants
a
b
c
Krafft point (℃)
<5
<5
<5
Surface activity
Surface activity of the gemini surfactants (a, b and c) was determined by surface tension measurements. The surface tension (γ) versus logC
i.e., C is the surfactant concentration) plot for the aqueous solutions of gemini surfactants (a, b and c) at 25℃ is shown in Fig. 1.
(

RSC Advances
Page 4 of 13
View Article Online
DOI: 10.1039/C5RA13616D
Fig.1 Curves of surface tension (γ) vs. log C of gemini surfactants (a, b, and c) at 25℃ .
A plot of surface tension versus logC is often linear up to a concentration, called the critical micelle concentration (CMC), at which the
surfactant begins to aggregate into a micelle. From Fig. 1, it can be found that with hydrophobic chain length increasing, the CMC value
gradually decreased for the enhanced hydrophobic interaction between the longer alkyl chains (n = 12, 14 and 16). The surface parameters
i.e., CMC, the surface tension attained at the CMC (γCMC), the effectiveness of surface tension reduction at CMC (πCMC), the maximum
surface excess concentration (Γmax), the area per molecule at the interface (Amin), and the surfactant concentration required to reduce the
surface tension of the solvent by 20 mN/m (C ) of three gemini surfactants are given in Table 2. The packing densities of surfactants at the
2
0
1
4
airꢀwater interface are very important to interpret the surface activities of various surfactants. The maximum surface excess concentration
30
(
Γmax
)
is defined as the maximum concentration of surfactant molecules at the interface of their solutions in the saturation case. It can be
calculated by the following Eq. (1).
−
1
dγ
Γmax
=
×
(1)
2
.303nRT dlgC
−
1
−1
Where, C is the concentration of surfactant aqueous solution, R is the gas constant (8.314 J·mol K ), T is the absolute temperature, and γ
denotes the surface tension, n is the number of active species in the surfactant solution and equal to 3 (n = 3) in the case of gemini
2
4
surfactants, the results were listed in Table 2. It is clear from data that the gradual increase in the hydrophobic chain length decreases the
concentration of the surfactant molecules at the interface.
The minimum area occupied per surfactant molecule (Amin) at the airꢀwater interface is related to the maximum surface excess
concentration (Γmax) as following Eq. (2).
1
(
2)
Amin
=
N ×Γmax
A
A
Where, N is Avogadro’s number.
Table 2 Surface activity parameters of the three new gemini surfactants and corresponding single chain surfactant (a, b, and c) at 25°C
ꢀ
1
ꢀ1
ꢀ1
ꢀ2
2
ꢀ1
Surfactants
CMC(molL )
γ
CMC (mN m )
π
CMC (mN m )
Γ
max (ꢁmol m )
Α
min nm
C
20 (mol L )
CMC / C20
4.45
pC20
3.84
ꢀ4
ꢀ4
a
b
c
6.37×10
1.38×10
4.58×10
9.10×10
1.90×10
4.00×10
38.97
40.70
41.31
38.0
33.03
31.30
30.69
0.93
0.82
0.65
1.64
1.59
1.46
1.78
2.03
2.56
1.01
1.05
1.14
1.43×10
2.94×10
6.46×10
ꢀ4
ꢀ5
ꢀ6
4.69
4.53
ꢀ5
7.09
5.19
a
ꢀ3
ꢀ3
ꢀ4
BACꢀ12
2.850
3.368
4.134
a
BACꢀ14
39.2
a
BACꢀ16
39.6
BACꢀ12: Dodecyl dimethyl benzyl ammonium chloride, BACꢀ14: Tetradecyl dimethyl benzyl ammonium chloride, BACꢀ16: Hexadecyl dimethyl benzyl ammonium
chloride.
a
The data of corresponding single chain surfactant (BAC) reported in Ref. [31].
Table 2 shows that these surfactants have been found to be having a significantly lower critical micelle concentration (CMC), higher
3
1
efficacy in reducing surface tension compared to other conventional surfactants. With the hydrocarbon chain length increasing, the gemini
3
2
surfactant molecules pack more loosely, thus the γCMC of c compound is more than that of a or b compound. It is also quite clear that
surface tension values of these surfactants (n = 12, 14, 16) are lower than the corresponding gemini surfactants of large diethyl ammonium
14
headgroups, which indicates the gemini surfactants (a, b and c) with higher surface activity. The gemini surfactants (a, b and c) have two
alkyl chains, dimethyl ammonium headgroups, and spacer containing a ꢀ(C )ꢀ and two amide groups. The γCMC of Et series were slightly
6
H
4

Page 5 of 13
RSC Advances
View Article Online
DOI: 10.1039/C5RA13616D
bigger than those of Me series, loose arrangement of molecules at air/water interface induced by bigger headgroup should account for this
1
5
phenomenon. Close arrangement of gemini surfactants (a, b and c) molecules at air/water interface induced by smaller headgroup and rigid
spacer should account for this phenomenon of lower surface tension. The CMC values of the gemini surfactants (a, b, and c) are significantly
lower than that of conventional surfactants. The lower CMC of these gemini surfactants is largely attributed to the two alkyl chains and the
long rigid spacer. The long rigid spacer of phenylꢀ1,4ꢀbis (carbamoylmethyl) yields quite different effects from the flexible spacer owing to
the two alkyl tails are inhibited to be close, which leads to the columnꢀlike molecular shape (Fig. 7a) and the identical probability for the
cis/trans of configuration of the two alkyl tails around the spacer (Fig. 8). The longer hydrophobic chain is more prone to bend at air/water
interface. These reasons make the surfactant molecules reach easily saturated adsorption at the interface. Thus, it can be seen that the CMC
values decrease and Αmin increase of the gemini surfactants as the tail carbon number is increased from 12 to 16 (Table 2).
The gemini surfactants (a, b and c) with paraꢀphenyl was employed as the rigid spacer unit and with dimethyl ammonium headgroups.
Dimethyl ammonium headgroups are small. So, Amin means of the gemini surfactants (a, b and c) are smaller than cationic gemini surfactants
1
4
with diethylammonium headgroups. Moreover, the longer hydrophobic chain is more prone to bend at air/water interface, which lead to
3
3
surfactant molecules have larger occupied area at air/water interface. From Table 2 data, Γmax decreased but Amin increased with the increase
of the hydrocarbon chain length, which suggested the gemini surfactant molecules (a, b and c) with longer hydrocarbon chain has lower
packing densities at the airꢀwater interface.
π
CMC is an indication of the effectiveness of surface tension reduction, and it can be used to evaluate the effectiveness of surfactant to
3
2
lower the surface tension of water (Here, πCMC = γ
at the CMC, respectively). So the larger the value of πCMC is, the higher the effectiveness of surfactant is. pC20 is obtained by using the Eq.
3):
0 0
− γCMC, where γ and γCMC are the surface tensions of water and the surfactant solution
(
pC20 = −log C20
(3)
The values of pC20 and πCMC were listed in Table 2. The efficiency parameter indicates the adsorption behavior of surfactant molecules at
3
4
the interface. The larger the value of pC20, the greater the tendency of surfactants is adsorbed. The variation of pC20 indicated that the pC20
increased with the increase of hydrocarbon chain length increasing. However, the πCMC decreased with the increase of hydrocarbon chain
increasing. The results show that the gemini surfactants (a, b and c) with longer hydrocarbon chain has lower ability to reduce surface
tension. The value of CMC/C20 ratio is to determine structural factors in the adsorption and micellization process. The surfactant with larger
CMC/C20 ratio has greater tendency to adsorb at the interface than to form micelles in solution. From Table 2, it can be seen that the
surfactant with the increase of hydrophobic chain length was easier to adsorb at the air/water interface than selfꢀassemble in solution. The
result was in accordance with the conclusion from the value of pC20
.
The chemical structures of the gemini surfactants play an important role for their surface activity. Especially, the nature of the spacer has
been shown to be of the utmost importance in determining the properties of the gemini surfactants aqueous. Gemini surfactant molecules
adopt different conformations depending on the spacer (length, flexibility). Gemini surfactants (a, b and c) have the unsaturated and
conjugated rigid spacer. The gemini surfactants might assume a linear conformation that would place only one of its hydrophobic tails into
the air, the other tail would be forced to dip entirely into the water (Fig. 2, A). Alternatively, the horseshoe conformation would place both
chains into the air (Fig. 2, B), but they would be separated from one another by a distance equal to the length of the spacer. Finally, a gemini
might prefer to lie flat on the water surface (Fig. 2, C), an orientation that would occupy an extraordinarily large surface area per molecule.
2
2 35
Α
min values of the gemini surfactants (a, b and c) are very larger (from 1.78ꢀ2.56 nm ), which corresponds closely to 2.36 nm . We thereby
speculate that surfactant molecules are planar at the interface. The surfactant with longer hydrocarbon chain has lower surface concentration
at the interface and higher hydrophobic character. Hence, hydrophobic chain length also has a great influence on surface activity of the
gemini surfactants (a, b and c). Those are in good agreement with previously obtained surface activity parameters.
air
H2O
A
B
C
Fig.2. Possible orientations of the gemini surfactants (a, b and c) at an ais/water interface
Thermodynamics of Micellization
To obtain the micellization thermodynamics parameters of the gemini surfactants (a, b and c), the micellization behavior of the gemini
surfactants (a, b and c) aqueous solutions at different temperature (25, 35, 45 and 55℃) was investigated by conductivity measurement. The
electrical conductivity (κ) versus concentration (C) plots for the aqueous solutions of the gemini surfactants (a, b and c) are shown in Fig. 2.

RSC Advances
Page 6 of 13
View Article Online
DOI: 10.1039/C5RA13616D
Fig. 3 Variation in the electrical conductivity (κ) with the gemini surfactants (a, b and c) concentration (C) at different temperature (25, 35, 45 and 55℃ ).
The CMC values were obtained from the intersection of two fitted liners in conductivity region. It has been observed that the CMC values
of the gemini surfactants (a, b and c) increases with the increase of temperature (Fig. 3). The CMC values obtained by conductivity
measurement are in good agreement with the surface tension derived data (Table 3). It is noteworthy that the CMC value of the gemini
surfactants (a, b and c) obtained by this method is larger than that obtained by surface tension measurement (Table 2), which due to the
existence of nonꢀsurfaceꢀactive premicellar aggregates in gemini surfactants aqueous solutions. Similar results have been observed in other
1
2
papers.
3
6
Two opposite factors operated with temperature increasing : (1) the ordered structure of water molecules around the hydrocarbon chain
may be broken, which could promote solubilization of the surfactant monomer and thus disfavoring micellization; (2) the degree of
hydrophilic hydration around the polar headgroup may decrease and thus favoring micellization. For the gemini surfactants (a, b and c), the
former factor is predominant in micellization process in the studied temperature range.
Besides, the degree of counterion dissociation (α) was calculated from the ratio of the slops above and below CMC, respectively. The
3
3
degree of counterion binding (β) could be obtained by Eq. (4). β values were obtained from conductivity curves and listed in Table 3.
= 1 ꢀ (4)
β
α
The decrease of β with the increase of temperature meant the decrease of charge density on the micelle surface, which may be caused by a
reduction in aggregation number of the gemini surfactants (a, b and c) micelles.
The thermodynamic parameters for micellization of the gemini surfactants (a, b and c) aqueous solutions can be calculated by the phase
separation model. The standard Gibbs free energy (ꢁGº ), enthalpy (ꢁHº ), and entropy (ꢁSº ) of micellization at different temperature were
m
m
m
calculated by following Eq. (5)ꢀ(7).
0
ΔGm = RT(0.5+
β
)lnXcmc
(5)
(6)
dlnXcmc
0
2
ΔH m = −RT (0.5 +
β
)(
)
dT
0
m
0
m
ꢀH
− ꢀG
T
0
m
(7)
ΔS
=
−
1
−1
Where R is the gas constant (8.314 J·mol K ); T is absolute temperature; X
is the CMC in molar fraction, XCMC=CMC/55.4, where
CMC
CMC is in mol/L, and 55.4 comes from 1 L of water corresponding to 55.4 mol of water at 298.15 K. Thus, T = 308.15 K, XCMC=CMC/55.2;
T = 318.15 K, XCMC=CMC/55.0; T = 328.15 K, XCMC=CMC/54.8. β is the degree of counterion binding to micelles. The values of
dlnXCMC/dT were obtained by fitting lnXCMC ꢀ T a secondꢀorder polynomial.
The thermodynamic parameters i.e., ꢁGº , ꢁHº and ꢁSºm of the gemini surfactants (a, b and c) at different temperature were listed in
m
m
Table 3.

Page 7 of 13
RSC Advances
View Article Online
DOI: 10.1039/C5RA13616D
Table 3 The CMC and thermodynamic parameters of gemini surfactants (a, b, and c) determined by the electrical conductivity method at different temperatures.
ꢀ
1
0
ꢀ1
0
ꢀ1
o
ꢀ1
Surfactants
T (K)
CMC (mmol L )
β
ꢂG
m
(kJ mol )
ꢂH
m
(kJ mol )
m
TꢂS (kJ mol )
298
308
318
328
298
308
318
328
298
308
318
328
1.17
0.69
0.64
0.63
0.59
0.51
0.48
0.46
0.43
0.50
0.44
0.39
0.37
-32.48
ꢀ31.37
ꢀ31.76
ꢀ31.13
ꢀ31.67
ꢀ31.55
ꢀ31.57
ꢀ31.30
ꢀ32.59
ꢀ31.20
ꢀ29.73
ꢀ29.67
ꢀ7.38
ꢀ7.60
ꢀ8.02
ꢀ8.19
25.11
23.77
23.74
22.94
21.42
20.91
20.47
19.77
21.43
19.98
18.37
17.83
1.22
a
1.35
1.50
0.17
ꢀ10.25
ꢀ10.64
ꢀ11.10
ꢀ11.53
ꢀ11.16
ꢀ11.22
ꢀ11.36
ꢀ11.84
0.18
b
0.21
0.25
0.10
0.13
c
0.20
0.23
It can be seen that ꢁGº
negative values of ꢁGº indicated that the micellization process was a thermodynamical spontaneous process. It can also be observed that
Hº were negative in all cases and decreased with the increase of temperature. The negative values of ꢁHº indicated that the micelle
formation is exothermic process. As it is quite clear from Table 3 that the values for ꢁHº is smaller compared to ꢀTꢁSº , thus the
m
of micellization in all cases were negative and the negative values decreases with increase of temperature. The
m
ꢁ
m
m
m
m
micellization process is entropy driven. This is true for all the gemini surfactants investigated in this studies.
Studies on the aggregation behavior
In order to study the aggregation behavior, the size distributions and morphologies of the aggregations formed for the gemini surfactants at
different concentrations were investigated by DLS and TEM, respectively. The chemical structures of the gemini surfactant a and c are
analogous to b. So aggregation behavior of the gemini surfactant b is shown as example.
Fig. 4 DLS measurement of the size distributions of the gemini surfactant b at different concentrations: a. 5 times the CMC (red); b. 50 times the CMC (black); c. 100 times the
CMC (blue); d. 50 times the CMC (0.1M NaCl) (green).
Fig. 4 shows the size distributions of the gemini surfactant b in solutions are described at 5 times the CMC, 50 times the CMC and 100
times the CMC by DLS. Fig. 4 shows that the size distributions range is about from 23 nm to 400 nm at different times of the CMC.
Fig. 4b (black curve) shows that there is one obvious peak with an average r of about 400 nm at 50 times the CMC for the surfactant b,
reflecting the occurrence of large aggregations. However, there are two peaks with an average r of about 45 nm and of about 200 nm of the
surfactant b at 5 times the CMC (Fig. 4a, red curve). Usually, the relative intensity of the larger size distributions is big and the relative
intensity of the smaller size distributions is small. It reflects that lots of large aggregations and a small amount of micelles coexist at 5 times
the CMC. Fig. 4c (blue curve) shows that there is one peak with an average r of about 170 nm at 100 times the CMC, which close to big peak
of Fig. 4a. Thus, it may be existed large aggregations at 100 times the CMC.
The above results show that the relative intensity of the large size distribution began to increase then decreased with the increase of the
surfactant concentration (from 5 CMC to 100 CMC).
In order to attain a direct visualization of above results, the morphologies of the gemini surfactant b at different concentrations were
studied by TEM (Fig. 6).
It is well known that for a bilayer selfꢀassembly, the hydrophobic chain modulates the phase behavior, whereas the headꢀgroup determines
the bilayer surface chemistry. Intermolecular Hꢀbonding between NꢀH and C=O in the amide group of spacer are responsible for the
2
4
formation of spherical bilayer vesicles in dilute aqueous solution and has been reported earlier. In fact, similar Hꢀbonding interaction has
37
been reported for many vesiclesꢀforming surfactants. The spacer of surfactants (a, b and c) containing amide group possesses the
hydrogenꢀbonding capability. Hydrogen atom with oxygen atom of amide group form intermolecular hydrogen bonding of the surfactant
molecules (Fig. 5). These Hꢀbonding interactions near the headgroup region are able to minimize the repulsive interactions among the

RSC Advances
Page 8 of 13
View Article Online
DOI: 10.1039/C5RA13616D
+
2
cationic Me N groups thus ensuring higher stability to the bilayer membrane. So, spherical vesicles with diverse sizes were observed for the
surfactant b at 5 times the CMC (Fig. 6a, the left arrow mark small vesicle, the right arrow mark large vesicle), 50 times the CMC (Fig. 6c,
the arrow mark), and 100 times the CMC (Fig. 6e, the arrow mark). Moreover visibly smaller globule micelles were also present at 5 times
the CMC (Fig. 6b, the arrow mark). We thereby have reached the conclusion that the vesicles and micelles coexist at low concentration. The
above results cohere with the DLS outcome.
Fig. 5 Schematic representation of hydrogen bonding between different surfactant molecules.

Page 9 of 13
RSC Advances
View Article Online
DOI: 10.1039/C5RA13616D
Fig. 6 TEM micrographs of a. 5 times the CMC, bar = 200 nm; b. 5 times the CMC, bar = 200 nm; c. 50 times the CMC, bar = 200 nm; d. 50 times the CMC, bar = 200 nm; e. 100 times
the CMC, bar = 200 nm; f. 50 times the CMC (0.1M NaCl), bar = 200 nm.
The different spacers used will influence the molecule in a variety of ways. The distance between the charged nitrogen atoms will affect
the charge density of the micelle and thus the degree of ionization. We thereby have thought that the formation of vesicles is also due to
chemical structure of the spacer of the gemini surfactant. Phenylꢀ1,4ꢀbis (carbamoylmethyl) as a long rigid spacer constrains the distance
between the head groups, which inhibits the two alkyl tails to be close. Consequently, the surfactant molecules present mainly columnꢀlike
molecular configuration (Fig. 7a), which can form vesicles. In addition, there is also a small amount of the surfactant molecules packing the
1
2
hydrophobic tails tightly (Fig. 7b), which can form micelles at low concentration.
Fig. 7 Probable aggregation fashions of gemini surfactants with a long rigid spacer.
The DLS and TEM studies also show that the diverse sizes vesicles (Fig. 6a) and smaller micelles (Fig. 6b) transform into network
aggregates (Fig. 6d) with increasing the gemini surfactant concentration (from 5 CMC to 50 CMC). Vesicles can be crossꢀlinked together
(
Fig. 6c, the arrow mark) by trans configuration (Fig. 8b) and then formed the network aggregates at 50 times the CMC (Fig. 9). Usually,

RSC Advances
Page 10 of 13
View Article Online
DOI: 10.1039/C5RA13616D
surfactants first to form small aggregates at low concentrations, then the aggregates become larger with the increase of the surfactant
concentration. In general, network aggregation should become larger at 100 times the CMC. However, this study results are exactly
opposite. There are lots of diverse sizes vesicles (Fig. 6e) rather than larger aggregates at 100 times the CMC. This is an abnormal
phenomenon. With the increase of the surfactant concentration (from 50 CMC to 100 CMC), trans configuration of alkyl tails (Fig. 8a) of
surfactants molecular will transform into cis configuration of alkyl tails (Fig. 8a). The cis configuration of alkyl tails causes network
aggregates disappear and transform into the vesicles.
We thereby have reached the conclusion, that diverse sizes vesicles may arise at low concentration and at high concentration.
Fig.8 Cis(a) and trans(b) configurations of alkyl tails.
Fig. 9 Schematic representation of cross-linked vesicles by trans configurations of alkyl tails.
In order to further study the aggregation behavior, relative viscosity (relative to the water) of the gemini surfactant b was measured at
different concentrations (Fig. 10).
Fig. 10 Relative viscosity versus concentration of aniline surfactant b at 25 .
Fig.10 shows that the relative viscosity appeared rapid growth from 5 times the CMC to 50 times the CMC and very slow growth from 50
times the CMC to 100 times the CMC. At low concentration, adhesion and fusion of vesicles by trans configuration of alkyl tails lead to
grow rapidly of viscosity. The results agree with the TEM outcome.
Effect of salt (NaCl) on network aggregates was investigated at the same time. In combination with the DLS results, it can be concluded

Page 11 of 13
RSC Advances
View Article Online
DOI: 10.1039/C5RA13616D
that network aggregates were destroyed and transformed into vesicles [size distributions (about 172 nm)] and micelles [size distributions
about 23 nm) (Fig. 4d, green curve)] in the aqueous solution of these gemini surfactants with 0.1 M NaCl addition. The TEM and DLS
(
results all showed that the network aggregations indeed disappeared at 50 times the CMC with the 0.1M NaCl addition (Fig. 6f). The results
ꢀ
show that the network aggregates have a poor salt tolerance. In addition, adding NaCl increases the concentration of counterion (Cl ), which
inhibits the ionization of vesicles. Thus vesicles are difficult to form network aggregates.
Conclusions
In this study, a new series of gemini surfactants with phenylꢀ1,4ꢀbis (carbamoylmethyl) have been synthesized, characterized, and
investigated for their surface, thermodynamic, and thermal properties. They have lower CMC value than corresponding monoꢀchain
surfactants, and the CMC value decreased with hydrophobic chain length increasing. The gemini surfactants with rigid spacer and longer
hydrocarbon chain has lower packing density but higher efficiency of adsorption. They have low krafft points shows that they have good
solubility in water. An interesting phenomenon, the DLS and TEM studies reflect that the surfactant concentration, spacer and configurations
strongly affect the aggregation behavior of these surfactants, that is, diverse sizes spherical vesicles and smaller globule micelles form at low
concentration (5 CMC), vesicles and micelles gradually transfer to network aggregates (50 CMC) and then to diverse sizes vesicles (100
CMC) with an increase of the surfactant concentration. The saltꢀinduced network aggregateꢀtoꢀvesicles transitions were also found in these
novel cationic gemini surfactants systems. It has also been observed from the thermodynamical studies that the micellization of gemini
surfactants is entropy driven.
Acknowledgments
This work was supported by the Foundation of the Program for Heilongjiang Province of China (No. 12541864 & 12511591), the Science
&
Technology of Heilongjiang Province of China (No. B201116), the Overseas Scholars Foundation of Scientific and Technical Agency of
Heilongjiang province of China (No.LC2011C17), the Overseas Scholars Foundation of Ministry of Human Resources and Social Security of
the People’s Republic of China (No. [2011] 508), and the National Science Fundation of China (No. 81403067) for financial support of this
study.
References
1
2
3
4
5
6
7
8
9
1
F. M. Menger and J. S. Keiper, Angew. Chem. Int. Ed., 2000, 39, 1906.
R. Zana, Adv. Colloid Interface Sci., 2002, 97, 205.
S. S. Kim, W. Z. Zhang and T. J. Pinnavaia, Science, 1998, 282, 1302.
E. Alami, H. Levy and R. Zana, Langmuir, 1993, 9, 940.
Q. Liu, M. L. Guo, Z. Nie, J. B. Yuan, J. Tan and S. Z. Yao, Langmuir, 2008, 24, 1595.
M. S. Bakshi, S. Sachar, G. Kaur, P. Bhandari, G. Kaur, M. C. Biesinger, F. Possmayer and N. O. Petersen, Cryst. Growth Des., 2008, 8, 1713.
M. S. Bakshi, Langmuir, 2009, 25, 12697.
G. M. Andres, P. J. Jorge, C. A. Enrique and T. Gloria, Angew. Chem., Int. Ed., 2009, 48, 9484.
J. Aguado, J. M. Escola and M. C. Castro, Microporous Mesoporous Matter., 2010, 128, 48.
Q. R. Chen, L. Han, C. B. Gao and S. N. Che, Microporous Mesoporous Matter., 2010, 128, 203.
T. Lu, F. Han, G. G. Mao, G. F. Lin, J. B. Huang, X. Huang, Y. L. Wang and H. L. Fu, Langmuir, 2007, 23, 2932.
X. G. Liu, X. J. Xing and Z. N. Gao, Colloids Surf. Physicochem. Eng. Asp., 2014, 457, 374.
R. Zana, J. Colloid Interf. Sci., 2002, 248, 203.
0
11
1
1
1
1
1
1
2
3
4
5
6
7
Q. Zhang, Z. N. Gao, F. Xu, S. X. Tai, X. G. Liu, S. B. Mo and F. Niu, Langmuir, 2012, 28, 11979.
T. Lu, Y. R. Lan, C. J. Liu. J. B. Huang and Y. L. Wang, J. Colloid Interf. Sci., 2012, 377, 222.
T. Lu and J. B. Huang, Chin. Sci. Bull., 2007, 52, 2618.
X. Y. Wang, J. B. Wang, Y. L. Wang and H. K. Yan, Langmuir, 2004, 20, 53.
1
8
J.X. Zhao, Progess in Chemistry, 2014, 26, 1339.
1
2
2
2
2
2
2
9
0
1
2
3
4
5
T. Lu, F. Han, Z. C. Li and J. B. Huang, Langmuir, 2006, 22, 2045.
M. N. Wang, Y. X. Wang, D. F. Yu, Y. C. Han and Y. L. Wang, Colloid Polym. Sci., 2013, 291, 1613.
C. C. Zhou, X. H. Cheng, O. D. Zhao, S. Liu, C. J. Liu, J. D. Wang and J. B. Huang, Soft Matter, 2014, 10, 8023.
J. Lv, W. H. Qiao and C. Q. Xiong, Langmuir, 2014, 30, 8258.
S. S. Song, Q. S. Zheng, A. X. Song and J. C. Hao, Langmuir, 2012, 28, 219.
T. Patra, S. Ghosh and J. Dey, J. Colloid Interf. Sci., 2014, 436, 138.
R. Zana, M. Benrraou and R. Rueff, Langmuir, 1991, 7, 1072.

RSC Advances
Page 12 of 13
View Article Online
DOI: 10.1039/C5RA13616D
2
2
2
2
3
3
3
3
3
3
3
3
6
7
8
9
0
1
2
3
4
5
6
7
D. Danino, Y. Talmon and R. Zana, Langmuir, 1995, 11, 1448.
A. B. Groswasser, R. Zana and Y. Talmon, J. Phys. Chem. B, 2000, 104, 4005.
H, G. Lee, J. H. Lee, S. P. Jang, H. M. Park, S. J. Kim, Y. Kim, C. Kim and R. G. Harrison, Tetrahedron, 2011, 67, 8073.
L. Mivehi, R. Bordes and K. Holmberg, Langmuir, 2011, 27, 7549.
A. Rodriguez, M. M. Graciani, M. Munoz, I. Robina and M. L. Moya, Langmuir, 2006, 22, 9519.
Y. Y. Zhang, X. F. Guo, L. H. Jia, L. B. Gao and P. Wu, Joumal of Qiqihar University, 2014, 30, 1.
C. C. Ren, F. Wang, Z. Q. Zhang, H. H. Nie, N. Li and M. Cui, Colloids Surf. Physicochem. Eng. Asp., 2015, 467, 1.
L. M. Zhou, X. H. Jiang, Y. T. Li, Z. Chen and X. Q. Hu, Langmuir, 2007, 23, 11404.
L. Perez, A. Pinazo, M. J. Rosen and M. R. Infante, Langmuir, 1998, 14, 2307.
F. M. Menger, C. A. Littau, J. Am. Chem. SOC., 1993,115, 10083.
J. Luczak, C. Jungnickel, M. Joskowska, J. Thoming and J. Hupka, J. Colloid Interf. Sci., 2009, 336, 111.
M. Popov, C. Linder, R. J. Deckelbaum, S. Grinberg, I. H. Hansen, E. Shaubi and T. Waner, E. J. Liposome Res., 2010, 20, 147.

Page 13 of 13
RSC Advances
View Article Online
DOI: 10.1039/C5RA13616D
