One-pot synthesis of 2,5-diformylfuran from fructose using a magnetic bi-functional catalyst

Article abstract of DOI:10.1039/c6ra01549b

A magnetic bi-functional WO₃HO-VO(salten)-SiO₂@Fe₃O₄ nanocatalyst was prepared to directly synthesize 2,5-diformylfuran (2,5-DFF) from fructose. The chlorosilylated SiO₂@Fe₃O₄ (Cl-SiO₂@Fe₃O₄) nanoparticles served as the platform for the two functionalities. Tungstic acid was generated via protonation of sodium tungstate, which was directly attached on the platform via nucleophilic -Cl displacement. Meanwhile, oxovanadium was complexed with a salten ligand which was functionalized on the Cl-SiO₂@Fe₃O₄. Characterization results confirmed the successful preparation of the WO₃HO-VO(salten)-SiO₂@Fe₃O₄ nanocatalyst. Under the optimal one-pot system, tungstic acid-mediated fructose dehydration afforded 82% 5-hydroxymethylfurfural (5-HMF) in 1 h. Upon co-oxidant H₂O₂ addition, in situ 5-HMF oxidation by the activated oxoperoxovanadium species produced 71% of 2,5-DFF after 15 h under ambient air. The stability of 5-HMF formation was found critical to 2,5-DFF production. Aside from the catalytic efficiency and process simplicity, the WO₃HO-VO(salten)-SiO₂@Fe₃O₄ nanocatalyst was readily retrieved magnetically and re-used multiple times with marginal losses in its activity.

Full text of DOI:10.1039/c6ra01549b

View Article Online
View Journal
RSC Advances
This article can be cited before page numbers have been issued, to do this please use: N. Mittal, G. M.
Nisola, L. B. Malihan, J. G. Seo, H. Kim, S. P. Lee and W. Chung, RSC Adv., 2016, DOI:
10.1039/C6RA01549B.
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Accepted Manuscripts are published online shortly after
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. This Accepted Manuscript will be replaced by the edited,
formatted and paginated article as soon as this is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the Ethical guidelines still
apply. In no event shall the Royal Society of Chemistry be held
responsible for any errors or omissions in this Accepted Manuscript
or any consequences arising from the use of any information it
contains.
www.rsc.org/advances

Page 1 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
1
2
RSC Advances
One-pot synthesis of 2,5-diformylfuran from fructose using a magnetic bi-
functional catalyst
3
4
5
Neha Mittal, Grace M. Nisola, Lenny B. Malihan, Jeong Gil Seo, Hern Kim, SeongꢀPoong Lee,
WookꢀJin Chung*
6
7
8
Energy and Environment Fusion Technology Center, Department of Energy Science and
Technology, Myongji University, Myongji-ro 116, Namdong, Cheoingu, Yongin-city, Gyeonggi-
Do, 449-728, Republic of Korea
9
10
11
12
13
14
15
16
17
18
19
20
__________________________________________
*Corresponding Author: Tel: +82ꢀ31ꢀ336ꢀ8471, Fax: +82ꢀ31ꢀ337ꢀ2902
EꢀMail: wjc0828@gmail.com
1

RSC Advances
Page 2 of 40
View Article Online
DOI: 10.1039/C6RA01549B
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Abstract
A magnetic biꢀfunctional WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 nanocatalyst was prepared to
directly synthesize 2,5ꢀdiformylfuran (2,5ꢀDFF) from fructose. The chlorosilylated SiO2@Fe3O4
(ClꢀSiO2@Fe3O4) nanoparticles served as the platform for the two functionalities. Tungstic acid
was generated via protonation of sodium tungstate, which was directly attached on the platform
via nucleophilic ꢀCl displacement. Meanwhile, oxovanadium was complexed with a salten ligand
which was functionalized on the ClꢀSiO2@Fe3O4. Characterization results confirmed the
successful preparation of WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 nanocatalyst. Under optimal oneꢀpot
system, tungstic acidꢀmediated fructose dehydration afforded 82% 5ꢀhydroxymethylfurfural (5ꢀ
HMF) in 1 h. Upon coꢀoxidant H2O2 addition, in-situ 5ꢀHMF oxidation by the activated
oxoperoxovanadium species produced 71% of 2,5ꢀDFF after 15 h under ambient air. The
stability of 5ꢀHMF formation was found critical to 2,5ꢀDFF production. Aside from the catalytic
efficiency and process simplicity, the WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 nanocatalyst was
readily retrieved magnetically and reꢀused multiple times with marginal losses in its activity.
Keywords: 2,5ꢀDiformylfuran, Fructose, 5ꢀHydroxymethylfurfural, Oxidation, Dehydration, Biꢀ
functional magnetic catalyst
2

Page 3 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
1. Introduction
Production of biomassꢀbased platform chemicals typically involves a multiꢀstep conversion of
the substrate through sequential transformations of bridging molecules. A common practice is to
carry out individual reactions as each step requires a suitable downꢀstream process and a unique
catalyst, which functions in a narrow set of reaction conditions and solvent system. This rigorous
procedure ensures that the desired product quality and yield are achieved.1,2
Particular interest is currently focused on 2,5ꢀdiformylfuran (2,5ꢀDFF), a specialty chemical with
a wide array of utility as a precursor of fungicides, pharmaceuticals, ligands of various polyꢀ
Schiff bases, crossꢀlinking agents, and polymers.3 The 2,5ꢀDFF can be produced via a twoꢀstep
reaction using biomassꢀderived carbohydrates as substrates (Scheme 1). Initial step would
require dehydration of C6ꢀcarbohydrates like fructose into 5ꢀhydroxymethylfurfural (5ꢀHMF), a
valuable key intermediate molecule.1,4,5 In the second step, the isolated 5ꢀHMF can be selectively
oxidized to afford 2,5ꢀDFF.6,7

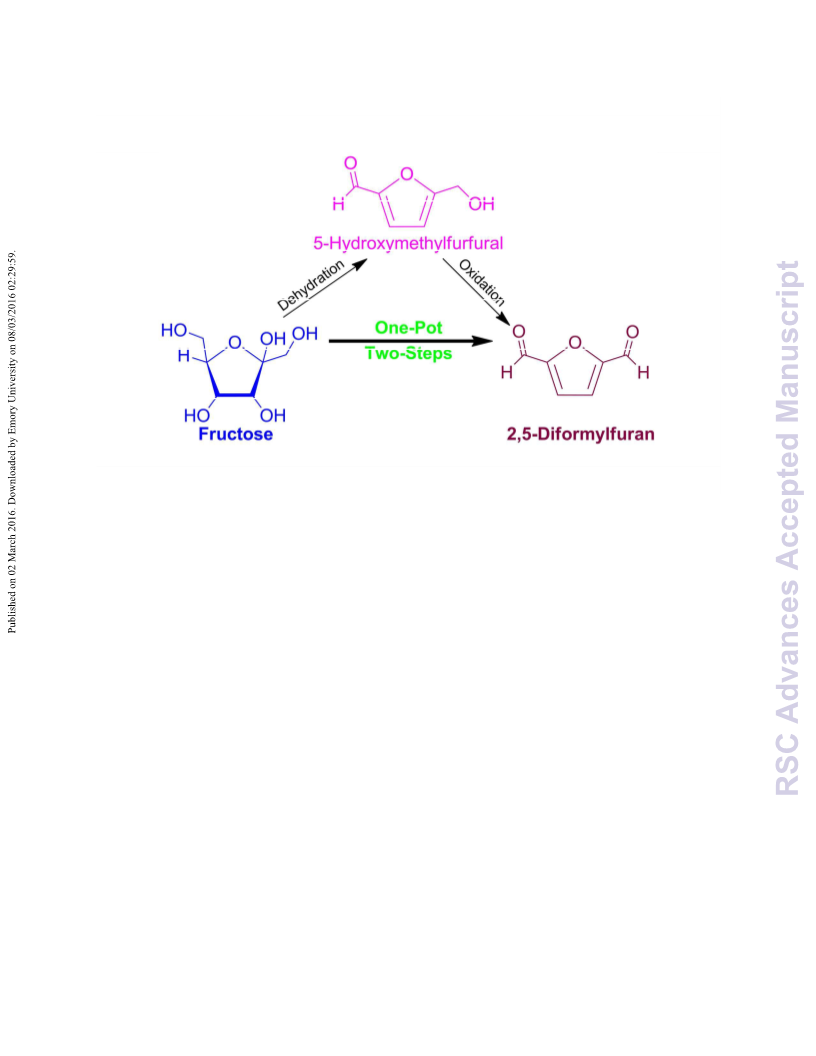

<<Insert Scheme 1>>
Fructose dehydration into 5ꢀHMF has been commonly performed with several types of acid
catalysts1,4 either as homogeneous inorganic mineral acids, metal chlorides or heterogeneous5
ionꢀexchange resins, supported heteropolyacids, zeolites, sulphonic acid functionalized polymer
and carbon nanotubes, graphite oxide, mesoporous silica and magnetic silica supported acid
catalysts. Likewise, various reaction systems which employed homogenous catalysts6 like
Pb(OAc)4ꢀpyridine, pyridinium chlorochromate, K2Cr2O7ꢀDMSO, Co/Mn acetates, 2,2,6,6ꢀ
tetramethylpiperidineꢀ1ꢀoxide, V2O5 and Cu(NO3)2/VOSO4 and heterogeneous catalysts7 like
vanadylphosphate, porous manganese oxide, V2O5ꢀzeolite, silverꢀmanganese oxide,
3

RSC Advances
Page 4 of 40
View Article Online
DOI: 10.1039/C6RA01549B
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
Mn3O4/Fe3O4, TEMPOꢀSBAꢀ15, RuꢀPVPꢀCNTs and Ruꢀcovalent triazine frameworks were
reported for the selective 5ꢀHMF oxidation to 2,5ꢀDFF.
Although adequate yields have been achieved from each independent reaction, the use of 5ꢀHMF
as an isolated precursor is impractical due to its difficult separation from highꢀboiling point
reaction solvents and unꢀstable nature.4c Thus, an alternative approach is to directly produce 2,5ꢀ
DFF from fructose. Tandem reactions, which include dehydration and oxidation in a oneꢀpot
system could significantly simplify the whole process, reduce the production cost, and render the
production route environmentally benign.
Few studies have reported oneꢀpot 2,5ꢀDFF synthesis from fructose using a duo of catalysts such
as (1) Amberlystꢀ15 combined with Ru/HT, (2) AlCl3.6H2O/NaBr with supported vanadium
oxide, (3) protonated graphitic carbon nitride (gꢀC3N4) with vanadium doped gꢀC3N4, (4)
magnetic sulphonic acid with magnetic hydroxyapatite, and (5) Amberlystꢀ15 with polyanilineꢀ
VO(acac)2.7c,8ꢀ11 Recently, more advanced catalysts with biꢀfunctional properties such as (1) Pdꢀ
V@MILꢀ101 (MOFs),12 (2) protonated and vanadium doped gꢀC3N4,9 and (3) heteropolyacids
containing Molybdenum (H3PMo12O40),13a combined with Cesium (Cs3HPMo11VO40)13b have
also been reported; the combination of two catalysts on a single material platform further
simplified the oneꢀpot 2,5ꢀDFF system.
But so far, acceptable 2,5ꢀDFF yields and facile oneꢀpot reaction systems are yet to be achieved.
The lack of reaction “switch” that activates the required catalyst for the subsequent reaction
suggests unregulated production of intermediates like 5ꢀHMF, which could limit 2,5ꢀDFF
production.9b Also, the use of high boiling point solvents like DMSO and DMF requires energyꢀ
intensive and complex product isolation techniques.8,12,13b While some biꢀfunctional
nanocatalysts were recycled via filtration or centrifugation, these postꢀreaction steps add cost to
4

Page 5 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
85
86
the entire production.9,13b With these current limitations, a robust recyclable catalyst with dual
functionality, that can be easily retrieved via a simple technique, must be developed.
Furthermore, the use of nanoparticles (NPs) as support could provide a pseudoꢀhomogeneous
character wherein significant activity can be achieved despite the heterogeneity of the catalyst
system. In this regard, magnetic iron oxide NPs (Fe3O4) are attractive catalyst supports due to
their low cost, easy synthesis and functionalization, high surface area, and facile separation by an
external magnetic force.7g,14ꢀ19
87
88
89
90
91
92
Thus herein, a biꢀfunctional catalyst with magnetic property was developed for direct synthesis
of 2,5ꢀDFF from fructose. The biꢀfunctional catalyst was anchored with (1) tungstic acid for
fructose dehydration and (2) oxovanadium complex for 5ꢀHMF oxidation. Both active sites were
easily attached covalently on the magnetic NPs (Scheme 2). Tungstic acid was selected due to its
reportedly high catalytic activity.20,21 Meanwhile, the oxovanadium complex is a dormant moiety
which can be activated upon addition of H2O2.22 This reaction ‘switch’ mechanism could mimic
the sequential dehydration and oxidation of conventional twoꢀstep 2,5ꢀDFF synthesis in a oneꢀ
pot system.
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
<<Insert Scheme 2>>
2. Experimental
2.1. Materials
Iron (II) chloride tetrahydrate (>99% FeCl2•4H2O), iron (III) chloride hexahydrate (>99%
FeCl3•6H2O), tetraethylorthosilicate (98% TEOS), (3ꢀchloropropyl)ꢀtriethoxysilane (95%
CPTES), salicylaldehyde (99%), diethylenetriamine (>98%), sodium tungstate dihydrate (>99%
5

RSC Advances
Page 6 of 40
View Article Online
DOI: 10.1039/C6RA01549B
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
Na2WO4•2H2O), and 5ꢀhydroxymethylfufural (98% 5ꢀHMF) were purchased from Acros
Organics. Vanadium (IV) oxide sulfate hydrate (97% VOSO4•xH2O), p-toluenesulfonic acid
monohydrate (98.5% pꢀTSA), Dꢀ(ꢀ) fructose (99%), and dry toluene (99.8%) were obtained from
SigmaꢀAldrich (USA). 2,5ꢀdiformylfuran (>98% 2,5ꢀDFF) was supplied by Tokyo Chemicals
(Japan). Hydrochloric acid (35ꢀ37% HCl) was bought from Showa Chemicals whereas other
reagents and solvents including ammonia hydroxide (25ꢀ28% NH3•H2O), hydrogen peroxide
(30% H2O2), sodium sulfate (99%), anhydrous ethanol (99.9% EtOH), nꢀhexane (95%), ethyl
acetate (99.8% EtOAc), and isopropanol (99.5%) were purchased from Dae Jung Chemicals
(South Korea). All chemicals were of reagent grade or higher, and were directly used without
further purification.
2.2. Bi-functional catalyst preparation
2.2.1. Silica coated magnetic nanoparticle synthesis

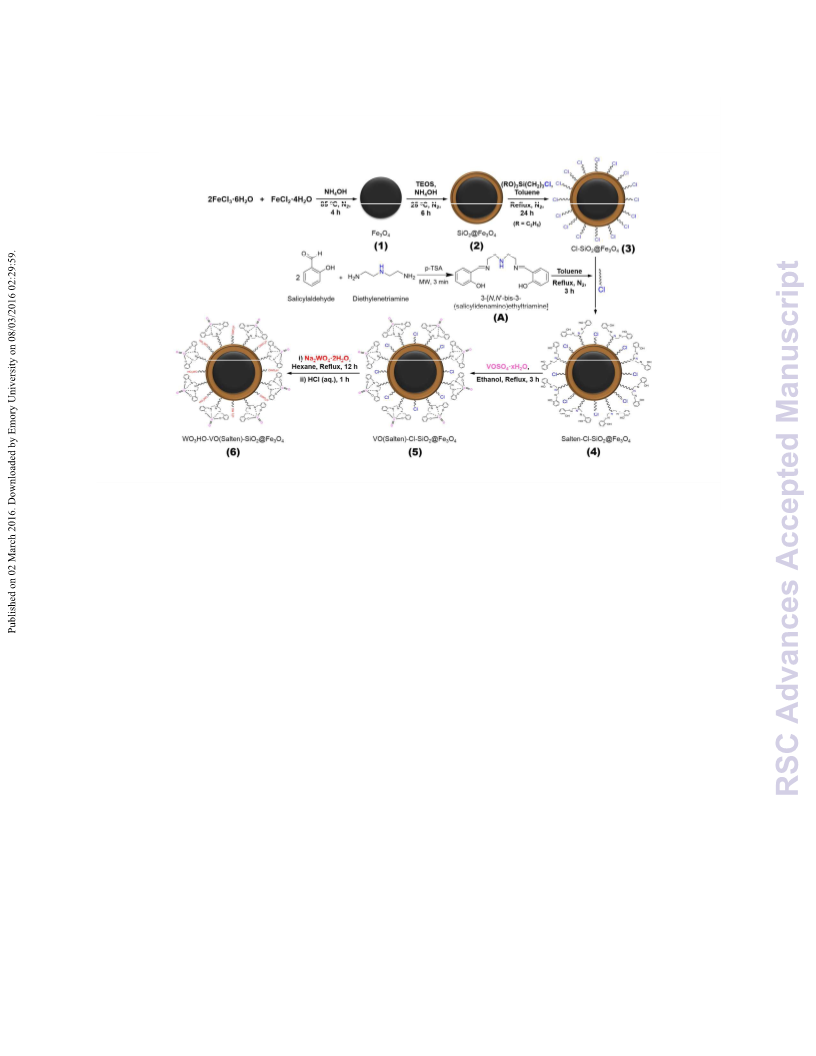

Magnetite (Fe3O4) NPs were prepared via coꢀprecipitation (Scheme 2) as described elsewhere.23
Aqueous solution of FeCl3·6H2O and FeCl2·4H2O (2:1 mole ratio) was continuously stirred (400
rpm) under N2 blanket at 85 oC. Ammonia water (28% NH3·H2O) was then added dropwise until
pH = 9. After 4 h, the black precipitates were collected and washed with deionized (DI) water
(pH = 7) and EtOH. The NPs were vacuumꢀdried for 12 h to obtain Fe3O4 (1) NPs.
Product 1 was acid treated in 0.1 M HCl (2 g 100 mLꢀ1) for 10 min and then washed with DI
water before coating with SiO2. The NPs were dispersed in (5+1 v/v) EtOH/H2O solution,
followed by pH adjustment to 10 using NH3·H2O (28%). The SiO2 precursor (2 mL TEOS) was
fractionally added and reacted for 6 h under N2 blanket at room temperature (RT). The collected
6

Page 7 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
dark brown NPs were washed thrice with EtOH and finally vacuumꢀdried to obtain SiO2@Fe3O4
(2).
2.2.2. Chloroꢀfunctionalization of SiO2@Fe3O4 (3)
In 200 mL of N2ꢀblanketed dry toluene, 1.0 g of 2 was dispersed under constant agitation.
Silylating agent CPTES (1.5 mmol in 50 mL dry toluene) was added dropwise and refluxed for
24 h. The silylated NPs were collected, washed with toluene and EtOH, and vacuumꢀdried to
obtain ClꢀSiO2@Fe3O4 (3).
2.2.3. 3ꢀ[N,Nꢀbisꢀ3ꢀ(salicylidenamino)ethyltriamine] (Salten) (A) synthesis
The Salten ligand was prepared by first mixing salicylaldehyde (2.0 mmol) with pꢀTSA (0.05
mmol) followed by adding diethylenetriamine (1.0 mmol). The mixture was reacted via openꢀ
beaker microwave irradiation (300 W) for 3 min. The crude product was diluted with EtOAc and
washed with DI water. The organic layer was dried over sodium sulfate, filtered, and
concentrated via rotary evaporation. The yellow oily product was washed with hexane and
vacuumꢀdried to afford product (A).24
2.2.4. Synthesis of SaltenꢀClꢀSiO2@Fe3O4 (4)
A dispersion of 3 (1.0 g) in dry toluene (100 mL) was constantly stirred with Salten ligand
solution (0.4 mmol in 20 mL dry toluene) and refluxed for 3 h in N2 blanket. The collected NPs
were washed with toluene and EtOH, and vacuumꢀdried to obtain SaltenꢀClꢀSiO2@Fe3O4 (4).
Reactant composition during Salten ligand attachment was controlled to ensure partial
functionalization; a portion of Clꢀterminated sites were left unreacted and reserved for tungstic
acid attachments as detailed in section 2.2.6.
2.2.5. Vanadium oxide complexation with SaltenꢀClꢀSiO2@Fe3O4
7

RSC Advances
Page 8 of 40
View Article Online
DOI: 10.1039/C6RA01549B
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
A dispersion of 4 (1.0 g) in dry EtOH (100 mL) was constantly stirred with VOSO4·xH2O
solution (0.5 mmol in 25 mL EtOH) and refluxed for 3 h to ensure VO2+ complexation with the
Salten ligand groups. The VO2+ modified NPs were magnetically retrieved, washed with EtOH,
and vacuumꢀdried to obtain the nanocatalyst VO(Salten)ꢀClꢀSiO2@Fe3O4 (5).
2.2.6. Tungstic acid functionalization on nanocatalyst (5)
Sodium tungstate dihydrate was functionalized on the remaining Clꢀterminated sites of 5 via
nucleophilic displacement of the chlorine moiety. Dispersion of 5 (1.0 g) was constantly stirred
in nꢀhexane (100 mL), Na2WO4•2H2O (0.3 mmol) was then added and refluxed for 12 h in N2
blanket. After 12 h, the reaction mixture was cooled to RT and the magnetically retrieved NPs
were washed with nꢀhexane (20 mL) and DI water (15 mL). The sample was acidified in 0.1 M
HCl (10 mL) to protonate the sodium tungstate and obtain tungstic acid. This was indicated by
an increase in pH of the dispersion from 1 to 5. The acidꢀtreated sample was magnetically
retrieved, washed with DI water, and vacuumꢀdried to afford the biꢀfunctional magnetic
nanocatalyst WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 (6).
2.3. Preparation of mono-functional catalysts
2.3.1. WO3HOꢀSiO2@Fe3O4 acid catalyst (7)
The acid nanocatalyst was prepared by anchoring Na2WO4•2H2O on ClꢀSiO2@Fe3O4 (3) instead
of VO(Salten)ꢀClꢀSiO2@Fe3O4 (5) (Scheme S1). Subsequent reactions detailed in Section 2.2.6
were followed to obtain WO3HOꢀSiO2@Fe3O4 (7).
2.3.2. VO(Salten)ꢀSiO2@Fe3O4 (8) oxidation catalyst
The oxidation catalyst was prepared similarly with 4 as detailed in Section 2.2.4 except that all
chlorine moieties were reacted with A to obtain Saltenꢀsaturated NPs (SaltenꢀSiO2@Fe3O4) (4a
8

Page 9 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
Scheme S2). Subsequent VO complexation procedure was performed according to Section 2.2.5
to obtain VO(Salten)ꢀSiO2@Fe3O4 (8).
2.4. Catalyst characterization
Wideꢀangle Powder Xꢀray diffraction (XRD) patterns were recorded on PANalytical X’pertꢀPro
diffractometer, operated at a 40 kV and 40 mA. The FTꢀIR spectra of the samples were scanned
in Varian spectrophotometer using standard KBr disc method between wavenumbers 400 and
4000 cmꢀ1 at RT. Thermogravimetric analysis (TGA) was carried out in SCINCO TGA (Nꢀ1000)
o
o
o
from 35 C to 1000 C at 10 C/min ramping rate, in N2 atmosphere (50 mL/min). Nitrogen
adsorptionꢀdesorption isotherms were obtained using BELSORP MiniꢀII (Japan) surface area
analyzer at 77K. The samples were outgassed in vacuo at 100 oC for 24 h prior to the adsorption
experiments. The samples were inspected under Field Emission Transmission Electron
Microscope (FEꢀTEM TECNAI G2 F30). The magnetic strength of NPs was measured on a
o
vibrating sample magnetometer (VSM) at 25 C from ꢀ15,000 to 15,000 Oe. Vanadium content
was quantified by inductively coupled plasma mass spectrometer (ICPꢀMS 7500, Agilent, USA).
The tungstic acid sites in nanocatalyst (6) was measured using acidꢀbase titration. The catalyst
was treated with standardized aqueous NaOH solution. The remaining excess (unꢀneutralized)
NaOH was used to titrate an oxalic acid standard using phenolphthalein as the indicator to
determine the concentration of remaining NaOH.21
2.5. 2,5-DFF production from fructose
Known amounts of fructose substrate, magnetic nanocatalyst, H2O2 (if added), and isopropanol
solvent were added in a 100 mL round bottom flask fitted with a mechanical stirrer and water
cooled condenser. The temperature was kept constant in an oil bath and the reaction mixture was
9

RSC Advances
Page 10 of 40
View Article Online
DOI: 10.1039/C6RA01549B
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
mechanically stirred to facilitate the oneꢀpot reaction. At certain time intervals, aliquots of the
reaction mixture were collected and the nanocatalyst was magnetically separated. The liquid
sample was dried under reduced pressure, dissolved in DI water and then analyzed in high
pressure liquid chromatography (HPLC).
2.6. Product analysis and quantification
Samples were preꢀfiltered through a syringe filter (0.2 ꢀm Nylon). The Waters HPLC was
o
equipped with Waters 2414 refractive index (RI) detector maintained at 40 C and Biorad
o
Aminex HPXꢀ87H ionꢀexclusion column (300×7.8 mm) kept at 60 C. A 5 mM H2SO4 mobile
phase was delivered at a flow rate of 0.6 mL/min. The concentrations of 2,5ꢀDFF (i.e. [DFF])
were quantified against calibration curves of standard samples. The amount of produced 2,5ꢀDFF
(WDFF) and corresponding reaction yields were calculated according to Eqs. (1) and (2) where V
is the sample volume, MW is the molecular weight of fructose (180.16 g/mole) or 2,5ꢀDFF
(124.09 g/mole) while WRM, WAL, and WFructose are the masses of the reaction mixture, aliquot
for analysis, and fructose, respectively.
[DFF] × V(mL) × WRM (mg)
213
214
(1)
(2)
WDFF (mg) =
WAL (mg)



WDFF
MW




Fructose 
2,5ꢀ DFF yield (%) =
×100

WFructose
MWDFF



215
216
217
218
219
2.7. Isolation and purification of 2,5-DFF
After catalyst removal, the vacuumꢀdried reaction sample (under reduced pressure) was washed
with hexane and reꢀcrystallized in ethyl acetate to obtain the pale white crystalline 2,5ꢀDFF
product (0.1464 g, isolated yield = 60%). Identification of the product 2,5ꢀDFF was confirmed
10

Page 11 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
1
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
by H NMR on a Varian 400MHz NMR spectrometer in deuterated chloroform (CDCl3) as
shown in Fig. S2. 1H NMR (CDCl3): δ 7.30 (s, 2H), 9.81 (s, 2H) ppm.
2.8. Recycling of catalyst (6)
After reaction, the biꢀfunctional magnetic nanocatalyst was magnetically retrieved from the
mixture. The used catalyst was washed with isopropanol to remove traces of reaction debris and
then dried at RT before reꢀuse as detailed in Section 2.5.
3. Results and discussion
3.1. Synthesis and characterization of bi-functional catalyst
The XRD patterns (Fig. 1) verified the crystallinity of bare Fe3O4 which exhibited six wellꢀ
resolved diffraction peaks at 2θ = 30.6°, 36.0°, 43.5°, 54.1°, 57.7° and 63.2°. These peaks
correspond to (2 2 0), (3 1 1), (4 0 0), (4 2 2), (5 1 1) and (4 4 0) reflection planes, which is
consistent with a cubic inverse spinel structure as reported in literature (JCPDS 19ꢀ0629).25
Meanwhile, the identical XRD pattern of SiO2@Fe3O4 with bare Fe3O4 and absence of
characteristic peaks for SiO2 indicate the amorphous nature of the SiO2 coating layer.26 Likewise,
attachments of Salten ligand and WO3HO moieties on SiO2@Fe3O4 neither altered the textural
property of Fe3O4 (Fig. 1 WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4), which confirms the structural
preservation of the bulk NP support after multiꢀfunctionalization steps.
<<Insert Figure 1>>
While the SiO2 shell was not indicated in the XRD results, its presence was confirmed via TEM
(Fig. 2). Bare Fe3O4 NPs (Fig. 2a) were spherical with average nanosize diameter (Dave) of 9 ±
0.9 nm (Fig. 2b). Its SAED pattern (inset: Fig. 2a), which corroborated the XRD result (Fig. 1),
further ascertained the monoꢀcrystalline nature of Fe3O4. The SiO2@Fe3O4 apparently had
11

RSC Advances
Page 12 of 40
View Article Online
DOI: 10.1039/C6RA01549B
243
244
similar morphology (Fig. 2c) with the bare Fe3O4 but close inspection (inset: Fig. 2c) revealed
the SiO2 layer with an average thickness of 1.36 ± 0.6 nm, ranging from 0.82 – 1.92 nm; this is
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
consistent with the increased Dave of SiO2@Fe3O4 to 11.8 ± 0.8 nm (Fig. 2b). Statistical
comparison of the average diameters of the two samples via unpaired tꢀtest reveal their
significant difference (p<0.0001), which further affirms the presence of SiO2 layer in
SiO2@Fe3O4. Additional confirmatory test via EDS confirmed the presence of SiO2 layer on
SiO2@Fe3O4 (Fig. 2d).
Though the nanocatalyst WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 appeared similar with SiO2@Fe3O4
(Fig. S1a), it had the largest Dave (12.4 nm) among the samples (Fig. S1b). Based on the
measured Dave from TEM, the surface area (SA = πr2) ratio of spherical bare Fe3O4 and
nanocatalyst was estimated to be around 1.90. On the other hand, the BET SA of WO3HOꢀ
VO(Salten)ꢀSiO2@Fe3O4 decreased to 50.9 m2/g (vs. 100.2 m2/g of bare Fe3O4) from which the
SA ratio was 1.96. The very close SA ratios from TEM and BET SA results strongly suggest
growth in size of the nanocatalyst due to functionalization.
<<Insert Figure 2>>
The thermal stability and presence of organic moieties on WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4
catalyst were examined by comparing the TGA curves of the NPs (Fig. 3). Initial weight loss
(1.4 – 2.0%) in all samples below 200 oC is attributable to the evaporation of physically adsorbed
(or crystalline) water.14 The bare Fe3O4 experienced only 7.2% of total weight loss while that of
SiO2@Fe3O4 had similar value (data not shown). On the other hand, SiO2@Fe3O4 functionalized
with CPTES organic linker (3) had a total weight loss of 9.8% while that of the nanocatalyst
WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 was 12.3%. The higher weight loss in both samples indicates
the presence of organic functional groups (i.e. CPTES linker and Salten ligand), which were
12

Page 13 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
thermally decomposed from 200 to 800 oC. Thus, TGA results suggest the successful preparation
of WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4. Moreover, the minimal weight loss in the nanocatalyst
o
below 200 C indicates its thermal stability and feasible application at its typical operating
condition of 100 oC.14
<<Insert Figure 3>>
The FTIR results provided a more definite indication of the functional groups present on the
modified Fe3O4 NPs (Fig. 4). The characteristic peaks of bare Fe3O4 (Fig. 4a) at 578 cmꢀ1 was
due to the FeꢀO stretching.27 The silica coating layer in SiO2@Fe3O4 sample was confirmed by
the SiꢀOH stretching at 3425 cmꢀ1 and SiꢀOꢀSi bonds (antisymmetric) at 1080 cmꢀ1 (Fig. 4b).7h
Peak appearances at 2978 and 2916 cmꢀ1 in ClꢀSiO2@Fe3O4, due to asymmetric and symmetric
CꢀH stretching of propyl chain of the linker, indicate successful silylation of SiO2@Fe3O4 with
CPTES (Fig. 4c). Peaks at 1489 cmꢀ1 and 1458 cmꢀ1 were due to the aromatic C=C stretching of
the ligand in SaltenꢀClꢀSiO2@Fe3O4 (Fig. 4d). Likewise, the vibrational signal at 1627 cmꢀ1 was
due to the C=N stretching of the Salten ligand.28 However, the complexation of vanadyl sulfate
with SaltenꢀClꢀSiO2@Fe3O4 (5) showed weak intensities at 980 cmꢀ1 (for V=O) and 555 cmꢀ1 (for
VꢀN) which might have been masked by strong SiꢀOꢀSi and FeꢀO bands (Fig. 4e).29 The final
nanocatalyst product exhibited sharp signal for W=O bond at 956 cmꢀ1 and WꢀO bond at 902 cmꢀ
1 21,30
,
suggesting the successful synthesis of the biꢀfunctional WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4
nanocatalyst.
<<Insert Figure 4>>
Overall characterization results confirm the successful preparation of WO3HOꢀVO(Salten)ꢀ
SiO2@Fe3O4. The spherical biꢀfunctional nanocatalyst was found to contain 0.4 mmol/g of
VO(Salten) complex, from the V content of ICPꢀMS results, and 0.25 mmol/g tungstic acidic
13

RSC Advances
Page 14 of 40
View Article Online
DOI: 10.1039/C6RA01549B
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
sites (WO3OHꢀ) based on acidꢀbase titration. No material deterioration is anticipated if it is used
at elevated temperature (~100oC).
While the preparation of WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 was found successful, its utility as a
heterogeneous biꢀfunctional nanocatalyst was further assessed in terms of its recovery from the
reaction mixture. Primarily, its magnetic character must remain sufficiently strong to facilitate its
convenient magnetic separation from the reaction mixture. Magnetization curves (Fig. 5) of bare
Fe3O4 and WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 exhibited no hysteresis loop, suggesting the
superparamagnetic nature of both NPs.14 Compared with the bare Fe3O4 (67.2 emu/g), the
reduced magnetization saturation (Ms) value of the nanocatalyst (41.6 emu/g) was due to its
increased mass and size after SiO2 coating and functionalization. Nonetheless, the Ms value of
the nanocatalyt was still reasonably strong for its easy and efficient magnetic separation from the
reaction mixture (inset: Fig. 5).
<<Insert Figure 5>>
3.2. Catalytic performance of mono-functional catalysts (7) and (8)
To elucidate the performance of the biꢀfunctional catalyst, the role of each catalytic component
was decoupled by synthesizing the monoꢀfunctionalized nanocatalysts which were solely
anchored with either tungstic acid (WO3HOꢀSiO2@Fe3O4) or VO(Salten) complex [VO(Salten)ꢀ
SiO2@Fe3O4] (Schemes S1 and S2). Acidꢀbase titration result revealed 0.64 mmol/g of tungstic
acid in WO3HOꢀSiO2@Fe3O4 (7) while ICPꢀMS analysis of V estimated 0.70 mmol/g of
VO(Salten) complex in VO(Salten)ꢀSiO2@Fe3O4 (8).
3.2.1. Fructose dehydration activity of WO3HOꢀSiO2@Fe3O4
14

Page 15 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
The initial step of 2,5ꢀDFF formation involves fructose dehydration to 5ꢀHMF.The catalytic
activity of WO3HOꢀSiO2@Fe3O4 (0.032 mmol tungstic acid) in 1.0 mmol fructose was observed
for 2 h to yield 5ꢀHMF. Isopropanol was used as reaction solvent; it readily dissolves fructose,
minimizes 5ꢀHMF esterification,2 and eliminates liquidꢀliquid 5ꢀHMF extraction, as it can be
easily evaporated in vacuo. The reaction was maintained at 80 oC due to the 5ꢀHMF degradation
at higher temperatures.4a
As a Brønsted acid catalyst, WO3HOꢀSiO2@Fe3O4 supplies the proton that activates the
anomeric –OH site in fructose which initiates the triple dehydration reaction.20,31ꢀ33 It is believed
that the released protons are captured back by the tungstic acid sites, which closes the catalytic
cycle for fructose dehydration.20,32 Time profile (Fig. 6a) reveals a gradual decline in fructose
concentration concomitant with the steady increase in 5ꢀHMF until a maximum yield of 86.3%
and 90% fructose conversion was achieved after 60 min. No rehydration products4c were
detected even after 120 min when the 5ꢀHMF yield eventually declined to 27.6%. However, the
decrease in 5ꢀHMF yield after 60 min could be due to the onset of polymeric humins formation,
a degradation product of 5ꢀHMF.4a,34 Polymeric humins are typically formed in a highly acidic
environment (i.e. surplus acid supply from WO3HOꢀSiO2@Fe3O4) and prolonged reaction time
at an elevated temperature. This finding suggests that regulation of acid catalyst loading is
critical to minimize the extent of 5ꢀHMF degradation.
<<Insert Figure 6>>
3.2.2. 2,5ꢀDFF production from 5ꢀHMF by VO(Salten)ꢀSiO2@Fe3O4
The second step for 2,5ꢀDFF production from fructose involves 5ꢀHMF oxidation. The catalytic
activity of VO(Salten)ꢀSiO2@Fe3O4 (0.035 mmol VO(Salten) complex) in 1.0 mmol 5ꢀHMF
15

RSC Advances
Page 16 of 40
View Article Online
DOI: 10.1039/C6RA01549B
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
with the aid of H2O2 (1.0 mmol) as coꢀoxidant in isopropanol was examined for 24 h. To
alleviate overꢀoxidation of 5ꢀHMF, initial reaction was performed at RT.35
Oxidation of 5ꢀHMF is facilitated by the intermediate oxoperoxovanadium species which are
conveniently generated via activation of the VO(Salten) complex in the presence of H2O2.36
Time profile (Fig. 6b) shows the gradual formation of 2,5ꢀDFF while the consumption of 5ꢀHMF
was rapid and complete albeit overꢀoxidation products remained undetected. Production of 2,5ꢀ
DFF eventually stalled after 24 h at which a maximum yield of 68.9% was achieved. The nonꢀ
concurrent rates of product generation and substrate consumption could be due to the limiting
effects of intermediate formation, which consequently hampered the final step of 2,5ꢀDFF
formation. Since the reaction was performed at RT, oxidation temperature increase is probably
needed to accelerate either the generation of oxoperoxovanadium species or the oxidation of 5ꢀ
HMF by oxoperoxovanadium complex. Nonetheless, the absence of overꢀoxidation products
along with the decent 2,5 DFF yield makes the VO(Salten)ꢀSiO2@Fe3O4 a suitable and selective
5ꢀHMF oxidation catalyst.
Overall results from monocatalyst activities demonstrate the individual function and
effectiveness of each component of the biꢀfunctional catalyst. To figure out the synergy between
the tungstic acid and VO(Salten) complex, oneꢀpot reactions using the biꢀfunctional nanocatalyst
WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 was carried out and tuned to maximize the 2,5ꢀDFF yield
from fructose at the shortest period possible.
3.3. One-pot synthesis of 2,5-DFF from fructose
Initial oneꢀpot 2,5ꢀDFF synthesis from 1.0 mmol fructose (Fig. 7a) was performed using 100 mg
of the biꢀfunctional nanocatalyst (0.025 mmol tungstic acid and 0.04 mmol of VO(Salten)
16

Page 17 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
o
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
complex). Fructose dehydration was initiated at 80 C wherein a maximum 5ꢀHMF yield of 82.2%
and 94.2% fructose conversion were achieved after 1 h. This reaction behavior coincided with
that of the acidic monocatalyst (WO3HOꢀSiO2@Fe3O4). The slightly lower 5ꢀHMF yield can be
ascribed to the lower level of tungstic acid supply from the biꢀfunctional nanocatalyst (0.025
mmol vs. 0.032 mmol in Section 3.2.1).
o
After 1 h of fructose dehydration, the reaction mixture was cooled to RT (25 C) and then
injected with H2O2 to initiate 5ꢀHMF oxidation into 2,5ꢀDFF. The 5ꢀHMF gradually declined
and reached a minimum value of 4.8% after 24 h. Coupled with 5ꢀHMF consumption is the
gradual production of 2,5ꢀDFF which reached 58.9% yield after 24 h oxidation (i.e. 25 h overall
reaction). Albeit the supply of VO(Salten) complex was higher in the current experiment (0.04
mmol vs. 0.035 mmol in Section 3.2.2), the 2,5ꢀDFF yield was lower than that from the
monocatalyst VO(Salten)ꢀSiO2@Fe3O4. Apart from humins formation due to 5ꢀHMF
degradation, the accessibility of VO(Salten) complex in WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 to the
5ꢀHMF or H2O2 might have been reduced due to the simultaneous presence of tungstic acid sites.
Moreover, the lower yield of 5ꢀHMF which was the substrate of 2,5ꢀDFF might have also
contributed to its lower production. Nonetheless, the findings from this reaction exhibited the
potential production of 2,5ꢀDFF from fructose viaꢀone pot reaction using the developed biꢀ
functional WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4.
<<Insert Figure 7>>
3.3.1. Temperature control for 5ꢀHMF oxidation
At the same reactant composition and fructose dehydration condition, the effect of reaction
temperature during 5ꢀHMF oxidation was investigated to improve the 2,5ꢀDFF yield as inferred
in Section 3.2.2. Increase in temperature is expected to expedite 5ꢀHMF oxidation due to
17

RSC Advances
Page 18 of 40
View Article Online
DOI: 10.1039/C6RA01549B
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
improved kinetic mobility and contact frequency of the substrate with the catalyst at elevated
temperature. Furthermore, the system would require shorter time to cool from 80 oC down to the
desired temperature for 5ꢀHMF oxidation. Increasing the oxidation temperature from RT to 50
o
oC (Fig. 7b) significantly improved the maximum 2,5ꢀDFF yield to 67.3%, even higher at 60 C
which afforded 71.1% 2,5ꢀDFF (Fig. 7c) and 95.5% conversion of 5ꢀHMF. Moreover, both
reactions achieved the maximum yields at shorter reaction period (16ꢀ19 h) which suggests
o
accelerated 5ꢀHMF oxidation at elevated temperature. But further increase to 70 C (Fig. 7d)
reduced the 2,5ꢀDFF yield to 51.1% albeit the almost complete 5ꢀHMF conversion. This suggests
that the reaction selectivity was reduced as 5ꢀHMF degradation to humins was promoted at
higher reaction temperature. Thus in the oneꢀpot reaction using the biꢀfunctional catalyst,
temperature control of individual steps was found necessary to maximize 2,5ꢀDFF yield and
substrate conversions. In the current system, fructose dehydration at 80 oC and 5ꢀHMF oxidation
o
at 60 C provided the highest 2,5ꢀDFF yield from fructose after 16 h of reaction, hence was
adopted in subsequent experiments.
3.3.2. Effect of WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 dosage
Under optimal reaction conditions, the dosage of the biꢀfunctional nanocatalyst was varied to
elucidate its effect on the 2,5ꢀDFF yield from fructose. Dosage was reported in terms of solid
nanocatalyst/liquid volume (S/L) ratio. Thus in a 20 mL reaction volume, experiments were
performed at S/L ratios = 4 to 6 (mg/mL) wherein higher S/L means higher nanocatalyst dosage.
The lowest S/L ratio afforded only 70.1% 5ꢀHMF after 1 h and 57.1% 2,5ꢀDFF after another 15
h in oneꢀpot system (Fig. 8a). Increase in S/L ratio to 5 enhanced both yields to 82.7% 5ꢀHMF
and 71.1% 2,5ꢀDFF without changing any other reaction parameter. However, increase of S/L
ratio = 6 reduced the 5ꢀHMF (77.8%) and 2,5ꢀDFF (65.7%) yields.
18

Page 19 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
To elucidate the effect of nanocatalyst dosage, 5ꢀHMF yield was plotted against 2,5ꢀDFF yield
(Fig. 8b). The strong correlation between the values (r2 = 0.99) indicates that 2,5ꢀDFF production
was mainly dependent on the availability of 5ꢀHMF. This supports the earlier finding (Section
3.3) that 2,5 DFF yield at fixed 5ꢀHMF was not dependent on the amount of available VO(Salten)
complex. Thus, this suggests that it is the availability of tungstic acid sites (i.e. controlled via biꢀ
functional catalyst dosage) that influenced 5ꢀHMF production, which in turn affected the 2,5ꢀ
DFF yield. At low S/L ratio = 4, insufficient tungstic acid sites led to low 5ꢀHMF production
whereas a harsher acidic environment at S/L ratio = 6 hampered the 5ꢀHMF yield perhaps due to
the observed humins formation. The lower 5ꢀHMF yields in both S/L ratios consequently
resulted in subꢀoptimal 2,5ꢀDFF yields. The highest 5ꢀHMF yield and 2,5ꢀDFF production at S/L
= 5 suggests that this catalyst dosage provided the most suitable tungstic acid level for the
reaction (Fig. 8b).
<<Insert Figure 8>>
3.3.3. The significance of H2O2 addition
The importance of H2O2 was elucidated by varying its amount in the reaction system. In its
absence, no 2,5ꢀDFF was produced (Fig. 9) while the slight consumption of 5ꢀHMF was due to
humins production. This finding further asserted the role of H2O2 as an oxidation “switch” or as
a VO(Salten) complex activator (Section 3.2.2).22,36 Addition of 0.5 mmol H2O2 resulted in
partial oxidation of 5ꢀHMF which afforded 45.2% of 2,5ꢀDFF yield. This suggests that
insufficient amount of H2O2 added generated inadequate oxoperoxovanadium species which
were directly involved in 5ꢀHMF oxidation. Adjustment in H2O2 dosage to 1.0 mmol improved
the 2,5ꢀDFF yield to 71.1% while further increase to 2.0 mmol reduced 2,5ꢀDFF yield, which can
be ascribed to 5ꢀHMF decomposition. Coincidentally, the most suitable H2O2 dosage of 1.0
19

RSC Advances
Page 20 of 40
View Article Online
DOI: 10.1039/C6RA01549B
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
mmol in 20 mL reaction volume was the same as those employed in earlier experiments hence no
further increase in 2,5ꢀDFF yield was observed.
Results from oneꢀpot synthesis of 2,5ꢀDFF from fructose using WO3HOꢀVO(Salten)ꢀ
SiO2@Fe3O4 as a biꢀfunctional nanocatalyst reveal that temperature control in each reaction step,
nanocatalyst dosage via S/L ratio, and H2O2 addition were critical in achieving the maximum 5ꢀ
HMF yield (82.2%) and 2,5ꢀDFF production (71.1%).
<<Insert Figure 9>>
3.4. Recycling of WO3HO-VO(Salten)-SiO2@Fe3O4 catalyst
Recycling and isolation of any catalyst are essential characteristics for its probable industrial
application. The nanocatalyst WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 was readily retrieved due to its
magnetic core support. After each reaction, it was magnetically separated from the mixture,
washed with isopropanol, and then dried for further use. The performance of the biꢀfunctional
nanocatalyst was reliable even after repeated use (Fig. 10). After five cycles of reaction, the
decline in 2,5ꢀDFF yield was very minor (≅ 5%) relative to the first cycle. Furthermore, the FTIR
of used nanocatalyst (Fig. S3) showed consistent signature peaks with that of fresh WO3HOꢀ
VO(Salten)ꢀSiO2@Fe3O4 (Fig. 4f). This suggests resilience of the nanocatalyst to deterioration
despite its exposure to different chemical conditions during the reaction. The consistent
performance of WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 after several uses demonstrates its potential as
an economically viable route for oneꢀpot synthesis of 2,5ꢀDFF from biomassꢀbased
carbohydrates like fructose.
<<Insert Figure 10>>
447
448
4. Conclusions
20

Page 21 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
The biꢀfunctional magnetic nanocatalyst WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 which contained two
types of active sites was successfully prepared through a simple functionalization procedure. The
nanocatalyst had a stable structure which can withstand the needed reaction temperature. Its dual
catalytic performance is attributable to a reaction “switch” mechanism, which afforded
sequential reactions. The catalyst effectively produced 2,5ꢀDFF from fructose in a oneꢀpot
system with reasonable yields under mild reaction conditions. The nanocatalyst was readily
separated from the reaction mixture by an external magnet and it performed consistently for
several cycles of reaction without any form of deterioration. These findings strongly indicate the
industrial potential of WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 nanocatalyst for direct 2,5ꢀDFF
production from fructose. Overall findings can provide insights for the development of oneꢀpot
systems for the syntheses of biomassꢀderived specialty chemicals.
5. Acknowledgements
This research was supported by Basic Science Research Program through the National Research
Foundation of Korea (NRF) funded by the Ministry of Education (2009ꢀ0093816) and by the
Ministry of Science, ICT & Future Planning (2015R1C1A2A01054605). The authors would like
to thank Korea Basic Science Institute (KBSI), Seoul for the use of TEM and Korea Institute of
Science and Technology (KIST), Seoul for the use of VSM.
467
468
469
470
6. References
1. R. ꢀJ. van Putten, J. C. van der Waal, E. de Jong, C. B. Rasrendra, H. J. Heeres and J. G. de
Vries, Chem. Rev., 2013, 113, 1499.
2. Z. Yuan, Z. Zhang, J. Zheng and J. Lin, Fuel, 2015, 150, 236.
21

RSC Advances
Page 22 of 40
View Article Online
DOI: 10.1039/C6RA01549B
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
3. (a) K.T. Hopkins, W. D. Wilson, B. C. Bender, D. R. McCurdy, J. E. Hall, R. R. Tidwell, A.
Kumar, M. Bajic and D. W. Boykin, J. Med. Chem., 1998, 41, 3872; (b) M. D. Poeta, W. A.
Schell, C. C. Dykstra, S. Jones, R. R. Tidwell, A. Czarny, M. Bajic, M. Bajic, A. Kumar, D.
Boykin and J. R. Perfect, Antimicrob. Agents Chemother., 1998, 42, 2495; (c) D. T. Richter and
T. D. Lash, Tetrahedron Lett., 1999, 40, 6735; (d) A. Gandini and M. N. Belgacem, Prog.
Polym. Sci., 1997, 22, 1203.
4. (a) N. Mittal, G. M. Nisola and W. ꢀJ. Chung, Tetrahedron Lett., 2012, 53, 3149; (b) J. N.
Chheda, Y. RomanꢀLeshkov and J. A. Dumesic, Green Chem., 2007, 9, 342; (c) Y. Qiao, N.
Theyssen, and Z. Hou, Recycl. Catal., 2015, 2, 36.
5. (a) Y. ꢀM. Zhang, V. Degirmenci, C. Li and E. J. M. Hensen, ChemSusChem, 2011, 4, 59; (b)
Y. Li, H. Liu, C. ꢀH. Song, X. ꢀM. Gu, H. ꢀM. Li, W. ꢀS. Zhu, S. Yin and C. ꢀR. Han, Bioresour.
Technol., 2013, 133, 347; (c) B. Liu, Z. ꢀZ. Gou, A. ꢀQ. Liu and Z. ꢀH. Zhang, J. Ind. Eng.
Chem., 2015, 21, 338; (d) V. V. Ordomsky, J. C. Schouten, J. van der Schaaf and T. A. Nijhuis,
Chem. Eng. J., 2012, 207-208, 218; (e) G. ꢀX. Nie, X. ꢀL. Tong, Y. ꢀY. Zhang and S. Xue, Catal.
Lett., 2014, 144, 1759; (f) X. ꢀC. Guo, Q. Cao, Y. ꢀJ. Jiang, J. Guan, X. ꢀY. Wang and X. ꢀD. Mu,
Carbohydr. Res., 2012, 351, 35; (g) X. ꢀC. Zhang, M. Wang, Y. ꢀH. Wang, C. ꢀF. Zhang, Z.
Zhang, F. Wang and J. Xu, Chin. J. Catal., 2014, 35, 703.
6. (a) J. W. Reijendam, G. J. Heeres and M. J. Janssen, Tetrahedron Lett., 1970, 26,1291; (b) L.
Cottier, G. Descotes, J. Lewkowski and R. Skowronski, Pol. J. Chem., 1994, 68, 693; (c) L.
Cottier, G. Descotes, J. Lewkowski and R. Skowronski, Org. Prep. Proced. Int., 1995, 27, 564;
(d) W. Partenheimer and V. V. Grushin, Adv. Synth. Catal., 2001, 343, 102; (e) G. A. Halliday,
R. J. Young and V. V. Grushin, Org. Lett., 2003, 5, 2003; (f) J. P. Ma, Z. T. Du, J. Xu, Q. H. Chu
22

Page 23 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
and Y. Pang, ChemSusChem, 2011, 4, 51; (g) N. Mittal, G. M. Nisola, L. B. Malihan, J. G. Seo,
S. ꢀP. Lee and W. ꢀJ. Chung, Kor. J. Chem. Eng., 2014, 31, 1362.
7. (a) C. Carlini, P. Patrono, A. M. R. Galletti, G. Sbrana and V. Zima, Appl. Catal. A: Gen.,
2005, 289, 197; (b) O. C. Navarro, A. C. Canos and S. I. Chornet, Top. Catal., 2009, 52, 304; (c)
A. Takagaki, M. Takahashi, S. Nishimura and K. Ebitani, ACS Catal., 2011, 1, 1562; (d) Z. Z.
Yang, J. Deng, T. Pan, Q. X. Guo and Y. Fu, Green Chem., 2012. 14, 2986; (e) I. Sadaba, Y. Y.
Gorbanev, S. Kegnaes, S. S. R. Putluru, R. W. Berg and A. Riisager, ChemCatChem, 2013, 5,
284; (f) G. D. Yadav and R. V. Sharma, Appl. Catal. B: Environ., 2014, 147, 293; (g) B. Liu, Z.
Zhang, K. Lv, K. Deng and H. Duan, Appl. Catal. A: Gen., 2014, 472, 64; (h) N. Mittal, G. M.
Nisola, J. G. Seo, S. ꢀP. Lee and W.ꢀJ. Chung, J. Mol. Catal. A: Chem., 2015, 404, 106; (i) J.
Chen, J. Zhong, Y. Guo and L. Chen, RSC Adv., 2015, 5, 5933; (j) J. Artz, S. Mallmann and R.
Palkovits, ChemSusChem, 2015, 8, 672.
8. S. Zhang, W. Li, X. Zeng, Y. Sun, and L. Lin, BioResources, 2014, 9, 4568.
9. J. Z. Chen, Y. Y. Guo, J. Y. Guo, L. S. Song and L. M. Chen, ChemCatChem 2014, 6, 3174.
10. Z. Zhang, Z. Yuan, D. Tang, Y. Ren, K. Lv, and Bing Liu, ChemSusChem, 2014, 7, 3496.
11. F. Xu and Z. Zhang, ChemCatChem, 2015, 7, 1470.
12. F. Tao, Y. Cui, P. Yang, and Y. Gong, Russ. J. Phys. Chem. A, 2014, 88, 1091.
13. (a) Y. Liu, L. Zhu, J. Tang, M. Liu, R. Cheng and C. Hu, ChemSusChem 2014, 7, 3541; (b)
R. Liu, J. Chen, L. Chen, Y. Guo, and J. Zhong, ChemPlusChem, 2014, 79, 1448.
14. S. Otokesh, E. Kolvari, A. Amoozadeh and N. Koukabi, RSC Adv., 2015, 5, 53749.
15. V. Polshettiwar, R. Luque, A. Fihri, H. Zhu, M. Bouhrara and J. M. Basset, Chem. Rev.,
2011, 111, 3036.
16. Y. Zhang and C. G. Xia, Appl. Catal. A: Gen., 2009, 366, 141.
23

RSC Advances
Page 24 of 40
View Article Online
DOI: 10.1039/C6RA01549B
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
17. S. Shylesh, A.Wagener, A. Seifert, S. Ernst and W. R. Thiel, Angew. Chem., Int. Ed., 2010,
49, 184.
18. J. Lee, Y. Lee, J. K. Youn, H. B. Na, T. Yu, H. Kim, S. M. Lee, Y. M. Koo, J. H. Kwak, H.
G. Park, H. N. Chang, M. Hwang, J. G. Park, J. Kim and T. Hyeon, Small, 2008, 4, 143.
19. G. Chouhan, D. S. Wang and H. Alper, Chem. Commun., 2007, 4809.
20. B. Karami, V. Ghashghaee and S. Khodabakhshi, Catal. Commun., 2012, 20, 71.
21. S. K. Kundu, J. Mondal and A. Bhaumik, Dalton Trans., 2013, 42, 10515.
22. (a) A. L. Cánepa, C. M. Chanquía, V. M. Vaschetti, G. A. Eimer and S. G. Casuscelli, J.
Mol. Catal. A: Chem., 2015, 404-405, 65; (b) J. Pisk, J. –C. Daran, R. Poli and D. Agustin, J.
Mol. Catal. A: Chem., 2015, 403, 52.
23. A. Ying, S. Liu, Y. Ni, F. Qiu, S. Xu and W. Tang, Catal. Sci. Technol., 2014, 4, 2115.
24. S. Das , V. K. Das , L. Saikia and A. J. Thakur, Green Chem. Lett. Rev., 2012, 5:3, 457.
25. F. C. Zheng, Q. W. Chen, L. Hu, N. Yana and X. K. Kong, Dalton Trans., 2014, 43,
1220.
26. J. Choi, J. C. Kim, Y. B. Lee, I. S. Kim, Y. K. Park and N. H. Hur, Chem. Commun., 2007,
1644.
27. M. Yamaura, R. L. Camilo, L. C. Sampaio, M. A. Macedo, M. Nakamura and H. E. Toma,
J. Magn. Magn. Mater., 2004, 279, 210.
28. P. Sharma, A. Lazar and A. P. Singh, Appl. Catal. A: Gen., 2012, 439-440, 101.
29. J. R. Zamian and E. R. Dockal, Trans. Met. Chem., 1996, 21, 370.
30. S. Wang, Z. Zhang, B. Liu and J. Li, Catal. Sci. Technol., 2013, 3, 2104.
31. G. Yang, E. A. Pidko and E. J. M. Hensen, J. Catal., 2012, 295, 122.
32. M. Farahi, B. Karami, S. Alipour and L. T. Moghadam, Acta Chim. Slov., 2014, 61, 94.
24

Page 25 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
539
540
541
542
543
544
545
33. J. Zhang, A. Das, R. S. Assary, L. A. Curtiss and E. Weitza, Appl. Catal. B: Environ., 2016,
181, 874.
34. D. Ray, N. Mittal and W. ꢀJ. Chung, Carbohydr. Res., 2011, 346, 2145.
35. S. Wang, Z. Zhang, B. Liu and J. Li, Ind. Eng. Chem. Res., 2014, 53, 5820.
36. A. M. E. Hendaway, A. M. Fayed and M. R. Mostafa, Trans. Met. Chem., 2011, 36, 351.
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
25

RSC Advances
Page 26 of 40
View Article Online
DOI: 10.1039/C6RA01549B
561
562
563
Scheme Captions:
Scheme 1. Oneꢀpot, twoꢀstep conversion of fructose to 2,5ꢀdiformylfuran.
Scheme 2. Synthesis of biꢀfunctional WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 (6) nanocatalyst.
564
565
566
567
568
569
570
571
572
573
574
575
576
Figure Captions:
Fig. 1. Powder XRD patterns of Fe3O4, SiO2@Fe3O4 NPs and WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4
catalyst.
Fig. 2. TEM images of (a) Fe3O4, (b) SiO2@Fe3O4 NPs, and their (c) size distribution histograms
and (d) EDAX analysis. The insets show (a) SAED pattern of Fe3O4 NPs and (b) HRTEM image
of silica coating over the Fe3O4 core.
Fig. 3. TGA curves of Fe3O4, ClꢀSiO2@Fe3O4 NPs and WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4
catalyst.
577
578
579
580
Fig. 4. FTꢀIR spectra of (a) Fe3O4, (b) SiO2@Fe3O4, (c) ClꢀSiO2@Fe3O4, (d) SaltenꢀClꢀ
SiO2@Fe3O4, (e) VO(Salten)ꢀClꢀSiO2@Fe3O4 and (f) WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4
catalyst.
581
582
583
Fig. 5. Magnetization curves of Fe3O4 NPs and WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 catalyst. The
inset shows the magnetic behavior of the catalyst after reaction.
584
585
586
587
588
Fig. 6. (a) Dehydration of fructose using WO3HOꢀSiO2@Fe3O4 catalyst. Reaction conditions:
o
fructose (1.0 mmol), catalyst (50 mg, 0.032 mmol tungstic acid), isopropanol (solvent), 80 C
and, (b) Oxidation of 5ꢀHMF using VO(Salten)ꢀSiO2@Fe3O4 catalyst. Reaction conditions: 5ꢀ
HMF (1.0 mmol), catalyst [50 mg, 0.035 mmol VO(Salten)], H2O2 (1.0 mmol), isopropanol
(solvent), RT. *C/Co = Final concentration/Initial concentration.
26

Page 27 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
589
590
591
592
593
594
Fig. 7. Reaction profiles of oneꢀpot conversion of fructose to 2,5ꢀDFF using WO3HOꢀ
VO(Salten)ꢀSiO2@Fe3O4 biꢀfunctional catalyst at different temperatures (oxidation step).
Reaction conditions: fructose (1.0 mmol), catalyst [100 mg, 0.04 mmol VO(Salten) and 0.025
mmol tungstic acid], H2O2 (1.0 mmol, when added), isopropanol (solvent), 80 oC (for initial 1 h).
*C/Co = Final concentration/Initial concentration.
595
596
597
598
599
600
601
Fig. 8. (a) Effect of S/L ratio (catalyst dosage/reaction volume) on oneꢀpot conversion of
fructose to 2,5ꢀDFF using WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 catalyst and (b) Plot of dependence
of 2,5ꢀDFF yield on 5ꢀHMF produced in the reaction with respect to S/L ratio. Reaction
conditions: fructose (1.0 mmol), catalyst [0.4 mmol/g VO(Salten) and 0.25 mmol/g tungstic
o
o
acid], H2O2 (1.0 mmol, added after 1 h), isopropanol (solvent), 80 C (for initial 1 h) and 60 C
(for subsequent 15 h).
602
603
604
605
606
Fig. 9. Effect of H2O2 dosage on oneꢀpot conversion of fructose to 2,5ꢀDFF using WO3HOꢀ
VO(Salten)ꢀSiO2@Fe3O4 catalyst. Reaction conditions: fructose (1.0 mmol), catalyst [100 mg,
0.04 mmol VO(Salten) and 0.025 mmol tungstic acid], H2O2 (added after 1 h), isopropanol
(solvent), 80 oC (for initial 1 h) and 60 oC (for subsequent 15 h).
607
608
609
610
611
Fig. 10. Recyclability of WO3HOꢀVO(Salten)ꢀSiO2@Fe3O4 catalyst. Reaction conditions:
fructose (1.0 mmol), catalyst [100 mg, 0.04 mmol VO(Salten) and 0.025 mmol tungstic acid],
o
o
H2O2 (1.0 mmol, added after 1 h), isopropanol (solvent), 80 C (for initial 1 h) and 60 C (for
subsequent 15 h).
612
613
614
27

RSC Advances
Page 28 of 40
View Article Online
DOI: 10.1039/C6RA01549B
One-pot, two-step conversion of fructose to 2,5-diformylfuran.
77x46mm (600 x 600 DPI)

Page 29 of 40
RSC Advances
View Article Online
DOI: 10.1039/C6RA01549B
Synthesis of bi-functional WO3HO-VO(Salten)-SiO2@Fe3O4 (6) nanocatalyst.
362x226mm (150 x 150 DPI)
