Controlling Dual Molecular Pumps Electrochemically
Cristian Pezzato, Minh T. Nguyen, Dong Jun Kim, Ommid Anamimoghadam, Lorenzo Mosca, and J.
Fraser Stoddart*
Abstract: Artificial molecular machines can be operated using
either physical or chemical inputs. Light-powered motors display
clean and autonomous operations, whereas chemically-driven
machines generate waste products and are intermittent in their
motions. Herein, we show that controlled changes in applied
electrochemical potentials can drive the operation of artificial
molecular pumps in a semi-autonomous manner – that is, without
the need for consecutive additions of chemical fuel(s). The
electroanalytical approach described in this communication
promotes the assembly of cyclobis(paraquat-p-phenylene) rings
along a positively charged oligomeric chain, providing easy
access to the formation of multiple mechanical bonds by means
of a controlled supply of electricity.
Coulombic barrier (PY+) and a steric speed-bump (IPP) which is
attached, via a triazole linker (T), to a collecting-chain for the rings.
We have shown[14b] that the Mark II version operates much more
rapidly thanks to the well-tuned noncovalent bonding interactions
exerted between the PY+ and IPP units, allowing V2+ to attract and
then quickly repel the CBPQT4+ rings unidirectionally upon redox
switching.
a
PY+
IPP
V2+
Mark II pump constitution
T
CBPQT4+
b
c
Zn(PF6)2
Zn(s)
+3e−
Control over the operation of artificial molecular machines
(AMMs) has been achieved in the past by employing[1] either
physical or chemical inputs. In concert with the rise[2] of
overcrowded alkene-containing molecular motors, which operate
autonomously by absorbing light, AMMs based on mechanical
bonds[3] have experienced a paradigm shift in design principles[4]
– i.e., from switches to ratchets[5] – as well as in the way external
stimuli[6] – e.g., light irradiation, pH or redox changes – are
transduced into motion or other functions.[7] Early examples of
bistable mechanically interlocked molecules (MIMs) in the form of
simple [2]rotaxanes[8] and [2]catenanes[9], followed by molecular
elevators[10] and muscles[11], have led to more sophisticated[12]
rotary and linear molecular motors[13] and pumps[14] capable of
controlling the directional movements of their component parts on
the molecular scale. Recent advances[15] have drawn attention to
establishing autonomous AMMs which work as a result of the
consumption of chemical fuels, a typical property of biomolecular
machines. In closed systems, however, the capability for AMMs
to operate without generating waste products is seldom
observed[16] and remains an exclusive feature of light-driven[12b]
machines. Here, we describe how AMMs can be operated semi-
autonomously by controlling the supply of electrical current, thus
avoiding the accumulation of waste products during repetitive
cycles.
G
−3e−
Zn
NOPF6
or
or
−0.7 V
+1.4 V
NOPF6
G
NO(g)

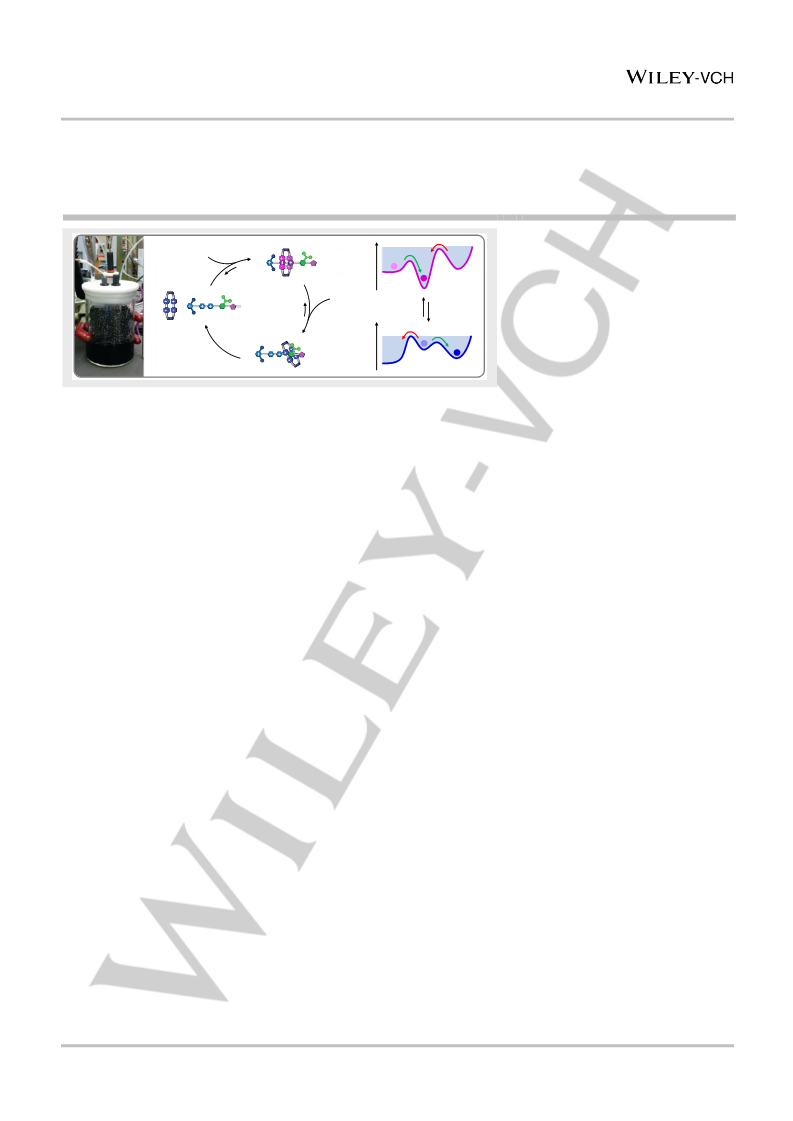

Figure 1. a) Graphical representations of structural formulas for the Mark II pump
constitution and CBPQT4+. b) Schematic illustration of the pump’s stroke. Upon
reduction (either using Zn dust or electrochemically), V•+ and CBPQT2(•+) radical cations
associate to form a trisradical tricationic complex V•+  CBPQT2(•+), whereas upon re-
oxidation (either using NOPF6 or electrochemically), V2+ and CBPQT4+ coexist as a
metastable co-conformation with CBPQT4+ located alongside the IPP unit, which
subsequently rearranges into the corresponding rotaxane through energy dissipation. Grey
labels = chemical fuels; black labels = electrochemical inputs. c) Energetic landscapes of
the two redox states, illustrating the energy ratchet mechanism.
The ratchet mechanism of these pumps was operated by the
consecutive addition of redox reagents – Zn dust for the reduction
of V2+ and CBPQT4+ to their corresponding radical cations V•+ and
CBPQT2(●+), and NOPF6 for the reverse oxidation reactions
(Figure 1b and c, grey labels). It turned out to be difficult, however,
to perform multiple redox cycles on a solution of starting materials,
most likely because of interferences originating from the waste
products, namely Zn(PF6)2 and NO(g). Additionally, Zn dust has
been shown to over-reduce[17] viologen-based compounds to their
neutral forms, a flaw which could decrease the pumping efficiency.
Herein, we show that cycles of controlled-potential electrolysis
(CPE) can drive (Figure 1b and c, black labels) repetitively the
operation of the Mark II pump in solution. Moreover, we
demonstrate the double addition[7] of CBPQT4+ rings to a chain by
locating two Mark II pumps at both ends of a dicationic oligomer.
First of all, we focused our attention on designing an
oligomeric dual pump – referred hereafter to as DP8+ – which
comprises (Scheme 1) two Mark II pumps attached, by means of
a triazole linker, to a 36-carbon atom chain incorporating two
dimethylammonium centers. This chain is expected to act as the
axle for the collection of multiple CBPQT4+ rings. We chose this
Previously, we have reported Mark I[14a] and II[14b] versions of
artificial molecular pumps – i.e., AMMs capable of driving the
confinement
of
multiple
cyclobis(paraquat-p-phenylene)
(CBPQT4+) rings onto a short oligomethylene chain. These pumps
comprise (Figure 1a) a viologen unit (V2+) positioned between a
[*]
Dr C. Pezzato, Dr. M. T. Nguyen, Dr. D. J. Kim, Dr. O.
Anamimoghadam, Dr. L. Mosca, Professor J. F. Stoddart
Department of Chemistry, Northwestern University
2145 Sheridan Road, Evanston, IL 60208 (USA)
E-mail: Stoddart@northwestern.edu
Professor J. F. Stoddart
Institute of Molecular Design and Synthesis, Tianjin University,
Nankai District, Tianjin 300072 (China)
Supporting information for this article is given via a link at the end of
the document.
This article is protected by copyright. All rights reserved.
