GModel
MOLCAA-8866; No. of Pages6
ARTICLE IN PRESS
2
K. Nakajima et al. / Journal of Molecular Catalysis A: Chemical xxx (2013) xxx–xxx

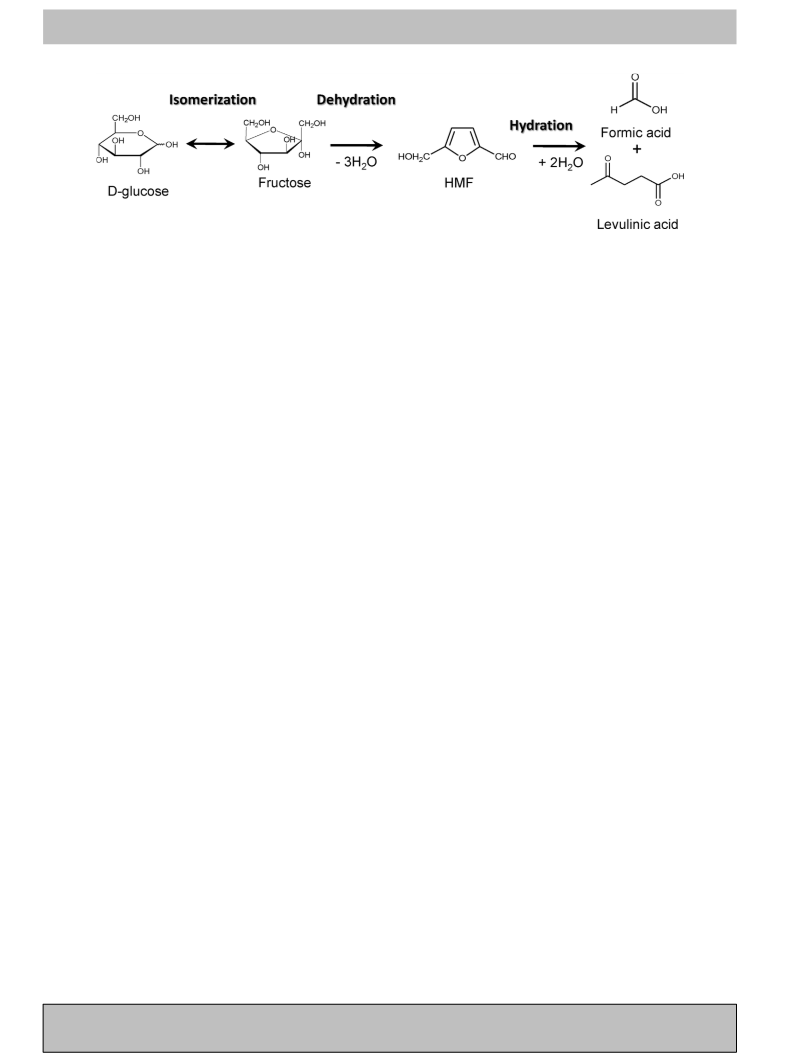

Scheme 1. Reaction pathway for acid-catalysed conversion of glucose into HMF in water.
the surface. Unsaturated coordination MO4 tetrahedra act as Lewis
acids; however, MO4 species are considered to not function as well
in water as other Lewis acids. Niobic acid with NbO4 species as
water-tolerant Lewis acid sites suggests that anatase TiO2, a ubiqui-
tous material, with TiO4 species on the surface would also function
as an insoluble, easily separable, and water-tolerant Lewis acid cat-
alyst. Therefore, the potential of anatase TiO2 as a heterogeneous
water-tolerant Lewis acid was investigated in this study.
2.3. HMF production from glucose
THF/aqueous solution (2.0 mL (THF, 1.8 mL; distilled water,
0.2 mL)) containing d-glucose (0.02 g) and catalyst (0.05 g) was
heated in a sealed Pyrex tube for 2 h at 393 K. After filtration, the
solutions were analyzed using high performance liquid chromatog-
raphy (HPLC; LC-2000 plus, Jasco) equipped with refractive index
(RI) and photodiode array (PDA) detectors. Aminex® HPH-87H col-
umn (300 mm × 7.8 mm, Bio-Rad Laboratories) with diluted H2SO4
solution (5 mM) of eluent, 0.5 mL min−1 of flow rate, and 308 K of
column temperature was adopted in HPLC analysis.
2. Experimental
2.1. Preparation of anatase TiO2 and phosphate/TiO2
3. Results and discussion
Anatase TiO2 was synthesized by the addition of 20 mL Ti(i-pro)4
to 100 mL distilled water, followed by stirring at room temperature.
After 6 h, the filtrated white precipitate was stirred in 200 mL of
1 M HCl solution for 2 h to complete the hydrolysis of residual Ti-
OCH(CH3)2 species. The obtained powder was repeatedly washed
with distilled water (ca. 1000 mL) until the pH of the filtrate became
neutral. The resulting material was dried overnight at 353 K and
then used as the anatase TiO2 catalyst.
Phosphate/TiO2 was prepared by immobilizing H3PO4 on
anatase TiO2. 5 g of TiO2 was stirred in 200 mL of 1 M H3PO4
solution. After stirring for 48 h, the collected sample was washed
repeatedly with distilled water until phosphate ions were no longer
detected. The resulting material was dried overnight at 353 K and
then used as the phosphate/TiO2 catalyst.
3.1. Structure of anatase TiO2 and phosphate/TiO2
Structural information for the anatase TiO2 and phosphate/TiO2
catalysts was obtained by XRD and N2 adsorption analyses. Fig. 1
shows XRD patterns and (B) N2 adsorption–desorption isotherms
for (a) anatase TiO2 and (b) phosphate/TiO2. Diffraction peaks due
to anatase TiO2 are evident in the XRD patterns for anatase TiO2
and phosphate/TiO2, which indicates that both samples are mainly
composed of anatase TiO2. There was no significant difference
in the XRD patterns of anatase TiO2 and phosphate/TiO2; there-
fore, phosphoric acid modification of anatase TiO2 does not change
the original anatase TiO2 structure. N2 adsorption–desorption
isotherms of the samples are similar to the type-IV pattern, which is
typical of mesoporous solids. The Brunauer–Emmett–Teller (BET)
surface areas and pore volumes of anatase TiO2 and phosphate/TiO2
were estimated to be 252 m2 g−1 and 0.31 mL g−1, and 266 m2 g−1
and 0.25 mL g−1, respectively. SEM images revealed that the pre-
pared TiO2 sample is composed of 10–20 nm TiO2 particles. There
was no significant difference in the morphology of TiO2 and
phosphate/TiO2. The amount of immobilized phosphate on anatase
TiO2 was estimated by inductively coupled plasma-atomic emis-
sion spectroscopy (ICP-AES), which revealed that 0.77 mmol of
phosphate ions were tightly fixed on 1 g of TiO2 by ester formation
between phosphoric acid and neutral OH groups.
2.2. FT-IR measurement and estimation of the amounts of Lewis
acid sites for anatase TiO2 and phosphate/TiO2
Lewis acid densities on anatase TiO2 and phosphate/TiO2 were
estimated for pyridine-adsorbed samples at 298 K by FT-IR mea-
surements. The samples were pressed into self-supporting disks
(20 mm diameter, ca. 20 mg) and placed in an IR cell attached
to a closed glass-circulation system (0.38 dm−3). The disk was
dehydrated by heating at 423 K for 1 h under vacuum to remove
physisorbed water and was exposed to pyridine vapor at 423 K.
The intensities of the bands at 1445 cm−1 (pyridine coordina-
tively bonded to Lewis acid sites, molecular absorption coefficient:
4.86 mol cm−1) were plotted against the amounts of pyridine
adsorbed on the Lewis acid sites of the samples.
In the case of the sample in the presence of saturated water
vapor, the disk placed in the IR cell was exposed to saturated H2O
vapor (20–25 Torr) at room temperature for 60 min. 4.2 layers of
H2O molecules were adsorbed on the TiO2 and phosphate/TiO2
surfaces, as estimated from water vapor–adsorption–desorption
isotherms. Pyridine vapor was then added to the reaction system,
and the intensity of the 1445 cm−1 band (pyridine coordinatively
bonded to Lewis acid sites) increased with increasing amount of
introduced pyridine, reaching a plateau.
Difference Fourier transform infrared (FT-IR) spectra for pyri-
dine adsorption on dehydrated anatase TiO2 and phosphate/TiO2
are shown in Fig. 2, where pyridine is employed as a basic probe
molecule for characterization of the acid sites [11]. Dehydrated
TiO2 exhibits several bands (Fig. 2(A)), but there is no signal
for pyridinium ions formed on Brønsted acid sites (1540 cm−1),
because TiO2 has no Brønsted acid sites. The intensities of
the two bands at 1445 and 1440 cm−1, which are assigned to
adsorbed pyridine on Lewis acid sites (TiO4) and physisorbed pyri-
dine [12], respectively, increase with the amount of introduced
