Preparation of cyano-substituted tetraphenylethylene derivatives and their applications in solution-processable OLEDs

Article abstract of DOI:10.3390/molecules23010190

Creation of organic luminescent materials with high solid-state efficiency is of vital importance for their applications in optoelectronic fields. Here, a series of AIE luminogens (AIE gens), (Z)-2,3-bis(4-(9,9-bis(6-(9H-carbazol-9-yl)hexyl)-9H-fluoren-2-

Full text of DOI:10.3390/molecules23010190

molecules
Article
Preparation of Cyano-Substituted
Tetraphenylethylene Derivatives and Their
Applications in Solution-Processable OLEDs
Xiaoyi Sun 1, Lele Zhao 1,2, Xiao Han 1, Hui Liu 1, Yu Gao 1, Yanchun Tao 1, Haiquan Zhang 2,
Bing Yang 1 and Ping Lu 1,
*
1
State Key Laboratory of Supramolecular Structure and Materials, Jilin University, 2699 Qianjin Avenue,
Changchun 130012, China; xysun15@mails.jlu.edu.cn (X.S.); challenge_llzhao@163.com (L.Z.);
slan521241@126.com (X.H.); liuhui17@mails.jlu.edu.cn (H.L.); iambird83317035@126.com (Y.G.);
taoyc@jlu.edu.cn (Y.T.); yangbing@jlu.edu.cn (B.Y.)
State Key Laboratory of Metastable Materials Science and Technology, Yanshan University,
Qinhuangdao 066004, China; hqzhang@ysu.edu.cn
2
*
Correspondence: lup@jlu.edu.cn
Received: 29 December 2017; Accepted: 14 January 2018; Published: 17 January 2018
Abstract: Creation of organic luminescent materials with high solid-state efficiency is of vital
importance for their applications in optoelectronic fields. Here, a series of AIE luminogens (AIE gens),
(Z)-2,3-bis(4-(9,9-bis(6-(9H-carbazol-9-yl)hexyl)-9H-fluoren-2-yl)phenyl)-3-phenylacrylonitrile (SFC),
and 2,3-bis(4-(9,9-bis(6-(9H-carbazol-9-yl)hexyl)-9H-fluoren-2-yl)phenyl)fumaronitrile (DFC), utilizing
2,3,3-triphenylacrylonitrile and 2,3-diphenylfumaronitrile as respective centers, are designed and
synthesized by Suzuki coupling reactions with high yields. The cis- and trans-isomers of DFC are
also successfully obtained. All of them are thermally stable and show good solubility in common
organic solvents. They all emit weakly in solution, but become strong emitters when fabricated into
solid films. It is found introduction of one additional cyano group in DFC induced a big red-shift in
solid-state emission, owing to its high electron-withdrawing ability. The cis- and trans-DFC show
similar photophysical and Cyclic voltammogram (CV) behaviors. Non-doped solution-processed
organic light-emitting diodes (OLEDs) using the three compounds as light-emitting layers are
fabricated. SFC gives the best device performance with a maximum luminance of 5201 cd m−2
,
a maximum current efficiency of 3.67 cd A−1 and a maximum external quantum efficiencies (EQE)
of 1.37%. Red-shifted EL spectra are observed for cis- and trans-DFC-based device, and the OLED
using trans-DFC as active layer exhibits better performance, which might derive from their different
conformation in film state.
Keywords: diphenylfumaronitrile; fluorene; AIE; solution-processability; OLED
1. Introduction
Tremendous progress has been achieved in organic luminescent materials over the past decades,
due to their potential applications in optoelectronic fields such as organic light emitting diodes
(OLEDs) [1–4], organic field-effect transistors (OFETs) [5–8], non-linear optics [9], and chemical
sensors [10], etc. Materials with good solubility are highly desirable, because they are regarded
as the most promising candidates for the fabrication of low-cost optoelectronic devices [11]. The high
quantum efficiency in the solid-state is of vital importance, since the luminescent materials are applied
in film state in most cases. However, many π-systems become weakly emissive when they are
in solid or aggregation states, despite being strongly emissive in dilute solutions. This effect is
termed as aggregation caused emission quenching (ACQ) [12]. In this view, a notable example is
Molecules 2018, 23, 190; doi:10.3390/molecules23010190
www.mdpi.com/journal/molecules

Molecules 2018, 23, 190
2 of 11
aggregation-induced emission (AIE), first reported by Luo et al. [13], which refers to the phenomenon
of materials that are non-emissive in solution, and emit intensely in the aggregate state, owing to the
restriction of the intramolecular rotation process and the suppression of intermolecular interactions.
It provides a unique way to endow materials with high photoluminescent quantum efficiency in
aggregated states. Tetraphenylethylene (TPE) represents the most investigated chromophore with
a typical AIE property, and its derivatives have been widely utilized in OLEDs, two-photon absorption,
fluorescence detection of 2,4,6-trinitrotoluene (TNT), biological sensors, and so on [14–17].
Recently, we have developed a new kind of TPE derivative with high quantum yield in solid
state, diphenylfumaronitrile, which has shown the potential to undergo a reverse intersystem crossing
process along the high-lying charge transfer (CT) channel, to reach a compromise of local emission (LE)
and CT states. Its derivative, 2,3-bis(40-(diphenylamino)-[1,10-biphenyl]-4-yl)fumaronitrile(TPATCN),
which exerts the advantages of the relatively large dipole moment of the charge transfer state and
a certain degree of orbital overlap of the local excited state, breaks through the 25% upper limit of
singlet ratios in OLEDs [18]. To further expand the application of diphenylfumaronitrile group
in solution-processable OLEDs, herein, it was attached with 9,9-dihexylfluorene to increase the
solubility in common organic solvent. We also applied 2,3-bis(4-bromophenyl)-3-phenylacrylonitrile
as a central unit, to investigate the effect of number of cyano groups on the optical property of
materials. Carbazole is a commonly utilized organic luminescent material with good hole-injection
ability and high thermal stability [19,20]. Two carbazole units were appended at the end of 9,9-dihexyl
side chain, because the cyano functionality allows for great electron delocalization, due to its high
electron-withdrawing ability. Guided by this design principle, two D-A-D type fluorescent compounds,
(Z)-2,3-bis(4-(9,9-bis(6-(9H-carbazol-9-yl)hexyl)-9H-fluoren-2-yl)phenyl)-3-phenylacrylonitrile (SFC),
and 2,3-bis(4-(9,9-bis(6-(9H-carbazol-9-yl)hexyl)-9H-fluoren-2-yl)phenyl)fumaronitrile (DFC), are
successfully obtained. In addition, the pure cis- and trans-isomers of DFC are successfully separated
and purified. All the three compounds are found to possess high photoluminescence quantum
efficiencies, good thermal stability, and high morphological stability. Using the spin-coating films as
the active layers, OLEDs using SFC film as active layer are achieved with a maximum luminance of
5201 cd m−2, and a maximum LE of 3.67 cd A−1. Trans-DFC-based device showed a much red-shifted
electroluminescence with a maximum luminance of 4025 cd m−2, and a maximum LE of 1.96 cd A−1
,
which is also better than the performance of cis-DFC-based device.
2. Results and Discussion
2.1. Synthesis and Characterization
The chemical structures of SFC and DFC are shown in Scheme 1. 9,90-((2-(4,4,5,5-Tetramethyl-
1,3,2-dioxaborolan-2-yl)-9H-fluorene-9,9-diyl)bis(hexane-6,1-diyl))bis(9H-carbazole) ( ) was synthesized
3
starting from commercially available fluorene and carbazole through a three step reaction, according
to reported literature [21]. SFC and trans-DFC were prepared through Suzuki coupling reaction
between monomer 3 and 2,3-bis(4-bromophenyl)-3-phenylacrylonitrile (1) or diphenylfumaronitrile (2),
respectively. The photoisomerization process of trans-DFC could occur after exposure to UV light for
some time, and the pure cis-DFC was also successfully separated. SFC, trans-DFC, and cis-DFC were
fully characterized by 1H-NMR, MS, and elemental analysis, and corresponded well with their expected
structure (Supplementary Materials). They all showed high solubility (>10 mg mL−1) in common
organic solvents, such as toluene, tetrahydrofuran (THF), dichloromethane (DCM), and chloroform,
which fulfill the requirement for solution-processability.

Molecules 2018, 23, 190
3 of 11
Scheme 1. Synthetic route to (Z)-2,3-bis(4-(9,9-bis(6-(9H-carbazol-9-yl)hexyl)-9H-fluoren-2-yl)phenyl)-3-
phenylacrylonitrile (SFC) and 2,3-bis(4-(9,9-bis(6-(9H-carbazol-9-yl)hexyl)-9H-fluoren-2-yl)phenyl)
fumaronitrile (DFC).
2.2. Thermal Stablity
Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) were carried out
under a nitrogen atmosphere to investigate their thermal properties. The DSC results revealed that
SFC, cis-DFC, and trans-DFC showed very similar Tg values of 94 ◦C, 90 ◦C, and 90 ◦C, respectively
(Table 1). The relatively low Tg values might result from the two long alkyl side chains appended on
fluorene, which endowed them with good flexibility. They all exhibited the highest decomposition
temperature (Td, corresponding to 5% weight loss) of 442 ◦C, 438 ◦C, and 435 ◦C (Figure 1). The good
thermal stability is very important for their applications in optoelectronic fields.
Table 1. Thermal, photophysical, and electrochemical data of SFC, trans-DFC, and cis-DFC.
a
e
c
d
HOMO/LUMO b
(eV)
λabs
λem
max
Td/Tg
( C)
φfilm/powder
max
Compounds
◦
(%)
(nm)
(nm)
SFC
trans-DFC
cis-DFC
442/94
438/90
435/90
−5.48/−2.97
−5.48/−3.51
−5.48/−3.52
346/371
400/426
387/406
–/513
570/587
568/600
51/46
40/54
44/55
aTd = thermal-decomposition temperature; Tg = glass-transition temperature; b Measured by cyclic voltammetry;
λabs
λem
= maximum absorption wavelength in dilute tetrahydrofuran(THF) solution and spin-coated films;
c
max
= maximum emission wavelength in dilute THF solution and spin-coated films; e Measured by integrating
d
max
sphere (±1%).
Figure 1. Thermogravimetric analysis (TGA) (A) anddifferential scanning calorimetry (DSC) (B) graphs
of SFC, trans-DFC and cis-DFC.

Molecules 2018, 23, 190
4 of 11
2.3. Morphological Stablity
The morphological stability of the solution-processed films of SFC, trans-DFC, and cis-DFC were
estimated by atomic force microscopy (AFM). The films were spin-coated from chlorobenzene solution
with concentration of 10 mg mL−1. Then, the samples were annealed at 130 ◦C for 30 min. The AFM
images are given in Figure 2. All the spin-coated films of SFC, cis-DFC, and trans-DFC showed
smooth surfaces with very small root-means-square (RMS) values that ranged from 0.40 to 0.43 nm.
The results suggested that introducing flexible alkyl chains could provide homogeneous morphologies
of resulting materials. All the films remained almost unchanged after thermal annealing, with RMS
values of 0.35–0.38 nm, indicating their possibility in keeping uniform films throughout the device
fabrication process.

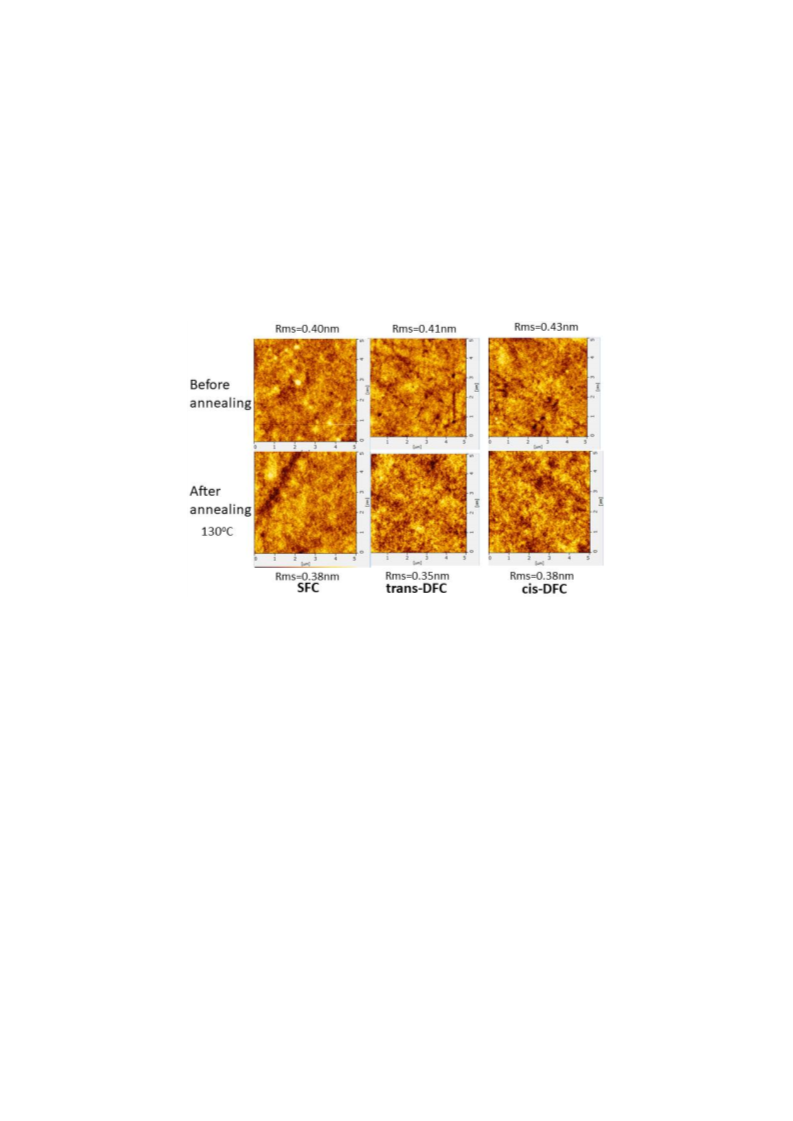

Figure 2. AFM images of SFC, trans-DFC and cis-DFC on indium tin oxide (ITO) at room temperature (up
and after annealing at 130 C for 30 min (down).
)
◦
2.4. Photophysical Property
The UV–vis absorption and PL spectra of SFC, trans-DFC and cis-DFC in dilute THF solution
and thin films are provided in Figure 3. The similar absorption peak at 291 nm and 346 nm were both
observed in the spectra, which were caused by the π–π* transition of the benzene rings and fluorene,
respectively. There also existed an additional absorption peak at a longer wavelength of 400 nm and
387 nm in trans-DFC and cis-DFC, as compared with SFC. The absorption onset of them (480 nm) also
showed a big red-shift compared to that of SFC (420 nm). Since the conjugation length between SFC
and DFC are quite similar, the new absorption peak in red-shifted region of DFC is possibly from
the stronger CT transition caused by the introduction of one more cyano group in the central part.
The absorption onset of SFC, trans-DFC and cis-DFC in film state are 447 nm, 496 nm, and 486 nm,
and the corresponding optical gaps were thus calculated to be 2.77 eV, 2.50 eV, and 2.55 eV, respectively.
SFC was non-emissive with a very low quantum efficiency of 0.08% using sulfate quinone as
a reference in dilute solution, because the molecules totally dissolved in the mixture. It began to
emit intensively when the water fraction (fw) reached 60%, which is a typical AIE characteristic
(Supplementary Materials Figure S1). The cis- and trans-isomer of DFC displayed very similar
photophysical behaviors, although they showed different apparent colors. Take trans-DFC as
an example, a weak emission was observed in dilute THF with a quantum efficiency of 7.4%.
The emission intensity was gradually decreased as the water fraction was continuously increased,
accompanied by a red-shifted emission peak. This weak fluorescence in pure THF might be related
to the twisted configuration in the conjugated backbone, and the corresponding intramolecular

Molecules 2018, 23, 190
5 of 11
interactions, which induced the CT effects, and resulted in a relatively low efficiency in THF. When fw
continued to increase over 60%, the emission peak maximum appeared as an unusual blue-shift,
and the intensity was increased quickly, indicating that the molecules aggregation began to occur,
and the fluorescence was further enhanced with the increase of the water fraction, confirming its
aggregation-induced emission enhancement (AIEE)-active nature (Figure 4, Figures S6 and S7) [22].
The corresponding intramolecular motion is a conventional mechanism for these AIEgens. cis-DFC
also displayed the similar photoluminescence behavior (Supplementary Materials Figure S2).
The photoisomerization process could be clearly observed from the 1H-NMR spectra by monitoring the
solution under UV light. (Supplementary Materials Figure S3) The results indicated the photochemical
process was also an important reason for the low efficiency in THF.
1.6E5
SFC
trans-DFC
cis-DFC
A
B
SFC
trans-DFC
cis-DFC
1.2E5
8.0E4
4.0E4
0.0
300
400
500
600
700
800
300
400
500
600
700
800
Wavelength (nm)
Wavelength (nm)
Figure 3. (A) The UV–vis and PL spectra in diluted THF solution of SFC, trans-DFC and cis-DFC
(concentration: 1
and cis-DFC.
×
10−5 mol L−1); (
B) The UV–vis and PL spectra in films of SFC, trans-DFC,
Figure 4.
(A) PL spectra of trans-DFC in THF–water mixtures with different water fractions (fw);
(
B
) Plot of the relative PL intensity (I/I0) versus the compositions of THF–water mixtures of trans-DFC.
I0 = emission intensity in pure THF solution. Inset in (B) are the fluorescent photographs at fw = 0 and
95% taken under a 365 nm UV lamp.
To get a better insight into the ground state and the excited state properties, the salvation effects on
photoluminescence (PL) were measured in various solvents ranging from nonpolar solvent n-hexane to
highly polar solvent acetonitrile. The CT character of the excited state was further evidenced by the red
shift of the emission maximum upon increasing solvent polarity (Supplementary Materials Figure S5).
For instance, the emission peak of trans-DFC shifted from 542 to 590 nm when measured in nonpolar

Molecules 2018, 23, 190
6 of 11
hexane and methylene dichloride, respectively. Correspondingly, the photoluminescent quantum
yields were continuously decreased from 8.4 to 0.7%, which is a typical photophysical phenomenon
that arises from intramolecular charge transfer [23].
The films of the SFC exhibited strong green emission peaking at 513 nm. Trans-DFC and
cis-DFC exhibited strong red-shifted emission peaking at 587 nm and 600 nm, respectively.
Compared with the compound TPE-DFCz without cyano group which was reported previously [24],
the emission in film state was red-shifted 26 nm in SFC, 100 nm in trans-DFC, and 113 nm in
cis-DFC. To further clarify the origin of the red-shift, we also synthesized the model compound
2,3-bis(4-(9,9-dihexyl-9H-fluoren-2-yl)phenyl)fumaronitrile (DF) without carbazole units (inset in
Figure 5). In the doped film of DF dispersed in carbazole with a mole ratio of 1:4, it showed a similar
emission with that of DF (Figure 5), indicating very weak intramolecular charge transfer from carbazole
to DF, since carbazole is a relatively weak donor. If the DF was dispersed in triphenylamine with
the same mole ratio, the emission peak of the doped film was red-shifted to 633 nm. It can be seen
that the intermolecular charge transfer could occur if it was doped with relatively stronger donor
of triphenylamine. Thus, the red-shift from SFC to DFC is not only caused by the intramolecular
charge transfer from the fluorene group to the central nucleus, but also from the carbazole to the
central nucleus because the flexible dihexyl side chain can be folded to some extent. SFC powder
exhibited a photoluminescent quantum yield (PLQY) of 46%. The powder PLQY of trans-DFC was
54.5%, which was comparable to that of cis-DFC (55.4%).
tans-DFC
DF
DF-4CZ
DF-4TPA
450
500
550
600
650
700
Wavelength (nm)
Figure 5. The PL spectra in films of trans-DFC, 2,3-bis(4-(9,9-dihexyl-9H-fluoren-2-yl)phenyl)
fumaronitrile (DF), and DF dispersed in carbazole with a mole ratio of 1:4. Inset: the structure
of DF. (CZ = carbazole; TPA = triphenylamine).
2.5. Electrochemical Properties
In the cyclic voltammetry measurement, the oxidation and reduction potentials of SFC were
found to be at 0.89 V and
corresponding to a HOMO level of
Similar HOMO and LUMO levels were both obtained for trans- and cis-DFC. Their HOMO levels were
both calculated to be 5.48 eV, and the LUMO levels were both 3.51 eV. Their HOMO levels were
−
1.76 V against ferrocenium/ferrocene (fc+/fc) redox couple (Figure 6),
−
5.48 eV and a LUMO level of
−
2.97 eV, respectively.
−
−
the same as that of SFC, which were all determined by the carbazole units [25]. The introduction of
an additional cyano group in DFC has induced a 0.54 eV decrease in LUMO energy level.
2.6. Electroluminescence Properties
The high solid fluorescence quantum yield and good solubility of the present molecules encouraged
us to investigate their applications in low-cost OLEDs. The non-doped solution-processed OLEDs

Molecules 2018, 23, 190
7 of 11
were fabricated with the configuration of indium tin oxide (ITO)/poly(3,4-ethylenedioxythiophene):
poly(styrenesulfonate) (PEDOT-PSS) (40 nm)/EML (60 nm)/TmPyPB (25 nm)/LiF (0.5 nm)/Al
(100 nm), in which ITO-coated glass was used as both the substrate and anode, PEDOT-PSS as
a hole-transporting layer, TmPyPB as an electron-transporting layer, and LiF as the modificatory
layer of the cathode Al. The characterization data for the three devices were summarized in Table 2.
All the three compounds exhibited identical EL spectra similar to their respective PL spectra of the
spin-coated films. As shown in Figure 7, the maximum peaks in the EL spectra were observed at
536 nm, 576 nm, and 584 nm for SFC, trans-DFC, and cis-DFC, respectively, suggesting that the EL
emissions originated from the active layers. Furthermore, the three devices all showed very stable
emission at voltages from 7 to 14 V (Supplementary Materials Figure S4) arising from their good
thermal and morphological stabilities. SFC showed green emission with a maximum current efficiency
(CE) of 3.67 cd/A, a maximum luminance of 5201 cd m−2, and an external quantum efficiency (EQE)
of 1.37%. The trans-DFC showed a 40 nm red-shifted electroluminescence spectrum with a maximum
luminance of 4025 cd m−2, a maximum CE of 1.97 cd/A, and an EQE of 0.99%, which was a little
higher than cis-DFC in terms of efficiencies (5716 cd m−2, 1.49 cd/A, 0.79%). This might be related the
more planar conformation of trans-isomer, which was more beneficial for the carrier transportation
than the cis-one (Table 2).

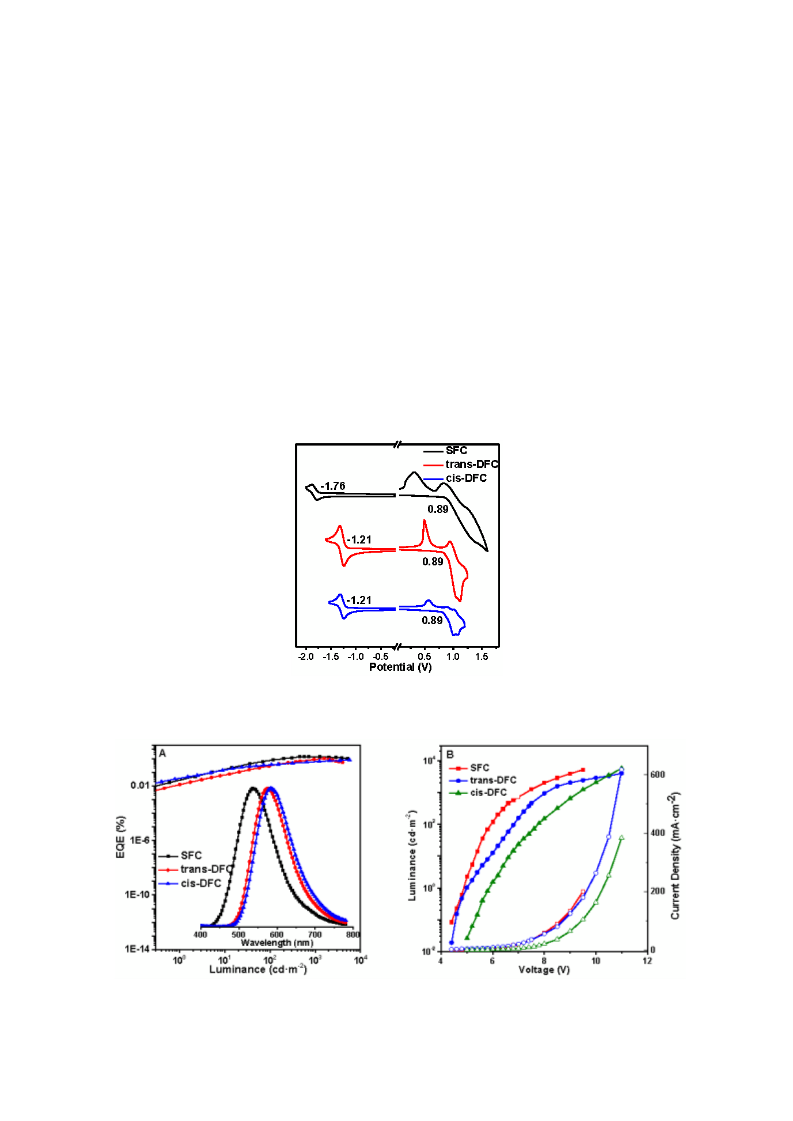

Figure 6. Cyclic voltamogram of SFC, trans-DFC, and cis-DFC measured in dry CH2Cl2 (oxidation)
−1
and DMF (reduction) with 0.1 M Bu4NPF6 as supporting electrolyte, at a scan rate of 100 mV s
.
Figure 7.
(A) EQE of SFC, trans-DFC, and cis-DFC and their normalized EL spectra; (B) Luminance–
voltage–current density characteristics of multilayer EL devices of SFC, trans-DFC, and cis-DFC.

Molecules 2018, 23, 190
8 of 11
Table 2. EL data of SFC, trans-DFC, and cis-DFC.
c
Von a
(V)
LEmax
(cd A
λEL
max
(nm)
Lmax
(cd m
EQE d
(%)
b
Compounds
CIE (x, y)
−1
−2
)
)
SFC
trans-DFC
cis-DFC
5.0
5.0
6.0
5201
4025
5716
3.67
1.97
1.49
536
576
584
1.37
0.99
0.79
(0.36,0.52)
(0.49,0.50)
(0.51,0.48)
a Von = turn on voltage; b Lmax = the maximum luminance; c LEmax = the maximum luminance efficiency; d EQE = the
maximum external quantum efficiency.
3. Materials and Methods
3.1. Instrumentation
All the reagents were purchased from Acros, J&K and Aldrich Chemical Co. (Shanghai, China)
and used as received. THF was dried and purified by fractional distillation over sodium in the
presence of benzophenone. The electrochemical properties (oxidation and reduction potentials)
were carried out via cyclic voltammetry (CV) measurements by using a standard one-compartment,
three-electrode electrochemical cell given by a BAS 100 B/W electrochemical analyzer. 0.1 M
tetrabutylammoniumhexafluorophosphate (TBAPF6) in anhydrous dimethylformamide (DMF) or
anhydrous dichloromethane was used as the electrolyte for negative or positive scan. A glass–carbon
disk electrode was used as the working electrode, a Pt wire as the counter electrode, and Ag/Ag+ as
the reference electrode, together with ferrocene as the internal standard at a scan rate of 100 mV s−1
.
The 1H-NMR were recorded on a Bruker AVANCE 500 spectrometers at 500 MHz at 298 K using CDCl3
as solvent and tetramethylsilane (TMS) as internal standard. All of the compounds were characterized
by a Flash EA 1112, CHNS elemental analysis instrument. The MALDI-TOF-MS mass spectra were
recorded using an AXIMA-CFRTM plus instrument. UV–vis absorption spectra were measured
on Shimadzu UV-3100PC spectrophotometer, and fluorescence recorded by using a RF-5301PC.
Dif◦ferential scanning calorimetry (DSC) analysis was carried out using a TAQ100 instrument at
10 C min−1 while flushing with nitrogen. Thermal gravimetric analysis (TGA) was recorded on
a Perkin Elmer thermal analysis system at a heating rate of 10 ◦C min−1 and a nitrogen flow rate of
80 mL min−1. The atomic force microscopy (AFM) images were recorded by a Seiko SPA 300 in contact
mode (AFM mode).
3.2. Device Fabrication
The ITO-coated glass substrates were cleaned in an ultrasonic bath with purified water,
isopropylalcohol, acetone, toluene, acetone, isopropylalcohol, respectively, and cleaned for 30 min
by exposure to UV-ozone. Subsequently, a 40 nm-thick poly(3,4-ethylenedioxythiophene):poly
(styrenesulfonate) (PEDOT-PSS, Batron-P4083, Bayer AG) film was spin-coated at 4000 rpm for 60 s on
◦
top of the ITO and then baked at 120 C for 30 min. Then, solutions of SFC and DFC in chlorobenzene
(10 mM mL−1) were spin-coated on (2000 rpm for 30 s) PEDOT-PSS as the emissive layer (EML).
After annealing at 130 ◦C for 30 min, the thickness of the EML was about 60 nm. Then 25 nm-thick
TmPyPb, as an electron-transporting layer, was thermally deposited onto the emitting layers under
vacuum with a back pressure of 10−5 Pa. Finally, LiF buffer layer and an Al cathode were deposited onto
TmPyPb. The luminance–current characteristics of devices were measured using a PR650 spectroscan
spectrometer, and current–voltage characteristics were recorded by a Keithley 2400 sourcemeter. All of
procedure was performed at room temperature under ambient conditions.
3.3. Experimental Section
Synthesis of 2,3-bis(4-bromophenyl)-3-phenylacrylonitrile (M1): (4-bromophenyl)(phenyl)methanone (3 g,
11.5 mmol) and 60% NaH (1.8 g, 46 mmol) were added into a 250 mL two-necked round-bottomed
flask. The flask was degassed and flushed with dry nitrogen, after which toluene (100 mL) was injected.

Molecules 2018, 23, 190
9 of 11
The mixture was heated to 80◦C, then toluene solution (50 mL) of 2-(4-bromophenyl)acetonitrile
(2.25 g, 16 mmol) was added slowly. After refluxing overnight, the reaction was quenched with
water and extracted with DCM. The organic layer was washed with brine and dried over anhydrous
sodium sulfate. After filtration and solvent evaporation, the residue was purified by silica gel column
chromatography, using petroleum ether and DCM as eluent. M1 (1.0 g) was obtained as a light yellow
solid. Yield: 20%.
Synthesis of 2,3-bis(4-bromophenyl)fumaronitrile (M2): 2-(4-bromophenyl)acetonitrile (1 g, 5.1 mmol) and
I2 (1.3 g, 5.1 mmol) were dissolved in diethyl ether under nitrogen. The system temperature was
◦
stabilized at
−
78 C, and sodium methylate (1.7 g, 10.71 mmol) was added to the reaction system and
stirred for 30 min. Then, the reaction mixture was transferred to ice water and stirred for further 4 h.
Thereafter, a small amount of 3% HCl (aq) was added to quench the reaction, and then M2 was isolated
from the reaction solution by filtration. Yield: 70%.
Synthesis of (Z)-2,3-bis(4-(9,9-bis(6-(9H-carbazol-9-yl)hexyl)-9H-fluoren-2-yl)phenyl)-3-phenylacrylonitrile
(SFC): 2,3-bis(4-bromophenyl)-3-phenylacrylonitrile (439 mg, 1 mmol), 2-9,90-((2-(4,4,5,5-tetramethyl-
1,3,2-dioxaborolan-2-yl)-9H-fluorene-9,9-diyl)bis(hexane-6,1-diyl))bis(9H-carbazole) (1.74 g, 2.2 mmol),
toluene (30 mL), Na2CO3 (2 M,10 mL), and THF (15 mL) were put into a 100 mL two-necked
round-bottom flask equipped with a reflux condenser. Pd(PPh3)4 (80 mg) was added under nitrogen
protection. The mixture was refluxed for 24 h. After that, the mixture was cooled to room temperature
and water was added to quench the reaction. The organic layer was washed and extracted with
dichloromethane. Compound SFC (300 mg) was then isolated by column chromatography using
1
a mixture of petroleum and dichloromethane (4:1) as eluent. Yield: 50%. H-NMR (500 MHz, CDCl3)
δ
8.14–8.04 (m, 7H), 7.77 (d, J = 7.9 Hz, 1H), 7.75–7.68 (m, 4H), 7.63 (d, J = 7.9 Hz, 1H), 7.57 (t, J = 9.0 Hz,
3H), 7.55–7.50 (m, 3H), 7.48 (d, J = 8.2 Hz, 3H), 7.42 (dd, J = 16.3, 8.1 Hz, 9H), 7.35 (d, J = 7.3 Hz, 3H),
7.31 (dd, J = 7.0, 4.1 Hz, 6H), 7.26 (d, J = 7.6 Hz, 3H), 7.21 (dd, J = 12.4, 7.4 Hz, 8H), 7.16 (d, J = 7.2 Hz,
2H), 7.12–7.07 (m, 1H), 4.18 (dd, J = 11.7, 7.1 Hz, 9H), 1.95 (dd, J = 16.9, 8.6 Hz, 9H), 1.70 (dd, J = 14.2,
7.2 Hz, 8H), 1.29–0.92 (m, 17H), 0.62 (d, J = 7.5 Hz, 10H).MALDI-TOF MS (mass m/z):1608.5 [M+].
Anal. calcd. for C119H107N5: C 88.93, H 6.71, N 4.36; Found: C 88.65, H 6.92, N 4.43.
Synthesis of 2,3-bis(4-(9,9-bis(6-(9H-carbazol-9-yl)hexyl)-9H-fluoren-2-yl)phenyl)fumaronitrile (trans-DFC):
1
trans-DFC was synthesized similar as the preparation of SFC. Yield: 40%. H-NMR (500 MHz, CDCl3)
δ
8.05 (dd, J = 20.2, 7.7 Hz, 8H), 7.97–7.91 (m, 4H), 7.80–7.75 (m, 5H), 7.72 (d, J = 7.4 Hz, 2H), 7.61
(dd, J = 7.8, 1.6 Hz, 2H), 7.54 (t, J = 5.9 Hz, 2H), 7.43–7.37 (m, 7H), 7.34 (td, J = 7.3, 1.2 Hz, 2H),
7.31–7.26 (m, 8H), 7.21–7.15 (m, 7H), 4.25–4.00 (m, 9H), 2.05–1.83 (m, 9H), 1.73–1.61 (m, 7H), 1.31–0.97
(m, 18H), 0.90–0.73 (m, 4H), 0.63 (qt, J = 13.9, 6.9 Hz, 8H). MALDI-TOF MS (mass m/z): 1557.2 [M+].
Anal. calcd. for C114H102N6: C 87.99, H 6.61, N 5.40; Found: C 88.20, H 6.45, N 5.35.
1
cis-DFC Was obtained by exposure of trans-DFC to UV light for several hours. H-NMR (500 MHz, CDCl3)
δ
8.06 (d, J = 7.7 Hz, 8H), 7.68 (dd, J = 12.4, 7.7 Hz, 4H), 7.58 (d, J = 8.6 Hz, 4H), 7.47 (dd, J = 11.0, 4.2 Hz,
8H), 7.41–7.35 (m, 8H), 7.34 (dd, J = 7.4, 1.0 Hz, 2H), 7.24 (t, J = 7.0 Hz, 9H), 7.21–7.16 (m, 8H), 4.11
(t, J = 7.2 Hz, 8H), 1.98–1.81 (m, 8H), 1.69–1.58 (m, 8H), 1.25–0.91 (m, 18H), 0.70–0.43 (m, 9H).
4. Conclusions
In summary, two AIE-active D-A-D compounds, SFC and DFC, are designed and synthesized by
Suzuki coupling reactions. The pure cis- and trans-isomer of DFC were also successfully separated.
All of them exhibit high quantum efficiencies in the solid state (ηF = 46% for SFC, 54.5% for cis-DFC,
and 55.4% for trans-DFC) with good thermal stabilities and morphological stabilities. The introduction
of one additional cyano group induced a big red-shift in solid-state emission in DFC, owing to the high
electron-withdrawing ability. The cis- and trans-DFC show the similar absorption spectra, emission
spectra, and CV behaviors. They can all be processed by low-cost spin-coating method to fabricated
non-doped OLEDs. All three materials show identical EL spectra with their PL spectra. SFC showed
green emission peaking at 472 nm with the highest EQE (1.37%), luminance (5201 cd m−2) and

Molecules 2018, 23, 190
10 of 11
current efficiency (3.67 cd A−1). The trans-DFC showed an electroluminescence spectrum peaking
at 576 nm with a maximum luminance of 4025 cd m−2, a maximum CE of 1.97 cd/A, and an EQE
of 0.99%, which was a little higher than cis-DFC in terms of efficiencies (5716 cd m−2, 1.49 cd/A,
0.79%). The results pave a way for further understanding the structure–property relationship of
diphenylfumaronitrile-based isomers.
Supplementary Materials: Supplementary materials are available online.
Acknowledgments: This work is financially supported by the National Basic Research Program of China
(2016YFB0401001), National Science Foundation of China (Grant No. 21774047) and Jilin Provincial Science
and Technology Department (20160101302JC).
Author Contributions: Ping Lu and Xiaoyi Sun conceived and designed the experiments; Xiao Han, Xiaoyi Sun
and Hui Liu performed the experiments; Lele Zhao and Yu Gao analyzed the data; Yanchun Tao contributed
analysis tools; Haiquan Zhang contributed reagents; Bing Yang contributed materials; Ping Lu and Xiaoyi Sun
wrote the paper.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
Tang, C.W.; VanSlyke, S.A. Organic electroluminescent diodes. Appl. Phys. Lett. 1987, 51, 913–915. [CrossRef]
Yeh, H.-C.; Chan, L.-H.; Wu, W.-C.; Chen, C.-T. Non-doped red organic light-emitting diodes. J. Mater. Chem.
2004, 14, 1293–1298. [CrossRef]
3.
Wu, K.C.; Ku, P.J.; Lin, C.S.; Shih, H.T.; Wu, F.I.; Huang, M.J.; Lin, J.J.; Chen, I.C.; Cheng, C.H.
The Photophysical Properties of Dipyrenylbenzenes and Their Application as Exceedingly Efficient Blue
Emitters for Electroluminescent Devices. Adv. Funct. Mater. 2008, 18, 67–75. [CrossRef]
Im, Y.; Byun, S.Y.; Kim, J.H.; Lee, D.R.; Oh, C.S.; Yook, K.S.; Lee, J.Y. Recent Progress in High-Efficiency
Blue-Light-Emitting Materials for Organic Light-Emitting Diodes. Adv. Funct. Mater. 2017, 27. [CrossRef]
Nikolka, M.; Nasrallah, I.; Rose, B.; Ravva, M.K.; Broch, K.; Sadhanala, A.; Harkin, D.; Charmet, J.;
Hurhangee, M.; Brown, A.; et al. High operational and environmental stability of high-mobility conjugated
polymer field-effect transistors through the use of molecular additives. Nat. Mater. 2017, 16, 356–362.
[CrossRef] [PubMed]
4.
5.
6.
7.
8.
Zhao, Y.; Guo, Y.; Liu, Y. 25th anniversary article: Recent advances in n-type and ambipolar organic
field-effect transistors. Adv. Mater. 2013, 25, 5372–5391. [CrossRef] [PubMed]
Lei, T.; Cao, Y.; Fan, Y.; Liu, C.J.; Yuan, S.C.; Pei, J. High-performance air-stable organic field-effect transistors:
Isoindigo-based conjugated polymers. J. Am. Chem. Soc. 2011, 133, 6099–6101. [CrossRef] [PubMed]
Zhang, W.; Han, Y.; Zhu, X.; Fei, Z.; Feng, Y.; Treat, N.D.; Faber, H.; Stingelin, N.; McCulloch, I.;
Anthopoulos, T.D.; et al. A Novel Alkylated Indacenodithieno[3,2-b]thiophene-Based Polymer for
High-Performance Field-Effect Transistors. Adv. Mater. 2016, 28, 3922–3927. [CrossRef] [PubMed]
Rodríguez, M.; Ramos-Ortíz, G.; Alcalá-Salas, M.I.; Maldonado, J.L.; López-Varela, K.A.; López, Y.;
Domínguez, O.; Meneses-Nava, M.A.; Barbosa-García, O.; Santillan, R.; et al. One-pot synthesis and
characterization of novel boronates for the growth of single crystals with nonlinear optical properties.
Dyes Pigments 2010, 87, 76–83. [CrossRef]
9.
10. Li, J.; Yim, D.; Jang, W.D.; Yoon, J. Recent progress in the design and applications of fluorescence probes
containing crown ethers. Chem. Soc. Rev. 2017, 46, 2437–2458. [CrossRef] [PubMed]
11. Lee, S.Y.; Yasuda, T.; Komiyama, H.; Lee, J.; Adachi, C. Thermally Activated Delayed Fluorescence Polymers
for Efficient Solution-Processed Organic Light-Emitting Diodes. Adv. Mater. 2016, 28, 4019–4024. [CrossRef]
[PubMed]
12. Birks, J.B. (Ed.) Photophysics of Aromatic Molecules; Wiley: London, UK, 1970.
13. Luo, J.; Xie, Z.; Lam, J.W.Y.; Cheng, L.; Tang, B.Z.; Chen, H.; Qiu, C.; Kwok, H.S.; Zhan, X.; Liu, Y.; et al.
Aggregation-induced emission of 1-methyl-1,2,3,4,5-pentaphenylsilole. Chem. Commun. 2001, 1740–1741.
[CrossRef]
14. Mei, J.; Leung, N.L.; Kwok, R.T.; Lam, J.W.; Tang, B.Z. Aggregation-Induced Emission: Together We Shine,
United We Soar! Chem. Rev. 2015, 115, 11718–11940. [CrossRef] [PubMed]

Molecules 2018, 23, 190
11 of 11
15. Yang, Z.; Qin, W.; Leung, N.L.C.; Arseneault, M.; Lam, J.W.Y.; Liang, G.; Sung, H.H.Y.; Williams, I.D.;
Tang, B.Z. A mechanistic study of AIE processes of TPE luminogens: Intramolecular rotation vs.
configurational isomerization. J. Mater. Chem. C 2016, 4, 99–107. [CrossRef]
16. Mei, J.; Hong, Y.; Lam, J.W.; Qin, A.; Tang, Y.; Tang, B.Z. Aggregation-induced emission: The whole is more
brilliant than the parts. Adv. Mater. 2014, 26, 5429–5479. [CrossRef] [PubMed]
17. Kwok, R.T.; Leung, C.W.; Lam, J.W.; Tang, B.Z. Biosensing by luminogens with aggregation-induced emission
characteristics. Chem. Soc. Rev. 2015, 44, 4228–4238. [CrossRef] [PubMed]
18. Han, X.; Bai, Q.; Yao, L.; Liu, H.; Gao, Y.; Li, J.; Liu, L.; Liu, Y.; Li, X.; Lu, P.; et al. Highly Efficient Solid-State
Near-Infrared Emitting Material Based on Triphenylamine and Diphenylfumaronitrile with an EQE of 2.58%
in Nondoped Organic Light-Emitting Diode. Adv. Funct. Mater. 2015, 25, 7521–7529. [CrossRef]
19. Tang, S.; Liu, M.R.; Lu, P.; Xia, H.; Li, M.; Xie, Z.Q.; Shen, F.Z.; Gu, C.; Wang, H.P.; Yang, B.; et al. A Molecular
0
Glass for Deep-Blue Organic Light-Emitting Diodes Comprising a 9,9 -Spirobifluorene Core and Peripheral
Carbazole Groups. Adv. Funct. Mater. 2007, 17, 2869–2877. [CrossRef]
20. Liu, H.; Cheng, G.; Hu, D.; Shen, F.; Lv, Y.; Sun, G.; Yang, B.; Lu, P.; Ma, Y. A Highly Efficient,
Blue-Phosphorescent Device Based on a Wide-Bandgap Host/FIrpic: Rational Design of the Carbazole and
Phosphine Oxide Moieties on Tetraphenylsilane. Adv. Funct. Mater. 2012, 22, 2830–2836. [CrossRef]
21. Yao, L.; Xue, S.; Wang, Q.; Dong, W.; Yang, W.; Wu, H.; Zhang, M.; Yang, B.; Ma, Y. RGB small molecules
based on a bipolar molecular design for highly efficient solution-processed single-layer OLEDs. Chem. Eur. J.
2012, 18, 2707–2714. [CrossRef] [PubMed]
22. Hong, Y.; Lam, J.W.; Tang, B.Z. Aggregation-induced emission: Phenomenon, mechanism and applications.
Chem. Commun. 2009, 4332–4353. [CrossRef] [PubMed]
23. Ellinger, S.; Graham, K.R.; Shi, P.; Farley, R.T.; Steckler, T.T.; Brookins, R.N.; Taranekar, P.; Mei, J.; Padilha, L.A.;
Ensley, T.R.; et al. Donor–Acceptor–Donor-based π-Conjugated Oligomers for Nonlinear Optics and Near-IR
Emission. Chem. Mater. 2011, 23, 3805–3817. [CrossRef]
24. Li, J.; Han, X.; Bai, Q.; Shan, T.; Lu, P.; Ma, Y. Electropolymerized AIE-active polymer film with high quantum
efficiency and its application in OLED. J. Polym. Sci. Part A Polym. Chem. 2017, 55, 707–715. [CrossRef]
25. Gu, C.; Huang, N.; Wu, Y.; Xu, H.; Jiang, D. Design of Highly Photofunctional Porous Polymer Films with
Controlled Thickness and Prominent Microporosity. Angew. Chem. Int. Ed. Engl. 2015, 54, 11540–11544.
[CrossRef] [PubMed]
Sample Availability: Samples of the compounds SFC, trans-DFC, and cis-DFC are available from the authors.
©
2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
