molecules
Article
Synthesis of Organosilicon Ligands for Europium (III)
and Gadolinium (III) as Potential Imaging Agents
James I. Bruce 1,
*
, Patrick J. O’Connell 1, Peter G. Taylor 1, David P.T. Smith 1, Roy C. Adkin 2
and Victoria K. Pearson 2
1
School of Life Health and Chemical Sciences, The Open University, Walton Hall, Milton Keynes MK7 6AA,
UK; p.j.oconnell@open.ac.uk (P.J.O.); peter.taylor@open.ac.uk (P.G.T.); d.t.p.smith@open.ac.uk (D.P.T.S.)
School of Physical Sciences, The Open University, Walton Hall, Milton Keynes MK7 6AA, UK;
2
roy.adkin@open.ac.uk (R.C.A.); victoria.pearson@open.ac.uk (V.K.P.)
*
Correspondence: james.bruce@open.ac.uk
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editor: Eszter Borbas
Received: 6 August 2020; Accepted: 11 September 2020; Published: 16 September 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: The relaxivity of MRI contrast agents can be increased by increasing the size of the contrast
agent and by increasing concentration of the bound gadolinium. Large multi-site ligands able to
coordinate several metal centres show increased relaxivity as a result. In this paper, an “aza-type
Michael” reaction is used to prepare cyclen derivatives that can be attached to organosilicon frameworks
via hydrosilylation reactions. A range of organosilicon frameworks were tested including silsesquioxane
cages and dimethylsilylbenzene derivatives. Michael donors with strong electron withdrawing groups
could be used to alkylate cyclen on three amine centres in a single step. Hydrosilylation successfully
attached these to mono-, di-, and tri-dimethylsilyl-substituted benzene derivatives. The europium and
gadolinium complexes were formed and studied using luminescence spectroscopy and relaxometry.
This showed the complexes to contain two bound water moles per lanthanide centre and T1 relaxation
time measurements demonstrated an increase in relaxivity had been achieved, in particular for the
trisubstituted scaffold 1,3,5-tris((pentane-sDO3A)dimethylsilyl)benzene-Gd3. This showed a marked
increase in the relaxivity (13.1 r1p/mM−1s−1).
Keywords: lanthanide; luminescence; europium; gadolinium; relaxivity; organosilicon; silsesquioxane
1. Introduction
The selective substation and functionalization of aza macrocyclic rings has long been a rich area of
synthetic endeavour. This has been due, in no small part, to the extensive use of the macrocycle cyclen
(1,4,7,10-tetraazadodecane) as a scaffold to construct ligands for the coordination and complexation for a
diversearrayofmetals, rangingfromtransitionmetals, suchaszinc, nickel, rhenium, andtechnetium[
to the larger lanthanide ions, such as europium, terbium, and gadolinium [ ]. Such complexes attract
interest through their potential applications as biomimetic agents, therapeutic agents, molecular sensors,
and imaging agents [ 11]. The primary objective of such derivatization of the macrocycle is to add
1–4],
5–7
8–
pendant arms that help define the binding site and act as a means of controlling the properties of the
resulting metal complexes. Derivatization, typically at the nitrogen centres, attaches additional functional
groups such as carbonyl, ester, alcohol amine and amide functionalities [12–15] that increase the number
and type of donor atoms available for chelation to the central metal ion. This is particularly important
for the lanthanide ions, which have high coordination numbers (9–10) and a preference for hard donor
atoms such as nitrogen or oxygen. Alkylation using reactive organohalides has been the method of
choice for the derivatisation of cyclen and this method has produced ligands for lanthanides, such as
europium and terbium, which have been used as the basis for luminescent probes and sensors [8,16–18],
and gadolinium that has been employed as contrast agents for MRI [11,19,20]. Typically, these synthetic
Molecules 2020, 25, 4253; doi:10.3390/molecules25184253
www.mdpi.com/journal/molecules

Molecules 2020, 25, 4253
2 of 25
approaches have produced symmetrical tetrasubstituted ligands, although there are examples of tri
substituted cyclen derivatives producing coordinatively unsaturated lanthanide complexes for use as
anion sensors [21,22]. Examples of disubstituted ligands are rarer, as the resulting complexes lack the
required stability in solution [23].
There is a need however to develop alternative strategies for derivatising aza macrocycles, such as
cyclen. In particular, the increasing sophistication of targeting probes for diagnostic purposes is
driving a need for multifunctional ligands incorporating several functional groups. This is seen
in the work of Parker et al. where dicarboxylic acid moieties were attached to cyclen to produce
ligands for gadolinium, which included an outer group of carboxylic acid groups. This produced
a complex that had an overall negative charge at physiological pH [24]. That synthesis, and those
of related ligands, was based on the use of the secondary bromo-derivative of adipic acid. We have
also sought to use secondary halides as precursors to form bifunctional ligands for the lanthanide
that incorporated additional functionalities [25]. A key attraction is that this would create functional
groups on the periphery of the complex that can be used to attach it to larger structures, such as
proteins, carbohydrates, and polymers, while limiting any perturbation of the coordination sphere.
Building on the synthesis of trisubstituted ligands, we have previously developed a strategy for
preparing asymmetrically substituted ligands [26], which can include a non-coordinated linking group
within the macrocyclic ring, again, provide a means of adding multiple complexes to a single larger
scaffold. This allows luminescent complexes to be readily incorporated into sensors, but equally
significantly, it allows gadolinium complexes to be combined to produce multi centre MRI contrast
agents with potential high rates of relaxation due to the increase in local concentration and the large
size of the macromolecule. This has been demonstrated using polymers such as chitosan [27] but
they often had high degrees of internal flexibility, which reduce any potential increases in relaxivity.
Dendrimers have proved ideal scaffolds for high molecular weight contrast agents [28]. Silsesquioxanes
(Figure 1) are a class of organosilicon oligomer with a well-ordered and defined shape and structure.
Moreover, they are readily modified through attachment of pendant arms at the silicon centres [29].
They have previously been used as the core for dendrimer based gadolinium complexes [30] and
smaller polydimethylsiloxanes have been used to complex terbium [31]. This suggests they make an
ideal anchor for a number of gadolinium complexes.
Figure 1. Silsesquioxane cages. The Si-H and Si-OH groups on the silsequioxanes suggested
hydrosilylation would be an ideal bond forming reaction between the cages and the complexes
and, therefore, the ideal linking functional group on the cyclen ligand would be an alkene. We set out
to prepare a range of cyclen ligands that were trisubstituted through secondary carbon centres and
contained a fourth arm added subsequently that contained the alkene functionality.

Molecules 2020, 25, 4253
3 of 25
Our initial attempts focused on the use of secondary halides as the substrate; however, we found,
in many cases, the competing elimination reaction became sufficient to render the reaction ineffective.
We therefore sought to expand the type of reactions available to us when reacting secondary substrates
with azamacrocyclic by exploring the reaction between Michael acceptors and the nitrogen nucleophile
in an “aza Michael type” addition reaction. In particular, we examined the reaction involving alkenes
substituted with functional groups that made them powerful Michael-type acceptors.
2. Results and Discussion
2.1. Ligand Synthesis
Several methods have been reported for the reaction of a 1,2-disubstituted alkene with a related
cyclen analogue, cyclam [32
macrocycles. We tested the applicability of a Michael type reaction (Table 1) using cyclen and acrylamide
involving the refluxing of cyclen in methanol in the presence of a large excess of acrylamide
–34], giving a range of products from monosubstituted to tetra-substituted
1.
This resulted in a mixture of tri and tetra substituted products that could be separated using silica
chromatography. The major product was the trisubstituted cyclen L1, which was obtained in a 9:1
ratio to the tetrasubstituted cyclen. Hydrolysis of the amide function in 12 M HCl acid gave the
corresponding carboxylic acid analogue L2. We then expanded this to investigate bi functional Michael
donors as a means of introducing two functional groups on to the pendant arms of a cyclen ligand
(Scheme 1). A reaction between ethyl 2-nitroacrylate
2 (formed from 3-hydroxy -2-nitropropanoate in
situ using the method of Babievski [35]) was unsuccessful most probably due to the high reactivity
of ethyl 2-nitroacrylate favouring polymerisation under the reaction conditions which involved
high temperatures as required for the dehydration. On the other hand, methyl-2-acetamidoacrylate
3
reacted with cyclen; however, only the disubstituted derivative was obtained despite a five-fold
excess of the acrylate and refluxing for 24 h. Addition of a catalytic amount of triflic acid allowed
the reaction to proceed under room temperature and produced a mixture of tri and tetra substituted

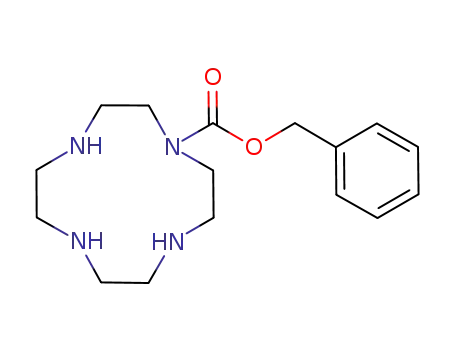

products. The use of a CBz protecting group on a single amine position of cyclen allowed us to use
4
to produce the intermediate 4a. This favoured the trisubstituted derivative and gave the required
product L3 in 70% yield after deprotection. Under similar conditions, ethyl-cis-b-cyanoacrylate also
5
produced a trisubstituted derivate L4 in low yield [36]. It is noteworthy that the addition took
place with high regioselectivity at the carbon alpha to the nitrile group. This probably reflects the
stronger electron withdrawing ability of the nitrile compared the ester. Methyl 2-acetamidoacrylate
6,
ethyl 3-anilinocrotonate , and ethyl 3-aminocrotonate did not produce significant yields of the
7
8
trisubstituted products, and only moderate yields of disubstituted products.
In the final case, the Michael acceptor is the alkene in the diallyl maleate
9
or diethyl fumarate
10. These are excellent Michael acceptors, owing to the electron-withdrawing effect of both carbonyl
groups, as has been demonstrated by the reaction of diethyl maleate with secondary amines, such as
diethylamine. The reactions were run under identical conditions using acetonitrile as the solvent and
potassium carbonate as the base. The dicarbonyl was added in a ratio of 5.4 equivalents to that of
cyclen and L5 was obtained to good yield. Similarly, diallyl maleate was reacted with cyclen to give a
trisubstituted product L6 in moderate yields.

Molecules 2020, 25, 4253
4 of 25
Table 1. Michael Donors used in reaction with cyclen. Yields are in parentheses.
Donor (% Yield)
Scheme 1. The reaction of cyclen with Michael type donors.

Molecules 2020, 25, 4253
5 of 25
To allow for the attachment of targeting moieties or the incorporation into a larger scaffold or
framework, a linking arm was installed on the fourth nitrogen of the cyclen ring via direct alkylation.
This involved the reaction of L5 with a suitable bromobutane 11 (Scheme 2) to form butene-L7.
The reaction was performed in anhydrous acetonitrile, with potassium carbonate as the base. The use
of low temperature reduced the reaction of 4-bromobut-1-ene with itself. A strict 1:1 stoichiometry
was also required to prevent a Menshutkin reaction [37], where the tertiary amine was converted to
the quaternary ammonium salt through the reaction with a second aliquot of the alkene. We had
previously observed these side products in this reaction in the LC–MS and while they could be removed
by chromatography, careful control of temperature, and stoichiometry produced a cleaner product.
Scheme 2. Synthesis of cyclen ligands incorporating dicarboxylic acid pendant arms and an allyl linker.
The success of the reaction could be identified by the presence of alkene resonances in the 1H-NMR
and the 13C-NMR spectra.
An alternative linker arm was based on 5-bromopent-1-ene 12 and was also synthesised to
form L8. The reaction was performed in anhydrous acetonitrile, to which potassium carbonate and
sDO3A-(ethyl) were added. The target compound was identified by using 1H-NMR and 13C-NMR.
To minimise the risk of decarboxylation when removing the ester groups, lithium hydroxide was
used as the base. The resulting lithium salt of L9 was then converted to the free acid using anion
exchange chromatography. The LC–MS confirmed the presence of the L9 ion, and the 1H and 13C-NMR
spectra showed that the ester had been hydrolysed to the acid, by the loss of the protons of the ethyl
ester at 1.18 ppm, and the change in ppm of the methylene proton from 4.1ppm to 3.83 ppm in the
1H-NMR spectrum. The 13C-NMR showed the change in ppm of the carbonyls from 170.93 and 171.46
to 174.9 and 177.3 ppm.
It is worth noting that acid catalysed de-esterification resulted in the loss of one of the pendant
arms. Similarly, cation exchange chromatography also resulted in the loss of a pendant arms to a
lesser extent.

Molecules 2020, 25, 4253
6 of 25
2.2. Organosilicon Scaffolds
The next step was to develop organosilicon scaffolds to allow the incorporation of several
complexes into a single molecule. This has the advantage of increasing the local concentration of the
sensor, which is useful for analytical applications. There is a further advantage in the gadolinium
complexes in MRI applications in that the increased size will slow the rate of tumbling and increase
the observed relaxivity. This provides an enhanced contrast in MRI imaging.
We tested model reactions using simple siloxanes and silanes (Figure 2).
Figure 2. Model organosilicon test compounds.
Three different substrates were chosen: 1,1,3,3,5,5-hexamethyl-trisiloxane 13, triethoxysilane 14
and triethylsilane 15, which contains no Si–O bonds and so should not be susceptible to aqueous
decomposition (Figure 2).
,
The first simple siloxane investigated was triethoxysilane 14, which was reacted with butene-L5 in
toluene using Speier’s catalyst. The FTIR of the product showed that the Si–H stretch had disappeared,
indicating that the hydrosilylation reaction had occurred. The 1H and 13C-NMR spectra showed a
mixture and L5 and its saturated analogue. The 29Si NMR gave only a small signal at
21.38 ppm,
−
showing that majority of the triethoxysilane had decomposed during the reaction.
The experiment was repeated using 1,1,3,3,5,5-hexamethyl-trisiloxane 13 under the same
conditions. As with the other reactions, an insoluble residue was formed. The soluble product showed
two peaks in the 29Si NMR spectra: a major peak at
−
21.46 ppm, suggesting decomposition had again
7.79 ppm. The 29Si NMR of 1,1,3,3,5,5-hexamethyl-trisiloxane had peaks
7.79 ppm peak in the reaction mixture shows that the hydrosilylation
occurred, and a second peak at
−
at 6.20 and 17.30 ppm. The
−
−
−
reaction had occurred to some extent and that the decomposition product could be a linear polymer.
The 1,1,3,3,5,5-hexamethyl-trisiloxane would first be hydrolysed to the silanol, which then reacts with
another 1,1,3,3,5,5-hexamethyl-trisiloxane to give 1,1,3,3,5,5,7,7,9,9,11,11-dodecamethylhexasiloxane,
which in turn could then react further forming longer chain lengths).
The final test compound was triethylsilane 15, which is unlike the other test compounds; it is a
silane and does not possess a Si–O bond that can be hydrolysed. The reaction was run under the same
conditions as before and yielded a soluble clear gum. The loss of the Si–H stretch at 2101 cm−1 in
the FTIR confirmed complete hydrosilylation. The 1H and 13C-NMR showed the formation of a new
Si–C bond giving peaks at 1.09 ppm and 5.18 ppm respectively (Figure 3). With this success of the
hydrosilylation reaction between triethylsilane and L9 to give compound L10, further hydrosilylation
was carried out using related silanes.

Molecules 2020, 25, 4253
7 of 25
Figure 3. A cyclen based ligand attached to a silicone moiety.
To increase the number of complexes in the scaffold, three different substituted benzenes were
tested. These were the mono-, di-, and tri-substituted aromatic 1,3,5-silyl benzenes to give ligands L11
L12, and L13, respectively (Figure 4).
,
Figure 4. Mono-, di-, and tri- substituted silyl benzenes as scaffolds for cyclen ligands.

Molecules 2020, 25, 4253
8 of 25
The synthesis was first attempted by the reaction of, 1,3,5, tri-(dimethylsilyl) benzene and L9 in
toluene with Speier’s catalyst. (Scheme 3) The 1H, 13C, and 29Si NMR spectra of the crude product
showed that a mixture of products had formed, including some polydimethylsiloxane, as shown by a
peak at −21.49 ppm in the 29Si NMR.
Scheme 3. Routes to the synthesis of L11 via cyclen intermediates.
Multiple signals in the 29Si NMR spectra suggested a number of competing reactions had produced
a mixture of products that was difficult to purify.
An alternative route that avoided the decomposition of the L9, involved carrying out
hydrosilylation reaction between the silane and the alkene before attaching the arm to the L5
The first step was the formation of (5-bromopentyl) dimethyl(phenyl)silane 16 by the hydrosilylation
reaction between neat dimethyl phenyl silane and an excess of 5-bromopent-1-ene, using Speier’s
catalyst (Scheme 4).
.
Scheme 4. Synthesis of (5-bromopentyl) dimethyl(phenyl)silane.
The product was confirmed by 1H and 13C-NMR, which showed the loss of the alkene and the
formation of the new Si–C bond. The loss of the Si–H was seen in the FTIR and in the 29Si NMR,
which gave a signal at 2.65 ppm. The formation of both 1,4-bis((5-bromopentyl)dimethylsilyl)benzene
−
15 and 1,3,5-tris((5-bromopentyl) dimethylsilyl)benzene 16 was achieved using the same reaction
conditions, involving 1,4,bis-(dimethylsilyl)benzene and 1,3,5,tri-(dimethylsilyl) benzene, respectively
(Figure 5). These products were also confirmed by 1H, 13C, and 29Si NMR and FTIR.

Molecules 2020, 25, 4253
9 of 25
Figure 5. Structures of 1,4-bis((5-bromopentyl) dimethylsilyl) benzene and 1,3,5-tris((5-bromopentyl)
dimethylsilyl) benzene.
The second step is the attachment of the L5 to (5-bromopentyl)dimethyl(phenyl)silane 17, to form
(pentane-sDO3A-(ethyl)) dimethyl(phenyl)silane L11 (Scheme 5).
Scheme 5. Synthesis of L11 via alkylation.

Molecules 2020, 25, 4253
10 of 25
L11 was characterised by 1H, 13C and 29Si NMR spectra and by FTIR and HRMS. The bis and tris
reactions followed a similar protocol. The reactions gave yields of around 40%, and the compounds
L12 and L13 (Figure 6) were characterised by 1H, 13C and 29Si NMR, as well as FTIR and HRMS.
Figure 6. Structures of the bis- (L12) and tris- (L13) substituted scaffolds with cyclen ligands.
The final step is the removal of the ester protection groups from the ethyl esters. The hydrolysis
was achieved by dissolving the ester in 1M LiOH and heating to 100 ◦C for 24 h (Scheme 6). The ligands
L14 (Scheme 6), L15, and L16 (Figure 7) and were purified by anion exchange chromatography using
formic acid (1M).

Molecules 2020, 25, 4253
11 of 25
Scheme 6. Hydrolysis of the ester groups to produce the target ligands with dicarboxylic pendent arms.
Figure 7. Structures of the bis- (L15) and tris (L16) substituted scaffolds with free acid ligands.

Molecules 2020, 25, 4253
12 of 25
The presence of the Si groups was identified by the presence of the Si–CH3 groups and the protons
on the aromatic ring in the 1H-NMR.
Mindful of the unsuccessful attempts to react siloxanes with the cyclen ligands via hydrosilylation
we tested the methodology on silsesquioxane cages. These are attractive scaffolds due to their large
size, rigidity, and the possibility of attaching a high number of lanthanide complexes. The cages T8H8
and Q8H8 were chosen as possible scaffolds.
T8H8 was reacted with the cyclen ligand in the presence of Speier’s catalyst with the steric bulk of
the cyclen ligand favouring an α-addition via hydrosilylation. Analysis of the reaction mixture showed
the cage had decomposed to PDMS as observed in the Si NMR. Some cyclen ligand was recovered
unreacted in combination with the alkane derivative arising from hydrosilylation.
Q8 was reacted using Karstedt’s catalyst and was thought to be less prone to hydrolysis. Again,
however significant decomposition via hydrolysis was observed. Further investigation showed that in
the presence of the platinum catalyst, a small portion of the cyclen ligand lost a pendant arm and the
resulting secondary amine was able to catalyse the hydrolysis of the cages.
The alternative approach of adding the arms first to the cages and then coupling to the cyclen
was tried. Moreover, 5-Bromopent-1-ene was added to the Q8M8H cage using Speier’s catalyst and
produced the tetrasubstituted product in high yield. Unfortunately, the reaction with the cyclen ligand
resulted in decomposition of the cage with the secondary amine again acting as a catalyst for hydrolysis.
2.3. Complexation
Ligands L1, L5, L7, L9a, L14, L15, and L16 were chosen for complexation on the basis of having
a range of intermediate single complexes to compare with the larger multicentre complexes based
on the organosilicon frameworks. These were dissolved in ethanol or water and solutions of the
desired lanthanide—gadolinium or europium—were added as the chloride salt or the oxide. A generic
procedure is reported in the experimental while details of the particular complexation reactions can be
found in the Supplementary Materials.
2.4. Photophysical Studies and Relaxometry
The
EuL14 (Figure 8) are low in intensity, which is indicative of a complex with low symmetry [21
This is also seen in the J = 2 band at 620 nm, -it is sensitive to the coordination environment and gains
intensity due to the limited symmetry of the complex. The J = 4 at 680–710 nm is also affected by the
low symmetry environment, in this case it loses intensity. The three transitions observed for J = 1
∆
J = 0 and 1 bands at 570 nm and 580–600 nm, respectively, for the emission spectrum for
,
26].
∆
∆
∆
are also typically observed in low symmetry environments. Similar spectra were recorded for EuL15
and EuL16, which suggests each of the europium centres in these di- and trinuclear complexes are in
similar coordination environments.
Figure 8. Emission spectrum for EuL14 in H2O λ = 265 nm.
ex

Molecules 2020, 25, 4253
13 of 25
Luminescence lifetimes were recorded in both water and deuterium oxide to allow the determination
of the number of bound inner sphere water molecules. Analysis of the rate constants (k) for radiative
decay of the Eu 5D0 excited state in H2O and D2O allow the calculation of the number of bound waters
(q) using established methods [21]. For hexadentate complexes, the hydration state is typically expected
to be close to two (Table 2).
Table 2. Radiative decay constants and hydration numbers for Europium complexes.
Complex
kH2O
kD2O
q
EuL7
EuL5
EuL9a
EuL14
EuL15
EuL16
3.457
3.423
4.563
1.758
1.95
1.81
0.78
1.75
0.78
0.769
0.772
1.49
1.5
1.68
0.75
0.97
0.9
1.894
The q values are sensitive to the distance of the coordinating water to the europium. This increasing
distance reduces the quenching efficiency, which is manifested as a reduction in the q value. The secondary
arms of the succinate may hinder close approach of the second bound water molecule and, thus,
the observed q values are slightly less that the value of 2 expected for hexadentate complexes. A further
decrease observed for ElL14-16 may be attributed to a further increase in hindrance about the Eu centre
due to the addition of a bulky forth arm incorporating a phenyl group.
GdCl3 and Gd[DOTA] were used as standards to validate the complexation method, analytical
technique and ◦calculation methodologies. The results for the Gd[DOTA] were performed at both
◦
25 C and 20 C, giving relaxation times of 4.3 r1p/mM−1s−1 and 3.6 r1p/mM−1s−1 respectively,
corresponding to known literature values [24]. The relaxivity values of GdL9a and GdL5 were
measured, giving 6.4 r1p/mM−1s−1 and 12.6 r1p/mM−1s−1, respectively, while the q values stayed
relatively similar at q = 1.68 and q = 1.50. The drop in relaxivity suggests the occurrence of
cross-binding, as was reported in earlier studies [26]. Moreover, this may also be borne out by the
lifetime measurements, which showed lower q values. The increased concentrations used in the
relaxation studies might also increase the extent of cross-binding (Table 3).
Table 3. Relaxivity values for Gadolinium complexes.
Complex
r
1p/mM−1s−1
GdCl3
GdDOTA
GdL1
8.6
4.3
4.6
GdL7
5.7
GdL5
12.6
6.4
4.8
4.5
13.1
GdL9a
GdL14
GdL15
GDL16
The relaxivity of GdL14, with a value of 4.8 r1p/mM−1s−1, is lower than GdL5. This is reflected in
the low hydration state of the corresponding Eu complex. It can also be noticed in the comparison
between GdL14 and Gd[DOTA] (q = 1), which has similar relaxation values, as well as number of
coordinated waters. While the relaxivity for GdL14and GdL15 are similar, at 4.8 r1p/mM−1s−1 and
4.5 r1p/ mM−1s−1 respectively, GdL16 shows a marked difference, with a relaxivity of 13.1 r1p/mM−1s−1
This may arise to due intramolecular coordination of adjacent gadolinium metal centres by free
carboxylate groups. This in turn would make the complex more internally rigid thus reducing the
internal oscillation between the cyclen groups and the aromatic ring. This means that the molecule
.

Molecules 2020, 25, 4253
14 of 25
has only the rotational coefficient to affect the relaxivity, which increases the relaxivity from around
4.5 r1p/mM−1s−1 to over 13 r1p/mM−1s−1. While the increase is a result of the cumulative effect
of the gadolinium atoms, it shows the significant effect that the cross-binding has on stabilising
the intermolecular movements. The cross-binding effect is not seen in the GdL15, pointing to the
gadolinium groups being at a comparatively long distance from each other and therefore being unable
to cross-bind. This is reflected in the lower relaxivity of 4.5 r1p/mM−1s−1
.
3. Materials and Methods
3.1. Chemicals
Cyclen (1,4,7,10-tetraazacyclododecane) was purchased from Strem Chemicals, MA, USA. DOTA
(1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid) was purchased from Sigma-Aldrich. Dry DMF
was purchased from Fluka. Dry acetonitrile was purchased from Acros. Potassium carbonate was
dried at 105 ◦C for 1 h before use. 4A and 3A (for alcohols only) molecular sieves were activated in a
furnace at 300 ◦C for 3 h before use. Tetrahydrofuran was distilled from potassium and benzophenone,
dioxane was distilled from lithium aluminium hydride, chloroform, and chlorobenzene were distilled
from calcium hydride. All solvents were distilled under nitrogen and stored over 4A molecular sieves.
3.2. Chromatography
Column chromatography was performed on silica unless otherwise stated. Alumina (Type 507C,
neutral) was purchased from Fluka, St Gallen, Switzerland. Thin layer chromatography was carried
out on Fluka silica or alumina plates with fluorescent indicator. Thin layer chromatography (TLC)
spots were visualised with iodine vapour, UV light, or with potassium permanganate spray (KMnO4;
water, 0.1% w/v).
3.3. Fluorescence Spectroscopy
Emission spectra and lifetimes were recorded on a FluoroMax P spectrometer JY Horiba,
Glasgow, UK.
Corrected emission spectra were recorded using a 420-nm cut-off filter and an excitation wavelength
of 397 nm (Eu) excitation, or using sensitized emission at 265 nm. Samples were recorded in aqueous
solution with a concentration of 3 mM in 3 mL optically matched cuvettes.
Hydration numbers were calculated using the method of Parker [21] using 0.5 mL optically
matched cuvettes with 3 mM solutions of the complexes in H2O and D2O.
3.4. NMR and T1 Relaxivity Measurements
1H-NMR and 13C-NMR data were obtained using a 300 MHz Bruker spectrometer, Bruker,
Covnetry, UK and 29Si NMR were recorded on a JEOL 400MHz spectrometer JEOL, Welwyn Garden
City, UK. The longitudinal water proton relaxation rates of the complexes were measured at 59.97 MHz
and at 25 ◦C on a Bruker mq 60 NMR analyser. Gadolinium complexes and GdCl3 were dissolved in
ultra-pure water buffered to pH = 7.5 using MOPS 10 mM.
3.5. Mass Spectra
Mass spectra were recorded on a VG Quattro spectrometer, equipped with an electrospray
ionization source (ESI). The spectrometer was coupled to a Waters HPLC system. Electrospray was
normally used in the positive mode and the samples were diluted in H2O: MeOH (50:50). Accurate
mass spectrometry was kindly carried out by the Department of Chemistry, University of Wales
Swansea, Swansea, SA2 8PP.
Melting points were measured using an electrothermal digital melting point apparatus and are
uncorrected. Infrared spectra were recorded as neat films, nujol mulls or KBr discs using a PerkinElmer

Molecules 2020, 25, 4253
15 of 25
1710 infrared Fourier transform spectrometer. Elemental analyses were performed by MEDAC Ltd.,
Brunel Science Centre, Cooper’s Hill Lane, Englefield Green, Egham, Surrey TW20 0JZ.
4. Chemical Characterization
4.1. L1
Acrylamide (8.9 g, 100 mmol) and cyclen (4.31 g, 25 mmol) were dissolved in 125 mL methanol.
The solution was heated under reflux for 24 h. The methanol was removed under reduced pressure
and the residue stirred with Et2O to give a white paste. The Et2O was then decanted and methanol
added. After stirring for a few minutes, the product was filtered on a Buchner funnel, washed with
ethanol (4
×
10 mL), then Et2O. The product was dried in vacuo at 50 ◦C overnight to give 3.9 as a
1
white solid. Yield: 9.0 g (93%). m.p. 170–172 ◦C. Rf = 0.57. H-NMR (300 MHz, D2O,
δ): 2.29 (6H,
3
t, J = 6.7 Hz, NCH2CH2CONH2), 2.42 (4H, br s, ring CH2), 2.55 (12H, br s, ring CH2), 2.62 (6H,
3
t, J = 6.8 Hz, NCH2CH2CONH2); 13C-NMR (75 MHz, D2O,
δ); 32.36 (CH2CONH2), 45.15 (CH2),
50.01 (CH2), 50.42 (CH2), 50.59 (CH2), 51.16 (CH2), 51.33 (CH2), 178.62 (C = O), 179.11 (C = O).
Anal. Calcd (found) for C17H35N7O3*1.0 H2O*0.4 C2H5OH: C, 50.7 (50.5); H, 9.4 (9.1); N, 23.3 (23.5).
IR (νmax/(cm-1), KBr): 3349 (NH), 3154 (NH), 2969 (CH), 2837, 1673 (C = O), 1424.
HRMS (+ES): found [M + H] + 386.2878. C17H36N7O3 requires 386.2874.
4.2. L2
L1 (0.3 g, 0.73 M) was dissolved in 10 mL HCl (12 M) and refluxed vigorously for 2 h. The reaction
was switched off and allowed to cool overnight. The white solid, which developed was filtered off and
re-dissolved in H2O. After the H2O was removed by lyophilisation, the white solid was recrystallised
◦
from aqueous methanol. The product was then dried in a vacuum oven at 50 C for 12 h to give
3.10 as a white solid. Yield: 0.34 g (91.5%). m.p. 180–183 ◦C. 1H-NMR (300 MHz, D2O,
δ
): 2.63 (6H, t,
3J = 6.6 Hz, CH2CH2COOH), 3.01 (22 H, br s, CH2 NCH2CH2); 13C-NMR (75 MHz, D2O,
49.07 (CH2), 176.13 (C = O).
δ); 28.83 (CH2),
Anal. Calcd (found) for C17H32N4O6*1.8 H2O*2.5 HCl: C, 40.3 (40.7); H, 7.5 (7.1); N, 11.1 (10.9).
IR (νmax/(cm−1), KBr): 3076 (OH), 1753 (C = O), 1411, 798, 653.
HRMS (+ES): found [M + H] + 389.2395. C17H33N4O6 requires 389.2395.
4.3. 4
A solution of benzyl chloroformate (2.7 g, 15.9 mmol) in CHCl3 (20 mL, dry) was added slowly
over 1.5 h to a cooled solution of cyclen (2.5 g, 14.5 mmol) in chloroform (50 mL). The reaction was
allowed to reach ambient temperature and then stirred for 12 h. Some of the organic solvent was
removed under reduced pressure and the reaction stirred vigorously after the addition of 5% NaOH
(75 mL). The organic layer was separated and the aqueous layer re-extracted with CHCl3 (2
×
25 mL).
The organic extracts were combined, dried over MgSO4 and evaporated in vacuo. The resultant
oil was purified on a silica gel column with 1% MeOH in CHCl3 containing 0.1% iPrNH2 to yield
an oil which after trituration with acetonitrile provided 10 as a white, crystalline solid (2.6 g, 53%).
A small amount of di-Z-cyclen eluted from the column first. Rf mono-Z-cyclen = 0.51 (SiO2, 5% MeOH
in CHCl3. m.p. 146–152 ◦C; 1H-NMR (300 MHz, CD3OD,
OCH2), 7.36 (5H, m, Ph); 13C-NMR (75 MHz, CD3OD,
); 47.87 (ring CH2), 48.44 (ring CH2), 49.58
(ring CH2), 50.51 (ring CH2), 68.56 (OCH2Ph), 128.89 (3-Ph), 128.93 (4-Ph), 129.08 (2-Ph), 129.37 (1-Ph),
157.52 (C = O): IR (
max/(cm−1), KBr): 3391 (NH), 3183 (NH), 2959 (CH), 2837, 2352, 1673 (C = O), 1455,
1012, 776, 728 (arom), 558, 456.
δ); 3.13 (16H, m, ring CH2), 5.15 (2H, s,
δ
ν

Molecules 2020, 25, 4253
16 of 25
4.4. 4a
The 10 (0.25 g, 0.82 mmol) was dissolved in a 3:1 mixture of CH3Cl and CH3CN (20 mL).
Methyl 2-acetamidoacrylate (0.37 g, 2.61 mmol) was then added. Triflic acid (50 L, 0.7 eq.) was
µ
promptly added with an automatic pipette. This resulted in a clear solution, which was then stirred
under argon for 24 h. After the solvent was removed in vacuo, the residue was partitioned between 1 M
ammonia solution (10 mL) and chloroform (20 mL). After the aqueous layer was washed with another
10 mL chloroform, the organic extracts were pooled and evaporated to yield a viscous, pale yellow
oil. The resulting oil was dissolved in a small amount of CHCl3 and Et2O was added to induce
crystallisation. A colourless, crystalline solid was obtained. Yield: 0.42 g (70.4%). Rf = 0.62 (SiO2,
3% iPrNH2 in CH2Cl2); m.p. 209 ◦C (with decomposition); 1H-NMR (300 MHz, CDCl3,
δ): 1.98 (6H,
s, CH3), 2.06 (3H, s, CH3), 2.72–3.25 (20H, m, ring CH2), 3.69 (9H, s, CH3), 3.78 (2H, s br, NCH2CO),
4.55 (m, 3H, CH), 5.80 (2H, s, OCH2Ph), 7.24 (5H, m, Ph), 7.68 (br s, 3H, NH); 13C-NMR (75 MHz,
CDCl3, δ); 22.86 (CH3), 23.24 (CH3), 47.71 (CH2), 48.65 (CH), 52.49 (CH3), 68.56 (OCH2Ph), 127.98 (Ph),
128.69 (Ph), 130.95 (Ph), 170.19 (C = O), 172.19 (C = O).
Anal. Calcd (found) for C34H53N7O11: C, 55.50 (55.10); H, 7.26 (7.61); N, 13.32 (13.06). HRMS (+ES):
found [M + H] + 736.3871. C34H53N7O11 requires 736.3876.
4.5. L3
The 10a (0.40 g, 0.54 mM) was stirred in a suspension of 10% palladium on carbon (50 mg) in
ethanol (20 mL). A slow flowrate of H2 was bubbled through the suspension in a fume cupboard.
After 12 h, the reaction mixture was centrifuged to remove the catalyst. The supernatant was filtered
through a syringe filter (0.2 µM, polypropylene) and the solvent removed under reduced pressure
to give a white solid: [M + H]+ = 603). This solid was then heated in 12 M HCl (20 mL) at 60 ◦C for
3 h. After the acid was removed under reduced pressure, the residue was dissolved in EtOH (20 mL)
and treated with activated carbon (0.25 g). The suspension was filtered through a bed of celite on a
Buchner funnel and the filtrate was evaporated under reduced pressure. The resulting residue was
recrystallised from aqueous EtOH to give 3.31 as a hygroscopic, white solid. Yield: 0.204g (86%).
1H-NMR (300 MHz, D2O,
δ): 1.84 (4H, s, CH2), 2.57–3.10 (18H, m, ring CH2), 4.60–4.70 (9H, br s,
3NH3+); 13C-NMR (75 MHz, D2O, δ); 47.2, 48.6 (CH2), 176.61 (C = O).
MS (ES+): 434.
4.6. L5
The 1,4,7,10-tetraazacyclododecane (3 g, 0.01734 mol) and potassium carbonate (7.8 g, 0.05652 mol)
were dissolved in anhydrous acetonitrile (100 mL). To this a solution of diethyl maleate (126) (42 g,
0.2439◦mol) in anhydrous acetonitrile (100 mL) was added dropwise over 2 h. The reaction was heated
to 80 C and stirred for 72 h. The reaction was cooled to room temperature and the solids were
removed. The solvent was removed using reduced pressure to yield a crude oil. The crude extract was
chromatographed on silica (Si–60) (350 g), and the product was eluted with DCM/EtOH (95:5).
Yield = 0.25 g, 35.58%.
1H-NMR (300 MHz, CDCl3,
3J = 5.35 Hz CH), 3.77 (4H, q, 3J = 7.03 Hz CH2), 4.08 (12H, q, 3J = 7.01 CH2).
13C-NMR (75 MHz, CDCl3,
): 14.18 (CH3), 35.58 (CH2), 46.46 (CH2), 47.44 (CH2), 50.18 (CH2),
δ
): 1.21 (18H, t, 3J = 5.01 Hz), 1.80–2.41 (22H, m CH2), 3.54 (1H, q,
δ
50.40 (CH2), 59.58 (C = O), 60.52 (CH2), 170.93 (C = O), 171.46 (C = O).
FTIR (thin-film, KBr disk): 2983, 1736, 1464, 1368, 1302, 1256, 1170.
HRMS: Theoretical C32H56N4O12 688.3945 Found 711.3792 [M + Na + H].
CHN Theoretical C 55.80 H 8.19 N 8.13 Found C 55.23 H 8.35 N 8.27.

Molecules 2020, 25, 4253
17 of 25
4.7. L6
Cyclen (390 mg, 2.27 mmol) was dissolved in dry MeCN (35 mL), to which anhydrous potassium
◦
carbonate (K2CO3) (1040 mg, 7.51 mmol, 3.3 eq.) was added, heated to 80 C under an argon
atmosphere, and stirred. Added to this mixture, over the course of 1 h, was a solution of diallyl maleate
(2.39 mL, 2230 mg, 11.35 mmol, 5 eq.) in dry MeCN (35 mL). The reaction mixture was heated to
reflux at 80 ◦C for 50 h under an argon atmosphere. The organic phase was separated using silica gel
chromatography and eluted with a gradient of 1% to 5% EtOH in DCM eluent.
Yield 580mg 33%.
Rf = 0.80.
1H-NMR (300 MHz, CDCl3,
δ): 2.57 (2H, m, CH2), 2.73 (2H, m, CH2), 2.89 (2H, m, CH2), 3.09 (2H,
m, CH2), 3.84 (1H, m, CH), 4.03 (2H, m, CH2) 4.59 (2H, m, CH2), 5.19 (2H, m, CH2) 5.22 (2H, m, CH2),
5.30 (1H, m, CH) 5.34 (1H, m, CH), 5.86 (1H, m, CH).
13C-NMR (75 MHz, CDCl3): 34.84 (CH2), 47.36 (CH), 47.89 (CH), 50.09 (CH2), 51.80 (CH2),
57.12 (CH2), 61.65 (CH2), 65.79 (CH2), 66.01 (CH2), 66.16 (CH2), 118.80 (CH2), 119.45 (CH2), 119.74 (CH2),
131.53 (CH), 131.77 (CH), 170.72 (C = O), 170.80 (C = O), 170.86 (C = O).
HRMS theoretical C33H58N4O12 714.1965 found 714.3542.
CHN Theoretical C 56.12 H 8.20 N 8.11 Found C 57.07 H 8.35 N 8.14.
4.8. L7
L5 (0.64 g, 0.00093 mol) was dissolved in anhydrous acetonitrile (20 mL) to which potassium
carbonate (1.00 g, 0.0072 mol) had been added. The reaction was cooled in an ice/NaCl/IMS bath.
To this 4-bromobutene (78) (2.66 g, 0.0197 mol, 2.00 mL) was added and the reaction was allowed to
warm up to room temperature overnight. The reaction was then stirred for 78 h at room temperature.
The solids within the reaction mixture were removed using a centrifuge, and the solvent was decanted.
The solvent was then removed using reduced pressure, followed by 24 h on high vacuum to yield a
clear, light-yellow oil. The crude product was then chromatographed on silica eluted with DCM and
EtOH (95:5%).
Yield 0.54 g, 0.00072, 77.92%.
1H-NMR (300 MHz, CDCl3, ): 1.18 (18H, q, 3J = 5.7 Hz CH3), 2.09 (2H, d, 3J = 6.98 Hz CH2),
δ
2.3–2.8 (24H, m, CH2), 3.75 (1H, t, 3J = 6.0 Hz CH), 4.11 (12H, m CH2), 4.93 (2H, q, 3J = 17.4 Hz CH),
5.71 (1H, t–t, 3J = 6.75 Hz CH).
13C-NMR (75 MHz, CDCl3): 14.12 (CH3), 14.38 (CH3), 29.64 (CH2), 35.52 (CH2), 49.87 (CH2),
50.60 (CH2), 51.18 (CH2), 53.55 (CH2), 53.92 (CH2), 54.66 (CH2), 59.57 (CH), 59.84 (CH), 59.92 (CH),
60.44 (CH2), 60.84 (CH2), 115.31 (CH2), 137.09 (CH), 171.39 (C = O), 171.89 (C = O).
HRMS: calculated 743.4437 [M + H], found 743.4445 [M + H].
FTIR (thin-film CDCl3 NaCl): 2982, 2253, 1723, 1461, 1371, 1300, 1260.
4.9. L8
sDO3A-(ethyl) (4.06 g, 0.0059 mol) was dissolved in anhydrous acetonitrile (40 mL) to which
potassium carbonate (4.1 g, 0.03 mol) was added. The reaction was cooled to
18 ◦C, then 5-bromopent-
−
1-ene (134) (2.65 g, 0.0177 mol) was added, followed by stirring for a period of 48 h while being kept at
room temperature. The solid was removed using a centrifuge, and the solvent layer was decanted.
The solvent was then removed using reduced pressure to yield a dark-yellow oil. The crude product
was then chromatographed on silica eluted with DCM and EtOH (95:5%).
Yield, 2.77 g, 62%.
1H-NMR (300 MHz, CDCl3, ):1.18 (18H, q, 3J = 5.6 Hz CH3), 2.10 (2H, d, 3J = 6.70 Hz CH2), 2.3-28
δ
(26H, m, CH2), 3.76 (1H, t, 3J = 6.0 Hz CH), 4.11 (12H, m, CH2), 4.94 (2H, q, 17.5Hz, CH), 5.72 (1H, t–t,
3J = 6.75 Hz, CH).

Molecules 2020, 25, 4253
18 of 25
13C-NMR (75 MHz, CDCl3): 14.12 (CH3), 14.40 (CH3), 29.71 (CH2), 30.21 (CH2), 35.50 (CH2),
49.90 (CH2), 50.58 (CH2), 51.19 (CH2), 53.55 (CH2), 53.92 (CH2), 54.67 (CH2), 59.60 (CH), 59.82 (CH),
59.90 (CH), 60.46 (CH2), 60.82 (CH2), 115.30 (CH2), 137.11 (CH), 171.41 (C = O), 171.91 (C = O).
FTIR (thin-film NaCl): 2981, 2940, 2832, 1728. 1448, 1372, 1297, 1258, 1175, 1117.
HRMS: predicted 757.4593 [M + H], found 757.4590 [M + H].
4.10. L9
L7 (0.25 g, 0.0003355 mol) was dissolved in formic acid (1.4 M, 15 mL), and heated to 60 ◦C for
48 h. The temperature was increased to 70 ◦C for 24 h. The solvent was removed using lyophilisation;
the solid residue was taken up into water (20 mL) and lyophilised.
Yield 0.21 g, 91%.
3
3
1H-NMR (300 MHz, CDCl3,
δ):1.26 (12H, t, J = 6.01 Hz CH3), 2.05 (2H, q, J = 8.61 Hz CH2),
2.54–2.99 (24H, m, CH2), 3.77 (1H, q, 3J = 3.87 Hz CH), 4.12 (1H, 3J = 4.98 Hz CH), 5.02 (2H, q, 3J = 8.43
Hz, CH), 5.66 (1H, q, 3J = 10.53 Hz, CH).
13C-NMR (75 MHz, CDCl3): 14.09 (CH3), 35.33 (CH2), 44.82 (CH2), 48.11 (CH2), 49.89 (CH2),
61.10 (CH2), 63.16 (CH2), 116.87 (CH2), 134.85 (CH), 170.79 (C = O), 170.81 (C = 0), 170.92 (C = O).
LCMS(postive): 687.81 [M + H] [C32H54N4O12]−.
FTIR (CDCl3–NaCl): 2983, 2858, 2254, 1729, 1609, 1465, 1372, 1299, 1262, 1180.
4.11. L9a
L5 (0.25 g, 0.00036 mol) was dissolved in ethanol (1 mL), and was added to a solution of formic
◦
acid (2.5 mL, 3.05 g, 0.06587 mol) and water (2 mL). The reaction was heated to 90 C for 24 h,
and then cooled to room temperature. The solvents and formic acid were removed using lyophilisation.
The lyophilisation was repeated three times by dissolving the crude material in water (10 mL).
1H-NMR (300 MHz, D2O,
δ): 1.31 (4H, m, CH2), 2.16–2.35 (15H, m, CH2), 2.52 (6H,m, CH2),
2.54 (1H, m, CH), 3.42 (2H, m, CH) 4.15 (1H, m, CH).
13C-NMR (CD3OD): 13.960 (CH3), 43.235 (CH2), 58.122 (CH2), 134.816 (CH), 169.232 (C = O),
175.253 (C = O), 175.944 (C = O), 176.478 (C = O).
HRMS Theoretical C37H64N4O12 756.4582 Found 779.2096 [M + Na].
CHN Theoretical C 58.71 H 8.52 N 7.40 C 58.55 H 8.43 N 7.34.
4.12. L10
L5 (250 mg, 0.000336 mol) was dissolved in toluene (1 mL), to which triethylsilane (58 mg,
0.0005 mol, 0.08 mL) was added. To the stirred reaction mixture, Speier’s catalyst (20 µL) was added
and the reaction was heated to 80 ◦C for 24 h. The reaction was cooled and passed through an activated
charcoal plug. The solvent was then removed using reduced pressure, yielding a clear gum.
Yield 126mg 40%.
3
3
1H-NMR (300 MHz, CDCl3,
δ
):0.53 (6H, q, J = 7.86 Hz, CH3), 0.98 (9H, t, J = 5.54 Hz CH3),
3
3
1.09 (2H, d, J = 6.03 Hz CH2), 1.21 (9H, t, J = 7.14 Hz), 1.67 (1H, s, CH), 2.28–2.83 (22H, m CH2),
3.73 (2H, m CH), 4.09 (2H, q, 3J = 4.57 Hz).
13C-NMR (75 MHz, CDCl3): 0.93 (CH3), 5.75 (CH2), 6.51 (CH2), 14.02 (CH3), 14.35 (CH3),
21.35 (CH2), 22.57 (CH2), 26.59 (CH2), 29.13(CH2), 29.78 (CH2), 35.22 (CH2), 35.40 (CH2), 49.98 (CH2),
50.65 (CH2), 51.05 (CH2), 51.19 (CH2), 53.68 (CH2), 53.98 (CH2), 55.40 (CH2), 59.59 (CH), 60.43 (CH3),
171.39 (C = O), 171.44 (C = O), 171.86 (C = O).
29Si NMR (CDCl3): 19.57, −21.49
FTIR (thin-film NaCl): 3027, 2920, 2874, 1734, 1604, 1495, 1461, 1379, 1177.
HRMS Theoretical C42H78N4O12Si 858.5482 Found 858.5865.
CHN Theoretical C 58.71 H 9.15 N 6.52 Found C 59.22 H 9.54 N 6.76.

Molecules 2020, 25, 4253
19 of 25
4.13. 16
Dimethylphenyl silane (1.0 mL, 876 mg, 0.007338 mol) was added to 5-bromopent-1-ene (134)
(1.4 eq, 1.04 mL, 1.31 g, 0.008806 mol) along with Speier’s catalyst (100 L). The reaction mixture was
µ
sealed under argon and heated to 60 ◦C for 34 h. The cooled reaction was added to DCM (150 mL) and
activated charcoal was added; the reaction was then refluxed for 30 min. The solids were removed
using filtration and the solvent was removed by reduced pressure. The excess 5-bromopent-1-ene was
removed using reduced pressure (50 mbar) at 40 ◦C; the product was then placed under high vacuum
for 34 h. The resulting oil was centrifuged to remove trace amounts of activated charcoal, yielding
an oil.
Yield 1.23 g, 59.0%.
1H-NMR (300 MHz, CDCl3, ):0.03 (6H, s, CH3), 0.52 (2H, t, 3J = 6.2 Hz CH2), 1.13 (4H, m, CH2),
δ
1.54 (2H, t, 3J = 6.8 Hz, CH2), 3.03 (2H, t, 3J = 6.9 Hz, CH2), 7.07 (3H, t, 3J = 3.8 Hz, CH), 7.26 (2H, q,
3J = 3.5 Hz, CH).
13C-NMR (75 MHz, CDCl3):
1.15 (CH3), 15.49 (CH2), 23.01 (CH2), 31.80 (CH2), 32.27 (CH2),
−
33.52 (CH2), 127.60 (CH), 129.27 (CH), 133.35 (CH), 139.02 (C).
29Si NMR (400 MHz CDCl3): −2.65 (Si-R).
FTIR (thin-film NaCl plate): 3068, 2961, 2935, 1642, 1579, 1475, 1252, 1119.
LC–MS (positive): 206.15 [M − Br + H].
4.14. 17
The 1,4-Bis(dimethylsilyl)benzene (1 mL, 875 mg. 0.0045 mol) and 5-bromo-pent-1-ene (2.8 eq,
0.0126 mol, 1.877 g, 1.50 mL) were combined in a sealed tube, to which Speier’s catalyst (100 µL) was
added. The reaction was sealed under argon and heated to 60 ◦C for 48 h. After this step, the reaction
was added to DCM (100 mL) and activated charcoal was added; a further stage of reflux for 30 min
followed. The solids were filtered out and the solvent removed using reduced pressure, yielding a
clear oil. The oil was then placed under high vacuum for 48 h.
Yield 1.37 g, 62.3%.
1H-NMR (300 MHz, CDCl3, ):0.01 (12H, s, CH3), 0.10 (4H, d, 3J = 5.7 Hz CH2), 0.49 (4H, t, 3J = 6.8
δ
Hz CH2), 1.18 (8H, m, CH2), 1.53 (4H, p, 3J = 7.3 Hz CH2), 3.03 (4H, t, 3J = 6.9 Hz CH2), 7.22 (4H, s CH).
13C-NMR (75 MHz, CDCl3):
3.09 (CH3), 15.45 (CH2), 23.03 (CH2), 30.67 (CH2), 31.87 (CH2),
−
33.58 (CH2), 132.22 (CH), 139.66 (C).
29Si NMR (400 MHz CDCl3): −2.66. (Si-R).
FTIR (thin-film NaCl plate): 2955, 2926, 1459, 1438, 1379, 1250, 1135, 1056.
LC–MS (positive) 508.1[M + NH4].
4.15. 18
The 1,3,5-tri(dimethylsilyl)benzene (1.00 g, 0.00401 mol), was added to 5-bromopent-1-ene (4 eq,
2.39 g, 0.016 mol, 1.90 mL) along with Speier’s catalyst (100 L). The reaction was sealed under argon
µ
and heated to 60 ◦C for 48 h. The cooled reaction was added to DCM (100 mL) alongside activated
charcoal, and refluxed for 30 min. The solids were removed using filtration and the solvent removed,
yielding a clear oil. The oil was then placed under high vacuum for 48 h.
Yield 1.51 g, 54.1%.
1H-NMR (300 MHz, CDCl3,
1.54 (6H, t, 3J = 6.8 Hz, CH2), 3.08 (6H, t, 3J = 6.8 Hz CH2), 7.35 (3H, s, CH).
13C-NMR (75 MHz, CDCl3):
3.08 (CH3), 15.46 (CH2), 23.05 (CH2), 31.79 (CH2), 32.39 (CH2),
δ
):0.02 (18H, s CH3), 0.49 (6H, t, 3J = 6.9 Hz CH2), 1.14 (H12, m, CH2),
−
33.66 (CH2), 137.02 (CH), 139.11 (Cq).
29Si NMR (400 MHz CDCl3): −2.59 (Si-R).
FTIR (thin-film NaCl plate): 2957, 2927, 1711, 1460, 1439, 1411, 1367, 1252, 1222, 1138, 1070.

Molecules 2020, 25, 4253
20 of 25
4.16. L11
L5 (1.15 g, 0.00152 mol) was dissolved in anhydrous acetonitrile (10 mL) to which potassium
carbonate (0.90 g, 0.00666 mol) was added along with (5-bromopentyl) dimethyl(phenyl)silane (450 mg,
0.00158 mol). The reaction was sealed under argon and heated to 60 ◦C for 48 h. The reaction was
cooled and the solids removed using a centrifuge. The solvent was then removed using reduced
pressure to yield a yellow oil. The crude product was then chromatographed on silica, eluted with a
gradient of 100% DCM to 95% DCM + 5% EtOH.
Yield 550 mg, 40.5%.
1H-NMR (300 MHz, CDCl3, ):0.20 (6H, s CH3), 0.69 (2H, t, 3J = 6.4 Hz CH2), 1.16 (2H, d, 3J = 3.5 Hz
δ
CH2), 1.19 (6H, t, 3J = 2.7 Hz CH3), 1.24 (18H, t, 3J = 6.9 Hz CH3), 2.20 (2H, s, CH2), 2.43–2.65 (22H,
m, Ch2), 3.74 (4H, m CH2), 4.10 (12H, q, 3J = 7.0 Hz CH2), 7.29 (3H, t, 3J = 3.3 Hz CH), 7.64 (2H, dd,
2.5 Hz CH).
13C-NMR (75 MHz, CDCl3):
3.17 (CH3), 14.09 (CH3), 14.30 (CH3), 15.65 (CH2), 18.28 (CH / CH3),
−
23.77 (CH2), 26.43 (CH2), 31.48 (CH2), 35.31 (CH2), 49.81 (CH2), 50.51 (CH2), 51.06 (CH2), 53.94 (CH2),
55.26 (CH2), 58.09 (CH), 59.89 (CH2), 60.38 (CH2), 127.56 (CH), 128.61 (CH), 133.39 (CH), 139.43 (C),
171.28 (C = O), 171.76 (C = O).
29Si NMR (400 MHz CDCl3): −2.73. (Si-R).
FTIR: 2922, 2361, 1724, 1634, 1645, 1284, 1252, 1180, 1110, 1088.
HRMS: Theoretical C48H76N4O12Si calculated 892.5201, found 893.5286 [M + H].
CHN Theoretical C 60.51 H 8.56 N 6.27 Found C 61.14 H 8.44 N 6.32.
4.17. L12
L5 (590 mg, 0.0008576 mol) was dissolved in acetonitrile (10 mL) to which potassium carbonate
(1.00 g, 0.007407 mol) was added. To the reaction mixture 1,4-bis((5-bromopentyl)dimethylsilyl)benzene
(211 mg, 0.0004288 mol) was added and the reaction was sealed under argon and heated to 60 ◦C
for 48 h. The solids were removed using centrifugation and the solvent was extracted by reduced
pressure. The crude product was then taken up into DCM (100 mL) to which activated charcoal was
added, and then refluxed for 30 min. The solids were removed by filtration and the solvent by reduced
pressure to yield a clear oil. The product was then chromatographed on silica eluted with a gradient of
DCM (100%) to DCM (95%)/EtOH (5%), yielding the product as an oil.
Yield 303.7 mg, 41.5%.
1H-NMR (300 MHz, CDCl3,
δ):0.22 (12H, s, CH3), 0.72 (4H, s, CH2), 1.21 (8H, m CH2), 1.26 (36H,
m CH3), 1.9 (4H, s, CH2), 2.23–2.75 (48H, m, CH2), 3.71 (6H, m, CH2), 4.07 (24H, m CH2), 7.49 (H4, s, CH).
13C-NMR (75 MHz, CDCl3):−3.20.
(CH3), 13.09 (CH3), 14.80 (CH3), 16.25 (CH2), 18.48 (CH / CH3), 24.07 (CH2), 26.43 (CH2), 31.48 (CH2),
35.31 (CH2), 49.81 (CH2), 50.51 (CH2), 51.06 (CH2), 53.94 (CH2), 55.26 (CH2), 58.09 (CH), 59.89 (CH2),
60.38 (CH2), 127.56 (CH), 128.61 (CH), 133.39 (CH), 138.44 (Cq), 171.22 (C = O), 174.06 (C = O).
29Si NMR (400 MHz CDCl3): −2.85 (Si-R).
FTIR (thin-film NaCl plates): 2983, 2930, 1724, 1465, 1447, 1371, 1302, 1260, 1170, 1031, 909.
HRMS: Theoretical C84H146N8O24Si2 1707.0921 Found 1707.7698.
CHN Theoretical C 59.06 H 8.61 N 6.56 Found C 58.86 H 8.91 N 6.23.
4.18. L13
The 1,3,5-bis((5-bromopentyl)dimethylsilyl)benzene (674.5 mg, 0.00109 mol), was dissolved in
acetonitrile (10 mL) to which L5 (2.25 g, 0.00327 mol) was added, along with potassium carbonate
(2.20 g, 0.016 mol). The reaction was heated to 60 ◦C for 48 h under argon, after which the solids were
removed using centrifugation and the solvent was removed using reduced pressure. The crude oil was
then taken up into DCM (100 mL) to which activated charcoal was added. The reaction was refluxed
for 30 min, and the solids were removed using filtration. The solvent was then removed using reduced

Molecules 2020, 25, 4253
21 of 25
pressure to yield the crude product. The oil was chromatographed on silica eluted with a gradient of
DCM (100%) to DCM (95%) EtOH (5%) leaving a clear oil.
Yield: 1.18 g, 43.0%.
1H-NMR (300 MHz, CDCl3,
(72H, m, CH2), 3.88 (9H, m, CH2), 4.12 (36H, m CH2), 7.69 (3H, s, CH).
13C-NMR (75 MHz, CDCl3):
3.13 (CH3), 13.98 (CH3), 14.25 (CH3), 15.68 (CH2), 18.19 (CH3),
δ):0.33 (18H, s, CH3), 0.72 (6H, m, CH2), 1.37 (72H, m CH3), 2.36–2.71
−
23.90 (CH2), 25.96 (CH2), 28.12 (CH2), 31.66 (CH2), 35.52 (CH2), 35.17 (CH2), 35.31 (CH2), 46.58 (CH2),
47.83 (CH2), 51.81 (CH2), 51.06 (CH2), 53.70 (CH2), 57.92 (CH2), 58.54 (CH), 59.88 (CH), 60.33 (CH2),
60.37 (CH2), 61.50 (CH2), 137.23 (CH), 139.05 (Cq), 171.43 (C = O), 178.82 (C = O).
FTIR (flush sample CDCl3, NaCl plate): 2981, 2932, 2854, 2360, 2258, 1729, 1448, 1372, 1299, 1254,
1175, 1030.
29Si NMR (400 MHz CDCl3): −2.83 (Si-R).
MALDI: Theoretical C123H216N12O36Si3 2521.4 Found 2521.7.
CHN Theoretical C 58.55 H 8.63 N 6.66 Found C 59.86 H 8.71 N 6.73.
4.19. L14
◦
L11 (0.55 g, 0.0006162 mol) was dissolved in 1M LiOH (5 mL) and heated to 100 C for 24 h.
The solution was cooled to room temperature, then was injected into the head of the ion-exchange
column containing Bio-Rad AG1 A4I (OH
form), bed volume 500 cm3, eluting with ultra-pure water
−
at a rate of 5 mL/min. After collection of 500 mL of eluent, the eluent was changed to formic acid (1 M),
while the fraction was collected in 5 mL units and analysed using negative-ion LC–MS. The solvent
was removed by lyophilisation to yield a white solid, which was then dissolved in water (10 mL) and
the lyophilisation repeated to produce a white solid.
Yield 143 mg, 32%.
1H-NMR (300 MHz, D2O
δ
): 0.01 (6H, s, CH3), 0.53 (2H, s, CH2), 1.09 (4H, s, CH2), 1.43 (2H, s,
CH2), 2.11–2.79 (24H, m, CH2), 3.83 (3H, m, CH), 7.17 (3H, m CH), 7.39 (2H, m, CH).
13C-NMR (75 MHz, D2O):
3.21 (CH3), 23.77 (CH2), 28.03 (CH2), 33.52(CH2), 36.36 (CH2),
−
48.61 (CH2), 50.67 (CH2), 51.30(CH2), 54.04 (CH2), 55.16 (CH2), 57.89 (CH), 59.89 (CH2), 60.38 (CH2),
129.03 (CH), 131.52 (CH), 135.11 (CH), 137.21 (Cq). 174.68 (C = O), 179.86 (C = O).
29Si NMR (400 MHz D2O): −2.80 (Si-R).
FTIR (KBr disk): 3012, 2880, 2583, 1726, 1512, 1485, 1376, 1327, 1296.
HRMS: Theoretical C33H52N4O12Si 724.3487 Found 747.5834 M + Na.
CHN Theoretical C 54.68 H 7.23 N 7.73 Found C 55.86 H 7.71 N 7.13.
4.20. L15
L12 (1.72 g, 0.001 mol) was dissolved in LiOH (5 mL) and heated to 100 ◦C for 24 h. The solution
was cooled to room temperature, then was injected into the head of the ion-exchange column containing
Bio-Rad AG1 A4I (OH
form), bed volume 500 cm3, eluting with ultra-pure water at a rate of 5 mL/min.
−
After collection of 500 mL of eluent, the eluent was changed to formic acid (1M), while the fraction
was collected in 5 mL units and analysed using negative-ion LC–MS. The solvent was removed from
the product-containing fractions by lyophilisation to yield a white solid, which was then dissolved in
water (10 mL) and the lyophilisation repeated to give a white solid.
Yield, 629.1 mg, 45.9%.
1H-NMR (300 MHz, D2O
δ
): 0.02 (12H, s, CH3), 0.89 (4H, s CH2), 1.06 (4H, s, CH2), 1.09 (4H, s,
CH2), 2.47–3.89 (50H44, m, CH2), 7.62 (4H, m, CH).
13C-NMR (75 MHz, D2O):
3.19(CH3), 23.77 (CH2), 28.03 (CH2), 33.52(CH2), 36.36 (CH2),
−
48.61 (CH2), 50.67 (CH2), 51.30(CH2), 54.04 (CH2), 55.16 (CH2), 57.89 (CH), 59.89 (CH2), 60.38 (CH2),
129.03 (CH), 131.52 (CH), 135.11 (CH), 137.21 (Cq). 174.68 (C = O), 179.86 (C = O).
29Si NMR (400 MHz D2O): −2.82 (Si-R).
FTIR: 3218, 3052, 2953, 2576, 1927, 1725, 1631, 1580, 1467, 1392, 1248, 1187, 1135, 1086.

Molecules 2020, 25, 4253
22 of 25
HRMS: Theoretical C60H98N8O24Si2 1370.6282 Found 1371.7254 M + H.
CHN Theoretical C 52.54 H 7.20 N 8.17 Found C 52.34 H 7.41 N 8.13.
4.21. L16
L13 (2.00 g, 0.000788 mol) was dissolved in LiOH (25 mL) and heated to 100 ◦C for 48 h, forming a
colloidal solution. The solution was filtered through a 5 m glass-fibre filter pad, then the solution was
µ
neutralised using formic acid (1M). The solution was lyophilised to form a white solid, which was then
taken up into LiOH (1M) (50 mL) forming a clear solution. The solution was injected into the head of
the ion-exchange column containing Bio-Rad AG1 A4I (OH
form), bed volume 500 cm3, eluting with
−
ultra-pure water at a rate of 5 mL/min. After collection of 500 mL of eluent, the eluent was changed
to formic acid (1M), while the fraction was collected in 5 mL units and analysed using negative-ion
LC–MS The solvent was removed by lyophilisation to yield a white solid, which was then dissolved in
water (10 mL) and lyophilisation was repeated.
Yield 283.2 mg, 17.65%.
1H-NMR (300 MHz, D2O
δ
):
2.35–3.03 (H72, m), 3.93 (H9, m), 7.46 (H3, s).
13C-NMR (75 MHz, D2O):
3.28 (CH3), 23.77 (CH2), 28.03 (CH2), 33.52(CH2), 36.36 (CH2),
−
0.05 (H18, s), 0.48 (H6, s), 0.87 (H6, s), 1.15 (H6, s), 1.60 (H6, s),
−
48.61 (CH2), 50.67 (CH2), 51.30(CH2), 54.04 (CH2), 55.16 (CH2), 57.89 (CH), 59.89 (CH2), 60.38 (CH2),
129.03 (CH), 131.52 (CH), 135.11 (CH), 137.21 (Cq). 174.68 (C = O), 179.86 (C = O).
29Si NMR (400 MHz D2O): −2.83 (Si-R).
FTIR (KBr disk): 3402, 3132, 2975, 2858, 1734, 1639, 1597, 1384, 1251, 1179.
MALDI: Theoretical C87H144N12O36Si3 2016.9 Found 2018.2.
CHN Theoretical C 51.77 H 7.19 N 8.33 Found C 52.84 H 7.51 N 8.15.
4.22. GdL14
Dimethyl(phenyl)silane-pentyl-sDO3A (11.3 mg, 0.0000157 mol) was dissolved in water (10 mL)
to which Gd2O3 (2.8 mg, 0.00000785 mol) was added. The pH of the solution was adjusted from pH
◦
5 to pH 8–8.5 by addition of LiOH (1M) solution. The reaction was then heated to 80 C for 48 h.
The solution was cooled and the solids removed using a centrifuge, then the solution was decanted
and passed through a 0.5 µm filter. The solution was lyophilised, producing a white powder.
Yield 10.1 mg, 73.1%.
FTIR (KBr disk): 3415, 2954, 2932, 2867, 2359, 1587, 1392, 1317, 1252, 1182, 1153, 1115, 1084.
CHN Theoretical C 41.49, H 5.81, N 5.61 found C 41.15 H 5.34, N 6.05.
4.23. EuL14
(pentane-sDO3A-) dimethyl(phenyl)silane (26.7 mg, 0.000031 mol) was dissolved in water (20 mL)
to which Eu2O3 (5.5 mg, 0.0000155 mol) was added. The pH was adjusted from pH 5 to pH 8.5 using
LiOH and the reaction was heated to 80 ◦C for 48 h. The solution was centrifuged and then passed
through a 0.5 µm filter, after which it was lyophilised, producing a white powder.
Yield 22.5 mg, 83%.
FTIR (KBr disk): 3417, 2954, 2932, 2867, 2359, 1588, 1393, 1317, 1253, 1184, 1152, 1115, 1083.
CHN Theoretical C 40.89, H 5.79, N 5.66 found C 41.38 H 5.84, N 6.12.
5. Conclusions
The use of an aza Michael type reaction is a reasonable alternative to alkylation particularly when
adding branched pendant arms, i.e., when cyclen is reacting with a secondary carbon centre. It is
however not a complete success and the ease and efficacy of the reaction is influenced by the nature on
the groups on the Michael donor, with strongly electron withdrawing groups generally promoting a
complete reaction. While the complex structures of the silsesquioxane cages could not survive the
hydrosilylation conditions in the presence of the cyclen ligands, the simpler dimethylsilyl benzenes

Molecules 2020, 25, 4253
23 of 25
were robust and produced large ligand scaffolds able to coordinate the lanthanide centres and form
stable complexes.
Supplementary Materials: Additional data for chemical characterization of the following: GdL1, GdL7, GdL5,
EuL5, GdL9a, EuL9a, GdL15, EuL15, GdL16, EuL16.
Author Contributions: The authors contributed equally to this work. J.I.B., P.G.T. and V.K.P. contributed to
experimental design and data interpretation. Synthetic work and analyses were carried out by P.J.O. D.T.P.S. and
R.C.A., D.T.P.S. carried work on the organosilicon scaffolds. All authors have read and agreed to the published
version of the manuscript.
Funding: This research was funded by the Open University and STFC (ST/K502212/1).
Acknowledgments: We thank the Open University and STFC (ST/K502212/1) for funding this work and the
Department of Chemistry, University of Wales Swansea, for accurate mass spectrometry The APC was funded
by UKRI.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
Oltmanns, D.; Zitzmann-Kolbe, S.; Mueller, A.; Bauder-Wuest, U.; Schaefer, M.; Eder, M.; Haberkorn, U.;
Eisenhut, M. Zn(II)-bis(cyclen) Complexes and the Imaging of Apoptosis/Necrosis. Bioconjugate Chem. 2011
22, 2611–2624. [CrossRef]
,
2.
Wang, H.; Wu, Z.; Li, S.; Hu, K.; Tang, G. Synthesis and evaluation of a radiolabeled bis-zinc(II)–cyclen
complex as a potential probe for in vivo imaging of cell death. Apoptosis 2017, 22, 585–595. [CrossRef]
[PubMed]
3.
4.
Xavier, C.; Paulo, A.; Domingos, A.; Santos, I. Synthesis and structural studies of rhenium(v) complexes
stabilized by a monoanionic cyclen ligand. Eur. J. Inorg. Chem. 2004. [CrossRef]
Borbas, K.E.; Ferreira, C.S.M.; Perkins, A.; Bruce, J.I.; Missailidis, S. Design and synthesis of mono- and
multimeric targeted radiopharmaceuticals based on novel cyclen ligands coupled to Anti-MUC1 aptamers
for the diagnostic imaging and targeted radiotherapy of cancer. Bioconj. Chem. 2007, 18, 1205–1212.
5.
Caravan, P.; Esteban-Gómez, D.; Rodríguez-Rodríguez, A.; Platas-Iglesias, C.; Esteban-Gómez, D.
Water exchange in lanthanide complexes for MRI applications. Lessons learned over the last 25 years.
Dalton Trans. 2019, 48, 11161–11180. [CrossRef] [PubMed]
6.
7.
8.
9.
Clough, T.J.; Jiang, L.; Wong, K.-L.; Long, N.J. Ligand design strategies to increase stability of
gadolinium-based magnetic resonance imaging contrast agents. Nat. Commun. 2019, 10, 1–14.
Frawley, A.T.; Pal, R.; Parker, D. Very bright, enantiopure europium(III) complexes allow time-gated chiral
contrast imaging. Chem. Commun. 2016, 52, 13349–13352.
Aulsebrook, M.L.; Graham, B.; Grace, M.R.; Tuck, K.L. Lanthanide complexes for luminescence-based sensing
of low molecular weight analytes. Coord. Chem. Rev. 2018, 375, 191–220.
Neumann, L.N.; Calvino, C.; Simon, Y.C.; Schrettl, S.; Weder, C. Solid-state sensors based on Eu3+-containing
supramolecular polymers with luminescence colour switching capability. Dalton Trans. 2018, 47, 14184–14188.
10. Winnett, M.R.; Mini, P.; Grace, M.R.; Tuck, K.L. Time-Resolved Terbium-Based Probe for the Detection of
Zinc(II) Ions: Investigation of the Formation of a Luminescent Ternary Complex. Inorg. Chem. 2019, 59,
118–127. [CrossRef]
11. Pujales-Paradela, R.; Savic´, T.; Pérez-Lourido, P.D.; Angelovski, G.; Botta, M.; Platas-Iglesias, C. Lanthanide
Complexes with H-1 paraCEST and F-19 Response for Magnetic Resonance Imaging Applications. Inorg. Chem.
2019, 58, 7571–7583. [PubMed]
12. Dischino, D.D.; Delaney, E.J.; Emswiler, J.E.; Gaughan, G.T.; Prasad, J.S.; Srivastava, S.K.; Tweedle, M.F.
Synthesis of nonionic gadolinium chelates useful as contrast agents for magnetic resonance imaging:
1,4,7-tris(carboxymethyl)-10-substituted-1,4,7,10-tetraazacyclododecanes and their corresponding gadolinium
chelates. Inorg. Chem. 1991, 30, 1265–1269. [CrossRef]
13. Zucchi, G.; Ferrand, A.C.; Scopelliti, R.; Bunzli, J.-C.G. Highly luminescent, visible-emitting lanthanide
macrocyclic chelates stable in water and derived from the cyclen framework. Inorg. Chem. 2002, 41, 2459–2465.
[PubMed]

Molecules 2020, 25, 4253
24 of 25
14. Ferrand, A.C.; Imbert, D.; Chauvin, A.S.; Vandevyver, C.-D.B.; Bunzli, J.-C.G. Non-cytotoxic, bifunctional
Eu-III and Tb-III luminescent macrocyclic complexes for luminescence resonant energy-transfer experiments.
Chem. Eur. J. 2007, 13, 8678–8687.
15. Rodr
íguez-Rodríguez, A.; Esteban-Gómez, D.; De Blas, A.; Rodríguez-Blas, T.; Fekete, M.; Botta, M.; Tripier, R.;
Platas-Iglesias, C. Lanthanide(III) Complexes with Ligands Derived from a Cyclen Framework Containing
Pyridinecarboxylate Pendants. The Effect of Steric Hindrance on the Hydration Number. Inorg. Chem. 2012
51, 2509–2521. [CrossRef] [PubMed]
,
16. Bui, A.T.; Beyler, M.; Liao, Y.-Y.; Grichine, A.; Duperray, A.; Mulatier, J.-C.; Le Guennic, B.; Andraud, C.;
Maury, O.; Tripier, R. Cationic Two-Photon Lanthanide Bioprobes Able to Accumulate in Live Cells.
Inorg. Chem. 2016, 55, 7020–7025. [CrossRef]
17. Plush, S.E.; Clear, N.A.; Leonard, J.P.; Fanning, A.-M.; Gunnlaugsson, T. The effect on the lanthanide
luminescence of structurally simple Eu(iii) cyclen complexes upon deprotonation of metal bound water
molecules and amide based pendant arms. Dalton Trans. 2010, 39, 3644. [CrossRef]
18. Kovács, D.; Lu, X.; Mészáros, L.S.; Ott, M.; Andres, J.; Borbas, K.E. Photophysics of Coumarin and
Carbostyril-Sensitized Luminescent Lanthanide Complexes: Implications for Complex Design in Multiplex
Detection. J. Am. Chem. Soc. 2017, 139, 5756–5767. [CrossRef]
19. Aime, S.; Barge, A.; Bruce, J.I.; Botta, M.; Howard, J.A.K.; Moloney, J.M.; Parker, D.; De Sousa, A.S.; Woods, M.
NMR, Relaxometric, and Structural Studies of the Hydration and Exchange Dynamics of Cationic Lanthanide
Complexes of Macrocyclic Tetraamide Ligands. J. Am. Chem. Soc. 1999, 121, 5762–5771. [CrossRef]
20. Woods, M.; Botta, M.; Avedano, S.; Wang, J.; Sherry, A.D. Towards the rational design of MRI contrast
agents: A practical approach to the synthesis of gadolinium complexes that exhibit optimal water exchange.
Dalton Trans. 2005, 3829–3837. [CrossRef]
21. Dickins, R.S.; Aime, S.; Batsanov, A.S.; Beeby, A.; Botta, M.; Bruce, J.I.; Howard, J.A.K.; Love, C.S.; Parker, D.;
Peacock, R.D.; et al. Structural, Luminescence, and NMR Studies of the Reversible Binding of Acetate, Lactate,
Citrate, and Selected Amino Acids to Chiral Diaqua Ytterbium, Gadolinium, and Europium Complexes.
J. Am. Chem. Soc. 2002, 124, 12697–12705. [CrossRef] [PubMed]
22. Yu, J.H.; Parker, D. Synthesis of a europium complex for anion-sensing involving regioselective substitution
of cyclen. Eur. J. Org. Chem. 2005. [CrossRef]
23. Batsanov, A.S.; Bruce, J.I.; Ganesh, T.; Low, P.J.; Kataky, R.; Puschmann, H.; Steel, P.G. Synthesis, characterisation
and application of lanthanide cyclen complexes in organic synthesis. J. Chem. Soc. Perkin Trans. 2002, 1,
932–937. [CrossRef]
24. Messeri, D.; Lowe, M.P.; Parker, D.; Botta, M. A stable, high relaxivity, diaqua gadolinium complex that
suppresses anion and protein binding. Chem. Commun. 2001, 24, 2742–2743. [CrossRef]
25. Bodi, A.; Borbas, K.E.; Bruce, J.I. Near IR-emitting DNA-probes exploiting stepwise energy transfer processes.
Dalton Trans. 2007, 38, 4352–4358. [CrossRef]
26. Borbas, K.E.; Bruce, J.I. Synthesis of asymmetrically substituted cyclen-based ligands for the controlled
sensitisation of lanthanides. Org. Biomol. Chem. 2007, 5, 2274–2282. [CrossRef]
27. Bammer, R.; de Crespigny, A.J.; Howard, D.; Seri, S.; Hashiguchi, Y.; Nakatani, A.; Moseley, M.E. A comparative
evaluation of CH3-DTPA-Gd (NMS60) for contrast-enhanced magnetic resonance angiography. Magn. Reson.
Imag. 2004, 22, 619–624. [CrossRef]
28. Xu, H.; Regino, C.A.S.; Bernardo, M.; Koyama, Y.; Kobayashi, H.; Choyke, P.L.; Brechbiel, M.W. Toward
Improved Syntheses of Dendrimer-Based Magnetic Resonance Imaging Contrast Agents: New Bifunctional
Diethylenetriaminepentaacetic Acid Ligands and Nonaqueous Conjugation Chemistry. J. Med. Chem. 2007
50, 3185–3193. [CrossRef]
,
29. El Aziz, Y.; Bassindale, A.R.; Taylor, P.G.; Horton, P.N.; Stephenson, R.A.; Hursthouse, M.B. Facile Synthesis
of Novel Functionalized Silsesquioxane Nanostructures Containing an Encapsulated Fluoride Anion.
Organometallics 2012, 31, 6032–6040. [CrossRef]
30. Kaneshiro, T.L.; Jeong, E.-K.; Morrell, G.; Parker, D.L.; Lu, Z.-R. Synthesis and Evaluation of
Globular Gd-DOTA-Monoamide Conjugates with Precisely Controlled Nanosizes for Magnetic Resonance
Angiography. Biomacromolecules 2008, 9, 2742–2748. [CrossRef]
31. Gaspar, R.D.L.; Ferraz, S.M.M.; Padovani, P.C.; Fortes, P.R.; Mazali, I.O.; Sigoli, F.A.; Raimundo, I.M., Jr.
Luminescent oxygen probes based on TbIII complexes chemically bonded to polydimethylsiloxane.
Sens. Actuat. B Chem. 2019, 287, 557–568.

Molecules 2020, 25, 4253
25 of 25
32. Fensterbank, H.; Berthault, P.; Larpent, C. A Tunable One-Step N,N0-Disubstitution of 1,4,8,11-
Tetraazacyclotetradecane with Acrylamide. Eur. J. Org. Chem. 2003, 20, 3985–3990.
33. Fensterbank, H.; Zhu, J.; Riou, D.; Larpent, C. A convenient one-step synthesis of mono-N-functionalized
tetraazamacrocycles. J. Chem. Soc. Perkin Trans. 1999, 1, 811–815.
34. Channa, A.; Steed, J.W. Anion and cation binding by a pendant arm cyclam and its macrobicyclic derivatives.
Dalton Trans. 2005, 14, 2455–2461.
35. Babievskii, K.K.; Belikov, V.M.; Tikhonova, N.A. On the production of a-nitroacrylic ester. Russ. Chem. Rev.
1965, 160, 103–105.
36. O’Connell, P.J. Synthesis and Characterisation of Bifunctional MRI Contrast Agents. Ph.D. Thesis, The Open
University, Milton Keynes, UK, 2009.
37. March, J.; Smith, M.B. March’s Advanced Organic Chemistry, 5th ed.; Wiley-Interscience Publication: Hoboken,
NJ, USA, 2001.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
