Biomacromolecules
Article
In Vitro Cell Cytotoxicity. Cell viability was assessed by the
stage of polymerization. We verified the above assumption by
30
standard MTT assay with slight modifications. Briefly, cells were
NMR of the soluble product in cold ether. Again, the M of the
n
4
grown in 96 well plates at a density of 2 × 10 cells per well. After the
resulting hypergrafting copolymer PEO -hb-PG was measured
39
z
treatment of the micelles as indicated concentrations, thiazolyl blue
tetrazolium bromide (MTT, Sigma-Aldrich) was added to each well of
cells (final conc. 0.5 mg/mL) and incubated for 1.5 h at 37 °C in a
by GPC to be 9300 g/mol (M /M = 1.42), which shows good
w
n
agreement with that from the calculated value 8580 g/mol. The
repeated number of z was determined to be 93. Therefore, the
number of OH function per a polymer chain can be calculated
to be 93.
humidified atmosphere of 95% air/5% CO . A solution of 0.08 N HCl
2
in 2-isopropanol was added to solubilize the blue MTT-formazan
product and the sample was incubated for further 30 min at room
temperature. Absorbance of the solution was read at a test wavelength
of 550 nm. Half maximal inhibitory concentration (IC ) values were
The conjugation of DOX to the prepared hyperbranched
polymer to afford PEO-hb-PG-DOX was achieved by a
50
determined using a sigmoidal dose−response model from GraphPad
Prism v. 4.0 (GraphPad Software, Inc.).
29
procedure similarly described in a literature. After the
preparation of the PEO-hb-PG copolymer, the multiple
hydroxyl groups on the PG segment were further modified
with DOX via an acid-labile hydrazone linkage. The hydroxyl
groups were first modified using p-NPC mediated hydroxyl
amine coupling reaction followed by an amine-ketone reaction
with DOX to provide a pH-responsive feature of PEO-hb-PG-

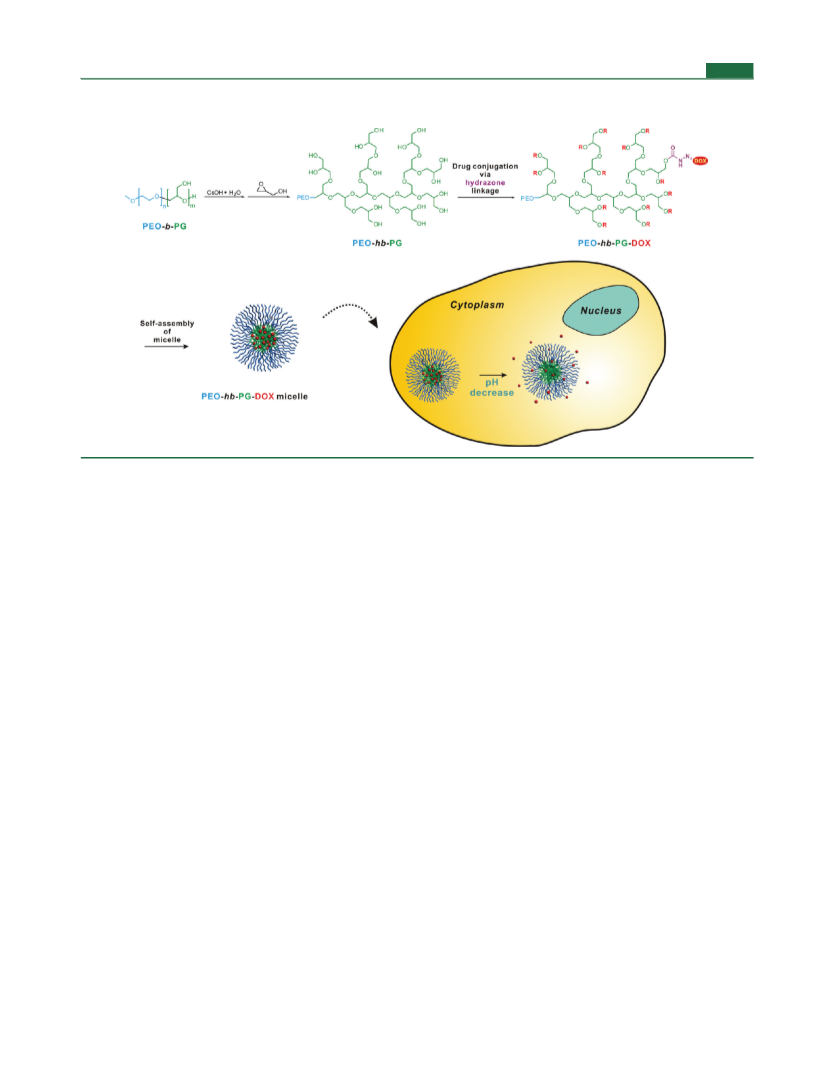

DOX as shown in Scheme 3. The chemical structure of PEO-
RESULTS AND DISCUSSION
Hyperbranched PEO-hb-PG copolymers were prepared accord-
ing to the modified Frey’s method (Scheme 2). Initially, the M
■
n
of the commercially obtained PEO monomethyl ether was
determined by GPC in DMF calibrated with polystyrene
standard samples, and NMR analysis in deuteriated chloroform.
The M , polydispersity (M /M ), and the degree of polymer-
1
hb-PG-DOX was characterized with H NMR spectra to
n
w
n
confirm the presence of the aromatic DOX (See Supporting
Information). Moreover, the degree of conjugation was
determined to be around 2.1%, on the basis of HPLC
measurement.
Once the conjugation of DOX was confirmed, the PEO-hb-
PG-DOX was dialyzed against the pH-adjusted deionized water
to form the micellar structures that consist of the core of
hydrophobically modified PG-DOX and hydrophilic PEO shell,
which can stabilize the resulting micellar structures. The size of
micelles measured by dynamic light scattering (DLS) was 183.3
ization determined by GPC were 1720 g/mol, 1.20, and 39,
respectively, and these results agreed well with those obtained
by NMR analysis. The hydroxyl functional group at the
terminal of PEO was transformed into the macroinitiator of
PEO-OCs for the polymerization of ethoxyethyl glycidol ether
(
EEGE) by dehydration with cesium hydroxide. After the
removal of unreacted PEO by precipitation in cold diethyl
ether, the acetal group was cleaved by HCl. After block
copolymerization, we found no EEGE was remained in the final
mixture by NMR, suggesting the presence of unreacted PEO,
because the yield of the purified block copolymer was not
quantitative (59%). Thus, the block efficiency was calculated to
be 0.39 (see Experimental Section for details). The relatively
low block efficiency might be attributed to the heterogeneous
±
6.03 nm, confirming the formation of the micelles after to
conjugation of DOX, while that of unmodified plain polymer
PEO-hb-PG) was 4.91 ± 1.96 nm (Figure 1). This significant
(
difference indicates the successful formation of a core−shell
type micellar nanostructure on conjugation with hydrophobic
DOX, while plain double hydrophilic block copolymer of PEO-
hb-PG does not induce any micelle formation. This feature is
important because after the delivery of the drug to a site from
micelles of PEO-hb-PG-DOX, the structures can potentially
disassemble to all-biocompatible, double hydrophilic block
copolymer of PEO-hb-PG, which can be readily cleared and/or
biodegraded. According to the study by Brooks and co-workers,
the hydrophobically modified PEO containing PG could
degrade particularly well under acidic conditions of an
macroinitiator in 1,4-dioxane solution. The M of the resulting
n
block copolymer PEO -b-PG was measured by GPC to be
x
y
3
685 g/mol (M /M = 1.19) (Table 1), which showed a good
w n
Table 1. Characterization Data for Polymers Used in This
Study
a
b)
Mn
c)
b)
run
polymer
yield (%)
Mn(calc)
M /Mn
w
1
2
3
PEO39
1720
3685
9300
1.20
1.19
1.25
PEO -b-PG
30
59
65
3900
8580
39
23
PEO -hb-PG
39
93

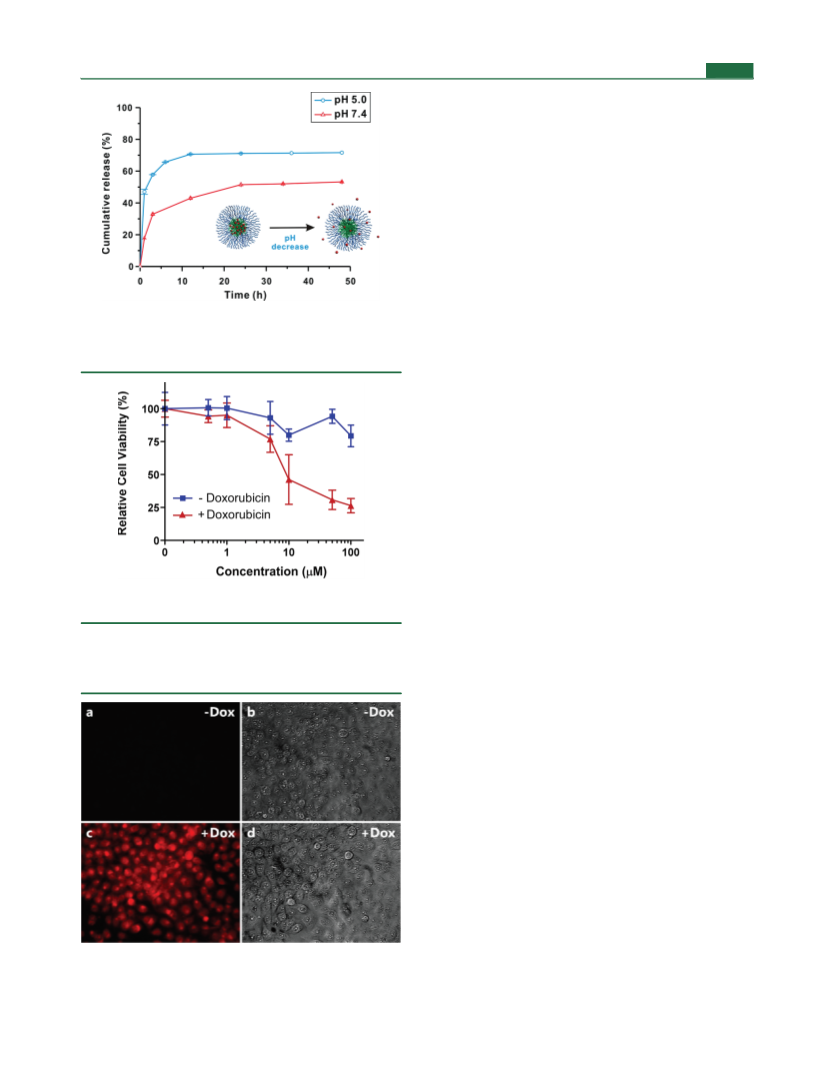

intracellular environment. It should also be noted that the
hyperbranched morphology of PG has a great potential for
a
b)
Commercially available PEO of nominal M of 2000 (Aldrich).
n
c)
31
Determined by GPC (CHCl , PS standards). Calculated values from
3
developing a promising system for enhanced drug loading.
the yield of the polymer (see Experimental Section for details).

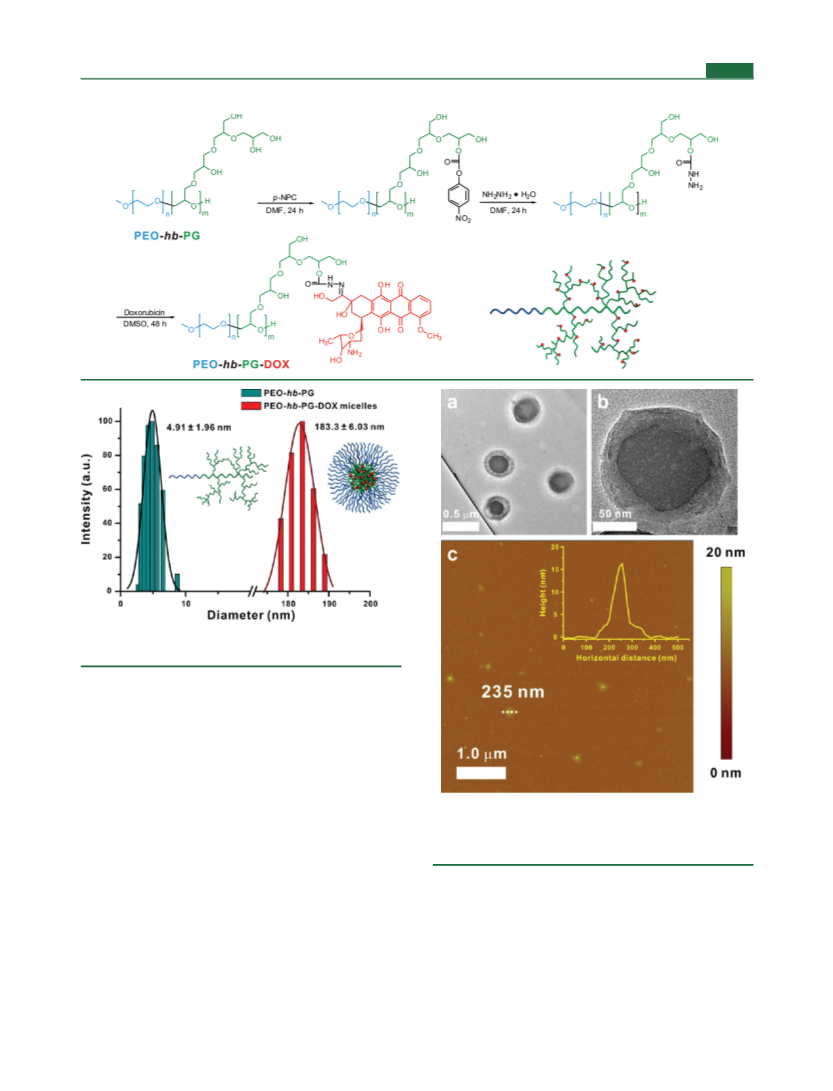

The morphology of micelles was observed by transmission
electron microscopy (TEM) and atomic force microscopy
agreement with the calculated value of 3900 g/mol (see
Experimental Section for details). Thus, the block efficiency
was calculated to be 0.39. The repeating numbers of each block
were determined to be 39 for PEO and 30 for PG.
(
AFM) (Figure 2). Figure 2a showed the spherical micelles
consisting of a dark core (average diameter of 240 nm) and a
relatively brighter shell layer (average thickness of 70 nm) in an
aqueous solution. The overall average diameter of 310 nm was
relatively larger than that obtained from the DLS measurement,
which could be attributed to the flattening effect induced
during sample preparation. In addition, AFM image in Figure
The hypergrafting of linear PEO -b-PG with glycidol was
3
9
30
then performed. About 4.1 equiv of glycidol to OH function on
the linear macroinitiator was hypergrafted in solution. As a
result, the hypergrafted copolymer was obtained in 65% yield.
Imperfect yield might be attributed to the presence of glycidol
homopolymer, which can be removed by precipitation in cold
diethyl ether. We assumed that the PEO-hb-PG was
quantitatively collected during the process of repeated
precipitation, and therefore, the nonquantitative yield should
come from the formation of homo-PG during the hypergrafting
2
b indicates the hydrophobic core is surrounded by hydrophilic
shell. The core/shell morphology of the PEO-hb-PG-DOX
micelle is also promising for cancer therapy, since the
biocompatible PEO shell can provide a stealth property with
prolonged circulation life while the stabilized internal core can
effectively prevent early burst release of encapsulated
therapeutics from the micelle during circulation.
1
193
dx.doi.org/10.1021/bm300151m | Biomacromolecules 2012, 13, 1190−1196
