Interfacing Droplet Microfluidics with MALDI Mass
Spectrometry: Label-Free Content Analysis of Single Droplets
Simon K. Kuester, Stephan R Fagerer, Pascal E Verboket, Klaus
Eyer, Konstantins Jefimovs, Renato Zenobi, and Petra S. Dittrich
Anal. Chem., Just Accepted Manuscript • DOI: 10.1021/ac3033189 • Publication Date (Web): 05 Jan 2013
Downloaded from http://pubs.acs.org on January 7, 2013
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a free service to the research community to expedite the
dissemination of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts
appear in full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been
fully peer reviewed, but should not be considered the official version of record. They are accessible to all
readers and citable by the Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered
to authors. Therefore, the “Just Accepted” Web site may not include all articles that will be published
in the journal. After a manuscript is technically edited and formatted, it will be removed from the “Just
Accepted” Web site and published as an ASAP article. Note that technical editing may introduce minor
changes to the manuscript text and/or graphics which could affect content, and all legal disclaimers
and ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors
or consequences arising from the use of information contained in these “Just Accepted” manuscripts.
Analytical Chemistry is published by the American Chemical Society. 1155 Sixteenth
Street N.W., Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 16
Analytical Chemistry
1
2
3
4
5
6
7
8
9
Interfacing Droplet Microfluidics with MALDI
Mass Spectrometry: Label-Free Content Analysis of
Single Droplets
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Simon K. Küster,† Stephan R. Fagerer,† Pascal E. Verboket,† Klaus Eyer,† Konstantins
Jefimovs,‡ Renato Zenobi,† and Petra S. Dittrich*,†
†
Laboratory of Organic Chemistry, ETH Zürich, Wolfgang-Pauli-Strasse 10,
093 Zürich, Switzerland
8
‡
Laboratory for Electronics/Metrology/Reliability EMPA, Swiss Federal Laboratories for
Material Science and Technology, Überlandstrasse 129, 8600 Dübendorf, Switzerland
KEYWORDS: analytical methods, high-throughput screening, mass spectrometry, MALDI-MS,
microdroplets, microfluidics
ABSTRACT: Droplet-based microfluidic systems have become a very powerful tool to
miniaturize chemical and biological reactions. However, droplet content analysis remains
challenging and relies almost exclusively on optical methods such as fluorescence spectroscopy.
Hence, labeling of the analyte is typically required which impedes a more universal applicability
of microdroplets. Here we present a novel interface coupling droplet microfluidics and matrix-
assisted laser desorption/ionization (MALDI) mass spectrometry for label-free content analysis
of single droplets. Nanoliter aqueous droplets immersed in perfluorinated oil are created in a
ACS Paragon Plus Environment
1

Analytical Chemistry
Page 2 of 16
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
microfluidic T-junction, transferred into a capillary and deposited on a high-density microarray
MALDI plate mounted on a motorized xy-stage. The fully automated system is robust and
reliable due to two unique features. Firstly, a simple optical droplet detection system is used to
synchronize stage movement and exit of droplets from the capillary. Secondly, the microarray
plate contains an array of over 26,000 hydrophilic spots within a hydrophobic coating, each spot
acting as a recipient to confine the droplets and to prevent cross-contamination. The MALDI
matrix can also be applied using our system by spotting matrix droplets on the microarray in a
separate run. To demonstrate the potential of our system, we studied the enzymatic cleavage of
angiotensin I by angiotensin converting enzyme and monitored the increasing concentration of
the product angiotensin II over time. The interface provides a robust and fully automated method
for rapid label-free and information-rich content analysis of single droplets. With the high
number of droplets per plate, this method is particularly suitable for high-throughput screening
applications.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Throughout the last decade, the generation and manipulation of ultrasmall-volume droplets on
microfluidic platforms has opened fascinating opportunities for chemical and biological
1-5
research. Monodisperse droplets encapsulating femto- to nanoliter aqueous volumes can be
generated at high throughput (up to kHz) within a hydrophobic carrier stream and can serve as
individual microcontainers isolating biological or chemical species.
In recent years, many novel on-chip droplet manipulation techniques and interfaces have been
6
developed. Droplet generators can be interfaced with liquid chromatography (LC) or capillary
7
-8
electrophoresis (CE) to alter the droplet content. Additionally, cartridge sampling techniques
9
enable loading of droplets for reaction screening at high throughput. Furthermore, a modular
droplet toolbox is available enabling on-chip micromanipulations including ultrafast mixing
ACS Paragon Plus Environment
2

Page 3 of 16
Analytical Chemistry
1
2
3
4
5
6
7
8
9
10,11
12,13
10,14,15
16
17-19
inside droplets,
droplet fusion,
splitting,
injection and sorting.
These
developments have enabled complex high-throughput experiments with strongly reduced reagent
consumption making this concept highly attractive for various chemical and biological
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
20
21,22
23
applications such as synthesis, protein crystallization,
cell-free protein expression, single-
2
4,25
19,26
cell studies
and directed evolution.
The analysis of droplet content, however, remains challenging and limits the applicability of
droplet microfluidics. As droplets are commonly transported at high speed through closed
microchannels, the lack of direct physical access renders in-situ measurements non-trivial.
Therefore, the detection of the droplet content commonly relies on optical methods, mostly
fluorescence microscopy. This significantly restricts the applicability of droplet microfluidics
due to the required labeling of target molecules with fluorescent dyes.
Mass spectrometry (MS), on the other hand, provides label-free detection of a wide range of
analytes and is therefore ideal for droplet content analysis. However, interfacing droplet-based
microfluidic platforms (water droplets in oil) with MS instruments is challenging. Up to now,
most of the effort has been directed towards developing on-line interfaces with electrospray
ionization mass spectrometry (ESI-MS). However, the injection of alternating water and oil
plugs interferes with the formation of a stable ESI plume. Attempts to overcome this problem
2
7
have been made by using air as continuous phase or by extracting the droplet into a continuous
2
8-30
aqueous stream before creating the ESI plume.
The former approach renders more advanced
droplet manipulation impossible while the latter approach suffers from Taylor dispersion of the
droplet content after extraction which can result in cross- contamination. Additionally, the
dilution of the droplet content impedes optimal detection. As an alternative, interfaces with
matrix-assisted laser desorption/ionization mass spectrometry (MALDI-MS) uncouple the fluidic
ACS Paragon Plus Environment
3

Analytical Chemistry
Page 4 of 16
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
system from the mass spectrometer and can therefore overcome these difficulties. MALDI-MS is
particularly powerful in analyzing larger molecules such as peptides and also has a high salt
tolerance. In many previous studies, MALDI-MS has been coupled to separation methods such
as capillary electrophoresis or liquid chromatography by continuous deposition of the fluidic
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
3
1-37
fractions on a movable MALDI target,
but up to now only few approaches have been
3
8,39
presented to combine continuous droplet microfluidics with MALDI-MS.
Furthermore, the
analysis in these studies was either not performed at the single-droplet level or manual spotting
of individual droplets on standard MALDI-MS plates prevented high-throughput droplet
chemical analysis.
Here we present a novel interface between droplet microfluidics and MALDI-MS that enables
fast, precise and cross-contamination free deposition of up to 26,000 individual aqueous droplets
on a micro-array plate for subsequent mass spectrometry analysis. The system is fully automated
and therefore facilitates high-throughput analysis of droplet microreactors. We recorded mass
spectra of compounds encapsulated in microdroplets with comparable sensitivity to MALDI-MS
measurements on conventional stainless steel sample plates. Furthermore, we demonstrate the
potential of the system by monitoring the formation of an octapeptide (angiotensin II) from a
decapeptide (angiotensin I) during an enzymatic reaction over several hours.
A scheme of the interface is depicted in Figure 1a. Aqueous droplets of 3 nL were created in a
microfluidic T-junction by injecting an aqueous phase into an immiscible oil phase
(
perfluorodecalin). The microchannel was connected to a perfluoroalkoxyalkane (PFA) capillary
360 µm O.D., 100 µm I.D.), the end of which deposited droplets on a micro-array plate mounted
(
on an xy-stage (Figure 1b & c). The micro-array plate consisted of a standard stainless steel
ACS Paragon Plus Environment
4

Page 5 of 16
Analytical Chemistry
1
2
3
4
5
6
7
8
9
3
MALDI-MS plate (123x81x1.2 mm ), which was coated with a hydrophobic Teflon layer.
4
0
Subsequently, the hydrophobic layer was structured by picosecond laser ablation to form an
array of 26,444 circular hydrophilic spots each of 300 µm diameter (Figure S-1). Every spot
acted as a recipient for one individual microdroplet.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Additionally, an optical detection system consisting of a photodiode, a photodetector and an
optical fiber (with a drilled hole) registered every droplet leaving the capillary (see SI). A real-
time data evaluation system was used to differentiate aqueous droplets from oil plugs by
performing a threshold analysis. When a droplet was detected, the stage was triggered after a
predefined delay time to move the micro-array plate to the next empty hydrophilic spot. The
movement was performed while an oil plug was exiting the capillary, therefore preventing
splitting of droplets across multiple spots. Additionally, the detection system facilitated reliable
deposition of microdroplets even if their spacing varied significantly. Being deposited together,
the carrier fluid (typically a volatile perfluorinated oil) and the aqueous phase simply evaporated
before the plate was loaded into the MALDI mass spectrometer. Evaporation of both phases is
usually completed within less than 60 seconds or less than 5 seconds when a flow of nitrogen gas
is used to accelerate the process. First tests of the spotting system and the control software were
performed using a portable USB camera with high magnification for observation (see SI movie).
Reliable spotting frequencies of up to 7 Hz were achieved.
For analysis by MALDI-MS, co-crystallization with a matrix is required to achieve efficient
desorption and ionization of the analyte. One possibility is to inject the matrix solution into the
aqueous stream prior to droplet creation. However, the addition of a highly acidic and saturated
MALDI matrix solution at such an early stage can interfere with the assays performed inside the
microdroplets. To circumvent this problem, the MALDI matrix can be deposited before or after
ACS Paragon Plus Environment
5

Analytical Chemistry
Page 6 of 16
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
the deposition of the analyte. The matrix solution then re-dissolves the dried analytes (or vice
versa) and leads to co- crystallization. Our system readily provides these possibilities as
microdroplets containing the MALDI matrix solution can be created and deposited in the same
way as the analyte solution.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Next, we proved the cross-contamination free spotting of droplets on the microarray. The
hydrophobic coating of the plate prevented cross-contamination between adjacent hydrophilic
spots and confined each droplet to a defined position within the array. To demonstrate this,
droplets of an aqueous solution of a blue food dye (patent blue V) were spotted on the
microarray in a vertical serpentine movement periodically omitting vertical lines to preserve
empty spots (Figure S-2). Figure 2a shows a micrograph of a small section of the microarray
after spotting the dye. No leakage of the aqueous phase into the adjacent empty hydrophilic spots
nor spreading over the hydrophobic area could be observed by brightfield microscopy. After
evaporating the oil phase and the analyte droplets, additional droplets of 2,5-dihydroxybenzoic
acid (DHB) (MALDI matrix) were spotted in a second run across all spots in horizontal lines
(Figure S-2) to test for unwanted transport of analyte between adjacent spots during matrix
deposition. As the flow of perfluorinated oil between successive matrix droplets prevents any
direct aqueous connection between successive spots, no carryover of dye could be observed.
Furthermore, the absence of cross-contamination was also verified by MALDI-MS imaging
(Figure 2b & d). Signals for patent blue V were obtained exclusively on the spots where droplets
with the dye were deposited beforehand, while signals for DHB were obtained from every
hydrophilic spot as expected. Since patent blue V can readily be ionized and detected even
without applying MALDI matrix, the spreading of aqueous liquid over hydrophobic areas would
have been visible in the MALDI-MS imaging experiment even in the absence of the matrix. For
ACS Paragon Plus Environment
6

Page 7 of 16
Analytical Chemistry
1
2
3
4
5
6
7
8
9
this test of cross-contamination, the application of MALDI matrix was merely performed to
detect any carryover effect of the analyte rather than to improve its ionization.

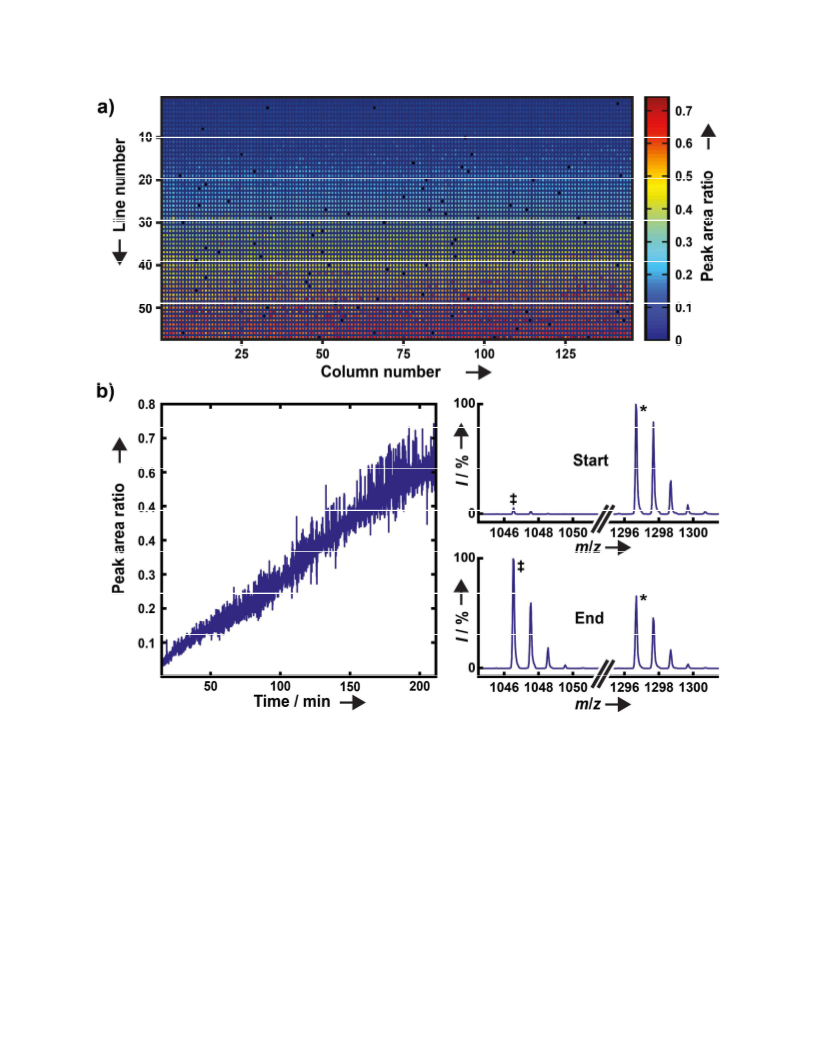

We demonstrate the potential of the system by monitoring the enzymatic conversion of
angiotensin I (a decapeptide) to angiotensin II (an octapeptide) by angiotensin converting
enzyme (ACE). This enzymatic conversion is an important step in the renin–angiotensin–
aldosterone system (RAAS) that regulates blood pressure in humans. For the experiment,
substrate (angiotensin I, 10 µg/mL) and enzyme (ACE, 5.35 units/mL) were mixed in an aqueous
solution and directly loaded into a glass syringe. Using a flow rate of 0.25 µL/min for the
enzymatic reaction mixture and 0.75 µL/min for the oil phase, droplet creation and spotting was
started immediately upon mixing. Over a 3-hour period, 8,265 droplets of 3 nL containing the
current reaction mixture were spotted at 0.7 Hz and immediately dried using a flow of dry
nitrogen gas to quench the enzymatic reaction. Hence, each spot represents a single time point of
the enzymatic conversion. The overall volume of spotted sample is only about 24 µL. Upon
completion of spotting the enzymatic reaction, droplets of DHB were created and deposited on
all spots.
