Preparation and characterisation of ordered mesoporous SO4 2?/Al2O3 and its catalytic activity in the conversion of furfuryl alcohol to ethyl levulinate

Article abstract of DOI:10.1016/j.jssc.2019.120991

A series of ordered mesoporous SO₄ ^2?/Al₂O₃ (OMSA) solid super acid catalysts were prepared by evaporation-induced self-assembly (EISA) method, followed by sulphonation at different calcination temperatures (400°C-900 °C). The results of transmission electron microscopy (TEM) and small-angle X-ray diffraction (XRD) indicated that all of the OMSAs possessed ordered mesoporous structures. The N₂-Brunauer–Emmett–Teller (N₂-BET) results showed that the specific surface area of OMSAs could reach up to 160–380 m²/g, and the average pore diameters fall into the range between 8.6 and 9.8 nm. The temperature-programmed desorption of ammonia (NH₃-TPD) characterisation proofed that the OMSAs contained super acid, and ammonia desorption by the super acid in the OMSA calcined at 600 °C reached 25.9 cm³/g STP. The pyridine adsorption infrared (Py-IR) indicated that all of the OMSAs consisted mainly of Lewis acids. The OMSA was used to catalyse furfuryl alcohol in the synthesis of ethyl levulinate (EL). The maximum yield (80.6%) was obtained in the reaction conducted at 200 °C for 3 h. The reusability of the catalyst was proofed after four times of reuse as its activity was maintained with a yield of 71.2%.

Full text of DOI:10.1016/j.jssc.2019.120991

Journal Pre-proof
2−
/Al O and its
Preparation and characterisation of ordered mesoporous SO
4
2 3
catalytic activity in the conversion of furfuryl alcohol to ethyl levulinate
Zhi Zhang, Hong Yuan, Yunjie Wang, Yihu Ke
PII:
S0022-4596(19)30496-7
DOI:
https://doi.org/10.1016/j.jssc.2019.120991
YJSSC 120991
Reference:
To appear in: Journal of Solid State Chemistry
Received Date: 20 August 2019
Revised Date: 4 October 2019
Accepted Date: 6 October 2019
Please cite this article as: Z. Zhang, H. Yuan, Y. Wang, Y. Ke, Preparation and characterisation of
2−
ordered mesoporous SO
levulinate, Journal of Solid State Chemistry (2019), doi: https://doi.org/10.1016/j.jssc.2019.120991.
/Al O and its catalytic activity in the conversion of furfuryl alcohol to ethyl
2 3
4
This is a PDF file of an article that has undergone enhancements after acceptance, such as the addition
of a cover page and metadata, and formatting for readability, but it is not yet the definitive version of
record. This version will undergo additional copyediting, typesetting and review before it is published
in its final form, but we are providing this version to give early visibility of the article. Please note that,
during the production process, errors may be discovered which could affect the content, and all legal
disclaimers that apply to the journal pertain.
© 2019 Published by Elsevier Inc.

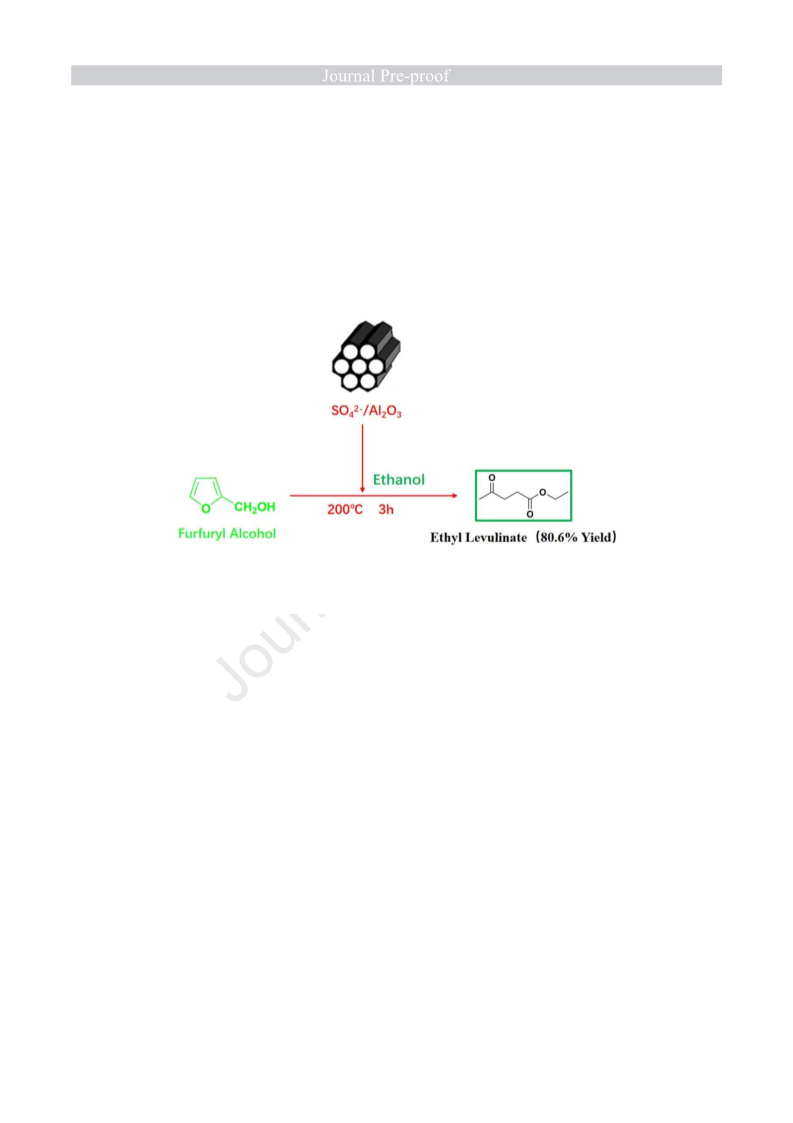

The ordered mesoporous SO42−/Al2O3 (OMSA) solid super acid catalyst was prepared and used to
catalyse furfuryl alcohol in the synthesis of ethyl levulinate (EL) in the presence of ethanol. The
maximum yield (80.6%) of EL was obtained in the reaction conducted at 200 °C for 3 h.

Preparation and Characterisation of Ordered Mesoporous
2−
SO4 /Al2O3 and Its Catalytic Activity in the Conversion of
Furfuryl Alcohol to Ethyl Levulinate
Zhi Zhang,a Hong Yuana, b, *, Yunjie Wang,a Yihu Kea, b, *
a
School of Chemistry and Chemical Engineering, North Minzu University, Yinchuan 750021,
China
b Key Laboratory of Chemical Engineering and Technology (North Minzu University), State Ethnic
Affairs Commission, Yinchuan 750021, China
* Corresponding author: Hong Yuan, yuanhong@nun.edu.cn, 86-18295215518
Yihu Ke, 2016034@nun.edu.cn, 86-13895397566
Declarations of interest: none
1

ABSTRACT
A series of ordered mesoporous SO42−/Al2O3 (OMSA) solid super acid catalysts were prepared by
evaporation-induced self-assembly (EISA) method, followed by sulphonation at different calcination
temperatures (400°C–900 °C). The results of transmission electron microscopy (TEM) and small-angle
X-ray diffraction (XRD) indicated that all of the OMSAs possessed ordered mesoporous structures.
The N2-Brunauer–Emmett–Teller (N2-BET) results showed that the specific surface area of OMSAs
could reach up to 160–380 m2/g, and the average pore diameters fall into the range between 8.6 and 9.8
nm. The temperature-programmed desorption of ammonia (NH3-TPD) characterisation proofed that the
OMSAs contained super acid, and ammonia desorption by the super acid in the OMSA calcined at
600 °C reached 25.9 cm3/g STP. The pyridine adsorption infrared (Py-IR) indicated that all of the
OMSAs consisted mainly of Lewis acids. The OMSA was used to catalyse furfuryl alcohol in the
synthesis of ethyl levulinate (EL). The maximum yield (80.6%) was obtained in the reaction conducted
at 200 °C for 3 h. The reusability of the catalyst was proofed after four times of reuse as its activity was
maintained with a yield of 71.2%.
Keywords: Ethyl levulinate; Furfuryl alcohol; Ordered mesopore; SO42−/Al2O3.
1. Introduction
The increasing utilisation of renewable biomass fuels is a result of the excessive consumption of
non-renewable fossil resources [1, 2]. The properties of ethyl levulinate (EL) are similar to those of
biodiesel (fatty acid methyl ester), such as high boiling point [3], low-temperature fluidity [4],
flashpoint stability [5] and high lubricity [6]. Therefore, EL can be directly used as a diesel-miscible
biofuel (<5 wt.%) in conventional diesel engines [7, 8]. In addition, the molecular structure of EL
contains ester and keto groups, which can contribute in various reactions such as hydrolysis, reduction,
addition and condensation. Moreover, EL is ideal biorenewable feedstock for the synthesis of
γ-valerolactone [9], perfumes, solvents and plasticisers [10]. EL can be produced via acid-catalysed
alcoholysis of carbohydrates or furfural alcohol in alcohol with the aid of various acidic catalysts [11].
Scheme 1 shows the synthesis process of EL from cellulose. Cellulose is hydrolysed by acid to produce
glucose, which is then isomerised to produce fructose. Fructose is converted to furfural in an ethanol
medium through acid-catalysed hydrogenation to produce furfuryl alcohol, which is used to produce
2

EL [12].
Scheme 1. Ethyl levulinate production from Cellulose.
In this reaction, the intermediate furfuryl alcohol is the closest compound to the target product EL.
Zhang et al. [13] studied the alcoholysis mechanism of furfuryl alcohol. Scheme 2 illustrates this
process. Firstly, furfuryl alcohol reacts with ethanol to form intermediate 1. This is followed by the
conversion of ethanol into cation 2. Secondly, cation 2 undergoes nucleophilic 1, 4-addition of ethanol
to form species 3. Thirdly, species 3 is converted to species 4 by a hydrogen shift. Finally, H2O, as
nucleophile, attacks species 4 to produce species 5, which is then isomerised to generate EL.
Scheme 2. Mechanism for the preparation of EL from furfuryl alcohol.
Homogeneous acids are typically used as catalysts in the preparation of EL from biorenewable
feedstock. Garves et al. [14] used cellulose, as biorenewable feedstock with ethanol as solvent to
synthesise EL in the presence of concentrated sulphuric acid. This reaction was conducted at 195 °C for
9h and reached 38.4% EL yield. Zhu et al. [15] used glucose and low concentration sulphuric acid
(<0.01 M) as biorenewable feedstock and catalyst, respectively, at 200 °C for 210 min to obtain about
40% EL yield. Homogeneous acids have high catalytic activity, but they are difficult to separate from
the product, can corrode the equipment and cause environmental pollution [16]. Several researchers
have used mixtures of ionic liquids and solid acids as catalysts to prepare EL. Guan et al. [12]
synthesised EL from wheat straw using ethanol with an acidic ionic liquid (1-methyl-3-sulphobutyl
imidazole sulphite) at 200 °C for 60 min with an EL yield of 16.23%. Saravanamurugan et al. [16] used
sulphonic acid functionalised ordered mesoporous silica (SO3H-SBA-15) and zeolites (i.e. Beta, Y and
ZSM-5) as catalysts with ethanol as solvent to synthesise EL by fructose dehydration. They found that
SO3H-SBA-15 used at 140 °C for 24 h had the highest reactivity, with an EL yield of 57%. Zhao et al.
[11] obtained an EL yield that reached 43.1% using 20 wt.% HPW/H-ZSM-5 to catalyse the EL
synthesis from fructose in an ethanol solvent at 160 °C for 2 h. Zhao et al. [17] reached an EL yield of
64.8% using an SO42−/Al2O3 solid super acid for EL synthesis from furfuryl alcohol in an ethanol
solvent at 200 °C for 2.5 h. Peng et al. [18] used sulphated metal oxides (i.e. SO42−/ZrO2, SO42−/TiO2,
and SO42−/ZrO2–Al2O3) to catalyse glucose to convert it into EL. The maximum EL yield from these
reactions (30%) was obtained with the reaction of SO42−/ZrO2–Al2O3 at 200 °C for 3 h. Neves et al. [19]
used mesoporous Al-TUD-1, compound Beta/TUD-1, nanocrystal H-Beta, ITQ-2 and H-MCM-22
3

molecular sieves as catalysts in the furfuryl alcohol conversion into EL. Al-TUD-1 showed better
stability and reached an EL yield of 80% with the reaction conducted at 140 °C for 24 h. Nandiwale et
al. [20] synthesised HZ-5 zeolite from H-ZSM-5 by alkali treatment, which was then used to catalyse
furfuryl alcohol that is converted to EL at 140 °C for 4 h with a 73% yield. Topolyuk et al. [21]
prepared functional nanomaterials (F-NCMs) to catalyse the conversion of furfuryl alcohol into EL
with ethanol at 130 °C for 7 h with a yield of 76%.
Ordered mesoporous solid acid catalysts facilitate the diffusion of the reactant molecules into
mesoporous and enhance the contact of the reactants on their active sites because of their regular and
ordered pore structure, hence improving the reaction rate [22]. Morales et al. [23] prepared ordered
mesoporous SZ/SBA-15 by grafting SO42−/Zr2O solid super acid on ordered mesoporous SBA-15 and
applied it to the mixed system of glucose in absolute ethanol. The EL yield was 25%, obtained with a
reaction at 140 °C for 24 h. Patil et al. [24] incorporated phosphotungstic acid (PWA) into SBA-15
using the sol-gel method to obtain the ordered structure. A 20% PWA/SBA-15 was used to catalyse
fructose to prepare EL with absolute ethanol at 100 °C for 24 h, which achieved a 26 % EL yield.
In this study, ordered mesoporous SO42−/Al2O3 (OMSA) solid super acid was prepared using solvent
evaporation-induced self-assembly (EISA), followed by sulphonation using aluminium isopropoxide as
an aluminium source and ammonium sulphate as sulphonating agent. In addition, several
characterisation techniques, including transmission electron microscopy (TEM), X-ray diffraction
(XRD), N2-Brunauer–Emmett–Teller (BET), Temperature-programmed desorption of ammonia
(NH3-TPD), Inductively coupled plasma-optical emission spectroscopy (ICP-OES), pyridine adsorption
infrared (Py-IR), Fourier-transform infrared (FT-IR) and thermogravimetric (TG), were used to
examine the produced materials. Finally, the catalysts were used for the synthesis of EL through
alcoholysis of biorenewable feedstock (cellulose, glucose, sucrose, fructose and furfuryl alcohol).
2. Experimental
2.1. Materials
Aluminumiso–propoxide (98 %, AR), ethyl levulinate (99 %, GC), ammonium sulfate (99 %, AR)
ethyl levulinate, pluronic P123 (Mav=5800, EO20PO70EO20) and furfuryl alcohol (98 %) were
purchased from Aldrich and Sigma–Aldrich (Shanghai, China). Absolute ethanol and nitric acid
(65–68 %) were purchased from Sinopharm Chemical Reagent Co., Ltd (China).
4

2.2. Synthesis of catalysts
2.2.1. Synthesis of ordered mesoporous alumina
Ordered mesoporous alumina powder was synthesised using the method reported by Yuan et al. [25]
Here, 4.0 g of P123 was dissolved in 40.0 mL of absolute ethanol with continuous stirring for 1 h at
30 °C to obtain solution A. Then, 40 mmol (8.2 g) of 98% aluminium isopropoxide was dissolved in a
solution of 6.4 mL nitric acid and 20 mL absolute ethanol under continuous stirring for 1–2 h at 30 °C
to obtain solution B. Solutions A and B were mixed, and then, 20 mL of absolute ethanol was added to
obtain solution C, which was stirred at 30 °C for 3 h. Then put it into oven at 60
for 48 h. The
obtained solid was calcined in a muffle furnace at a heating rate of 1 °C/min until the temperature
reached 400 °C and maintained for 3 h. The sample was denoted as OMA.
2.2.2. Synthesis of ordered mesoporous sulphated alumina
The OMA was impregnated in ammonium sulphate solution (1 mol/L) at 30 °C for 0.5 h according to
a solid–liquid ratio of 1 g: 15 mL. The mixture was then filtered, and the obtained solid was dried at
100 °C for 6 h. Next, it was calcined at 400 °C with a heating rate of 1 °C/min for 3 h under air
atmosphere. The obtained sample was denoted as OMSA-400. Several grades of OMSA were obtained
at different calcination temperatures (500 °C, 600 °C, 700 °C, 800 °C and 900 °C) and were named
OMSA-X (X = 500, 600, 700, 800 and 900), respectively.
2.3. Characterisation of OMSA
The TEM measurements were conducted on Tecnai G2 F20 (FEI, America) operated at 200 kV. The
XRD patterns were obtained using a SmartLab (Rigaku, Japan) X-ray diffractometer with Cu Kα
radiation at 40 kV and 30 mA. The N2-BET was carried out using an ASAP 2020 HD88 Surface Area
and Porosity Analyzer (Micromeritics, America). The NH3-TPD was performed using an Autochem II
2920 Chemical Adsorption Analyzer (Micromeritics, America). The FT-IR spectra were recorded at a
resolution of 8 cm−1 through 34 scans within the range from 4000 to 500 cm−1 on a Nicole 380 infrared
spectrometer (America). The sulfur content of the samples was analyzed using ICP-OES (Agilent 730
ICP-OES). Py-IR spectra were obtained on a Thermo Nicolet IS10 infrared spectrometer (America).
TG analysis was conducted using a STA449F5 synchronous thermal analyser apparatus (Netzsch,
Germany) at a heating rate of 10 °C/min under air atmosphere.
2.4. Catalytic reaction
5

A mixture of 120 mg furfuryl alcohol, 8 mL absolute ethanol and a variable amount of catalyst was
placed in a 25 mL stainless steel tank magnetic stirring reactor and were heated to the set temperature
(160 °C–200 °C) for 1–6 h.
Quantitative analysis of EL was carried out by GC on a Panna A91 Plus gas chromatograph with a
FFAP capillary column (30 m × 0.32 mm × 0.33 µm) equipped with a FID detector. The analysis was
conducted under the following operating conditions: an injector temperature of 240 °C and a detector
temperature of 250 °C. The initial temperature was 90 °C, maintained for 3 min and then increased to
210 °C and maintained for another 10 min. n-Octanol was used as an internal reference. Finally, the EL
yield was calculated according to the following formula [26]:
Yield (%) = EL content after reaction (mg)/Furfuryl alcohol content before reaction (mg) × 100%
(1)
3. Results and discussion
3.1. TEM
Fig.1 shows the TEM images of OMSA calcined at different temperatures (400 °C–900 °C). Figure
1a–g show the TEM images of OMSAs calcined at 400 °C, 500 °C, 600 °C and 700 °C. They clearly
demonstrate the ordered arrangement of hexagonal pores along the [001] direction and the channel
arrays of parallel lines along the [110] direction. Fig.1i–l indicates that the ordered mesoporous
structures are retained even at very high calcination temperature (800 °C–900 °C). Ghosh et al. [27]
proposed that, the concentration of P123 increased with the solvent evaporation, which promotes the
self–assembly of aluminium surfactant micelles. The hydroxyl group in the alumina sol particles
obtained by hydrolysis of aluminum precursor in an acidic environment forms a hydrogen bond with
the PEO in the surfactant molecule. Yang et al. [28] reported that an epoxy alkane chain formed a
crown ether complex with inorganic metal ions through weak coordination bonds. Therefore, in this
work, OMSA with a hexagonal pore structure was formed through hydrogen bonding and coordination
between the surfactant and the alumina particles. These results are similar to those obtained by Taromi
et al. [29] who synthesized ordered mesoporous alumina with P123 as the surfactant.
Fig. 1. TEM images of OMSAs.
3.2. XRD
Fig.2a shows the small-angle XRD spectra of OMSA calcined at different temperatures
(400 °C–900 °C). OMSA–400, OMSA–500, OMSA–600 and OMSA–700 show a strong diffraction
6

peak at 2Ɵ = 0.7° and a weak peak at 2Ɵ = 1.2°, which, as with the TEM result, can be attributed to the
p6mm hexagon symmetry [30]. For OMSA–800 and OMSA–900, the strong diffraction peak at 2Ɵ =
0.7° can be observed in each small-angle XRD pattern, suggesting that the ordered mesopores were
maintained in all OMSAs. Fig.2b shows the wide-angle XRD patterns of OMSA calcined at different
temperatures (400 °C–900 °C). The OMSA calcined below 800 °C is amorphous, and the OMSA
calcined at 800 °C exhibits a γ–Al2O3 phase (2Ɵ = 37.6°, 45.8° and 66.9°) (JCPDS card number
10–0425). When the calcination temperature was 900 °C, the peak intensity of the γ-Al2O3 phase was
enhanced, and two new γ-Al2O3 peaks (2Ɵ = 39.5° and 60.7°) occurred, which is similar to the results
reported by Liu et al. [31].

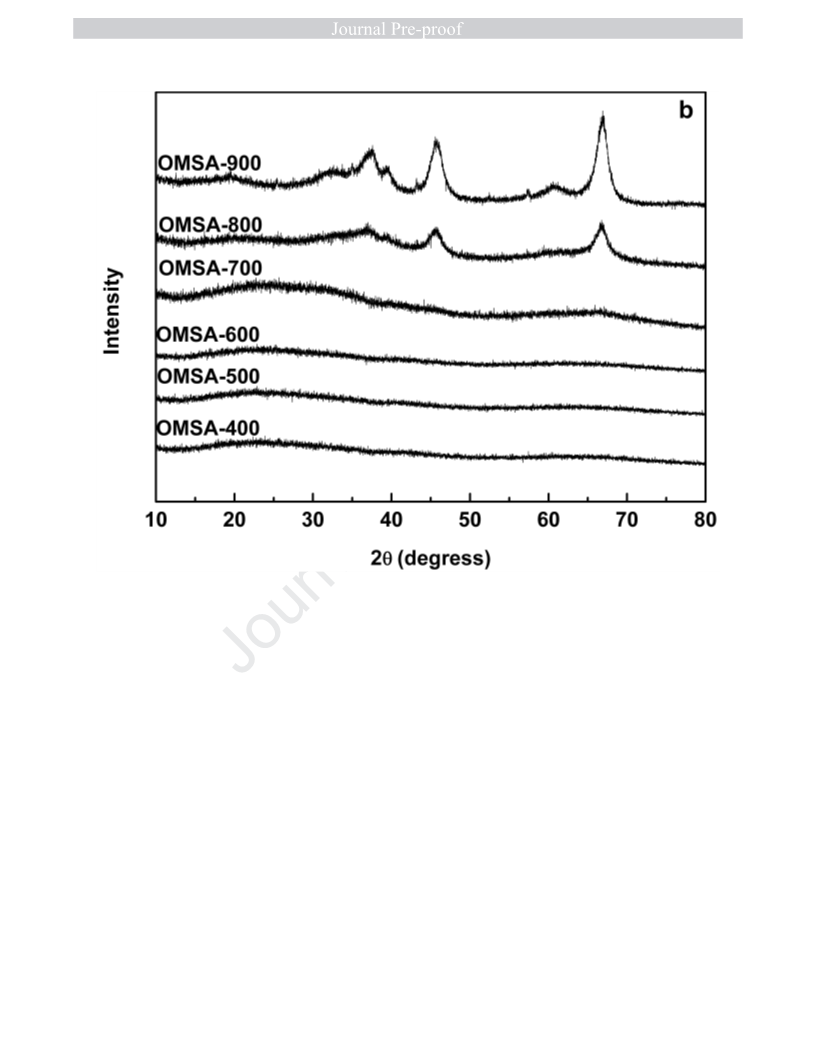

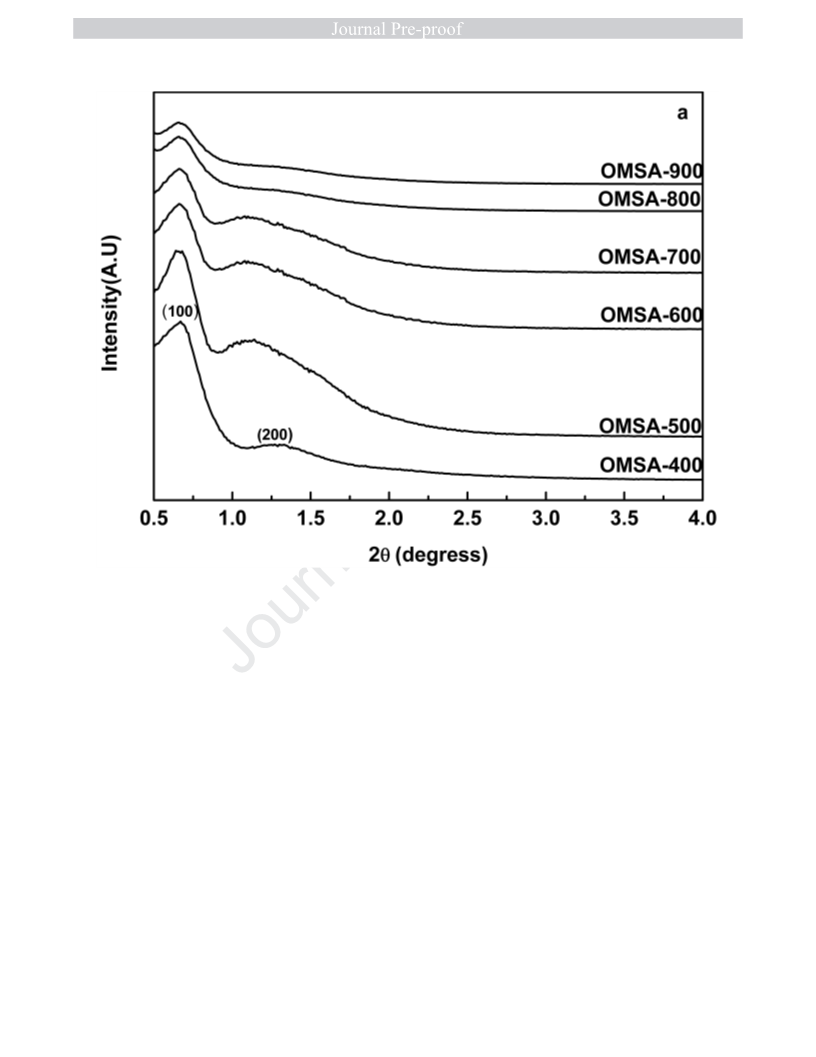

Fig. 2. XRD spectra of OMSAs: (a) small-angle spectra and (b) wide-angle spectra.
3.3. N2-BET
Fig.3 shows the N2 adsorption–desorption isotherms and pore size distribution of OMSA calcined at
different temperatures (400 °C–900 °C). Fig.3a indicates that all isotherms exhibit type–IV curves [32].
There was obvious capillary condensation at relative pressure P/PO=0.4~0.5, and hysteresis loops
appeared, indicating a good mesoporous structure of all of the OMSAs presented [33]. The hysteresis
loop was steep, with a nearly parallel vertical part, indicating well ordered pore channels [34]. The pore
size distribution of each sample was calculated using the Barrett–Joyner–Halenda (BJH) algorithm with
the adsorption branch of the isotherm. The BET surface area of OMSA–600 was 285 m2/g, which was
higher than that of SO42−/Al2O3 (200 m2/g) reported by Guzmán–Castillo et al. that was prepared by
hydrothermal synthesis calcined at 600 °C [35]. The increase in the calcination temperature from
400 °C to 900 °C caused the BET specific surface area of OMSAs to decrease. Yuan et al. [26] reported
that the BET surface area of ordered mesoporous alumina decreased from 434 to 226 m2/g when the
calcination temperature rose from 400 °C to 800 °C, resulting in a decrease in the OMSA pore size
from 9.8 to 8.6 nm (Table 1). This result combined with the wide-angle XRD may be related to the high
crystallinity of OMSA–800 [36].

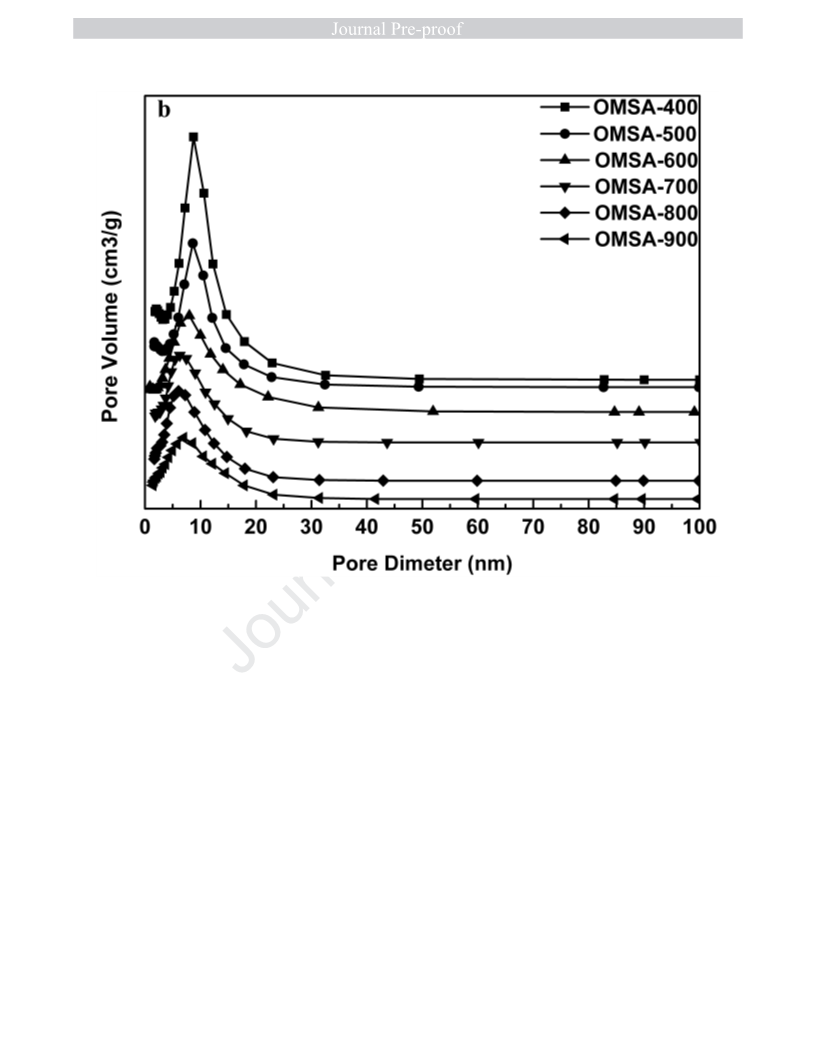

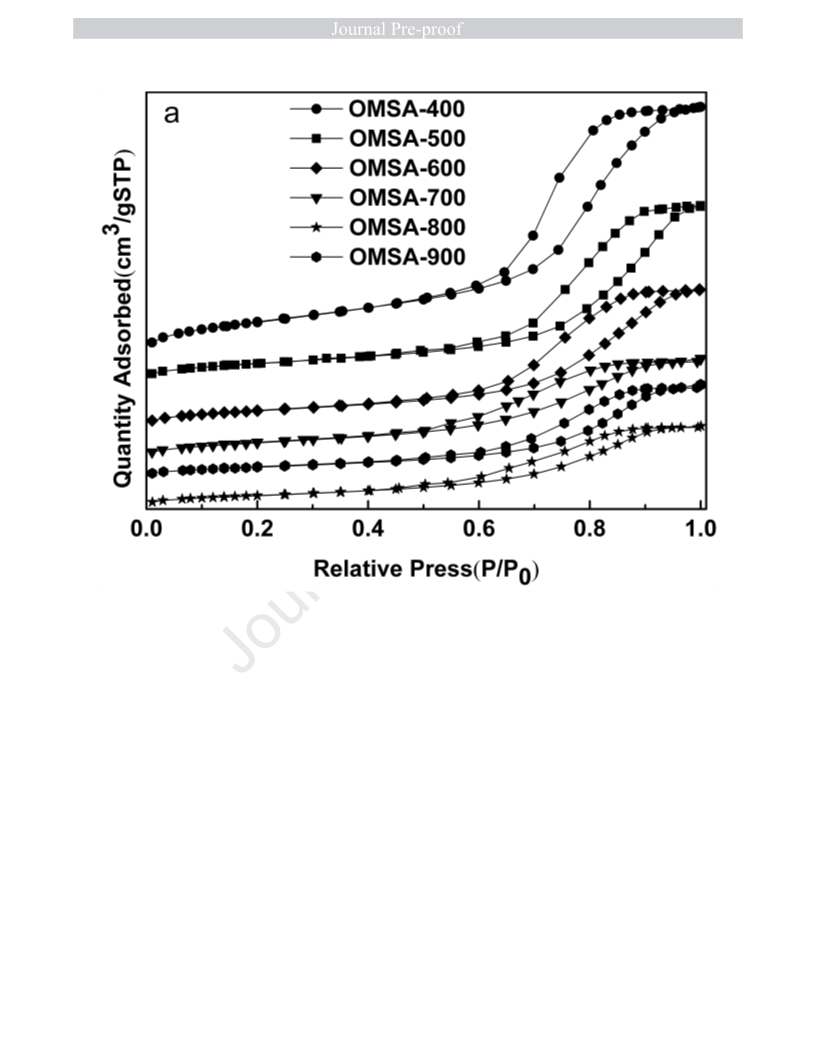

Fig. 3. (a) Nitrogen adsorption–desorption isotherms and (b) pore size distribution curves of OMSAs.
Table 1. BET surface areas, pore sizes, acid quantities, and sulfur content of OMSAs.
7

NH3 Desorption Quantity（cm3/g STP）
BET
surface
pore size
S (wt.%)
ICP-OES
sample
（nm）
187–
489–
775–
area (m2/g )
Total
73–187
489
775
1000
OMSA–400
OMSA–500
OMSA–600
OMSA–700
OMSA–800
OMSA–900
380
324
285
231
186
160
9.8
9.5
9.3
9.2
8.9
8.6
10.3
9.5
14.0
14.7
16.7
11.6
7.6
0.4
5.8
6.0
3.4
14.4
20.8
25.9
20.6
10.8
2.9
39.1
50.8
58.6
41.2
24.4
14.1
3.09
2.50
2.06
1.52
0.59
0.13
10.0
5.6
4.5
1.5
–
3.9
7.3
3.4. NH3-TPD and ICP-OES
Fig.4 shows the NH3-TPD desorption curve of OMSAs calcined at different temperatures
(400 °C–900 °C). Four desorption peaks were observed in the ranges of 73 °C–187 °C, 187 °C–489 °C,
489 °C–775 °C and 775 °C–1000 °C, which are normally attributed to weak, strong, medium strong
and super acid sites, respectively [37]. When the calcination temperature was 400 °C, the desorption
peak of super strong acid occurred. The NH3 desorption peak temperature of the super strong acid
gradually increased with the calcination temperature, and the amount of NH3 desorption increased at
first and then started to decrease (Table 1). When the calcination temperature was 600 °C, the amount
of NH3 desorption from super acid sites reached a maximum of 25.9 cm3/g STP. The quantity of NH3
desorbed from super acid decreased significantly by increasing the calcination temperature from
700 °C to 800 °C. Further increase in the calcination temperature to 900 °C causes the quantity of NH3
desorbed from the super acid to reach its lowest (2.9 cm3/g STP). At a very low calcination temperature,
2−
SO4 existed on the surface of the carrier in a free form, which inhibited the formation of super acid.
However, at a very high calcination temperature, the surface free sulphate rapidly decomposed and no
longer existed in a SOX form, which caused a decrease in the amount of super acid [38]. Table 1 shows
the sulfur content of OMSAs calcined at different temperatures (400 °C–900 °C). The gradual decrease
of the sulfur content as the calcination temperature increased from 400 °C to 900 °C can be seen. The
8

sulfur content reached a maximum of 3.09 wt.% at 400 °C, and a minimum of 0.13 wt.% at 900 °C.
The effect of the calcination temperature on the sulfur content was basically consistent with the effect
of the calcination temperature on the amount of NH3 desorption. When the calcination temperature
increased from 700 °C to 800 °C, the wide-angle XRD (Fig. 2b) showed that the alumina changed from
2
amorphous to γ-Al2O3, which led to the decrease of the binding ability with SO4 −, and therefore, the
sulfur content loss rate was faster.

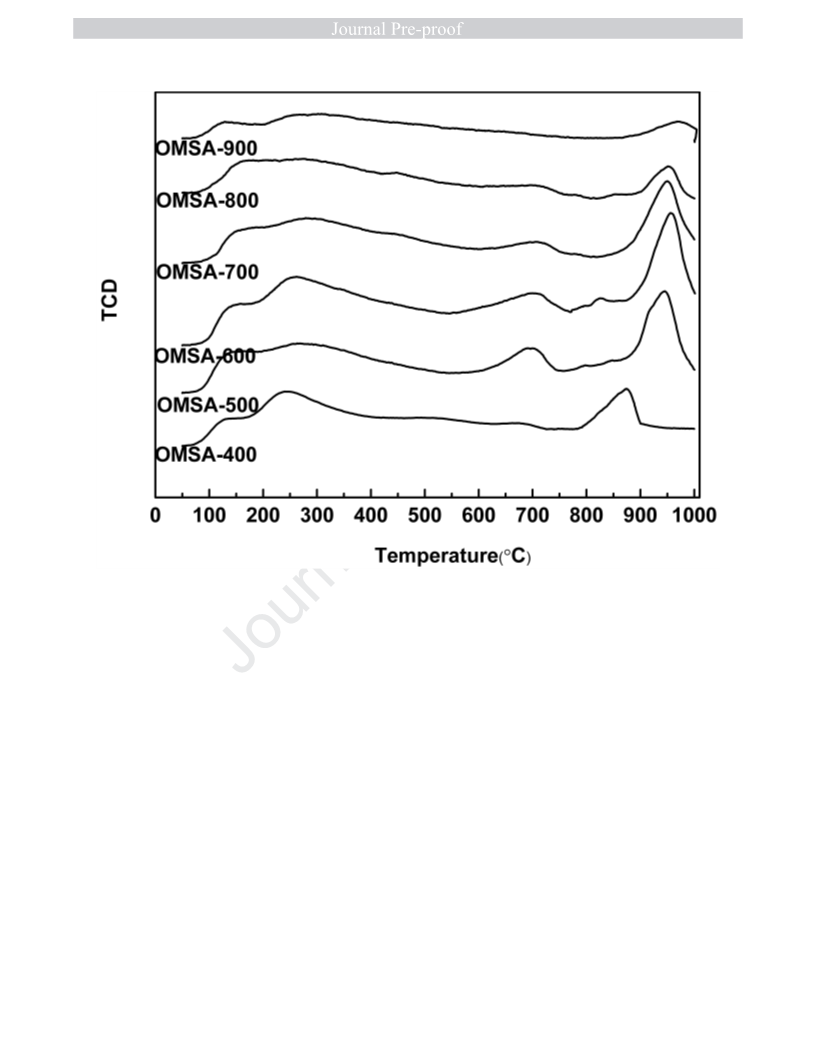

Fig. 4. NH3–TPD curves of OMSAs.
3.5. FT-IR and Py-IR
Fig.5a shows the FT-IR spectra of OMSAs calcined at different temperatures (400 °C–900 °C). In
the sulphate groups stretching region (1500–900 cm−1), the bands at 901 cm−1, 1156 and 1054 cm−1, and
3487 and 1625 cm−1 are attributed to the symmetric O–S–O stretching vibration on the Al2O3 surface
[39], the antisymmetric O=S=O stretching vibration [40] and the stretching vibration of adsorbed water
[41], respectively. Fig.5b shows the pyridine adsorption IR spectra of OMSZ calcined at different
temperatures. All of the OMSAs exhibited three distinct bands at 1445, 1490 and 1617 cm−1, which
represent the pyridine chemisorption of the Lewis acid site [36, 42, 43]. The band at 1613 cm−1 was due
to the moderate interaction between Py and the Lewis acid site, which resulted from the tetrahedral
aluminium vacancy [44]. At calcination temperatures of 500 °C and 600 °C, larger absorption peak
strength and peak area of the Lewis acid were observed. Further, the peak strength and area decreased
by increasing the calcination temperature, especially between 700 °C and 900 °C. Therefore, higher
temperatures were not conducive to the acid amount of Lewis acid sites. This may be attributed to the
strong crystallisation tendency of mesoporous metal oxide walls at high temperatures, leading to a
skeleton contraction or even a collapse [45]. However, no peaks representing Brønsted (B) acid were
detected because the lower water content was not sufficient for the formation of B acid sites on the
catalyst surface [42].
In general, there has been no consistent conclusion regarding the role of Brønsted and Lewis acids in
the alcoholysis of carbohydrates when preparing levulinate esters. Tominaga et al. [46] studied the
preparation of methyl levulinate from microcrystalline cellulose using aluminum compounds as Lewis
catalysts and organic sulfonic acids as Brønsted catalysts. The results indicated that the conversion of
cellulose into fructose was mainly catalyzed by Brønsted acid, while the subsequent conversion to
9

methyl levulinate was catalyzed by Lewis acid. However, Ding et al. [47] used H-beta (Si/Al=50) and
(TfO)3Yb as Lewis catalysts and hydrochloric acid and trifluoromethanesulfonic acid as Brønsted
catalysts in a microcrystalline cellulose reaction to produce methyl levulinate. Ding et al. concluded
that the role of Lewis acid was to promote the conversion of cellulose into fructose, and Brønsted acid
had a higher catalytic activity in the production of methyl levulinate. Although the conclusions reached
by Tominaga et al. differed from those reached by Ding et al. regarding the role of Brønsted and Lewis
acids in the alcoholysis process, their experimental results clearly showed that the highest ethyl
levulinate yield was obtained when the Brønsted acid and Lewis acid sites were catalyzed together. In
our study, the catalysts mainly had Lewis acid sites, which were obtained from the pyridine infrared
analysis results. Therefore, the Lewis acid site played a major catalytic role in the conversion of
furfuryl alcohol into ethyl levulinate.

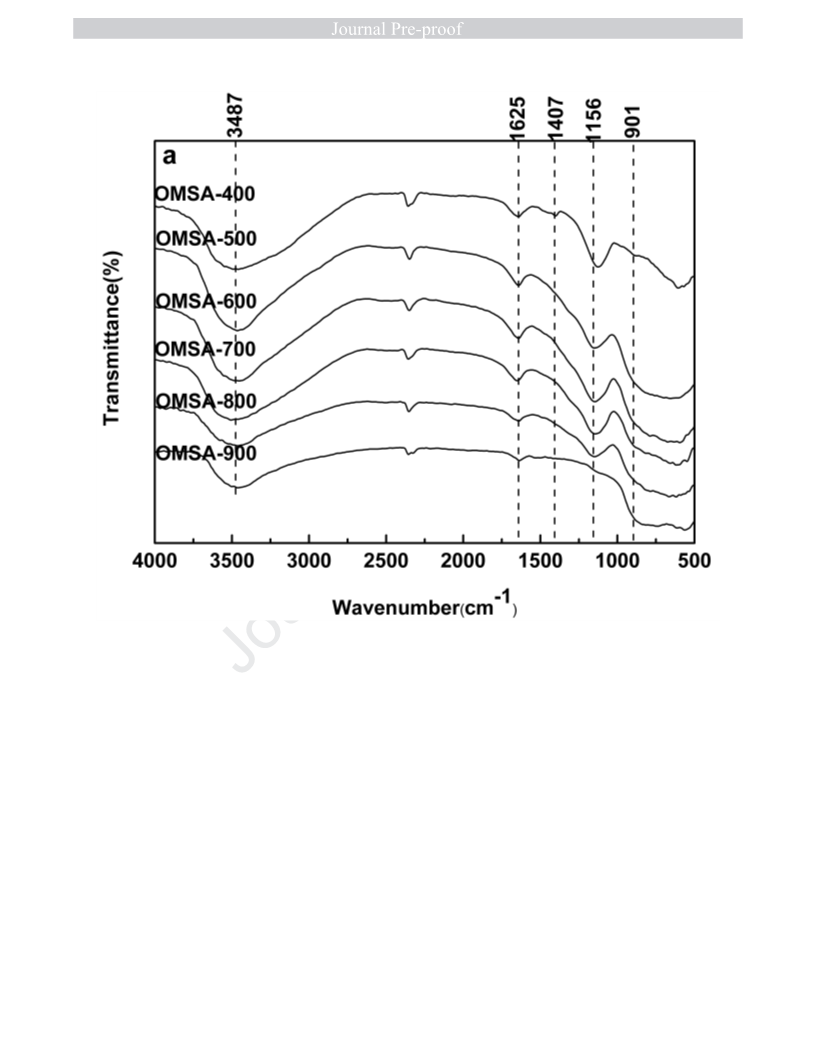

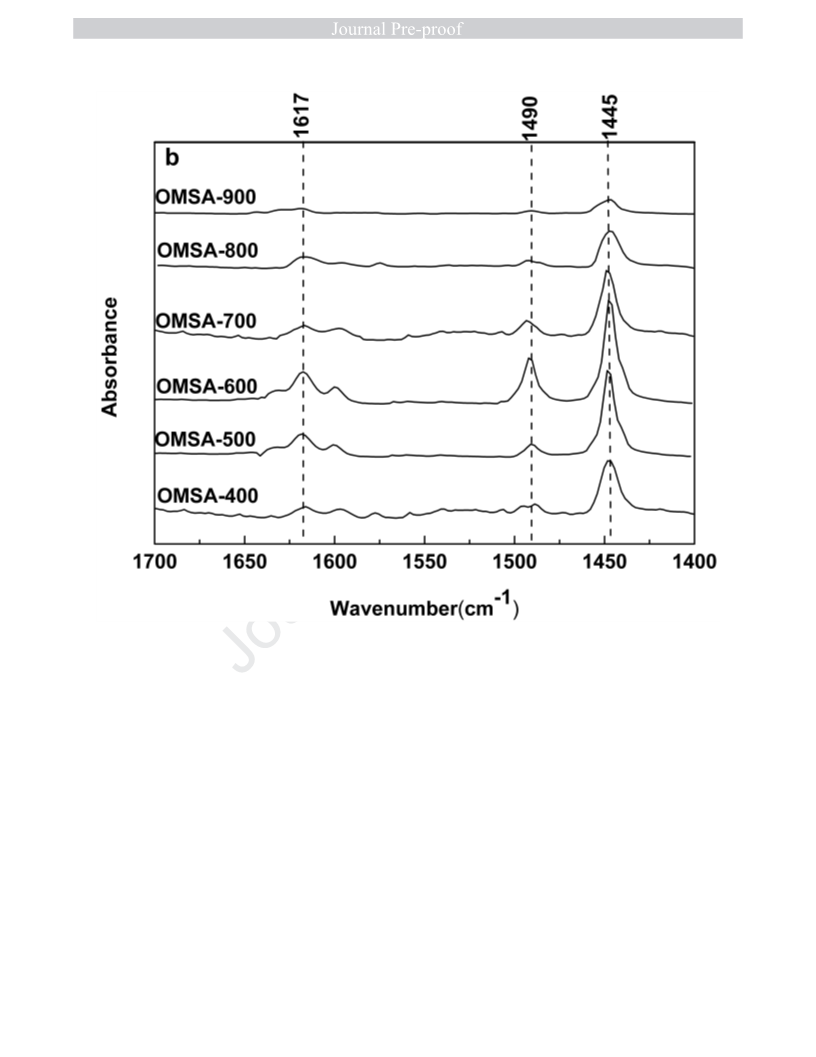

Fig. 5. (a) FT-IR and (b) Py-IR spectra of OMSAs.
3.6. TG
Fig.6 shows the TG curves of OMSAs calcined at different temperatures. Within the range of
50 °C–300 °C, the weight loss corresponded to the desorption of water on the OMSA surface. The
2−
weight loss that occurred above 600 °C was mainly associated with the decomposition of SO4
,
which formed a super acid structure with Al2O3. The sulphur contents in the OMSAs were
calculated to be 3.3 wt.%, 2.7 wt.%, 2 wt.%, 1.1 wt.%, 0.6 wt.% and 0.1 wt.%, which were obtained
at the following temperatures: 400 °C, 500 °C, 600 °C, 700 °C, 800 °C and 900 °C, respectively.
Fig. 6. TG spectra of OMSAs.
3.7. Catalytic reaction
3.7.1. Effect of different feedstock
Cellulose, glucose, sucrose, fructose and furfuryl alcohol were used as feedstock for the reaction. As
shown in Fig.7a, furfuryl alcohol achieved the highest EL yield (80.6%), which was consistent with the
results reported by other researchers that used several catalysts, such as an HZ–5 molecular sieve [20],
functionalised nanocarbon materials (F-NCMs) [21], SO42−/TiO2 [17] and aryl sulfonic acid
functionalised hollow mesoporous carbon spheres [48]. Compared to fructose, furfuryl alcohol is a
biorenewable feedstock derivative whose structure is closer to EL, and its EL yield is much higher than
10

that of fructose. The EL yields from cellulose and glucose were significantly lower. Cellulose has a
very stable structure, which is attributed to the combination of hydrogen bonding and van der Waals
forces. This causes the degradation of cellulose into glucose to be difficult [49], and consequently, its
conversion to EL is not easy. In addition, glucose must be isomerised to fructose before being
converted to EL, which further reduces the yield [50]. On the other hand, sucrose consists of a glucose
unit and a fructose unit, and thus, its yield lies between those of glucose and fructose. Therefore,
furfuryl alcohol has been used as feedstock in the following experiments because of its good results.
The products resulting from the conversion of furfuryl alcohol into ethyl levulinate analyzed by
GC-MS showed that in addition to the main product, ethyl levulinate, some by-products such as
β-Angelica lactone, Diethoxymethane, 1,1,2,2-Tetraethoxyethane, 2-Furaldehyde diethyl acetal,
2,2-Methylenebis(furan), and 2-(2-Furanylmethyl)-5-methylfuran were also present. Furthermore,
Neves et al. [51], using porous aluminosilicate acid catalysts, and Paniagua et al. [52], using zeolite
catalysts, in the conversion of furfuryl alcohol to ethyl levulinate, found the main by-products to be
iso-propyl furfuryl ether, iso-propyl levulinate, β-Angelica lactone, 1-(2-Furyl)-butan-3-one,
2-(2-Furanylmethyl)-5-methylfuran,
2,2-Methylenebis(5-methylfuran),
2,2-(2-Furylmethylene)
bis(5-methylfuran), β-Angelica lactone, Diethoxymethane, 1,1,2,2-Tetraethoxyethane, 2-Furaldehyde
diethyl acetal, and 2,2-Methylenebis(furan).
Fig 7. (a) Effect of feedstock on EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, reaction time: 3 h, reaction temperature: 200 °C and catalyst: 60
mg of OMSA–600
3.7.2. Effect of the catalyst
Fig.7b shows the EL yield prepared from furfuryl alcohol with OMSAs and no catalyst at different
calcination temperatures (400 °C–900 °C). At an OMSA calcination temperature of 400 °C, an EL yield
of 74.6% was achieved. By increasing it to 600 °C, the EL yield gradually increased to 80.6%. At
temperatures higher than 600 °C, the EL yield starts to gradually decrease. Table 1 indicates that the
amounts of super and total acids in OMSA–600 were the largest (25.9 and 58.6 cm3/g STP,
respectively), and the specific surface area was not the highest (285 m2/g). It also shows that the acid
content in the catalyst was the main factor affecting the catalytic performance [53]. In the blank test, the
EL yield was 3.1%, which was very low and reflects the necessity of the catalyst in the synthesis of EL
by alcoholysis in ethanol using furfuryl alcohol as biorenewable feedstock.
11

Fig. 7. (b) Effect of catalysts on EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, temperature: 200 °C, time: 3 h and catalyst: 60 mg.
3.7.3. Effect of reaction temperature
Fig.7c shows the influence of different reaction temperatures (160 °C, 180 °C, 200 °C and 220 °C)
on the EL yield using OMSA–600 as a catalyst and furfuryl alcohol as biorenewable feedstock. The
figure indicates that the increase in the reaction temperature from 160 °C to 220 °C causes a slight
increase, followed by a decrease in the EL yield. Furthermore, the maximum EL yield (80.6%) was
obtained at 200 °C. It was also found that increasing the temperature causes the colour of the products
and catalysts to gradually change to dark brown, which indicates acceleration in the formation of
humus. Zhao et al. considered that the accumulation of humus on the catalyst surface also increases
with the amount of catalyst [17]. Therefore, a high reaction temperature (>200 °C) is not desirable in
order to maintain a high EL yield.
Fig. 7. (c) Effect of reaction temperature on EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, temperature: 200 °C, time: 3 h and catalyst: 60 mg.
3.7.4. Effect of reaction time
Fig.7d shows the effect of different reaction times (1, 2, 3, 4, 5 and 6 h) on the EL yield using
OMSA–600 as the catalyst and furfuryl alcohol as the biorenewable feedstock. Increasing the reaction
time causes the EL yield to rapidly increase and then to slowly decrease. The EL yield reached its
maximum value (80.6%) after 3 h of reaction. Therefore, a very long reaction time may lead to the
conversion of EL into other substances and consequently reduces the yield. Hao et al. [54] obtained
similar results while preparing EL from furfuryl alcohol.
Fig. 7. (d) Effect of reaction times on the EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, temperature: 200 °C, time: 3 h and catalyst: 60 mg.
3.7.5. Effect of catalyst amount
Fig.7e shows the effect of different amounts of catalyst (20–80 mg) on the EL yield. The yield
reached its maximum value when the amount of catalyst was 60 mg. At higher values, an excessive
acid catalyst may accelerate the condensation of furfuryl alcohol and aid in the formation of byproducts
[55], and it can also promote further conversion of EL into γ–valerolactone [56].
Fig. 7. (e) Effect of catalyst amount on EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, temperature: 200 °C, time: 3 h and catalyst: 60 mg.
12

3.7.6. Reusability of the catalyst
The reusability of OMSA–600 was studied under optimum reaction conditions. Fig. 7f shows that
the catalyst maintained a relatively high catalytic activity after repeated use (four times) with an EL
yield of 71.2%. To verify the reason for its deactivation, the NH3-TPD and FTIR of OMSA–600 and
the sulfur content of OMSA–600 after repeated use of 1 to 4 times were characterized. After repeated
use of 1 to 4 times, OMSA–600 still existed in acid sites of different strengths such as weak, strong,
medium strong and superacid, as shown in Fig. 7g. However, the total amount of NH3 desorption of
OMSA–600 (Table 2) decreased from 58.6 cm3/g STP to 44.9 cm3/g STP as the number of reaction
cycles increased, which was also confirmed by the successive decrease of the sulfur content shown in
Table 2. The FTIR spectra of OMSA–600 (Fig. 7h) after repeated use of 1 to 4 times show that the
stretching vibration peak of the S=O bond at 1156 cm−1 gradually weakens. Therefore, according to the
above analysis, the main reason for the deactivation of the catalyst after subsequent cycles in this study
was the reduction of the sulfur content. Shi et al. [57] believe that as the sulfur content decreases, the
acid content of the catalyst will decrease after repeated cycles. Wang et al. [58] prepared biodiesel
using sulfated zirconia, which was a mesoporous superacid nanocatalyst. Comparing the repeatedly
used catalyst with the fresh catalyst, they found that the main reason for the deactivation of the catalyst
was the reduction of the sulfur content, which affected the acid content of the catalyst.
Fig. 7. (f) Reusability of the catalyst.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, catalyst: 60 mg, temperature: 200 °C and time: 3 h.
Fig. 7. (g) NH3-TPD curves and (h) FTIR spectra of the catalyst.
Table 2. Acid quantities and sulfur contents of the spent catalysts.
NH3 Desorption Quantity ( cm3/g STP )
S (wt.%)
sample
ICP-OES
73–187
187–489
489–775
775–1000
Total
OMSA–600-1
OMSA–600-2
OMSA–600-3
OMSA–600-4
10.0
9.1
16.7
14.1
11.5
12.7
6.0
5.5
3.7
5.7
25.9
22.3
22.6
20.3
58.6
51.0
45.4
44.9
2.06
1.67
1.52
1.47
7.6
6.2
13

Conclusions
Ordered mesoporous SO42−/Al2O3 solid super acid was prepared by EISA, followed by sulphonation
and was then used to prepare EL from furfuryl alcohol. The synthesis of EL from different feedstock
such as cellulose, glucose, fructose, sucrose, and furfuryl alcohol was studied using OMSA–600 as
catalyst in absolute ethanol under the same conditions (200 °C, 3 h). The El yields were 12.1%, 24.4%,
32.1%, 48.2% and 80.6%. The effects of different reaction conditions (temperature, time and catalyst
amount) on the EL yield were also explored. The reusability of OMSA–600 showed that after four
repeated experiments, OMSA–600 was not significantly deactivated with a 71.2% yield.
Acknowledgements
Financial support for this work from the National Natural Science Foundation of China (21962001),
the National Natural Science Foundation of China (21862001), Ningxia Scientific and Technological
Innovation Leading Personnel Training (KJT2017006), Ningxia low–grade resource high value
utilization and environmental chemical integration technology innovation team project, and New
Catalytic Process in Clean Energy Production (ZDZX201803) are gratefully acknowledged.
References
[1] Y. W. Tiong, C. L. Yap, S. Gan, W. S. P. Yap, Conversion of Biomass and Its Derivatives to
Levulinic Acid and Levulinate Esters via Ionic Liquids, Ind. Eng. Chem. 57 (2018) 4749–4766.
https://doi.org/10.1021acs.iecr. 8b00273.
[2] T. Chen, L. Peng, X. Yu, L. He, Magnetically recyclable cellulose-derived carbonaceous solid acid
catalyzed the biofuel 5-ethoxymethylfurfural synthesis from renewable carbohydrates, Fuel. 219 (2018)
344–352. https://doi.org/10.1016j.fuel.2018.01.129.
[3] S. S. Enumula, K. S. Koppadi, V. R. B. Gurram, D. R. Burri, S. R. R. Kamaraju, Conversion of
furfuryl alcohol to alkyl levulinate fuel additives over Al2O/SBA–15 catalyst, Sustainable Energy Fuels.
1 (2017) 644–651. https://doi.org/10.1039c6se00103c.
[4] B. C. Windom, T. M. Lovestead, M. Mascal, E. B. Nikitin, T. J. Bruno, Advanced Distillation Curve
Analysis on Ethyl Levulinate as a Diesel Fuel Oxygenate and a Hybrid Biodiesel Fuel, Energy Fuels.
25 (2011) 1878–1890. https://doi.org/10.1021/ef 200239x.
[5] H. V. Srikanth, J. Venkatesh, S. Godiganur, S. Venkateswaran, B. Manne, Bio-based diluents
14

improve cold flow properties of dairy washed milk–scum biodiesel, Renew Energ. 111 (2017)
168–174.
[6] M. M. Islam, S. Bhunia, R. A. Molla, A. Bhaumik, S. M. Islam, Organic Solid Acid Catalyst for
Efficient Conversion of Furfuryl Alcohol to Biofuels, Chemistry Select. 1 (2016) 6079–6085.
https://doi.org/10. 1002/slct.201601285.
[7] D. Unlu, O. Ilgen, N. D. Hilmioglu, Biodiesel additive ethyl levulinate synthesis by catalytic
membrane: SO42–/ZrO2 loaded hydroxyethyl cellulose, Chem. Eng. J. 302 (2016) 260–268.
https://doi.org/10.1016/j.cej.2016.05.047.
[8] K. Y. Nandiwale, S. K. Sonar, P. S. Niphadkar, P. N. Joshi, S. S. Deshpande, V. S. Patil, V. V.
Bokade, Catalytic upgrading of renewable levulinic acid to ethyl levulinate biodiesel using
dodecatungstophosphoric acid supported on desilicated H-ZSM-5 as catalyst, Appl. Catal. A-Gen.
460–461 (2013) 90–98. https://doi.org/10.1016j.apcata.2013.04.024.
[9] A. Démolis, N. Essayem, F. Rataboul, Synthesis and Applications of Alkyl Levulinates, ACS
Sustainable Chem. Eng 2 (2018) 1338–1352. https://doi.org/10.1021sc500082n.
[10] X. Zheng, D. Xu, K. J. Edgar , Cellulose levulinate a protecting group for cellulose that can be
selectively removed in the presence of other ester groups, Cellulose. 22 (2014) 301–311.
https://doi.org/10. 1007/s10570–014–0508–8.
[11] S. Zhao, G. Xu, C. Chang, S. Fang, Z. Liu, F. Du, Direct Conversion of Carbohydrates into Ethyl
Levulinate with Potassium Phosphotungstate as an Efficient Catalyst, Catalysts. 5 (2015) 1897–1910.
https://doi.org/10.3390catal5041897.
[12] Q. Guan, T. Lei, Z. Wang, H. Xu, L. Lin, G. Chen, Z. Li, Preparation of ethyl levulinate from
wheat straw catalysed by sulfonate ionic liquid, Ind. Crops Prod. 113 (2018) 150–156. https://doi.
org/10.1016j.indcrop.2018.01.030.
[13] Z. Zhang, K. Dong, Z. K. Zhao, Efficient Conversion of Furfuryl Alcohol into Alkyl Levulinates
Catalyzed by an Organic-Inorganic Hybrid Solid Acid Catalyst, ChemSusChem. 4 (2011) 112–118.
https://doi.org/10.1002/cssc.201000231.
[14] K. Garves, Acid Catalyzed Degradation of Cellulose in Alcohols, Journal of Wood Chem Technol
8 (2006) 121-134. https://doi.org/10.1080/02773818808070674.
[15] W. Zhu, C. Chang, C. Ma, F. Du, Kinetics of Glucose Ethanolysis Catalyzed by Extremely Low
15

Sulfuric Acid in Ethanol Medium, Chinese J. Chem. Eng. 22 (2014) 238–242.
https://doi.org/10.1016/s1004–9541(14)60049–5.
[16] S. Saravanamurugan, A. Riisager, Solid acid catalysed formation of ethyl levulinate and ethyl
glucopyranoside from mono–and disaccharides, Catal. Commun. 17 (2012) 71–75. https://doi.
org/10.1016j.catcom.2011.10.001.
[17] G. Zhao, L. Hu, Y. Sun, X. Zeng, L. Lin, Conversion of Biomass–Derived Furfuryl Alcohol into
Ethyl Levulinate Catalyzed by Solid Acid in Ethanol, BioResources. 9 (2014) 2634–2644.
https://doi.org/10.15376biores.9.2.2634-2644.
[18] L. Peng, L. Lin, J. Zhang, J. Shi, S. Liu, Solid acid catalyzed glucose conversion to ethyl
levulinate, Appl. Catal. A-Gen. 397 (2011) 259–265. https://doi.org/10.1016j.apcata.2011.03.008.
[19] P. Neves, M. M. Antunes, P. A. Russo, J. P. Abrantes, S. Lima, A. Fernandes, A. A. Valente,
Production of biomass–derived furanic ethers and levulinate esters using heterogeneous acid catalysts,
Green Chem. 15 (2013) 3367. https://doi.org/10.1039/c3gc41908h.
[20] K. Y. Nandiwale, A. M. Pande, V. V. Bokade, One step synthesis of ethyl levulinate biofuel by
ethanolysis of renewable furfuryl alcohol over hierarchical zeolite catalyst, Rsc. Adv. 5 (2015)
79224–79231. https://doi.org/10.1039c5ra13520f.
[21] Y. A. Topolyuk, A. I. Nekhaev, Functionalized nanocarbon materials as catalysts for the
ethanolysis
of
furfuryl
alcohol,
Mendeleev
Commun.
28
(2018)
93–95.
https://doi.org/10.1016j.mencom.2018.01.032.
[22] Y. Wang, H. Arandiyan, J. Scott, A. Bagheri, H. Dai, R. Amal, Recent advances in ordered
mesomacroporous metal oxides for heterogeneous catalysis a review, J. Mater. Chem. A. 5 (2017)
8825–8846. https://doi.org/10.1039c6ta10896b.
[23] G. Morales, A. Osatiashtiani, B. Hernández, J. Iglesias, J. A. Melero, Paniagua M and Wilson K,
Conformal sulfated zirconia monolayer catalysts for the one–pot synthesis of ethyl levulinate from
glucose, Chem. Commun. 50 (2014) 11742–11745. https://doi.org/10.1039/c4cc04594g.
[24] C. R.Patil, C. V. Rode, Synthesis of diesel additives from fructose over PWASBA–15 catalyst,
Fuel. 217 (2017) 38–44. https://doi.org/10.1016j.fuel.2017.12.027.
[25] Q. Yuan, A. X. Yin, C. Luo, L. D. Sun, Y. W. Zhang, W. T. Duan, C. H. Yan, Facile Synthesis for
Ordered Mesoporous γ-Aluminas with High Thermal Stability, J. Am. Chem. Soc. 130 (2018)
16

3465–3472. https://doi.org/10.1021/ja0764308.
[26] C. Chang, G. Xu, X. Jiang, Production of ethyl levulinate by direct conversion of wheat straw in
ethanol media, Bioresour Technol. 121 (2012) 93–99. https://doi.org/10.1016/j.biortech.2012.06.105.
[27] S. Ghosh, P. Bose, S. Basak, M. K. Naskar, Solvothermal–assisted evaporation–induced
self–assembly process for significant improvement in the textural properties of γ-Al2O3, and study dye
adsorption efficiency, J. As. Cer. S. 3 (2015) 198–205. https://doi.org/10.1016/j.jascer.2015.02.005.
[28] P. Yang, D. Zhao, D. I. Margolese, B. F. Chmelka, G. D. Stucky, Generalized syntheses of
large–pore mesoporous metal oxides with semicrystalline frameworks, Nature. 396 (1998) 152–155.
https://doi.org/10.1038/24132.
[29] A. A.Taromi, S. Kaliaguine, Synthesis of ordered mesoporous γ–alumina Effects of calcination
conditions and polymeric template concentration, Microporous Mesoporous Mater. 248 (2017)
179–191. https://doi.org/10.1016 /j.micromeso.2017.04.040.
[30] F. Huang, Y. Zheng, Y. Xiao, Y. Zheng, G. Cai, K. Wei, A new synthetic procedure for ordered
mesoporous γ–alumina using phthalic acid as an interfacial protector, Mater. Lette. 65 (2011) 244–246.
https://doi.org/10.1016j.matlet.2010.10.014.
[31] Y. Liu, W. Teng, G. Chen, Z. Zhao, W. Zhang, B. Kong, D. Zhao, A Vesicle-Aggregation-Assembly
Approach to Highly Ordered Mesoporous γ–Alumina Microspheres with Shifted Double–Diamond
Networks, Chem. Sci. 10,1039.C8SC02967A– (2018). https://doi.org/10.1039/c8sc02967a.
[32] W. Cai, J. Yu, C.Anand, A. Vinu, M. Jaroniec, Facile Synthesis of Ordered Mesoporous Alumina
and Alumina–Supported Metal Oxides with Tailored Adsorption and Framework Properties, Chem.
Mater. 23 (2011) 1147–1157. https://doi.org/10.1021/cm102512v.
[33] D. Pan, W. Chen, X. Huang, J. Zhang, Y. Yang, F. Yu, C. Yu, Solvothermal–assisted
evaporation–induced self–assembly of ordered mesoporous alumina with improved performance, J.
Colloid. Interface. Sci. 529 (2018) 432–443. https://doi.org/10.1016/j.jcis.2018.06.031.
[34] Y.S. Xiao, B. Zhang, Y. H. Song, Z. T. Liu, D. S. Su, Z. W. Liu, Alpha–amino acid assisted
synthesis of ordered mesoporous alumina with tunable structural properties, Mater. Lett. 223 (2018)
17–20. https://doi.org/10.1016/j.matlet.2018.04.011.
[35] M. L. Guzmán–Castillo, E. López–Salinas, J. J. Fripiat, J. Sánchez–Valente, F. Hernández-Beltrán,
A. Rodrıguez-Hernández, J. Navarrete-Bolaños, Active sulfated alumina catalysts obtained by
́
17

hydrothermal
treatment,
J.
Catal.
220
(2003)
317–325.
https://doi.org/10.1016/S0021–9517(03)00266–5.
[36] Q. Wu, F. Zhang, J. P. Yang, Q. Li, B. Tu, D. Y. Zhao, Synthesis of ordered mesoporous alumina
with large pore sizes and hierarchical structure, Microporous Mesoporous Mater. 143 (2011) 406–412.
https://doi.org/10.1016/j.micromeso.2011.03.033.
[37] H. G. Wang, G. L. Shi, F. Yu, R. F. Li, Mild synthesis of biofuel over a microcrystalline
2-
S2O8 /ZrO2
catalyst,
Fuel
Process.
Technol.
145
(2016)
9–13.
https://doi.org/10.1016/j.fuproc.2016.01.021.
[38] W. Shi, J. Li, A New Deactivation Mechanism of Sulfate–Promoted Iron Oxide, Catal. Lett. 143
(2013) 1285–1293. https://doi.org/10.1007/s10562–013–1066–7.
2-
[39] B. Wang, J. Zhu, H. Ma, Desulfurization from thiophene by SO4 /ZrO2 catalytic oxidation at room
temperature and atmospheric pressure, J. Hazard. Mater. 164 (2009) 256–264. https://doi.org/10.1016/ j.
jhazmat. 2008. 08. 003.
[40] P. Arun, S. M. Pudi, P. Biswas, Acetylation of Glycerol over Sulfated Alumina Reaction Parameter
Study and Optimization Using Response Surface Methodology, Energy Fuels. 30 (2015) 584–593.
https://doi.org/10.1021/acs.energyfuels.5b01901.
[41] J. R. Sohn, W. C. Park, H. W. Kim, Characterization of Nickel Sulfate Supported on γ-Al2O3 for
Ethylene Dimerization and Its Relationship to Acidic Properties, J. Catal. 209 (2002) 69–74.
https://doi.org/10.1006/jcat.2002.3581.
[42] G. A. H. Mekhemer, H. A. Khalaf, S. A. A. Mansour, A.K.H. Nohman, Sulfated Alumina Catalysts:
Consequences of Sulfate Content and Source, Monatsh Chem. 136 (2005) 2007–2016.
https://doi.org/10.1007/s00706-005-0374-z.
[43] A. Rahman, G. Lemay, A. Adnot, S. Kaliaguine, Spectroscopic and catalytic study of P–modified
ZSM–5, J. Catal. 112 (1998) 453–463. https://doi.org/10. 10160021–9517(88)90160–1.
[44] C. Morterra, A. Chiorino, G. Ghiotti, E. Garrone, Surface acidity of η–alumina. Part 1 Pyridine
chemisorption at room temperature, J. Chem. Soc. 75 (1979) 271. https://doi.org/10.
1039/f19797500271.
[45] P. Xu, M. W. Wang, J. W. Qu, R. L. Wang, J. Wang, Influence of Preparation Conditions on the
Acidity of WO3ZrO2 Solid Superacid, Adv. Mater. Res. 233–235 (2011) 1502–1506.
18

https://doi.org/10.4028www.scientific.netamr.233–235.1502.
[46] K. Tominaga, K. Nemoto, Y. Kamimura, A. Yamada, Y. Yamamoto, K. Sato, A practical and
efficient synthesis of methyl levulinate from cellulosic biomass catalyzed by an aluminum-based mixed
acid catalyst system. RSC. Adv. 6 (2016) 65119-65124. https://doi.org/10.1039/C6RA15638J.
[47] D. Ding, J. Xi, J. J. Wang, X. H. Liu, G. Z. Lu, Y. Q. Wang, Production of methyl levulinatefrom
cellulose: selectivity and mechanism study. Green Chem. 17 (2015) 4037-4044.
https://doi.org/10.1039/C5GC00440C.
[48] D. Song, S. An, B. Lu, Y. Guo, J. Leng, Arylsulfonic acid functionalized hollow mesoporous
carbon spheres for efficient conversion of levulinic acid or furfuryl alcohol to ethyl levulinate, Appl.
Catal. B. Environ. 179 (2015) 445–457. https://doi.org/10.1016/j.apcatb.2015.05.047.
[49] Y. B. Huang, Y. Fu, Hydrolysis of cellulose to glucose by solid acid catalysts, Green Chem. 15
(2013) 1095. https://doi.org/10.1039/c3gc40136g.
[50] E. C. Njagi, H. C. Genuino, C. H. Kuo, S. Dharmarathna, A. Gudz, S. L. Suib, High–yield
selective conversion of carbohydrates to methyl levulinate using mesoporous sulfated titania–based
catalysts,
Microporous
Mesoporous
Mater.
202
(2015)
68–72.
https://doi.org/10.1016/j.micromeso.2014. 09.044.
[51] P. Neves, S. Lima, M. Pillinger, S. M. Sílvia, Rocha, J. Rocha, A. A. Valente, Conversion of
furfuryl alcohol to ethyl levulinate using porous aluminosilicate acid catalysts. Catal. Today. 218-219
(2013) 76-84. https://doi.org/10.1016/j.cattod.2013.04.035.
[52] M. Paniagua, J. A. Melero, J. Iglesias, G. Morales, B. Hernández, C. López-Aguado, Catalytic
upgrading of furfuryl alcohol to bio-products: Catalysts screening and kinetic analysis.
Appl. Catal. A: Gen. 537 (2017) 74-82. https://doi.org/10.1016/j.apcata.2017.03.004.
[53] X. F. Liu, H. Li, H. Zhang, H. Pan, S. Huang, K. L. Yang, S. Yang, Efficient conversion of furfuryl
alcohol to ethyl levulinate with sulfonic acid–functionalized MIL–101(Cr), Rsc. Adv. 6 (2016)
90232–90238. https://doi.org/10.1039/c6ra19116a.
[54] J. Hao, L. Han, Y. Sha, X. Yu, H. Liu, X. Ma, Q. Liu, Facile use of lignite as robust organic ligands
to construct Zr–based catalysts for the conversion of biomass derived carbonyl platforms into alcohols,
Fuel. 239 (2009) 304–1314. https://doi.org/10.1016/ j.fuel.2018.11.129.
[55] X. Gao, L. Peng, H. Li, K. Chen, Formation of humin and alkyl levulinate in the acid–catalyzed
19

conversion of biomass–derived furfuryl alcohol, Bioresources. 10 (2015) 6548–6564.
https://doi.org/10.10.15376/biores.10.4.
[56] T. Osawa, Y. Tanabe, Facile Synthesis of Optically-Active γ-Valerolactone from Levulinic Acid
and Its Esters Using a Heterogeneous Enantio–Selective Catalyst, Catal. Lett. 148 (2008) 824–830.
https://doi.org/10.1007/s10562–017–2291–2.
[57] W. P. Shi, J. W. Li, A New Deactivation Mechanism of Sulfate-Promoted Iron Oxide, Catal. Lett.
143 (2013) 1285–1293. https://doi.org/10.1007/s10562-013-1066-7.
[58] H. G. Wang, Y. X. Li, F. Yu, Q. H. Wang, B. Xing, D. C. Li, R. F. Li, A stable mesoporous
super-acid nanocatalyst for eco-friendly synthesis of biodiesel, Chem. Eng. J. 364 (2019) 111-122.
https://doi.org/10.1016/j.cej.2019.01.168.
Table Captions
Table 1. BET surface areas, pore sizes, acid quantities, and sulfur content of OMSAs.
Table 2. Acid quantities and sulfur contents of the spent catalysts.
Figure Captions
Scheme 1. Ethyl levulinate production from Cellulose.
Scheme 2. Mechanism for the preparation of EL from furfuryl alcohol.
Fig. 1. TEM images of OMSAs.
Fig. 2. XRD spectra of OMSAs: (a) small–angle spectra and (b) wide–angle spectra.
Fig. 3. (a) Nitrogen adsorption–desorption isotherms and (b) pore size distribution curves of OMSAs.
Fig. 4. NH3–TPD curves of OMSAs.
Fig. 5. FTIR (a) and Py–IR (b) spectra of OMSAs.
Fig. 6. TG spectra of OMSAs.
Fig. 7. (a) Effect of feedstock on EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, reaction time: 3 h, reaction temperature: 200 °C and catalyst: 60
mg of OMSA–600.
Fig. 7. (b) Effect of catalysts on EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, temperature: 200 °C, time: 3 h and catalyst: 60 mg.
Fig. 7. (c) Effect of reaction temperature on EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, temperature: 200 °C, time: 3 h and catalyst: 60 mg.
Fig. 7. (d) Effect of reaction times on the EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, temperature: 200 °C, time: 3 h and catalyst: 60 mg.
Fig. 7. (e) Effect of catalyst amount on EL yield.
Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, temperature: 200 °C, time: 3 h and catalyst: 60 mg.
Fig. 7. (f) Reusability of the catalyst.
20

Reaction conditions: Furfuryl alcohol: 120 mg, ethanol: 8 mL, catalyst: 60 mg, temperature: 200 °C and time: 3 h.
Fig. 7. (g) NH3-TPD curves of the catalyst.
Fig. 7. (h) FTIR spectra of the catalyst.
21
