Identification of a Pyranocoumarin Photosensitizer that is a Potent Inhibitor of Keratinocyte Growth

Article abstract of DOI:10.1111/php.12882

Photosensitizers are used in the treatment of epidermal proliferation and differentiation disorders such as psoriasis and vitiligo. In these studies, a ring-expanded carbon homolog of?the linear psoralen (furo[3,2-g]benzopyran-7-one) class of?photosensitizers, 4,10-dimethyl-2H,8H-benzo[1,2-b:5,4-b′]dipyran-2-one (NDH2476), was synthesized and analyzed for biological activity. Following activation by ultraviolet light (UVA, 320-400?nm), NDH2476 was found to be a potent inhibitor of keratinocyte growth (IC₅₀?=?9?nm). Similar derivatives methylated in the pyran ring, or containing a saturated pyran ring structure, were markedly less active or inactive as photosensitizers. NDH2476 was found to intercalate and damage DNA following UVA light treatment as determined by plasmid DNA unwinding and nicking experiments. Taken together, these data demonstrate that an intact furan ring in psoralen photosensitizers is not required for keratinocyte growth inhibition or DNA damage. Our findings that low nanomolar concentrations of a benzopyranone derivative were active as a photosensitizer indicates that this or a structurally related compound may be useful in the treatment of skin diseases involving aberrant epidermal cell growth and differentiation.

Full text of DOI:10.1111/php.12882

Article type : Research Article
Identification of a Pyranocoumarin Photosensitizer that is a Potent Inhibitor of Keratinocyte
Growth
1
1
2
2
1
Jeffrey D. Laskin* , Yi-Hua Jan , Michele M. Jetter , Christophe D. Guillon , Thomas M. Mariano ,
3
2
Diane E. Heck and Ned D. Heindel
1
Environmental and Occupational Health Sciences Institute, Rutgers University School of Public
Health, Piscataway, NJ 08854 USA
2
Department of Chemistry, Lehigh University, Bethlehem, PA, 18015 USA
3
Department of Environmental Health Science, New York Medical College, Valhalla, NY, 10595 USA
*Corresponding author’s email: jlaskin@eohsi.rutgers.edu (Jeffrey D. Laskin)
ABSTRACT
Photosensitizers are used in the treatment of epidermal proliferation and differentiation
disorders such as psoriasis and vitiligo. In the present studies, a ring-expanded carbon homologue of
the linear psoralen (furo[3,2-g]benzopyran-7-one) class of photosensitizers, 4,10-dimethyl-2H,8H-
benzo[1,2-b:5,4-b']dipyran-2-one (NDH2476), was synthesized and analyzed for biological activity.
Following activation by ultraviolet light (UVA, 320-400 nm), NDH2476 was found to be a potent
inhibitor of keratinocyte growth (IC = 9 nM). Similar derivatives methylated in the pyrane ring, or
5
0
containing a saturated pyrane ring structure, were markedly less active or inactive as
photosensitizers. NDH2476 was found to intercalate and damage DNA following UVA light treatment
as determined by plasmid DNA unwinding and nicking experiments. Taken together, these data
demonstrate that an intact furan ring in psoralen photosensitizers is not required for keratinocyte
growth inhibition or DNA damage. Our findings that low nanomolar concentrations of a
benzopyranone derivative was active as photosensitizer indicates that this or a structurally related
This article has been accepted for publication and undergone full peer review but has not
been through the copyediting, typesetting, pagination and proofreading process, which may
lead to differences between this version and the Version of Record. Please cite this article as
doi: 10.1111/php.12882
This article is protected by copyright. All rights reserved.

compound may be useful in the treatment of skin diseases involving aberrant epidermal cell growth
and differentiation.
INTRODUCTION
Psoralens in combination with ultraviolet light (UVA; 320-400 nm), also referred to as PUVA,
are used in the photochemical treatment of a variety of skin diseases including those characterized
by abnormal keratinocyte proliferation and differentiation, as well as inflammation such as psoriasis,
eczema and chronic actinic dermatitis (1-4). PUVA is also used to treat vitiligo, a skin
depigmentational disorder, and certain forms of cancer including cutaneous T cell lymphomas (5-8).
The most commonly used psoralen is 8-methoxypsoralen (8-MOP), a furanocoumarin known to
intercalate into DNA. Following exposure to UVA light, 8-MOP can modify DNA forming
monofunctional and bifunctional adducts. DNA cross-links form via 2+2, cyclobutane-like fusions
from double bonds 3-4 and 4’-5’ in the psoralen molecule to double bonds in pyrimidine bases (2). A
number of naturally occurring and synthetic analogs of linear and angular furanocoumarins
(psoralens and angelicins, respectively) have been evaluated in efforts to improve the efficacy of
PUVA phototherapy (9-11). One early example is trioxsalen (4, 5’, 8-trimethylpsoralen), a lipophilic
psoralen derivative that is efficacious against both psoriasis and vitiligo (12, 13).
Our laboratories have been synthesizing and evaluating benzodipyranones as
phototherapeutics (14). These compounds are generally described as psoralen analogs in which an
unsaturated pyrane ring is substituted for the unsaturated furan ring. Synthetically derived from 7-
hydroxycoumarins by acid condensation with propargyl halides, the linear benzo[1,2-b:5,4-

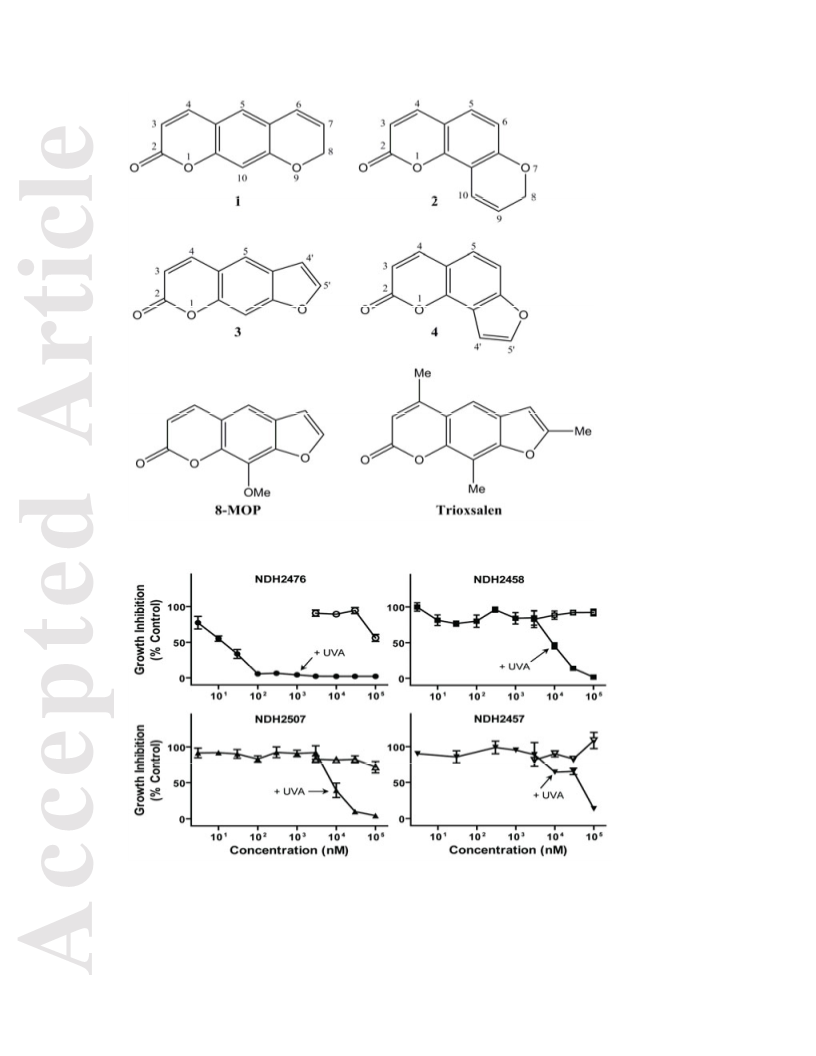

b’]dipyran-2-ones (Fig. 1, compound 1) and the angular benzo[1,2-b:3,4-b’]dipyran-2-ones (Fig. 1,
compound 2) are ring-expanded carbon homologues of the linear psoralens (formal name: furo[3,2-
g]benzopyran-7-ones) (Fig. 1, compound 3), and their angular angelicin isomers (formal name:
furo[2,3-h]benzopyran-2-ones) (Fig. 1, compound 4). A wide variety of methylated and otherwise
functionalized variants of these compounds have been synthesized and accessibility to selective
This article is protected by copyright. All rights reserved.

reduction chemistry for the carbon-carbon double bond in the non-pyranone rings has further
expanded the compound library (15). In previous studies, we describe convenient synthetic methods
for condensing 2-propyn-1-ols and 7-hydroxycoumarins to prepare, isolate, and characterize these
compounds; to prepare the reduced pyrane ring analogs, co-reactants for condensation with the 7-
hydroxycoumarins are the requisite allyl alcohols (16, 17, 14).
In the present studies we evaluated a number of pyranocoumarins and related analogs as
photosensitizers. A linear lipophilic derivative, 4,10-dimethyl-2H,8H-benzo[1,2-b:5,4-b']dipyran-2-
one (NDH2476), was identified as a potent inhibitor of keratinocyte growth; its activity was
dependent on exposure to UVA light. The ability of this pyranocoumarin to unwind and nick plasmid
DNA indicates that nuclear DNA is a target for this psoralen mimic which may have clinical potential
as a phototherapeutic agent.
Materials and Methods
Cells and reagents. PAM212 mouse keratinocytes were obtained from Dr. Stuart Yuspa (National
Institutes of Health) and grown in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with
1
0% fetal bovine serum. 4,8-Dimethyl-7-hydroxycoumarin (alternative name 4,8-
dimethylumbelliferone) was from AK Scientific (Union City, CA). 4,5’,8-trimethyldihydropsoralen
TMP) was prepared as previously described (17). Unless otherwise indicated DMEM and all other
(H
2
reagents were purchased from Sigma Chemical Co. (St. Louis, MO).
Pyranocoumarins. Methods for the synthesis of the pyranocoumarins and related analogs are
described elsewhere (14). For 4,10-dimethyl-2H,8H-benzo[1,2-b:5,4-b']dipyran-2-one (NDH2476),
4
,8-dimethyl-7-hydroxycoumarin was twice recrystallized from anhydrous ethanol to a purity of

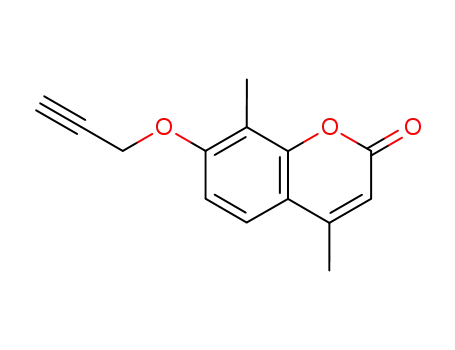

98%. The 7-hydroxyl function was propargylated by 8 hr of reflux in 200 mL of acetone (25 mmol of
>
coumarin and 38 mmol of 3-bromo-1-propyne) containing 10 g of well-stirred suspended anhydrous
potassium carbonate. Filtration of the reaction liquid from the carbonate salt yielded an acetone
This article is protected by copyright. All rights reserved.

solution of product which upon concentration in vacuo and recrystallization from methanol yielded
o
3
.72 g (64%) of white crystalline 4,8-dimethyl-7-propargylcoumarin (m.p. 139-141 C). This propargyl
ether (0.70 g) was cyclized to the above titled benzodipyrane compound (NDH2476) by heating and
o
magnetic stirring at 200 C in 15 mL of N,N-diethylaniline solvent being maintained under a stream of
dry nitrogen gas. After heating for 5 hr, the reaction contents were dissolved in 25 mL of ethyl
acetate, washed successively with 2 x 25 mL of 6N hydrochloric acid and 2 x 25 mL of water, dried
over anhydrous sodium sulfate, evaporated to a brown gum, and purified by preparative thick layer
chromatography with a 35:65 ethyl acetate:cyclohexane moving phase on Analtech GF Silica Gel
o
plates. White crystals (0.14 g, 21% yield, from methanol) of product were obtained, m.p. 178-180 C.
1
The H-NMR spectrum in CDCl
3
confirmed the structure and the purity of the product with
2
two pendant methyls (3H integration each) at 2.25 and 2.34 ppm; four single 1H integration sp C-
H’s at 6.11 (C
3
-H), 6.97 (C
5
-H), 6.43 (C
6
-H), and 5.80 (C
7
-H); and the unique C
8
-CH -O- at 4.94 ppm (dd,
2
2
H integration, J = 1.9 coupled to C
6
-H, J’ = 3.5 Hz coupled to the C
7
-H). The NMR spectrum also
confirms key structural issues. The fact that both hydrogens in the downfield shifted methylene [-
CH -O-] are equivalent and each is equally coupled to their adjacent vicinal =C-H at C and to their
2
7
beta =C-H at C
6
confirms the planarity of this dipyran-2-one system. Basically, the C-H projecting
upward at the methylene carbon C
8
is magnetically identical to the C-H projecting downward from
that carbon.
Using preparative liquid chromatography, we have also detected and isolated from
commercial samples of trioxsalen trace quantities (ca 1%) of 4,10-dimethyl-2H,8H-benzo[1,2-b:5,4-
b']dipyran-2-one (NDH2476). This is an isomer of trioxsalen which is apparently a byproduct of the
manufacturing route for that active pharmaceutical ingredient.
Growth inhibition assays. The effects of the pyranocoumarins on keratinocyte growth were assayed
in 6-well culture dishes as described previously (18, 19). Briefly, cells were plated in 2 ml of growth
3
medium at low density (5 × 10 cells/well). After allowing the cells to adhere overnight, the medium
was replaced with DMEM supplemented with either control medium or medium containing
This article is protected by copyright. All rights reserved.

increasing concentrations of the pyranocoumarins. Each concentration was tested in triplicate. After
incubating the cells for 30 min at 37°C, some of the cultures were exposed to UVA light for 10 min at
2
a distance of 9.5 cm from a bank of four Sylvania F40-BL bulbs (1.4 J/cm total UVA irradiation as
measured with an International Light UV-radiometer fitted with an IL-SE 115 probe and a 363 UVA
pass filter) (18). The medium was then replaced with fresh growth medium. After 5 days, cells were
removed from the dishes and enumerated using a Coulter Counter (Coulter Electronics, Inc.). The
IC50 for growth inhibition was the concentration of each compound that inhibited growth by 50%.
Treatment of plasmid DNA with pyranocoumarins and UVA light. Methods previously described by
our laboratories were used for plasmid DNA preparation and analysis of modifications (18, 19).
Briefly, the 3451 bp plasmid pZeoSV (Invitrogen) was grown in Escherichia coli DH5α cells and
isolated from 100 mL of an overnight culture using a Qiagen-tip 500 (Qiagen Corp.) according to the
instructions of the manufacturer. TE buffer (10 mM Tris–HCl, 1 mM EDTA, pH 8) was used to elute
the DNA which was quantified spectrophotometrically. The 260/280 absorbance ratio of 1.89
indicated very high purity; plasmid DNA was at least 95% in the supercoiled form as determined by
agarose gel electrophoresis. The restriction endonuclease EcoRI (New England Biolabs) was used to
prepare linear double-stranded plasmid DNA (10 μg). DNA was purified after extracting twice with
phenol:chloroform:isoamyl alcohol (25:24:1, by vol.) and twice with chloroform:isoamyl alcohol
(
24:1, v/v) followed by precipitation with ethanol. After centrifugation, the DNA was recovered,
washed once with 70% ethanol, air dried, and dissolved in 0.2 ml of TE buffer.
Plasmid DNA was treated with the pyranocoumarins and UVA light in a 10-μL reaction
mixture containing 75 ng pZeoSV, 0.1 μL of the test compounds (prepared as 100× solutions in
DMSO), and TE buffer. The reaction volume and components were scaled up several folds so that
multiple aliquots of 10 μL could be removed before and after UVA light treatment for analysis on
agarose gels. UVA light treatment was performed in V-bottomed 96-well plates for 10 min under the
conditions already described for the treatment of cell cultures. The treated plasmid samples were
analyzed for modifications using agarose gel electrophoresis. Analyses of plasmid DNA on neutral
This article is protected by copyright. All rights reserved.

gels were performed in 1.2% agarose in neutral gel buffer (40 mM Tris base, 20 mM acetic acid, 1
mM EDTA). Samples of DNA for analyses were first mixed with concentrated agarose gel loading
buffer [10×=50% (v/v) glycerol containing 4.2 mg/mL of bromophenol blue]. Gels were run at 24 V in
a Bio-Rad Wide Mini-Subcell GT DNA electrophoresis unit until the bromophenol blue migrated
about 8 cm. For analysis of denatured samples, DNA was first mixed with 2 M NaOH supplement
with 0.1 M EDTA, heated in a water bath at 90° for 1 min, and cooled on ice prior to loading on 1.2%
alkaline agarose gels. Gels were prepared and electrophoresed in alkaline gel buffer (50 mM Tris
base, 45 mM boric acid, 30 mM NaOH, 1 mM EDTA). After electrophoresis, gels were washed,
stained with ethidium bromide (0.5 μg/mL) and then photographed with an Eagle Eye II digital
documentation system (Stratagene, San Diego, CA).
RESULTS AND DISCUSSION
In initial studies, the effects of the pyranocoumarins on keratinocyte growth were assayed
(
Fig. 2 and Table 1). Of the compounds tested, four displayed growth inhibitory activity (NDH2476,
NDH2458, NDH2507 and NDH2457) following activation by UVA light, NDH2476 was the most active
IC50 = 13 nM), followed by NDH2458, NDH2507 and NDH2457 (IC50’s = 9,000 nM, 11,000 nM and
0,000 nM, respectively). Two analogs (NDH2441 and NDH2456) had no effect on cell growth at
(
5
concentrations up to 100 µM. In the absence of ultraviolet light, none of the compounds displayed
activity as inhibitors of keratinocyte growth.

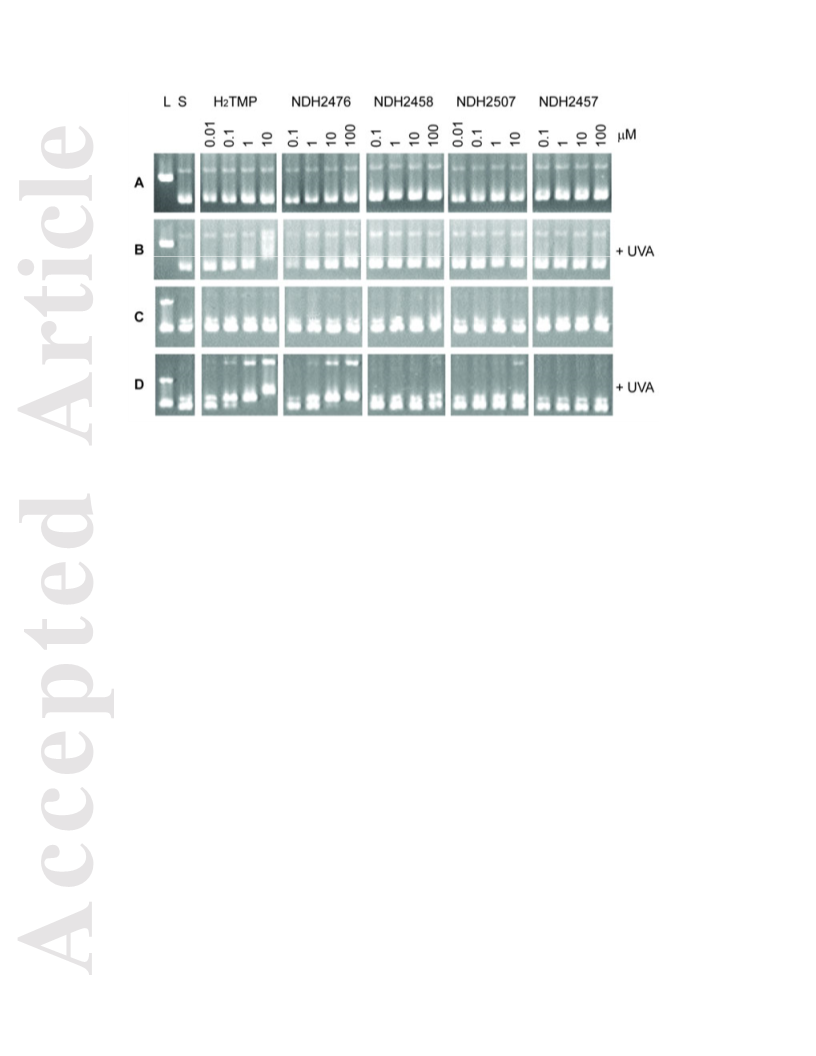

To directly evaluate the effects of the compounds on DNA, we performed DNA modification
assays. In this assay, supercoiled double-stranded plasmid DNA was treated with the
pyranocoumarins. If the compounds nick a strand of DNA, the DNA will unwind, and its migration in
neutral agarose gels will decrease significantly (18, 19). Alterations in double-strand migration in
denaturing gels are indicative of covalent modifications in the plasmid DNA. Under neutral
conditions, we found that none of the pyranocoumarins, either without or with UVA light treatment,
This article is protected by copyright. All rights reserved.

affected plasmid DNA migration (Fig. 3A and B, respectively). Conversely, under denaturing
conditions, NDH2476 treated with UVA light, but not NDH2458 or NDH2457 altered the migration of
DNA in the gels (Fig. 3C and D, respectively). A small decrease in migration was noted with NDH2507.
In both neutral and denaturing agarose gels, 4,5’,8-trimethyldihydropsoralen, a positive control, was
found to alter migration of the plasmid confirming both DNA nicking and covalent modifications.
Taken together, these data indicate that DNA modifications may be an important event leading to
growth inhibition by NDH2476.
Our data demonstrate that a pyranocoumarin photosensitizer, 4,10-dimethyl-2H,8H-
benzo[1,2-b:5,4-b']dipyran-2-one (NDH2476) is potent inhibitor of keratinocyte growth. The ability
of the psoralens to intercalate DNA is due to their linear planar structure. This is an energetically
favorable reaction and, following exposure to ultraviolet light, results in the formation of both
monofunctional and bifunctional DNA adducts (20). As NDH2476 has a generally similar structure to
psoralen, we expected that it would also intercalate and modify DNA following exposure to UVA
light. This was found to be the case based on DNA plasmid damage assays. The fact that NDH2476
has the potential to form both monofunctional and bifunctional adducts may account for its high
potency in keratinocyte growth inhibition assays. However, similar derivatives either methylated in
the pyrane ring or with a saturated pyrane ring structure, including NDH2458, NDH2507 and
NDH2457, were markedly less active as photosensitizers in keratinocyte growth assays; this is likely
due to a much more limited ability of these compounds to intercalate into DNA and modify DNA
bases following treatment with ultraviolet light. This is supported by our observation that these
derivatives displayed little or no activity in plasmid DNA unwinding and damage assays. Unlike
psoralen or NDH2476, each of the compounds contains a saturated pyrane ring, resulting in a non-
planar structure that disrupts π-π* interactions with pyrimidine bases and hinders intercalation into
DNA; it also does not allow for the formation of bifunctional DNA adducts. It should also be noted
This article is protected by copyright. All rights reserved.

that pyranocoumarins with a saturated ring structure have a much more limited ability to absorb
UVA light and participate in photosensitization reactions.
The presence of bulky dimethyl groups in the 8 position of the saturated pyrane ring in
NDH2458 and NDH2457 also results in steric hindrance for DNA interactions; this significantly
reduced activity in keratinocyte growth inhibition assays. Similarly, neither the NDH2476 related
trimethyl analog (NDH2441), nor its saturated trimethylderivative (NDH2456) were active
keratinocyte growth inhibition or plasmid DNA nicking and damage assays, presumably because of
steric hindrance due to the dimethyl group in the 8 position of the pyranocoumarin. It should be
noted that NDH2458 is also an angular pyranocoumarin with a saturated pyrane ring. Angelicins are
related psoralen derivatives with photosensitizing activity (9, 11). However, they are less active than
psoralens since they can only form monofunctional adducts. The limited ability of NDH2458 to
inhibit keratinocyte cell growth may also be due to the fact that it only has the capacity to form
monofunctional DNA adducts.
In summary, we have identified a photosensitizer, 4,10-dimethyl-2H,8H-benzo[1,2-b:5,4-
b']dipyran-2-one (NDH2476), that readily intercalates and modifies DNA, and is a potent inhibitor of
keratinocyte growth. Unlike the psoralens which contain a furan ring, this pyranocoumarin contains
a unsaturated pyrane ring demonstrating that the furan ring structure is not required for
photosensitization reactions. Optimal activity of NDH2476 also requires the unsaturated pyrane ring
which is likely important for the formation of bifunctional DNA adducts. In contrast to psoralens,
which have the capacity to nick DNA and cause strand breakage, NDH2476 only modified DNA,
suggesting that it has a unique mechanism of action. The nature of adducts formed by this
pyranocoumarin with DNA are not known. It should be noted that photoactivated psoralens can also
target other components in cells including proteins and membranes and these may also be targets
for NDH2476 that contribute to its mechanism of action. Both psoralen protein adducts and psoralen
DNA binding proteins have been identified as well as psoralen-phospholipid adducts (21-28).
Alterations in each of these targets has the capacity to activate and/or modify cell signal
This article is protected by copyright. All rights reserved.

transduction pathways that may be important in controlling growth and differentiation pathways
leading to therapeutic responses to the photosensitizers (21, 29, 30, 28). At the present time, the
precise site of action of pyranocoumarins and their effects on cell signal transduction in epidermal
cells are not known. Future studies are needed to determine if these compounds are effective as
phototherapeutic agents to treat various skin disorders.
REFERENCES
1
2
. Chee, S. N., L. Novakovic, H. Fassihi, T. Garibaldinos and R. Sarkany (2017) Chronic actinic
dermatitis: successful treatment with PUVA photochemotherapy. Br J Dermatol.
. Honigsmann, H. (1986) Psoralen photochemotherapy--mechanisms, drugs, toxicity. Curr Probl
Dermatol 15, 52-66.
3
4
. Stern, R. S. (2007) Psoralen and ultraviolet a light therapy for psoriasis. N Engl J Med 357, 682-690.
. Vangipuram, R. and S. R. Feldman (2016) Ultraviolet phototherapy for cutaneous diseases: a
concise review. Oral Dis 22, 253-259.
5
6
. Kaidbey, K. H. and A. M. Kligman (1974) Photopigmentation with trioxsalen. Arch Dermatol 109,
6
74-677.
. Bae, J. M., H. M. Jung, B. Y. Hong, J. H. Lee, W. J. Choi and G. M. Kim (2017) Phototherapy for
vitiligo: a systematic review and meta-analysis. JAMA Dermatol 153, 666-674.
7
8
. Trautinger, F. (2017) Phototherapy of mycosis fungoides. G Ital Dermatol Venereol 152, 597-606.
. Nordlund, J. J. (2017) The medical treatment of vitiligo: an historical review. Dermatol Clin 35, 107-
1
16.
9
. Bordin, F., F. Dall'Acqua and A. Guiotto (1991) Angelicins, angular analogs of psoralens: chemistry,
photochemical, photobiological and phototherapeutic properties. Pharmacol Ther 52, 331-
3
63.
1
0. Santana, L., E. Uriarte, F. Roleira, N. Milhazes and F. Borges (2004) Furocoumarins in medicinal
chemistry. Synthesis, natural occurrence and biological activity. Curr Med Chem 11, 3239-
3
261.
1
1
1. Traven, V. F. (2004) New synthetic routes to furocoumarins and their analogs: a review.
Molecules 9, 50-66.
2. Sehgal, V. N., V. L. Rege, V. N. Kharangate and M. Reys (1975) Photochemotherapy of psoriasis
with 4,5',8-trimethylpsoralen. Dermatologica 150, 316-319.
1
1
3. Becker, S. W., Jr. (1977) Trisoralen photochemotherapy. Australas J Dermatol 18, 15-19.
4. Heindel, N. D., M. C. Jetter, J. D. Laskin and M. A. Gallo (1993) 7-Alkoxycoumarins,
dihydropsoralens, and benzodipyranones as photo-activated therapeutic agents and
inhibitors of epidermal growth factor. US patent 5216176.
1
1
1
5. Heindel, N. D., N. Foster and M. Choudhuri (1983) Transfer hydrogenations of furocoumarin
derivatives. J Org Chem 48, 3817-3819.
6. Jetter, M. M., N. D. Heindel and J. D. Laskin (1990) Novel synthesis of dihydroxanthyletin and
dihydroseselin derivatives. J Heterocycl Chem 27, 995-997.
7. Heindel, N. D., J. M. Van Dongen, B. S. Sachais, J. H. Phillips, M. A. Gallo and J. D. Laskin (1991)
Syntheses of psoralen analogues and evaluation of their inhibition of epidermal growth
factor binding. J Pharm Sci 80, 686-689.
1
8. Mariano, T. M., A. M. Vetrano, S. L. Gentile, D. E. Heck, M. S. Whittemore, C. D. Guillon, I. Jabin,
R. D. Rapp, N. D. Heindel and J. D. Laskin (2002) Cell-impermeant pyridinium derivatives of
psoralens as inhibitors of keratinocyte growth. Biochem Pharmacol 63, 31-39.
This article is protected by copyright. All rights reserved.

1
9. Martey, C. A., A. M. Vetrano, M. S. Whittemore, T. M. Mariano, S. L. Gentile, D. E. Heck, D. L.
Laskin, N. D. Heindel and J. D. Laskin (2002) Mechanisms of growth inhibition in
keratinocytes by mercurio-substituted 4',5'-dihydropsoralens. Biochem Pharmacol 63, 2001-
2
009.
2
2
0. Caffieri, S., Z. Zarebska and F. Dall'Acqua (1996) Psoralen photosensitization: damages to nucleic
acid and membrane lipid components. Acta Biochim Pol 43, 241-246.
1. Laskin, J. D., E. Lee, D. L. Laskin and M. A. Gallo (1986) Psoralens potentiate ultraviolet light-
induced inhibition of epidermal growth factor binding. Proc Natl Acad Sci U S A 83, 8211-
8
215.
2
2
2
2
2. Yurkow, E. J. and J. D. Laskin (1987) Characterization of a photoalkylated psoralen receptor in
HeLa cells. J Biol Chem 262, 8439-8442.
3. Bordin, F., F. Carlassare, L. Busulini and F. Baccichetti (1993) Furocoumarin sensitization induces
DNA-protein cross-links. Photochem Photobiol 58, 133-136.
4. Zarebska, Z. (1994) Cell membrane, a target for PUVA therapy. J Photochem Photobiol B 23, 101-
1
09.
5. Sastry, S. S., B. M. Ross and A. P'Arraga (1997) Cross-linking of DNA-binding proteins to DNA with
psoralen and psoralen furan-side monoadducts. Comparison of action spectra with DNA-
DNA cross-linking. J Biol Chem 272, 3715-3723.
2
6. Frank, S., S. Caffieri, A. Raffaelli, D. Vedaldi and F. Dall'Acqua (1998) Characterization of psoralen-
oleic acid cycloadducts and their possible involvement in membrane photodamage. J
Photochem Photobiol B 44, 39-44.
2
2
7. Meisenheimer, K. M. and T. H. Koch (1997) Photocross-linking of nucleic acids to associated
proteins. Crit Rev Biochem Mol Biol 32, 101-140.
8. Van Aelst, B., R. Devloo, P. Zachee, R. t'Kindt, K. Sandra, P. Vandekerckhove, V. Compernolle and
H. B. Feys (2016) Psoralen and ultraviolet A light treatment directly affects
phosphatidylinositol 3-kinase signal transduction by altering plasma membrane packing. J
Biol Chem 291, 24364-24376.
2
3
9. Mermelstein, F. H., T. F. Abidi and J. D. Laskin (1989) Inhibition of epidermal growth factor
receptor tyrosine kinase activity in A431 human epidermoid cells following
psoralen/ultraviolet light treatment. Mol Pharmacol 36, 848-855.
0. Anthony, F. A., H. M. Laboda and M. E. Costlow (1997) Psoralen-fatty acid adducts activate
melanocyte protein kinase C: a proposed mechanism for melanogenesis induced by 8-
methoxypsoralen and ultraviolet A light. Photodermatol Photoimmunol Photomed 13, 9-16.
This article is protected by copyright. All rights reserved.

Table 1. Pyranocoumarin structures and growth-inhibitory activities.
IC (nM)
5
0
1
Compound
Structure
+
UVA
─ UVA
NDH2476
13
> 100,000
NDH2458
9,000
> 100,000
NDH2507
NDH2457
11,000
50,000
> 100,000
> 100,000
NDH2441
NDH2456
> 100,000
> 100,000
> 100,000
> 100,000
1
NDH2476: 4,10-dimethyl-2H,8H-benzo[1,2-b:5,4-b']dipyran-2-one; NDH2457: 7,8-dihydro-4,8,8,10-
tetramethyl-2H,6H-benzo[1,2-b:5,4-b']dipyran-2-one; NDH2456: 7,8-dihydro-4,8,8-trimethyl-2H,6H-benzo[1,2-
b:5,4-b']dipyran-2-one; NDH2441: 4,8,8-trimethyl-2H,8H-benzo[1,2-b:5,4-b']dipyran-2-one; NDH2507: 7,8-
dihydro-4,8,10-trimethyl-2H,6H-benzo[1,2-b:5,4-b']dipyran-2-one; NDH2458: 9,10-dihydro-4,8,8,-trimethyl-
2
H,8H-benzo[1,2-b:3,4-b']dipyran-2-one.
This article is protected by copyright. All rights reserved.

FIGURE LEGENDS
Figure 1. Basic structures of pyranocoumarins, psoralens and angelicins. The panel shows the linear
benzo[1,2-b:5,4-b’]dipyran-2-ones (compound 1) and the angular benzo[1,2-b:3,4-b’]dipyran-2-ones
(compound 2) which are ring-expanded carbon homologues of the psoralens (furo[3,2-
g]benzopyran-7-ones) (compound 3) and their angular angelicin isomers (formal name: furo[2,3-
h]benzopyran-2-ones) (compound 4). The structures of clinically used psoralens [8-methoxypsoralen
(8-MOP) and Trioxsalen] are also shown.
Figure 2. Effects of pyranocoumarins on keratinocyte growth. Keratinocyte cultures were treated
with control medium or medium containing increasing concentrations of the pyranocoumarins as
described in the Materials and Methods. After 30 min at 37°, cells were treated with (closed
symbols) or without (open symbols) UVA light. Cells were then refed with fresh growth medium.
After 5 days, cells were removed from the dishes and counted on a Coulter Counter. Data are
presented as percent inhibition of cell growth relative to controls. Data represent means ± SEM (n =
4
3
). In a typical experiment, control plates contained 5.5 × 10 cells.
Figure 3. Effects of pyranocoumarins and UVA light on plasmid DNA. Plasmid DNA was treated with
increasing concentrations of pyranocoumarins. Lane L shows products from the digestion with
restriction endonuclease EcoRI to linearize the DNA (100 ng); in native gels, the linearized DNA
migrates as one double-stranded band, whereas, in denaturing gels, it migrates as two well-
separated single strands. Lane S shows untreated plasmid DNA (75 ng); in native gels, the intact
plasmid DNA migrates mainly as one supercoiled double-stranded band, whereas, in denaturing gels,
it migrates as two closely migrating single strands. Electrophoretic analysis was performed with
neutral (panels A and B) or alkaline (panels C and D) agarose gels. Samples were treated with (panels
B and D) or without (panels A and C) UVA light. H
2
TMP was used as a positive control for psoralen-
induced plasmid DNA strand breaks.
This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.

This article is protected by copyright. All rights reserved.
