I.G. Vasilyeva, R.E. Nikolaev / Journal of Alloys and Compounds 452 (2008) 89–93
linearly heated to the boiling temperature at a given helium pressure. In this
case, the boiling peak occurring first in the thermal curves showed that the
vapor pressure of the sample was equal to the helium pressure in the chamber
(PHe = Pvapor). In these experiments, helium pressures varied usually between
0.3 and 2 bar and the partial pressure of the compound tested was considered
to be the same as in the absence of helium based on the assumption that the
system with helium was ideal (low pressures and no solubility of helium in the
condensed phase). Therefore, the dependences of the boiling temperatures on
the helium pressure were conceptually identical to the pvapor–T relation of the

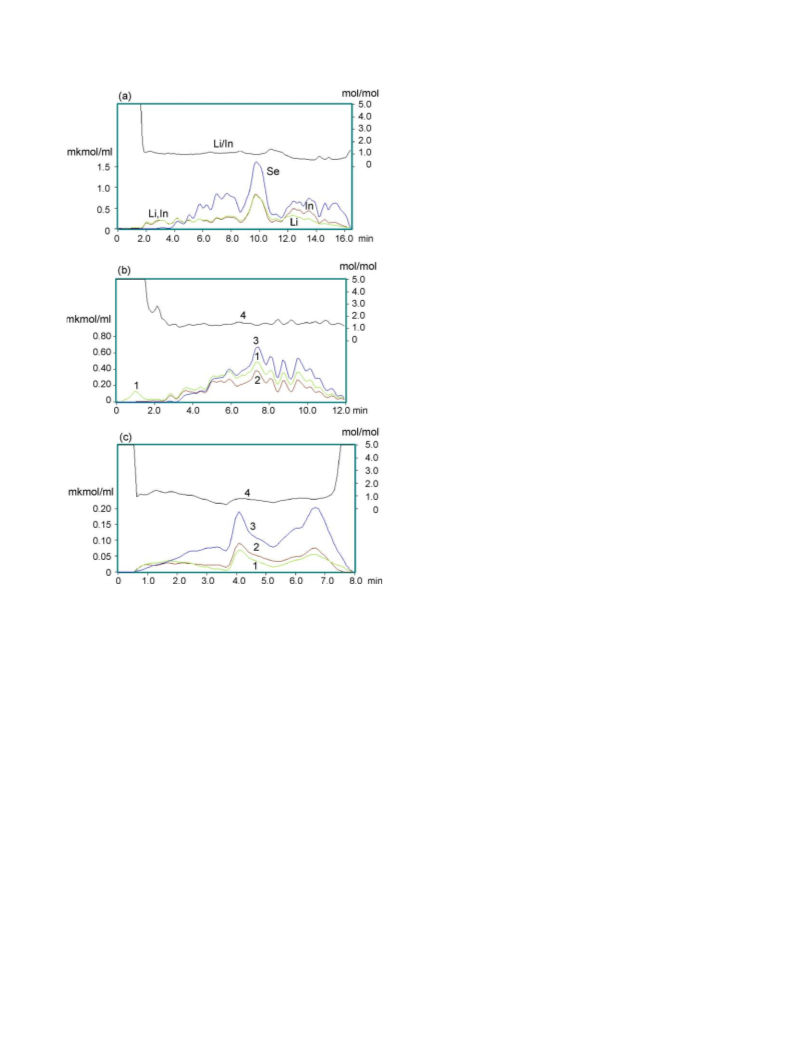

The DD technique as a chemical method of phase analysis was used here
for the identification of quenched melts which were amorphous as could be
expected. Themethodwasdescribedearlieranddemonstratedonmanyexamples
[7–10]. A sample is dissolved in a flow of solvent with continuously increasing
concentration and temperature. Under these conditions, different phases of a
multiphase sample dissolve sequentially but not simultaneously. The elemental
composition of the solution is monitored by an ISP AE spectrometer and the
dissolution curves of all elements of the sample are recorded. From such kinetic
curves, stoichiograms may be calculated which are the time dependences of
the molar ratios between each two elements, for example, A:B, B:C and A:C
for a three-component ABC sample. The time profile of the stoichiograms is
governed by two main rules: stoichiograms remain constant with values equal
to the stoichiometric coefficient ratios of the dissolved solid phase if only a single
phase is dissolved. The stoichiograms are variable if several phases are dissolved
at the same time. A stoichiogram indicates directly whether the mixture is really
separated in individual phases, without the necessity of using reference materials
for these phases. Therefore, the DD method is a combination of two procedures:
separation of phases and measurement of their stoichiometry. 7N HNO3 with
a temperature varying from 20 to 80 ◦C was used as a solvent to analyze the
quenched melts of LiInSe2 samples.
Fig. 1. Schematic diagram of the apparatus used for thermo-microscopic
analysis with high heating rates: (1) sample, (2) Mo crucible, (3) W/W–Re
thermocouple, (4) tungsten heater, (5) chamber, (6) IR photo diode, (7) quartz
window.
3. Results and discussion
pressure in the chamber was set for any given value in the range 0.01–3 bar.
Heating to 2500 K was performed at a constant rate in the range of 1–50 K/s,
depending on the material and the task of the investigation. The apparatus was
calibrated against the melting points of Au (1337 K), Co (1766 K), Pt (2045 K),
Rh (2236 K), Al2O3 (2323 K) and the decomposition pressure of GaAs crys-
tals equal to 1.0 0.03 bar at 1883 K (the melting point). The accuracy of the
measurements was about 1% for melting points and around 5% for the vapor
pressure.
The thermal peaks were identified by microscopic observation of partial
melting (solidus point), complete melting (liquidus point) and marked surface
change (boiling point). The peak indication was also confirmed by a special
quenching experiment: a sample heated to the temperature of the corresponding
peak was quenched at a rate of 200 K/s and the chemical and phase compositions
of the quenched products (vapor condensed on the window and the residue) were
determined by atomic-emission technique with inductively coupled plasma (ICP
AES), X-ray diffraction (XRD) or differential dissolution technique (DD).

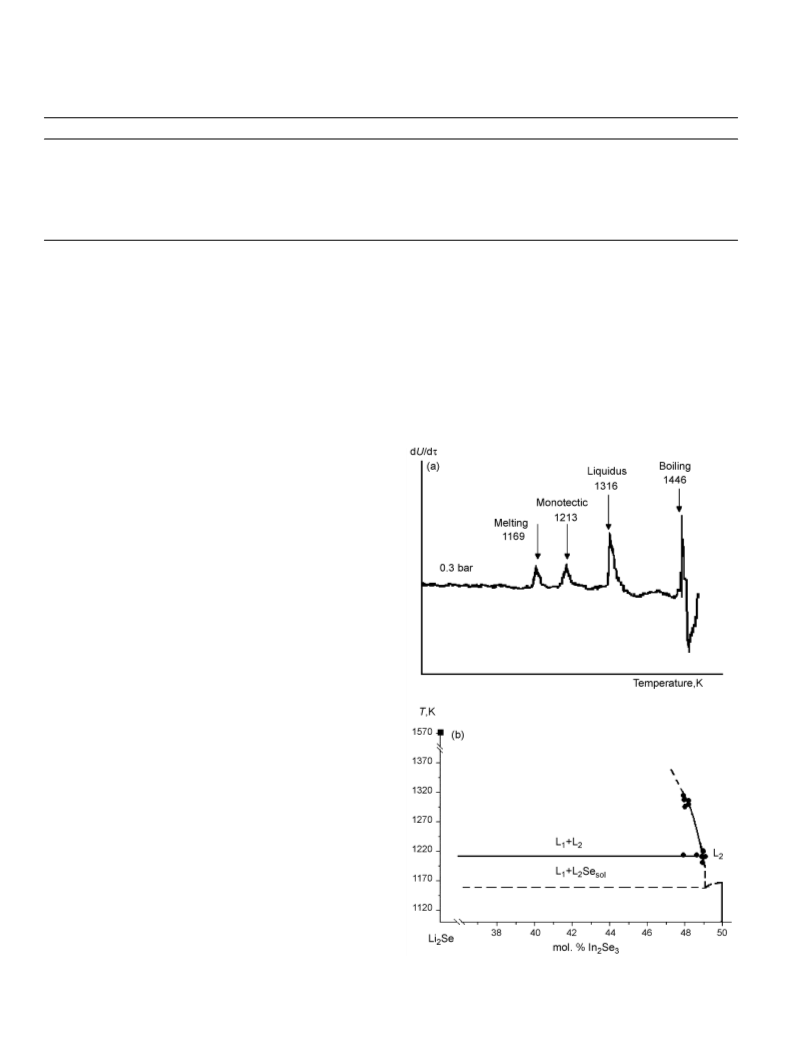

By varying the heating rates and helium pressure in the chamber, the T–x
and pvapor–T diagrams could be obtained starting with a sample of defined com-
position such as La2S3, MoS2, Mo2S3 and LiInSe2. Taking the highest heating
rates and helium pressures (PHe ꢀ Pvapor), we can force the sample to boil at
temperatures past the melting point. The increase of the evaporation rate and the
vapor diffusion from the surface to the condenser at and above the boiling point
led to the variation of the sample composition. On the contrary, if the melting
point peak appeared first in the thermal curves, it signified that the vapor losses
were prevented (or reduced) kinetically up to the melting of the sample. The fact
that the composition of the samples quenched from the melting point remained
really unchanged, was supported by direct chemical analysis. The deviations
3.1. La–S system
The problem of correct determination of the melting point
and the saturated sulfur vapor pressure in the range 0–60 at.% of
Due to the above-mentioned technique, the melting point of sto-
ichiometric La2S3 was found to be (2133 15) K (Fig. 2, curve
1). The pvapor–T relation in the temperature range 1853–2013 K
(Fig. 2, curves 2–4) could be presented by the following linear
equation:
log psulfur(bar) = (6.29 0.16) − (12660 310)T−1
(1)
Both the melting point and the pvapor–T relation are really cor-
related with the initial stoichiometry since the composition was
technique [11] to be La2S2.994(3). Following Eq. (1), congruent
melting of stoichiometric La2S3 takes place under the equi-
librium sulfur vapor pressure of 2.26 bar. The melting peaks
appearing after the boiling peaks (Fig. 2, curves 2–4) indicated
the melting of samples with compositions different from the
starting composition of La2S3 owing to the increase of the evap-
oration rate at and above the boiling point of La2S3. The shift
towards the less-volatile component resulted in the composi-
tions La2S3.0−x (x = 0.02, 0.04, and 0.1), which together with
the melting temperatures being higher than that of the stoichio-
metric La2S3, reproduce the liquidus curve of the T–x diagram
of the La2S3–La3S4 system. The melting point of La2S3 found
here as 2133 K was the lowest among those reported previ-
were always no more than 0.5 mass%. At low helium pressures (PHe < Pvapor
)
and low heating rates, the heterogeneity of the initial phases occurred for the
phases existing over little or no stoichiometry range as their composition steadily
changed (with a given step) owing to incongruent vaporization within a closed
chamber. The composition/temperature values corresponding to these variations
reflected, in this case, the form of the solidus–liquidus lines of the T–x diagram.
The boiling point method (isobaric variant), well-known from [4–6], was
realized to determine the vapor pressure of the samples. The samples were
