C O M M U N I C A T I O N S
containing suspended 5 nm diameter Fe3O4 particles (see details
in the Supporting Information). Figure 3d shows an STEM image
of the Fe3O4-containing Pt nanoshells. The edge of the spheres
appears brighter than their center region in these dark field images,
consistent with an encasing electron-dense Pt shell. EDS analysis
of the shell edge area (Figure S6) confirms that it is mainly Pt
(Pt:Fe, 93:7), and EDS of the center area indicates that it is mainly
Fe (Pt:Fe, 33:67). The magnetite-filled shells are clearly magnetic,
as shown by their attraction to a magnetic stirring bar placed on
the sidewall of the vial (Figure 3e).
In conclusion, we have developed a method for using lipopor-
phyrin-stabilized nanodroplets of an organic solvent in water as
templates to synthesize dendritic Pt nanoshells. A key feature of
the method is the use of a tin-porphyrin complex both as a
surfactant that stabilizes the nanoscale benzene droplets and as a
photocatalyst to initiate Pt reduction onto the surfaces of the
nanodroplets. At benzene concentrations below its solubility limit
in water, the thicknesses of the Pt nanoshells can be controlled
continuously from ∼5 to over 50 nm by varying the amount of the
Pt complex. The organic phase can also be used as a medium for
placing functional nanomaterials inside the nanoshells. The pho-
tocatalytic interfacial synthesis of nanoshells composed of other
metals is currently being studied in our laboratory.

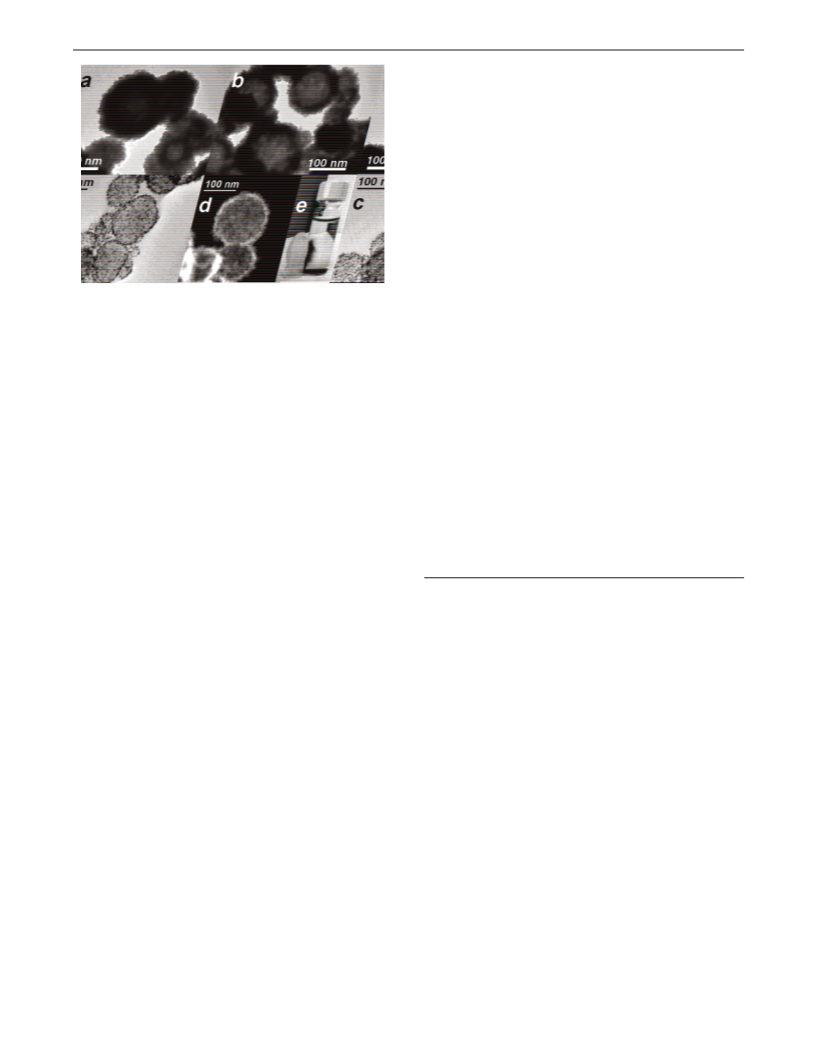

Figure 3. TEM images of Pt nanoshells prepared using SnP18 in 0.125%
benzene in water and various concentrations of Pt complex: (a) 1 mM, (b)
0.5 mM (same as Figure 2c), (c) 0.25 mM. Panel (d) is an STEM dark
field image of Pt nanoshells prepared using 0.25% benzene/SnP18 containing
∼5 nm Fe3O4 nanoparticles. Panel (e) is a photograph showing a magnetic
stirring bar attracting the nanoshells to the side of the reaction vessel.
template, the product consists of hollow Pt structures with a wide
range of sizes with a significant quantity of micron-sized structures
present (Figure 2a). At 0.25%, relatively few micron-scale structures
are seen, mostly consisting of spherical Pt shells in the range of
100-400 nm (Figure 2b). Finally, at 0.125% (Figure 2c), the size
of the Pt spheres is further reduced and most are less than 100 nm
in diameter (Figure 2d). The reduction to a restricted size range
upon dilution below the solubility of benzene in water (0.22%)
indicates a limited loss of benzene from the droplets with SnP18
behaving as an unexpectedly good surfactant for stabilizing the
nanodroplets. The size distribution of the nanodroplets is reproduc-
ible at concentrations below 0.22% (see Figure S2), giving a
repeatable surface area. Consequently, the Pt concentration can be
varied to produce the desired thickness of the Pt nanoshells.
TEM images (Figure 3b) show that the surfaces of the shells
have a “furry” appearance consistent with dendritic Pt growth.2d
In addition, XRD spectra (Figure S3) show peaks characteristic of
nanocrystalline platinum in agreement with the nanoscale structural
features of Pt dendrites. Since the total surface area of the
nanodroplets is nearly the same for similarly prepared 0.125% v/v
benzene in water templates, the thickness of the shells can be
modified by simply altering the concentration of the Pt complex.
Figure 3 shows the effect of decreasing the Pt concentration; the
average wall thickness decreases from approximately 40 nm at 1
mM Pt complex (Figure 3a) to 20 nm at 0.5 mM (Figure 3b); the
shells are thin and porous at 0.25 mM Pt (Figure 3c) and consist
of particles and small dendrites with sufficient connectivity to
preserve the shell structure (see Figure S4).
Acknowledgment. Sandia is a multiprogram laboratory operated
by Sandia Corporation, a Lockheed Martin Company, for the United
States Department of Energy’s National Nuclear Security Admin-
istration under Contract DEAC04-94AL85000. Research partially
supported by the DOE Division of Chemical Sciences, Geosciences
and Biosciences (DE-FG02-02ER15369).
Supporting Information Available: Synthesis details, UV-visible
spectra, XRD spectra, EDS and TEM data. This material is available
References
(1) (a) Matkoa, I.; Gaidia, M.; Hazemannb, J. L.; Cheneviera, B.; Labeaua,
M. Sens. Actuators, B 1999, 59, 210. (b) De, S.; Pal, A.; Pal, T. Langmuir
2000, 16, 6855. (c) Carpenter, E. E.; Sims, J. A.; Wienmann, J. A.; Zhou,
W. L.; O’Connor, C. J. J. Appl. Phys. 2000, 87, 5615. (d) Joo, S. H.;
Choi, S. J.; Oh, I.; Kwak, J.; Liu, Z.; Terasaki, O.; Ryoo, R. Nature 2001,
412, 169.
(2) (a) Han, Y. J.; Kim, J. M.; Stucky, G. D. Chem. Mater. 2000, 12, 2068.
(b) Shin, H. J.; Ko, C. H.; Ryoo, R. J. Mater. Chem. 2001, 11, 260. (c)
Luo, Y.; Lee, S. K.; Hofmeister, H.; Steinhart, M.; Gosele, U. Nano Lett.
2004, 4, 143. (d) Song, Y. J.; Yang, Y.; Medforth, C. J.; Pereira, E.; Singh,
A. K.; Xu, H. F.; Jiang, Y. B.; Brinker, C. J.; van Swol, F.; Shelnutt, J.
A. J. Am. Chem. Soc. 2004, 126, 635. (e) Ahmadi, T. S.; Wang, Z. L.;
Green, T. C.; Henglein, A.; El-Sayed, M. A. Science 1996, 272, 1924. (f)
Herricks, T.; Chen, J. Y.; Xia, Y. N. Nano Lett. 2004, 4, 2367.
(3) (a) Sun, Y. G.; Mayers, B. T.; Xia, Y. N. Nano Lett. 2002, 2, 481. (b)
Liang, H. P.; Zhang, H. M.; Hu, J. S.; Guo, Y. G.; Wan, L. J.; Bai, C. L.
Angew. Chem., Int. Ed. 2004, 43, 1540.
In the absence of light exposure, the Pt structures obtained are
irregular and the platinum coverage is uneven (Figure S5) since
only a few seeds are spontaneously produced, as observed previ-
ously for templating surfactant assemblies.2d The importance of
photocatalytic seeding in producing the more evenly coated shell
structures shown in Figures 2 and 3 is that a large population of
seed particles is distributed uniformly over the surface of the
droplets, and most of these seeds are formed at the beginning of
the reaction giving them equal autocatalytic growth times. The equal
growth times lead to more consistent dendrite size and more uniform
wall thickness.2d
(4) (a) Kumar, R.; Maitra, A. N.; Patanjali, P. K.; Sharma, P. Biomaterials
2005, 26, 6743-6753. (b) Kim, S. W.; Kim, M.; Lee, W. Y.; Hyeon, T.
J. Am. Chem. Soc. 2002, 124, 7642.
(5) (a) Nakashima, T.; Kimizuka, N. J. Am. Chem. Soc. 2003, 125, 6386. (b)
Fowler, C. E.; Khushalani, D.; Mann, S. J. Mater. Chem. 2001, 11, 1968.
(c) Huang, J. X.; Xie, Y.; Li, B.; Liu, Y.; Qian, Y. T.; Zhang, S. Y. AdV.
Mater. 2000, 12, 808.
(6) A milky stock emulsion was prepared by sonicating a 1:99 mixture of
benzene (containing 1 mM SnP18) and water. This was diluted with water
for the nanoshell syntheses. UV-visible spectra (Figure S1) show that
SnP18 is negligibly soluble in water or benzene, but the porphyrin Soret
band of the diluted emulsion (0.25%) indicates that SnP18 is partially
dissolved and probably resides at the benzene-water interface (Figure
1a).
(7) Under imaging conditions, benzene probably evaporates from within the
shells, while in aqueous suspension some benzene likely remains.
The benzene droplets can also carry other nanomaterials that will
be subsequently enclosed inside the Pt shells. For example, magnetic
Pt nanoshells were synthesized using templating nanodroplets
JA0619859
9
J. AM. CHEM. SOC. VOL. 128, NO. 29, 2006 9285
