Novel cationic prodrug of ubiquinol-10 enhances intestinal absorption via efficient formation of nanosized mixed-micelles with bile acid anions

Article abstract of DOI:10.3390/molecules25030546

The aim of this study was to develop a prodrug of ubiquinol-10 (UqH-10), the active form of ubiquinone-10 (Uq-10), for oral delivery. Bioavailability of UqH-10 is hampered by its high susceptibility to oxidation and water-insolubility. We prepared three n

Full text of DOI:10.3390/molecules25030546

molecules
Article
Novel Cationic Prodrug of Ubiquinol-10 Enhances
Intestinal Absorption via Efficient Formation of
Nanosized Mixed-Micelles with Bile Acid Anions
Shuichi Setoguchi †, Ryoji Hidaka †, Nami Nagata-Akaho, Daisuke Watase, Mitsuhisa Koga,
Kazuhisa Matsunaga *, Yoshiharu Karube and Jiro Takata *
Faculty of Pharmaceutical Sciences, Fukuoka University, Nanakuma, Jonan-ku, Fukuoka 814-0180, Japan;
ssetoguchi@fukuoka-u.ac.jp (S.S.); ryozy@orange.zero.jp (R.H.); nanohana_73@jewel.ocn.ne.jp (N.N.-A.);
watase@fukuoka-u.ac.jp (D.W.); kogami@fukuoka-u.ac.jp (M.K.); karube@fukuoka-u.ac.jp (Y.K.)
* Correspondence: k-matsu@fukuoka-u.ac.jp (K.M.); jtakata@fukuoka-u.ac.jp (J.T.);
Tel.: +81-92-871-6631 (ext. 6672) (K.M.); +81-92-871-6631 (ext. 6662) (J.T.)
† These authors contributed equally to this work.
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Academic Editor: Rafik Karaman
Received: 30 December 2019; Accepted: 27 January 2020; Published: 27 January 2020
Abstract: The aim of this study was to develop a prodrug of ubiquinol-10 (UqH-10), the active
form of ubiquinone-10 (Uq-10), for oral delivery. Bioavailability of UqH-10 is hampered by its high
susceptibility to oxidation and water-insolubility. We prepared three novel N,N-dimethylglycine
ester derivatives of UqH-10, including a 1-monoester (UqH-1-DMG), 4-monoester (UqH-4-DMG),
and 1,4-bis-ester (UqH-DMG), and assessed their physicochemical properties in vitro and in vivo
.
UqH-DMG spontaneously formed an aqueous micelle solution comprising 20 nm particles at 36.5 ◦C.
Cationic UqH-DMG formed nano-sized (5 nm) mixed-micelles with taurocholic acid. Reconversion
of the derivatives to UqH-10 was accelerated in human liver microsomes. The oral bioavailability of
UqH-10 after administration of UqH-derivatives or Uq-10 was determined in fasted and postprandial
rats secreting normal and high levels of bile, respectively. In fasted rats, plasma UqH-10 after
UqH-derivatives administration reached Cmax at 2–3 h and after Uq-10 administration, it remained
low. The AUC0-24h of UqH-10 after UqH-derivatives administration was 2–3-fold higher than that after
Uq-10 administration. In postprandial rats, the Tmax of UqH-10 after UqH-derivatives administration
was an hour earlier than after Uq-10 administration. In conclusion, cationic UqH-derivatives are
convenient prodrugs that enhance UqH-10 bioavailability by forming nanosized mixed-micelles with
intestinal bile acids.
Keywords: bioavailability; coenzyme Q10; drug delivery system; prodrug; ubiquinol; ubiquinone
1. Introduction
Ubiquinone-10 (Uq-10), better-known as Coenzyme Q10 (CoQ10), is widely distributed in
mammalian tissues, membranes, and cells. Uq-10 is an essential component of the mitochondrial
respiratory chain, where it acts as an electron carrier and participates in ATP production. Ubiquinol-10
(UqH-10), the fully reduced form of Uq-10, acts as an antioxidant within biological membranes and in
the mitochondria by either scavenging free radicals directly or by recycling other antioxidants, like
α
-tocopherol and ascorbate [1,2]. Due to these beneficial roles, Uq-10 and UqH-10 are used to treat a
variety of disorders, including cardiovascular syndromes and primary CoQ10-deficiency syndrome,
and is available over the counter as a dietary supplement worldwide [3–6].
UqH-10 has powerful pharmacological activities, but its bioavailability is poor due to its low
water-solubility (it is highly lipophilic) and its susceptibility to rapid oxidation. A way of improving
Molecules 2020, 25, 546; doi:10.3390/molecules25030546
www.mdpi.com/journal/molecules

Molecules 2020, 25, 546
2 of 11
the bioavailability of UqH-10 is by enhancing its diffusion efficiency in the unstirred water layer of
the intestines, as this is a rate-limiting step in the intestinal absorption of lipophilic compounds [ ].
7
Increasing aqueous solubility in the unstirred water layer is particularly important for efficient
absorption of orally administered drugs. Several approaches have been tested to promote intestinal
absorption, including formulating drugs in liposomes, nano-emulsions, or solid lipid nanoparticles. In
particular, self-emulsified drug delivery systems (SEDDS) have been shown to induce bile secretion,
leading to improved absorption [8–12]. However, these formulation techniques demand administration
of large dosage volumes due to the requirement to include large amounts of fatty acids and surfactants.
Smaller-volume formulations without excipients would make it easier to achieve target doses in
recipients and for improved oral intake.
We hypothesized that a prodrug strategy for UqH-10 could overcome the aforementioned poor oral
bioavailability. We previously reported that N,N-dimethylglycine esters of vitamin K2 hydroquinone,
which, similar to UqH-10, contains phenolic hydroxyl groups and a large lipophilic side chain, had
good water solubility [13] and improved bioavailability over the parent drug in rats [14].
The aims of the present study were to synthesize N,N-dimethylglycine esters of UqH-10 (Figure 1),
evaluate their physicochemical properties in vitro, and their pharmacokinetics after administration
as a UqH-10 prodrug in vivo. Since most previous studies aimed to induce bile secretion for the
absorption of Uq-10 and UqH-10, we established an in vivo model where bile secretion in rats was
regulated by controlled feeding to investigate the influence of bile secretion on the absorption of
the UqH-10-derivatives. We provide evidence that UqH-10 N,N-dimethylglycine ester derivatives
are prodrugs that can enhance intestinal absorption in small dosage volumes due to formation of
mixed-micelles with endogenous bile acids.
Figure 1. Chemical structures of Ubiquinol-10 derivatives and Ubiquinone-10.
2. Results and Discussion
2.1. Physicochemical Properties of UqH-10 Derivatives
Two types of monoester and a bis-ester were successfully obtained by chemical synthesis (Figure 1)
1
and characterized by MS, elemental analysis, and H-13C HMBC NMR. The melting points of the
monoesters (UqH-1-DMG, UqH-4-DMG) and the bis-ester (UqH-DMG) were approximately 80 ◦C and
180 ◦C, respectively (shown in Section 3.4). The melting points of these esters were much higher than
that of Uq-10 (48 ◦C). UqH-DMG formed a transparent solution in water at concentrations up to 5 mM.

Molecules 2020, 25, 546
3 of 11
Its water solubility was significantly higher than that of Uq-10, which was “practically insoluble, or
insoluble” (even when diluted to < 0.116 mM) based on the Japanese Pharmacopoeia monograph.
Both monoesters and the bis-ester were stable against oxidation under atmospheric conditions.
2.2. Micelle Formation of UqH-DMG in Water
To investigate the influence of temperature on the solubility of UqH-DMG, visual inspections
of the solutions were performed in test tubes. A 45 mM of UqH-DMG dissolved in water appeared
opaque at 27.0 ◦C, but after increasing the temperature to 36.5 ◦C, the solution became transparent,
indicating that UqH-DMG formed a micelle solution (Figure 2A). The micelle size was confirmed in
Section 2.3 below (Figure 3B). The solubilizing points at different concentrations of UqH-DMG were
also measured and plotted (Figure 2B). An exponential increase in solubilizing point was observed
immediately above 45 mM UqH-DMG, indicating that the Krafft’s point of UqH-DMG, a cationic large
molecule, in water is around 36.5 ◦C. Therefore, it is likely that UqH-DMG in aqueous medium would
be soluble at body temperature (~37 ◦C) after oral administration.

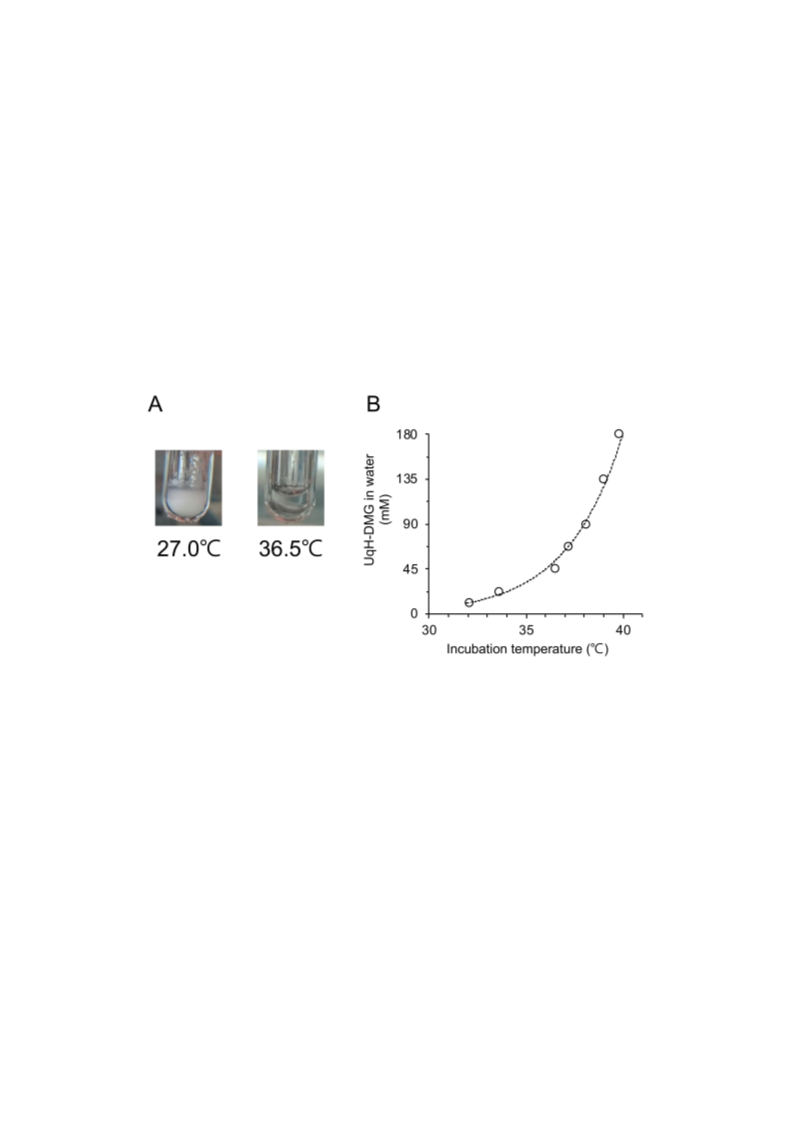

Figure 2. Influence of incubation temperatures on the solubility of UqH-DMG. (
A
) Representative
photographs of 45 mM of UqH-DMG in water at 27.0 ◦C and 36.5 ◦C. (
UqH-DMG in water versus incubation temperatures.
B) Solubilizing points of
Water solubility of UqH monoesters (UqH-1-DMG and UqH-4-DMG) is lower than that of UqH
bis-ester (UqH-DMG). Related Krafft’s points of the monoesters were not observed, since the effect of
ionic surfactant of UqH monoesters were not observed due to the differences in the balance of polar
group(s) and hydrophobic group between UqH bis-ester and monoesters.
2.3. Mixed-Micelle Formation of UqH-DMG with Taurocholic Acid
After UqH-DMG is solubilized in the stomach under low pH, it is expected that UqH-DMG will
encounter bile acid anions in the intestinal lumen under neutral pH. Therefore, the interaction between
UqH-DMG and taurocholic acid (TCA), a representative bile acid, was investigated. The appearance
of a mixture of UqH-DMG:TCA at a molar ratio of 1: 0.5 (Figure 3A) was slightly cloudy, but at
higher proportions of TCA, i.e., UqH-DMG:TCA ratios of 1:1 to 1:10, the solutions became transparent
(Figure 3A). Solutions of 20 mM UqH-DMG in water and a mixture of UqH-DMG:TCA at a 1:1 molar
ratio were subjected to dynamic light scattering measurements. Consistent with the appearances of
the solutions shown in Figure 3A, the Z-average particle diameter of the 20 mM UqH-DMG solution
was 20.38
±
0.14 (mean
±
SD) nm, higher than that of the UqH-DMG/TCA mixture, which was 5.183
±
0.033 (mean
±
SD) nm. These results suggest that the UqH-DMG: TCA mixture at a 1:0.5 molar

Molecules 2020, 25, 546
4 of 11
ratio was cloudy because of complex formation, and at higher molar concentrations of TCA relative to
UqH-DMG, mixed-micelles particles of approximately 5 nm in diameter form spontaneously. Small
micelle particles under 10 nm in diameter are expected to diffuse efficiently in the unstirred water layer
of the intestines, as this is a rate-limiting step in the intestinal absorption.

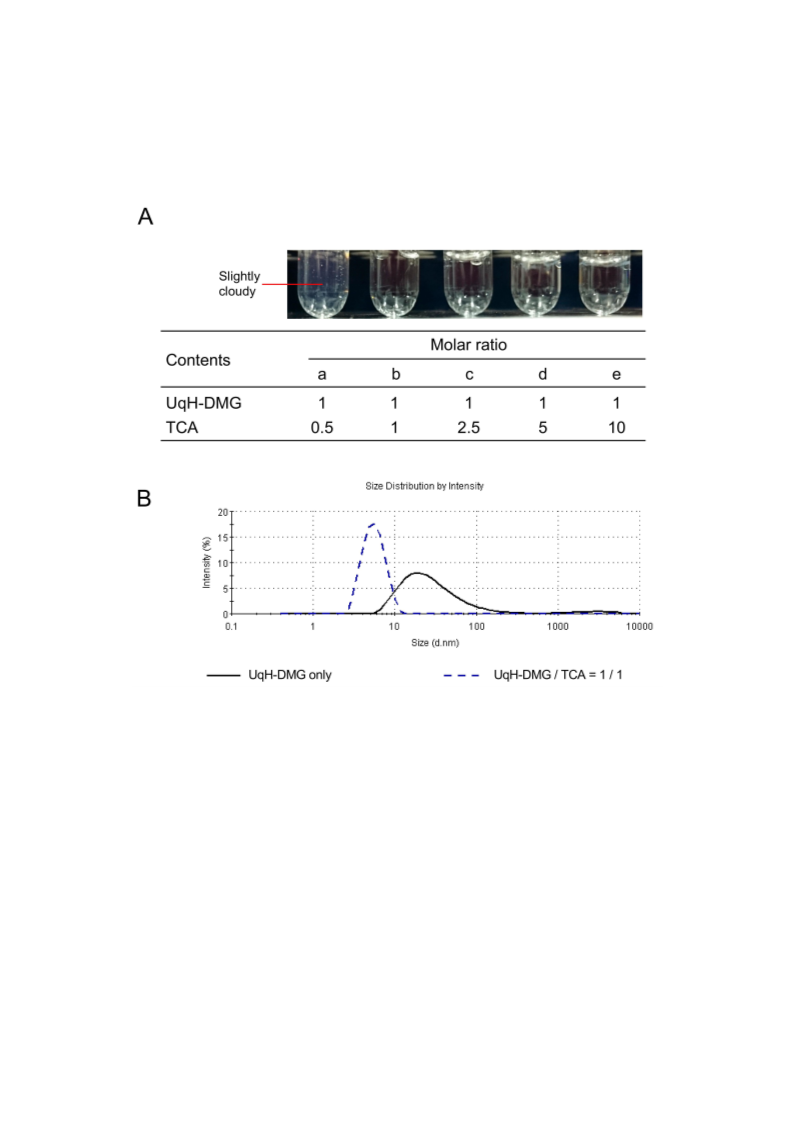

Figure 3. Effect of taurocholic acid on UqH-DMG solubility. (A) Appearance of mixtures of UqH-DMG
and taurocholic acid (TCA) at different molar ratios. ( ) Particle size distribution of UqH-DMG with or
B
without TCA. Solid line: UqH-DMG only, dashed line: UqH-DMG:TCA at a molar ratio of 1:1.
For the interactions between UqH monoesters and taurocholic acid, UqH-4-DMG was solubilized
with, a 10-times molar-equivalents, taurocholic acid. A typical mixed-micelle is the state at which an
anion-cation ion pair(s) is solubilized in either richer component. The types of micelle formed with
taurocholic acid may differ between UqH bis-ester and monoesters.
2.4. Enzymatic Hydrolysis of UqH-10 Derivatives
To determine whether UqH-derivatives can be activated by liver esterases to revert to their
parent form (UqH-10), their hydrolysis in rat and human liver microsomes was assessed. The
UqH-DMG (bis-ester) is expected to be hydrolyzed in a sequential reaction via either 1-mono or
4-monoester, as previously reported for vitamin K hydroquinone [13]. Hence, the hydrolysis velocities
of UqH-monoesters were compared. The velocity versus concentration profile was fitted using
the Michaelis–Menten model, and the kinetic parameters were calculated using GraphPad Prism
6 (GraphPad Software, CA, USA) (Table 1). In rat liver microsomes, hydrolysis of UqH-4-DMG
occurred much faster than UqH-1-DMG. The Vmax/Km value of UqH-4-DMG was 8.9-fold higher than
that of UqH-1-DMG. The hydrolysis of UqH-DMG was also assessed by the rate of generation of

Molecules 2020, 25, 546
5 of 11
UqH-10. The Km and Vmax parameters were similar to those of UqH-1-DMG. Therefore, hydrolysis
of UqH-DMG at position 1 is the rate-limiting step for conversion to UqH-10. In other words, the
rates of hydrolysis depend on the esterified position on UqH-10. To simplify comparisons between
experiments in rat and human microsomes, only UqH-4-DMG was subjected to a human microsome
hydrolysis assay. UqH-4-DMG was readily cleaved in human liver microsomes, and the Vmax and Km
values of UqH-4-DMG hydrolysis were similar to those observed in rat liver microsomes. Furthermore,
to determine whether the hydrolysis of UqH-4-DMG was esterase-dependent, an esterase inhibitor,
eserine, was added to the reactions. As shown in Supplemental Figure S1, eserine inhibited UqH-4-DMG
hydrolysis in both rat and human liver microsomes in a concentration-dependent manner. These
results strongly suggest that UqH-derivatives will be activated by the esterases in human livers.
Table 1. Kinetic parameters for hydrolysis of UqH-DMG, UqH-1-DMG and UqH-4-DMG in rat and
human liver microsomes at pH 7.4 and 37 ◦C.
UqH-DMG a
Rat
UqH-1-DMG
UqH-4-DMG
Human
Parameters
Km
(×10−3 M)
Vmax
3.89 a
0.603 a
0.155 a
4.63
0.821
0.177
0.0751
0.0722
0.123
1.7
0.119
(×10−6 M·min−1
)
V
max/Km
1.58
(×10−3 min−1
)
a
The values are obtained from Michaelis–Menten curve fitting (GraphPad Prism). The kinetic parameters were
calculated using the generated UqH-10 levels after a sequential hydrolysis process.
2.5. Plasma Concentrations of UqH-10 after Single Oral Administration of UqH-Derivatives in Fasted and
Postprandial Rats
To establish the utility of UqH-derivatives as prodrugs, we examined the plasma kinetics of
UqH-10 after single oral administration of UqH-4-DMG and UqH-DMG in fasted rats. Based on
preliminary tests, approximately 70% of total Uq-10 (Uq-10 and UqH-10) existed in the reduced form,
UqH-10. However, UqH-10 was partly oxidized during HPLC sample preparation. Therefore, the total
amount of UqH-10 was taken to be the sum of UqH-10 and Uq-10. Plasma concentrations versus time
plots from rats after oral administration of Uq-10, UqH-4-DMG, or UqH-DMG are shown in Figure 4A.
The pharmacokinetic parameters for UqH-10 were determined by moment analysis and summarized
in Table 2. The Cmax, Tmax, AUC, and MRT parameters were standardized based on control levels of
UqH-10 at each time point that were individually obtained from control rats. Plasma UqH-10 levels
after the administration of UqH-4-DMG and UqH-DMG were significantly elevated and reached Cmax
at 2 and 3 h, respectively. These results demonstrate that UqH-derivatives reverted to the parent
form (UqH-10) in rats and acted as UqH-10-prodrugs. In contrast, plasma UqH-10 levels after Uq-10
administration remained low at approximately 0.2 µM. AUC0–24h values of UqH-10 after UqH-4-DMG
and UqH-DMG administration were 3.30- and 2.36-fold higher than that after Uq-10 administration,
respectively. These results indicate that UqH-prodrugs can be solubilized by low bile acid levels and
efficiently absorbed in rat intestines.

Molecules 2020, 25, 546
6 of 11

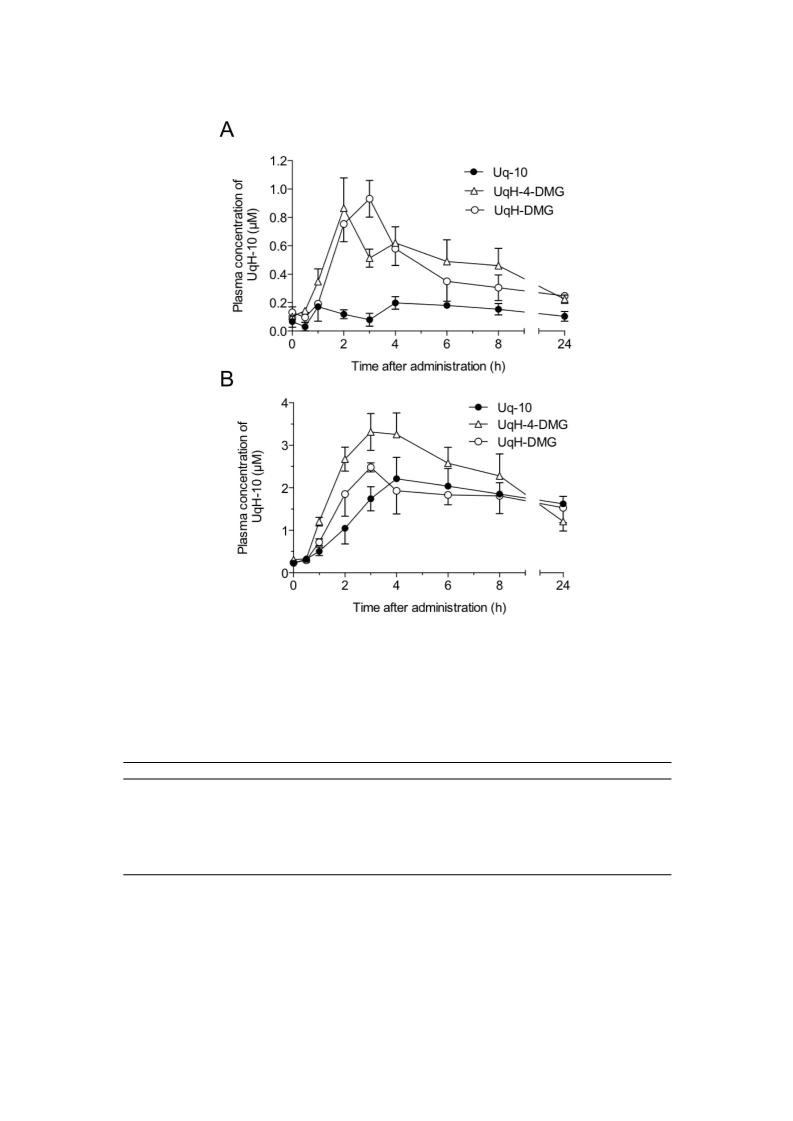

Figure 4. Plasma concentration of UqH-10 after administration of UqH-derivatives or Uq-10 in fasted
and postprandial rats. ( ) Plasma concentration of UqH-10 after administration of 40.5 mmol/kg
weight of UqH-DMG, UqH-4-DMG or Uq-10 in fasted rats (UqH-DMG, n = 6; UqH-4-DMG, n = 5;
Uq-10, n = 4); ( ) plasma concentration of UqH-10 after administration of 40.5 mmol/kg weight of
A
B
UqH-DMG, UqH-4-DMG or Uq-10 in postprandial state rats (n = 3). The values indicate mean ± SE.
Table 2. Pharmacokinetic parameters for UqH-10 after oral administration of UqH-DMG, UqH-4-DMG,
or Uq-10 in fasted and postprandial rats.
Parameters
Uq-10
UqH-4-DMG UqH-DMG
Uq-10
UqH-4-DMG UqH-DMG
Fasted
Postprandial
n
4
5
6
3
3
3
Dose (µmol·kg−1
)
)
40.5
Cmax (µmol·L−1
Tmax (h)
0.143 ± 0.0826
0.763 ± 0.209 0.800 ± 0.157
1.99 ± 0.472
3.01 ± 0.423
2.24 ± 0.110
1
2
3
4
3
3
AUC0-24h
2.16 ± 0.878
8.56 ± 1.96
7.13 ± 1.71
8.96 ± 0.710
5.10 ± 1.57
8.43 ± 0.956
35.0 ± 1.78
12.2 ± 0.971
39.3 ± 6.78
9.12 ± 0.565
34.4 ± 6.51
11.5 ± 0.525
(µmol·L−1·h)
MRT (h)
Values are each the mean
levels of plasma UqH-10 at each point obtained from control rats.
±
SE. The calculated parameters, Cmax, Tmax, AUC and MRT, were standardized by base
To determine the effects of bile secretion on the intestinal absorption of UqH-prodrugs, we
established a postprandial state model to enrich bile secretion in rats. The rats were fed for only
2 h each day during the three weeks prior to administration of UqH-prodrugs and Uq-10. Plasma
levels of UqH-10 after single oral administration of UqH-prodrugs and Uq-10 in the postprandial rats
were significantly higher than those in fasted rats (Figure 4A,B). Even after the Tmax, plasma levels
of UqH-10 in postprandial rats were maintained around 2 µM. These results suggest that abundant

Molecules 2020, 25, 546
7 of 11
bile secretion induced by controlled feeding strongly promotes the solubilization of UqH-prodrugs
and Uq-10. Although there are little differences in the AUC0-24h values of UqH-10 between Uq-10 and
UqH-prodrugs administrations under abundant bile secretion conditions, the UqH-prodrugs brought
forward the Tmax of plasma UqH to an hour earlier than after Uq-10 administration. The change in
Tmax suggests that UqH-prodrugs could solubilize into mixed-micelles upon encounter of bile acid
anions, and did so more efficiently than Uq-10. The results from fasted and postprandial rats show
that Uq-10 is susceptible to intestinal bile levels but UqH-prodrugs are not.
An innovative self-emulsified drug delivery system (SEDDS) for Uq-10 was previously proposed
by Onoue et al [9]. They reported that an SEDDS formulation of Uq-10 improved the oral bioavailability
of Uq-10 compared to crystalline Uq-10. However, this formulation technique tended to produce
larger dosage volumes because it required an equal amount of fatty acid triglycerides and 8-fold more
surfactant relative to Uq-10. In contrast, the current prodrug strategy for UqH-10 can be used to
formulate smaller dosage volumes as they form very small particles (~5 nm) with endogenous bile
acid. This is an improved procedure for developing suitable dosage formulations for easier oral uptake
and enhanced intestinal diffusion.
In conclusion, UqH-4-DMG and UqH-DMG may be good prodrug candidates with enhanced
intestinal absorption due to their ability to form mixed-micelles with bile acid anions. Additional
screening tests to identify the best formulation of UqH-prodrugs, and additional pharmacokinetic
studies will help inform future development of this important biomolecule for health and
medical applications.
3. Materials and Methods
3.1. Chemicals
Uq-10 was a generous gift from Kaneka Corporation (Osaka, Japan) and was used as received.
N,N-Dimethyl glycine hydrochloride was from Tokyo Kasei Kogyo Co., Ltd. (Tokyo, Japan). Eserine
(physostigmine sulfate) was from Sigma-Aldrich Chemical Co. (St. Louis, MO, USA). All other
chemicals were from FUJIFILM Wako Pure Chemical Corporation (Osaka, Japan).
3.2. Animals
Male Sprague–Dawley (SD) rats (eight weeks old), SD rat liver microsomes, and human liver
microsomes were obtained from Charles River, Japan, Inc. (Kanagawa, Japan). All animal care and
use procedures were performed in compliance with the regulations established by the Experimental
Animal Care and Use Committee of Fukuoka University, which are in accordance with the universal
principles of laboratory animal care.
3.3. Instrumental Analyses
All melting points were determined with a BY-1 micro melting point apparatus (Yazawa, Tokyo,
Japan) and were uncorrected. Elementary analyses, 1H-NMR and mass spectra measurements were
performed at the Central Microanalytical Department of Pharmaceutical Sciences, Fukuoka University.
The 1H-NMR spectra were determined at 500 MHz in CDCl3 using a JEOL GX-500b spectrometer (JEOL
Ltd, Tokyo, Japan). The chemical shifts are expressed in δ (ppm), using tetramethylsilane as the internal
standard, with the following abbreviations: s = singlet, d = doublet, m = multiplet. The coupling
constant J was measured in Hz. fast atom bombardment mass (FAB-MS) spectra were obtained using a
JEOL DX-300 spectrometer (JEOL Ltd, Tokyo, Japan). The 1H-NMR and MS spectra of UqH-derivatives
are shown in the Supplemental Figures S2 and S3, respectively.
3.4. Synthesis of Ubiquinol-10 N,N-Dimethylglycinate Derivatives
Uq-10 (3.475 mmol) was dissolved in 150 mL distilled isopropyl ether. Sodium tetrahydroborate
(9.91 mmol), suspended in methanol, was added to this ether solution and stirred for 3 min in the dark.

Molecules 2020, 25, 546
8 of 11
After reduction of Uq-10 was completed, the mixture was treated with 100 mL degassed water and
extracted with distilled isopropyl ether. The organic layer was dried over anhydrous sodium sulfate
and evaporated in vacuo. The resulting residue, a milk-white solid, was used in the following steps
as UqH-10.
N,N-Dimethylglycine (10.424 mmol) and dicyclohexylcarbodiimide (DCC, 10.424 mmol) in 20
mL of dry pyridine were stirred for 20 min and then UqH-10 (3.475 mmol) was added. The reaction
mixture was stirred for 14 h at room temperature in the dark.
After the reaction, the dicyclohexylurea formed was removed by filtration, and the filtrate was
evaporated in vacuo. The residue was suspended in 100 mL distilled water and alkalinized with sodium
bicarbonate. Dicyclohexylurea was completely removed by filtration and the filtrate was treated with
150 mL water and made alkaline with sodium bicarbonate. Then the solution was extracted with ethyl
acetate. The organic layer was dried over anhydrous sodium sulfate and evaporated. The residue was
fractionated on Flash 40+M silica gel columns (
ϕ
40
×
150 mm, Biotage Japan Co., Ltd., Tokyo, Japan),
eluted with a gradient of 1:1 to 2:8 (v/v) n-hexane/ethyl acetate. This yielded two fractions, a mixture of
monoesters (Rf = 0.45) and the 1,4-bis ester (Rf = 0.36). n-Hexane containing 3N dioxane hydrochloride
was added to the 1,4-bis ester fraction and the precipitate was collected and recrystallized from acetone
to give the hydrochloride salt of 2,3-dimethoxy-5-methyl-6-decaprenyl-benzene-1,4-bis-N,N–dimethyl
glycinate (UqH-DMG). The compound was a white solid.
UqH-DMG: Yield 42%. mp 179–181 ◦C. 1H-NMR (500 MHz, CDCl3)
(CH3 9, m), 1.68 (CH3, d, J = 1.0), 1.72 (CH3, d, J = 1.0), 1.94–2.16 (CH2
(CH2, d, J = 6.5), 3.84 (CH3 2, s), 4.88–5.13 (CH
2, s), 3.10 (CH3
2, s), 4.21 (CH2, s), 4.31 (CH2, s). FAB-MS (m/z); 1035 (M+-2HCl). Anal. Calcd for
δ: Uq-10 moiety; 1.55–1.62
×
×
18, m), 2.08 (CH3, s), 3.22
×
×
10, m), N,N-dimethylglycine moiety; 3.07 (CH3
×
×
C67H108N2O6Cl2: C, 72.60; H, 9.82; N, 2.53. Found: C, 72.36; H, 9.94; N, 2.42.
The mixture of monoesters was fractionated by HPLC. A normal phase column Mightysil Si60
(
ϕ
20
×
250 mm, Kanto Chemical, Tokyo, Japan) and a mobile phase of n-hexane-ethyl acetate (7:3,
v/v) at a flow rate of 15 mL/min, was used. The eluent was detected spectrophotometrically at 280
nm. The retention times for the 1-monoester and 4-monoester were 25.7 and 33.0 min, respectively.
Corresponding fractions were collected in n-hexane containing 3N dioxane hydrochloride and isolated
as the hydrochloride salts of the 1-monoester (UqH-1-DMG) and 4-monoester (UqH-4-DMG). Both
were white solids. The structures of UqH-1-DMG and UqH-4-DMG were determined by using 1H-13C
HMBC NMR techniques.
UqH-1-DMG: Yield 19%. mp 82–85 ◦C. 1H-NMR (500 MHz, CDCl3)
(CH3 9, m), 1.67 (CH3, d, J = 1.0), 1.71 (CH3, d, J = 1.0), 1.57–1.62 (CH2
(CH2, d, J = 7.0), 3.82 (CH3, s), 3.90 (CH3, s), 4.90–5.12 (CH
(CH3
75.98; H, 10.22; N, 1.41. Found: C, 75.89; H, 10.30; N, 1.39.
UqH-4-DMG: Yield 14%. mp 75–78 ◦C. 1H-NMR (500 MHz, CDCl3)
(CH3 9, m), 1.68 (CH3, d, J = 1.0), 1.76 (CH3, d, J = 1.0), 1.98–2.09 (CH2
(CH2, d, J = 7.0), 3.82 (CH3, s), 3.90 (CH3, s), 5.07–5.13 (CH
(CH3
2, s), 4.17 (CH2, s). FAB-MS (m/z); 950 (M+-HCl). Anal. Calcd for C63H100NO5Cl + H2O: C,
δ: Uq-10 moiety; 1.57–1.62
×
×
18, m), 2.14 (CH3, s), 3.17
10, m), N,N-dimethylglycine moiety; 3.05
×
×
2, s), 4.10 (CH2, s). FAB-MS (m/z); 950 (M+-HCl). Anal. Calcd for C63H100NO5Cl + 0.5H2O: C,
δ: Uq-10 moiety; 1.58–1.60
×
×
18, m), 2.03 (CH3, s), 3.35
10, m), N,N-dimethylglycine moiety; 3.08
×
×
75.30; H, 10.23; N, 1.39. Found: C, 75.30; H, 10.47; N, 1.39.
3.5. Water Solubility
The aqueous solubility of each ester was determined by adding 20
mL distilled water in amber test tubes and incubating the tubes at 25
1 ◦C in a constant-temperature
water bath. The test tubes were shaken for 24 h and the suspensions were centrifuged at 1250 g for
µmol of each compound to 1
±
×
10 min. The supernatants were diluted 10-fold with distilled water and assayed by the HPLC method
described in Section 3.9.1.

Molecules 2020, 25, 546
9 of 11
3.6. Micellization of UqH-DMG in Water
UqH-DMG was diluted to intended concentrations with milliQ water in glass tubes. The test
tubes were incubated in a water bath equipped with a thermometer. The solution appearance was
visually inspected and the solubilizing points were plotted on a concentration versus incubation
temperature curve.
3.7. Mixed-Micellization of UqH-DMG with Taurocholic Acid
3.7.1. Preparation of Aqueous Solutions of UqH-DMG with Taurocholic Acid
A solution of 20 mM UqH-DMG was prepared in distilled water and incubated at 36.5 ◦C until
the solution was translucent. The solution was combined with 10 mM TCA aqueous solution in the
final molar ratios of 1:0.5–10 UqH-DMG:TCA.
3.7.2. Determination of Particle Sizes
The Z-average of diameters of the particles of aqueous solution of UqH-DMG prepared in a
polystyrene cuvette in Section 3.7.1. above were determined by a Zetasizer Nano ZS (MALVERN,
Worcestershire, UK). The measurements were performed three independent times for each sample.
3.8. Enzymatic Hydrolysis of UqH-Derivatives
The hydrolysis of esters was analyzed at 37 ◦C in phosphate buffered saline (PBS) containing
commercially available rat or human liver microsomes (In Vitro Technologies, Inc., Baltimore, MD,
USA). The microsomes (20 mg/mL) were adjusted to a protein concentration of 2 mg/mL and were
preincubated at 37 ◦C for 5 min before adding the esters.
Stock solutions of esters were prepared in ethanol. The enzymatic reactions were initiated by
adding 10
reaction medium containing rat or human liver microsomes in amber test tubes. These reactions
were incubated at 37 ◦C and, at various times, 100
L aliquots were removed and mixed with 100
L 10% trichloroacetic acid. Samples were then vortex mixed for 2 min and 800 L ethyl acetate was
added, with vortex mixing for 5 min. The samples were centrifuged at 1250 g for 10 min. The 20 µL
µL ester stock solution (final concentration 0.1–0.4 mM) and 50 µL PBS to 940 µL of preheated
µ
µ
µ
×
organic layer was analyzed by the HPLC system described in Section 3.9.1. The initial hydrolytic rate
(mM UqH-10 formed per min) was calculated from the initial slope of a plot of UqH-10 concentration
versus time.
Effects of eserine on UqH-4-DMG hydrolysis in liver microsomes was also examined, using
similar methods, with 50 µL eserine aqueous solution added, instead of PBS, to the mixtures with liver
microsomes. Eserine was tested at 0–2.0 mM.
3.9. HPLC Analysis
3.9.1. HPLC System and Conditions for Water Solubility and Hydrolysis Study
The Shimadzu HPLC system (Shimadzu, Kyoto, Japan) consisted of a pump (LC-10AD), an
autoinjector (SIL-10ADvp), a UV detector (SPD-10Avp), and a column oven (CTO-10Avp). The eluent
was monitored spectrophotometrically at 280 nm. Compounds were analyzed on a YMC-Pack C8
reversed-phase column (
ϕ
4.6
×
250 mm, YMC Co., Ltd., Kyoto, Japan) protected by a µBondapak C18
Guard-Pak (Waters Co., Milford, MA, USA) with a degassed mobile phase of methanol and 2-propanol
(850/150, v/v) at 0.8 mL/min. UqH-10 and Uq-10 were quantified using linear calibration curves of peak
areas versus concentrations. UqH-10 was partly oxidized during the preparation procedure. Therefore,
the sum of UqH-10 and Uq-10 represented total UqH-10. Retention times were: UqH-10, 11.6 min;
UqH-ester derivatives, 13.2 min and Uq-10, 15.4 min.

Molecules 2020, 25, 546
10 of 11
3.9.2. HPLC System and Conditions for Pharmacokinetic Study
The HPLC system consisted of a pump (Model LC-10AD, Shimadzu), an autoinjector (Model
SIL-10ADvp, Shimadzu) and a column oven (Model CTO-10Avp, Shimadzu). Compounds were
analyzed using a CAPCELL PAK C18 column (
ϕ
4.6
×
150 mm, particle size 3
µm, Shiseido, Tokyo,
Japan), protected by a Nova-Pak C18 ( 3.9 20 mm, particle size 4 µ
ϕ
×
m, Waters Co.) guard column,
with a mobile phase consisting of 0.7% sodium perchlorate monohydrate in methanol/ethanol/70%
perchloric acid (400/600/1, v/v/v) delivered at flow rate 0.6 mL/min. The peak area was used to
quantify UqH-10.
The detection system consisted of a Coulochem II electrochemical detector (ESA, Inc., Chelmsford,
MA, USA), connected with two cells. After separation, Uq-10 was reduced to UqH-10 by passing
through the Model 5020 guard cell (–450 mV) and was oxidized by passing through the Model 5011
analytical cell (electrode 1, –100 mV; electrode 2, +350 mV). The signals of electrode 2 were transmitted
to the detector (filter, 10 sec; output, 1 V; offset, 20%; gain range, 0–7 min = 500 nA, 7–22 min = 10 nA).
Chromatographic data were integrated using CLASS-vp (Shimadzu, Japan). UqH-10 and Uq-10 were
quantified using linear calibration curves of peak areas versus compound concentrations. Retention
times were: UqH-DMG, 4.8 min; UqH-1-DMG, 6.6 min; UqH-4-DMG, 6.7 min; UqH-10, 11.4 min and
Uq-10, 16.8 min.
3.10. Dosing Protocol
We first performed a preliminary experiment to determine the effects of food intake on
gastrointestinal absorption of Uq-10 in rats. The contents of commercially available hard capsules
(Neuquinon® capsules, Eisai Co., Ltd., Tokyo, Japan) were used as the source of Uq-10. The Uq-10
preparation was suspended in distilled water containing 20% (w/v) arabic gum. Before the experiment,
the fasting group was fasted for 16 h prior to dosing. In the controlled-feeding group, feeding for 2 h
per day was continued for 3 weeks before dosing and Uq-10 was administered 2 h after the feeding time.
All rats were supplied with drinking water ad libitum. Uq-10 was administered via the esophagus
with a gastric tube. Rats were administered 40.5 mmol/kg Uq-10 in 0.2 mL/100 g body weight and
were given no food after administration. At 0.5, 1, 2, 3, 4, 6, 8, and 24 h, blood samples (200 µL) were
collected from the external jugular vein under anesthesia with isoflurane using heparinized syringes.
UqH-10 and Uq-10 were extracted as described by Yamashita and Yamamoto [15]. The plasma was
isolated by centrifugation, and 50
mixing for 30 s, 500 L n-hexane was added, followed by vortex mixing for 2 min. The samples were
diluted with ethyl acetate and centrifuged at 1250 g for 3 min. A 5 L aliquot of each organic layer
was analyzed by the HPLC system described in Section 3.9.2.
µL plasma aliquots were added to 250 µL methanol. After vortex
µ
×
µ
Based on results of this initial experiment, we next treated rats with Uq-10, UqH-4-DMG and
UqH-DMG, using the same procedures. UqH-4-DMG and UqH-DMG were suspended in a 20%
propylene glycol aqueous solution. All compounds were administered at 40.5 mmol/kg.
Supplementary Materials: The following are available online, Figure S1. Effects of eserine on enzymatic hydrolysis
of UqH-4-DMG by rat and human liver microsomes.
Author Contributions: Conceptualization: S.S., R.H., N.N.-A., and J.T.; methodology: S.S., R.H., and N.N.-A.;
validation: S.S. and N.N.-A.; formal analysis: S.S., R.H., and N.N.-A.; investigation: S.S., R.H., N.N.-A., and D.W.;
resources: N.N.-A. and J.T.; data curation: S.S. and N.N.-A.; writing—original draft preparation: S.S. and N.N.-A.;
writing—review and editing: S.S., R.H., K.M., and J.T.; visualization: S.S. and R.H.; supervision: M.K. and K.M.;
project administration: K.M. and J.T.; funding acquisition: Y.K. and J.T. All authors have read and agreed to the
published version of the manuscript.
Funding: This research received no external funding.
Acknowledgments: We thank Akihiko Yamasaki and Kentaro Kamata who were a co-researcher and master’s
student, respectively, in our laboratory that supported the experimental execution of this study.
Conflicts of Interest: The authors declare no conflict of interest.

Molecules 2020, 25, 546
11 of 11
References
1.
2.
3.
4.
Ernster, L.; Dallner, G. Biochemical, physiological and medical aspects of ubiquinone function. Biochimica Et
Biophysica Acta - Mol. Basis Dis. 1995, 1271, 195–204. [CrossRef]
Bhagavan, H.N.; Chopra, R.K. Coenzyme Q10: Absorption, tissue uptake, metabolism and pharmacokinetics.
Free Radic. Res. 2006, 40, 445–453. [CrossRef] [PubMed]
Hern
ández-Camacho, J.D.; Bernier, M.; López-Lluch, G.; Navas, P. Coenzyme Q. Front. Physiol. 2018, 9, 44.
[CrossRef] [PubMed]
Beal, M.F.; Oakes, D.; Shoulson, I.; Henchcliffe, C.; Galpern, W.R.; Haas, R.; Juncos, J.L.; Nutt, J.G.; Voss, T.S.;
Ravina, B.; et al. A Randomized Clinical Trial of High-Dosage Coenzyme Q10 in Early Parkinson Disease No
Evidence of Benefit. JAMA Neurol. 2014, 71, 543–552. [CrossRef] [PubMed]
5.
6.
Yang, Y.K.; Wang, L.P.; Chen, L.; Yao, X.P.; Yang, K.Q.; Gao, L.G.; Zhou, X.L. Coenzyme Q10 treatment of
cardiovascular disorders of ageing including heart failure, hypertension and endothelial dysfunction. Clin.
Chim. Acta 2015, 450, 83–89. [CrossRef] [PubMed]
Hosoe, K.; Kitano, M.; Kishida, H.; Kubo, H.; Fujii, K.; Kitahara, M. Study on safety and bioavailability of
ubiquinol (Kaneka QH (TM)) after single and 4-week multiple oral administration to healthy volunteers.
Regul. Toxicol. Pharmacol. 2007, 47, 19–28. [CrossRef] [PubMed]
7.
8.
Porter, C.J.H.; Trevaskis, N.L.; Charman, W.N. Lipids and lipid-based formulations: optimizing the oral
delivery of lipophilic drugs. Nat. Rev. Drug Discov. 2007, 6, 231–248. [CrossRef] [PubMed]
Kommuru, T.R.; Gurley, B.; Khan, M.A.; Reddy, I.K. Self-emulsifying drug delivery systems (SEDDS) of
coenzyme Q10: formulation development and bioavailability assessment. Int. J. Pharm. 2001, 212, 233–246.
[CrossRef]
9.
Onoue, S.; Uchida, A.; Kuriyama, K.; Nakamura, T.; Seto, Y.; Kato, M.; Hatanaka, J.; Tanaka, T.; Miyoshi, H.;
Yamada, S. Novel solid self-emulsifying drug delivery system of coenzyme Q10 with improved photochemical
and pharmacokinetic behaviors. Eur. J. Pharm. Sci. 2012, 46, 492–499. [CrossRef] [PubMed]
10. Cheuk, S.Y.; Shih, F.F.; Champagne, E.T.; Daigle, K.W.; Patindo, J.A.; Mattison, C.P.; Boue, S.M.
Nano-encapsulation of coenzyme Q(10) using octenyl succinic anhydride modified starch. Food Chem.
2015, 174, 585–590. [CrossRef] [PubMed]
11. Sikorska, M.; Lanthier, P.; Miller, H.; Beyers, M.; Sodja, C.; Zurakowski, B.; Gangaraju, S.; Pandey, S.;
Sandhu, J.K. Nanomicellar formulation of coenzyme Q10 (Ubisol-Q10) effectively blocks ongoing
neurodegeneration in the mouse 1-methyl-4-phenyl-1,2,3,6-tetrahydropyridine model: Potential use as an
adjuvant treatment in Parkinson’s disease. Neurobiol. Aging 2014, 35, 2329–2346. [CrossRef] [PubMed]
12. Sato, Y.; Yokoyama, S.; Yamaki, Y.; Nishimura, Y.; Miyashita, M.; Maruyama, S.; Takekuma, Y.; Sugawara, M.
Enhancement of intestinal absorption of coenzyme Q10 using emulsions containing oleyl polyethylene acetic
acids. Eur. J. Pharm. Sci. 2019, 142, 105144. [CrossRef] [PubMed]
13. Takata, J.; Karube, Y.; Hanada, M.; Matsunaga, K.; Matsushima, Y.; Sendo, T.; Aoyama, T. Vitamin-k prodrugs
1. Synthesis of amino-acid esters of menahydroquinone-4 and enzymatic reconversion to an active form.
Pharm. Res. 1995, 12, 18–23. [CrossRef] [PubMed]
14. Takata, J.; Karube, Y.; Hanada, M.; Matsunaga, K.; Matsushima, Y.; Sendo, T.; Oishi, R. Vitamin K prodrugs.
2. Water-soluble prodrugs of menahydroquinone-4 for systemic site-specific delivery. Pharm. Res. 1995, 12,
1973–1979. [CrossRef] [PubMed]
15. Yamashita, S.; Yamamoto, Y. Simultaneous detection of ubiquinol and ubiquinone in human plasma as a
marker of oxidative stress. Anal. Biochem. 1997, 250, 66–73. [CrossRef] [PubMed]
Sample Availability: Samples of the compound, UqH-DMG is available from the authors.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
