Tunable Adhesion from Stoichiometry-controlled and
Sequence-defined Supramolecular Polymers Emerges
Hierarchically from Cyanostar-stabilized Anion-anion Linkages
Wei Zhao, Joshua Tropp, Bo Qiao, Maren Pink, Jason D. Azoulay, and Amar H Flood
J. Am. Chem. Soc., Just Accepted Manuscript • Publication Date (Web): 14 Jan 2020
Downloaded from pubs.acs.org on January 14, 2020
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 43
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
J. Am. Chem. Soc.
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Tunable Adhesion from Stoichiometry-controlled and Sequence-
defined Supramolecular Polymers Emerges Hierarchically from
Cyanostar-stabilized Anion-anion Linkages
†
‡
†,§
†
‡
,†
Wei Zhao, Joshua Tropp, Bo Qiao, Maren Pink, Jason D. Azoulay, and Amar H. Flood*
†
Department of Chemistry, Indiana University, 800 East Kirkwood Avenue, Bloomington, IN
47405, USA.
‡
School of Polymer Science and Engineering, The University of Southern Mississippi, 118
College Drive, Hattiesburg, MS 39406, USA.
aflood@indiana.edu
1
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 2 of 43
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
Abstract
Sequence-controlled supramolecular polymers offer new design paradigms for generating stimuli-
responsive macromolecules with enhanced functionalities. The dynamic character of
supramolecular links present challenges to sequence definition in extended supramolecular
macromolecules, and design principles remain nascent. Here, we demonstrate the first example of
using stoichiometry-control to specify the monomer sequence in a linear supramolecular polymer
by synthesizing both a homopolymer and an alternating copolymer from the same glycol-
substituted cyanostar macrocycle and phenylene-linked diphosphate monomers. A 2:1
stoichiometry between macrocycle and diphosphate produces a supramolecular homopolymer of
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
general formula (A) comprised of repeating units of cyanostar-stabilized phosphate-phosphate
n
dimers. Using a 1:1 stoichiometry, an alternating (AB) structure is produced with half the
n
phosphate dimers now stabilized by the additional counter cations that emerge hierarchically after
forming the stronger cyanostar-stabilized phosphate dimers. These new polymer materials and
binding motifs are sufficient to bear normal and shear stress to promote significant and tunable
adhesive properties. The homopolymer (A) , consisting of cyanostar-stabilized anti-electrostatic
n
linkages, shows adhesion strength comparable to commercial superglue formulations based on
polycyanoacrylate but is thermally reversible. Unexpectedly, and despite including traditional
ionic linkages, the alternating copolymer (AB) shows weaker adhesion strength more similar to
n
commercial white glue based on poly(vinyl acetate). Thus, the adhesion properties can be tuned
over a wide range by simply controlling the stoichiometric ratio of monomers. This study offers
new insight into supramolecular polymers composed of custom-designed anion and receptor
monomers and demonstrates the utility of emerging functional materials based on anion-anion
interactions.
2
ACS Paragon Plus Environment

Page 3 of 43
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Introduction
Emerging technologies derived from responsive supramolecular polymers 1-2 benefit from
the creation of versatile macromolecules with synthetically engineered functionalities.3-4 Interest
in supramolecular polymers5-7 continues unabated owing to the unique properties conferred by
their noncovalent connectivities and dynamic structures,8-9 as well as their potential for
applications in biomedicine,10-11 optoelectronics,12-13 and adaptive materials.14-15 These
applications benefit from chemically unique and reconfigurable macromolecular linkages
combined with well-defined sequences of monomer units.6,16 Pioneering efforts to control the
sequences of supramolecular polymers have relied on monomers encoded with orthogonal
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
7
18
supramolecular linkages, e.g., hydrogen bonding, metal-ligand coordination, and host-guest
1
9
recognition. These include heterotopic monomers bearing end-groups with orthogonal linkage
chemistries,20-29 and use of two different homotopic monomers with complementary binding
partners at either end.30-33 The orthogonal monomers enable self-sorting to define supramolecular
polymer sequences.28,34 However, use of a single homotopic monomer to achieve sequence control
is unknown. This outcome appears to be a contradiction given that the identical end-groups do not
offer pre-programmed orthogonality. Here we report the discovery of a single homotopic dianion
monomer (Figure 1a) that combines with a macrocycle (Figure 1b) where orthogonal recognition
chemistries emerge hierarchically (Figure 1c) to enable control over monomer sequence in homo
(
Figure 1d) and alternating35-36 (Figure 1e) supramolecular polymers simply by changing reaction
stoichiometry.
3
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 4 of 43
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Figure 1. Structures of (a) the homotopic diphosphate with a rigid phenylene linker, (b) the new
cyanostar macrocycle, OTgCS, and linkage chemistries of (c) cyanostar-stabilized phosphate-
phosphate dimer (A) and cation-stabilized phosphate-phosphate dimer (B). Representation of
stoichiometry-controlled supramolecular polymers: (d) homopolymer (A) shows strong adhesion
n
and (e) the alternating copolymer (AB) shows weak adhesion.
n
4
ACS Paragon Plus Environment

Page 5 of 43
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Previous studies have demonstrated that variation in the reaction stoichiometry of the
monomers can control various features of supramolecular polymers. These include the topology
by toggling between linear and crosslinked states,37-39 and net chirality.40-42 Use of the
stoichiometry to control the sequences in linear supramolecular polymers, however, remains
nascent. The role of stoichiometry is well established in small molecule chemistry. Different host-
guest complexes can be made by altering stoichiometry37-38 but this functionality has yet to be
leveraged for controlling sequences in supramolecular polymers. There are, in general, very few
reported examples of using stoichiometry control. Among them, the closest involves addition of 3
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
2
+
39
mole% of Eu to a linear zinc-coordinated supramolecular polymer to drive crosslinking. In
4
3
pioneering work from Sessler, stoichiometry was evident when using cationic macrocycles,
called “Texas-sized” boxes, combined with terephthalate monoanions where changing monomer
ratio from 3:2 to 1:1 drove a transition from a small-molecule complex to a supramolecular
polymer. In this case, however, the sequence of the supramolecular polymer was not tunable.
These examples highlight the underdeveloped nature of this approach to control the sequence of
supramolecular polymers. To the best of our knowledge, stoichiometry has not been used to control
the sequence of monomers to form well-defined homo and alternating supramolecular polymers.
To construct supramolecular polymers, reliable noncovalent interactions with high affinity
3
and fidelity are essential. To date, many well-defined recognition chemistries have been
developed and exploited to synthesize supramolecular polymers. The majority of examples are
based upon metal-coordination,44 hydrogen bonding,45-46 π-π interactions47-48 and host-guest
interactions.49-50 Studies involving anion coordination as the driving force for supramolecular
polymerization, however, account for less than 1% of the 10,000+ reports. We51-52 and
others21,43,53-59 have recently been working toward filling this gap by exploring the novel
5
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 6 of 43
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
noncovalent chemical connectivities promoted by anion receptors and anionic monomers. We
leveraged the high-fidelity dimerization of phosphonate hydroxyanions inside cyanostar
macrocycles as the driving force necessary for the formation of well-defined supramolecular
polymers.52 The cyanostar-stabilized anion-anion dimer constitutes a 2:2 recognition motif.
Therein, two (2) hydroxyanions dimerize through anti-electrostatic hydrogen bonding60-66 inside a
π-stacked pair (2) of cyanostar macrocycles. Although the elementary recognition has been
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
2
– 67-69
verified with bisulfate dimers (HSO •••HSO ) ,
dimers of dihydrogen phosphate
4
4
2
– 70-71
2– 52
(
H PO •••H PO ) ,
and in polymerization of phosphonate monomers (RHPO •••RHPO ) ,
3 3
2
4
2
4
the investigation and development of this anion recognition chemistry into a useful tool for
supramolecular polymer-based materials is far from developed. In our previous study of
52
supramolecular polymerization driven by phosphonate dimerization, precipitation of a relatively
low molecular-weight product limited subsequent studies to better understand and elucidate the
design principles governing anion-anion driven supramolecular polymerizations.
In this present work, we leverage the inherent modularity of anion-anion dimerization to
create new supramolecular connectivities, and present the first example where stoichiometry
generates well-defined supramolecular polymers with controlled sequences. We designed a
cyanostar that is penta-substituted with triethylene glycol chains (OTgCS, Figure 1b) to overcome
the solubility issues associated with the parent cyanostar (tBuCS).72 We combined these
macrocycles with a rigid diphosphate monomer bearing two identical phosphate end-groups
connected by a single phenyl ring (Figure 1a). We discovered that the stoichiometric ratio between
building blocks controls the sequence of supramolecular linkages present in the resulting polymers
(Figure 1c). A 2:1 stoichiometry between macrocycle and diphosphate monomer produces a
supramolecular homopolymer, (A) , with repeat units of identical 2:2 anion-receptor recognition
n
6
ACS Paragon Plus Environment

Page 7 of 43
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
units. When combined in a 1:1 stoichiometry, however, two types of supramolecular linkages
arranged in an alternating sequence define an alternating copolymer (AB) . These links include
n
the pre-programmed anti-electrostatic 2:2 anion-receptor recognition of (A), and an unexpected
link, (B), based on a phosphate-phosphate dianion dimer stabilized by ion-pairing with the
tetrabutylammonium counter cations (Figure 1c). We demonstrate the use of these materials as a

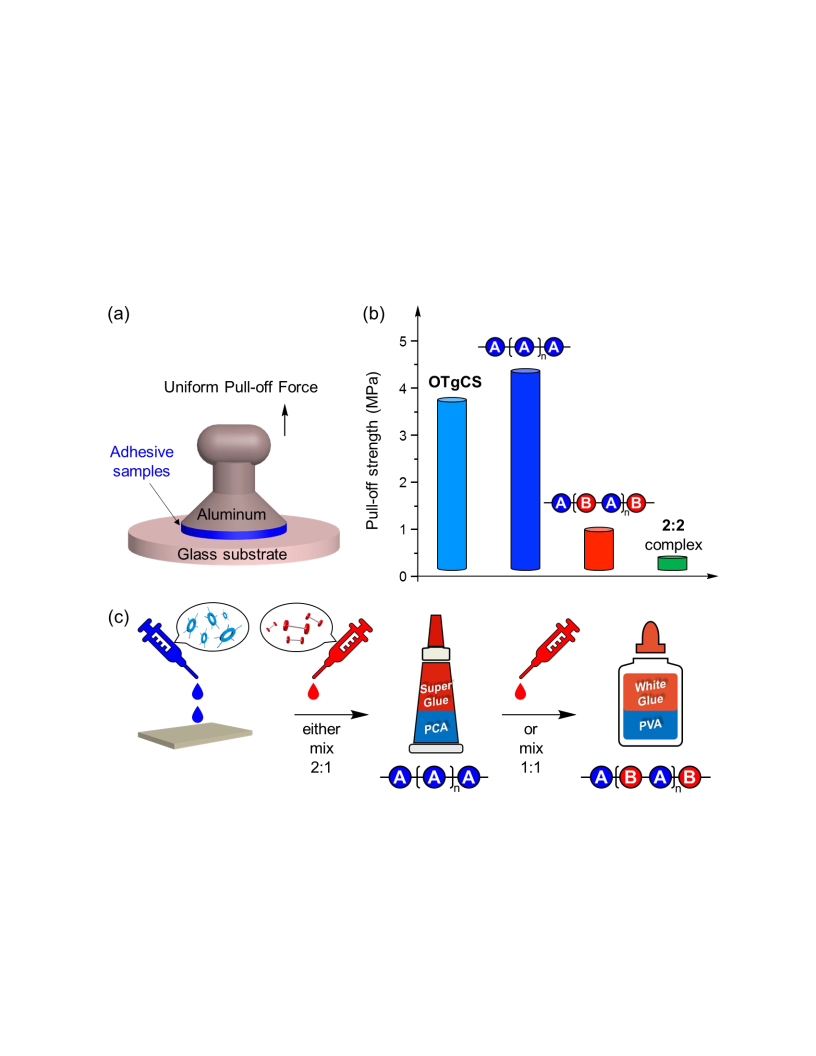

new class of anion-coordination driven supramolecular polymer adhesives.73-80 The homopolymer
comprised of cyanostar-stabilized phosphate dimers is sufficiently cohesive to glue hydrophilic
glass slides together to support relatively heavy weights (10 lbs) while the alternating copolymer,
with half the links composed of cation-stabilized anion-anion dimers, shows much weaker
adhesion. We see OTgCS macrocycles are also capable of supporting strong adhesion on account
of π-stack mediated self-association of macrocycles. Putative hydrogen bonding from the glass
surface to the OTgCS macrocycle’s glycol chains operates in concert with the supramolecular
polymerization to promote the adhesion. The adhesion properties correlate to the sequences of the
supramolecular polymers allowing for the development of structure-property relationships for
anion-anion driven supramolecular polymers and design principles for anion-based materials.
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Results and Discussion
Molecular Design
The OTgCS cyanostar was synthesized with five triethylene glycol chains (Scheme 1) to
enhance solubility for studying polymerization at high concentrations. Ethylene glycol chains are
also commonly incorporated into synthetic adhesives to enable strong hydrogen bonding
interactions with hydrophilic surfaces. The length of the glycol chain was designed to provide
7
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 8 of 43
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
sufficient solubility and adhesion properties without adversely impacting purification using
chromatography. The modified OTgCS macrocycle was made in good yield following the same
7
2
procedure as the parent cyanostar, tBuCS. The new cyanostar achieved the desired goals with
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
enhanced solubility in common organic solvents such as dichloromethane, acetonitrile, and
methanol, and demonstrated a similar anion-binding profile as the parent tBuCS macrocycle
–
towards both PF (Figure S11) and phenyl monophosphate (Figure S12).
6
Scheme 1. Synthetic scheme for preparation of penta-substituted cyanostar macrocycle, OTgCS.
OTg
OTg
OTg
PCC
Silica gel
I
2
Cs CO3
CuI
Pd(PPh ) Cl
CH Cl2
EtOH / THF
HO
CN
HO
CN
O
2
H
CN
3
2
2
O
THF / Et N
75%
74%
3
90%
O
O
O
OTg =
O
O
O
O
O
O
O
N
N
O
O
O
O
N
N
O
O
O
N
O
O
O
O
O
O
8
ACS Paragon Plus Environment

Page 9 of 43
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Two types of difunctional monomers were originally designed to help study the
dependence of monomer structure on polymerization. A long flexible monomer, triethylene glycol
bis(phenyl-p-phosphate), was used for initial polymerization studies. Its flexibility mimics the
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
52
dodecylene diphosphonate we used previously to demonstrate polymerization with tBuCS. This
flexible monomer was expected and found to behave similarly, providing confirmation that the
hydroxyanion dimerization could be used as pre-programmed supramolecular links with both
diphosphates as well as the original diphosphonates. To conduct structure-property studies, we
also selected a short and rigid phenylene diphosphate monomer. We initially hypothesized that it
may limit supramolecular polymerization on account of steric interactions and decreased polymer
solubility. We did not anticipate the structural difference between the two monomers would
manifest in the stoichiometric control of supramolecular polymer sequence reported herein.
2
:2 Model Complex between Phenyl Monophosphate and Cyanostar
We used the 2:2 complexation between phenyl monophosphate and the OTgCS
macrocycle as a small-molecule model of the linkage chemistry expressed in the supramolecular
1
polymers. The 2:2 complex forms with high fidelity as seen in a titration monitored by H NMR
spectroscopy (Figure S12). A number of features are similar to the complexation of phenyl
70
monophosphate with the parent cyanostar tBuCS. The uncomplexed OTgCS macrocycle shows
similar aromatic peak positions as tBuCS (Figure 2a). Upon addition of 1.0 equivalent of phenyl
monophosphate, we see a characteristic signature of the 2:2 linkage (Figure 2b). The far down-
field shifted peak at 14.7 ppm is assigned to the phosphate’s OH peak and its position is diagnostic
of the formation of a self-complementary hydrogen bond between the two phosphates and, thus,
6
7
confirmation of phosphate dimerization. The anion dimers are formed inside the cavity of π-
9
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 10 of 43
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
70
stacked macrocycles as established in previous reports. Confirmation of the macrocycle dimers
stems from the two H peaks (7.6 ppm, Figure 2b) assigned to diastereomers. Single cyanostars
c
are a racemic mixture of rapidly interconverting M and P enantiomers that are known to form into
meso (MP) and chiral (MM and PP) combinations upon 2:2 complexation.72,81 Resolution of the
two diasteromeric complexes (meso and chiral) indicates exchange between them is slow on the
NMR time scale. The formation of the 2:2 complex is also supported by diffusion NMR. The
diffusion values obtained from the cyanostar (H ) and the phenylene monophosphate (H ) are
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
c
f
identical and generate a volume that is 1.5 times larger than the free macrocycle (Figure 2d).
1
Figure 2. Representations and stacked H-NMR spectra of (a) OTgCS, (b) the small-molecule 2:2
complex, and (c) the supramolecular polymer (C) . (d) Normalized size comparisons were
n
10
ACS Paragon Plus Environment

Page 11 of 43
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
푘퐵푇
determined from diffusion coefficients based on the Stokes-Einstein equation (D = 6휋휂푟) and the
4
1
3
spherical model (V = 푟 ), V is proportional to . ([OTgCS] = 10 mM, [phenyl monophosphate]
3
3
퐷
=
10 mM, [triethylene glycol bis(phenyl-p-phosphate)] = 5 mM, CD Cl , 298 K, 600 MHz).
2 2
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Supramolecular Homopolymer using the Flexible Diphosphate Monomer
To verify that the diphosphate monomers can be combined with the OTgCS macrocycle
to form supramolecular polymers, we used the flexible triethylene glycol bis(phenyl-p-phosphate)
to define homopolymers (C) . These two components were mixed at a 2:1 ratio to match the
n
equivalence point for the formation of the 2:2 macrocycle:phosphate linkage chemistry (Figure
2
c). Using the 2:2 complex as a model, we see the same diagnostic OH peaks at 14.6 ppm
indicating the formation of the encapsulated phosphate-phosphate dimers (Figure 2c). We also see
characteristic peak shifts (8.1-8.6 ppm) and the diastereomeric splitting in proton H all consistent
c
with a complexed cyanostar dimer. Together, these observations confirm the formation of the 2:2
linkage chemistry. Indicative of polymerization, the diffusion NMR shows a dramatic 35-fold
increase in size relative to the model complex (Figure 2d). This change is consistent with the 64-
fold difference seen previously with the supramolecular polymer made from tBuCS and
5
2
dodecylene diphosphonate. These results confirm that supramolecular polymerization can be
achieved using flexible monomers with reliable pre-programmed linkage chemistry composed of
cyanostar-stabilized phosphate dimers.
11
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 12 of 43
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
Alternating Supramolecular Copolymer in the Solid State using Crystalline Cyanostars
We were surprised to observe a different supramolecular polymer sequence in the solid
state when using the rigid phenylene diphosphate monomer in the place of the flexible one. In this
case, the more crystalline tBuCS cyanostar was used in place of OTgCS to determine the crystal
structure of the supramolecular polymer. The crystal structure shows two different types of
phosphate-phosphate dimers (Figure 3). As expected from all prior studies, we see the 2:2 linkage
chemistry highlighted as (A). Therein, the anti-electrostatic phosphate-phosphate dimer is
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
encapsulated by two π-stacked macrocycles. The anion dimers are stabilized by a combination of
self-complementary hydrogen bonding and the CH hydrogen bonding from the cyanostars.67,70
The second type of linkage, highlighted as (B), was unanticipated. This new link is also composed
of phosphate-phosphate dimers which are not complexed by cyanostars. These dimers engage in
one direct phosphate-phosphate hydrogen bond and one methanol-bridged hydrogen bond between
the two phosphates. As with all hydroxyanion dimers, theoretical studies60-64 show that these anti-
electrostatic hydrogen bonds are insufficient alone to fully stabilize the dimers. Rather, we infer
electrostatic stabilization from the close proximity of the four tetrabutylammonium cations (TBA+).
These cations surround and enshroud the doubly charged phosphate dimers
2
–
52,67-68,70-71,82
[
(RHPO )•••(RHPO )] (Figure 3). From the six examples
previously studied using
4
4
7
1
cyanostar stabilization, only one shows this type of superstructure when dihydrogen phosphate
–
+
(
H PO ) was mixed with cyanostar and co-crystallized with an additional equivalent of TBA salt.
2 4
These types of close anion-cation contacts are more common to salts of hydroxyanion crystallized
in the absence of any receptors.83-84 In those prior cases, such as in the dimer of bisulfate
2
–
67
[
(HSO )•••(HSO )] stabilized by tetrabutylammonium, there are an equal number of charged
4 4
counter cations. In the case here, there are four cations proximal to the two exposed anions.
12
ACS Paragon Plus Environment
