Center-of-Mass iso-Energetic Collision-Induced
Decomposition in Tandem Triple Quadrupole
Mass Spectrometry
Federico Maria Rubino
LaTMA Laboratory for Analytical Toxicology and Metabonomics, Department of Health Sciences,
Università degli Studi di Milano at “Ospedale San Paolo” v. A. di Rudinì 8, I-20142 Milano, Italy;
federico.rubino@unimi.it
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editor: Thomas Letzel
Received: 14 April 2020; Accepted: 8 May 2020; Published: 10 May 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: Two scan modes of the triple quadrupole tandem mass spectrometer, namely Collision
Induced Dissociation Precursor Ion scan and Neutral Loss scan, allow selectively pinpointing, in
a complex mixture, compounds that feature specific chemical groups, which yield characteristic
fragment ions or are lost as distinctive neutral fragments. This feature of the triple quadrupole tandem
mass spectrometer allows the non-target screening of mixtures for classes of components. The effective
(center-of-mass) energy to achieve specific fragmentation depends on the inter-quadrupole voltage
(laboratory-frame collision energy) and on the masses of the precursor molecular ion and of the
collision gas, through a non-linear relationship. Thus, in a class of homologous compounds, precursor
ions activated at the same laboratory-frame collision energy face different center-of-mass collision
energy, and therefore the same fragmentation channel operates with different degrees of efficiency.
This article reports a linear equation to calculate the laboratory-frame collision energy necessary
to operate Collision-Induced Dissociation at the same center-of-mass energy on closely related
compounds with different molecular mass. A routine triple quadrupole tandem mass spectrometer
can operate this novel feature (iso-energetic collision-induced dissociation scan; i-CID) to analyze
mixtures of endogenous metabolites by Precursor Ion and Neutral Loss scans. The latter experiment
also entails the hitherto unprecedented synchronized scanning of all three quadrupoles of the triple
quadrupole tandem mass spectrometer. To exemplify the application of this technique, this article
shows two proof-of-principle approaches to the determination of biological mixtures, one by Precursor
Ion analysis on alpha amino acid derivatized with a popular chromophore, and the other on modified
nucleosides with a Neutral Fragment Loss scan.
Keywords: amino acids; equation; HPLC; MS/MS; NTS techniques (separation, ionization,
and detection); nucleosides; open access software; target gas; triple quadrupole
1. Introduction
The discovery of collision-induced dissociation of gas-phase ions and the introduction of tandem
triple quadrupole mass spectrometers [1,2] has revolutionized the art of trace organic analysis in
complex matrices in the last forty years, and has opened the way to contemporary “omic” measurement
of the complex and dynamic composition of biological compartments [3].
In particular, the two scan modes that, although not unique to tandem triple quadrupole [
at which this configuration of mass spectrometer performs at its best are those known as Precursor
(formerly, “parent” [ ]) Ion (PI) scan and Constant Neutral Loss (CNL) scan. Their analytical strength
4],
5
allows selectively pinpointing, in a complex mixture, only compounds that feature specific chemical
groups. The compounds can be identified as giving rise, upon fragmentation of the molecular ion,
Molecules 2020, 25, 2250; doi:10.3390/molecules25092250
www.mdpi.com/journal/molecules

Molecules 2020, 25, 2250
2 of 21
to a characteristic fragment ion (precursor ion scan) or to the loss of a characteristic substructure of the
molecule(s) as a neutral species (neutral loss scan). These scan modes (Scheme 1) allow:
(a) identifying families of structurally similar compounds that occur in a complex mixture;
(b) assigning molecular masses to each of the components and
(c) indicating the molecular precursors that can be characterized by a subsequent “fragment
ion” scan (the earliest scan mode of tandem mass spectrometers) experiment to insight their
molecular connectivity.
Scheme 1. Simplified operating scheme of the tandem triple quadrupole mass spectrometer in the three
main scan modes: (top) recording of Precursor Ions (PI), (middle) Constant Neutral Fragment Loss
(NL), (bottom) Fragment Ions (FI) of a selected precursor. The example refers to the characterization of
a complex mixture that contains, apart from other components (black ions in the total source spectrum,
left), of a family of (three) molecules of interest. The three molecules, each with a different molecular
mass, are identified as circled
of a sub-structure (fragment
A
,
B
and
C, blue, green and red, respectively. Each molecule is composed
f
) that is common to the chemical class and of a variable part (bold
A, B
and
indicates scanning of the Q1 and Q3 quadrupole filters; the symbol
of a specific m/z value. Collision-activated dissociation (CAD, yellow flash) determines fragmentation
C
, blue, green and red, respectively) that adds to the individual molecular mass. The symbol
%
≈
indicates “parking” to transmit ions
of the PI and occurs on a neutral collision gas (grey background of q2) at a collision energy value (CElab
that is determined by the voltage difference between Q1 (reference value) and q2. This difference is
usually fixed (q2 ≈) but it can be varied (q2 %) synchronously with and during a scan of Q3 (Precursor
Ion mode) or of both Q1 and Q3 (Neutral Loss mode).
)
This analytical strategy can be automated in Data-Dependent modes of operation of commercial
triple quadrupoles. Industrial pharmacology and toxicology found a particular benefit in applying this
technique systematically to identify the products that derive from biotransformation of xenobiotics,
such as candidate pharmaceutical drugs, pesticides, industrial chemicals.
Several classes of conjugated xenobiotic and endogenous metabolites feature distinctive
fragmentation pathways in their mass spectra, and selective scan experiments were elaborated
to selectively detect the compounds that belong to each class of conjugates, such as glucuronides,
sulphates, glutathione thioethers, mercapturic acids [
to search for (and to discover, in the case of unexpected components) several endogenous classes
of soluble metabolites, such as urinary acyl-carnitines [ ], derivatized fatty acids and alcohols [ ],
6,7]. Specific scan modes have been developed
8
9

Molecules 2020, 25, 2250
3 of 21
complex lipids with a choline head-group, such as phosphatidyl-cholines and sphingomyelins [10],
ceramides [ ]. The Precursor Ion and Neutral Loss operation modes of the triple quadrupole tandem
4
mass spectrometer allow the non-target screening of mixtures for structural classes, rather than for
individual molecules, thus allowing the detection of new or unexpected components.
At the core of the application of tandem triple quadrupole instruments to the selective identification
of chemical groups is the occurrence, in the fragmentation pattern of the molecular precursor(s), of
specific decomposition channels with the following characteristics:
(a) generate a sufficiently specific charged or neutral fragment as a reporter of the considered
chemical class;
(b) the considered Precursor-to-Fragment generation process (“transition”) occurs in the different
molecules with a sufficiently constant kinetics (reflected by a fairly constant value of collision
energy for maximum production);
(c) the transition is sufficiently insensitive to the presence of other chemical arrangements in the
molecule (reflected by a fairly constant value of relative intensity).
Therefore, the search for specific molecules of a defined structural class is performed by PI or
CNL scan, in the triple quadrupole MS.
To operate Collision Induced Dissociation, the q2 (RF-only quadrupole collision cell) is kept at
some value of the potential difference (in the instrument, the voltage drop, or collision offset voltage)
with respect to that of the “first” quadrupole, considered at “ground” potential [11]. A “reasonable”
value for this parameter usually corresponds to the maximum value of the production efficiency curve
of the selected fragment ion that is recorded in one or more “typical” compounds as a preliminary
measurement of the method setup. “Nominal” (or “laboratory frame”) collision energy, CElab, is the
product of the voltage drop and the number of charges of the precursor ion.
The efficiency of fragmentation, however, is not determined by the “laboratory frame” collision
energy, but rather by that experienced by the isolated precursor ion undergoing collision with the
stationary target gas, the “Center-of-Mass” collision energy; ECM. By operating at a constant difference
of the (q2-Q1) potential (the “laboratory frame” collision energy), precursor ions of different m/z
experience non-linearly decreasing amounts of additional internal energy, as their m/z value increases.
In addition, the increasing molecular size increases the amount of energy that is necessary to achieve
fragmentation (Degree-of-Freedom, DoF effect), as has been demonstrated in a wide-purpose systematic
measurement of the “characteristic energy” (E50%) for fragmentation of organic polymers [12].
Very recent commercial instruments can adjust collision energy for fragment ion analysis
of precursors with different m/z (especially of peptides in proteomic analysis) with the use
of patented “mass-related” parameters [13], such as the Normalized Collision Energy [14
,15],
and otherwise-named approaches used by academic scientists [14 18]. However, it is likely
–
that the instruments’ manuals do not explicitly report the equations employed to perform this
task (e.g., http://proteomicsnews.blogspot.com/2014/06/normalized-collision-energy-calculation.html).
In addition, the term “Normalized Collision Energy” is not even defined in the IUPAC 2013 “Definitions
of Terms Relating to Mass Spectrometry” [19].
This article describes how to derive an equation to calculate the laboratory frame, or “nominal”,
collision energy necessary to analyze closely related compounds with different molecular mass and
using different gas targets for collision-induced decomposition tandem mass spectrometry. It further
demonstrates that this novel feature (iso-energetic collision-induced dissociation; i-CID) can be applied
in a standard analytical triple quadrupole tandem mass spectrometer, either by continuous ramping of
the (q2-Q1) potential, or with a “stepped” surrogate, if the instrument’s software does not allow for
continuous ramping. To suggest the utility of this application, the article reports two proof-of-principle
analyses of mixtures of endogenous metabolites, one using a Precursor Ion scan, the other a Constant
Neutral Loss scans. The latter experiment also entails the hitherto unprecedented synchronized scan
of all three quadrupoles (Q1, q2, Q3) of the triple quadrupole tandem mass spectrometer.

Molecules 2020, 25, 2250
4 of 21
2. Results
2.1. Theory and Simulations
In Collision Induced Dissociation of ions, the relation of center-of-mass, or “effective” (Ecm) to
laboratory frame or “nominal” (Elab) collision energy depends on the mass of the resting target gas in
the collision cell (in most instruments Nitrogen, and occasionally Argon), (m TAR) and on that of the
impinging precursor ion (m PRE), according to Equation (1) [20].
mTAR
(mTAR + mPRE)
Ecm= Elab
×
(1)
This transformation from “laboratory frame” to “center-of-mass” collision energy is widely employed
to plot “breakdown curves” and to compare those obtained for precursor ion with different m/z.
For a fixed collision gas employed (in all described examples m TAR is Nitrogen, MW 28, or
Argon, MW 40), and for each specific value of “laboratory frame” collision energy, the “center-of-mass”
collision energy decreases as the m/z value of the precursor ions increase. The variation is not linear,
neither with the m/z of the precursor ion, nor with the value of the “laboratory frame” collision energy
(Figure 1).
Figure 1. Center-of-mass collision energy calculated for precursor ions of different m/z and for different
values of laboratory-frame collision energy (5, 20 and 35 eV). The m/z values of the precursor ions
are calculated for a homologous series of metabolites constituted by a common motif of a molecular
mass of 150 Da (that which gives rise to the diagnostic precursor-to-fragment transition) and of a
homologous 20-methylene series. Center-of-mass collision energy is calculated according to Equation
(1), with Nitrogen as the collision gas (see Section 2.1).
The simulation displayed in Figure 1 refers, as a general example, to singly charged precursors
ions of molecules that contain a common portion (molecular mass 150, in the example, corresponding
to fragment
f
in the example of Scheme 1) and a poly methylene variable part with one to twenty
and ). Collision-induced dissociation
carbon atoms (this originates the different fragment ions
A
,
B
C
occurs on a target of Nitrogen gas and is calculated for increasing values of “laboratory frame”
collision energy. The ion precursor dissociates after collision according to the following pathways:
Precursor(Cn)±
Precursor(Cn)±
→
→
Const± + (Cn)0
Const0 + (Cn)±
Precursor ion scan
Neutral fragment loss
scan

Molecules 2020, 25, 2250
5 of 21
In the example of Figure 1, precursor ion Precursor (C1)± (m/z 164 = 150 + 14) impinges on the
Nitrogen gas target at a laboratory frame collision voltage of 20 eV and experiences a center-of-mass
collision energy of 2.92 eV. At the same laboratory frame collision voltage, precursor ion Precursor
(C20)± (m/z 430 = 150 + 20 × 14) experiences a much lower center-of-mass collision energy of 1.22 eV.
The trend of the curves displayed in Figure 1 makes it possible to understand some literature
results that have been reported for the measurement of molecular series by tandem mass spectrometry
at constant laboratory-frame collision energy.
One such example in the literature is offered by the measurement of ten saturated, straight chain
homolog esters of acyl-carnitine that span from C2 to C18, obtained by FIA-ESI and precursor ion
detection of the m/z 85 fragment (C4H5O2; protonated butadienoic acid; Scheme 2), at 20 eV nominal
collision energy onto an Argon gas target [8].
Scheme 2. Generation of the reporter fragment m/z 85 from acyl-carnitines.
When the authors infused an equimolar solution of the standard compounds, the resulting
Precursor Ion spectrum (Figure 3 of ref. [8]) showed a marked and regular decrease in signal strength
of the lower (C-2 to C-8) and of the higher (C-16 to C-18) homologs. Figure 2, left panel, is recalculated
from the intensities in the spectrum of the cited article.
0,15
acyl-carnitines (ESI-FIA)
C-14
C-16
C-10
C-18
1.94
1.82
χ%
2.25
C-8
1.71
C-5
2.44
2.80
C-6
0,10
C-4
C-3
3.10
2.67
2.94
C-2
3.28
0,05
0,00
m/z
204 218 232 246 260 274 288 302 316 330 344 358 372 386 400 414 428
Figure 2. Re-analysis of the data from Paglia et al., 2008 (Figure 3 of ref [8]). Left: Intensities of the
molecular precursors of an equimolecular mixture of acyl carnitines ionized by ESI-FIA and detected
by a Precursor Ions scan of the fragment at m/z 85. Above each bar is the CEcm calculated for the
precursor ion at 40 eV of CElab on an Ar gas target, calculated from Equation (1). Right: Estimation of
the fragmentation efficiency curve for the formation of the m/z 85 fragment by least squares fit to a
parabolic curve.
In the right panel of Figure 2, the relative yields of the Precursor Ions are plotted against the
center-of-mass collision energies, the values of which are in turn calculated for the respective molecular
ions as corresponding to the employed laboratory frame collision energy of 20 eV against an Ar gas
target, with the use of Equation (1). The bell-shaped trend can be interpolated with a parabola, the
apex of which, at approximately 1.76 eV, yields an approximate estimation of the maximum of a
fragmentation efficiency curve for the employed transition M+
ꢀ
85+. This rough calculation also
implies, but does not warrant, that under FIA (i.e., at a constant composition of the solvent) the ESI

Molecules 2020, 25, 2250
6 of 21
ionization efficiency does not discriminate homologs with an acyl chain of a greatly different length
that are simultaneously present in the droplet.
This example shows that it is useful to have a systematic method to perform analyses by
collision-induced dissociation and Precursor Ion or Neutral Loss scan in the triple quadrupole over
a range of m/z, which keeps at a constant value the collision energy in the center-of-mass frame.
To achieve this, the laboratory frame collision voltage needs being systematically increased as the m/z
value of the precursor ion (m PAR) increases.
Standard algebraic passages allow re-formulating Equation (1) to yield the linear working
Equation (2):
m PRE
m TAR
Elab= ECM + ECM
×
(2)
This linear equation makes it possible to “back”-calculate the necessary laboratory frame collision
voltage at each value of m/z of the precursor ion corresponding to a specific constant value of
center-of-mass collision energy, as shown in Figure 3 for the same example of Figure 1.
Figure 3. Integrated fragment spectra of dabsylated Glycine (
each spectrum shows the relationship of the most intense fragment to molecular connectivity. The
fragment generation efficiency curve of m/z 240 (laboratory frame collision potential) is reported, for
each DABS-AA, in the right panels (b) and (d).
a) and Tryptophan (c). The insert to
−
Equation (2) can find use in transferring the collision-induced decomposition conditions that have
been optimized for one specific molecular species within a class to other homologues with a similar
fragmentation pattern, and to instruments that employ a different collision gas (e.g., Nitrogen in lieu of
Argon, as seen above).
2.2. Proof-of-Principle Applications
The feasibility of the iso-energetic scan as an analytical tool to characterize complex mixtures of
metabolites was tested with some proof-of-principle examples to understand whether this strategy can
be useful in organic bio-analysis of small-molecule biomarkers.

Molecules 2020, 25, 2250
7 of 21
Two experimental examples of application are reported. The first employs a precursor ion scan
(the reporter molecular fragment is an ion, identified by the m/z of Q3), the second a constant neutral
loss scan (the reporter molecular fragment is a neutral species, identified as the fixed m/z difference
between Q1 and Q3).
2.2.1. Detection of Dabsyl-Amino Acids by iso-Energetic CID and Precursor Ion Scan
The first proof-of-principle experiment of the use of iso-energetic collision-induced dissociation for
the analysis of small organic molecules by Precursor Ion scan is obtained by derivatizing alpha-amino
acids with a very popular chromogenic tag, dimethylamino-azobenzene (dabsyl, DABS-), linked to the
amino-group as the sulphonyl amide (Scheme 3).
Scheme 3.
Derivatization of amino acids with DABS-Cl to obtain the corresponding
sulphonamides, DABS-AA.
Some amino-acid derivatives were prepared individually (list in Table S1) and the fragment
spectra of their deprotonated molecules were measured in the negative ion mode over a range of
collision energy up to 70 eVlab. Figure 3a,c shows as examples the integrated spectra recorded for the
derivatives of the lowest- and highest-mass natural amino acids, glycine and tryptophan, respectively.
The most intense fragment in the spectra, at m/z 240, is generated from the appended chromophore, as
indicated in the general structure of the examined derivatives, and due to its common occurrence and
high intensity qualifies as reporter ion for analytical purposes.
The generation efficiency curves of m/z 240 are displayed in the corresponding right-hand panels
Figure 3b,d, and show the position of the maxima calculated as described in the Materials and Methods
Section 4.5. In the laboratory frame, the values of the maxima are 29.50 eVlab (center-of-mass frame,
2.12 eV) for DABS-Gly, and 35.66 eVlab (center-of-mass frame, 1.93 eV) for DABS-Trp. Results of the
measurements in a few other DABS-AA are collected in Table 1.
Table 1. Collection of CEmax and corresponding CEcm-max measured for nine synthetic dabsylated
alpha amino acids.
Compound
PI 1
FI 1
FI
FI
PI
PI
[M – H]−
ArO−
CEmax
CEcm-max
CEmax
CEcm-max
1
2
3
4
5
6
7
8
9
DABS-Gly
DABS-Val
DABS-Leu
DABS-Asp
DABS-SMC
DABS-Gln
DABS-Glu
DABS-Met
DABS-Trp
362
403
417
419
421
432
433
435
490
240
240
240
240
240
240
240
240
240
−29.2
−32.1
−35.9
−34.5
−35.3
-
−36.1
−34.0
−40.4
−2.10
−2.09
−2.26
−2.16
−2.20
-
−2.20
−2.06
−2.18
−29.35
−32.89
-
−35.58
−32.93
−35.60
−36.70
−33.82
−35.66
−2.11
−2.14
-
−2.23
−2.05
−2.17
−2.23
−2.05
−1.93
1
PI Precursor ion (m/z, negative ions); FI Fragment ion (m/z, negative ions); NL Neutral Loss (Da). CEmax is
the “nominal” value of collision energy; CEcm-max is the corresponding value of center-of-mass collision energy
calculated with Equation (1).

Molecules 2020, 25, 2250
8 of 21
Least-squares calculation of center-of-mass collision energy vs. precursor ion m/z affords a
best-estimate value of 2.15 eV for the representative value of CEmax for the characteristic [M–H]− to
m/z 240 transition (Figures S2 and S3). The obtained value corresponds to a scan-line that starts at
29.9 eVlab for m/z 361 of deprotonated DABS-Gly and ends at 39.8 eVlab for m/z 490 of deprotonated
DABS-Trp (see parameters used in the example of Figure 1).
One interesting observation stems from the comparison of the scatter around the best-fit scan
line of actual maxima measured in the individual production efficiency curves of m/z 240 (Figure S4).
While differences as large as 3.9 eVlab are found (the outlying Trp being that with the largest difference),
this value should be compared to the actual span of the maxima of the round-topped curves recorded
for these compounds. As can be appreciated from the right-column curves of Figure 4, the width of
the 95%–100%–95% round-topped curve maxima is of 5 to 9 eVlab. The uncertainty of appreciation
for the apex (the intersection of the two least-squares ascending and descending lines) results in
the order of fractions of eVlab (0.2–0.4 eVlab), less than the employed potential step in the accurate
ramp-CE experiment (0.5 eVlab). Therefore, the method employed to obtain the representative value of
center-of-mass CEmax yields a reliable value for method setup.
To test whether this experiment is amenable, and useful, to real applications in bio-analysis,
a DABS-derivatized urine was analyzed with an un-optimized fast gradient elution linked to a 1-s m/z
240 precursor ion scan from 350 to 500 and to a synchronized scan of the collision voltage (CElab,
q2-Q1) from −28.4 to −39.6 eVlab. Main results are displayed in Figure 4a–d.
Under the un-optimized “shotgun” chromatographic conditions of this experiment, several
DABS-derivatized alpha-amino acids of urine elute as partially separated chromatographic peaks
between 3.5 and 5.5 min (Figure 4a) and the integrated spectrum (merged spectra) of the corresponding
chromatographic time-frame contains the molecular signals of the main physiologically expected
amino acids (Figure 4b).
This un-optimized, very fast chromatographic condition does not separate the isomers of Leucine,
nor isobaric hydroxy-proline, at m/z 417. The mono-DABS derivatized histidine signal is observed
(m/z 441), and the signal at m/z 455 may correspond to the unseparated, isomeric methyl-histidines.
Methionine can be identified from the co-occurrence of the molecular species at m/z 435 (32S)
and
−
437 (34S). By analogy, a weaker signal at m/z 421 can be attributed to the trace amino acid
S-Methyl-cysteine (SMC) [21], based on the appearance of a corresponding signal at m/z 423 of the
corresponding 34S-species. This observation, in particular, opens the way to a non-target screening of
cysteine thioethers in adductomics applications. No signals are observed, nor were likely expected,
for those that yield a doubly dabsylated derivative, Cysteine and Lysine. Only one chromatographic
peak is observed in the XIC of m/z 432 (Glutamine), and a very weak signal at m/z 460 is observed
for mono-DABS-Arginine. Precursor Ion spectra extracted corresponding to the XIC for the main
identified amino acids feature the expected [M-H]- molecular signal expected for the individual eluting
species (Figure 4c,d).
Identification of the amino acids by Data-Dependent Fragment Ion analysis was not performed,
since all DABS-derivatives yield the same main fragment ions, all of which deriving from the appended
chromophore (see Figure 4a,c).
2.2.2. Detection of Nucleosides by Iso-Energetic CID and Constant Neutral Fragment Loss Scan
The second proof-of-principle example employs nucleosides, measured in the positive ion mode,
to demonstrate that iso-energetic CID is compatible with Constant Neutral fragment Loss Scan (CNL)
experiments in the triple quadrupole. In this experiment, all three quadrupoles scan synchronously;
in fact, the q2-Q1 voltage difference is “ramped” simultaneously with the scan time of both Q1 and Q3.

Molecules 2020, 25, 2250
9 of 21
Figure 4. (a) XIC of the main deprotonated DABS-AAs detected in a derivatized urine from a healthy laboratory worker. (b) Integrated Precursor Ion spectrum of m/z
240 of deprotonated DABS-AAs with m/z from m/z 350 to 500 (negative ions), eluted from the chromatographic column between 3.5 and 5.5 min. (
spectra recorded across the chromatographic peaks eluting at 4.22 and 4.84 min (see panel (a)), respectively.
c,d) Precursor Ion

Molecules 2020, 25, 2250
10 of 21
Protonated nucleosides (listed in Table S4) undergo collision-induced fragmentation through
a main pathway that involves loss of the N-linked sugar as neutral (loss of 116 Da from the
2-deoxy-ribosides and of 132 Da from the ribosides) and formation of the protonated nucleobase
(Scheme 4). A very minor pathway generates the complementary positively charged sugar species (m/z
117 and 133, respectively, for 2-deoxy-ribose and ribose) but their intensity is lower by more than two
orders of magnitude with respect to that of the protonated nucleobases, therefore making a Precursor
Ion scan utterly unsuitable for analysis.
Scheme 4. Fragmentation of protonated nucleosides with (above) ribose and (below) 2-deoxy-ribose to
afford the respective protonated nucleobases.
As in the example before, the collision energy corresponding to the maxima of the production
efficiency curves of the protonated nucleobases was measured from the fragment ion spectra
(measurements in Table 2 and results of calculation of the representative CEmax in Figures S6 and S7).
The maxima are between approximately 1.5 and 2.0 eVCM, with no analytically relevant difference
between the 2-deoxy-nucleosides (loss of 116 Da; median 1.60 eV) and the nucleosides (loss of 132 Da;
median 1.67 eV).
From the perspective of fast method setup, it is appealing to observe that the values of CEmax
measured from the fragment intensity curves of the Fragment Ion spectra and those measured from
the “reverse” experiment (CNL, in the case of nucleotides) are sufficiently close for the analytical
application. As an example, Figure S7 shows the curves for Guanosine (m/z 284 > 152, Fragment Ion
spectrum) and (CNL132, m/z 284), both recorded from a mixture to ensure that calculation results derive
from measurements of the same (noisy) quality. Estimated CEmax is 17.86 and 17.89 eVlab, respectively.

Molecules 2020, 25, 2250
11 of 21
That such close results can be obtained is advantageous when a few standard compounds are
available. In this case, one single “reverse” experiment, rather than several recordings of individual
Fragment Ion spectra, may still yield sufficiently reliable data to calculate a starting representative
eVmax value for method optimization with the spreadsheet module of Appendix A.

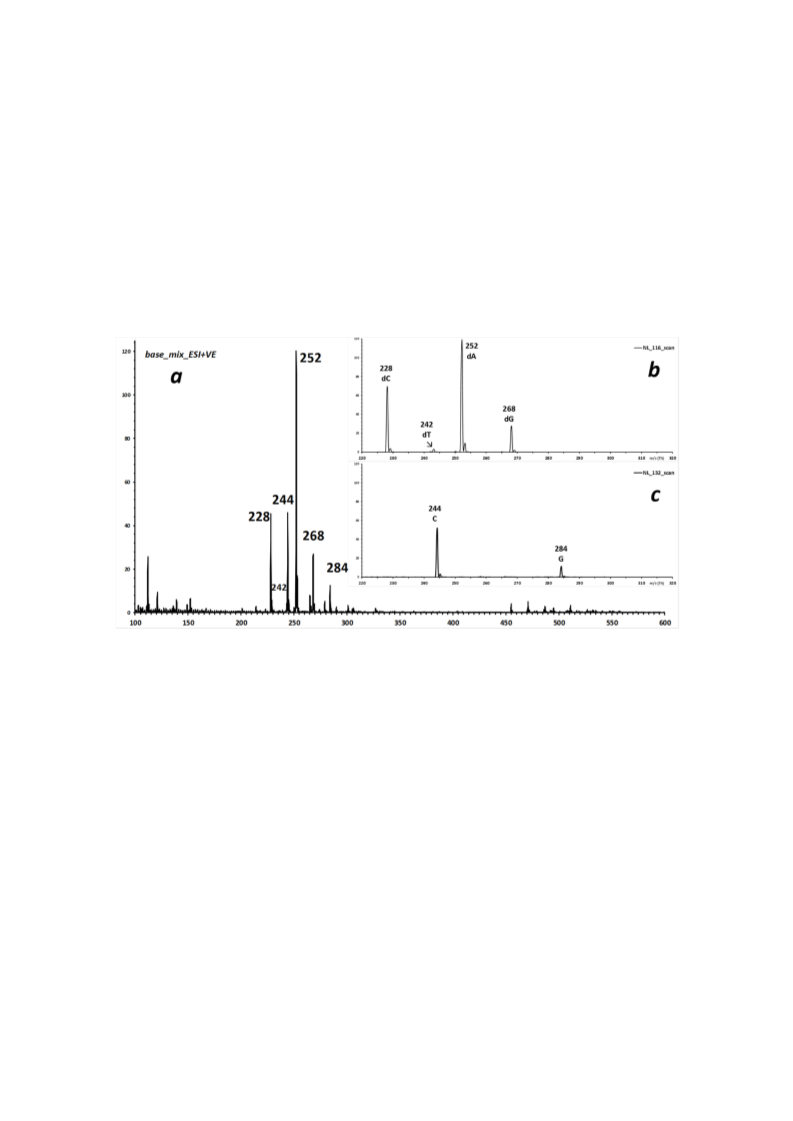

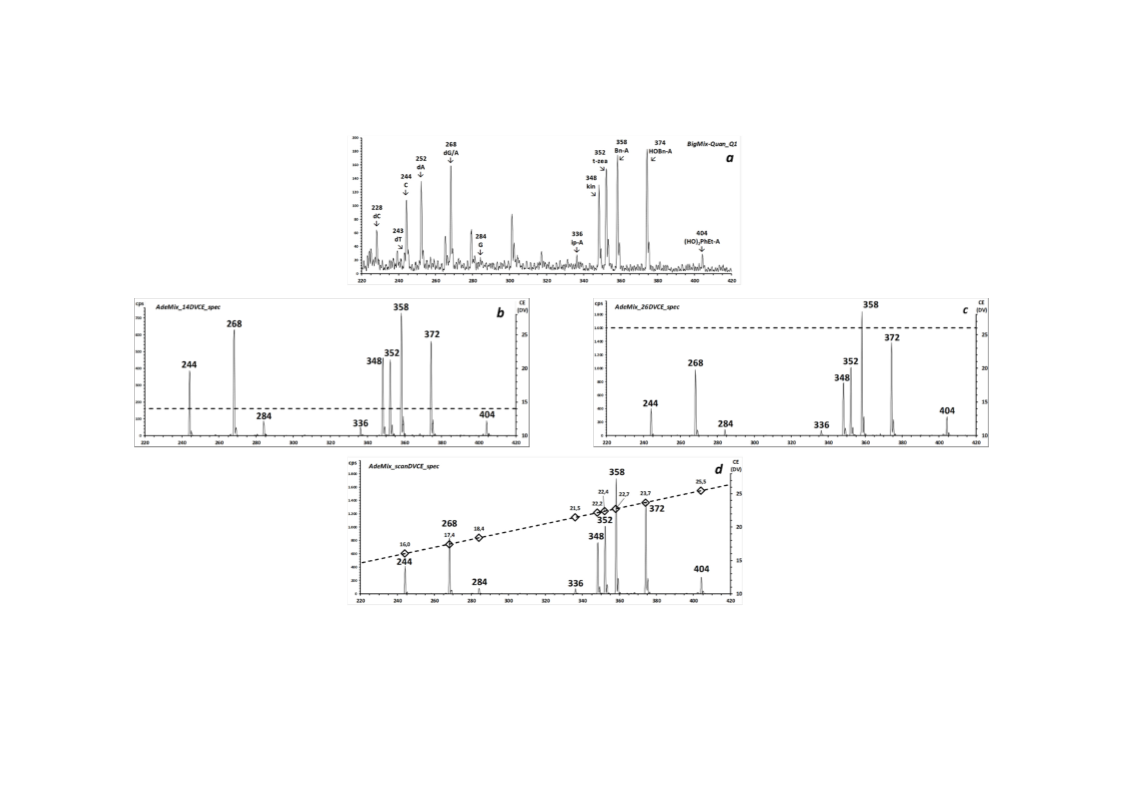

To demonstrate the selectivity of the two CNL scans, Figure 5 shows the source spectrum of a
mixture that contains the four DNA nucleosides (dA, dC, dG, dT) and two RNA nucleosides (only
C and G; A was deliberately omitted, since it is isobaric to dG). The two inserts display the results
of consecutive alternate 1-s CNL-scans of 116 Da (selective for deoxy-ribonucleosides) and 132 Da
(selective for ribonucleosides) at 17 eVlab (1.6 eVCM for precursor m/z 270).
Table 2. Collection of CEmax and corresponding CEcm-max measured for four DNA nucleosides, three
RNA nucleosides and six modified adenine ribosides.
ID
Compound
PI 1
MH+
FI 1
BH+
NL 1
x
FI
FI
NL
NL
1
CEmax
CEcm-max
CEmax
CEcm-max
1
2
3
4
2-deoxy-cytidine
2-deoxy-thymidine
2-deoxy-adenosine
2-deoxy-guanosine
228
243
252
268
112
131
136
152
116
116
116
116
14.60
-
18.87
15.63
1.60
-
1.89
1.48
15.28
14.80
19.26
14.09
1.67
1.53
1.93
1.33
5
6
7
cytosine
adenosine
guanosine
244
268
284
112
136
152
132
132
132
17.18
1.77
16.76
21.52
17.89
1.73
2.04
1.61
17.87
1.60
8
9
10
11
12
13
N6-isopentenyl_Ade
kinetin-riboside
trans-zeatine-riboside 352
N6-Bn-Ade
N6-(4-OH-Bn)-Ade
3,4-diOH-PhEt-Ade
336
348
204
216
220
226
242
272
132
132
132
132
132
132
22.04
22.87
23.39
24.63
24.32
27.09
1.70
1.70
1.72
1.79
1.69
1.76
22.21
23.28
24.37
25.81
24.04
28.79
1.71
1.73
1.80
1.87
1.67
1.87
358
374
404
1
PI Precursor ion (m/z, positive ions); FI Fragment ion (m/z, positive ions); NL Neutral Loss (Da). CEmax is
the “nominal” value of collision energy; CEcm-max is the corresponding value of center-of-mass collision energy
calculated with Equation (1).
All expected signals that correspond to the protonated molecules of the six compounds are
observed in the respective NL spectra. Adenosine was deliberately omitted from this mixture to
confirm that the NL116 scan is specific for deoxy-ribonucleosides, since the precursor at m/z 268 from
isobaric A is absent from the NL132 spectrum, but that from dG appears in the NL116 scan.
A more complex mixture that contains the four DNA nucleosides (dA, dC, dG, dT), three RNA
nucleosides (A, C, G), and six 6N-substituted derivatives of adenine (listed in Table S4; complete ESI
source spectrum in Figure S8) was further employed to investigate the potentiality of the iso-energetic
CID scan for applications in the field of nucleoside analysis. In this mixture, the ratio of the isobaric
dG:A is approximately 1:4.
The possibility of screening the sample for modified nucleobases is exemplified by six
6N-substituted derivatives of adenine (8–13) [22,23] with masses between 350 and 400 Da, and
thus 30% to 50% higher than that of the generating riboside, adenosine. Their fragment spectra (one
example is reported in Figure S9) feature loss of the ribose, and the first-generation protonated adenine
further loses the N6-adducted substituent to yield the m/z 136 AdeH+ fragment, and often one from
the appended molecular unit.

Molecules 2020, 25, 2250
12 of 21
The experiment reported in Figure 6a–d is a concept with prospective real applications, such as
the identification of natural epigenetic modifications of DNA nucleobases, of xenobiotic DNA adducts,
of regulatory t-RNA modified bases, and of synthetic nucleobase tools for research in molecular
biology [24]. Its aim is to evaluate whether the i-CID approach is feasible in a routine triple quadrupole
instrument without compromising mass resolution and at a scan speed compatible with coupling
to liquid chromatography. To test whether the use of a CE ramp improves the accuracy in the
determination of nucleoside mixtures, the peak intensities of the non-isobaric nucleosides obtained
in the fixed-CE and in the ramp-CE Neutral Loss scans were compared to those measured in the ESI
source spectra of the same mixture. The cycle of measurement follows the pattern and conditions
reported in Table S10. In the same sample, a consecutive NL116_rampCE experiment, selective for
2-deoxy-ribonucleotides was also performed, with essentially similar results (data not shown).
Figure 5. Source spectrum of a mixture of dA, dC, dG, dT, C and G (mean of 20 1-s scans, infusion mode).
Inserts: consecutive 1-s alternate NL-scans of 116 Da (upper, selective for deoxy-ribonucleosides) and
132 Da (lower, selective for ribonucleosides).
As is apparent from the ion profiles (insert in Figure S12), no deterioration of resolution occurs
when the q2 voltage is ramped synchronously with the Q1 and Q3 scans to achieve the collision
energy scan. The fastest conditions chosen in the employed routine triple quadrupole instrument
(infusion mode, CNL scan with synchronized q2 ramping) were a scan speed of 2.5 seconds/1.000
Da (m/z 220–420 in 0.5 seconds) and a collision voltage ramp speed of 23.6 eVlab/s (14.6–26.4 eVlab in
0.5 seconds). To hint at the analytical potential of this experiment in bio-analysis, the relative signal
intensity of the considered ribo-nucleosides was compared between the different analytical conditions,
as summarized in Figures S13 and S14. In particular, the relative signal abundances of the substituted
adenines were closer to those measured in the source spectra when the CEscan mode was employed,
rather than at any fixed CE value (Figure S14).
In the employed routine triple quadrupole instrument (infusion mode), scan speed of the Neutral
Loss scan with synchronized q2 ramping can be as fast as 0.5 s in a m/z range of 200 Da, without any
consistent signal instability or loss of resolution (insert in Figure S12), and allowing for two scan modes
to alternate (i-NL116 and i-NL132).

Molecules 2020, 25, 2250
13 of 21
Figure 6.
infusion mode). (
with a synchronized scan of CElab from 14.6 eV (m/z 220) to 26.4 eV (m/z 420).
(
a
) Partial source spectrum (positive ions) of a mixture of dA, dC, dG, dT, C, A, G, and six N6-substituted adenosine compounds (mean of 20 1-s scans,
b,
c
) Consecutive 1-s NL-scans of 132 Da (selective for ribonucleosides) at fixed laboratory CElab of 14 and 26 eV, respectively. ( ) CID is performed
d

Molecules 2020, 25, 2250
14 of 21
3. Discussion
The work described in this article shows that continuous variation of the collision voltage in the
cell of a routine triple quadrupole instrument during a fast scan of the mass filter(s) is technically
feasible both in the Precursor Ion and in the Constant Neutral Loss modes.
This unprecedented operation of the TSQ can be used without degrading sensitivity and mass
resolution, with respect to holding the collision cell at any intermediate constant value. This modification
to the more common fixed-voltage practice allows collision-induced dissociation of molecules of a
common structure but with different molecular mass to occur with each precursor ion facing the same
value of effective (center-of-mass) energy deposition, and thus with the same, or close, relative kinetics.
Therefore, when analyzing homogeneous series of chemical species, such as homologous series of
metabolites, the intensity of corresponding fragments in different compounds will be more similar.
Thus, the detection efficiency of the different homologs within a series improves, by overcoming the
variation in collision efficiency that occurs when compounds over a wide range of m/z values are
analyzed at a “compromise” value of laboratory frame collision voltage.
The convenience of this approach over the use of a fixed, “compromise”, value of collision voltage
is more apparent when the “variable” part of the structure contributes more to the increase of molecular
mass than the “fixed” one. In this case, the relative increase of molecular mass of the target compound
with that of the “variable” part is larger, and so is the associated interval of collision voltages between
the smallest and the larger molecules of the class. The other factor is the value of center-of-mass
collision energy for the considered, analytically useful transition: a higher Center-of-Mass collision
energy (slope of the CE scan line) leads to a higher interval of collision voltages for the same mass range.
This article examined two molecular classes with a different type of fragmentation as
proof-of-principle, among the many different examples of possible applications. One class,
dabsyl-derivatized amino-acids, feature a common reporter fragment ion in the spectrum, and
can be detected by employing a precursor ion scan. The derivatization approach is still widely popular
in many bio-analytical applications [25], and several molecular classes of natural compounds, such
as complex lipids, are similarly featured, with a common charge-carrying substructure and variable
modifications that increase the molecular mass [4]. Another class of examined molecules, ribosylated
nucleotides, features a common decomposition pathway that eliminates as a neutral the common
carbohydrate sub-structure, and yields the variable nucleobase as an ionic fragment, so a Constant
Neutral Loss scan is the most adequate tandem-MS experiment to highlight this class of molecules.
4. Materials and Methods
4.1. Reagents and Standards
All solvents, reagents and standards were of analytical purity (Prodotti Gianni, Milano, Italy),
and were available in the laboratory from previous or current analytical and spectroscopic studies.
The Supplementary Information section (Tables S1, DABS-amino acids and S4, nucleosides) reports the
structures and relevant characteristics of the analyzed compounds.
4.2. Instrumentation
A SCIEX API 3000-LTQ mass spectrometer (AB Sciex Framingham, MA, USA) with the standard
ESI source and data system is employed for this study, and operated according to the manufacturer’s
indications. The instrument employs Nitrogen from the purification system both as the nebulizer and
as auxiliary gas in the ion source and as the collision gas in the q2 quadrupole.
4.3. Measurements
The infusion mode was used throughout this work to measure spectroscopic parameters and to
analyze standards and samples. The final dilution of solutions for infusion was in 1:1 v/v water-methanol
containing 0.1% formic acid. Flow rate of the built-in syringe was set to 10 microL
×
min−1
.

Molecules 2020, 25, 2250
15 of 21
The concentration of standard compounds in the infused solutions varied between 0.1 and 10
microM. All experiments were carried out in the centroid mode. All compounds used in this study
were characterized by means of a three-step procedure, which is described below:
(a) The source spectrum of the compound or mixture was acquired, and the source conditions were
optimized for maximum signal stability and intensity. This was accomplished by regulating spray
gas flows and curtain plate temperature, and tuning the Declustering Potential to the value that
yields the most intense signal of the desired ion species with the use of the ramp function of the
instrument’s operating software.
(b) For each compound, a series of fragment ion spectra was acquired in the Collision Energy ramp
function mode of the instrument’s operating software, within a range of laboratory collision
energies between 0 and approximately 50 to 70 V. The maximum value of collision energy depends
on the molecular mass of the compound, and corresponds to a maximum of 4–6 eVCM, as dictated
by the compound’s structure and yield of structurally informative fragments. Collision gas
pressure was at the lowest setting (Low, corresponding to an ion gauge reading of 1.2
×
10−5 Torr
(1.60 × 10−3 Pascal), vs. 0.8 × 10−5 Torr (1.07 × 10−3 Pascal) in the absence of collision gas).
(c) The collision efficiency curves for the transitions of analytical interest were recorded both in the
“forward” (Fragment Ion Scan, see above) and in the “backwards” (Precursor Ion Scan or Neutral
Loss Scan) modes, according to the intended use of the transition, to ensure that no overlapping
fragmentation processes occur.
4.4. Data Elaboration
Mass spectrometry measurements were extracted as spectra (ion intensity vs. m/z), XIC (ion
intensity vs. time), and as Ramp curves (ion intensity vs. the relevant modified instrument
voltage), and exported as .txt files from the instrument’s data system for further elaboration. Custom
developed Microsoft Excel spreadsheets were used for all post-acquisition elaborations [26,27]. A few
measurements were replicated across several months, in between other analytical work, to gauge
robustness of the determined parameters.
4.5. Calculation of the Collision Energy Maximum in the Fragmentation Efficiency Curve
The value of collision energy corresponding to the maximum yield of the analytically useful
fragment (or transition) was calculated, in the intensity vs. collision energy (either as laboratory,
or Center-of-Mass scale) plot, as the intersection of two (least-square) straight lines, each one
approximating the raising and the decreasing portion of the curve, respectively (“teepee method”).
The interval of approximately 25% to 75% of the maximum intensity was usually selected as the linear
portion for optimal least-squares calculation based on maximizing the R2 coefficient. The intersection
point of the two straight lines was calculated from their intercept and slope values by standard
analytical geometry equations. The uncertainty of the calculation was calculated from the span, on the
x-axis, of the diamond-shaped intersection of the 95% confidence limit stripes of the two straight lines
(Figure 4).
4.6. Application in the Triple Quadrupole Mass Spectrometer
The obtained value of the maximum of the collision efficiency curve for the analytically relevant
fragment ion is converted to the Center-of-Mass scale (eV), and used to infer the corresponding
“laboratory frame” value of collision energy for other compounds that belong to the same chemical
class with the use of Equation (2). A custom Microsoft Excel spreadsheet calculates the parameters to
run the iso-energetic Precursor Ion (i-PI) and Neutral Loss (i-NL) scans with the use of Equations (1)
and (2). The layout of Scheme 5 is set to match that of the instrument’s data system, and the operator
copy-and-pastes calculation results from the blue background cells directly for use.

Molecules 2020, 25, 2250
16 of 21

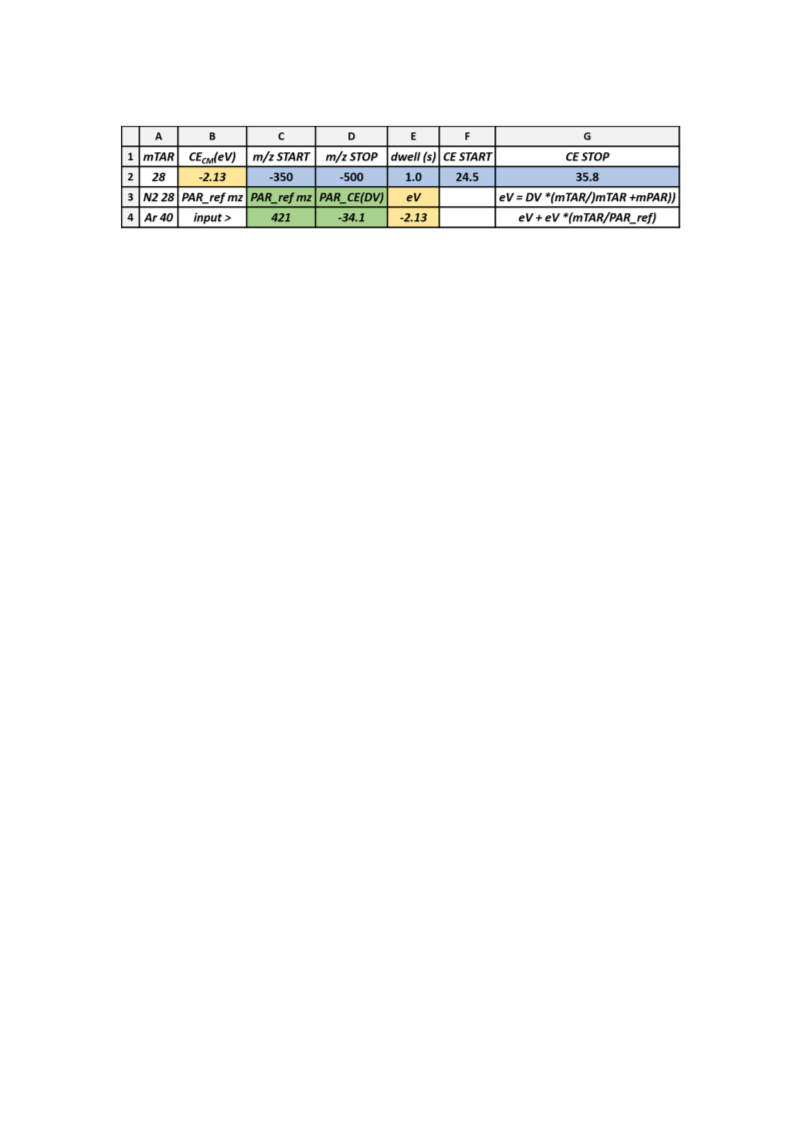

Scheme 5. Calculation module of the custom spreadsheet for the calculation of collision energy ramp.
The actual values of the parameters reported are those of the first proof-of-principle example,
see above (Section 2.2.1). The value of mTAR (cell A2) is defaulted at 28 (Nitrogen collision gas).
Reference variables are typed in cells C4 (m/z of Precursor ion) and D4 (collision voltage for max. yield
of fragment, interpolated from a ramp-CE experiment). The corresponding value of collision energy is
calculated in E4 (formula is reported in G3). To operate the i-CID experiment, the desired scanning
mass interval is input in cells C2 (min, START) and D2 (max, STOP), scan speed in cell E2, and collision
voltage is calculated in cells F2 and G2 for CE START and CE STOP, respectively with formula in G4.
Cells C2-G2 are thus directly ready for export. That reported in Scheme 2 only uses one reference
compound to infer the value of CEmax for a series of homolog compounds. To improve accuracy, and to
test whether the assumption holds for a wider series of available compounds, this spreadsheet is linked
to a module (further lines below line 5 of the displayed section of the Excel spreadsheet) that calculates
a more representative value of CEmax from results of a ramp-CE linked to the PI or CNL group scan.
A tabular form of the complete spreadsheet with instructions is presented in Appendix A and an
Excel file is available from the Author upon request. A further module of the spreadsheet (Appendix B)
allows the adaption of the i-CID technique in case the instrument software does not allow the
modulation of the (q2-Q1) collision potential synchronously with the scan of the Q1 and Q3 mass
filters. In this case, a “segmented pseudo-scan” of the quadrupole filters Q1 and Q3, e.g., by 14-u
“steps” can accommodate a “stepped” variation of the (q2-Q1) collision potential, with only minimal
difference of collision energy from that of a continuous variation (Figure S13). Since we did not need to
implement this alternative in our instrument, Appendix B reports the calculation module with the
fictitious example of Figures 1 and 3 (an Excel file is available from the Author upon request).
4.7. Derivatization of Alpha-Amino Acids as Dimethylamino-Azobenzene-Sulphonyl (Dabsyl) Amides
A mixture of alpha-amino acids, each approximately 1µM is prepared in deionized water. A 100-
µL
aliquot was mixed to 10 microliters of 1M sodium bicarbonate and to 100 microliters of a 10
µmol/mL
(3.3 mg/mL) of dabsyl chloride in acetonitrile [23]. The mixture was vortexed for 30 s and left standing
at room temperature for 2 h. An appropriate aliquot was diluted 1:100 v/v with the ESI infusion solvent
for infusion experiments, or 10 microliters were directly injected into the HPLC-MS system for analysis.
Extemporary urine from a healthy laboratory volunteer (100 µL) was treated in the same way.
4.8. Shotgun Separation by Liquid Chromatography of Alpha-Amino Acids Derivatized as Dabsyl Amides
A chromatographic column (Phenomenex Gemini C18, 100
×
2mm i.d., 3 mm particle size, 110 A
porosity) was employed for separation. A 10 min mobile phase gradient of A (10 mM ammonium
formate, 0.1% formic acid, pH 4) and B (acetonitrile) starts at 10% B for 2 min, was linearly increased
to 90% B in 7 min and brought back to the initial conditions in 1 min. The column was held at
◦
40 C and 10 microliters were injected with the instrument’s auto-sampler. Detection by tandem
mass spectrometry was achieved in the negative ion mode, by a precursor ion scan of m/z 240,
scanning the m/z interval between 320 and 440 in 1 s, at the Low q2 pressure setting (approximately
reading 1,2 mTorr
;
1.60 × 10−3 Pascal). Collision energy ramp was synchronized to the Q1 scan,
with a continuous variation between 22 eVlab at m/z 320 and 44 eVlab at m/z 440.

Molecules 2020, 25, 2250
17 of 21
5. Conclusions
A possible advantage of the iso-energetic CID approach in comprehensive, or “omic”, bio-analyses
is that more comparable fragment spectra can be obtained for closely related analytes, in which reporter
fragments have closer relative intensity. Thus, quantification of target metabolites or biomarkers may
improve, since the signal-to-concentration relationship will be much closer for the different terms of
a series of compounds. In addition, the semi-quantitative appreciation of the level of unexpected
compounds, for which calibration curves cannot be established in advance, would also be more reliable.
A recently published application of this strategy allowed characterizing some unusual ceramide
glycosides that occur in pistachio and almond nuts [28]. Briefly, the sequential use of alternate i-PI and
i-NL scans highlighted the presence, in the nut fatty extracts, of ceramides with a modified sphingosine
linked to a hexose at their C-1 hydroxyl group. Fragment ion analysis highlighted that saturated and
hydroxylated fatty acids are linked through an amide bond. This application also confirmed that the
technique is compatible with scan speed used in the coupling of the triple quadrupole tandem mass
spectrometer with conventional narrow bore liquid chromatography.
Several classes of natural substances, including Phase 2 xenobiotic metabolites [
7] and covalent
protein adducts [29 30], are similarly featured, and yield either or both common structure-specific
,
(“pivot”) charged fragments (therefore prompting for the Precursor Ion approach) and neutral fragments
(thus calling for the Neutral Loss approach). Given the easy availability of the additional feature
of iso-energetic CID in the triple quadrupole tandem mass spectrometer, one prospective aim of
this work is preparing a catalog of structure-specific transitions and optimized collision energies
for an increasingly wide choice of organic and bio-organic classes of compounds. This information
is the basis for the non-target screening and measurement of important classes of biomolecules in
complex mixtures and for the discovery of new structurally related chemical entities, to incorporate
into metabolomics protocols.
Supplementary Materials: The following are available online. Table S1. Structures of the examined dabsyl-amino
acids, Figures S2 and S3. Measurement of representative CEmax and calculation of the scan line (DABS-AA),
Table S4. Structures of the examined nucleosides, Figure S5, S6. Measurement of representative CEmax of riboside
transition MH+
ꢀ
BH+ and calculation of the scan line, Figure S7. Comparison of the generation efficiency curves
of the BH+ fragment of protonated guanosine in Fragment Ion and in Neutral Loss spectra. Figure S8. ESI source
spectrum of a mixture of nucleosides. Figure S9. Fragment ion spectrum of a protonated N6-subsituted adenosine
(12), Table S10. Experiments for the measurement of nucleosides. Figure S11. Relative abundance of nucleosides in
different conditions. Figure S12. Stability of signal in fast-scan i-CE Neutral Loss spectra. Figure S13. Comparison
of CElab in a continuous and stepped scan of collision energy.
Funding: This research received no external funding.
Acknowledgments: I am grateful to Prof. Enzo Santaniello (retired, formerly Università degli Studi di Milano)
for the generous gift of compounds 8-13 (Table S4) and to Dr. Jacopo Antognetti for generous assistance in the
measurement of DABS-AA mass spectra.
Conflicts of Interest: The author declares no conflict of interest.
Appendix A Calculation Module with Instructions
A tabular form of the complete calculation spreadsheet with formulae and instructions (an Excel
file is available from the Author upon request).
INSTRUCTIONS
Column headings and constants
input in green cells (column heading has same color of input cells)
Calculated values
copy blue cells to instrument (column heading has same color of input cells)
(a) For basic module (lines 1-4, Scheme 2 of main article), follow instructions (b) to (f)
(b) Record Ramp-CE fragment spectrum of reference compound (PAR_ref mz) with target
fragment ion

Molecules 2020, 25, 2250
18 of 21
(c) Identify (approximate) value for max. intensity of target fragment ion Dau_CE(DV)
(d) Type (PAR_ref mz) DauCE(DVmax) in the green cells C4 and D4: eV will appear in orange cells
E4 and B2
(e) Type m/z STARTm/z STOP in D2 and E2 complete with scan time (dwell (s))
(f) Copy-and-paste (results) D2 to H2 from spreadsheet to instrument’s SW
(g) For optimization module, follow instructions (b), (c), then go to (h)
A
B
C
m/z
START
−350
PAR_ref
mz
D
E
dwell (s)
1.0
F
G
1
2
3
mTAR
28
CECM(eV)
m/z STOP
CE START
24.5
CE STOP
35.8
−2.13
PAR_ref
mz
−500
DauCE(DVmax
N2 28
)
eV
−2.13
eV
eV + eV
*(mTAR/PAR_ref)
4
5
Ar 40
input >
421
−34.1
CE_ref
(DV)
eV_mean
optimization_module
6
7
8
intercept
slope
−1.94
−0.00052
0.0743
−2.16
R2
9
DABS-AA compound_ID PAR mz
DauCE(DVmax) eVmax
eVmax_rec
−2.12
−2.15
−2.15
−2.15
−2.16
−2.16
−2.16
−2.16
−2.19
DVmax
−30.0
−33.2
−34.3
−34.4
−34.6
−35.4
−35.5
−35.7
−39.9
10
11
12
13
14
15
16
17
18
min_mz
Precursor_362
Precursor_403
Precursor_417
Precursor_419
Precursor_421
Precursor_432
Precursor_433
Precursor_435
Precursor_490
362
403
417
419
421
432
433
435
490
−29.3
−32.5
−35.9
−35.0
−34.1
−35.6
−36.4
−33.9
−40.4
−2.10
−2.11
−2.26
−2.19
−2.13
−2.17
−2.21
−2.05
−2.18
max_mz
(h) Import m/z of Precursor ion (PAR mz) and DauCE(DVmax) in columns D and E, lines 11
downwards, respectively
(i) The optimized value of eV_mean will appear in orange cells G7 and B2
(j) Like e: Type m/z START m/z STOP in D2 and E2 complete with scan time (dwell (s))
(k) Like f: Copy-and-paste (results) D2 to H2 from spreadsheet to instrument’s SW
Notes. Values reported as example in cols. D and E correspond to Table S3 (values in col. E
correspond to the mean of cols. 4 and 6 of Table S1.
Cell(s)
B2, F4, F10 – F18
G2, H2
Formula
eV = DV × (mPAR/(mTAR + mPAR)
eV + eV × (mTAR/PAR_ref)
Intercept (E10:E18; D10:D18)
Slope(E10:E18; D10:D18)
RQ(E10:E18; D10:D18)
F7:intercept
F8: slope
F9: R2
eV(mz = 0)
Closest to 0: horizontal line
Closest to 0: all y values (eV) approximately constant
eV recalculated from F8, F9, D11 – D18
Working value (eV) for B2 (alternative to F4)
G10 – G18
G6
Mean of G10 – G18
Appendix B Calculation Module with Instructions for Stepped i-CID Precursor Ion and Constant
Neutral Loss Scans
A tabular form of the complete spreadsheet with formulae and instructions (an Excel file is
available from the Author upon request).

Molecules 2020, 25, 2250
19 of 21
INSTRUCTIONS
Column headings and constants
input in green cells (column heading has same color of input cells)
Calculated values
copy blue cells to instrument (column heading has same color of input cells)
Calculation and graph are for the example of Figures 1 and 3 of the main article.
a. Type constant part (m/z) in the green cell D2 and minimum number of methylene groups in
chain in A4. Remaining values will be calculated and fill-in.
b.
c.
Type collision energy (eV) in K2
Type scan time (dwell (s) in H4 (constant scan time for all m/z windows)
d. Check whether total scan time (cell H2), inclusive of hold time between segments (cell G2) is
acceptable for application. In case, try a wider mass window (28u) in cell G4
A
1
CH2]n
n
11
12
13
14
15
16
B
D
E
eV
F
N2
hold (s)
center
304
318
332
346
360
374
388
402
416
G
28
0.005
H
I
n
10
CE
J
K
H
scan_tot
1.05
dwell (s)
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
L
1
2
3
4
5
6
7
8
9
10
11
12
13
Co150
constant part
Cpd_ID
MW
150
PAR
304
318
332
346
360
374
388
402
416
430
scan_tot
1.05
eV =
mz START
297.1
311.1
325.1
339.1
353.1
367.1
381.1
2.00
mz STOP
311.0
325.0
339.0
353.0
367.0
381.0
395.0
scan line
CE(DV)
23.7
24.7
25.7
26.7
27.7
28.7
29.7
DAU
150
150
150
150
150
150
150
150
150
150
width dwell (s)
Co150-CH2(11)
Co150-CH2(12)
Co150-CH2(13)
Co150-CH2(14)
Co150-CH2(15)
Co150-CH2(16)
Co150-CH2(17)
Co150-CH2(18)
Co150-CH2(19)
Co150-CH2(20)
13.9
13.9
13.9
13.9
13.9
13.9
13.9
13.9
13.9
13.9
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
23.7
24.7
25.7
26.7
27.7
28.7
29.7
30.7
31.7
32.7
17
18
19
20
395.1
409.1
423.1
409.0
423.0
437.0
30.7
31.7
32.7
430
0.1
e.
f.
To use center/width for m/z input: copy-and-paste (results) F4 to I13 from spreadsheet to
instrument’s SW
To use m/z START m/z STOP for m/z input: copy-and-paste (results) J4 to L13 from spreadsheet
to instrument’s SW
References
1.
2.
3.
4.
Yost, R.A.; Enke, C.G. Triple quadrupole mass spectrometry for direct mixture analysis and structure
elucidation. Anal. Chem. 1979, 51, 1251–1264. [CrossRef] [PubMed]
Schwartz, J.C.; Wade, A.P.; Enke, C.G.; Cooks, R.G. Systematic delineation of scan modes in multidimensional
mass spectrometry. Anal. Chem. 1990, 62, 1809–1818. [CrossRef] [PubMed]
Griffiths, W.J.; Wang, Y. Mass spectrometry: from proteomics to metabolomics and lipidomics. Chem. Soc.
Rev. 2009, 38, 1882. [CrossRef] [PubMed]
Rubino, F.M.; Zecca, L.; Sonnino, S. Characterization of Ceramide Mixtures by Fast Atom Bombardment
and Precursor and Fragment Ion Analysis Tandem Mass Spectrometry. Biol. Mass Spectrom. 1994, 23, 82–90.
[CrossRef]
5.
6.
Adams, J. Letters to the editor. J. Am. Soc. Mass Spectrom. 1992, 3, 473. [CrossRef]
Holcˇapek, M.; Kolárˇová, L.; Nobilis, M. High-performance liquid chromatography–tandem mass spectrometry
in the identification and determination of phase I and phase II drug metabolites. Anal. Bioanal. Chem. 2008
391, 59–78. [CrossRef]
,
7.
8.
Scholz, K.; Dekant, W.; Völkel, W.; Pähler, A. Rapid detection and identification of N-acetyl-L-cysteine
thioethers using constant neutral loss and theoretical multiple reaction monitoring combined with enhanced
product-ion scans on a linear ion trap mass spectrometer. J. Am. Soc. Mass Spectrom. 2005, 16, 1976–1984.
[CrossRef]
Paglia, G.; D’Apolito, O.; Corso, G. Precursor ion scan profiles of acylcarnitines by atmospheric pressure
thermal desorption chemical ionization tandem mass spectrometry. Rapid Commun. Mass Spectrom. 2008, 22,
3809–3815. [CrossRef]

Molecules 2020, 25, 2250
20 of 21
9.
Rubino, F.M.; Zecca, L. Application of triple quadrupole tandem mass spectrometry to the analysis of
pyridine-containing derivatives of long-chain acids and alcohols. J. Chromatogr. B: Biomed. Sci. Appl. 1992
579, 1–12. [CrossRef]
,
10. Kerwin, J.L.; Tuininga, A.R.; Ericsson, L.H. Identification of molecular species of glycerophospholipids and
sphingomyelin using electrospray mass spectrometry. J. Lipid Res. 1994, 35, 1102–1114.
11. Sleno, L.; Volmer, D.A. Ion activation methods for tandem mass spectrometry. J. Mass Spectrom. 2004, 39,
1091–1112.
12. Memboeuf, A.; Nasioudis, A.; Indelicato, S.; Pollreisz, F.; Kuki, A.; Kéki, S.; Van den Brink, O.F.; Vékey, K.;
Drahos, L. Size Effect on Fragmentation in Tandem Mass Spectrometry. Anal. Chem. 2010, 82, 2294–2302.
[CrossRef] [PubMed]
13. Schwartz Jae, C.; Gilroy, P.; Remes, M. Methods for calibration of usable fragmentation energy in mass
spectrometry. US Patent USOO827862OB2, 2 October 2012.
14. Diedrich, J.K.; Pinto, A.F.M.; Yates, I.J.R. Energy Dependence of HCD on Peptide Fragmentation: Stepped
Collisional Energy Finds the Sweet Spot. J. Am. Soc. Mass Spectrom. 2013, 24, 1690–1699. [CrossRef]
[PubMed]
15. Facchini, L.; Losito, I.; Cataldi, T.R.; Palmisano, F. Seasonal variations in the profile of main phospholipids in
Mytilus galloprovincialis mussels: A study by hydrophilic interaction liquid chromatography-electrospray
ionization Fourier transform mass spectrometry. J. Mass Spectrom. 2017, 53, 1–20. [CrossRef]
16. Qu, J.; Liang, Q.; Luo, G.; Wang, Y. Screening and Identification of Glycosides in Biological Samples Using
Energy-Gradient Neutral Loss Scan and Liquid Chromatography Tandem Mass Spectrometry. Anal. Chem.
2004, 76, 2239–2247. [CrossRef]
17. Madala, N.E.; Steenkamp, P.; Piater, L.A.; Dubery, I.A. Collision energy alteration during mass spectrometric
acquisition is essential to ensure unbiased metabolomic analysis. Anal. Bioanal. Chem. 2012, 404, 367–372.
[CrossRef]
18. Qiao, X.; Lin, X.-H.; Ji, S.; Zhang, Z.-X.; Bo, T.; Guo, D.-A.; Ye, M. Global Profiling and Novel Structure
Discovery Using Multiple Neutral Loss/Precursor Ion Scanning Combined with Substructure Recognition
and Statistical Analysis (MNPSS): Characterization of Terpene-Conjugated Curcuminoids in Curcuma longa
as a Case Study. Anal. Chem. 2015, 88, 703–710. [CrossRef]
19. Murray, K.K.; Boyd, R.K.; Eberlin, M.N.; Langley, G.; Li, L.; Naito, Y. Definitions of terms relating to mass
spectrometry (IUPAC Recommendations 2013). Pure Appl. Chem. 2013, 85, 1515–1609. [CrossRef]
20. Busch, K.L.; Glish, G.L.; McLuckey, S.A.; Monaghan, J.J. Mass spectrometry/mass spectrometry: techniques
and applications of tandem mass spectrometry. Anal. Chim. Acta 1990, 237, 509. [CrossRef]
21. Rubino, F.M.; Pitton, M.; Di Fabio, D.; Meroni, G.; Santaniello, E.; Caneva, E.; Pappini, M.; Colombi, A.
Measurement of S-methylcysteine and S-methyl-mercapturic acid in human urine by alkyl-chloroformate
extractive derivatization and isotope-dilution gas chromatography-mass spectrometry. Biomed. Chromatogr.
2011, 25, 330–343. [CrossRef]
22. Colombo, F.; Falvella, F.S.; De Cecco, L.; Tortoreto, M.; Pratesi, G.; Ciuffreda, P.; Ottria, R.;
Santaniello, E.; Cicatiello, L.; Weisz, A.; et al. Pharmacogenomics and analogues of the antitumour
agent N6-isopentenyladenosine. Int. J. Cancer 2009, 124, 2179–2185. [CrossRef] [PubMed]
23. Ottria, R.; Casati, S.; Baldoli, E.; Maier, J.A.; Ciuffreda, P. N6-Alkyladenosines: Synthesis and evaluation of
in vitro anticancer activity. Bioorg Med. Chem. 2010, 18, 8396–8402. [CrossRef] [PubMed]
24. Guo, J.; Villalta, P.W.; Turesky, R.J. Data-Independent Mass Spectrometry Approach for Screening and
Identification of DNA Adducts. Anal. Chem. 2017, 89, 11728–11736. [CrossRef] [PubMed]
25. Lin, J.-K.; Chang, J.-Y. Chromophoric labeling of amino acids with 4-dimethylaminoazobenzene-4’-sulfonyl
chloride. Anal. Chem. 1975, 47, 1634–1638. [CrossRef] [PubMed]
26. Rubino, F.M.; Pitton, M.; Brambilla, G.; Colombi, A. A study of the glutathione metaboloma peptides by
energy-resolved mass spectrometry as a tool to investigate into the interference of toxic heavy metals with
their metabolic processes. J. Mass Spectrom. 2006, 41, 1578–1593. [CrossRef]
27. Rubino, F.M.; Pitton, M.; Caneva, E.; Pappini, M.; Colombi, A. Thiol-disulfide redox equilibria of glutathione
metaboloma compounds investigated by tandem mass spectrometry. Rapid Commun. Mass Spectrom. 2008
22, 3935–3948. [CrossRef]
,

Molecules 2020, 25, 2250
21 of 21
28. Rubino, F.M.; Cas, M.D.; Bignotto, M.; Ghidoni, R.; Iriti, M.; Paroni, R. Discovery of Unexpected Sphingolipids
in Almonds and Pistachios with an Innovative Use of Triple Quadrupole Tandem Mass Spectrometry. Foods
2020, 9, 110. [CrossRef]
29. Rubino, F.M.; Pitton, M.; Di Fabio, D.; Colombi, A. Toward an “omic” physiopathology of reactive chemicals:
Thirty years of mass spectrometric study of the protein adducts with endogenous and xenobiotic compounds.
Mass Spectrom. Rev. 2009, 28, 725–784. [CrossRef]
30. Grigoryan, H.; Edmands, W.; Lu, S.S.; Yano, Y.; Regazzoni, L.; Iavarone, A.T.; Williams, E.R.; Rappaport, S.M.
Adductomics Pipeline for Untargeted Analysis of Modifications to Cys34 of Human Serum Albumin.
Anal. Chem. 2016, 88, 10504–10512. [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
©
2020 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
