Surfactant Dependent pH Controlled Boff-on^,
Boff-on-off^ and Bon-off^ Fluorescent Switches Exhibited
by N-Benzylidenenaphthalen-1-Amine
Jutika Kumar1 & Manas Jyoti Sarma1 & Prodeep Phukan1 & Diganta Kumar Das1
Received: 26 May 2015 /Accepted: 26 July 2015 /Published online: 19 August 2015
#
Springer Science+Business Media New York 2015
Abstract N-benzylidenenaphthalen-1-amine (L) acts as pH
dependent Boff-on^, Boff-on-off^ and Bon-off^ fluorescent
switch in 1:1 (v/v) CH3CN:H2O depending on the presence
of anionic sodiumdocdecyl sulphate (SDS), neutral triton X-
100 (TX-100) and cationic cetyltrimethylammonium bromide
(CTAB) surfactants respectively. DFT calculation shows the
possibility of formation of L.H+ due to protonation at immine
N and L.OH− due to introduction of OH− group at immine C.
The relative stability of these two cationic and anionic species
depends on the charge environment provided by surfactants.
This influences the photoinduced electron transfer (PET) pro-
cesses involved and results in different switch behaviour.
A number of pH responsive fluorescent Bon-off^ or Boff-
on^ type switches have been reported. Anthracene as
fluorophore joined to aromatic iminodiacetate as receptor
through the spacer -CH2- acts as Bon-off^ fluorescent pH
switch [4]. Bis-azamacrocyclic anthracene having two 12-
membered cyclic tetraamine connected through a 9,10-
dimethylanthracene spacer shows fluorescent Bon^ switch be-
haviour at pH<7 and Boff^ behaviour at pH>10 [5].
Polyamines bearing anthracene and benzophenone moiety at
the two ends is another reported fluorescent Bon-off^ switch
with Bon^ window between pH 2.0 to pH 9.0 [6]. Anthracene
moiety attached to diethylenetriamine behaves as Boff-on^
switch for 416 nm emission and Bon-off^ switch for 510 nm
emission when excited with wavelength of 402 nm [7]. When
anthracene was replaced by pyrene it showed fluorescence
Bon-off^ and Boff-on^ at emission wavelengths 376 and
480 nm respectively on excitation at 316 nm [8].
.
.
Keywords Benzylidenenaphthalen-1-amine Fluorescence
.
.
.
Molecular switch Off-on-off Surfactant DFT
A three components systems comprising - Cu2+, a
tetraaza ligand and the fluorophore Coumarin reported as
Bon-off-on^ fluorescent switch [9]. A series of compounds
synthesised by linking methylnaphthalene fragments at
both ends of a variety of polyamine chains showed fluo-
rescence Boff-on-off^ behaviour for fluorescence emission
418 nm on excitation wavelength of 287 nm [10]. pH
dependent Fluorescent Boff-on-off^ switch is also reported
for supramolecular system based on benzocrown ether
[11]; natural products anabasin and coumarin [12]; dipod
1,2-bis(8-quinolinoxymethyl)benzene and tetrapod 1,2,4,5-
tetrakis(8-quinolinoxymethyl)benzene [13] etc. Most of the-
se switches involve complicated organic synthesis.
Introduction
Chemically driven molecular switches are the small tools
based on molecules or molecular systems which can transmit
events occurring in molecular level to the macroscopic world
[1]. Fluorescence molecular switches gained recent interest
due to very high sensitivity and relatively low costs [2]. H+
in the form of pH as the stimulus is especially convenient
because it causes mild perturbation, does not cause degrada-
tion of the system and its operation can be repeated at will [3].
* Diganta Kumar Das
Fluorescent switch of Boff-on-off^ type involving surfac-
tant sodium dodecyl sulfate (SDS) micelle, pyrene, poly(-
acrylic acid) (PAA) and Cu2+ reported [14]. The condensation
product of salicylaldehyde and 2,4-di-nitrophenylhydrazine
showed different fluorescent switching behaviour based on
digkdas@yahoo.com
1
Department of Chemistry, Gauhati University, Guwahati, Assam,
India 781 014

1432
J Fluoresc (2015) 25:1431–1435
2000
1600
1200
800
400
0
2
4
6
8
10
12
pH
Fig. 2 Changes in fluorescent intensity I of L at different pH in 1:1 v/v
CH3CN:H2O containing 3 % w/v SDS
Synthesis and Characterisation
of N-Benzylidenenaphthalen-1-Amine (L)
L (Scheme 1) was already synthesised and reported as fluo-
rescent sensor for Al3+ ion [17]. Briefly: 1-naphthylamine
(0.136 g, 1.0 mmol) was dissolved in dichloromethane
(20 mL). Benzaldehyde (0.106 g, 1.0 m mol) was added and
the reaction mixture was refluxed for 10 h. After completion
of reflux, the reaction mixture was diluted with dichlorometh-
ane and extracted successively with water and NaHCO3 solu-
tion (10 % aqueous). The organic extracts collected were dried
over anhydrous Na2SO4 and the solvent was evaporated to
obtain a liquid product of brown colour. Yield: 70 %.
ESI-MS: [M+H]+, m/z, 232.11 (C17H13N, 100 % abun-
dance); FT-IR: (KBr, cm−1): 1597.08 (νC=N), 3045 (νC−H),
1409 (νC=C); 1H NMR: (CDCl3, δ ppm, TMS): 8.57 (s, 1H);
8.38 (m 1H); 8.06 (m, 2H); 7.89 (m, 1H); 7.76 (d, 1H, J=8.4);
7.57 (m, 6H); 7.06 (m, 1H); 13C NMR: (CDCl3, δ ppm, TMS):
160.4, 149.2, 136.3, 133.8, 131.4, 128.9, 128.8, 128.5, 127.6,
126.3, 126.0, 123.9, 112.7.
Scheme 1 N-benzylidenenaphthalen-1-amine (L)
cationic, neutral or anionic surfactant micelles present in the
solution [15]. Charge nature of surfactant micelle was
employed to influence the keto-enol tautomerism of
salicylaldehyd-aniline condensation product and hence the
pH dependent fluorescent switch behaviour [16].
In this paper we report that pH dependent fluorescent
switch behaviour of N-benzylidenenaphthalen-1-amine is
Boff-on^, Boff-on-off^ and Bon-off^ type when anionic SDS,
neutral TX-100 or cation CTAB surfactant molecules are pres-
ent in the medium.
Experimental
DFT Optimisation Studies
All the chemicals were purchased from Loba, Chemie.
Fluorescence spectra were recorded in Hitachi 2500 spectro-
photometer at room temperature by using 1.0 cm quartz cu-
vette. pH values were measured using a Merck digital pH
metre. NMR spectra were recorded on a Bruker Ultra shield
300 MHz spectrophotometer. FT-IR spectra were recorded on
Perkin-Elmer spectrophotometer (RX1). High Resolution
Mass Spectra were recorded in Agilent spectrometer using
HPLC methanol as solvent.
DFT calculations were performed with the Gaussian 09 pack-
age [18]. The structure of L, L.H+ and L.OH− were optimised
using Becke’s three-parameter hybrid functional combined
with the Lee-Yang-Parr correlation functional (B3LYP) [19,
20] level of DFT with 6-311G++ besis set for all calculations.
2000
1600
1200
800
400
0
10000
8000
6000
4000
2000
0
2.5 3.5 4.5 5.5 6.5 7.5 8.5 9.5 10.5 11.5
pH
2
3
4
5
6
7
8
9
10 11 12
pH
Fig. 1 Changes in fluorescent intensity I of L at different pH in 1:1 v/v
Fig. 3 Changes in fluorescent intensity I of L at different pH in 1:1 v/v
CH3CN:H2O
CH3CN:H2O containing 3 % w/v CTAB

J Fluoresc (2015) 25:1431–1435
1433
2000
1600
1200
800
400
0
0
2
4
6
8
10
12
14
pH
HOMO of L
LUMO of L
Fig. 4 Changes in fluorescent intensity I of L at different pH in 1:1 v/v
CH3CN:H2O containing 3 % w/v TX-100
Fig. 5 DFT optimised structure of L and its HOMO and LUMO in
singlet
Preparation of Solutions
L was dissolved in 1:1 v/v CH3CN:H2O. Appropriate surfac-
tant was added so that the final surfactant concentration is 3 %
(w/v). The solutions were allowed to stand for 3 h before
fluorescence spectra were recorded.
pH 10.0 which started to decreased thereafter and became
fully Boff^ at pH 12.0. Hence L in 1:1 v/v CH3CN:H2O be-
haves fluorescence Boff-on^ switch in presence of anionic
surfactant SDS, Bon-off^ switch in presence of cationic sur-
factant CTAB and Boff-on-off^ when neutral surfactant TX-
100 is present.
Result and Discussions
L shows both cis and trans isomers out of which the trans
form is the stable one [21]. The pKa of free naphthylamine and
benzaldehyde are 3.92 and 14.9 respectively. In TX-100 when
pH was decreased from pH 7.0 the fluorescence intensity
started to decrease at pH 4.0 and becomes minimum at
pH 2.0. This is due to protonation of the imine N atom and
due to this protonation the electron density at the benzalde-
hyde ring decrease and secondary PET generated from naph-
thylamine ring to benzaldehyde ring as shown in Scheme 2.
Such type of PET processes as well reported [22]. On the other
hand when we increased pH from pH 7.0 the fluorescence
intensity started to decrease from pH 9.8 and attained mini-
mum at pH 12.0. The OH− attacks the immine C atom forming
anion with negative charge on the N atom. This negative
charge on N will be involved in PET process from it into the
naphthylamine ring as shown in Scheme 1. Hence fluo-
rescence intensity decreases at pH 9.8 and above. Thus
we obtained bell shaped fluorescence intensity versus
pH profile leading to fluorescent Boff-on-off^ switch behav-
iour in TX-100.
L in 1:1 v/v CH3CN:H2O showed fluorescence emission in
the range 370 to 570 nm with λmax at 430 nm when excited
with wavelength 310 nm [17]. Figure 1 shows the fluores-
cence intensity (I) of L as a function of pH in 1:1 (v/v)
CH3CN:H2O. A sharp increase in intensity was observed at
pH ca. 3.0. Another hump in fluorescence intensity was ob-
served at pH 5.6.
Figure 2 shows the fluorescence intensity of L as a function
of pH when the solution contain 3 % (w/v) SDS. The fluores-
cence intensity increased from pH 3.0 and attained maximum
at pH 6.0 resulting in fluorescent Boff-on^ switch. When the
solution contained 3 % (w/v) CTAB fluorescence was Bon^
till pH 9.0 (Fig. 3). Further increase in pH led to decrease in
fluorescence intensity attaining full Boff^ state at pH 11.0.
Presence of 3 % (w/v) TX-100 in 1:1 v/v CH3CN:H2O solu-
tion of L resulted fluorescence Boff-on-off^ switch behaviour
(Fig. 4). The fluorescence intensity was found to increase
from pH 2.0 till pH 4.0 and remained unchanged till
Scheme 2 PET process in L.H+
(at pH 2.0) and L.OH−
(at pH 12.0)

1434
J Fluoresc (2015) 25:1431–1435
stability of L.H+ and L.OH− in presence of surfactant of different
charges and (ii) Presence of secondary PET from naphthylene
ring to banzaldehyde ring in L.H+ and primary PET from neg-
ative charge of immine N to naphthylene ring in L.OH−.
Acknowledgments We thank DST, New Delhi and UGC, New Delhi
for financial assistance to the department through FIST and SAP respec-
tively. UGC is also thanked for journal excess through INFLIBNET. IIT-
Guwahati is thanked for HRM spectra.
L.H+
HOMO of L.H+
LUMO of L.H+

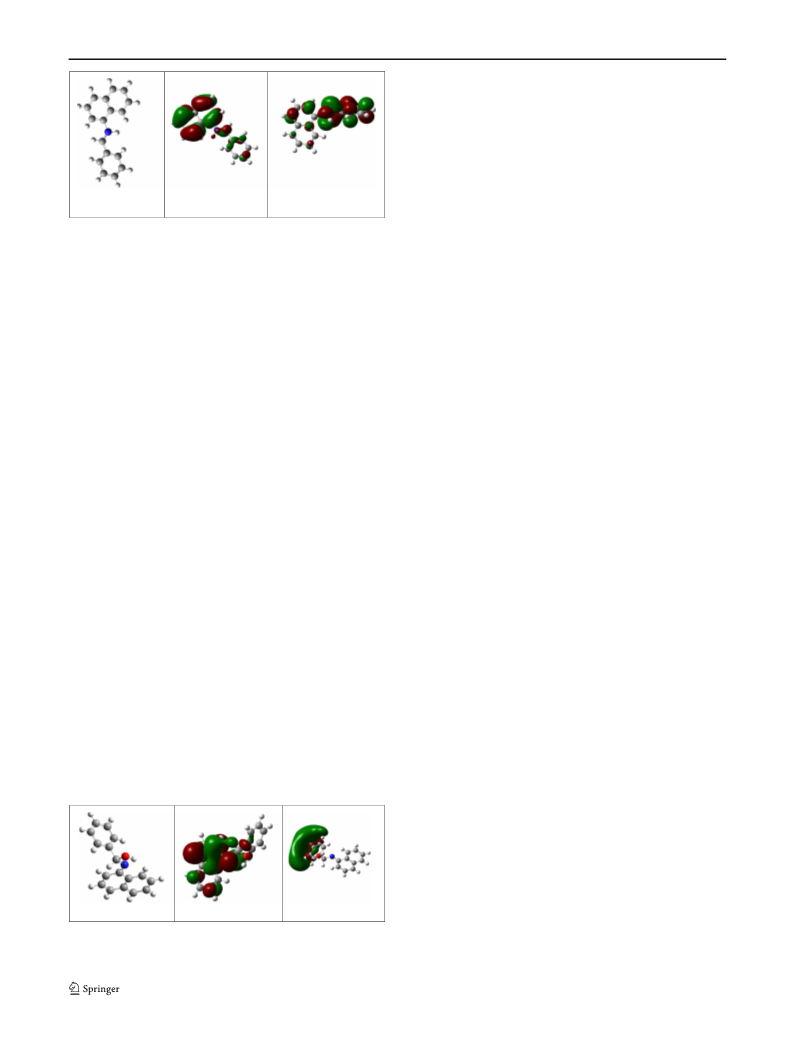

Fig. 6 DFT optimised structure of L.H+ and its HOMO and LUMO in
singlet
References
In SDS medium the protonation of immine N takes place
and at a relatively higher pH compared to that in TX-100
because being anionic SDS shall facilitate formation of the
protonated cation of L that is L.H+. The anion formed due
to OH- attack on L is prevented by anionic SDS and therefore
the fluorescence intensity remains in Bon^ state in case of
SDS. Thus we obtained a pH dependent fluorescent Boff-on^
molecular switch for L in SDS. When cationic CTAB is pres-
ent in the solution the protonation of immine N does not take
place due to electrostatic reason and we get Bon^ state even at
low pH. On the other hand in cationic CTAB the anionic state
of L due to OH− attack is well favoured. Fluorescence inten-
sity starts to decrease at pH 8.5 attaining minimum at pH 11.0
due to PET from negative charge on N to the naphthalene ring.
Being cationic CTAB can stabilise the anion more compared
to that in neutral TX-100 leading to start of the Boff^ state at
comparatively lower pH.
We have performed DFT calculations to check the possi-
bility of protonation at immine N and addition of OH− ion at
immine C atom. Figure 5 shows the DFT optimised structure
of L in the trans or E form and the shape of the HOMO and
LUMO orbitals. DFTcalculation shows that protonation at the
immine N of L is quite favourable and Fig. 6 shows the struc-
ture of L.H+ together with the shape of their HOMO and
LUMO. DFT calculation also confirmed that OH− can get
associated with the immine C atom (Fig. 7).
1. de Silva AP, Gunaratne HQN, Gunnlaugsson T, Huxley AJM, Mc
Coy CP, Rademacher JT, Rice TE (1997) Signaling recognition
events with fluorescent sensors and switches. Chem Rev 97:
1515–1566
2. Szaciłowski K (2008) Digital information processing in molecular
systems. Chem Rev 108:3481–3548
3. Amendola V, Fabbrizzi L, Mangano C, Miller H, Pallavicini P,
Parotti A, Taglietti A (2002) Signal amplification by a fluorescent
indicator of a pH-driven intramolecular translocation of a copper(II)
ion. Angew Chem Int Ed 41:2553–2556
4. Gunnlaugsson T, Lee TC, Parkesh R (2004) Highly selective fluo-
rescent chemosensors for cadmium in water. Tetrahedron 60:
11239–11249
5. Shiraishi Y, Kohno Y, Hirai T (2005) Bis-azamacrocyclic anthra-
cene as a fluorescent chemosensor for cations in aqueous solution. J
Phys Chem B 109:19139–19147
6. Nishimura G, Shiraishi Y, Hirai T (2005) A fluorescent
chemosensor for wide-range pH detection. Chem Commun 42:
5313–5315
7. Shiraishi Y, Tokitoh Y, Nishimura G, Hirai T (2005) A molecular
switch with pH-controlled absolutely switchable dual-mode
Fluorescence. Org Lett 7:2611
8. Shiraishi Y, Tokitoh Y, Hirai T (2006) pH and H2O driven triple-
mode pyrene fluorescence. Org Lett 8:3841–3844
9. Pallavicini P, Amendola V, Massera C, Mundum E, Taglietti A
(2002) ‘On–off–on’ fluorescent indicators of pH windows based
on three separated components. Chem Commun 2452–2453
10. Albelda MT, Bernardo MA, Diaz P, Garcia-Espan widetilde E,
Melo JS, Pina F, Soriano C, Luis SV (2001) Polyamines containing
naphthyl groups as pH-regulated molecular machines driven by
light. Chem Commun 1520–1521
11. de Silva SA, Amorelli B, Isidor DC, Loo KC, Crooker KE, Pena
YE (2002) A fluorescent ‘off-on-off’ proton switch with an over-
riding ‘enable-disable’ sodium ion switch Chem Commun 1360–
1361
12. de Silva SA, Loo KC, Amorelli B, Pathirana SL, Nyakirang’ani M,
Dharmasena M, Demarais S, Dorcley B, Pullay P, Salih YA (2005) A
fluorescent Boff–on–off^ proton switch derived from natural products
and further studies of first-generation fluorescent photoinduced elec-
tron transfer (PET) systems. J Mater Chem 15:2791–2795
13. Singh P, Kumar S (2006) A unique ON–OFF–ON switch with two
perturbations at two different concentrations of Ag+. Tetrahedron
Lett 47:109–112
In conclusion, N-benzylidenenaphthalen-1-amine (L) in
1:1 v/v CH3CN:H2O can be tuned to show Boff-on^, Boff-on-
off^ or Bon-off^ fluorescent switch behaviour by introducing
anionic SDS, neutral TX-100 or cationic CTAB into the solu-
tion. These could be explained on the basis of – (i) different
14. Bandyopadhyay P, Ghosh AK (2009) pH-Controlled Boff-on-off^
switch based on Cu2+-mediated pyrene fluorescence in a PAA-SDS
micelle aggregated supramolecular system. Phys Chem B 113:
13462–13464
15. Goswami P, Das DK (2011) Significant effect of surfactant micelles
on pH dependent fluorescent off–on–off behavior of salicylaldehyde-
2,4-dinitrophenylhydrazone. J Lumin 131:760–763
LUMO of L.OH-
L.OH-
HOMO of L.OH-
Fig. 7 DFT optimised structure of L.HO− and its HOMO and LUMO in
singlet

J Fluoresc (2015) 25:1431–1435
1435
16. Das DK, Dutta K (2014) pH dependent fluorescence switching in
salicylideneaniline: ‘off–on–off’ operation controlled by surfactant
micelles. J Lumin 145:454–458
17. Kumar J, Sarma MJ, Phukan P, Das DK (2015) A new simple Schiff
base fluorescence Bon^ sensor for Al3+ and its living cell imaging.
Dalton Trans 44:4576–4581
18. Frisch MJ, Trucks GW, Schlegel HB, Scuseria GE, Robb MA,
Cheeseman JR, Scalmani G, Barone V, Mennucci B, Petersson
GA, Nakatsuji H, Caricato M, Li X, Hratchian HP, Izmaylov AF,
Bloino J, Zheng G, Sonnenberg JL, Hada M, Ehara M, Toyota K,
Fukuda R, Hasegawa J, Ishida M, Nakajima T, Honda Y, Kitao O,
Nakai H, Vreven T, Montgomery JA Jr, Peralta JE, Ogliaro F,
Bearpark M, Heyd JJ, Brothers E, Kudin KN, Staroverov VN,
Keith T, Kobayashi R, Normand J, Raghavachari K, Rendell A,
Burant JC, Iyengar SS, Tomasi J, Cossi M, Rega N, Millam JM,
Klene M, Knox JE, Cross JB, Bakken V, Adamo C, Jaramillo J,
Gomperts R, Stratmann RE, Yazyev O, Austin AJ, Cammi R,
Pomelli C, Ochterski JW, Martin RL, Morokuma K, Zakrzewski
VG, Voth GA, Salvador P, Dannenberg JJ, Dapprich S, Daniels AD,
Farkas O, Foresman JB, Ortiz JV, Cioslowski J, Fox DJ (2013)
Gaussian 09, Revision B.01. Gaussian, Inc, Wallingford
19. Becke AD (1993) Density‐functional thermochemistry. III. The role
of exact exchange. J Chem Phys 98:5648–5652
20. Lee C, Yang W, Parr RG (1988) Development of the Colle-Salvetti
correlation-energy formula into a functional of the electron density.
Phys Rev B 37:785–789
21. Weiss K, Warren CH, Wettermark G (1971) Cis-Trans
Isomerization about the carbon-nitrogen double bond. The struc-
tures of the isomers of N-Benzylideneaniline. J Am Chem Soc 93:
4658
22. de Silva SA, Loo KC, Amorelli B, Pathirana SL, Myakirang’ani
DM, Demarais S, Dorcley B, Pullay P, Salih YA (2005) A fluores-
cent Boff–on–off^ proton switch derived from natural products and
further studies of first-generation fluorescent photoinduced electron
transfer (PET) systems. J Mater Chem 15:2791–2795
