RESEARCH ARTICLE
Practical spectrophotometric assay for the
dapE-encoded N-succinyl-L,L-diaminopimelic
acid desuccinylase, a potential antibiotic
target
Tahirah K. Heath1☯, Marlon R. Lutz, Jr.1,2☯, Cory T. Reidl1, Estefany R. Guzman1, Claire
A. Herbert1, Boguslaw P. Nocek3, Richard C. Holz4, Kenneth W. Olsen1, Miguel
A. Ballicora1, Daniel P. Becker1*
a1111111111
a1111111111
a1111111111
a1111111111
a1111111111
1 Department of Chemistry and Biochemistry, Loyola University Chicago, Chicago, Illinois, United States of
America, 2 Regis Technologies, Inc., Morton Grove, Illinois, United States of America, 3 The Center for
Structural Genomics of Infectious Diseases, Computation Institute, University of Chicago, Chicago, Illinois,
United States of America, 4 Department of Chemistry, Marquette University, Milwaukee, Wisconsin, United
States of America
☯ These authors contributed equally to this work.
* dbecke3@luc.edu
OPEN ACCESS
Abstract
Citation: Heath TK, Lutz MR, Jr., Reidl CT, Guzman
ER, Herbert CA, Nocek BP, et al. (2018) Practical
spectrophotometric assay for the dapE-encoded N-
succinyl-L,L-diaminopimelic acid desuccinylase, a
potential antibiotic target. PLoS ONE 13(4):
e0196010. https://doi.org/10.1371/journal.
pone.0196010
A new enzymatic assay for the bacterial enzyme succinyl-diaminopimelate desuccinylase
(DapE, E.C. 3.5.1.18) is described. This assay employs N6-methyl-N2-succinyl-L,L-diamino-
pimelic acid (N6-methyl-L,L-SDAP) as the substrate with ninhydrin used to detect cleavage
of the amide bond of the modified substrate, wherein N6-methylation enables selective
detection of the primary amine enzymatic product. Molecular modeling supported prepara-
tion of the mono-N6-methylated-L,L-SDAP as an alternate substrate for the assay, given
binding in the active site of DapE predicted to be comparable to the endogenous substrate.
The alternate substrate for the assay, N6-methyl-L,L-SDAP, was synthesized from the tert-
butyl ester of Boc-L-glutamic acid employing a Horner-Wadsworth-Emmons olefination fol-
lowed by an enantioselective reduction employing Rh(I)(COD)(S,S)-Et-DuPHOS as the chi-
ral catalyst. Validation of the new ninhydrin assay was demonstrated with known inhibitors
of DapE from Haemophilus influenza (HiDapE) including captopril (IC50 = 3.4 [± 0.2] μM, 3-
mercaptobenzoic acid (IC50 = 21.8 [±2.2] μM, phenylboronic acid (IC50 = 316 [± 23.6] μM,
and 2-thiopheneboronic acid (IC50 = 111 [± 16] μM. Based on these data, this assay is sim-
ple and robust, and should be amenable to high-throughput screening, which is an important
step forward as it opens the door to medicinal chemistry efforts toward the discovery of
DapE inhibitors that can function as a new class of antibiotics.
Editor: A Ganesan, University of East Anglia,
UNITED KINGDOM
Received: December 1, 2017
Accepted: April 4, 2018
Published: April 26, 2018
Copyright: © 2018 Heath et al. This is an open
access article distributed under the terms of the
Creative Commons Attribution License, which
permits unrestricted use, distribution, and
reproduction in any medium, provided the original
author and source are credited.
Data Availability Statement: All relevant data are
within the paper and its Supporting Information
files.
Funding: We thank the National Science
Foundation, https://www.nsf.gov/ for CHE-
1412443 to RCH for partially funding this research
in supporting the research efforts and salary of BN.
Regis Technologies provided support in the form
of a salary for one author [ML] who is a part-time
graduate student at Loyola University Chicago but
Introduction
The sharp increase in mortality and morbidity due to rising bacterial infections caused by anti-
biotic-resistant bacteria[1] underlines the need to discover previously-unexplored enzymes as
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
1 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
is also employed full-time at Regis Technologies.
Regis Technologies did provide financial support
for graduate school tuition and research materials
but did not play any role in the study design,
decision to publish, or preparation of the
novel antibiotic targets with the concurrent goal of discovering and developing new molecular
drug scaffolds. For example, invasive methicillin-resistant Staphylococcus aureus (MRSA) is a
serious and growing health problem.[2] Several newly discovered strains of MRSA show anti-
biotic resistance even to vancomycin, which has been considered for decades as the standard
for the treatment of systemic infections.[3] An attractive bacterial target that is present in all
Gram-negative and most Gram-positive bacteria is the dapE-encoded N-succinyl-L,L-diami-
nopimelic acid desuccinylase (DapE, E.C. 3.5.1.18),[4] which is a member of the lysine biosyn-
thetic pathway in bacteria that provides lysine and meso-diaminopimelate (m-DAP),[5] both
of which are important for peptidoglycan cell-wall synthesis. DapEs catalyze the hydrolysis of
N-succinyl-L,L-diaminopimelic acid (L,L-SDAP) to succinate and L,L-diaminopimelic acid (L,
L-DAP) (Fig 1). Deletion of the DapE gene is lethal to Helicobacter pylori and Mycobacterium
smegmatis, demonstrating the indispensable role of this enzyme in bacterial survival, and ulti-
mately in pathogenesis in the human host.[6,7] Furthermore, lack of a similar pathway in
humans suggests that selective inhibition of DapE may be toxic to bacteria but not to human
hosts, making it a promising target for antibiotics with a new mechanism of action.[4]
Previously, it was shown that DapEs exhibit >60% of their maximal activity towards L,
L-SDAP when only one Zn(II) ion is present in its active site,[8] with the tighter binding site
confirmed by high-resolution X-ray crystallography. These structures have enabled further
refinement of a mechanistic hypothesis of amide bond cleavage by DapE enzymes, which have
in turn facilitated inhibitor identification.[9] A small, focused screen of compounds containing
zinc-binding groups identified the thiol-containing ACE inhibitor captopril as a low micromo-
lar competitive inhibitor (IC50 = 3.3 μM) of the DapE from Haemophilus influenza (HiDapE)
manuscript. Regis Technologies was involved in
data collection and analysis of synthetic
compounds mentioned within the manuscript but
retains no rights to the findings or contents of this
manuscript. The specific role of this author is
articulated in the ‘author contributions’ section.
Competing interests: Marlon R. Lutz Jr. is
employed by Regis Technologies, Inc. Regis
Technologies did provide financial support for
graduate school tuition and research materials, and
was involved in data collection and analysis of
synthetic compounds mentioned within the
manuscript but retains no rights to the findings or
contents of this manuscript. The authors wish to
declare the following two patent applications that
are in progress: 1) Daniel P. Becker, Richard Holz,
Cory Reidl, Tahirah Heath, Anna Starus, and Walter
Fast, “Indoline Sulfonamide Inhibitors of DapE and
NDM-1 and Use of the Same as an Antibiotic”, PCT
62/036,346 nonprovisional filed August 12, 2015,
with the U.S. Patent Office; and 2) Cory Reidl,
Maxwell Moore, Tahirah Heath, Daniel P. Becker,
and Walter Fast, “Indoline Sulfonyl Inhibitors of
Dimetalloenzymes and Use of the Same” PCT 62/
191,119, Nonprovisional PCT filed July 11, 2016.
There are no further patents, products in
along with several other small molecule inhibitors including 3-mercaptobenzoic acid (IC50
=
35 μM), phenylboronic acid (IC50 = 107 μM), and 2-thiopheneboronic acid (IC50 = 92 μM).
[10] A high-resolution (1.8 Å) X-ray crystal structure of captopril bound to the DapE from
Neisseria meningitidis (NmDapE) revealed a thiolate-bridged dinuclear Zn(II) active site[11]
and provided a model for in silico approaches to identifying potential inhibitors of DapEs.[12]
The most widely used DapE assay monitors amide bond cleavage of L,L-SDAP spectropho-
tometrically at 225 nm.[10] While this assay is simple and reliable for simple inhibitors, it can-
not be used to test potential inhibitors that absorb strongly in the UV region, precluding its
use in testing many of the preferred medicinal chemistry leads and analogs. While several
other assays have been developed for evaluating inhibitors of DapEs, all suffer from being tech-
nically troublesome and/or difficult to reproduce.[13] For example, Gelb et al.[14] took advan-
tage of the fact that L,L-DAP reacts somewhat faster with ninhydrin than L,L-SDAP; however,
this assay suffers from poor reproducibility. Two alternative assays were also reported, the first
of which employed 14C-labeled L,L-SDAP while the second was a coupled assay that utilizes
development or marketed products to declare. This
does not alter our adherence to all the PLOS ONE
policies on sharing data and materials, as detailed
online in the guide for authors.
Fig 1. Hydrolysis of L,L-SDAP and analogs by HiDapE. L,L-SDAP (1a) and analogs N6-methyl SDAP (1b) and N6-acetyl-SDAP (1c) with
formation of hydrolysis products succinate (2) and L,L-diaminopimelic acid derivatives (3a-c). Enzyme-mediated hydrolysis was not observed for
N-acetyl analog 1c which would afford 3c.
https://doi.org/10.1371/journal.pone.0196010.g001
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
2 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
porcine succinate thiokinase and inositol triphosphate to convert liberated succinate to succi-
nyl-CoA (CoA = coenzyme A) and inositol diphosphate. The inositol diphosphate was then
detected by its reaction with phosphoenolpyruvate to yield liberated pyruvate, itself being
detected spectrophotometrically using lactate dehydrogenase. The 14C-labeled substrate assay
requires working with radioactivity, necessitating extra safety protocols and waste disposal
issues, while the coupled assay is cumbersome and expensive while also being technically diffi-
cult and therefore difficult to reproduce, although succinate can now be determined by com-
mercially-available kits that use proprietary coupled enzyme reactions, either following color
development at 450 nm or detecting bioluminescence. However, the presence of secondary
enzymes gives rise to the possibility of false positives through inhibition of the coupled en-
zyme, and the kits are not cost-effective for higher-throughput assays. Moreover, none of these
assays are amenable to high-throughput screening studies, a necessity for the discovery of new
lead compounds with antibacterial properties.
Recognizing the ease and reliability of ninhydrin-based assays to detect primary amino
groups, such as that formed upon the hydrolysis of L,L-SDAP and the importance of the N6-
amino group of L,L-SDAP,[15] we synthesized L,L-SDAP derivatives with partially blocked
free amino groups to prevent ninhydrin side reactions. N6-Methylated and N6-acetylated
derivatives of L,L-SDAP were investigated and prioritized using molecular docking and
modeling. Based on these data, a new enzymatic assay for HiDapE is described using N6-meth-
ylated L,L-SDAP, which we have shown is simple and robust, and should be amenable to high-
throughput screening. These data open the door to medicinal chemistry efforts toward the dis-
covery of HiDapE inhibitors that can function as a new class of antibiotics.
Materials and methods
All solvents were distilled prior to use and all reagents were used without further purification
unless otherwise noted. Ninhydrin was purchased as a 2% solution in 100% DMSO (dimethyl
sulfoxide) with a lithium acetate buffer at pH 5.2. All synthetic reactions were conducted
under an argon or nitrogen atmosphere, or as specified otherwise. The term reactor refers to a
large round-bottom flask. Silica gel 60 Å, 40−75 μm (200 × 400 mesh), was used for column
chromatography. Aluminum-backed silica gel 200 μm plates were used for TLC (thin-layer
chromatography). 1H NMR spectra were obtained using a 300, 400, or 500 MHz spectrometer
with trimethylsilane (TMS) as the internal standard. 13C NMR spectra were obtained using a
75, 100, or 125 MHz spectrometer. The purity of all compounds was determined to be ꢀ95%
unless otherwise noted by high performance liquid chromatography (HPLC) employing a
mobile phase A = 0.1% TFA in water and a mobile phase B = 0.1% TFA in acetonitrile with a
gradient of 60% B increasing to 95% over 10 min, holding at 95% B for 5 min, then returning
to 60% B and holding for 5 min. HRMS spectra were measured on a TOF instrument by elec-
trospray ionization (ESI). HRMS spectra were collected using a Waters Acquity I class UPLC
and Xevo G2-XS QTof mass spectrometer with a Waters Acquity BEH C18 column (1.7 μm,
2.1x50 mm). Mobile phase A was 0.05% formic acid in water and mobile phase B was 0.05%
formic acid in acetonitrile. A gradient of 5% to 90% B over 5 min was applied. Enzyme activity
curves were fitted with a program that utilizes non-linear least squares regression of the Gauss-
Newton algorithm with optional damping using an ad hoc program.[16,17]
Organic synthesis
(2S,6S)-2-(3-Carboxypropanamido)-6-(methylamino)heptanedioic acid hydrochloride
(1b.HCl). To a 100 mL reactor was added 10a (1.50 g, 3.16 mmol) and a freshly prepared 6
M HCl solution (30 mL). The reaction mixture was allowed to stir at 25˚C for 5 h and then
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
3 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
concentrated under reduced pressure (0.1–10 mbar) at 25˚C on a rotary evaporator and tritu-
rated in acetonitrile overnight at room temperature. The resulting slurry was filtered and dried
under reduced pressure overnight to provide compound 1b as the hydrochloride salt (1b.HCl,
1.04 g, 97%, deliquescent solid) as a white foam. 1H NMR (400 MHz, D2O): δ 4.35 (q, 1 H,
J = 9.0, 5.0 Hz), 3.95 (t, 1 H, J = 6.2 Hz), 2,73 (s, 3 H), 2.64 (m, 2 H), 2.58 (m, 2 H), 2.03–1.88
(m, 3 H), 1.81–1.72 (m, 1 H), 1.58–1.46 (m, 1 H), 1.43–1.36 (m, 1 H). HRMS (IT-Tof): Calcd
for C12H21N2O7 [M+H]+: 305.1349, Found: [M+H]+ 305.1309.
(2S,6S)-2-(3-Carboxylatopropanamido)-6-(methylamino)heptanedioate, 2,2,2-trifluor-
oacetate salt (1b.TFA). To a solution of succinyl t-butyl ester 10b (6.08 g, 14.8 mmol) in
DCM (60 mL) was added a TFA/DCM solution (30/70, 135 mL) under nitrogen. The mixture
was stirred at room temperature for 6 h and then concentrated on a rotary evaporator at 35–
40˚C. The resulting residue was dissolved in anhydrous methanol (6.0 mL) and slowly added
to anhydrous diethyl ether (450 mL, HPLC grade, inhibitor-free) with vigorous stirring to pre-
cipitate the TFA salt. The slurry was allowed to stir overnight at room temperature. The slurry
was filtered, and the wet cake was rinsed with anhydrous diethyl ether (50 mL), n-hexane
(100 mL), and dried in vacuo at room temperature overnight to provide compound 1b as the
mono-methyl L,L-SDAP TFA salt (L,L-succinyl diaminopimelate trifluoroacetate; 6.06 g, 98%
yield) as a white solid. 1H NMR (400 MHz, D2O): δ 4.36 (dd, 1H, J = 9.2, 5.2 Hz), 3.76 (t, 1H,
J = 6.4 Hz), 2.72 (s, 3H), 2.69–2.66 (m, 2H), 2.66–2.59 (m, 2H), 1.98–1.92 (m, 3H), 1.80–1.77
(m, 1H), 1.52–1.50 (m, 1H), 1.44–1.42 (m, 1H). 13C NMR (100 MHz, D2O): δ 176.9, 175.6,
174.9, 172.3, 62.1, 52.3, 31.5, 30.0, 29.9, 29.0, 28.2, 20.5. HRMS (ESI-ToF): m/z calcd for
C12H21N2O7+ [M+H]+: 305.1349, found: 305.1365. HPLC purity: 100%. Chiral HPLC: 100% e.
e. Chiral HPLC was performed on a RegisPack column (250 x 4.6 mm, 5 micron) eluting with
an isocratic gradient of hexane/isopropyl alcohol (90/10) + 0.1% TFA at 1.5 mL/min and mon-
itoring at 210 nm.
( )-(2S,6S)-2-Acetamido-6-(3-carboxylatopropanamido) heptanedioic acid (1c). To a
racemic mixture of D,D/L,L-SDAP (22.8 mg, 0.0786 mmol) was added glacial acetic acid
(100 μL), acetic anhydride (17.3 μL, 0.236 mmol), and sodium acetate trihydrate (24 mg,
0.079 mmol). The reaction was degassed and agitated with stirring (200 rpm) at 30˚C for
10 min, then after 1 hour at room temperature, reverse-phase TLC analysis eluting with
H2O-AcOH-CH3CN (30-1-69) indicated complete consumption of the starting material. The
resulting reaction mixture was quenched with 6 N HCl (0.1 mL) and concentrated to dryness
under reduced pressure and the resulting oil was placed under high vacuum overnight where
it became an off-white foam. The racemic product mixture was collected to afford the N-acety-
lated SDAP derivative 1c as a colorless powder (38.5 mg, 100%). HPLC purity 90.3% as deter-
mined on a 5 micron Chirosil SCA(-) column (150 mm x 4.6 mm, 5 micron) with isocratic
elution employing 84% MeOH in water containing 5 mM HClO4 with an elution time of 15
min with column temp at 25˚C and a flow rate of 2 mL/min monitoring at a wavelength of 210
nm. 1H NMR (500 MHz, D2O): δ 4.68 (bs, ammonium ion), 4.07–4.02 (m, 2H), 2.55–2.43 (m,
4H), 1.92 (s, 3H), 1.75–1.65 (m, 2H), 1.63–1.53 (m, 2H), 1.29 (p, J = 8Hz, 2H). 13C NMR (500
MHz, D2O) δ 179.2, 179.1, 178.9, 174.9, 173.9, 55.1, 55.0, 31.4, 31.3, 31.0, 22.2, 22.1, 21.8.
HRMS (IT-TOF) m/z calcd for C13H20N2O8 [M]+: 332.1232, found: 332.1220.
1-(tert-Butyl) 5-methyl (tert-butoxycarbonyl)-L-glutamate (5). According to the general
method of Glinka,[18] to a 2 L reactor was added Boc-L-Glu-OtBu (4) (95.65 g, 315.3 mmol),
milled K2CO3 (69.7 g, 504 mmol), and anhydrous DMAC (480 mL). To the reaction mixture
was added methyl iodide (49.3 g, 21.2 mL, 112 mmol). The reaction was agitated with mechan-
ical stirring (300 rpm) at 25˚C for 18 h. To the reaction mixture was added methyl iodide (228
g, 100 mL, 1.61 mol) followed by Ag2O (110 g, 475 mmol). The resulting reaction mixture was
stirred at 400 rpm with a water bath (15˚C) in place to control the exotherm and allowed to
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
4 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
further stir overnight (12 hours) and gradually warm to room temperature. 1H NMR analysis
confirmed that the reaction had gone to completion. The reaction mixture was then diluted
with EtOAc (750 mL) and treated with Celite1 (43 g), stirred for 15 min, filtered over a fritted
funnel (fine porosity) containing a pad of Celite1. The filter was washed with EtOAc (500
mL). The filtrate was concentrated under reduced pressure at 40˚C to remove EtOAc and
DMAC to provide the crude product as an oil (168 g). The oil was diluted with EtOAc (500
mL) and heptane (400 mL) and washed with 50 wt% (weight %) sodium thiosulfate pentahy-
drate solution (2 x 500 mL), USP purified water (3 x 500 mL), brine (500 mL), dried with
sodium sulfate (40 g)/silica gel (20 g), filtered, and concentrated to provide the title compound
5 (102 g, 97%) as a colorless oil. HPLC purity 97.7%. 1H NMR (400 MHz, CDCl3) δ 4.59 (m,
amide rotamer, 0.50 H), 4.37 (m, amide rotamer, 0.50 H), 2.77 (d, mixture of amide rotamers,
3H), 2.38–2.20 (m, 3H), 2.00 (m, 1H), 1.45 (s, 18H). 13C NMR (100 MHz, CDCl3): δ 173.4,
173.3, 170.4, 170.2, 156.3, 155.8, 81.6, 81.5, 80.3, 80.0, 59.4, 58.3, 51.7, 31.3, 31.2, 30.9, 30.51,
28.4, 28.1, 24.3, 24.1. HRMS (ESI-ToF): m/z calcd for C16H29NNaO6+ [M+Na]+: 354.1887,
found: 354.1920.
tert-Butyl-(S)-2-((tert-butoxycarbonyl)(methyl)amino)-5-hydroxypentanoate (6). To a
3 L 3-necked reactor was added methyl ester 5 (100.0 g, 301.7 mmol) and ethanol (HPLC
grade, 1500 mL) and the mixture was cooled to < 5˚C in an ice water bath. Sodium borohy-
dride (57.6 g, 1520 mmol) was added in 5 portions over 15 min. The reaction was allowed to
stir at < 5˚C and subsequently allowed to gradually warm to room temperature overnight
while the cooling bath remained in place. After 20 hours, TLC analysis (EtOAc/heptane, 40/
60) showed complete consumption of the methyl ester starting material (Rf = 0.51) and the
presence of the alcohol product spot (Rf = 0.22). To a 12 L reactor containing a cold solution
of 50% aqueous ammonium chloride solution (3000 mL, < 5˚C) was slowly added the reaction
mixture over a period of 15 min such that the temperature remained < 15˚C. The mixture was
allowed to stir at 15–20˚C for 30 min, then EtOAc (1000 mL) was added. The organic layer
was separated, and the aqueous layer was further extracted with EtOAc (3 x 1000 mL). The
combined organic layers were washed with brine (300 mL), dried with sodium sulfate, filtered,
and concentrated to a colorless oil (90.8 g). The crude oil was dissolved in EtOAc/heptane (20/
80, 100 mL), which was purified through a silica gel plug (1000 g) and the plug was flushed
with EtOAc/heptane (20/80, 2 L) and EtOAc/heptane (40/60, 6 L) to afford the title alcohol 6
(88.6 g, 97%) as a colorless oil. 1H NMR: (400 MHz, CDCl3): δ 4.65 (m, amide rotamer, 0.50
H), 4.35 (m, amide rotamer, 0.50 H), 3.68 (t, 2H, J = 6.4 Hz), 2.78 (m, mixture of amide rota-
mers, 3H), 2.04–1.71 (m, 3H), 1.69–1.53 (m, 2H), 1.45 (s, 18H). 13C NMR (100 MHz, CDCl3):
δ 171.1, 171.0, 156.6, 156.0, 81.4, 81.4, 80.2, 78.0, 62.2, 62.1, 59.7, 58.4, 30.6, 29.4, 29.2, 28.4,
2819, 25.5, 25.3. MS M+1 (304 m/z), M+23 (326 m/z), M+39 (342 m/z), and 2M+23 (629 m/z).
HRMS (ESI-ToF): m/z calcd for C15H29NNaO5+ [M+Na]+: 326.1938, found: 326.1969.
tert-Butyl (S)-2-((tert-butoxycarbonyl)(methyl)amino)-5-oxopentanoate (7). To a 250
mL reactor containing alcohol 6 (6.09 g, 20.1 mmol) was added DCM (90 mL) followed
sequentially by PCC (pyridinium chlorochromate, 6.50 g, 44.1 mmol) and silica gel (60–200
micron, 7.00 g) with DCM (18 mL) as a rinse. The mixture was allowed to stir at room temper-
ature for 1 hour after which time TLC analysis (EtOAc/heptane, 40/60) showed complete con-
sumption of starting material and the presence of aldehyde product spot (Rf = 0.48). The
reaction mixture was filtered through a plug of silica gel (60–200 micron, 90 g) packed in hep-
tane, and product was eluted off the silica plug sequentially with DCM (350 mL), 20% EA/hep-
tane (500 mL), 40% EA/heptane (500 mL), and 100% EA (250 mL) to afford aldehyde 7 (5.67
g, 94%) as a colorless oil. 1H NMR (400 MHz, CDCl3): δ 9.78 (d, 1H, amide rotamer), 4.59 (m,
amide rotamer, 0.50 H), 4.34 (m, amide rotamer, 0.50 H), 2.77 (d, mixture of amide rotamers,
3H), 2.51–2.40 (m, 2H), 2.28–2.22 (m, 1H), 1.98 (m, 1H), 1.46 (s, 18H). 13C NMR (100 MHz,
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
5 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
CDCl3): δ 201.4, 201.1, 177.7, 170.3, 170.2, 156.5, 155.9, 81.8, 80.6, 80.3, 59.4, 59.4, 58.6, 58.4,
40.8, 40.4, 31.4, 31.3, 30.8, 30.4, 28.5, 28.1, 24.1, 24.0, 21.6, 21.5. HRMS (ESI-ToF): m/z calcd
for C15H27NNaO5+ [M+Na]+: 324.1781, found: 324.1816.
(S,Z)-7-tert-Butyl 1-methyl 2-(benzyloxycarbonylamino)-6-(tert-butoxycarbonyl
(methyl)amino)hept-2-enedioate (8a). In a 250 mL round bottomed reactor was placed,
under an argon atmosphere, ( )-Cbz-α-phosphonoglycine trimethyl ester 11 (3.96 g, 11.9
mmol) and DCM (30 mL), then DBU (1.71 g, 11.2 mmol) was added followed by a DCM rinse
(7 mL). The mixture was allowed to stir at room temperature for 45 min and subsequently
added to a solution of aldehyde 7 (3.00 g, 9.93 mmol) in DCM (40 mL) over 2 min to give a
pale-yellow solution. The reaction was allowed to stir for 2 hours and concentrated under
reduced pressure at 40–45˚C. The residue was dissolved in isopropyl acetate (100 mL) and was
washed with 6% citric acid (3 x 100 mL), USP purified water (75 mL), brine (75 mL), dried
with sodium sulfate for 30 min, filtered, and concentrated to give a crude oil. The crude oil
(dissolved in EtOAc/heptane, 20/80) was purified through a glass gravity column (10 in x 2.75
in) packed with silica gel (Silicycle, 60–200 micron, 125 g) in heptane. The column was eluted
with EtOAc/heptane gradient (10/90 to 40/60). Appropriate fractions containing pure product
were combined and concentrated to afford the enamide 8a (4.55 g, 90% yield, viscous colorless
oil). HPLC purity 96.4%. 1H NMR (400 MHz, CDCl3): δ 7.36–7.31 (m, 5 H), 6.76 (bs, amide
rotamer, 0.70 H), 6.59 (m, 1 H), 6.28 (bs, 0.30 H), 5.12 (m, 2 H), 4.55 (m, 0.60 H), 4.30 (m, 0.40
H), 3.76 (bs, 3 H), 2.77–2.71 (s, 3 H, amide rotamers), 2.23 (m, 2 H), 2.01 (m, 1 H), 1.86 (m, 1
H), 1.45 (bs, 18 H). HRMS (ESI-ToF): m/z calcd for C26H38N2NaO8 [M+Na]+: 529.2520,
found: 529.2553.
1-Benzyl 7-(tert-butyl) (S,Z)-2-(((benzyloxy)carbonyl)amino)-6-((tert-butoxycarbonyl)
(methyl)amino)hept-2-enedioate (8b). To a 500 mL reactor was added benzyl Z-phosphino-
glycine dimethyl ester 13 (22.00 g, 54.00 mmol) and DCM (100 mL). At ambient temperature,
DBU (7.88 g, 51.8 mmol) was added to the mixture under argon. After 30 min, a solution of
aldehyde 7 (14.15 g, 84% pure based on 1H NMR, 39.44 mmol) in DCM (150 mL) was slowly
added via dropping funnel over 10 min. The reaction mixture was allowed to stir at room tem-
perature for 21 h and subsequently was concentrated, diluted with ethyl acetate (350 mL), and
washed with USP purified water (175 mL). The aqueous stream was extracted with ethyl ace-
tate (2 x 85 mL). The combined organic streams were successively washed with 6% citric acid
(110 mL), saturated aqueous sodium bicarbonate (110 mL), brine (110 mL), dried with sodium
sulfate and concentrated to provide the crude enamide product (30.7 g) as a yellow oil. The
crude product dissolved in diethyl ether (350 mL) and silica gel (48 g, 60–200 micron) were
combined and concentrated to dryness to afford a dry-loaded material that was placed in a 750
g cartridge coupled to another cartridge containing silica gel (615 g, 60–200 micron) equili-
brated with heptane. Purification was performed on a Teledyne Isco Rf Flash chromatography
unit eluting with a step-gradient of 100% heptane (2 CV), 2% IPA (isopropyl alcohol) in hep-
tane (5 CV), and 5% IPA in heptane (4.5 CV) at 200 mL/min providing pure enamide Horner-
Emmons product 8b (21.4 g, 93%) as a colorless viscous oil. 1H NMR (400 MHz, CDCl3): δ
7.34 (bm, 10H), 6.77 (bs, amide rotamer, 0.60H), 6.62 (m, 1H), 6.29 (bs, amide rotamer,
0.40H), 5.19 (s, 2H), 5.11 (d, amide rotamer, 2H), 4.55 (m, amide rotamer, 0.60 H), 4.29 (m,
amide rotamer, 0.40 H), 2.73 (d, mixture of amide rotamer, 3H), 2.24 (m, 2H), 2.02 (m, 1H),
1.98 (m, 1H), 1.85 (m, 1H), 1.43 (s, 18H). 13C NMR (100 MHz, CDCl3): δ 170.5, 164.5, 164.4,
156.9, 155.8, 154.6, 154.1, 136.7, 136.2, 136.0, 135.7, 135.5, 128.6, 128.6, 128.5, 128.3, 128.2,
81.7, 80.4, 80.4, 67.5, 67.4, 67.3, 67.2, 59.6, 58.2, 30.7, 28.4, 28.1. HRMS (ESI-ToF): m/z calcd
for C32H42N2NaO8+ [M+Na]+: 605.2833, found: 605.2928.
(2S,6S)-7-tert-Butyl 1-methyl 2-(benzyloxycarbonylamino)-6-(tert butoxycarbonyl
(methyl)amino)heptanedioate (9a). To a Mettler Toledo RC1e system equipped with a
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
6 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
MP06-HC 1.2-liter pressure glass reactor, mechanical stirrer, and an external temperature con-
trol unit under nitrogen was added a solution of enamide 8a (4.00 g, 7.90 mmol) in HPLC-
grade methanol (110 mL, degassed with argon). A solution of Rh(I)(COD)(S,S)-Et-DuPHOS
catalyst (86 mg, 0.12 mmol) in degassed methanol (HPLC grade, 10 mL) was added and the
reactor was pressurized with nitrogen (3x) and hydrogen (3x), then placed under 50 psi of
hydrogen. The mixture was agitated with mechanical stirring (500 rpm) at 25˚C for 25 h after
which 1H NMR indicated complete consumption of the alkene. The reaction mixture was
purged with nitrogen three times and then concentrated under reduced pressure. The crude
residue (4.04 g) was dissolved in ethyl acetate/heptane (50/50, 8 mL) and passed through a sil-
ica gel plug (20.5 g) eluting with ethyl acetate/heptane (50/50, 200 mL) to afford Cbz-protected
amino acid derivative 9a (3.74 g, 93% yield) as a colorless viscous syrup. HPLC purity (achiral):
100% AUC (area under the curve). Chiral HPLC: e.e. = 97.4%. Chiral HPLC was performed
using a Chiralpak AD-H column (250 x 4.6 mm, 5 micron) eluting with a gradient of hexane/
EtOH (90/10 to 30/70) over 20 min at 1.0 mL/min and monitoring at 210 nm. 1H NMR (400
MHz, CDCl3): δ 7.36–7.30 (m, 5 H), 5.30–5.10 (s, 3 H, amide rotamers), 4.60 (m, 0.55 H), 4.34
(m, 1.45 H, amide rotamer), 3.74–3.68 (s, 3 H, amide rotamers), 2,76–2.71 (s, 3 H, amide rota-
mers), 1.83 (m, 2 H), 1.74 (m, 2 H), 1.44–1.26 (m, 20 H). 13C NMR (100 MHz, CDCl3): δ
172.9, 172.8, 170.9, 170.7, 156.5, 155.99, 155.8, 136.2, 128.5, 128.1, 81.4, 81.3, 80.1, 79.9, 67.0,
59.4, 57.9, 53.7, 53.6, 52.4, 32.1, 31.9, 30.5, 28.4, 28.0, 21.8. HRMS (ESI-ToF): m/z calcd for
C26H40N2NaO8+ [M+Na]+: 531.2677, found: 531.2726.
1-Benzyl-7-(tert-butyl) (2S,6S)-2-(((benzyloxy)carbonyl)amino)-6-((tert-butoxycarbo-
nyl)(methyl)amino)heptanedioate (9b). To a Mettler Toledo RC1e system equipped with a
MP06-HC 1.2-liter pressure glass reactor, mechanical stirrer, and an external temperature con-
trol unit under nitrogen was added a solution of enamide 8b (19.9 g, 34.1 mmol) in HPLC
grade methanol (110 mL, degassed with argon). This mixture was sparged with argon for an
additional 30 min. A solution of Rh(I)(COD)(S,S)-Et-DuPHOS catalyst (378 mg, 0.52 mmol)
in degassed methanol (HPLC grade, 50 mL) was added and the reactor was pressurized
sequentially with nitrogen (3x), hydrogen (3x), and finally placed under 50 psi of hydrogen.
The mixture was agitated with mechanical stirring (500 rpm) at room temperature for 21
hours after which 1H NMR indicated complete consumption of the alkene. The reaction mix-
ture purged with nitrogen three times, then concentrated under reduced pressure. The crude
residue (19.7 g) was dissolved in ethyl acetate/heptane (50/50, 45 mL) and passed through a sil-
ica gel plug (106 g) using ethyl acetate/heptane (50/50, 600 mL) to afford Cbz-protected amino
acid derivative 9b (19.3 g, 97% yield) as a colorless viscous oil. HPLC analysis (achiral): 95.1%.
Chiral HPLC: e.e. = 92%. Chiral HPLC was performed using a RegisPack column (250 x 4.6
mm, 5 micron) eluting with an isocratic gradient for 15 min consisting of hexane/IPA (70/30)
+ 0.1% DEA at 1.5 mL/min and monitoring at 220 nm. 1H NMR (400 MHz, CDCl3): δ 7.35
(m, 10 H), 5.28 (t, 0.89 H, J = 8.0 Hz, amide rotamer), 5.17–5.10 (m, amide rotamer, 4.10 H),
4.56 (m, 0.53 H, amide rotamer), 4.41 (m, 0.90 H, amide rotamer), 4.23 (m, 0.58 H, amide
rotamer), 2.71 (d, mixture of amide rotamers, 3H), 1.89–1.59 (m, 4 H), 1.50–1.25 (m, 20 H).
13C NMR (100 MHz, CDCl3): δ 172.4, 172.3, 170.9, 170.8, 156.6, 156.1, 156.0, 155.9, 136.3,
135.4, 135.3, 128.7, 128.6, 128.5, 128.4, 128.3, 128.2, 81.5, 81.4, 80.2, 80.0, 67.3, 67.3, 67.1,
59.6, 58.1, 54.0, 53.8, 32.2, 32.0, 30.6, 28.6, 28.5, 28.1, 22.02. HRMS (ESI-ToF): m/z calcd for
C32H44N2NaO8+ [M+Na]+: 607.2990, found: 607.3088.
4-((2S,6S)-7-tert-Butoxy-6-(tert-butoxycarbonyl(methyl)amino)-1-methoxy-1,7-dioxo-
heptan-2-ylamino)-4-oxobutanoic acid (10a). To a 250 mL reactor under argon was added
a solution of 9a (3.15 g, 6.19 mmol) in HPLC grade methanol (85 mL). The mixture was
sparged with argon for 10 min followed by addition of 10% Pd/C (320 mg). The reactor was
flushed with argon for 5 min, hydrogen for 5 min, then placed under balloon pressure of
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
7 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
hydrogen and allowed to stir overnight (16 h) at room temperature after which time TLC anal-
ysis (EtOAc/DCM/MeOH, 20/75/5) showed complete consumption of starting material. The
mixture was sparged with argon, filtered over a pad of Celite1, rinsed with methanol (50 mL)
and the resulting filtrate was concentrated and chased with toluene to provide the free depro-
tected amine (2.34 g, 100%) as a colorless oil. 1H NMR (400 MHz, CDCl3): δ 4.60 (m, 0.50 H,
amide rotamer), 4.32 (m, 0.50 H, amide rotamer), 3.72 (s, 3H), 3.47 (m, 1H), 2.77 (s, 3H,
amide rotamer), 1.90–1.60 (m, 6H), 1.47 (m, 20H). 13C NMR (100 MHz, CDCl3): δ 176.5,
171.2, 171.0, 156.5, 156.0, 81.4, 81.3, 80.2, 79.9, 59.6, 58.3, 54.4, 54.3, 52.1, 34.4, 34.4, 30.7, 28.8,
28.5, 28.1, 22.4. HRMS (ESI-ToF): m/z calcd for [M+H]+ for C18H35N2O6 : 375.2490, found:
+
375.2514.
To a 250 mL reactor was added the Cbz-deprotected amine (2.25 g, 6.01 mmol), succinic
anhydride (0.66 g, 6.6 mmol), and DCM (50 mL). The mixture was cooled to < 5˚C and
triethylamine (0.92 mL, 6.6 mmol) was added dropwise over 2 min. The cooling bath was
removed, and the reaction was allowed to stir overnight at room temperature. After 24 hours,
the reaction mixture was diluted with DCM (50 mL), washed sequentially with 6% citric acid
(2 x 50 mL), brine (25 mL), dried with sodium sulfate, filtered, and concentrated under
reduced pressure and chased with DCM and heptane to furnish 10a (2.90 g, 99%) as a colorless
viscous syrup, which was used without further purification. 1H NMR (400 MHz, CDCl3): δ
6.43 (d, 0.50H, J = 8.0 Hz, amide rotamer), 6.32 (d, 0.50H, J = 8.0 Hz, amide rotamer), 4.69–
4.57 (m, 1.5H, amide rotamer), 4.36–4.32 (m, 0.50H, amide rotamer), 3.75 (d, 3H, mixture of
amide rotamers), 2.83–2.72 (m, 4H), 2.65–2.42 (m, 3H), 1.88–1.70 (m, 5H), 1.46–1.44 (m,
19H). HRMS (ESI-ToF): m/z calcd for C22H38N2NaO9+ [M+Na]+: 497.2470, found: 497.2493.
4-(((2S,6S)-1-(benzyloxy)-7-(tert-butoxy)-6-((tert-butoxycarbonyl)(methyl)amino)-
1,7-dioxoheptan-2-yl)amino)-4-oxobutanoic acid (10b). To a 500 mL reactor was added
Cbz-protected amino acid 9b (10.6 g, 18.2 mmol) and methanol (275 mL). The mixture was
sparged with nitrogen for 10 min followed by addition of 10% Pd/C (1.04 g). The reactor was
flushed with nitrogen for 5 min, hydrogen for 5 min, then placed under balloon pressure of
hydrogen for 6 h. The mixture was treated with Celite1 (5.0 grams) and sparged with nitrogen
for 10 min, filtered over a pad of Celite1, and rinsed with methanol (200 mL). The resulting
filtrate was concentrated to provide the free amino acid (6.39 g, 97% yield) as an off-white
solid. HRMS of the free amino acid (ESI-ToF): m/z calcd [M+H]+ for C17H33N2O6 : 361.2333,
+
found: 361.2377.
To a 500 mL reactor was added the free amino acid (6.02 g, 16.7 mmol), succinic anhydride
(1.73 g, 17.3 mmol), and DCM (175 mL). The mixture cooled to < 5˚C and triethylamine
(3.66 g, 36.2 mmol) was added dropwise over 3 min. The cooling bath was removed, and the
reaction was allowed to stir for 2 h at room temperature. HPLC/UPLC/TLC analysis showed
that the reaction was complete. The reaction mixture was concentrated, diluted with EtOAc
(300 mL), washed sequentially with 0.10 N HCl (390 mL), USP purified water, (250 mL), brine
(200 mL), dried with sodium sulfate, filtered, and concentrated to provide crude 10b (7.40 g).
The crude product 10b was dissolved in EtOAc (25 mL) and was purified by passing through a
silica gel plug (52 g, 60–200 micron, equilibrated with EtOAc/THF (1:1) followed by 100%
EtOAc). The silica plug was flushed with EtOAc (100 mL) and EtOAc/THF (1:1, 250 mL).
Appropriate fractions were combined, concentrated, and chased with heptane affording pure
succinate adduct 10b (7.10 g, 92% yield). HPLC purity: 98.6% AUC. Chiral HPLC: e.e. =
100%. Chiral HPLC was performed using a RegisPack column (250 x 4.6 mm, 5 micron) elut-
ing with an isocratic eluent for 15 min consisting of hexane/IPA (90/10) + 0.1% TFA at 1.5
mL/min and monitoring at 210 nm. 1H NMR (400 MHz, CDCl3): δ 10.74 (bs, 2H), 7.10 (d,
1H, J = 8.0 Hz), 4.65–4.51 (m, amide rotamer, 1.5H), 4.29–4.27 (m, amide rotamer, 0.5H),
2.78–2.49 (m, mixture of amide rotamers, 7H), 1.87–1.60 (m, 4H), 1.45 (d, 18H), 1.38–1.16
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
8 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
(m, 2H). 13C NMR (100 MHz, CDCl3): δ 176.5, 176.5, 175.5, 175.4, 173.1, 172.9, 170.8, 157.1,
156.8, 81.7, 81.0, 80.8, 67.1, 59.9, 58.4, 53.5, 52.5, 52.1, 31.3, 30.7, 30.6, 30.4, 29.7, 28.5, 28.3,
28.1, 22.3, 21.7. HRMS (ESI-ToF): m/z calcd for C21H36N2NaO9 [M+Na]+: 483.2313, found:
483.2368.

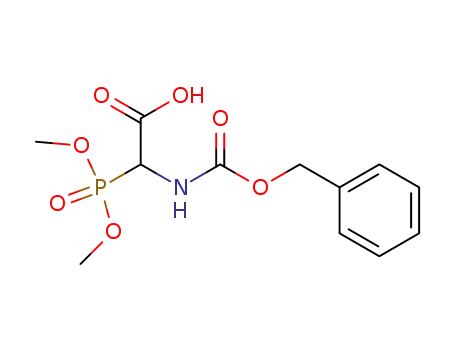

( )-Cbz-α-phosphonoglycine dimethyl ester (12). According to a reported patent proce-
dure,[19] to a 1 L 3-neck reactor equipped with a mechanical stirrer, J-Kem thermocouple,
nitrogen inlet, and water bath (20–25˚C), was added ( )-Cbz-α-phosphonoglycine trimethyl
ester 11 (33.1 g, 100 mmol), MeOH (180 mL), and USP purified water (20 mL). To the slightly
hazy mixture was added a solution of 1 N aq NaOH (102 mL, 102 mmol) via dropping funnel
over a period of 1 h to give a homogeneous mixture. The resulting mixture was allowed to stir
for an additional 1 h at room temperature and subsequently concentrated under reduced pres-
sure at 25–30˚C to remove methanol. The aqueous residue was polished filtered through filter
paper and pH adjusted to pH 1.5 with 1 N H2SO4 solution (100 mL) to provide a white murky
solution. The mixture was extracted with EtOAc (4 x 150 mL) and the combined organic
streams were washed with brine (150 mL), dried with magnesium sulfate, and concentrated
under reduced pressure to afford ( )-Cbz-α-phosphonoglycine dimethyl ester 12 (31.0 g, 98%)
as a viscous oil that solidified to a white solid upon standing. HPLC purity 97.4%. The proton
NMR data are in accordance with that reported in the literature.[20] HRMS (ESI-ToF): m/z
calcd for C12H17NO7P+ [M+H]+: 318.0737, found: 318.0782.
Benzyl 2-(benzyloxycarbonylamino)-2-(dimethoxyphosphoryl)acetate (13). According
to the general procedure of Nakanishi,[21] a 500 mL 3-neck reactor was charged ( )-Cbz-α-
phosphonoglycine dimethyl ester 12 (30.8 g, 97.1 mmol), ACN (80 mL), and DBU (15.2 g, 21.0
mL, 99.8 mmol) to provide a clear solution. The mixture was allowed to stir for 10 min at
room temperature with a cooling bath in place (ambient temperature). To the reaction mixture
was added benzyl bromide (17.4 g. 102 mmol) dropwise over 5 min. After 2 hours at room
temperature, the reaction mixture was concentrated under reduced pressure and diluted with
EtOAc (350 mL). The organic mixture was washed with USP purified water (130 mL), 3% cit-
ric acid solution (1 x 110 mL), saturated NaHCO3 solution (100 mL), brine (100 mL), dried
with sodium sulfate, and concentrated under reduced pressure to give the crude product (43.5
g). The crude product was dissolved in EtOAc/heptane (1:1, 90 mL) at 45˚C, seeded, and
diluted with heptane (350 mL) and the resulting slurry was allowed to stir an additional 1 h at
ambient temperature, and filtered. The filter cake was washed with heptane (50 mL) and pulled
dry to give benzyl 2-(benzyloxycarbonylamino)-2-(dimethoxyphosphoryl)acetate 13[22]
(38.71 g, 98%) as a white solid. HPLC purity: 95.9% AUC. 1H NMR: (400 MHz, CDCl3): δ 7.35
(m, 10H), 5.62 (d, 1H, J = 12.0 Hz), 5.29 (d, 1H, J = 12.0 Hz), 5.22 (d, 1H, J = 12.0 Hz), 5.14
(dd, 2H, J = 12.0, 4.0 Hz), 4.96 (dd, 24.0, 12.0 Hz), 3.72 (d, 6H. J = 12.0 Hz). HRMS (ESI-ToF):
m/z calcd for C19H23NO7P+ [M+H]+: 408.1207, found: 408.1255.
HiDapE molecular modeling
Models of L,L-SDAP (1a), N6-methyl-L,L-SDAP (1b), and N6-acetyl-L,L-SDAP (1c) bound to
HiDapE were developed using the Molecular Operating Environment (MOE)[23] computa-
tional suite’s Builder utility followed by minimization in the gas phase using the force field
MMFF94X. The minimized ligands were then subjected to the Conformational Search proto-
col to generate structural-conformation databases populated with as many as 10,000 individual
conformations. Conformational databases were generated for all three ligands of interest for
use in the following docking experiments.
The previously-reported X-ray crystal structure of the product-bound form of HiDapE in
the closed conformation (PDB: 5VO3)[24] were uploaded into MOE. Following receptor
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
9 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
preparation, molecular docking was performed using the previously-generated ligand confor-
mation databases. Substrate analog docking was carried out in the prepared HiDapE enzyme
model with the products and solvent atoms inactivated and the docking site specified at the
catalytic Zn(II) atoms. Substrate analog placement employed the Proxy Triangle method with
London dG scoring generating 50 data points that were further refined using the induced fit
method with GBVI/WSA dG scoring to obtain the top 30 docking results. The docking proto-
col was repeated for all three substrates and analyzed for selection of the best docking pose.
Docking poses of the substrate 1a and analogs 1b and 1c were assessed as judged by their simi-
larity to the product binding interactions seen in the original product-bound X-ray crystal
structure. A single substrate analog docking pose was selected for each of the three substrates
providing initial substrate-bound enzyme models. The N6,N6-dimethyl-L,L–SDAP analog was
initially pursued in parallel with the monomethyl analog 1b, but was more problematic syn-
thetically, and was ultimately set aside based on modeling that suggested it would be a very
poor substrate (S1 Fig).
The three substrate/enzyme models were then solvated in a simple water box at pH of 7.4
that was treated with NaCl counterions to balance the charge. Periodic boundary conditions
were enabled, and the hydrogen bonding network of the model was optimized by automati-
cally sampling different tautomer/protomer states using Protonate3D,[25] which calculates
optimal protonation states, including titration, rotamer, and “flips” using a large-scale combi-
natorial search.[26] The system atoms were then optimized with a short, localized molecular
minimization process with atoms further then 8 Å from the substrate fixed. System refinement
continued until an RMS Gradient of 0.1 kcal/mol/Å was attained. Molecular Dynamics param-
eters were set to globally minimize the protein, substrate, and solvent atoms in the system
using an NPA algorithm with an Amber12:EHT force field, with a typical heating and cooling
protocol. Simulation results were then minimized once again before the final binding poses
were obtained for comparison.
Protein expression, purification, and Zn(II) binding
Recombinant HiDapE was expressed and purified according to a published protocol.[11]
Briefly, several grams of cell paste were thawed at room temperature and lysed by sonication
using 2 s pulses with 5 s rest periods. The cell debris was removed by centrifugation at 4˚C for
40 min at 12,000 g. The supernatant was applied to a column packed with 10 mL of HisTrap
HP resin (GE Healthcare), connected to VacMan (Promega) and the chromatographic process
was accelerated with a vacuum pump. The column was washed with 20 bed volumes of lysis
buffer and the His6-tagged HiDapE enzyme was eluted with 25 mL of elution buffer (50 mM
HEPES (4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid) pH 8.0, 500 mM NaCl; 500 mM
imidazole; 2 mM DTT). The His6-tag was cleaved with TEV protease (2 mg of a His6-tagged
form) overnight at 4˚C and dialyzed to remove the excess imidazole. The resulting solution
was mixed with His-Trap HP resin to capture the cleaved His6-tag and the His6-tagg TEV pro-
tease. The flow-through containing HiDapE was collected, concentrated, and loaded on an
SEC column and the eluent was concentrated using an Amicon YM-10 membrane to a con-
centration 20 mg/ml-1 followed by the addition of the reducing agent TCEP (1 mM). Purified
HiDapE exhibited a single band on SDS-PAGE (41,500 Da). Protein concentrations were
determined from the absorbance at 280 nm using the previously reported molar absorptivity
that was calculated using the method developed by Gill and Hippel.[27] The protein concen-
tration determined using this molar absorptivity was in close agreement to that obtained using
a Bradford assay. Individual aliquots of purified HiDapE were stored in liquid nitrogen until
needed.
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
10 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
Apo-HiDapE was prepared by extensive dialysis for 3 to 4 days against 10 mM EDTA in 50
mM HEPES buffer, pH 7.5. The enzyme was then exhaustively dialyzed against metal-free
(Chelexed) 50 mM HEPES buffer, pH 7.5. Apo-HiDapE samples were incubated with 1.7
equivalents of ZnCl2 (97%; Sigma-Aldrich) in 50 mM HEPES buffer for 30 min.
Enzyme assay studies
Modified L,L-SDAP as potential substrates. The hydrolytic activity of HiDapE toward
alternate substrates 1b and 1c was monitored by the decrease in absorbance at 225 nm using a
Shimadzu UV-2450 UV/Visible Spectrophotometer. All reaction volumes were 1 mL with 8
nM HiDapE, 5 mM 1b or 5 mM 1c in 50 mM HEPES buffer, pH 7.5. Spectra were recorded
over 35 min with one scan per minute. Enzyme dilutions were made directly before each trial
from a concentrated stock solution that was stored at -80˚C.
HiDapE assay protocol. All reaction volumes were 200 μL with 25 nM HiDapE and 1 mM
N6-methyl-L,L-SDAP 1b unless otherwise stated. Ninhydrin was purchased as a 2% solution in
100% DMSO/lithium acetate buffer at pH 5.2. Initial assay conditions used to measure the activ-
ity of HiDapE were carried out in triplicate as follows: to a 50 mM HEPES buffered HiDapE
solution at pH 7.5 at room temperature (18–22˚C), 1b as the TFA salt was added. The reaction
was allowed to proceed for 10 min after which 100 μL of the 2% ninhydrin solution was added.
The reaction mixture was vortexed and heated to 80˚C for 15 min followed by cooling on ice
for 2 min. The absorbance at 570 nm was recorded on a BioTek Syngen microplate reader.
Ninhydrin reactions with glutamic acid and sarcosine. Control reactions were carried
out using glutamic acid as a primary amine model and sarcosine as a model secondary amine.
UV/Vis absorbances between 300 and 800 nm were recorded on a Shimadzu UV-2450 UV/
Visible Spectrophotometer and the time course development was followed by reading the
absorbance at 570 nm using a BioTek Syngen microplate reader. Control reactions for the
detection of primary amines were carried out in triplicate as follows: to a 50 mM HEPES pH
7.5 buffered solution at 30˚C was added glutamic acid (0–1.2 mM) and 100 μL of the 2% nin-
hydrin solution. The reaction mixture was heated to 100˚C (2 min vs 15 min), cooled on ice
and the absorption spectra recorded. Control reactions for the detection of secondary amine
were carried out in triplicate in the same manner except substituting with the secondary amine
sarcosine.
Time course plots of glutamic acid or sarcosine with ninhydrin development were carried
out in triplicate as follows: to a 50 mM HEPES buffered solution pH 7.5 was added 1 mM
amine at 30˚C. After a 5 min incubation period, a 2% ninhydrin solution was added and the
reaction vortexed followed by heating at 100˚C for time intervals of 0, 2, 3, 5, 10, 15 and 20
min. The mixtures were cooled on ice for 2 min and 80μL of each reaction was examined via a
BioTek Syngen microplate reader at 570 nm. These data were also obtained at 80˚C and 60˚C
(S2 and S3 Figs).
Incubation of HiDapE with DMSO. All reaction volumes were 200 μL containing 25 nM
HiDapE, 1 mM 1b as the TFA salt, and the 2% ninhydrin solution in DMSO. UV/Vis spectra
were recorded on 80 μL aliquots of ninhydrin-developed reactions unless otherwise stated,
and absorption data were collected on a BioTek Syngen microplate reader. Control reactions
were carried out in triplicate as follows: to a 50 mM HEPES, pH 7.5 buffered solution of
HiDapE at 30˚C was added 1 mM 1b. The reaction was allowed to proceed for 10 min after
which 100 μL of the 2% ninhydrin solution was added and subsequently heated to 80˚C for 15
min. This reaction was quenched by placed on ice until cooled to 30˚C. The absorbance was
recorded at 570 nm on a BioTek Syngen microplate reader. These control reactions were set as
100% HiDapE activity.
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
11 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
The DMSO incubation reactions were carried out in triplicate as follows: to a 50 mM
HEPES, pH 7.5 buffered HiDapE solution at 30˚C was added DMSO (75% v/v). HiDapE was
incubated for 0 to 10 min after which 1mM 1b was added and the reaction was allowed to pro-
ceed for 10 min. The enzymatic reaction was then quenched by the addition of the 2% ninhy-
drin solution. The reaction mixture was vortexed and heated to 80˚C for 15 min followed by
cooling on ice until the solution was 30˚C. The absorbance was recorded at 570 nm on a Bio-
Tek Syngen microplate reader.
Monitoring thermal denaturation of HiDapE with circular dichroism (CD). Denatur-
ation of HiDapE was determined using an Olis DSM 20 circular dichroism spectrophotometer.
Samples were measured in a cylindrical quartz cuvette with a 1 mm path length, and contained
10 mM phosphate, pH 8.0, and 0.4 μM of HiDapE. Data was collected every 1 nm over a wave-
length range of 190–260 nm. The temperature was increased from 20˚C to 80˚C using 10˚C
increments with 2 min incubation times at each temperature (S4 Fig). At 80˚C, the tempera-
ture was held constant until complete denaturation was observed. OlisGlobalworks software
v1.3 was used to deconvolute the spectra and calculate the percent alpha helices and beta
sheets.
Pre-heat incubation control reactions. All reaction volumes were 200 μL containing 25
nM HiDapE, 1 mM 1b as the TFA salt, and the 2% ninhydrin solution in DMSO. UV/Vis spec-
tra were recorded on 80 μL aliquots of ninhydrin-developed reactions unless otherwise stated,
and absorption data were collected on a BioTek Syngen microplate reader. The control reac-
tions were carried out in triplicate under the previous conditions used for 100% standard enzy-
matic activity of HiDapE. A second set of control reactions using denatured HiDapE, to
establish zero activity, were obtained in triplicate by heating HiDapE to 100 oC for 3 min as fol-
lows: a 50 mM HEPES, pH 7.5 buffered HiDapE solution was heated at 100˚C from 1 to 5 min
followed by cooling on ice to 30˚C. To this solution was added 1 mM 1b and the reaction was
allowed to proceed for 10 min after which a 2% ninhydrin solution was added. The reaction
mixture was vortexed and heated at 80˚C for 15 min. The ninhydrin reaction was quenched by
placing in ice and the absorbance was recorded at 570 nm (S5 Fig).
Optimizing DapE enzyme concentration for the assay. Reactions varying the DapE
enzyme concentration were carried out as follows: to a solution of 50 mM HEPES, pH 7.5 was
added the desired concentration of enzyme at 30˚C followed by the addition of 20 μL of 1b as
the TFA salt (final concentration of 1 mM in 200 μL total volume). The reaction was allowed
to proceed for 10 min after which the enzymatic activity was quenched by heating to 100˚C for
1 min and cooled on ice. Next, 100 μL of a 2% ninhydrin solution was added to a final concen-
tration of 300 μL. The reaction was heated to 80˚C for 15 min followed by cooling on ice until
the solution was 30˚C. The absorbance was recorded at 570 nm on a BioTek Syngen micro-
plate reader.
Ninhydrin-based assay for HiDapE enzymatic activity. The protocol for the ninhydrin-
based assay to determine enzymatic activity of HiDapE was determined in triplicate as follows:
to a 50 mM HEPES, pH 7.5 buffered solution containing 8 nM HiDapE at 30˚C was added 2
mM 1b (final volume 200 μL). The reaction was allowed to proceed for 10 min and then
quenched by heating to 100˚C for 1 min and cooled on ice. A 2% ninhydrin solution was
added, and the mixture was vortexed. The reaction was heated to 80˚C for 15 min followed by
cooling on ice until the solution was 30˚C. The absorbance was recorded at 570 nm on a Bio-
Tek Syngen microplate reader. Glutamic acid concentrations of 0, 0.1, 0.2, 0.3, 0.4, and 0.5
mM were used as standards for primary amine development with ninhydrin.
IC50 determinations. IC50 values were fitted with a program that uses a non-linear least
squares regression of the Gauss-Newton algorithm with optional damping using an ad hoc
program.[16,17] All inhibition assays were conducted with a reaction volume of 200 μL, 2 mM
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
12 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
1b and 8 nM HiDapE unless otherwise stated. Glutamic acid standards of 0 to 0.5 mM were
used in every trial. To a 50 mM HEPES, pH 7.5 buffered solution at 30˚C was added the
desired inhibitor followed by HiDapE and incubated for 10 min. The N6-methyl-L,L-SDAP
substrate 1b was added and allowed to react for 10 min followed by heating to 100˚C for 1 min
and cooled on ice to 30˚C. A 2% ninhydrin solution (100 μL) was added and the mixture was
vortexed. The reaction was heated to 80˚C for 15 min followed by cooling on ice until the solu-
tion was 30˚C. The absorbance of 80 μL was recorded at 570 nm on a BioTek Syngen micro-
plate reader.
Results and discussion
HiDapE molecular modeling to assess L,L-SDAP derivatives
An X-ray crystal structure of HiDapE bound by the products of hydrolysis, succinic acid and
L,L-DAP, (PDB: 5VO3) revealed a previously unknown closed conformation for the α2 dimer.
[24] This closed conformation effectively precludes access to the dinuclear Zn(II) active site
and defines a negatively charged, crescent-shaped cavity in which the products are bound. We
proposed that the presence of substrate induces a conformational change in the enzyme struc-
ture that facilitates catalytic activation within the active site. Without the substrate present, the
enzyme remains in the open, inactive conformation. In effect, the substrate acts as the “glue”
that links the catalytic domain of chain A to the dimerization/cap domain of chain B. There-
fore, this products-bound structure[24] was utilized as the structural model for substrate and
substrate analog docking experiments.
Binding models for L,L-SDAP (1a), N6-methyl-L,L-SDAP (1b), and N6-acetyl-L,L-SDAP
(1c) were built using the Molecular Operating Environment (MOE) computational suite’s
Builder utility followed by minimization in the gas phase using the force field MMFF94X. Fol-
lowing receptor preparation, molecular docking was performed using previously-generated
ligand conformation databases to obtain the three substrate-bound enzyme models. Each
model was solvated in a simple water box at pH 7.4 and the system’s atoms were optimized
with a short, localized molecular minimization process. Molecular Dynamics parameters were
set to globally minimize the protein, ligand, and solvent atoms with a typical heating and cool-
ing protocol. Simulation results were then minimized once again before the final binding
poses were obtained for comparison (Fig 2).
Docking poses for L,L-SDAP (1a) and its analogs 1b and 1c were assessed as judged by
their similarity to product binding interactions.[24] For L,L-SDAP, the amide carbonyl is
bound to Zn2 while the amide N-H acts as an H-bond donor to the backbone carbonyl of
Fig 2. Minimized substrate analogs docked and modeled in the HiDapE active site. The diaminopimelate moiety is depicted in yellow and the
succinate in turquoise. A) Native substrate L,L-SDAP, B) N6-methyl-L,L-SDAP, and C) N6-acetyl-SDAP. The catalytic domain of Chain A is depicted
in green, whereas the dimerization domain of Chain B is shown in orange.
https://doi.org/10.1371/journal.pone.0196010.g002
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
13 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
Thr325:A (Fig 2A). The proximal carboxylate participates in bifurcated H-bonds with the side
chains of Arg258:A, Thr325:A, and Asn245:B. The free primary amino group acts as an H-
bond donor to the backbone carbonyl of Ala136:A and a water molecule, which in turn partici-
pates in H-bond donation to the backbone carbonyl of Glu135:A and to the side chain car-
bonyl of Asn245:B. The terminal carboxylate of the pimelic acid moiety is H-bonded to the
N-H of Asn244:B, the side chain hydroxyl of Ser181:A and Ser290:A, and a water molecule,
which in turn H-bonds to the side chain hydroxyls of Thr183:A and Thr325:A.
Interactions between the N6-methyl-L,L-SDAP analog 1b with enzyme sidechain residues
are identical to those of L,L-SDAP, except that the added methyl group on the primary amine
eliminates the H-bonding interaction between the amine and the backbone carbonyl of
Ala136:A (Fig 2B). The presence of the N6-methyl group also leads to perturbations between
the ammonium N-H and the corresponding water molecule. On the other hand, the H-bond-
ing interaction between the backbone carbonyl of Glu135:A and the sidechain carbonyl of
Asn245:B, by the ammonium N-H(s), are maintained. Interestingly, the N-methyl forms a new
hydrophobic interaction with the adjacent Ala136:A residue. The model of the N-acetyl deriva-
tive 1c is affected both by the lack of the positive charge on the nitrogen as well as the greater
steric demand of the acetyl group. The pocket is pushed open as indicated by the surface map,
and the His194.B, a key catalytic residue from the remote chain recently implicated in the
mechanism,[24] is no longer interacting the amide carbonyl of the substrate, but is interacting
with the carboxylate instead. All stabilizing H-bond interactions with the N6-H groups are lost
in the neutral acetamide derivative, and the presence of the acetyl group has forced Asn224.B
from its H-bonding interaction with the carboxylate of the substrate analog. Significantly,
Glu134 is proposed to act as the general acid/base during the hydrolysis reaction catalyzed by
HiDapE[28] and this residue is shifted further away from the active site, likely impeding the
enzyme’s ability to hydrolyze the substrate. Furthermore, it should be emphasized that these
models were calculated using the closed conformation of DapE[24] rather than the open form,
[9] and that poor substrate analogs such as acetamide 1c may well not even induce the large
conformational change that the DapE enzyme undergoes when acting upon its substrate.
Chemistry
Based on these molecular modeling data, N6-methyl-L,L-SDAP 1b is predicted to retain an
overall similar binding pose to L,L-SDAP 1a, making it a possible substrate analog, while N6-
acetyl-L,L-SDAP 1c suffers significant binding alterations due to loss of the positive charge
and the presence of the acetyl group, and N6,N6-dimethyl-L,L-SDAP was also rejected, as men-
tioned. Therefore, N2-succinyl-N6-methyl-L,L-DAP 1b was prepared enantioselectively, as
illustrated in Fig 3, with the key olefination and asymmetric hydrogenation steps modeled
after Hruby’s[29] synthesis of diaminopimelic acid, which lacks the N6-methyl as well as the
succinate. In addition, the present route avoids any use of ion exchange chromatography that
was used in Hruby’s smaller-scale work. The first step involves the one-pot methylation of the
BOC-L-glutamic acid t-butyl ester 4 with potassium carbonate and methyl iodide, in the pres-
ence of silver oxide, to afford the α-N-methylated ester 5. Reduction of the methyl ester with
DIBAL gave mixtures of aldehyde, alcohol, and unreacted methyl ester, so the methyl ester was
reduced with sodium borohydride to afford the primary alcohol 6, which was then oxidized to
the aldehyde 7 with PCC or PDC. Horner-Wadsworth-Emmons olefination with Cbz-α-phos-
phonoglycine ester (Cbz = carboxybenzyl) gave the olefin 8a, which was enantioselectively
hydrogenated in the presence of catalytic amounts of 1,2-bis[(2S,5S)-2,5-diethylphospholano]
benzene(1,5-cyclooctadiene)rhodium(I) trifluoromethanesulfonate affording the L,L-Cbz-pro-
tected amino acid 9a in 93% yield. The olefination followed by the asymmetric hydrogenation
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
14 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
Fig 3. Asymmetric synthesis of N6-methyl-L,L-SDAP 1b. Synthetic route for preparation of monomethyl substrate analog as the hydrochloride salt (1b.HCl)
via the methyl ester or the trifluoroacetate salt (1b.TFA) via the benzyl ester.
https://doi.org/10.1371/journal.pone.0196010.g003
and catalyst selection follow the work of Hruby, as noted.[29] Removal of the Cbz protecting
group by hydrogenolysis followed by reaction with succinic anhydride afforded the succina-
mide derivative 10a in 99% yield, which was subjected to hydrolysis with aqueous HCl to
afford N6-methyl-L,L-SDAP as the hydrochloride salt (1b.HCl) in 97% yield, in contrast to
using HBr[29] which also cleaved the succinate.
A second route was also developed that was an improvement, based on yield, over the initial
methyl ester route by utilizing a benzyl ester. In this synthetic scheme, the Wadsworth-
Emmons reaction of the aldehyde 7 with benzyl 2-{[(benzyloxy)carbonyl]amino}-2-(dimetho-
xyphosphoryl)acetate (R = Bn) afforded olefin 8b, which was enantioselectively hydrogenated
in the presence of catalytic 1,2-bis[(2S,5S)-2,5-diethylphospholano]benzene(1,5-cycloocta-
diene)rhodium(I) trifluoromethanesulfonate to afford the L,L-Cbz-protected amino acid ben-
zyl ester 9b in 97% yield. Hydrogenolytic removal of both the benzyl and Cbz groups followed
by reaction with succinic anhydride gave the succinate amide (92–97% for 10b). Removal of
both tert-butyl ester and Boc groups with trifluoroacetic acid in methylene chloride gave the
trifluoroacetate salt of 1b in nearly quantitative yield. Overall, the benzyl ester route proved to
be more amenable for large scale reactions, although the intrinsic substrate diastereoselectivity
for asymmetric reduction of the methyl ester yielded material of 97.4% e.e. for methyl ester 9a,
compared to 92.0% e.e. for the benzyl ester 9b. Nevertheless, crystallization at a later stage
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
15 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
ultimately afforded the final product 1b in >99% e.e. from the benzyl ester, whereas the methyl
ester was often accompanied by some desuccinylation. Furthermore, the benzyl ester route
provides the TFA salt which was not observed to be hygroscopic, in contrast to the hydrochlo-
ride salt from the methyl ester route which is very hygroscopic and converts to a sticky and
unweighable solid over time in storage.
Having synthesized N6-methyl-L,L-SDAP 1b, the ability of HiDapE to hydrolyze this pro-
posed substrate analog was examined by monitoring amide bond hydrolysis at 225 nm in 50
mM HEPES buffer at pH 7.5. As predicted via molecular modeling, HiDapE was capable of
hydrolyzing 1b, and a kcat/Km of 3.87x 104 M-1S-1 was measured, compared to the endogenous
L,L-SDAP substrate with a kcat/Km of 1.92 x 105 M-1 S-1. N6-Acetyl-L,L-SDAP (1c) was also
prepared by direct acylation of L,L-SDAP. As expected based on modeling, 1c was not hydro-
lyzed by HiDapE, likely due to the need for a cationic species at the N6 position as well as unfa-
vorable steric interactions.
Primary amine detection with ninhydrin
Since 1b can function as a substrate, we set out to design a robust and operationally straight-
forward enzymatic assay, utilizing ninhydrin, that would be amenable to inhibition studies for
drug discovery. It should be noted that ninhydrin has been employed for enzymatic product
detection in a coupled assay to identify inhibitors of glycopeptide resistance among a library of
over 250,000 compounds.[30] While ninhydrin reacts with both primary and secondary
amines, only primary amines that bear an alpha-hydrogen can form the Schiff base known as
Ruhemann’s purple, which absorbs with λmax values of 570 and 450 nm. In contrast, ninhydrin
reacts with secondary amines such as proline to form an iminium salt that is yellow-orange in
color with λ max values of 440 and 405 nm.[31] Initial control reactions were performed with
ninhydrin in the absence of enzyme by monitoring absorptions between 300 and 800 nm to
determine the optimal time of heating and color development. Glutamic acid was utilized as a
model of a primary amine while N-methylglycine (sarcosine) was selected as a model for acy-
clic secondary amine substrates, such as 1b. Heating of these model primary and secondary
amines with ninhydrin at 100˚C for 15 min provided very similar absorption spectra with
identical λmax values of 404 and 570 nm, due the products of ninhydrin with glutamic acid and
sarcosine, respectively (S2 Fig). However, some secondary amines are known to react with nin-
hydrin in the presence of polar aprotic solvents such as DMSO, the solvent in which the ninhy-
drin reagent is provided.[32]
As absorption from the secondary amine of 1b could potentially interfere with the accurate
determination of the primary amine produced from enzymatic hydrolysis, the slower rate of
reaction of the secondary amine with ninhydrin relative to the primary amine was examined.
Reducing the time of incubation of the model substrates glutamic acid and sarcosine with nin-
hydrin at 100˚C to only 2 min (S2 Fig) provided significantly greater absorption at 570 nm,
indicating preference for the primary amine over the secondary amine—a difference that
diminished upon continued heating of the samples to 15 min. These data suggest that a shorter
incubation time of ca. 2 min might enable a clear distinction between the primary and second-
ary amines of the 1b product of hydrolysis, compound 3b. However, at 2 min even the primary
amine was not completely reacted resulting in increased error. Another practical challenge of a
~2 min incubation time prompted the examination of lower incubation temperatures to
enable full reaction of the primary amine with ninhydrin while minimizing the reaction of the
secondary amine. The first directed approach was to monitor product absorption development
over 15 min at varying temperatures in 20˚C increments. Time course plots of the reaction
with glutamic acid or sarcosine (1.0 mM) and ninhydrin (S3 Fig) show positive reactions with
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
16 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
the primary amine at 80˚C and 60˚C, whereas little or no detectable reaction is observed with
the secondary amine at these temperatures. Absorbance due to primary and secondary amines
at these lower temperatures reaches a maximum at ~15 min. These data demonstrate that heat-
ing the amine reaction mixture at 80˚C for 15 min is optimal with an absorbance of ꢁ1 AU for
the primary amine product that is easily detectable, with no significant absorption due to nin-
hydrin reaction with the secondary amine.
Quenching of HiDapE hydrolytic activity
To develop a functional spectrophotometric assay for DapE enzymes, it is essential to confirm
that the enzyme activity is effectively quenched before ninhydrin is added. As ninhydrin is a
commercially available 2% solution in DMSO, both the addition of DMSO and the elevated
reaction quench temperature were examined independently to ensure that the enzymatic reac-
tion was stopped. DMSO is known to decrease or halt enzymatic activity, due to denaturation,
in the presence of as little as 10% by volume.[33] Therefore, control reactions of standard
enzyme activity were carried out in triplicate as follows: to a buffered HiDapE solution at 30˚C
was added 1b as the TFA (trifluoroacetate) salt. The reaction was allowed to proceed for ~10
min after which the 2% ninhydrin reagent in DMSO was added and subsequently heated to
80˚C for 15 min. The final assay volume was 300 μL after the addition of 100 μL of ninhydrin
reagent giving a final concentration of 33 vol% of DMSO. The ninhydrin reaction was
quenched by placing the mixture on ice for ~2 min after which the absorbance was determined
at 570 nm. This control reaction was set as 100% enzymatic activity of HiDapE.
HiDapE was incubated with DMSO prior to the addition of 1b under various times to
examine the effects of DMSO on the observed hydrolytic activity. The enzyme was allowed to
incubate for various times between 0 and 10 min after which 1b was added and the reaction
allowed to proceed for ~10 min. The enzymatic reaction was quenched by addition of 2% nin-
hydrin solution and was subsequently heated to 80˚C for 15 min. The ninhydrin reaction was
quenched by placing on ice for ~2 min after which the absorbance at 570 nm was determined.
Comparison of standardized HiDapE activity to those obtained in the presence of DMSO indi-
cate a ca. 50% decrease. Interestingly, the observed enzymatic activity is not abolished even
after 10 min. These data demonstrate that the addition of a ninhydrin/DMSO solution does
not fully quench the catalytic activity of HiDapE.
Pre-heat incubation studies. The effect of heating on the enzymatic activity of HiDapE
was examined by pre-heating HiDapE at 80˚C and 100˚C in increments from 0 to 10 min, fol-
lowed by cooling to room temperature. The enzymatic activity of these samples was deter-
mined at 25˚C by the addition of 1b. Incubating HiDapE at 80˚C for various times between 0
and 5 min before the addition of 1b reveals a dramatic decrease in enzymatic activity within 2
min with no detectable enzymatic activity observed after 2 min. Incubating HiDapE at 100˚C
completely eliminated its catalytic ability within 1 min (S5 Fig). However, heating to 100˚C
also causes both primary and secondary amines to react at an appreciable rate with ninhydrin.
Combination of these data with model and standardized HiDapE ninhydrin reaction data
indicate that heating HiDapE to ~80˚C quenches the enzyme activity within 2 min, which also
allows only the primary amine from the cleaved substrate to react with the ninhydrin. There-
fore, to minimize the associated error in any spectrophotometric assay for HiDapE, the enzy-
matic activity can be quenched by heating at 100˚C before the addition of the ninhydrin/
DMSO reagent followed by subsequent development at 80 oC.
Circular dichroism denaturation studies. Denaturation of HiDapE upon heating was
confirmed by Circular Dichroism (CD) spectroscopy recorded as a function of temperature
(Fig 4). Based on activity data, a ~5% loss of α-helical structure was used as an indication that
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
17 / 24

Spectrophotometric assay for DapE enzyme antibiotic target

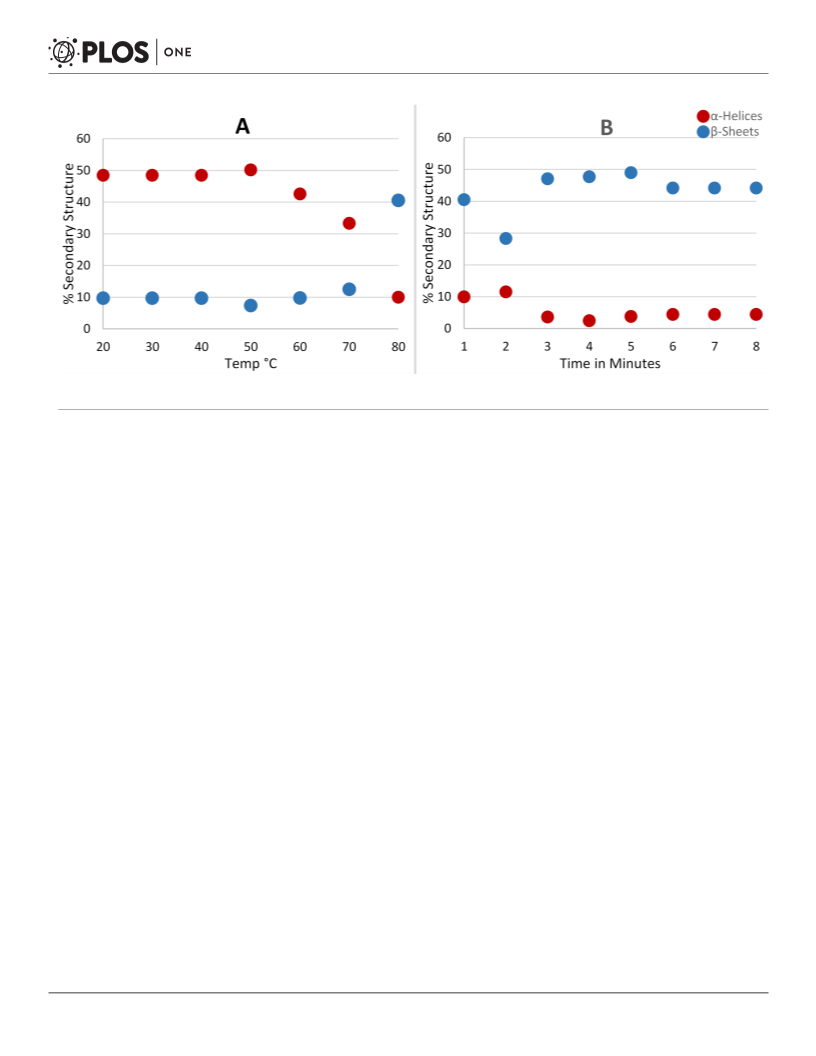

Fig 4. Circular dichroism thermal denaturation study of HiDapE. The α-helical structures are represented in red and β-sheets are represented in blue with (A)
percent secondary structure observed over the course of heating from 20–80 °C, and (B) percent secondary structure remaining with continued heating at 80 °C.
https://doi.org/10.1371/journal.pone.0196010.g004
HiDapE was unfolding while ꢁ10% total remaining α-helical structure indicated complete
denaturation of HiDapE. At ~60˚C, HiDapE begins to denature as evidenced by a ~15% reduc-
tion in α-helical secondary structure. Upon heating to 80˚C, the observed α-helical structure
decreased to ~10%. These data confirm that complete denaturation of HiDapE occurs after ~2
min of heating at 80˚C.
Enzyme kinetics for N6-methyl-L,L-SDAP 1b
The optimized experimental assay conditions enable the detection of products as well as provid-
ing proper conditions for quenching HiDapE hydrolytic activity. The next step in developing a
spectrophotometric assay for HiDapE that can be used to screen potential inhibitors via high-
throughput screening is the normalization of the reactant concentrations. Utilizing glutamic
acid as a model of a primary amine, a concentration of 0.4 mM of glutamate reacted with ninhy-
drin produced an absorbance of ~1 AU at 570 nm (Fig 5). Based on these data, HiDapE concen-
trations were examined as a function of product formation using 1b as the substrate in 50 mM
HEPES buffer, pH 7.5 at 30˚C. A concentration of ~2 mM of 1b with a HiDapE concentration
of 8 nM produces ~80 nmol of product in 10 min. The product can be detected colorimetrically
by the addition of 2% ninhydrin (100 μL) followed by heating at 80˚C for 15 min and cooling to
30˚C resulting in an absorbance of ~1 AU at 570 nm (Fig 6). Importantly, the rate of the enzy-
matic reaction at 10 min lies within the linear portion of the curve. These data indicate that the
use of 1b as the substrate followed by colorimetric development of the primary amine product
with ninhydrin provides a robust and reproducible assay for DapE enzymes.
HiDapE ninhydrin-based enzymatic assay and IC50 determination
To test 1b as a substrate for screening potential inhibitors of HiDapE, the potency of several
previously identified inhibitors was examined. Specifically, captopril was found to have an
IC50 value of 3.4 0.2 μM using the ninhydrin based assay described herein (S6 Fig), which is
almost identical to that reported using L,L-SDAP as the substrate and measuring cleavage of
the substrate at 225 nm (IC50 = 3.3 μM).[10] Interestingly, captopril displayed modest
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
18 / 24

Spectrophotometric assay for DapE enzyme antibiotic target

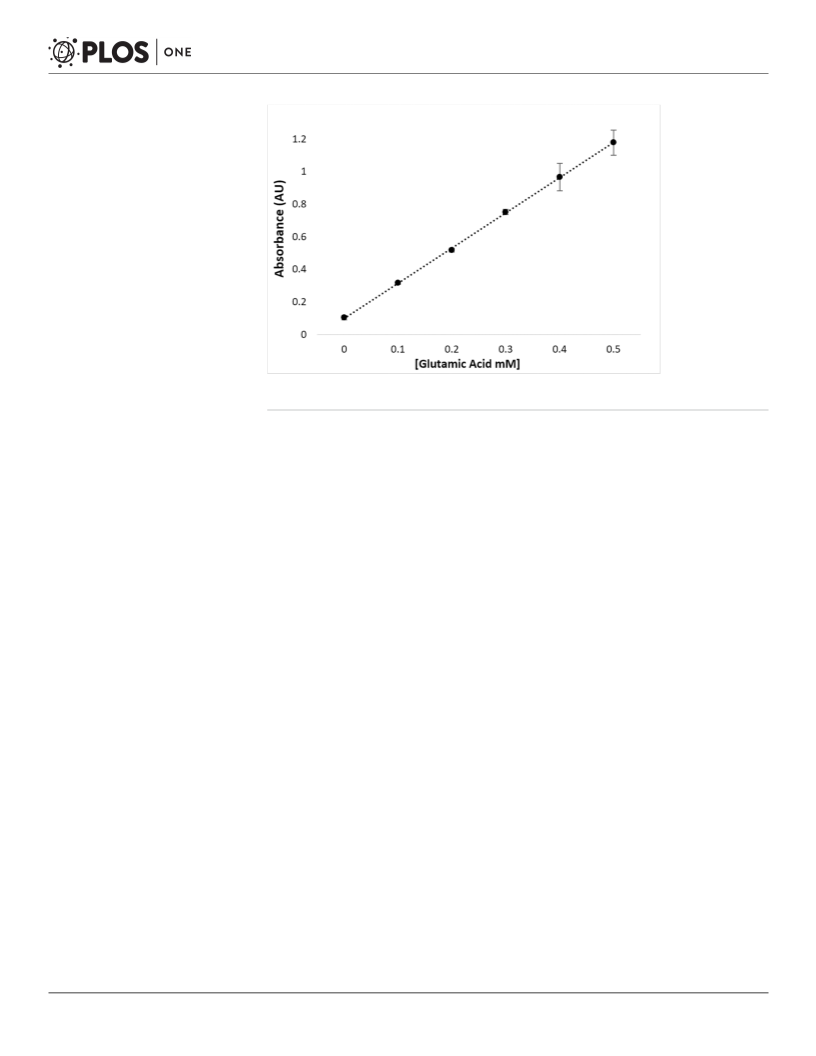

Fig 5. Glutamic acid control standard curve for the development of ninhydrin and primary amine in 50 mM
HEPES buffer at pH 7.5.
https://doi.org/10.1371/journal.pone.0196010.g005
antibiotic activity against Escherichia coli and Salmonella enterica[34] confirming our own
observation of antibiotic activity.[10] However, Uda found that captopril does not inhibit the
Mn(II) form of the enzyme,[35] and that, surprisingly, the antibiotic activity of captopril was
independent of DapE inhibition in bacteria.[34] Ultimately, it will be imperative to screen dif-
ferent metalloisozymes of DapE enzymes, in particular the Mn(II) isoform in addition to the
Zn(II) bound enzyme, as captopril was found to be a moderately potent inhibitor of the Zn(II)
enzyme but not of the Mn(II) enzyme. Moreover, mono- and di-Zn(II) enzymes were shown
to exhibit different rates of hydrolysis of L,L-SDAP and their crystal structures suggest differ-
ent approaches will be required to rationally design inhibitors specific for each form.[9] The
new ninhydrin-coupled DapE assay will simplify such experiments and assist in the screening
and design of inhibitors based on captopril. Likewise, the IC50 values for 3-mercaptobenzoic
acid (IC50 = 21.8 2.2 μM), phenylboronic acid (IC50 = 316 23.6 μM), and thiophene
boronic acid (IC50 = 111 16 μM) were found to be in good agreement with the literature val-
ues of 35, 107, and 92 μM, respectively (S7–S9 Figs).[10] These data confirm that the ninhydrin
based HiDapE assay based on 1b as the substrate provides comparable results to the standard
L,L-SDAP assay that directly monitors the amide bond cleavage at 225 nm.
Ninhydrin-based DapE assay tolerance for amines. Amines are critically important
functional groups in drugs and in compound screening libraries. We were therefore very con-
cerned that primary amines might appear as false positives in an inhibitor library screen due to
their reactivity with ninhydrin, so we screened benzylamine, cyclohexylamine, and aniline as
potential inhibitors in the assay. At a concentration of 200 μM, none of these amines inhibit or
give the appearance of inhibiting DapE using this assay. A blank control of these primary
amines from 100 μM up to 500 μM demonstrates that these primary amines are not detected at
570 nm, consistent with the fact that their reaction with ninhydrin does not produce the Ruhe-
mann’s purple complex that absorbs at 570 nm, and instead produces an iminium salt complex
which is not detected at this wavelength. In addition, we screened glutamic acid as a potential
inhibitor of DapE at 200 μM, and glutamic acid does not appear to inhibit the DapE enzyme at
this concentration, even though it is an alpha-amino acid that can produce Ruhemann’s pur-
ple, due to subtraction of the blank.
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
19 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
Fig 6. Enzyme saturation curve of HiDapE using 2 mM of N6-methyl-L,L-SDAP as the substrate (50 mM HEPES
buffer at pH 7.5). Optimal enzyme concentration selected for absorbance of primary amine product at or around 1
AU (absorbance unit).
https://doi.org/10.1371/journal.pone.0196010.g006
Conclusion
In summary, N6-methyl-L,L-SDAP 1b was predicted to be a potential substrate for HiDapE
whereas N6-acetyl-L,L-SDAP 1c was shown to suffer significant binding alterations due to the
larger acetyl group and loss of charge on the nitrogen of the amide. Two synthetic routes to 1b
were developed allowing the synthesis of 1b in very high yields on a multigram scale. Kinetic
studies proved that 1b can be hydrolyzed by HiDapE at comparable rates to L,L-SDAP, estab-
lishing 1b as a substrate for DapE enzymes. Another potential substrate analog, N6-acetyl-L,
L-SDAP (1c), was also synthesized and tested as a substrate for HiDapE, but as expected, no
activity was detected. Since the amine-containing product of the hydrolysis of 1b contains
only one primary amine, conditions that selectively modify the primary amine vs. the second-
ary amine with ninhydrin were developed, resulting in a new spectrophotometric assay for
DapE enzymes that is inexpensive, robust and reproducible. The newly discovered DapE sub-
strate, 1b, coupled with ninhydrin development, is superior to the standard UV-based (225
nm) assay which uses L,L-SDAP as the substrate, as it is alleviates interference from potential
inhibitor absorption at 225 nm, a common absorption region for aryl containing compounds.
The feasibility of the new 1b-ninhydrin-coupled DapE assay was established by accurately
determining IC50 values of known HiDapE inhibitors. In summary, this new ninhydrin-based
assay provides a method for the discovery of lead compounds for DapE enzymes and for driv-
ing medicinal chemistry structure-activity relationships (SAR) and thus provide a critical tool
for the discovery of a new class of antibiotics that target DapE enzymes.
Supporting information
S1 Fig. Minimized N6,N6-dimethyl-L,L-SDAP substrate analog docked and modeled in the
HiDapE active site. The diaminopimelate moiety is depicted in yellow and the succinate in
turquoise. The catalytic domain of Chain A is depicted in green, whereas the dimerization
domain of Chain B is shown in orange. N6,N6-Dimethyl-L,L-SDAP binds quite distinctly com-
pared to L,L-SDAP due to the presence of the additional methyl groups. Loss of the interfacial
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
20 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
domain interaction between the backbone carbonyl of Glu135:A and the side chain carbonyl
of Asn245:B by the ammonium N-H species, due to interference of the additional methyl
groups, appear to be the key differences. The additional bulk of the two methyl groups also
leads to the migration of the N-H bond from the ammonium species from Glu135:A to the
backbone carbonyl of Glu134:A. Significantly, Glu134 is proposed to act as the general acid/
base during the hydrolysis reaction catalyzed by HiDapE and this residue is shifted further
away from the active site, likely impeding the enzyme’s ability to hydrolyze the substrate.
(TIF)
S2 Fig. Sarcosine and glutamic acid development with ninhydrin UV/Vis spectra. UV/Vis
spectra of sarcosine (secondary amine) and glutamic acid (primary amine) with ninhydrin
after heating at A) 100˚C for 2 min, and B) 80˚C for 2 min.
(TIF)
S3 Fig. Time course plots for the development of primary amine and secondary amine at
60˚C vs 80˚C vs 100˚C. Time course plots of the development of primary amine or secondary
amine with ninhydrin (A) at 100˚C (B) vs 80˚C and (C) vs 60˚C. Glutamic acid was used as
model primary amine, and sarcosine was used as a model secondary amine.
(TIF)
S4 Fig. Circular dichroism UV spectra of denaturation of HiDapE. Circular Dichroism UV/
Vis spectra of thermal denaturation of HiDapE observing the α-helical secondary structure.
(TIF)
S5 Fig. Pre-heat incubation of HiDapE at 80˚C vs 100˚C. Pre-heat incubation reaction of
HiDapE at 80˚C vs 100˚C compared to 100% enzymatic activity and 0% enzymatic activity.
(TIF)
S6 Fig. Inhibition of DapE by captopril.
(TIF)
S7 Fig. Inhibition of DapE by 3-mercaptobenzoic acid.
(TIF)
S8 Fig. Inhibition of DapE by phenylboronic acid.
(TIF)
S9 Fig. Inhibition of DapE by 2-thiophene boronic acid.
(TIF)
Acknowledgments
Brian Leverson, PhD candidate at Loyola University Chicago, is gratefully acknowledged for
obtaining the CD data of the HiDapE enzyme. We are very grateful to Dr. Leimin Fan for per-
forming the high resolution mass spectrometry analyses.
Author Contributions
Conceptualization: Marlon R. Lutz, Jr., Cory T. Reidl, Kenneth W. Olsen, Miguel A. Ballicora,
Daniel P. Becker.
Data curation: Tahirah K. Heath, Marlon R. Lutz, Jr., Cory T. Reidl, Estefany R. Guzman,
Claire A. Herbert, Boguslaw P. Nocek, Miguel A. Ballicora.
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
21 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
Formal analysis: Estefany R. Guzman, Boguslaw P. Nocek, Kenneth W. Olsen, Miguel A. Bal-
licora, Daniel P. Becker.
Funding acquisition: Richard C. Holz.
Investigation: Marlon R. Lutz, Jr., Cory T. Reidl, Estefany R. Guzman, Claire A. Herbert,
Boguslaw P. Nocek.
Methodology: Tahirah K. Heath, Marlon R. Lutz, Jr., Claire A. Herbert, Boguslaw P. Nocek,
Kenneth W. Olsen, Miguel A. Ballicora, Daniel P. Becker.
Project administration: Daniel P. Becker.
Software: Cory T. Reidl, Estefany R. Guzman.
Supervision: Tahirah K. Heath, Richard C. Holz, Miguel A. Ballicora, Daniel P. Becker.
Validation: Tahirah K. Heath, Claire A. Herbert, Boguslaw P. Nocek.
Visualization: Cory T. Reidl, Estefany R. Guzman, Boguslaw P. Nocek, Kenneth W. Olsen.
Writing – original draft: Tahirah K. Heath, Marlon R. Lutz, Jr., Cory T. Reidl, Estefany R.
Guzman, Richard C. Holz, Miguel A. Ballicora, Daniel P. Becker.
Writing – review & editing: Tahirah K. Heath, Marlon R. Lutz, Jr., Cory T. Reidl, Boguslaw P.
Nocek, Richard C. Holz, Miguel A. Ballicora, Daniel P. Becker.
References
1. World Health Organization. Antibacterial agents in clinical development: an analysis of the antibacterial
clinical development pipeline, including tuberculosis. 2017. http://www.who.int/medicines/areas/
rational_use/antibacterial_agents_clinical_development/en/
2. Klevens RM, Morrison MA, Nadle J, Petit S, Gershrnan K, Ray S, et al. Invasive methicillin-resistant
staphylococcus aureus infections in the United States. JAMA, J Am Med Assoc. 2007; 298: 1763–
1771.
3. Howe RA, Bowker KE, Walsh TR, Feest TG, MacGowan AP. Vancomycin-resistant Staphylococcus
aureus. Lancet. 1998; 351: 602. https://doi.org/10.1016/S0140-6736(05)78597-4 PMID: 9492814
4. Gillner DM, Becker DP, Holz RC. Lysine biosynthesis in bacteria: a metallodesuccinylase as a potential
antimicrobial target. JBIC, J Biol Inorg Chem. 2013; 18: 155–163. https://doi.org/10.1007/s00775-012-
0965-1 PMID: 23223968
5. Scapin G, Blanchard JS. Enzymology of bacterial lysine biosynthesis. Adv Enzymol Relat Areas Mol
Biol. 1998; 72: 279–324. PMID: 9559056
6. Karita M, Etterbeek ML, Forsyth MH, Tummuru MKR, Blaser MJ. Characterization of Helicobacter pylori
dapE and construction of a conditionally lethal dapE mutant. Infect Immun. 1997; 65: 4158–4164.
PMID: 9317022
7. Pavelka MS Jr., Jacobs WR Jr. Biosynthesis of diaminopimelate, the precursor of lysine and a compo-
nent of peptidoglycan, is an essential function of Mycobacterium smegmatis. J Bacteriol. 1996; 178:
6496–6507. PMID: 8932306
8. Cosper NJ, Bienvenue DL, Shokes JE, Gilner DM, Tsukamoto T, Scott RA, et al. The dapE-encoded N-
Succinyl-L,L-Diaminopimelic Acid Desuccinylase from Haemophilus influenzae is a Dinuclear Metallo-
hydrolase. J Am Chem Soc. 2003; 125: 14654–14655. https://doi.org/10.1021/ja036650v PMID:
14640610
9. Nocek BP, Gillner DM, Fan Y, Holz RC, Joachimiak A. Structural Basis for Catalysis by the Mono- and
Dimetalated Forms of the dapE-Encoded N-succinyl-L,L-Diaminopimelic Acid Desuccinylase. J Mol
Biol. 2010; 397: 617–626. https://doi.org/10.1016/j.jmb.2010.01.062 PMID: 20138056
10. Gillner D, Armoush N, Holz RC, Becker DP. Inhibitors of bacterial N-succinyl-L,L-diaminopimelic acid
desuccinylase (DapE) and demonstration of in vitro antimicrobial activity. Bioorg Med Chem Lett. 2009;
19: 6350–6352. https://doi.org/10.1016/j.bmcl.2009.09.077 PMID: 19822427
11. Starus A, Nocek B, Bennett B, Larrabee JA, Shaw DL, Sae-Lee W, et al. Inhibition of the dapE-Encoded
N-Succinyl-L,L-diaminopimelic Acid Desuccinylase from Neisseria meningitidis by L-Captopril. Bio-
chemistry. 2015; 54: 4834–4844. https://doi.org/10.1021/acs.biochem.5b00475 PMID: 26186504
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
22 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
12. Mandal RS, Das S. In silico approach towards identification of potential inhibitors of Helicobacter pylori
DapE. J Biomol Struct Dyn. 2015; 33: 1460–1473. https://doi.org/10.1080/07391102.2014.954272
PMID: 25204745
13. Lin Y, Myhrman R, Schrag ML, Gelb MH. Bacterial N-succinyl-L-diaminopimelic acid desuccinylase.
Purification, partial characterization and substrate specificity. J Biol Chem. 1988; 263: 1622–1627.
PMID: 3276674
14. Kindler SH, Gilvarg C. N-Succinyl-L-α,ε-diaminopimelic acid deacylase. J Biol Chem. 1960; 235: 3532–
3535. PMID: 13756049
15. Bienvenue DL, Gilner DM, Davis RS, Bennett B, Holz RC. Substrate specificity, metal binding proper-
ties, and spectroscopic characterization of the DapE-encoded N-succinyl-L,L-diaminopimelic acid
desuccinylase from Haemophilus influenzae. Biochemistry. 2003; 42: 10756–10763. https://doi.org/10.
1021/bi034845+ PMID: 12962500
16. Fraser RDB, Susuki E. Physical Principles and Techniques of Protein Chemistry. N.Y.: Academic
Press; 1973.
17. Ziegler AJ, Florian J, Ballicora MA, Herlinger AW. Alkaline phosphatase inhibition by vanadyl-β-dike-
tone complexes: electron density effects. Journal of Enzyme Inhibition and Medicinal Chemistry. 2009;
24: 22–28. https://doi.org/10.1080/14756360701841426 PMID: 18615288
18. Glinka T, Lomovskaya O, Bostian K, Wallace DM. Preparation of peptide polybasic bacterial efflux
pump inhibitors for enhancing levofloxacin potency in treating bacterial infections. PCT Int Appl. 2008;
2008-US62785; 2007–60917616: 198.
19. Blatt LM, Pan L, Seiwert S, Andrews SW, Martin P, Schumacher A, et al. Preparation of macrocyclic
acylsulfonamides, N-hydroxy-, N-alkoxy- and N-aryloxyamides as inhibitors of HCV replication. PCT Int
Appl. 2008; 2008-US62552; 2007–60915896: 315.
20. Jørgensen KB, Gautun OR. Efficient stereoselective preparation of protected isodityrosines. Tetrahe-
dron. 1999; 55: 10527–10536.
21. Horenstein BA, Nakanishi K. Synthesis of unprotected (±)-tunichrome An-1, a tunicate blood pigment. J
Am Chem Soc. 1989; 111: 6242–6246.
22. Okano K, Tokuyama H, Fukuyama T. Total synthesis of (+)-yatakemycin. J Am Chem Soc. 2006; 128:
7136–7137. https://doi.org/10.1021/ja0619455 PMID: 16734447
23. Molecular Operating Environment (MOE), 2013.08, Chemical Computing Group Inc., 1010 Sherbooke
St. West, Suite #910, Montreal, QC, Canada, H3A 2R7, 2016.
24. Nocek B, Reidl C, Starus A, Heath T, Bienvenue D, Osipiuk J, et al. Structural Evidence for a Major Con-
formational Change Triggered by Substrate Binding in DapE Enzymes: Impact on the Catalytic Mecha-
nism. Biochemistry (N.Y.). 2018; 57: 574.
25. Labute P. The generalized Born/volume integral implicit solvent model: Estimation of the free energy of
hydration using London dispersion instead of atomic surface area. Journal of Computational Chemistry.
2008; 29: 1693–1698. https://doi.org/10.1002/jcc.20933 PMID: 18307169
26. Shoichet BK. Virtual screening of chemical libraries. Nature. 2004; 432: 862–865. https://doi.org/10.
1038/nature03197 PMID: 15602552
27. Gill SC, Von Hippel PH. Calculation of protein extinction coefficients from amino acid sequence data.
Anal Biochem. 1989; 182: 319–326. PMID: 2610349
28. McGregor WC, Swierczek SI, Bennett B, Holz RC. Characterization of the catalytically active Mn(II)-
loaded argE-encoded N-acetyl-L-ornithine deacetylase from Escherichia coli. JBIC, J Biol Inorg Chem.
2007; 12: 603–613. https://doi.org/10.1007/s00775-007-0211-4 PMID: 17333302
29. Wang W, Xiong C, Yang J, Hruby VJ. An efficient synthesis of (2S, 6S)-and meso-diaminopimelic acids
via asymmetric hydrogenation. Synthesis. 2002; 2002: 0094–0098.
30. Pratt SD, Xuei X, Mackinnon AC, Nilius AM, Hensey-Rudloff DM, Zhong P, et al. Development of a cou-
pled VanA/VanX assay: screening for inhibitors of glycopeptide resistance. Journal of Biomolecular
Screening. 1997; 2: 241–247.
31. Friedman M. Applications of the Ninhydrin Reaction for Analysis of Amino Acids, Peptides, and Proteins
to Agricultural and Biomedical Sciences. J Agric Food Chem. 2004; 52: 385–406. https://doi.org/10.
1021/jf030490p PMID: 14759124
32. Friedman M, Krull LH. N- and C-alkylation of peptides and proteins in dimethyl sulfoxide. Biochim Bio-
phys Acta, Protein Struct. 1970; 207: 361–3.
33. Yin B, Chen Y, Lin S, Hsu W. Production of D-amino acid precursors with permeabilized recombinant
Escherichia coli with D-hydantoinase activity. Process Biochem (Oxford). 2000; 35: 915–921.
34. Uda NR, Creus M. Selectivity of inhibition of N-succinyl-L,L-diaminopimelic acid desuccinylase in bacte-
ria: the product of DapE-gene is not the target of L-captopril antimicrobial activity. Bioinorg Chem Appl.
2011: 306465, 6.
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
23 / 24

Spectrophotometric assay for DapE enzyme antibiotic target
35. Uda NR, Upert G, Angelici G, Nicolet S, Schmidt T, Schwede T, et al. Zinc-selective inhibition of the pro-
miscuous bacterial amide-hydrolase DapE: implications of metal heterogeneity for evolution and antibi-
otic drug design. Metallomics. 2014; 6: 88–95. https://doi.org/10.1039/c3mt00125c PMID: 24057071
PLOS ONE | https://doi.org/10.1371/journal.pone.0196010 April 26, 2018
24 / 24
