nature of p–p interactions, particularly the influence of sub-
stituents on p–p interactions. Small-molecule chiral recogni-
tion systems have been studied in detail for more than two
decades and have served as the basis for the design of a
multitude of chiral chromatographic stationary phases,
chiral solvating agents, and catalysts.[6] A number of crystal
structures has been solved involving a 1:1 complex between
the chiral selector and a molecule that interacts with the se-
lector.[7] Invariably, these solid-state data have been consis-
tent with results derived from chromatographic and NMR
spectroscopic studies.[6c,d,8] Moreover, these crystal structures
have been used in the design of new generations of chiral
selectors and catalysts. Small-molecule chiral recognition
systems are simplistic, and require minimal interactions.
Thus, they provide an ideal opportunity to study molecular
interactions, in particular complex aromatic interactions,
which is the goal of the present manuscript. Additionally, as
discussed in detail below, we postulate that significant differ-
ences in the orientation of interacting aromatic rings in-
duced by substituents can best be ascertained through crys-
tallographic studies. Such orientation effects will be of fun-
damental importance to computational modelers that are
trying to elucidate the nature of aromatic interactions.
amides was prepared and crystallized. We hypothesize that
simple crystallographic systems such as those described
herein provide a means of uncovering the extent to which
small changes in the substitution pattern of interacting aro-
matic rings can influence the nature of the p–p interaction.
Results and Discussion
Structures of various racemic 2- and 4-substituted benzoyl
leucine diethyl amides crystallized in this study are depicted
in Figure 1. All of the compounds investigated in this study
Recently, we demonstrated that all racemic 3-substituted
and 3,5-disubstituted benzoyl leucine diethyl amides, regard-
less of the electronic nature of the substituent, undergo ho-
mochiral self-recognition in the solid state, whereas the un-
substituted compound does not.[9] The homochiral recogni-
tion system is minimalist in nature in that it requires only
three interactions, including a p–p interaction and two hy-
drogen-bonding interactions.[10] Furthermore, unlike some of
the early innovative models that involved interacting rings
that were spatially fixed with respect to each other,[2a–i,11] we
showed that the aromatic rings in the substituted dimers
have significant translational freedom, and thus can interact
in various orientations. We hypothesized that compounds
with aromatic rings involved in an energetically favorable
p–p interaction are capable of forming homochiral dimers
in the solid state. We further pointed out that the results
provided experimental support to the hypothesis that all
substituents, regardless of their electronic character, stabilize
p–p interactions.[5,9] The crystallographic data also revealed
that the orientation of the interacting aromatic rings is pro-
foundly influenced by the nature of the substituent on the
respective rings. For instance, the degree of horizontal dis-
placement (i.e., offset) and vertical displacement between
the interacting rings varies dramatically, in a substituent-de-
pendent manner. In particular cases, we observed evidence
of interactions between local dipoles on the rings, which
appear to influence the orientation. These results suggested
that a range of different stabilizing geometries is possible
for the parallel displaced p–p interactions and that the opti-
mal geometry appears to be dependent on the nature of the
substituents on the respective aromatic rings.

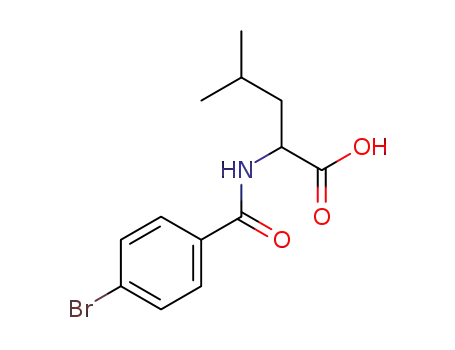

Figure 1. Structures of the racemic substituted benzoyl leucine diethyl
amides crystallized in this study.
were crystallized from hexane/dichloromethane. Additional-
ly, we crystallized several compounds in additional solvents
such as toluene, benzene, and acetone mixtures resulting in
largely similar structures in identical space groups.
A diverse set of geometric parameters has been used to
describe the spatial orientation between a pair of aromatic
compounds.[1e,3f,12a–g] For a rigorous geometric description of
the spatial orientation of a pair of interacting aromatic com-
pounds, see Moore et al.[12f] Common and simplistic parame-
ters used to define the offset face-to-face interaction include
the distance between the ring-to-ring centroids (d), the dis-
tance of the horizontal (I) and vertical (R) displacements of
the two interacting rings, the displacement angle (q), and
the tilt angle (a). These parameters are depicted in Fig-
ure 2.[9,12e] If the aromatic rings are stacked (i.e., sandwich
configuration) the displacement angle q is equal to 908, and
the horizontal displacement I is equal to 0 ꢁ. Tilt angles less
than 208 are considered as stacked or displaced-stacked
pairs.[12a] If the rings are parallel, the tilt angle a is equal to
08. If the rings are perpendicular, the tilt angle a is equal to
908 and the rings assume a T-shaped configuration, as op-
posed to a sandwich configuration or an offset stacked con-
figuration. Data displayed in Tables 1 and 2 are within typi-
cal values for horizontal (I) and vertical (R) displacements
To enhance our understanding of the influence of sub-
stituents on the orientation of the interacting aromatic rings,
a series of 2- and 4-substituted benzoyl leucine diethyl
&
2
&
