Direct arylation of arene C-H bonds by cooperative action of NHCarbene-Ruthenium(II) catalyst and carbonate via proton abstraction mechanism

Article abstract of DOI:10.1021/ja710276x

Direct functionalization of sp² C-H bonds via ortho diarylation of 2-pyridyl benzene with arylbromides was achieved using ruthenium(II) catalysts containing a RuCl₂(NHC) unit and generated from [RuCl₂(arene)]₂ and two types of NHC precursors, pyrimidinium and benzimidazolium salts, in the presence of Cs₂CO₃. DFT calculations from RuCl₂(NHC)(2-pyridylbenzene) show that a proton abstraction mechanism, on cooperative actions of both the coordinated base and the Ru(II) center, is favored via a 13.7 kcal·mol-1 exothermic process affording an orthometalated intermediate with a 2.009 A Ru-C bond. Copyright

Full text of DOI:10.1021/ja710276x

Published on Web 01/10/2008
Direct Arylation of Arene C-H Bonds by Cooperative Action of
NHCarbene-Ruthenium(II) Catalyst and Carbonate via Proton Abstraction
Mechanism
Ismail O¨ zdemir,† Serpil Demir,† Bekir C¸ etinkaya,† Christophe Gourlaouen,‡ Feliu Maseras,*,‡
Christian Bruneau,§ and Pierre H. Dixneuf*,§
Institute of Chemical Research of Catalonia (ICIQ), AV. Pa¨ısos Catalans, 16, 43007 Tarragona, Spain,
Departament de Quimica, UniVersitat Autonoma de Barcelona, 08193 Bellaterra, Catalonia, Spain, Faculty of
Sciences and Arts, Ino¨nu¨ UniVersity, Malatya, Turkey, Faculty of Science, UniVersity of Ege, Izmir, Turkey, and
Institut Sciences Chimiques, Campus Beaulieu, UniVersite´ de Rennes, 35042 Rennes, France
Received November 21, 2007; E-mail: fmaseras@iciq.es; pierre.dixneuf@univ-rennes1.fr
Table 1. Influence of 1,3-Dinitrogen Salts LH+X- 3-5 on
Metal-catalyzed cross-coupling reactions constitute the most
useful method for C-C bond formation and the access to diaryls
Diphenylation of 1a
entry
LH+Cl-
2 (yieldb)
entry
LH+Cl-
2 (yieldb)
and heterocycles, via the coupling of an organic halide with a variety
of organometallics.1 The search for C-H bond activation2 has
allowed discovery of alternative routes to C-C bond formation
via catalytic economical functionalization of sp2 C-H bonds.3-6
Direct arylation of functional arenes and heterocycles can now be
performed especially with Pd7 and Rh8 based catalysts. Ruthenium-
(0) catalysts are contributing to this field by initial insertion of Ru-
(0) species into C-H bonds.4,9 Alternatively, some ruthenium(II-
IV) catalysts, containing phosphines,10 phosphine oxides,11 or
N-methylpyrrolidone,12 recently promoted the direct arylation of
arenes and heterocycles; however, the mechanism has not been
elucidated and an electrophilic substitution by a Ru(IV) species10
is still questionable. In contrast, it is established that ruthenium(II)
complexes, under mild conditions, allow orthometalation of func-
tional arenes with [RuCl2(arene)]2 and a base.13 Consequently, a
ruthenium(II) C-H bond functionalization via an orthometalation
process10d should be also considered.
1
2
3
4
4
71
89
88
84
5
6
7
8
5a
5b
5c
5d
88
58
79
81
3a
3b
3c
a Conditions: 1 mmol of 1 and 2.2 mmol of PhBr were added to a
mixture of [RuCl2(p-cymene)]2 (0.025 mmol), 0.10 mmol of salt LH+Cl-
(3-5), 3 mmol of Cs2CO3 in 2 mL of NMP (N-methylpyrrolidone), 20 h
at 120 °C. b Isolated yield %.
We have addressed this problem by studying the arylation of
2-pyridylbenzene, in the presence of new NHC-ruthenium(II)
catalysts and a base. We now report that the in situ generation of
catalysts, from [RuCl2(p-cymene)]2 and a pyrimidinium or benz-
imidazolium salt in the presence of Cs2CO3, selectively promotes
the diarylation of 2-pyridylbenzene with arylbromides (eq 1), and
that DFT calculations performed on the system RuCl2(NHC)(2-
pyridylbenzene) support an ortho proton abstraction by the coopera-
tive actions of both the carbonate and the ruthenium(II) center.

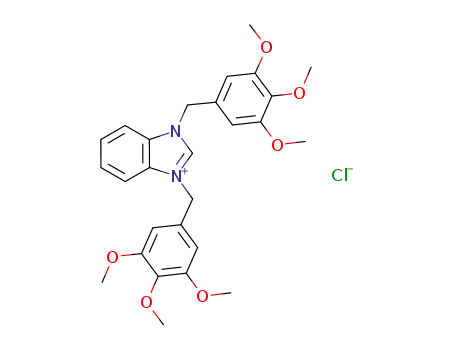

Figure 1. 1,3-Dinitrogen salts LH+X- 3-5 as NHC precursors.
Table 2. Influence of the Bromoarenes p-Y-C6H4Br
p-Y
−C6H4Br
yieldb of 6
−9
3a
3b
3c
5c
p-NC-C6H4Br
p-MeCO-C6H4Br
p-MeO-C6H4Br
p-Me-C6H4Br
6
7
8
9
75
88
84
87
77
82
87
91
56
76
60
80
51
70
66
71
a Conditions: as in Table 1 during 10 h at 120 °C. b Isolated yields.
[RuCl2(p-cymene)]2 was used to reveal the influence of salts 3-5
as the NHC precursor. The results in Table 1 show that the
pyrimidinium salts 3 and the benzimidazolium salts 5 give complete
conversion of 1 and good isolated yields of 2.
To gather information on the mechanism and to explore the scope
of ortho arylation, the influence of arylbromide p-Y-C6H4Br has
been evaluated, but only during 10 h at 120 °C to allow better
comparison. The ortho-diarylated products 6-9 were obtained in
good yields (eq 2, Table 2).
The catalytic system was explored on the basis of (i) the
formation of NHC-ruthenium(II) complexes on reaction of [RuCl2-
14
(p-cymene)]2 with imidazolinium salts and Cs2CO3 and (ii) the
coordination of carbonate on its reaction with RuCl2(NHC)(arene)
complexes.15 The diphenylation of 2-pyridylbenzene 1 with PhBr
was evaluated with catalysts prepared from 0.05 mmol of mono-
nuclear metal source, 0.10 mmol of pyrimidinium salt LH+X- 3b,
and an excess of Cs2CO3 under Table 1 conditions. [RuCl2(nbd)]n
and [RuCl2(p-cymene)]2 led to complete conversion of 1 into
product 2, isolated in 77 and 88% yields, respectively (eq 1, Figure
1).
† Ino¨nu¨ University and University of Ege.
‡ ICIQ and Universitat Autonoma de Barcelona.
§ Universite´ de Rennes.
The results show that the arylbromides containing a para electron-
donating group lead to similar yields of 8 and 9 as those with the
9
1156
J. AM. CHEM. SOC. 2008, 130, 1156-1157
10.1021/ja710276x CCC: $40.75 © 2008 American Chemical Society

C O M M U N I C A T I O N S
distance of 1.868 Å is similar to that obtained in previous studies
of C-H activation by σ-bond metathesis.20 The role of the metal
and the formation of the Ru-C are critical in favoring the otherwise
unexpected deprotonation of a phenyl group by a relatively weak
base.
The above results show that more aryl and heterocyclic C-H
bond functionalizations should be possible with catalysts offering,
via metal/base cooperative proton abstraction, an easy initial
orthometalation path.
Supporting Information Available: Computational details, Car-
tesian coordinates, and absolute energies for all computed structures.
This material is available free of charge via the Internet at http://
pubs.acs.org.
Figure 2. B3LYP-optimized structures for complexes 3t-a, 4t-a, and 5t-
a. Selected distances are indicated in Å.
References
(1) (a) Hassan, J.; Se´vignon, M.; Gozzi, C.; Schulz, E.; Lemaire, M. Chem.
ReV. 2002, 102, 1359. (b) Littke, A.; Fu, G. Angew. Chem., Int. Ed. 2002,
41, 4176. (c) Metal-Catalyzed Cross-Coupling Reactions, 2nd ed.; De
Meijere, A., Diederich, F. Eds.; Wiley-VCH: Weinheim, Germany, 2004.
(2) (a) Labinger, J. A.; Bercaw, J. E. Nature 2002, 417, 507. (b) Go¨ttker-
Schnetmann, I.; White, P.; Brookhart, M. J. Am. Chem. Soc. 2004, 126,
1804. (c) Lersch, M.; Tilset, M. Chem. ReV. 2005, 105, 2471. (d)
Wiedemann, S. H.; Lewis, J. C.; Ellman, J. A.; Bergman, R. G. J. Am.
Chem. Soc. 2006, 128, 2452.
Scheme 1. Possible Orthometalation Intermediates
(3) Ritleng, V.; Sirlin, C.; Pfeffer, M. Chem. ReV. 2002, 102, 1731.
(4) Kakiuchi, F.; Murai, S. Acc. Chem. Res. 2002, 35, 826.
(5) (a) Handbook of C-H Transformations; Dyker, G., Ed.; Wiley-VCH:
Weinheim, Germany, 2005. (b) Chatani, N. Directed Metallation. In Topics
in Organometallic Chemistry; Springer: Berlin, 2007.
(6) Alberico, D.; Scott, M. E.; Lautens, M. Chem. ReV. 2007, 107, 174.
(7) (a) Terao, Y.; Kametani, Y.; Wakui, H.; Satoh, T.; Miura, M.; Nomura,
M. Tetrahedron 2001, 57, 5967. (b) Satoh, T.; Miura, M. Chem. Lett.
2007, 36, 200. (c) Campeau, L. C.; Parisien, M.; Jean, A.; Fagnou, K. J.
Am. Chem. Soc. 2006, 128, 581. (d) Gottumukkala, A. L.; Doucet, H.
Eur. J. Inorg. Chem. 2007, 3626. (e) Gu¨rbu¨z, N.; Oˆ zdemir, I.; Cetinkaya,
B. Tetrahedron Lett. 2005, 46, 2273. (f) Chiong, H. A.; Pham, Q.-N.;
Daugulis, O. J. Am. Chem. Soc. 2007, 129, 9879. (g) Hull, K. L.; Lanni,
E. L.; Sanford, M. S. J. Am. Chem. Soc. 2006, 128, 14047 and references
cited therein.
(8) (a) Oi, S.; Fukita, S.; Inoue, Y. Chem. Commun. 1998, 2439. (b) Bedford,
R. B.; Limmert, M. E. J. Org. Chem. 2003, 68, 8669. (c) Ueura, K.; Satoh,
T.; Miura, M. Org. Lett. 2005, 7, 2229. (d) Lewis, J. C.; Wu, J. Y.;
Bergman, R. G.; Ellman, J. A. Angew. Chem., Int. Ed. 2006, 45, 1589
and references therein.
(9) (a) Martinez, R.; Chevalier, R.; Darses, S.; Genet, J. P. Angew. Chem.,
Int. Ed. 2006, 45, 8232. (b) Ueno, S.; Chatani, N.; Kakiuchi, F. J. Am.
Chem. Soc. 2007, 129, 6098.
(10) (a) Oi, S.; Fukita, S.; Hirata, N.; Watanuki, N.; Miyano, S.; Inoue, Y.
Org. Lett. 2001, 3, 2579. (b) Oi, S.; Ogino, Y.; Fukita, S.; Inoue, Y. Org.
Lett. 2002, 4, 1783. (c) Oi, S.; Sakai, K.; Inoue, Y. Org. Lett. 2005, 7,
4009. (d) Oi, S.; Aizawa, E.; Ogino, Y.; Inoue, Y. J. Org. Chem. 2005,
70, 3113. (e) Oi, S.; Tanaka, Y. S.; Inoue, Y. Organometallics 2006, 25,
4773. (f) Ackermann, L.; Born, R.; AÄ lvarez Bercedo, P. Angew. Chem.,
Int. Ed. 2007, 46, 6364.
(11) (a) Ackermann, L. Org. Lett. 2005, 7, 3123. (b) Ackermann, L. Synthesis
2006, 10, 1557. (c) Ackermann, L.; Althammer, A.; Born, R. Angew.
Chem., Int. Ed. 2006, 45, 2619. One N-aryl NHC-Ru catalyst led to 42%
of diarylated product (10a).
(12) Ackermann, L.; Althammer, A.; Born, R. Synlett 2007, 2833-2836.
(13) Fernandez, S.; Pfeffer, M.; Ritleng, V.; Sirlin, C. Organometallics 1999,
18, 2390.
(14) Cetinkaya, B.; Demir, S.; Ozdemir, I.; Semeril, D.; Bruneau, C.; Dixneuf,
P. H. Chem. Eur. J. 2003, 9, 2323.
(15) Demerseman, B.; Mbaye, D. M.; Se´meril, D.; Toupet, L.; Bruneau, C.;
Dixneuf, P. H. Eur. J. Inorg. Chem. 2006, 1174.
(16) (a) Garc´ıa-Cuadrado, D.; Braga, A. A. C.; Maseras, F.; Echavarren, A.
M. J. Am. Chem. Soc. 2006, 128, 1066. (b) Garc´ıa-Cuadrado, D.; de
Mendoza, P.; Braga, A. A. C.; Maseras, F.; Echavarren, A. M. J. Am.
Chem. Soc. 2007, 129, 6880.
(17) (a) Lafrance, M.; Fagnou, K. J. Am. Chem. Soc. 2006, 128, 16496. (b)
Lafrance, M.; Rowley, C. N.; Woo, T. K.; Fagnou, K. J. Am. Chem. Soc.
2006, 128, 8754. (c) Davies, D. L; Donald, S. M. A.; Al-Duaij, O.;
Macgregor, S. A.; Polleth, M. J. Am. Chem. Soc. 2006, 128, 4210.
(18) B3LYP calculations with the Gaussian03 program, and a valence double-ú
plus polarization basis set. See Supporting Information for computational
details.
(19) Only one NHC was considered in order to have an empty coordination
site on the metal. Hydrogencarbonate, in principle, present together in
solution with carbonate, was used as the weak basicity alternative.
(20) (a) Oxgaard, J.; Muller, R. P.; Goddard, W. A.; Periana, R. A. J. Am.
Chem. Soc. 2004, 126, 352. (b) Cundari, T. R.; Grimes, T. V.; Gunnoe,
T. B. J. Am. Chem. Soc. 2007, 129, 13172.
electron-withdrawing ones leading to 6 and 7. This absence of
discrimination by various arylbromides does not support an arene
electrophilic substitution process.
In contrast, as 2-pyridylbenzene with [RuCl2(arene)]2 easily leads
to orthometalation,13 a plausible mechanism via an initial ortho-
metalation-like process is presented in Scheme 1 (L ) NHC). The
intermediate II is expected to undergo PhBr reversible oxidative
addition to give III, that is able to release the arylation product 2
by reductive elimination. The less intuitive aspect is the critical
cleavage of the C-H bond. In principle, two mechanisms can be
postulated, the C-H oxidative addition producing a Ru(IV)
intermediate with a hydride ligand, or a direct proton abstraction16,17
from the phenyl by the base. We studied the process computation-
ally through DFT calculations18 on the system [Ru(IMe)(Cl)2(2-
pyridylbenzene)] (1t) (IMe ) N,N′-dimethylimidazolylidene),
- 19
corresponding to I, plus HCO3
.
The system 1t has several
isomers, all of them producing similar energy profiles. Only the
most stable one, labeled 1t-a, will be discussed here, and the
optimized structures for the other isomers are collected in the
Supporting Information.
Complex 1t-a presents an important agostic distortion, with an
ortho C-H distance of 1.179 Å. However, oxidative addition from
this species is disfavored, and the associated octahedral complex
with a hydride ligand 2t-a has a relative energy of 28.2 kcal/mol,
quite high above 1t-a. Both complexes are shown in the Supporting
Information. In contrast, the proton abstraction mechanism is much
-
easier. The introduction of HCO3 in the system results in its
coordination to ruthenium and the formation of an adduct, 3t-a,
22.9 kcal/mol below the separated fragments. This adduct evolves
to product 5t-a, with a Ru-phenyl bond, through transition state
4t-a. The transformation from 3t-a to 5t-a is exothermic by 13.7
kcal/mol, and the barrier is 13.9 kcal/mol. This low barrier indicates
a strong preference for the proton abstraction mechanism, even
-
when considering the weak HCO3 base.
The structures for species 3t-a, 4t-a, and 5t-a are shown in Figure
2. It is worth noticing that the hydrogen atom being transferred is
practically halfway between carbon (C-H distance, 1.383 Å) and
oxygen (O-H distance, 1.316 Å) in the transition state. In contrast,
the Ru-C bond is almost formed in the transition state 4t-a: the
Ru-C distance is 2.182 Å, whereas it is 2.009 Å in 5t-a. The Ru-H
JA710276X
9
J. AM. CHEM. SOC. VOL. 130, NO. 4, 2008 1157
