538
J. d’Angelo et al. / Polyhedron 27 (2008) 537–546
suitable set of ligands for intermolecular anchoring
through hydrogen bonding was thus obtained for our
intended evaluations.
uncontrolled variation of pressure. Calibration of tempera-
ture was performed with 5 N quality indium at 156.6 ꢁC
and tin at 231.9 ꢁC and a heating rate of 10 ꢁC minꢀ1
.
Herein we report the crystal structures of (3-nitro-4-
hydroxybenzoato) complexes of Zn(II) and Co(II). A key
aspect of these structures is that the individual units self-
assemble via extensive hydrogen bonding, leading to an
original 3D continuum. Although, in the strict sense, the
present complexes are not salicylate derivatives but 4-OH
regioisomers, their anticonvulsant properties were deter-
mined to examine the effect of this structural change on
the structural and physical properties of these complexes
in relation to their pharmacological effects. For the sake
of comparison, the anticonvulsant activities of related tran-
sition metalloelement 5-nsa complexes were also deter-
mined [5]. Interestingly, promising pharmacological
responses were obtained for these complexes as anticonvul-
sants. Critical to the knowledge of the mode of action of
present anticonvulsant metal complexes was the identifica-
tion of the actual pharmacologically active entity that
crosses the blood–brain barrier. Toward this end, this
report presents: (1) the conducting properties of the metal
complexes in dilute aqueous solution and (2) water/1-octa-
nol extraction experiments which revealed an unexpected
equilibrium between these complexes and the correspond-
ing free ligands.
Impedance measurements of aqueous solutions were per-
formed using a VoltaLab 80 (Radiometer Analytical) with
a 2-pole cell with two platinum plates. The signal ampli-
tude was 100 mV. A continuous potential of 0 mV was
imposed. Solutions, preserved under nitrogen, were placed
in a double walled glass cell ensuring thermal stabilization.
Measurements were obtained at 20 ꢁC. Magnetic measure-
ments in the 2–300 K temperature range were carried out
with a MPMS5 SQUID susceptometer (Quantum Design
Inc.).
2.3. Synthesis of complexes
2.3.1. C14H16N2O14Zn (1)
Sodium 3-nitro-4-hydroxybenzoate was prepared by
neutralizing 3-nitro-4-hydroxybenzoic acid (0.915 g,
5 mmol) with 5 ml of 1 M NaOH in deionized water. To
this solution was added ZnSO4 Æ 7H2O (0.720 g, 2.5 mmol)
in 3 ml of water. After a few days 1 was filtered, crystallized
from water, and dried over anhydrous magnesium sulfate.
Yield: 0.939 g (75%). Anal. Calc. for C14H16N2O14Zn (1):
C, 33.52; H, 3.21; N, 5.58. Found: C, 33.43; H, 3.18; N,
5.56%. IR (neat, cmꢀ1): 3254 (s), 1621 (s), 1587 (s), 1526
(s), 1420 (s), 1379 (s), 1323 (s), 1264 (s), 1178 (s), 1153
(s), 1118 (s), 1074 (s), 942 (m), 916 (m), 858 (m), 825 (m),
789 (s), 764 (s), 684 (s), 638 (s).
2. Experimental
2.1. Materials

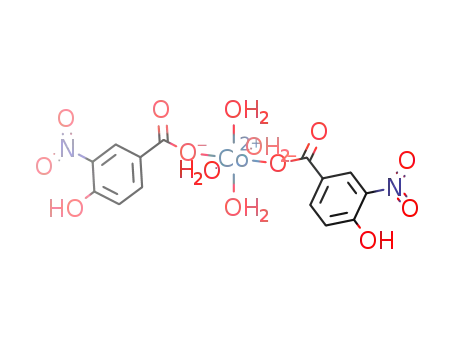

2.3.2. C14H16N2O14Co (2)
High purity 3-nitro-4-hydroxybenzoic acid, zinc sulfate
heptahydrate and cobalt sulfate heptahydrate were pur-
chased from Acros (USA) and used without further
purification.
Sodium 3-nitro-4-hydroxybenzoate was prepared by
neutralizing 3-nitro-4-hydroxybenzoic acid (0.915 g,
5 mmol) with 5 ml of 1 M NaOH in deionized water. To
this solution was added CoSO4 Æ 7H2O (0.702 g, 2.5 mmol)
in 3 ml of water. After a few days 2 was filtered, crystallized
from water, and dried over anhydrous magnesium sulfate.
Yield: 0.943 g (76%). Anal. Calc. for C14H16N2O14Co (2):
C, 33.95; H, 3.25; N, 5.66. Found: C, 34.05; H, 3.18; N,
5.64%. IR (neat, cmꢀ1): 3259 (m), 1621 (s), 1586 (s), 1545
(s), 1524 (s), 1418 (s), 1381 (s), 1323 (s), 1264 (s), 1179
(s), 1153 (s), 1117 (s), 1073 (m), 938 (m), 915 (m), 859
(m), 825 (m), 807 (s), 789 (s), 763 (s), 685 (s), 638 (s).
2.2. Physical measurements
Elemental analyses (C, H and N) were performed with a
Perkin–Elmer 2400 analyzer. Infrared spectra were
recorded with a Bruker Vector 22 spectrometer. Thermo-
gravimetric analyses (TGA) were performed with a TA
Instruments TGA Q500 apparatus. Calibrations were per-
formed at different temperatures using Curie magnetic
transitions for the recommended materials: alumel
(163 ꢁC) and nickel (354 ꢁC). Mass calibrations were per-
formed using a standard mass of 100 mg. The furnace
was calibrated between 100 and 900 ꢁC to verify thermo-
couple performance. All experiments were performed
2.4. X-ray diffraction measurements
Diffraction data were collected with a Bruker-SMART
three axis diffractometer equipped with a SMART 1000
CCD area detector using graphite monochromated Mo
under dry nitrogen, with a flow rate of 6 · 10ꢀ2 l minꢀ1
.
Ka X-radiation (wavelength k = 0.71073 A) at 100.0(1)
˚
Analysis of compounds following nitrogen purging was
conducted using a heating rate of 20 ꢁC minꢀ1 in order to
determine percent mass loss with optimal precision. Differ-
ential Scanning Calorimetry (DSC) experiments were per-
K. The low temperature was reached by an evaporated
liquid nitrogen stream over the crystal, provided by the
Oxford Cryosystem device. Data collection and processing
were performed using Bruker SMART programs [11] and
empirical absorption correction was applied using SADABS
computer program [11]. The structure was solved by direct
methods using SIR97 [12], and refined by full-matrix least-
formed with
a
TA Instruments Universal V4.2E
apparatus under nitrogen. Samples were introduced in alu-
minum pans and covered with holed caps in view to avoid
