Design, synthesis and biological evaluation of 7-chloro-9h-pyrimido[4,5-b]indole-based glycogen synthase kinase-3β inhibitors

Article abstract of DOI:10.3390/molecules24122331

Glycogen synthase kinase-3β (GSK-3β) represents a relevant drug target for the treatment of neurodegenerative pathologies including Alzheimer’s disease. We herein report on the optimization of a novel class of GSK-3β inhibitors based on the tofacitinib-derived screen hit 3-((3R,4R)-3-((7-chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)-4-methylpiperidin-1-yl)-3-oxopropanenitrile (1). We synthesized a series of 19 novel 7-chloro-9H-pyrimido[4,5-b]indole-based derivatives and studied their structure–activity relationships with focus on the cyanoacetyl piperidine moiety. We unveiled the crucial role of the nitrile group and its importance for the activity of this compound series. A successful rigidization approach afforded 3-(3aRS,7aSR)-(1-(7-chloro-9H-pyrimido[4,5-b]indol-4-yl)octahydro-6H-pyrrolo[2,3-c]pyridin-6-yl)-propanenitrile (24), which displayed an IC₅₀ value of 130 nM on GSK-3β and was further characterized by its metabolic stability. Finally, we disclosed the putative binding modes of the most potent inhibitors within the ATP binding site of GSK-3β by 1 μs molecular dynamics simulations.

Full text of DOI:10.3390/molecules24122331

molecules
Article
Design, Synthesis and Biological Evaluation of
7-Chloro-9H-pyrimido[4,5-b]indole-based Glycogen
Synthase Kinase-3β Inhibitors
Stanislav Andreev 1, Tatu Pantsar 2,3, Francesco Ansideri 1, Mark Kudolo 1, Michael Forster 1,
Dieter Schollmeyer 4, Stefan A. Laufer 1 and Pierre Koch 1,5,
*
1
Institute of Pharmaceutical Sciences, Department of Medicinal and Pharmaceutical Chemistry, Eberhard
Karls University Tübingen, Auf der Morgenstelle 8, 72076 Tübingen, Germany;
stanislav.andreev@uni-tuebingen.de (S.A.); francesco.ansideri@uni-tuebingen.de (F.A.);
Mark.Kudolo@uni-tuebingen.de (M.K.); Michael.forster@uni-tuebingen.de (M.F.);
Stefan.laufer@uni-tuebingen.de (S.A.L.)
Department of Internal Medicine VIII, University Hospital Tübingen, Otfried-Müller-Str. 14,
72076 Tübingen, Germany; tatu.pantsar@uef.fi
School of Pharmacy, University of Eastern Finland, P.O. Box 1627, 70211 Kuopio, Finland
Department of Organic Chemistry, Johannes Gutenberg University Mainz, Duesbergweg 10-14, 55099 Mainz,
Germany; scholli@uni-mainz.de
2
3
4
5
Department of Pharmaceutical/Medicinal Chemistry II, Institute of Pharmacy, University of Regensburg,
Universitätsstraße 31, 93053 Regensburg, Germany
*
Correspondence: pierre.koch@uni-tuebingen.de; Tel.: +49-7071-29-74579
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editor: Christian Peifer
Received: 23 May 2019; Accepted: 20 June 2019; Published: 25 June 2019
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: Glycogen synthase kinase-3
treatment of neurodegenerative pathologies including Alzheimer’s disease. We herein report on
the optimization of a novel class of GSK-3 inhibitors based on the tofacitinib-derived screen hit
3-((3R,4R)-3-((7-chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)-4-methylpiperidin-1-yl)-3-
oxopropanenitrile ( ). We synthesized a series of 19 novel 7-chloro-9H-pyrimido[4,5-b]indole-based
β (GSK-3β) represents a relevant drug target for the
β
1
derivatives and studied their structure–activity relationships with focus on the cyanoacetyl
piperidine moiety. We unveiled the crucial role of the nitrile group and its importance
for the activity of this compound series. A successful rigidization approach afforded
3-(3aRS,7aSR)-(1-(7-chloro-9H-pyrimido[4,5-b]indol-4-yl)octahydro-6H-pyrrolo[2,3-c]pyridin-6-yl)-
propanenitrile (24), which displayed an IC50 value of 130 nM on GSK-3β and was further characterized
by its metabolic stability. Finally, we disclosed the putative binding modes of the most potent
inhibitors within the ATP binding site of GSK-3β by 1 µs molecular dynamics simulations.
Keywords: Glycogen synthase kinase-3β; 7-chloro-9H-pyrimido[4,5-b]indole; protein kinase; kinase
inhibitor; tofacitinib
1. Introduction
The human kinome represents a collective of over 500 genes dedicated to the sophisticated
signaling networks in human cells [ ]. With the majority of protein kinases being catalytically active,
hence capable of transferring the -phosphate group from ATP/GTP to their protein substrates, this
enzyme group is assumed to modify up to 30% of the intracellular proteome by phosphorylation [ ].
1
γ
2
While certain kinases target a limited number of substrates and consequently play a distinct role
in cell signaling, others act as multitasking players in the cell circuitry. With over 30 proposed
substrates glycogen synthase kinase-3 (GSK-3) clearly joins the ranks of the latter class [3]. Its name
Molecules 2019, 24, 2331; doi:10.3390/molecules24122331
www.mdpi.com/journal/molecules

Molecules 2019, 24, 2331
2 of 31
is attributed to the inhibition on glycogen synthesis within the frame of intracellular insulin signal
transduction [ ], yet not fully reflects the wide-ranging tasks of GSK-3 within the cell. The two
isoforms of this serine/threonine kinase, namely GSK-3 and GSK-3 , differ in their C- and N-termini,
while their kinase domains are highly conserved and characterized by 98% homology [ ]. Despite
4–6
α
β
7
their similarities, knock-out experiments in mice as well as numerous pharmacological studies have
questioned the complete redundancy of these two paralogs [8–11].
GSK-3 is ubiquitously expressed and involved in at least five different signaling pathways
(Insulin, Wnt, Notch, Hedgehog and TGF-β). This raises the question on how proper regulation
mechanisms guarantee the flawless functionality of this enzyme [12]. A dysregulated GSK-3 activity
has been linked to the development of several pathologies such as cancer, diabetes, CNS disorders,
and neurodegeneration [11]. Thus, being a potential therapeutic target, GSK-3 has received attention
of pharmaceutical research. Despite decades of extensive research efforts, several questions regarding
the intracellular impact of this kinase, the mechanisms ensuring its regulation as well as its validity as
a drug target remain unanswered. This has caused a strong demand for chemical agents, which can
serve as chemical probes in pharmacological and biochemical studies and also as starting points for
the development of clinical candidates.
In this context, we herein present a novel class of 7-chloro-9H-pyrimido[4,5-b]indole-based GSK-3
β
inhibitors. The compound series is derived from the pan-Janus kinase (JAK) inhibitor tofacitinib
(Scheme 1), formerly known as CP-690,550. The main target of tofacitinib is JAK3 [13]. This non-receptor
tyrosine kinase is expressed exclusively in lymphoid cells, where it transduces the signals of
γ-common
cytokines in the course of the JAK-STAT signaling pathway [13 14]. A pharmacological intervention in
,
this pathway with tofacitinib is used in the treatment of immunological disorders such as rheumatoid or
psoriatic arthritis [15]. In the course of a kinome-wide screening campaign of our in-house compound
library, the tofacitinib-derived 7-chloro-9H-pyrimido[4,5-b]indole
1
was identified as a GSK-3
β inhibitor
in the single-digit micromolar range (Scheme 1). Interestingly, GSK-3
β
and JAK3 are located in different
branches of the phylogenetic kinome tree. They are structurally diverse, even their kinase domains
display low homology (identity 22.6%) (Figure S1, Supplementary Materials).
Scheme 1. Development of glycogen synthase kinase-3β (GSK-3β) inhibitors derived from the
pan-Janus kinase (JAK) inhibitor tofacitinib.
In this work, we describe a medicinal chemistry strategy consisting of the design, synthetic
preparation and biological evaluation of a series of compounds dedicated to an optimization of hit
towards GSK-3 inhibition. Interpretation of the biological data combined with in silico approaches
provides insight into structure–activity relationships (SARs) and the putative binding mode of this
novel class of GSK-3 inhibitors. Finally, the most promising inhibitors were further characterized by
1
β
β
their metabolic stability in human liver microsomes (HLM) and inhibitory activity on JAK3, which is
the main target of tofacitinib.

Molecules 2019, 24, 2331
3 of 31
2. Results and Discussion
2.1. Biological Evaluation
The binding mode of JAK3 in complex with tofacitinib (PDB ID: 3LXK) has been resolved
(Figure 1) [16]. The 7H-pyrrolo[2,3-d]pyrimidine moiety of tofacitinib forms a bidentate hydrogen bond
to the hinge residues Glu903 and Leu905, whereas the N-3 atom of the pyrimidine ring displays an
interaction with a crystal water molecule. The ribose region of the kinase accommodates the piperidine
ring of the inhibitor, allowing the exocyclic methyl group to occupy a miniscule lipophilic cavity in the
bottom of the catalytic cleft formed by Ala966, Cys909, and Leu956. Consequently, this positioning of
the methyl group leads to an orientation of the nitrile residue towards the glycine-rich loop.
Figure 1. Schematic 2D representation of the binding mode of tofacitinib to JAK3 derived from its
co-crystal structure (PDB ID: 3LXK) [16] (
lipophilic cavity is highlighted with green and the hinge region with orange. Hydrogen bonds are
depicted as dashed lines. ( ) 3D superposition based on the hinge regions of GSK-3 (PDB ID: 4PTC)
and JAK3 (PDB ID: 3LXK) shows a high conservation of the residues in the ATP binding site [17].
The lipophilic cavity is missing in GSK-3 , as the spatial orientation of the Thr138 is totally different
a) and the expected binding mode of 1 to GSK-3β (b). The
c
β
β
compared to the Cys909 in JAK3 and the residue Cys199 is bulkier than the Ala966 found in JAK3.
Moreover, this Cys199 would clash with tofacitinib (yellow) in its JAK3 binding conformation. Residues
near to tofacitinib are depicted as sticks. The stick coloring is the following: GSK-3β, blue; JAK3, grey;
JAK3 residues forming the lipophilic cavity, green. The cartoon coloring is the following: hinge regions,
orange; lipophilic cavity residues, green; JAK3 glycine-rich loop, red.
Taking into account the high conservation of the ATP binding site, we expected a similar hydrogen
bonding pattern to occur for the 7-chloro-9H-pyrimido[4,5-b]indole substructure in
1 with the hinge
region of GSK-3 (Figure 1). Therefore, we decided to leave the chlorinated tricycle unmodified and set
β
the focus of our optimization study on the aliphatic piperidine side chain. The distinct configuration
of the two stereocenters within this moiety is a prerequisite for potent JAK3 inhibition and requires
laborious steps in the enantiopure preparation of tofacitinib and hit 1, respectively [18]. However, in

Molecules 2019, 24, 2331
4 of 31
contrast to JAK3, GSK-3
β
lacks a comparable lipophilic cavity in the bottom of its ATP binding site
(Figure 1), which questioned the necessity of the corresponding exocyclic methyl group. This motivated
us to prepare 14a (Table 1). This compound, lacking the methyl substituent, has one stereocenter less
and was prepared as racemic mixture. This approach simplified the synthetic preparation significantly.
The racemic 14a was found to exhibit a similar inhibitory activity on GSK-3β as 1, justifying the selected
approach, and was therefore chosen as a starting point for the development of further derivatives.
At first, we evaluated the importance of the carbonyl group within the cyanoacetamide moiety.
Tertiary amine 14b, which lacks the carbonyl group of 14a, exhibited a 2.5-fold increase in activity. The
molecular structures of 14b and its amide counterpart display critical differences in their chemical
properties. The loss of a possible hydrogen bond acceptor, a highly increased basicity of the piperidine
nitrogen, as well as an enhanced flexibility of the cyanoethyl substituent provide putative explanations
for the enhanced biological activity. With regard to this affinity shift into the nanomolar range this
tertiary amine was assigned as the lead compound of this optimization study.
Next, we installed a methyl group on the indole nitrogen of 14b. The resulting compound 14o
,
uncapable of donating a hydrogen bond with its indole nitrogen, was inactive on GSK-3 . This
β
negative outcome supported our hypothesis concerning the hydrogen bonding interactions of the
7-chloro-9H-pyrimido[4,5-b]indole scaffold to the hinge backbone of GSK-3β.
With this data in hand, our attention was refocused on the piperidine ring to assess the effects of
the substituent R1 (Table 1). In order to examine the chemical space around the cyanoethyl moiety
of the lead compound 14b, we prepared a series of diverse tertiary amines (14c–n). Our initial
approaches consisted of the application of linear and branched lipophilic substituents such as propyl
(14e), isopropyl (14f), cyclopentyl (14g), and cyclopropylmethyl (14m). The corresponding compounds
displayed a severe decrease in activity on GSK-3 , which clearly indicates that aliphatic hydrocarbon
β
substituents are not tolerated in this position. Within this inactive quartet, it is worth highlighting
compound 14e, whose propyl substituent maintains similar steric properties as in 14b, however, 14e
lacks the nitrile group. Therefore, the significantly decreased activity of 14e accentuates the importance
of this functional group.
In order to disclose the vital role of the nitrile group for the activity of 14b, we considered the
following effects which can originate from its functionality. First, owing to the polarization of the triple
bond, its nitrogen can serve as hydrogen bond acceptor. Such interactions have been observed in a
number of nitrile-containing pharmaceuticals [19,20]. To evaluate this hypothesis, diverse substituents
containing hydrogen bond acceptors, assigned to mimic the crucial nitrile group, were introduced on the
piperidine nitrogen. These included both (hetero)aromatic rings like furane, pyridine or cyanobenzene
in compounds 14h–j, as well as carbonyl group-containing moieties (14c and 14d). Surprisingly, all of
these modifications were associated with a dramatic decrease in activity. Even compound 14n, bearing
a dimethylaminopropyl substituent, showed remarkably reduced GSK-3β inhibition.

Molecules 2019, 24, 2331
5 of 31
Table 1. Structures, biological activity and calculated pKa values of piperidine derivatives 14a–o.
IC50 (µM)
Mean ± SEM
GSK-3β a
c
Cpd.
R1
R2
pKa
14a
14b
14c
-H
-H
-H
1.862 ± 0.113
0.764 ± 0.203 b
>10
-
5.5
6.8
14d
14e
14f
-H
-H
-H
>10
>10
>10
6.8
7.5
8.3
14g
14h
14i
-H
-H
-H
>10
>10
>10
8.0
6.9
6.2
14j
-H
>10
6.3
14k
14l
-H
-H
-H
>10
>10
>10
5.7
2.5
7.8
14m
14n
14o
-H
3.557 ± 0.664
>10
7.2
d
-CH3
n.d.
a
IC50 values were determined in an ADP Glo kinase assay [21,
22], n = 2; b n = 5; c pKa value for the piperidine
nitrogen calculated with Jaguar (Schrödinger LLC) (for details see Materials and Methods); d not determined.
At first glance, these findings might lead to the assumption of a hydrogen bond interaction
being improbable for the nitrile group. However, the uniqueness of this functionality in terms of its
rod-shaped geometry, resulting from the sp-hybridization of the carbon-nitrogen bond, must clearly be
considered when interpreting these results. Most probably, the geometric and/or steric configuration
of the other applied hydrogen bond-accepting substituents were not tolerated by the target enzyme.
Furthermore, taking into account that a nitrile group can significantly lower the electron density
of atoms in its close proximity, we investigated the impact of the substituents on the basicity of the

Molecules 2019, 24, 2331
6 of 31
piperidine nitrogen. To this end, we calculated pKa values for the piperidine nitrogen in compounds
14b–j and 14m–n (Table 1). The majority of pKa values for this tertiary amine collective falls in the
range between 6.8 and 8.3 predicting a significant degree of protonation of the nitrogen at pH 7.4.
In contrast, 14b was assigned with a significantly lower value of 5.5, which thoroughly reflects the
electron withdrawing effects of the nitrile group and suggests a dominating presence of the uncharged
free base under the physiological pH. This can be of great relevance for the binding of 14b to GSK-3β.
For instance, if the lone pair of the piperidine nitrogen is directed towards positively charged residues
of the enzyme, a protonation would result in repulsion.
In this context, we hypothesized that the lowered pKa and therefrom resulting unprotonated
piperidine nitrogen might be an explanation for the significantly higher affinity of 14b. To pursue
this theory, we installed proper substituents on the piperidine nitrogen with the aim to lower the
pKa in a similar manner. A bioisosteric replacement of the nitrile with a highly electron withdrawing
trifluoromethyl group afforded compound 14k. In contrast, the nitrile group was maintained in
compound 14l, but is located closer to the piperidine nitrogen than in 14b, amplifying its influence
on the basicity. Even though the pKa values of these molecules are in agreement with the original
intentions (5.7 and 2.5, respectively), both derivatives were found to be inactive in the kinase assay.
These negative results allowed us the conclusion that the protonation state of the piperidine nitrogen
cannot solely determine the nanomolar activity of 14b. Additionally, the drop in activity seen with 14l
points out that a specific distance between the nitrile group and the piperidine nitrogen is of utmost
importance and once more emphasizes the cyanoethyl residue as preferred substituent in this position.
The outcomes with the above described set of derivatives encouraged us to keep the essential
cyanoethyl moiety intact during the upcoming optimization steps. Taking into account that a proper
position of the nitrile group was revealed a prerequisite for binding affinity, we attempted to fine-tune
the orientation of the cyanoethyl substituent by modifications of the piperidine ring.
Alteration of the heterocyclic ring size to a pyrrolidine or azepane as well as relocation of
the inner cyclic nitrogen within the piperidine delivered compounds 15
resulted in marginal shifts in the orientation of the essential cyanoethyl substituent. However, the
derivatives 15 17 did not conserve the nanomolar activity of the parent compound 14b, which
–17. These modifications
–
highlighted the original piperidine as the optimal scaffold within this series to properly orientate
the cyanoethyl moiety. Therefore, we decided to return to this saturated heterocycle and considered
rigidization approaches with the idea of stabilizing a bioactive conformation of this moiety. The
bicyclic octahydro-1H-pyrrolo[2,3-c]pyridine side chain present in compound 24 was chosen for its
chemical feasibility. This compound displayed an IC50 value of 130 nM, which equals a 6-fold increase
in potency compared to its unrigidized counterpart 14b. It is worth noticing, that the extended
hydrocarbon scaffold of 24 results in an expanded lipophilic surface area of the molecule, which
enables the possibility of its improved inhibition to be driven by entropic effects. However, this is
not reflected by the calculated lipophilic ligand efficiency (cLLE) values of this series (Table 2). In
turn, it appears plausible that the cyanoethyl substituent is forced into a favorable direction due to the
restricted rotation of the piperidine ring.

Molecules 2019, 24, 2331
7 of 31
Table 2. Structures, biological activity and AlogP-derived lipophilic ligand efficiencies (cLLE) of
compounds 14b, 15–17 and 24.
IC50 (µM)
Mean ± SEM
GSK-3β a
Cpd.
14b
15
R
pIC50
6.12
cLLE e
2.87
AlogP d
3.25
0.764 ± 0.203
b
7.017 ± 1.077
1.535 ± 0.284
5.15
2.67
2.48
16
17
24
5.81
4.88
6.89
3.31
2.73
2.50
2.15
3.74
13.335
±
4.393
0.130 ± 0.008
3.15
c
a
b
c
d
IC50 values were determined in an ADP Glo assay [21
,
22], n = 2; n = 5; n = 3; calculated with Canvas
(Schrödinger LLC) [23]; e cLLE = pIC50 − AlogP.
2.2. Molecular Modelling
For the better understanding of the binding and interactions of our compounds to GSK-3
conducted 1 s molecular dynamics (MD) simulations for the most potent compounds 14b and 24 (for
full movies and raw data see Supplementary Materials).
β, we
µ
Throughout the simulations, the 7-chloro-9H-pyrimido[4,5-b]indole scaffold of both ligands
exhibits stable interactions with the backbone of the hinge residues Asp133 and Val135 (Figure 2),
while the halogen-substituted third aromatic ring of the scaffold is pointing towards the hydrophobic
region I of the kinase.

Molecules 2019, 24, 2331
8 of 31
Figure 2. Observed interactions in the 1
24. The output conformation of compound 14b (at 1000 ns) illustrates the stable hinge interactions
with the Asp133 and Val135 and to the solvent (similar in 24) ( ), as well as the solvent exposure of the
cyanoethyl moiety ( ). Hydrogen bonds are depicted as yellow dashed lines and the water molecules
within 4Å from the ligand are shown. The simulation interaction frequencies of compound 14b ) and
compound 24 ) were analyzed using the stabilized part of the simulations: 50–1000 ns and 30–1000 ns
for 14b and 24, respectively (see Figure 3c–d). Interactions that appeared with more than 10% frequency
are shown; hydrogen bonds are depicted as purple arrows, interactions are depicted as green lines.
µs MD simulations with the most potent compounds 14b and
a
b
(c
(d
π–π

Molecules 2019, 24, 2331
9 of 31
Figure 3. The root-mean-square fluctuations (RMSF) of the ligands 14b
(a) and 24 (b) illustrate the
high flexibility of the cyanoethyl moieties throughout the simulations. The root-mean-square deviation
(RMSD) of the protein shows that the simulations stabilize after 50 ns with compound 14b
30 ns with compound 24 (d).
(c) and after
In analogy to the observed crystal water interaction in the tofacitinib-JAK3 complex (see Figure 1),
relatively stable water interactions were evident for the N-3 atom in the pyrimidine ring of our inhibitors
(Figure 2). Additionally, a
π–π interaction between this pyrimidine ring and the side chain of hinge
residue Tyr134 appears in 11% frequency with 14b. As expected, the sugar pocket is occupied by the
piperidine heterocycle in case of 14b or the octahydro-1H-pyrrolo[2,3-c]pyridine bicycle in case of 24
While the hinge binding motifs of 14b and 24 appear stable throughout the simulations, the cyanoethyl
substituent is highly dynamic. These observations are well reflected by the ligand root-mean-square
fluctuation (RMSF) for both ligands (Figure 3a–b). As far as the nitrile group is concerned, no single
stable and specific interaction is observed. Rather a proper accommodation of the nitrile in the water
interaction network is evident for both 14b and 24. A water-mediated interaction towards Lys85 as
well as a direct hydrogen bond to Asn64 occurs in case of 14b, however with relatively low frequencies
(Figure 2c–d).
.
To disclose potential differences in the binding mode of the enantiomers of compound 24, we
conducted a 1 µs MD simulation also for the other enantiomer of 24 (3aR, 7aS). As comparable behavior

Molecules 2019, 24, 2331
10 of 31
between the enantiomers was observed (Figure S2, Supplementary Materials), we expect a similar
binding mode to occur with compound 24 regardless of the enantiomer.
Overall, examples of nitrile groups functioning as hydrogen bond acceptors in ligand–protein
complexes are described in literature including well-characterized examples of direct contacts to
asparagine residues, as well as interactions mediated through water bridges [19,20]. Therefore, the
interactions observed in the simulations appear plausible despite their low frequencies. Finally,
although we used the most recent state-of-the-art force field for drug-like small molecules, OPLS3e [24],
a potential inaccuracy in the characterization of the cyanoethyl group by the force field needs to be
considered (e.g., lack of polarization).
2.3. ATP competition, JAK3 Inhibition, and Metabolic Stability
To extend the biological profile of this novel class of 7-chloro-9H-pyrimido[4,5-b]indole-based
GSK-3
system. An incubation of 14b with an increased concentration of ATP (100
in a reduced inhibition potential for GSK-3 . The corresponding IC50 values were determined as
2.684 M and 9.260 M, respectively (Table S1 and Figure S3, Supplementary Materials). This suggests
β
inhibitors, we tested the lead compound 14b for its ATP competition in our ADP Glo assay
µ
M and 500 M) resulted
µ
β
µ
µ
an ATP-competitive type of inhibition, which supports our theory of a binding mode within the ATP
site of the kinase.
Furthermore, 14b and 24 were examined for their inhibitory activity on the possible off-target
JAK3, as this class of GSK-3β inhibitors is derived from the pan-JAK inhibitor tofacitinib. However,
both compounds displayed no significant inhibition of JAK3 in an enzyme-linked immunosorbent
assay (Table S2, Supplementary Materials) [25].
In a HLM stability assay, 14b and 24 were intensively degraded during a timeframe of 120 min
(25% and 8% remaining parent compound at the endpoint of the experiment, respectively; for details
see Tables S3 and S4 as well as Figures S4 and S5, Supplementary Materials). The corresponding
unsubstituted piperidines were observed as prominent metabolites.
2.4. Chemistry
Our synthetic strategy to access the majority of the herein presented
7-chloro-9H-pyrimido[4,5-b]indole-based GSK-3
consisting of the preparation of the key intermediate 4,7-dichloro-9-tosyl-9H-pyrimido[4,5-b]indole
10) as well as the separate synthesis of appropriate alicyclic amine side chains (4a–d) (Scheme 2).
β inhibitors featured a convergent approach
(
Both building blocks were then fused via a nucleophilic aromatic substitution (SNAr), with successive
deprotection and derivatization procedures to afford the final compounds 14a–n and 15–17.
Scheme 2. Synthetic strategy towards 7-chloro-9H-pyrimido[4,5-b]indole-based GSK-3β inhibitors.
The preparation of alicyclic secondary amine side chains 4a
–d was achieved in two steps via benzyl
protected amines 3a–d adapting the strategy of Le Bourdonnec et al. (Scheme 3) [26]. The commercially

Molecules 2019, 24, 2331
11 of 31

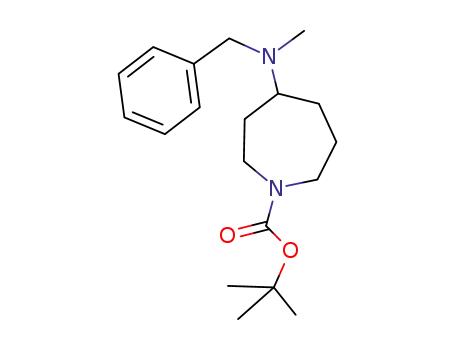

available N-Boc protected cyclic ketones 2a
–d
were reductively aminated with N,N-benzylmethylamine
to give tertiary amines 3a–d in moderate to high yields. Sodium triacetoxyborohydride was used as
reductive agent facilitating a convenient one-pot procedure. Hydrogenolytic benzyl cleavage with a
palladium catalyst gave secondary amines 4a–d in nearly quantitative yields.
Scheme 3. Synthetic route to alicyclic secondary amine side chains 4a–d. Reagents and conditions:
(i) N,N-benzylmethylamine, Na(OAc)3BH, AcOH, DCM, rt, (69–86%); (ii) H2 (5 bar), Pd/C, MeOH or
EtOAc/MeOH 3:2, rt in case of 4a–4c or Pd/C and Pd(OH)2/C, MeOH, rt in case of 4d, (96–98%).
Synthetic literature provides numerous examples for the preparation of 9H-pyrimido[4,5-b]indoles
with varying substituents on the non-heteroaromatic ring [27–31]. These typically include four-step
procedures starting from appropriately decorated o-halonitrobenzenes, as the substitution pattern of
the non-heteroaromatic ring is defined by this starting material. Modifying the protocols published by
Reader et al. [31], we prepared key intermediate 4,7-dichloro-9-tosyl-9H-pyrimido[4,5-b]indole (10
starting from 1,4-dichloro-2-nitrobenzene (5) (Scheme 4).
)
Scheme 4. Synthetic route to 4,7-dichloro-9-tosyl-9H-pyrimido[4,5-b]indole (10). Reagents and
conditions: (i
) ethyl-2-cyanoacetate, NaH, DMF, 0 ◦C to 80 ◦C, (quant.); (ii) Zn, AcOH, 90 ◦C,
(93%); (iii) NH4HCO2, formamide, 160 ◦C, (86%); (iv) POCl3, chlorobenzene, rt to 80 ◦C, (51%); (
v)
p-toluenesulfonyl chloride, NaH, THF, rt, (99%).
In the initial step the commercially available
ethyl-2-cyanoacetate, generated in situ with sodium hydride. The resulting intermediate
5
underwent an SNAr with the sodium salt of
was then
6
subjected to reductive conditions using elemental zinc in acetic acid. The crude product obtained
in this cyclization reaction was a mixture of two compounds, which we assume to be the desired
2-aminoindole
structures described by Showalter et al. [27]. Treatment of this mixture with formamide under forcing
conditions resulted predominantly in , whose carbonyl function was chlorinated with stochiometric
amounts of POCl3 in chlorobenzene following the methodology described by Arnott et al. [32].
First attempts of a direct reaction of with the alicyclic amine side chains gave unsatisfactory
results, in the form of either prolonged reaction times or significant by-product formation, owing to
7 and the corresponding 1-hydroxy derivative, in analogy to some closely related
8
9

Molecules 2019, 24, 2331
12 of 31
harsh thermal conditions. The installation of a toluenesulfonyl (Tos) protecting group on the indole
nitrogen in 10 significantly enhanced the reactivity of the pyrimidine ring and therefore allowed a clean
nucleophilic substitution under relatively mild conditions in DMF and presence of DIPEA (Scheme 5).
The sulfonamide protecting group was removed subsequently under basic conditions. A modification
of the protocol described by Xu et al. using a high excess of KtBuO (7 eq.) instead of refluxing conditions
allowed a fast deprotection at room temperature [33]. This approach gave intermediates 12a
satisfying purity and yields (64–77% over three steps), justifying the synthetic detour associated with
the protection of the indole nitrogen. 12a were treated with TFA in DCM to convert them into the
corresponding secondary amines 13a d [34]. These intermediates were then properly decorated by
amide coupling, reductive amination [34], nucleophilic substitution [35] or Michael-addition [36] to
give final compounds 14a and 15 17 listed in Tables 1 and 2, respectively. For the synthesis of 14o
lead structure 14b was methylated on its indole nitrogen applying a common procedure.
–d in
–d
–
–n
–
,
Scheme 5. Synthetic route to final compounds 14a–o listed with their structures in Table 1 and 15–17
listed with their structures in Table 2. Reagents and conditions: (
4a–d, DIPEA, DMF, 80 ◦C, (93%
to quant.); (ii) KtBuO, THF, rt, (65–78%); (iii) TFA, DCM, rt, (74–99%); (iv 13b, cyanoacetic acid,
PyBOP, DIPEA, DCM, rt, (59%); ( 13a–d, acrylonitrile, MeOH, rt in case of 14b and 15–17 or 13b
corresponding acrylic acid derivative, MeOH, rt in case of 14c–d, (63–89%); (vi 13b, corresponding
aldehyde or ketone, AcOH, Na(OAc)3BH, DCM, rt, (43–74%); (vii 13b, bromoacetonitrile, Et3N,
DMF, rt in case of 14l or 13b, (bromomethyl)cyclopropane, Et3N, MeCN, 60 ◦C in case of 14m or 13b
i)
)
v
)
,
)
)
,
3-chloro-N,N-dimethylpropan-1-amine
HCl, Et3N, MeCN, 90 ◦C in case of 14n, (39–91%); (viii) methyl
iodide, NaH, THF, rt, (60%).
·
For the preparation of the rigidized precursor 22 (Scheme 6) we followed a different synthetic
approach compared to the aforementioned secondary amines 4a–d. The use of 6-azaindole (18) as
starting material allowed a selective, high-yielding protection of the pyrrole ring nitrogen with Boc
anhydride in THF. The key step of this synthetic route was the following hydrogenation which we
achieved under comparably mild conditions using Adam’s catalyst in glacial acetic acid giving the free
piperidine base 20 [37].

Molecules 2019, 24, 2331
13 of 31
*
i
ii
iii
NH
N
N
N
N
N
*
H
Boc
Boc
18
19
20
*
*
N
N
CN
*
*
*
iv
v
N
N
N
N
N
*
Cl
CN
CN
H
N
Boc
N
21
22
Tos
23
24
vi
Scheme 6. Synthetic route to final compound 24. Reagents and conditions: (
i
) Boc2O, THF, 0 ◦C to rt,
(92%); (ii) H2 (5 bar), PtO2, AcOH, rt, (88%); (iii) acrylonitrile, MeOH, rt, (83%); (iv) 4N HCl in dioxane,
DCM, rt, (83%); (v) 10, DIPEA, DMF, 80 ◦C, (64%); (vi) KtBuO, THF, rt, (55%).
In order to decrease the number of subsequent steps the crucial cyanoethyl moiety was directly
installed on the piperidine nitrogen rather than an orthogonal protecting group. This conversion was
readily achieved by Michael-addition with acrylonitrile in MeOH (21). Finally, acidic conditions were
applied to cleave the protecting carbamate yielding 22 [38], which was reacted with 10 under similar
SNAr conditions with subsequent basic detosylation to afford final compound 24.
In order to define the stereochemistry at the two stereocenters of the
octahydro-1H-pyrrolo[2,3-c]pyridine ring, which were generated during the hydrogenation
of Boc-protected azaindole 19, single crystal analysis of 24 was performed (for details, see Table S5,
Supplementary Materials). As expected, X-ray data confirmed that solely a mixture of the (3aR, 7aS)
and (3aS, 7aR) enantiomers of 24 was obtained (Figure 4).
Figure 4. X-ray crystal structure of compound 24.
3. Conclusions
Starting from the micromolar GSK-3
7-chloro-9H-pyrimido-[4,5-b]indole-based compounds. We characterized these compounds in their
biological activity in an ADP Glo GSK-3 assay. A switch from amides to tertiary amines proved
beneficial for the binding affinity regarding the substituent on the piperidine nitrogen. Moreover, a
β screen hit 1, we prepared a series of tofacitinib-derived
β

Molecules 2019, 24, 2331
14 of 31
cyanoethyl substituent revealed to be an essential structural feature within this series. We examined the
role of the nitrile group in detail and assume that it undergoes crucial hydrogen bonding interactions.
We derived a putative binding mode for the most potent inhibitors 14b and 24 from 1 µs molecular
dynamics simulations. Most importantly, these inhibitors displayed no significant inhibition of the
off-target JAK3. However, we observed a lack of metabolic stability in our HLM experiments, which is
currently addressed in further optimization studies regarding this novel class of GSK-3β inhibitors.
4. Materials and Methods
4.1. Comparison of JAK3 and GSK-3β
The location of JAK3 and GSK3β in the phylogenetic tree of the human kinome was visualized by
KinMap [39]. The sequence alignment was conducted to annotated kinase domains of the Uniprot
entries P52333 (JAK3) and P49841 (GSK3B) with Clustal Omega (1.2.4) [40–42].
4.2. Molecular Modelling
All the modelling was conducted with Maestro Small-Molecule Drug Discovery Suite 2019-1
(Schrödinger, LLC, New York, NY, USA). The figures and the supplementary movies were prepared
with PyMOL 2.2.3 (Schrödinger, LLC).
4.2.1. pKa Calculations
We used the Jaguar pKa module (Schrödinger, LLC) for the pKa predictions [43–45]. The
calculations were conducted with default settings, except the conformational search step was omitted,
as for the input conformation we used the lowest energy structure obtained from QM Conformer
& Tautomer Predictor tool (Schrödinger, LLC). In brief, the QM Conformer & Tautomer Predictor
workflow is the following. First, the proton donor and acceptor atoms are identified, and protons are
redistributed among these to form a list of tautomers (protons can also be added to or subtracted from
the input molecule). The generated tautomers were next ranked by their semiempirical PM3 heat of
formation, and the high-energy tautomers were then discarded. For the surviving tautomers, a set of
conformers were generated with MacroModel and the high-energy structures were eliminated by their
semiempirical PM3 heat of formation. Subsequently, DFT geometry optimizations were performed on
the surviving structures, using the B3LYP-D3/LACVP** level of theory. Finally, the structures were
ranked using single-point energies at the M06-2X/cc-pVTZ(-f) calculated at the optimal geometries
from the previous step.
4.2.2. MD Simulations
For the simulations, we used the GSK-3β crystal structure PDB ID: 4PTC [17]. First, the structure
(protein–co-crystallized ligand) was prepared by Protein Preparation Wizard [46] (default settings)
using OPLS3e force field [24]. Next, the co-crystallized ligand was replaced by the compound 14b or
24, using the QM Conformer & Tautomer Predictor (for details see 4.2.1) output conformation of the
compounds (second lowest energy structure for 14b, Boltzmann population: 20.0%; lowest energy
structure for 24, Boltzmann population: 15.6%; lowest energy structure for 24 (3aR, 7aS), Boltzmann
population: 13.0%). The MD simulations were conducted with Desmond [47] using OPLS3e force
field [24], except the charges derived from the QM Conformer & Tautomer Predictor were applied for
the ligands. The systems were solvated in a cubic box (edges 13 Å from the protein) and neutralized
with counterions (Cl–) with 0.15 M KCl salt. The water was described with TIP3P water model [48].
The final systems consisted of 67,285 (14b) and 71,836 (24, both enantiomers) atoms. Prior to the
1000 ns production simulations, the default relaxation protocol of Desmond was conducted. The
final simulations were conducted in NPT ensemble (310 K, thermostat: Nosé-Hoover chain; 1.01325
bar, barostat: Martyna–Tobias–Klein) with the default timestep of 2 fs and cut-off radius of 9.0 Å for
Coulombic interactions.

Molecules 2019, 24, 2331
15 of 31
4.3. Chemistry
4.3.1. General Information
All solvents and reagents were commercially obtained and used without additional purification.
High performance liquid chromatography (HPLC) was performed on an Hewlett Packard HP1090
series II HPLC system (Hewlett-Packard, Palo Alto, CA, USA) or an Agilent 1100 series HPLC system
(Agilent, Santa Clara, CA, USA) equipped with a Phenomenex Luna 5 µm C8(2) 100 Å RP column
(
150 × 4.6 mm) (Phenomenex, Torrance, CA, USA) and a diode array detector detecting at 230 nm and
254 nm. The method consisted of elution using mobile phase A (MeOH) and mobile phase B (aqueous
0.01M KH2PO4 buffer, pH 2.3) in a flow of 1.5 mL/min and the gradient as follows: mobile phase A
40% to 85% during 8 min, mobile phase A 85% constant for 5 min, mobile phase A 85% to 40% during
1 min, mobile phase A 40% constant for 2 min; complete run time 16 min; injection volume 5 µL. Purity
of final compounds was determined at 254 nm. Gas chromatography-mass spectrometry (GC-MS)
was performed on a Hewlett-Packard HP 6890 Series GC System equipped with an HP 5973 mass
selective detector (electron impact ionization) (Hewlett-Packard, Palo Alto, CA, USA). Helium 6.0 was
used as carrier gas with a flow of 1.2 mL/min. In method A a Zebron ZB-5 column (30 m × 0.25 mm
;
0.25 µm film thickness) (Phenomenex, Torrance, CA, USA) was used with the following temperature
gradient: hold 160 ◦C for 1 min, from 160◦◦C to 240 ◦C during 8 min, hold 240 ◦C for 3 min, from
◦
◦
◦
◦
240 C to 270 C during 3 min, hold 270 C for 3 min, from 270 C to 300 C during 3 min, hold
300 ◦C for 12 min; complete run time 33 min. In method B an Agilent J&W DB-5ms (30 m
0.25
×
0.25 mm;
µ
m film thickness) (Agilent, Santa Clara, CA, USA) was used with the following temperature
gradient: hold 100 ◦C for 5 min, from 100 ◦C to 320 ◦C during 22 min, hold 320 ◦C for 5 min; complete
run time 32 min. Electrospray ionization mass spectrometry (ESI-MS) was performed on an Advion
expressions CMS TLC-ESI-MS coupling system (Advion, Ithaca, NY, USA) operating in ESI+ mode
◦
◦
(capillary temperature 250 C, capillary voltage 180V, source gas temperature 250 C, ESI voltage
3500V) and ESI-mode (capillary temperature 250 ◦C, capillary voltage 180V, source gas temperature
250 ◦C, ESI voltage 2500V), elution with MeOH. Flash column chromatography was performed on
an Interchim puriflash 430 or XS 420 (Interchim, Montluçon, France) on Grace Davison Discovery
Sciences Davisil Chromatographic Silica Media LC60A (20–45
MD, USA) or Interchim puriflash prepacked silica columns (SIHP-JP, 30
France) and Merck Geduran Si60 63–200 m silica gel (Merck, Darmstadt, Germany) for pre-columns.
µm) (Grace Davison Discovery Sciences,
µm) (Interchim, Montluçon,
µ
Mobile phases are described in the detailed procedures. Nuclear magnetic resonance (NMR) analysis
was performed on 200, 300, and 400 MHz Bruker Avance spectrometers (Bruker, Billerica, MA, USA).
Spectra were calibrated to residual peaks of utilized solvents, chemical shifts are reported in parts per
million (ppm) relative to tetramethylsilane (
intermediates and compounds and 14a) often displayed mixtures of amide bond rotamers in their
NMR spectra. Thin layer chromatography (TLC) was performed on silica gel coated aluminum sheets
δ = 0). Compounds with amide substituents (Boc protected
1
(Merck TLC Silica gel F254, Merck, Darmstadt, Germany or Macherey-Nagel Alugram Sil G/UV254
,
Macherey-Nagel, Düren, Germany) with visualization under UV light at 254 nm or by ninhydrin stain.
4.3.2. General Procedures
General Procedure A for the Preparation of Intermediates 3a–d by Reductive Amination
The corresponding cyclic ketone (2a–d) (1 eq.) was dissolved in dry DCM. Glacial AcOH
(1.1–1.15 eq.) and N,N-benzylmethylamine (1.1–1.25 eq.) were added, followed by portion-wise
addition of Na(OAc)3BH (1.5–1.6 eq.). The mixture was stirred at rt, under N2 atmosphere and over
Na2SO4 (0.5–1 g) overnight. In case of incomplete consumption of the ketone, additional amine and
reductive agent were added to the mixture. After complete conversion, saturated NaHCO3 solution
was added and phases were separated. The aqueous layer was extracted thrice with DCM. Combined

Molecules 2019, 24, 2331
16 of 31
organic layers were dried over Na2SO4 and concentrated under reduced pressure. The residue was
purified by flash column chromatography.
General Procedure B for the Preparation of Intermediates 11a–d by SNAr
The appropriate secondary amine (4a–d) (1.25–1.4 eq.) and DIPEA (3 eq.) were added to a
suspension of 10 (1 eq.) in dry DMF. The mixture was stirred at 70–80 ◦C overnight and poured into
ice-cold water after completion. Saturated NH4Cl solution was added and the formed precipitate
filtered, washed with cold water and dried over P2O5 in vacuo.
General Procedure C for the Preparation of Intermediates 12a–d by Deprotection of Tosyl
Protecting Group
The corresponding intermediate (11a–d) (1 eq.) was dissolved in THF (dry or HPLC grade) and
KtBuO (7 eq.) was added. The mixture was stirred at rt and under N2 atmosphere for 0.5 h to 2 h.
Saturated NH4Cl solution was added and the aqueous phase extracted three to four times with EtOAc.
Combined organic layers were dried over Na2SO4. Volatiles were removed under reduced pressure
and the residue purified by flash column chromatography.
General Procedure D for the Preparation of Intermediates 13a–d by Deprotection of Boc
Protecting Group
The appropriate Boc protected amine (12a–d) was dissolved or suspended in dry DCM and stirred.
Subsequently trifluoroacetic acid (TFA) was added resulting in a 17% (V/V) solution which was stirred
at rt for 0.5 h to 1.5 h. Volatiles were removed under reduced pressure and the highly acidic residue
neutralized by addition of saturated NaHCO3 solution (30 mL). The high polarity of products required
repetitive extraction with EtOAc and addition of MeOH to improve solubility. Combined organic
layers were washed thrice with saturated NaHCO3 solution and dried over Na2SO4. Volatiles were
removed under reduced pressure and the residue purified by flash column chromatography or directly
used in the next step.
General Procedure E for the Preparation of Final Compounds 14e–k by Reductive Amination
Intermediate 13b (1 eq.), glacial AcOH (2 eq.) and the corresponding aldehyde or ketone (1.2–40 eq.)
were stirred in dry DCM. Na(OAc)3BH (1.5–2.0 eq.) was added and the reaction stirred at rt, under N2
atmosphere and over some Na2SO4 (~ 50 mg) for 2 h to 6 h. When reaction control by HPLC indicated
sufficient conversion, the mixture was diluted with DCM, washed four times with saturated NaHCO3
solution, dried over Na2SO4 and concentrated under reduced pressure. The residue was purified by
flash column chromatography.
4.3.3. Detailed Procedures
Preparation of 1
3-((3R,4R)-3-((7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)-4-methylpiperidin-1-yl)-3-
oxopropanenitrile (1). 4,7-Dichloro-9H-pyrimido[4,5-b]indole (9) (50.0 mg, 0.21 mmol) and
3-((3R,4R)-4-methyl-3-(methylamino)piperidin-1-yl)-3-oxopropanenitrile hydrochloride [49] (48.7 mg,
0.21 mmol) were suspended in a mixture of dry dioxane (1 mL) and dry DMF (0.1 mL). DIPEA
(67.9 mg, 0.53 mmol) was added and the mixture stirred under microwave irradiation (120 ◦C, 130W)
in a sealed tube for 26 h. Volatiles were removed under reduced pressure. Purification of the residue
by flash column chromatography (SiO2, 1.EtOAc:iPrOH 8:1, 2.DCM:MeOH 95:5) gave 24 mg of a light
1
brown solid (29% yield); NMR shows a 3:1 mixture of amide bond rotamers, H-NMR (400 MHz,
acetone-d6)
δ 11.30 (s, 1H), 8.55–8.38 (m, 1H), 7.81 (d, J = 8.5 Hz, 1H), 7.62 (s, 1H), 7.33 (d, J = 8.4
Hz, 1H), 4.85–4.74 (m, 0.75H), 4.27–4.17 (m, 0.25H), 4.11–3.64 (m, 6H), 3.19 (s, 2.25H), 3.05 (s, 0.75H),
2.51–2.31 (m, 1H), 2.01–1.79 (m, 2H), 1.24 (d, J = 6.8 Hz, 0.75H), 1.15 (d, J = 6.9 Hz, 2.25H); 13C-NMR

Molecules 2019, 24, 2331
17 of 31
(101 MHz, acetone-d6)
δ
164.5, 164.0, 161.0, 158.8, 155.3, 138.7, 131.4, 124.5, 122.0, 119.6, 116.0, 112.2,
100.0, 56.1, 53.3, 48.4, 46.6, 46.2, 34.1, 34.0, 32.9, 32.5, 32.2, 26.0, 25.7, 14.9; ESI-MS: (m/z) 396.9 [M + H]+,
418.9 [M + Na]+, 394.9 [M − H]-; HPLC: tr = 7.201 min (100.0% purity).
Detailed Procedures for the Preparation of Intermediates 3a–d
tert-Butyl-3-(benzyl(methyl)amino)pyrrolidine-1-carboxylate
(
3a).
3a was prepared from
N-Boc-pyrrolidin-3-one (2a) (1.5 g, 8.10 mmol), N,N-benzylmethylamine (1.1 g, 8.91 mmol), glacial
AcOH (534.9 mg, 8.91 mmol) and Na(OAc)3BH (2.6 g, 12.15 mmol) in dry DCM (17 mL) according to
general procedure A. Purification by flash column chromatography (SiO2, n-hexane:EtOAc 3:1) gave
1.8 g of a yellow oil (76% yield); 1H-NMR (300 MHz, CDCl3)
δ
7.38–7.22 (m, 5H, overlap with CHCl3
signal), 3.79–3.46 (m, 4H), 3.36–3.15 (m, 2H), 3.11–2.94 (m, 1H), 2.16 (s, 3H), 2.14–2.05 (m, 1H), 1.98–1.79
(m, 1H), 1.48 (s, 9H); 13C-NMR (75 MHz, CDCl3)
154.6, 138.7, 138.6, 129.2, 129.0, 128.4, 127.2, 79.3,
64.0, 63.2, 60.5, 50.0, 49.6, 45.2, 44.8, 39.8, 30.1, 29.1, 28.6; GC-MS method A: tr = 8.792 min, (m/z) 290 [M].
δ
tert-Butyl-3-(benzyl(methyl)amino)piperidine-1-carboxylate 3b). 3b was prepared from
(
N-Boc-piperidin-3-one (2b) (2.5 g, 12.55 mmol), N,N-benzylmethylamine (2.0 g, 16.31 mmol), glacial
acetic acid (904.1 mg, 15.06 mmol) and Na(OAc)3BH (4.3 g, 20.08 mmol) in dry DCM (30 mL) according
to general procedure A. After stirring overnight reaction control indicated incomplete conversion,
therefore a second portion of N,N-benzylmethylamine (494.1 mg, 4.08 mmol) and Na(OAc)3BH (1.1 g,
5.02 mmol) was added and stirring continued for 1 h. Purification by flash column chromatography
(SiO2, petroleum ether:EtOAc 3:1) gave 2.6 g of a yellow oil (69% yield); 1H-NMR (300 MHz, CDCl3)
δ
7.32–7.07 (m, 5H, overlap with CHCl3 signal), 4.35–3.78 (m, 2H), 3.59 (d, J = 13.5 Hz, 1H), 3.51 (d, J =
13.4 Hz, 1H), 2.74–2.49 (m, 2H), 2.46–2.31 (m, 1H), 2.15 (s, 3H), 1.96– 1.82 (m, 1H), 1.70–1.57 (m, 1H),
1.48–1.29 (m, 11H); 13C-NMR (75 MHz, CDCl3)
(br), 44.4 (br), 38.0, 28.5, 27.6 (br), 24.7 (br).
δ 155.0, 139.7, 128.8, 128.3, 126.9, 79.4, 59.4, 58.4, 46.2
tert-Butyl-4-(benzyl(methyl)amino)azepane-1-carboxylate
(3c).
3c was prepared from
N-Boc-hexahydro-1H-azepin-4-one (2c) (2.25 g, 10.55 mmol), N,N-benzylmethylamine (1.5 g,
12.66 mmol), glacial AcOH (696.9 mg, 11.61 mmol) and Na(OAc)3BH (3.4 g, 15.83 mmol) in dry
DCM (25 mL) according to general procedure A. After stirring overnight reaction control indicated
incomplete conversion, therefore a second portion of N,N-benzylmethylamine (639.2 mg, 5.27 mmol)
and Na(OAc)3BH (1.1 g, 5.27 mmol) was added and stirring continued for 1 d. Purification by flash
column chromatography (SiO2, n-hexane:EtOAc 3:1) gave 2.7 g of a yellow oil (81% yield); 1H-NMR
(300 MHz, CDCl3) δ 7.36–7.20 (m, 5H, overlap with CHCl3 signal), 3.66–3.39 (m, 4H), 3.32–3.17 (m, 2H),
2.67–2.56 (m, 1H), 2.21–2.16 (m, 3H), 2.10–1.80 (m, 3H), 1.78–1.41 (m, 12H); 13C-NMR (75 MHz, CDCl3)
δ 155.6, 140.0, 140.0, 128.7, 128.3, 126.9, 126.9, 79.2, 63.2, 63.1, 57.8, 57.7, 46.8, 46.4, 44.3, 44.0, 37.6, 30.3,
29.9, 29.8, 28.6, 25.9.
tert-Butyl-4-(benzyl(methyl)amino)piperidine-1-carboxylate
(
3d).
3d was prepared from
N-Boc-piperidin-4-one (2d) (2.75 g, 13.80 mmol), N,N-benzylmethylamine (1.8 g, 15.18 mmol), glacial
AcOH (911.7 mg, 15.18 mmol) and Na(OAc)3BH (4.4 g, 20.70 mmol) in dry DCM (30 mL) according
to general procedure A. The reaction mixture was stirred over molecular sieves instead of Na2SO4,
which was separated by filtration before stopping the reaction with saturated NaHCO3. Purification
by flash column chromatography (SiO2, petroleum ether:EtOAc:3.5N NH3 in MeOH 25:73:2) gave 3.6
g of a white solid (86% yield) 1H-NMR (200 MHz, CDCl3)
signal), 4.28–4.04 (m, 2H), 3.59 (s, 2H), 2.80–2.50 (m, 3H), 2.21 (s, 3H), 1.90–1.73 (m, 2H), 1.62–1.43 (m,
11H); 13C-NMR (50 MHz, CDCl3)
154.9, 139.5, 128.9, 128.4, 127.1, 79.6, 60.9, 58.1, 43.6, 37.7, 28.6, 28.0;
δ 7.37–7.17 (m, 5H, overlap with CHCl3
δ
GC-MS method A: tr = 9.663 min, (m/z) 304 [M].
Detailed Procedures for the Preparation of Intermediates 4a–d
tert-Butyl-3-(methylamino)pyrrolidine-1-carboxylate (4a). 3a (1.6 g, 5.51 mmol) was dissolved in HPLC
grade MeOH (30 mL) and Pd/C 10% (m/m) (532.0 mg) was added. The suspension was stirred in a

Molecules 2019, 24, 2331
18 of 31
reactor charged with 5 bar of H2 pressure at rt for 4 h and then filtered over a pad of celite rinsing with
fresh solvent. The filtrate was concentrated under reduced pressure to give 1.1 g of a green oil (96%
crude yield), which was used in the next step without further purification; 1H-NMR (400 MHz, CDCl3)
δ
3.48–3.19 (m, 3H), 3.17–2.93 (m, 2H), 2.33 (s, 3H), 2.00–1.88 (m, 1H), 1.67–1.54 (m, 1H), 1.38–1.33 (m,
9H), 1.30 (br s, 1H); 13C-NMR (101 MHz, CDCl3)
δ
154.6, 79.0, 59.5, 58.7, 51.6, 51.1, 44.3, 44.0, 34.7, 31.7,
31.0, 28.5; GC-MS method A: tr = 3.039 min, (m/z) 200 [M].
tert-Butyl-3-(methylamino)piperidine-1-carboxylate (4b). 3b (2.2 g, 7.16 mmol) was dissolved in a
solvent mixture of EtOAc (27 mL) and MeOH (18 mL). Pd/C 10% (m/m) (727.0 mg) was added and the
mixture stirred in a reactor charged with 5 bar of H2 pressure at rt for 3 h. The mixture was filtered
over a pad of celite rinsing with fresh solvent. The filtrate was concentrated under reduced pressure to
give 1.5 g of a green oil (96% crude yield), which was used in the next step without further purification;
1H-NMR (400 MHz, CDCl3)
1H), 1.70–1.60 (m, 1H), 1.49–1.37 (m, 10H), 1.35–1.21 (m, 2H); 13C-NMR (101 MHz, CDCl3)
δ
4.18–3.67 (m, 2H), 2.99–2.51 (m, 2H), 2.49–2.37 (m, 4H), 1.95–1.85 (m,
155.0, 79.5,
δ
55.6, 48.8 (br), 44.3 (br), 33.9, 31.3, 28.6, 23.6 (br). GC-MS method B: tr = 11.729 min, (m/z) 214 [M].
tert-Butyl-4-(methylamino)azepane-1-carboxylate (4c). 3c (662.0 mg, 2.08 mmol) was dissolved in a
solvent mixture of EtOAc (9 mL) and MeOH (6 mL). Pd/C 10% (m/m) (220.7 mg) was added and the
mixture stirred in a reactor charged with 5 bar of H2 pressure at rt for 3 h. The mixture was filtered over
a pad of celite rinsing with fresh solvent. The filtrate was concentrated under reduced pressure to give
463 mg of a green oil (98% crude yield), which was used in the next step without further purification;
1H-NMR (400 MHz, CDCl3)
1.97–1.87 (m, 1H), 1.87–1.72 (m, 2H), 1.59–1.31 (m, 13H); 13C-NMR (101 MHz, CDCl3)
δ
3.54–3.36 (m, 2H), 3.36–3.09 (m, 2H), 2.51–2.41 (m, 1H), 2.36 (s, 3H),
155.6, 79.2, 60.2,
δ
59.8, 46.6, 46.0, 43.3, 42.8, 34.8, 34.5, 34.2, 33.2, 32.5, 28.6, 24.8, 24.4. GC-MS method B: tr = 13.406 min,
(m/z) 228 [M].
tert-Butyl-4-(methylamino)piperidine-1-carboxylate (4d). 3d (5.7 g, 18.72 mmol) was dissolved in
MeOH (150 mL). Pd/C 10% (m/m) (600 mg) and Pd(OH)2/C 20% (m/m) (300 mg) were added and the
mixture stirred in a reactor charged with 5 bar of H2 pressure at rt overnight. The mixture was filtered
over a pad of celite rinsing with fresh solvent. The filtrate was concentrated under reduced pressure to
give 3.9 g of a green oil (97% crude yield), which was used in the next step without further purification;
1H-NMR (200 MHz, CDCl3)
δ 4.17–3.83 (m, 2H), 2.88–2.65 (m, 2H), 2.55–2.42 (m, 1H), 2.40 (s, 3H),
1.92–1.74 (m, 2H), 1.42 (s, 9H), 1.33–1.04 (m, 2H); 13C-NMR (50 MHz, CDCl3)
δ 155.0, 79.5, 56.8, 42.6
(br), 33.5, 32.2, 28.5; GC-MS method A: tr = 3.499 min, (m/z) 214 [M].
Detailed Procedures for the Preparation of 4,7-dichloro-9-tosyl-9H-pyrimido[4,5-b]indole (10)
Ethyl-2-(4-chloro-2-nitrophenyl)-2-cyanoacetate ( ). A solution of ethyl-2-cyanoacetate (12.4 g,
6
109.38 mmol) in dry DMF (10 mL) was drop-added to a stirring, ice-cooled suspension of NaH
(4.4 g of a 60% dispersion in mineral oil, 109.38 mmol) in dry DMF (20 mL). After complete addition,
the dropping funnel was purged with additional dry DMF (5 mL) and ice-cooling was removed. After
stirring at rt for 0.5 h, a solution of 1,4-dichloro-2-nitrobenzene (5) (10.0 g, 52.08 mmol) in dry DMF (10
mL) was drop-added. The stirring mixture was subsequently heated to 80 ◦C for 0.5 h, when reaction
control via HPLC indicated complete conversion. The mixture was left to cool to rt and acidified
with 10% HCl(aq) (50 mL). EtOAc (100 mL) was added, phases were separated and the aqueous layer
extracted with additional EtOAc (3
×
30 mL). Combined organic layers were washed with saturated
NaCl solution (5 50 mL) and dried over Na2SO4. The mixture was concentrated under reduced
×
pressure and the liquid residue treated with ice-cold water and stirred with ice-cooling. The resulting
yellow precipitate was triturated with the ice-cold water, filtered washing with ice-cold water and
dried over P2O5 in vacuo. 14.5 g of a yellow solid (> 100% crude yield) that may contain traces of
excessive ethyl-2-cyanoacetate, but was used in the next step without further purification; 1H-NMR
(200 MHz, DMSO-d6)
δ
8.35 (d, J = 2.0 Hz, 1H), 8.02 (dd, J = 8.2, 2.1 Hz, 1H), 7.78 (d, J = 8.2 Hz, 1H),
163.7,
6.27 (s, 1H), 4.22 (q, J = 7.1 Hz, 2H), 1.19 (t, J = 7.1 Hz, 3H); 13C-NMR (50 MHz, DMSO-d6)
δ

Molecules 2019, 24, 2331
19 of 31
147.4, 135.2, 134.9, 134.6, 126.0, 124.5, 115.0, 63.1, 40.7, 13.8; ESI-MS: (m/z) 266.9 [M
6.655 min.
−
H]−; HPLC: tr =
Ethyl-2-amino-6-chloro-1H-indole-3-carboxylate (7). 6 (7.0 g, 26.06 mmol) was dissolved in glacial
AcOH (60 mL). The solution was stirred at 85 ◦C and Zinc dust (20.4 g, 312.72 mmol) was added in ten
portions. The suspension was stirred at 85 ◦C for 75 min when reaction control via HPLC indicated
complete consumption of the starting material. After cooling to rt, Zn dust was filtered off rinsing with
AcOH (or EtOAc, alternatively) and the filtrate was concentrated under reduced pressure to leave a
liquid residue. Careful addition of saturated NaHCO3 solution neutralized residual AcOH resulting
in a precipitate which was filtered off, washed with water and dried over P2O5 in vacuo. 5.8 g of a
red-brown solid (93% crude yield), which was used in the next step without further purification. A
small batch was purified by flash column chromatography (SiO2, DCM/MeOH 97.5:2.5) for analytical
1
purposes. H-NMR shows a mixture of products, which are assumed to be the title compound and the
corresponding 1-hydroxyindole [27]; HPLC: tr = 8.042 min.
7-Chloro-3,9-dihydro-4H-pyrimido[4,5-b]indol-4-one (8). 7 (5.7 g, 23.88 mmol) and NH4HCO2 (1.7 g,
27.46 mmol) were suspended in formamide (50 mL) and stirred at 160 ◦C for 28 h with reflux cooling
when reaction control via HPLC indicated nearly full consumption of the starting material. After
cooling to rt the mixture was poured into ice-cold water resulting in a precipitate which was filtered,
washed thoroughly with ice-cold water and dried over P2O5 in vacuo. 4.5 g of a green-brown solid
(86% crude yield), which was used in the next step without further purification; 1H-NMR (200 MHz,
DMSO-d6)
δ 12.32 (br s, 2H), 8.15 (s, 1H), 7.95 (d, J = 8.5 Hz, 1H), 7.48 (d, J = 1.4 Hz, 1H), 7.25 (dd, J =
8.5, 1.5 Hz, 1H); 13C-NMR (50 MHz, DMSO-d6)
δ 158.0, 154.3, 148.0, 136.0, 128.4, 121.8, 121.4, 120.9,
111.4, 100.0; ESI-MS: (m/z) 217.9 [M − H]−; HPLC: tr = 5.489 min.
4,7-Dichloro-9H-pyrimido[4,5-b]indole (9). 8 (4.5 g, 20.44 mmol) was suspended in chlorobenzene (30
mL) and DIPEA (4.0 g, 30.66 mmol) was added. The mixture was stirred at rt and under N2 atmosphere
when POCl3 (4.4 g, 28.62 mmol) was added carefully dropwise. After stirring at rt for 1 h, the mixture
was heated to 80 ◦C for additional 4.5 h with reflux cooling when HPLC indicated complete consumption
of the starting material. The mixture was left to cool down and dropped carefully into stirring water
(300 mL) at rt resulting in a brown precipitate. Saturated NaHCO3 solution was added carefully and
the suspension left to stir overnight for neutralization. The precipitate was filtered, washed with
water and dried over P2O5 in vacuo. 4.2 g of a brown solid (87% crude yield), which was purified by
the following recrystallization procedure: 2 g of crude 4,7-dichloro-9H-pyrimido[4,5-b]indole were
suspended in boiling toluene (650 mL) and stirred for 0.5 h. The hot suspension was filtered rinsing
the brown filter cake with fresh hot toluene. The filtrate was concentrated under reduced pressure
resulting in precipitation of the product. The suspension was cooled and subsequently the precipitate
was filtered, washed with cold toluene and dried under reduced pressure giving 1.2 g of a yellow solid
(59% recrystallization yield, 51% total yield); 1H-NMR (200 MHz, DMSO-d6)
δ 12.85 (s, 1H), 8.76 (s,
1H), 8.14 (d, J = 8.5 Hz, 1H), 7.57 (d, J = 1.9 Hz, 1H), 7.37 (dd, J = 8.5, 1.9 Hz, 1H); 13C-NMR (50 MHz,
DMSO-d6)
δ
156.3, 154.2, 151.3, 139.1, 132.7, 123.6, 121.9, 116.5, 112.0, 110.7; ESI-MS: (m/z) 235.7 [M
−
H]−; HPLC: tr = 8.590 min.
4,7-Dichloro-9-tosyl-9H-pyrimido[4,5-b]indole (10).
NaH (151.2 mg of a 60% dispersion
in mineral oil, 3.78 mmol) was added in three portions to a stirring suspension of
4,7-dichloro-9H-pyrimido[4,5-b]indole ( ) (600.0 mg, 2.52 mmol) in dry THF (20 mL). p-Toluenesulfonyl
9
chloride (576.6 mg, 3.02 mmol) was added after 20 min and stirring continued for another 0.5 h at
rt and under N2 atmosphere when TLC indicated complete consumption of the starting material.
The mixture was poured into ice-cold water and saturated NH4Cl solution (60 mL) was added. The
precipitate was filtered, washed with cold water and dried over P2O5 in vacuo. 982 mg of a yellow
solid (99% crude yield), which was directly used in the next step without further purification; ESI-MS:
(m/z) 390.0 [M − H]−.

Molecules 2019, 24, 2331
20 of 31
Detailed Procedures for the Preparation of Intermediates 11a–d
tert-Butyl-3-((7-chloro-9-tosyl-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)pyrrolidine-1-carboxyla-te
11a). 11a was prepared from 10 (1.0 g, 2.55 mmol), 4a (638.4 mg, 3.19 mmol) and DIPEA (988.8 mg,
(
7.65 mmol) in dry DMF (25 mL) according to general procedure B. 1.4 g of a beige solid (>100% crude
yield), which was used in the next step without further purification. A small batch was purified by
1
flash column chromatography (SiO2, DCM:MeOH 97.5:2.5) for analytical purposes; H-NMR (300
MHz, CDCl3) δ 8.64 (s, 1H), 8.54 (d, J = 1.8 Hz, 1H), 8.10 (d, J = 8.1 Hz, 2H), 7.63 (d, J = 8.5 Hz, 1H),
7.40 (dd, J = 8.5, 1.9 Hz, 1H), 7.27 (d, 2H, overlap with CHCl3 signal), 4.93–4.74 (m, 1H), 3.94–3.75
(m, 1H), 3.71–3.53 (m, 1H), 3.48–3.29 (m, 2H), 3.10 (s, 3H), 2.37 (s, 3H), 2.33–2.06 (m, 2H), 1.46 (s, 9H);
13C-NMR (50 MHz, CDCl3)
δ 161.2, 157.2, 154.5, 154.3, 145.8, 136.2, 135.3, 132.9, 129.8, 128.1, 124.5,
123.3, 119.9, 114.7, 102.0, 79.6, 58.0, 57.4, 47.8, 44.7, 44.3, 35.2, 28.7, 28.6, 28.0, 21.7; ESI-MS: (m/z) 578.1
[M + Na]+, 554.3 [M − H]−; HPLC: tr = 11.123 min.
tert-Butyl-3-((7-chloro-9-tosyl-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidine-1-carboxylate
(11b). 11b was prepared from 10 (430.0 mg, 1.10 mmol), 4b (328.9 mg, 1.54 mmol) and DIPEA (425.1
mg, 3.29 mmol) in dry DMF (12 mL) according to general procedure B. 580 mg of a beige solid (93%
crude yield), which was used in the next step without further purification. A small batch was purified
by flash column chromatography (SiO2, DCM:MeOH 97.5:2.5) for analytical purposes; 1H-NMR (300
MHz, CDCl3) δ 8.60 (s, 1H), 8.52 (d, J = 1.9 Hz, 1H), 8.09 (d, J = 8.4 Hz, 2H), 7.60 (d, J = 8.1 Hz, 1H),
7.38 (dd, J = 8.5, 1.9 Hz, 1H), 7.25 (d, J = 8.1 Hz, 2H, overlap with CHCl3 signal), 4.49–3.96 (m, 3H), 3.10
(s, 3H), 3.08–2.98 (m, 1H), 2.76–2.61 (m, 1H), 2.35 (s, 3H), 2.00–1.71 (m, 3H), 1.63–1.50 (m, 1H), 1.39 (s,
9H); ESI-MS: (m/z) 569.9 [M + H]+, 591.9 [M + Na]+, 568.0 [M − H]-; HPLC: tr = 11.456 min.
tert-Butyl-4-((7-chloro-9-tosyl-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)azepane-1-carboxylate
(11c). 11c was prepared from 10 (465.0 mg, 1.19 mmol), 4c (338.4 mg, 1.48 mmol) and DIPEA (459.7 mg,
3.56 mmol) in dry DMF (14 mL) according to general procedure B. 682 mg of a beige solid (98% crude
yield), which was used in the next step without further purification. A small batch was purified by
1
flash column chromatography (SiO2, DCM:MeOH 97.5:2.5) for analytical purposes; H-NMR (400
MHz, DMSO-d6)
δ 8.49 (s, 1H), 8.36 (d, J = 1.9 Hz, 1H), 8.07–8.01 (m, 2H), 7.79–7.73 (m, 1H), 7.52 (dd, J
= 8.6, 1.6 Hz, 1H), 7.40 (d, J = 8.2 Hz, 2H), 4.28–4.18 (m, 1H), 3.49–3.35 (m, 2H), 3.29–3.12 (m, 2H), 3.04
(s, 3H), 2.33 (s, 3H), 1.96–1.76 (m, 5H), 1.67–1.53 (m, 1H), 1.36–1.28 (m, 9H); ESI-MS: (m/z) 606.0 [M +
Na]+, 582.1 [M − H]−; HPLC: tr = 11.827 min.
tert-Butyl-4-((7-chloro-9-tosyl-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidine-1-carboxylate
(11d). 11d was prepared from 10 (200.0 mg, 0.51 mmol), 4d (142.1 mg, 0.66 mmol) and DIPEA (197.7
mg, 1.53 mmol) in dry DMF (5.5 mL) according to general procedure B. Beige solid (>100% crude
yield), which was used in the next step without further purification. A small batch was purified by
flash column chromatography (SiO2, petroleum ether:EtOAc gradient elution from 9:1 to 4:6) for
analytical purposes; 1H-NMR (200 MHz, CDCl3)
δ 8.59 (s, 1H), 8.52 (d, J = 1.8 Hz, 1H), 8.09 (d, J =
8.3 Hz, 2H), 7.54 (d, J = 8.6 Hz, 1H), 7.37 (dd, J = 8.5, 1.9 Hz, 1H), 7.26 (d, J = 8.2 Hz, 2H, overlap
with CHCl3 signal), 4.49–4.33 (m, 1H), 4.33–4.16 (m, 2H), 3.07 (s, 3H), 2.94–2.68 (m, 2H), 2.36 (s, 3H),
1.92–1.72 (m, 4H), 1.47 (s, 9H); 13C-NMR (50 MHz, CDCl3)
δ 160.1, 157.4, 154.8, 154.1, 145.8, 136.2, 135.5,
132.7, 129.8, 128.2, 124.4, 123.1, 120.5, 114.8, 100.8, 80.0, 56.6, 43.4 (br), 33.4, 29.0, 28.6, 21.8. ESI-MS: (m/z)
592.0 [M + Na]+, 568.0 [M − H]-; HPLC: tr = 11.988 min.
Detailed Procedures for the Preparation of Intermediates 12a–d
tert-Butyl-3-((7-chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)pyrrolidine-1-carboxylate (12a).
12a was prepared from 11a (697.0 mg, 1.26 mmol) and KtBuO (986.1 mg, 8.79 mmol) in dry THF
(40 mL) according to general procedure C in a reaction time of 1.5 h. Purification by flash column
chromatography (SiO2, DCM:MeOH gradient elution from 97.5:2.5 to 93:7) gave 394 mg of a beige
solid (78% yield); 1H-NMR (300 MHz, CDCl3)
δ 11.68 (br s, 1H), 8.65–8.51 (m, 1H), 7.74 (d, J = 8.6 Hz,

Molecules 2019, 24, 2331
21 of 31
1H), 7.53 (d, J = 1.8 Hz, 1H), 7.29 (dd, 1H, overlap with CHCl3 signal), 5.23–5.02 (m, 1H), 3.99–3.80 (m,
1H), 3.78–3.37 (m, 3H), 3.30 (s, 3H), 2.39–2.14 (m, 2H), 1.49 (s, 9H); 13C-NMR (50 MHz, DMSO-d6)
δ
160.2, 157.4, 153.7, 153. 6, 137.5, 129.5, 124.0, 120.6, 118.3, 110.9, 98.1, 78.4, 56.8, 56.2, 47.0, 44.4, 44.1, 34.1,
28.2, 27.9, 27.0; ESI-MS: (m/z) 424.2 [M + Na]+, 400.2 [M − H]−; HPLC: tr = 9.653 min.
tert-Butyl-3-((7-chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidine-1-carboxylate (12b).
12b was prepared from 11b (580.0 mg, 1.02 mmol) and KtBuO (799.1 mg, 7.12 mmol) in dry THF
(32 mL) according to general procedure C in a reaction time of 1 h. Purification by flash column
chromatography (SiO2, DCM:MeOH gradient elution from 97.5:2.5 to 93:7) gave 320 mg of a beige solid
(76% yield); 1H-NMR (200 MHz, CDCl3)
J = 1.8 Hz, 1H), 7.24 (dd, 1H, overlap with CHCl3 signal), 4.59–3.95 (m, 3H), 3.26 (s, 3H), 3.17–2.96 (m,
1H), 2.84–2.56 (m, 1H), 2.19–1.55 (m, 4H), 1.43 (s, 9H); 13C-NMR (50 MHz, CDCl3)
160.2, 157.2, 155.0,
δ 12.25 (br s, 1H), 8.57 (s, 1H), 7.70 (d, J = 8.6 Hz, 1H), 7.50 (d,
δ
152.5, 137.5, 131.1, 123.7, 121.5, 118.8, 111.6, 98.7, 80.0, 55.2, 46.8, 44.1, 33.4, 28.5, 28.2, 25.0; ESI-MS: (m/z)
438.0 [M + Na]+, 413.9 [M − H]−; HPLC: tr = 9.001 min.
tert-Butyl-4-((7-chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)azepane-1-carboxylate (12c). 12c
was prepared from 11c (682.0 mg, 1.17 mmol) and KtBuO (917.0 mg, 8.17 mmol) in dry THF (40 mL)
following general procedure C in a reaction time of 0.75 h. Purification by flash column chromatography
(SiO2, DCM:MeOH gradient elution from 97.5:2.5 to 93:7) gave 392 mg of a beige solid (78% yield);
1H-NMR (400 MHz, CDCl3)
(m, 1H), 4.64–4.52 (m, 1H), 3.88–3.78 (m, 0.5H), 3.72–3.63 (m, 0.5H), 3.57–3.38 (m, 2H), 3.28–3.15 (m,
4H), 2.11–1.67 (m, 6H), 1.47 (s, 9H); 13C-NMR (101 MHz, CDCl3)
159.9, 157.3, 155.7, 152.7, 137.5, 130.9,
δ 12.43 (br s, 1H), 8.55 (s, 1H), 7.69–7.62 (m, 1H), 7.50–7.45 (m, 1H), 7.25–7.20
δ
123.5, 121.3, 119.0, 111.6, 98.4, 79.6, 58.9, 58.4, 46.9, 46.0, 43.6, 43.5, 33.1, 32.3, 31.82, 31.79, 31.5, 28.7,
25.43, 25.36; ESI-MS: (m/z) 430.0 [M + H]+, 452.0 [M + Na]+, 428.0 [M − H]−; HPLC: tr = 9.734 min.
tert-Butyl-4-((7-chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidine-1-carboxylate (12d).
12d was prepared from 11d (290.8 mg, 0.51 mmol) and KtBuO (400.7 mg, 3.57 mmol) in HPLC grade
THF (32 mL) according to general procedure C in a reaction time of 2 h. Purification by flash column
chromatography (SiO2, DCM:MeOH gradient elution from 97.5:2.5 to 93:7) gave 138 mg of an off-white
solid (65% yield); 1H-NMR (400 MHz, CDCl3)
(d, J = 1.9 Hz, 1H), 7.24 (dd, J = 8.6, 1.9 Hz, 1H), 4.70–4.58 (m, 1H), 4.46–4.11 (m, 2H), 3.23 (s, 3H),
δ 12.09 (s, 1H), 8.56 (s, 1H), 7.67 (d, J = 8.6 Hz, 1H), 7.48
2.99–2.75 (m, 2H), 1.96–1.80 (m, 4H), 1.50 (s, 9H); 13C-NMR (50 MHz, CDCl3)
δ 160.0, 157.2, 154.9, 152.5,
137.5, 130.9, 123.4, 121.2, 118.9, 111.6, 98.3, 79.9, 55.9, 43.6, 33.2, 29.1, 28.6; ESI-MS: (m/z) 416.1 [M + H]+,
438.1 [M + Na]+, 414.1 [M − H]−; HPLC: tr = 10.236 min.
Detailed Procedures for the Preparation of Intermediates 13a–d
7-Chloro-N-methyl-N-(pyrrolidin-3-yl)-9H-pyrimido[4,5-b]indol-4-amine (13a). 13a was prepared from
12a (340.0 mg, 0.85 mmol) and TFA (1.8 mL) in dry DCM (9 mL) according to general procedure D. 220
mg of a beige solid (86% yield), which was used in the next step without further purification; 1H-NMR
(300 MHz, DMSO-d6)
2.0 Hz, 1H), 4.97–4.85 (m, 1H), 3.17 (s, 3H), 3.14–3.07 (m, 1H), 3.00–2.75 (m, 3H), 2.12–1.98 (m, 1H),
1.94–1.80 (m, 1H). Both N-H not detected due to hydrogen bonding; 13C-NMR (75 MHz, DMSO-d6)
δ 8.40 (s, 1H), 7.83 (d, J = 8.6 Hz, 1H), 7.48 (d, J = 2.0 Hz, 1H), 7.27 (dd, J = 8.6,
δ
160.1, 157.4, 153.7, 137.4, 129.2, 123.8, 120.4, 118.6, 110.8, 97.6, 58.8, 49.2, 46.4, 33.4, 29.0; ESI-MS: (m/z)
301.9 [M + H]+, 299.9 [M − H]−, HPLC: tr = 3.556 min.
7-Chloro-N-methyl-N-(piperidin-3-yl)-9H-pyrimido[4,5-b]indol-4-amine (13b). 13b was prepared from
12b (314.0 mg, 0.76 mmol) and TFA (1.7 mL) in dry DCM (8.5 mL) according to general procedure D in
a reaction time of 1 h. 236 mg of a beige solid (99% yield), which was used in the next step without
further purification; 1H-NMR (300 MHz, MeOD)
δ 8.34 (s, 1H), 7.75 (d, J = 8.6 Hz, 1H), 7.49 (d, J =
1.9 Hz, 1H), 7.26 (dd, J = 8.6, 2.0 Hz, 1H), 4.48 (tt, J = 11.2, 4.0 Hz, 1H), 3.25 (s, 3H), 3.17–3.08 (m, 1H),
3.05–2.96 (m, 1H), 2.96–2.86 (m, 1H), 2.63–2.49 (m, 1H), 2.16–1.85 (m, 3H), 1.78–1.60 (m, 1H); 13C-NMR

Molecules 2019, 24, 2331
22 of 31
(50 MHz, DMSO-d6)
δ
159.6, 157.5, 153.7, 137.4, 129.1, 123.8, 120.4, 118.7, 110.8, 97.1, 55.7, 48.6, 45.5,
32.7, 28.2, 26.4; ESI-MS: (m/z) 316.0 [M + H]+, 338.0 [M + Na]+, 313.9 [M − H]-; HPLC: tr = 3.815 min.
N-(Azepan-4-yl)-7-chloro-N-methyl-9H-pyrimido[4,5-b]indol-4-amine (13c). 13c was prepared from
12c (125.0 mg, 0.29 mmol) and TFA (1 mL) in dry DCM (5 mL) according to general procedure D in a
reaction time of 1.5 h. Purification by flash column chromatography (SiO2, DCM:2N NH3 in MeOH 9:1)
gave 71 mg of a beige solid (74% yield); 1H-NMR (400 MHz, CDCl3)
δ 8.53 (s, 1H), 7.66 (d, J = 8.6 Hz,
1H), 7.44 (d, J = 1.6 Hz, 1H), 7.20 (dd, J = 8.6, 1.8 Hz, 1H), 4.75–4.66 (m, 1H), 3.23 (s, 3H), 3.12–2.99 (m,
2H), 2.96–2.87 (m, 2H), 2.13–1.96 (m, 4H), 1.95–1.85 (m, 1H), 1.78–1.66 (m, 1H). Both N-H not detected
due to hydrogen bonding; 13C-NMR (101 MHz, CDCl3)
δ 160.1, 157.8, 153.1, 137.5, 130.7, 123.5, 121.1,
119.2, 111.5, 98.5, 58.6, 48.9, 46.1, 35.0, 32.7, 31.6, 27.6; ESI-MS: (m/z) 329.9 [M + H]+, 328.0 [M
HPLC: tr = 3.401 min.
−
H]-;
7-Chloro-N-methyl-N-(piperidin-4-yl)-9H-pyrimido[4,5-b]indol-4-amine (13d). 13d was prepared from
12d (105.0 mg, 0.25 mmol) and TFA (0.6 mL) in dry DCM (3 mL) according to general procedure D
in a reaction time of 1 h. 73 mg of a beige solid (92% yield) which was used in the next step without
further purification; 1H-NMR (400 MHz, MeOD)
δ 8.34 (s, 1H), 7.73 (d, J = 8.6 Hz, 1H), 7.50 (d, J = 1.9
Hz, 1H), 7.26 (dd, J = 8.6, 2.0 Hz, 1H), 4.55–4.46 (m, 1H), 3.23 (s, 3H), 3.21–3.13 (m, 2H), 2.76–2.66 (m,
2H), 2.02–1.90 (m, 2H), 1.90–1.83 (m, 2H); ESI-MS: (m/z) 316.0 [M + H]+, 314.0 [M
3.485 min.
−
H]-; HPLC: tr =
Detailed Procedures for the Preparation of Compounds 14a–o
3-(3-((7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidin-1-yl)-3-oxopropanenitrile (14a).
Cyanoacetic acid (23.1 mg, 0.27 mmol) and PyBOP (141.4 mg, 0.27 mmol) were dissolved in dry DCM
(5 mL) and stirred at rt and under N2 atmosphere for 20 min. A suspension of 13b (71.5 mg, 0.23 mmol)
and DIPEA (87.8 mg, 0.68 mmol) in dry DCM (5 mL) was added and the mixture stirred at rt and under
N2 atmosphere for 1.5 h. The mixture was then diluted with DCM, washed with saturated NaHCO3
solution (4
×
15 mL), dried over Na2SO4 and concentrated under reduced pressure. Purification of
the residue by flash column chromatography (SiO2, 1. DCM:MeOH gradient elution from 95:5 to
92.5:7.5, 2. DCM:EtOH gradient elution from 96.5:3.5 to 93:7) gave 51 mg of a white solid (59% yield);
NMR shows a 7:3 mixture of amide bond rotamers, 1H (400 MHz, CDCl3)
δ 12.59 (br s, 1H), 8.51–8.30
(m, 1H), 7.67–7.48 (m, 1H), 7.41–7.30 (m, 1H), 7.21–7.09 (m, 1H), 4.90–4.78 (m, 0.3H), 4.70–4.58 (m,
0.7H), 4.45–4.23 (m, 1H), 4.22–4.11 (m, 0.7H), 4.04–3.79 (m, 1.4H), 3.78–3.69 (m, 0.3H), 3.66–3.54 (m,
0.6H), 3.30–3.12 (m, 4H), 3.05–2.94 (m, 0.3H), 2.70–2.56 (m, 0.7H), 2.26–1.88 (m, 3H), 1.86–1.64 (m, 1H);
13C-NMR (101 MHz, CDCl3)
δ 161.2, 160.6, 159.8, 157.2, 156.7, 152.5, 152.0, 137.5, 137.4, 131.24, 131.17,
123.6, 123.5, 121.5, 121.4, 118.41, 118.35, 114.7, 114.1, 111.7, 111.6, 98.5, 77.4, 55.5, 54.6, 48.2, 46.9, 45.4,
43.5, 34.9, 34.0, 28.7, 27.6, 25.40, 25.37, 25.2, 24.8; ESI-MS: (m/z) 383.1 [M + H]+, 405.1[M + Na]+, 380.9
[M − H]-; HPLC: tr = 6.202 min (100.0% purity).
3-(3-((7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidin-1-yl)propanenitrile (14b). 13b
(125.0 mg, 0.40 mmol) and acrylonitrile (46.2 mg, 0.87 mmol) were stirred in dry MeOH (35 mL) at rt
and under N2 atmosphere overnight. Volatiles were removed under reduced pressure. Purification
of the residue by flash column chromatography (SiO2, DCM:MeOH gradient elution from 95.5:4.5 to
93.5:6.5) gave 92 mg of a white solid (63% yield); 1H-NMR (400 MHz, DMSO-d6)
δ 12.22 (s, 1H), 8.40
(s, 1H), 7.78 (d, J = 8.6 Hz, 1H), 7.48 (s, 1H), 7.34 (d, J = 8.4 Hz, 1H), 4.56–4.33 (m, 1H), 3.14 (s, 3H),
3.11–3.03 (m, 1H), 2.92–2.81 (m, 1H), 2.78–2.68 (m, 2H), 2.68–2.58 (m, 2H), 2.44–2.32 (m, 1H), 2.02–1.88
(m, 1H), 1.84–1.63 (m, 3H), 1.59–1.41 (m, 1H); 13C-NMR (101 MHz, DMSO-d6)
δ 159.4, 157.4, 153.7,
137.3, 129.1, 123.8, 120.6, 120.0, 118.5, 110.8, 97.0, 55.7, 54.7, 53.0, 52.2, 32.5, 27.2, 24.3, 15.0. ESI-MS: (m/z)
369.1 [M + H]+, 391.0 [M + Na]+, 366.9 [M − H]-; HPLC: tr = 3.695 min (100.0% purity).
3-(3-((7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidin-1-yl)propanamide (14c). 13b
(65.0 mg, 0.21 mmol) and acrylamide (16.1 mg, 0.23 mmol) were stirred in dry MeOH (11 mL) at rt and

Molecules 2019, 24, 2331
23 of 31
under N2 atmosphere overnight. Additional acrylamide (16.1 mg, 0.23 mmol) was added and stirring
at rt continued for 5 days. Volatiles were removed under reduced pressure. Purification of the residue
by flash column chromatography (SiO2, DCM:2N NH3 in MeOH gradient elution from 92:8 to 9:1)
gave 65 mg of a white solid (82% yield); 1H-NMR (400 MHz, DMSO-d6)
δ 12.21 (s, 1H), 8.39 (s, 1H), 7.76
(d, J = 8.7 Hz, 1H), 7.48 (d, J = 2.0 Hz, 1H), 7.34 (br s, 1H), 7.30 (dd, J = 8.6, 2.0 Hz, 1H), 6.78 (br s, 1H),
4.50–4.34 (m, 1H), 3.15 (s, 3H), 3.05–2.96 (m, 1H), 2.87–2.77 (m, 1H), 2.65–2.52 (m, 2H), 2.35–2.18 (m,
3H), 1.96–1.85 (m, 1H), 1.84–1.65 (m, 3H), 1.58–1.42 (m, 1H); 13C-NMR (101 MHz, DMSO-d6)
δ
173.2,
159.4, 157.4, 153.7, 137.3, 129.1, 123.8, 120.5, 118.5, 110.8, 97.0, 55.9, 54.8, 54.2, 52.7, 33.0, 32.6, 27.4, 24.4;
ESI-MS: (m/z) 387.4 [M + H]+, 409.4 [M + Na]+, 385.3 [M H]−; HPLC: tr = 3.872 min (100.0% purity).
−
Methyl-3-(3-((7-chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidin-1-yl)propanoate (14d).
13b (65.0 mg, 0.21 mmol) and methyl acrylate (19.5 mg, 0.23 mmol) were stirred in dry MeOH (11 mL)
at rt and under N2 atmosphere for 3 h. Additional methyl acrylate (4.4 mg, 0.05 mmol) was added and
stirring at rt continued for 1 h. Volatiles were removed under reduced pressure. Purification of the
residue by flash column chromatography (SiO2, DCM:MeOH gradient elution from 96:4 to 92:8) gave
74 mg of a beige solid (89% yield); 1H-NMR (400 MHz, DMSO-d6)
δ 12.21 (s, 1H), 8.39 (s, 1H), 7.75 (d, J
= 8.7 Hz, 1H), 7.47 (d, J = 2.0 Hz, 1H), 7.28 (dd, J = 8.6, 2.0 Hz, 1H), 4.45–4.34 (m, 1H), 3.55 (s, 3H), 3.14
(s, 3H), 3.00–2.92 (m, 1H), 2.84–2.75 (m, 1H), 2.62 (t, J = 6.9 Hz, 2H), 2.53–2.46 (m, 2H, overlap with
DMSO-d5 signal), 2.36–2.26 (m, 1H), 1.95–1.85 (m, 1H), 1.83–1.65 (m, 3H), 1.55–1.41 (m, 1H); 13C-NMR
(101 MHz, DMSO-d6)
δ 172.4, 159.4, 157.4, 153.7, 137.3, 129.1, 123.8, 120.4, 118.5, 110.8, 97.0, 55.9, 54.8,
53.3, 52.5, 51.1, 32.6, 31.6, 27.3, 24.4; ESI-MS: (m/z) 402.5 [M + H]+, 424.6 [M + Na]+, 400.3 [M
HPLC: tr = 4.363 min (100.0% purity).
−
H]-;
7-Chloro-N-methyl-N-(1-propylpiperidin-3-yl)-9H-pyrimido[4,5-b]indol-4-amine (14e). 14e was
prepared from 13b (65.0 mg, 0.21 mmol), propionaldehyde (17.9 mg, 0.31 mmol), glacial AcOH
(24.7 mg, 0.41 mmol) and Na(OAc)3BH (87.2 mg, 0.41 mmol) in dry DCM (10 mL) according to general
procedure E in a reaction time of 2 h. Purification by flash column chromatography (SiO2, 1. DCM:2N
NH3 in MeOH gradient elution from 95:5 to 92:8, 2. DCM:2N NH3 in MeOH gradient elution from
94:6 to 91.5:8.5) gave 46 mg of a white solid (62% yield); 1H-NMR (400 MHz, DMSO-d6)
δ 2.21 (s, 1H),
8.39 (s, 1H), 7.78 (d, J = 8.7 Hz, 1H), 7.47 (d, J = 2.0 Hz, 1H), 7.23 (dd, J = 8.6, 2.0 Hz, 1H), 4.48–4.37 (m,
1H), 3.14 (s, 3H), 3.00–2.91 (m, 1H), 2.84–2.76 (m, 1H), 2.33–2.17 (m, 3H), 1.87–1.66 (m, 4H), 1.58–1.39
(m, 3H), 0.84 (t, J = 7.3 Hz, 3H); 13C-NMR (101 MHz, DMSO-d6)
δ 159.4, 157.4, 153.7, 137.3, 129.1, 123.8,
120.3, 118.6, 110.8, 97.0, 60.0, 56.3, 54.9, 52.9, 32.6, 27.6, 24.5, 19.6, 11.7; ESI-MS: (m/z) 358.2 [M + H]+,
380.1 [M + Na]+, 356.2 [M − H]-; HPLC: tr = 4.200 min (99.3% purity).
7-Chloro-N-(1-isopropylpiperidin-3-yl)-N-methyl-9H-pyrimido[4,5-b]indol-4-amine (14f). 14f was
prepared from 13b (62.0 mg, 0.20 mmol), acetone (228.1 mg, 3.93 mmol), glacial AcOH (23.6 mg, 0.39
mmol) and Na(OAc)3BH (83.2 mg, 0.39 mmol) in dry DCM (10 mL) according to general procedure
E in a reaction time of 5 h. A second portion of acetone (228.1 mg, 3.93 mmol) was added after 3 h.
Purification by flash column chromatography (SiO2, DCM:2N NH3 in MeOH 95:5 to 92.5:7.5) gave 30
mg of a beige solid (43% yield); 1H-NMR (400 MHz, DMSO-d6)
δ 12.20 (s, 1H), 8.39 (s, 1H), 7.79 (d, J
= 8.7 Hz, 1H), 7.47 (d, J = 2.0 Hz, 1H), 7.24 (dd, J = 8.6, 2.0 Hz, 1H), 4.46–4.35 (m, 1H), 3.16 (s, 3H),
2.96–2.86 (m, 1H), 2.79–2.66 (m, 2H), 2.48–2.41 (m, 1H), 2.16–2.03 (m, 1H), 1.86–1.67 (m, 3H), 1.55–1.41
(m, 1H), 1.05–0.92 (m, 6H); 13C-NMR (50 MHz, DMSO-d6)
δ 159.4, 157.4, 153.8, 137.3, 129.1, 123.9, 120.3,
118.6, 110.8, 97.0, 55.5, 54.0, 51.3, 48.1, 32.7, 28.0, 24.8, 18.1, 17.7; ESI-MS: (m/z) 357.8 [M + H]+, 355.8 [M
− H]-; HPLC: tr = 4.291 min (99.0% purity).
7-Chloro-N-(1-cyclopentylpiperidin-3-yl)-N-methyl-9H-pyrimido[4,5-b]indol-4-amine (14g). 14g was
prepared from 13b (60.0 mg, 0.19 mmol), cyclopentanone (63.9 mg, 0.76 mmol), glacial AcOH (22.8
mg, 0.38 mmol) and Na(OAc)3BH (80.5 mg, 0.38 mmol) in dry DCM (10 mL) according to general
procedure E in a reaction time of 3 h. Purification by flash column chromatography (SiO2, DCM:2N
NH3 MeOH gradient elution from 96:4 to 93:7) gave 54 mg of a white solid (74% yield); 1H-NMR (400

Molecules 2019, 24, 2331
24 of 31
MHz, DMSO-d6)
δ
12.21 (s, 1H), 8.38 (s, 1H), 7.79 (d, J = 8.7 Hz, 1H), 7.47 (d, J = 1.9 Hz, 1H), 7.24 (dd, J
= 8.6, 2.0 Hz, 1H), 4.47–4.35 (m, 1H), 3.14 (s, 3H), 3.09–3.01 (m, 1H), 2.94–2.84 (m, 1H), 2.58–2.52 (m, 1H,
overlap with DMSO-d5), 2.30–2.17 (m, 1H), 1.93–1.67 (m, 6H), 1.64–1.39 (m, 5H), 1.38–1.25 (m, 2H);
13C-NMR (101 MHz, DMSO-d6)
δ 159.4, 157.4, 153.7, 137.3, 129.1, 123.8, 120.2, 118.6, 110.8, 96.9, 66.7,
55.0, 54.8, 51.5, 32.6, 29.8, 29.6, 27.6, 24.5, 23.6; ESI-MS: (m/z) 383.8 [M + H]+, 381.8 [M
4.839 min (100.0% purity).
−
H]-; HPLC: tr =
7-Chloro-N-(1-(furan-2-ylmethyl)piperidin-3-yl)-N-methyl-9H-pyrimido[4,5-b]indol-4-amine (14h).
14h was prepared from 13b (80.0 mg, 0.25 mmol), furan-2-carbaldehyde (30.4 mg, 0.32 mmol), glacial
AcOH (30.4 mg, 0.51 mmol) and Na(OAc)3BH (80.5 mg, 0.38 mmol) in dry DCM (10 mL) according to
general procedure E in a reaction time of 6.5 h. Purification by flash column chromatography (SiO2,
1.DCM:MeOH gradient elution from 96:4 to 92.5:7.5, 2.DCM:MeOH gradient elution from 96:4 to 92:8)
gave 55 mg of an off-white solid (55% yield); 1H-NMR (300 MHz, CDCl3)
δ 11.76 (br s, 1H), 8.54 (s, 1H),
7.63 (d, J = 8.6 Hz, 1H), 7.49–7.37 (m, 2H), 7.21 (dd, J = 8.6, 1.8 Hz, 1H), 6.39–6.31 (m, 1H), 6.30–6.22 (m,
1H), 4.69–4.50 (m, 1H), 3.71 (d, J = 14.2 Hz, 1H), 3.64 (d, J = 14.2 Hz, 1H), 3.28–3.14 (m, 4H), 3.03–2.92
(m, 1H), 2.50–2.37 (m, 1H), 2.14–2.02 (m, 1H), 2.00–1.90 (m, 1H), 1.88–1.71 (m, 3H); 13C-NMR (50 MHz,
CDCl3) δ 160.3, 157.6, 153.1, 151.4, 142.5, 137.3, 130.8, 123.7, 121.3, 119.0, 111.4, 110.4, 109.4, 98.7, 56.1,
55.7, 54.9, 53.2, 33.2, 28.0, 24.7.; ESI-MS: (m/z) 396.1 [M + H]+, 418.1 [M + Na]+, 393.9 [M
tr = 4.781 min (99.7% purity).
−
H]-; HPLC:
7-Chloro-N-methyl-N-(1-(pyridin-4-ylmethyl)piperidin-3-yl)-9H-pyrimido[4,5-b]indol-4-amine (14i).
14i was prepared from 13b (75.0 mg, 0.24 mmol), pyridin-4-carbaldehyde (38.2 mg, 0.36 mmol), glacial
AcOH (28.5 mg, 0.48 mmol) and Na(OAc)3BH (100.7 mg, 0.48 mmol) in dry DCM (10 mL) according to
general procedure E in a reaction time of 2.5 h. Purification by flash column chromatography (SiO2,
DCM:MeOH gradient elution from 95:5 to 90.5:9.5) gave 71 mg of a white solid (73% yield); 1H-NMR
(400 MHz, DMSO-d6)
δ 12.22 (s, 1H), 8.49 (d, J = 5.7 Hz, 2H), 8.37 (s, 1H), 7.69 (d, J = 8.6 Hz, 1H), 7.48
(d, J = 1.8 Hz, 1H), 7.32 (d, J = 5.6 Hz, 2H), 7.22 (dd, J = 8.6, 1.8 Hz, 1H), 4.54–4.41 (m, 1H), 3.59–3.48 (m,
2H), 3.13 (s, 3H), 2.98–2.88 (m, 1H), 2.80–2.70 (m, 1H), 2.37–2.27 (m, 1H), 2.00–1.89 (m, 1H), 1.86–1.65
(m, 3H), 1.62–1.48 (m, 1H); 13C-NMR (50 MHz, DMSO-d6)
δ 159.4, 157.5, 153.7, 149.5, 147.5, 137.4, 129.2,
123.8, 123.7, 120.3, 118.5, 110.9, 97.0, 60.8, 55.9, 54.8, 52.8, 32.8, 27.2, 24.4; ESI-MS: (m/z) 407.4 [M + H]+,
405.2 [M − H]−; HPLC: tr = 6.121 min (99.5% purity).
3-((3-((7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidin-1-yl)methyl)benzonitrile (14j).
14j was prepared from 13b (25.0 mg, 0.08 mmol), 3-formylbenzonitrile (31.1 mg, 0.24 mmol), glacial
AcOH (9.5 mg, 0.16 mmol) and Na(OAc)3BH (33.6 mg, 0.16 mmol) in dry DCM (4 mL) according to
general procedure E in a reaction time of 4 h. Purification by flash column chromatography (SiO2,
DCM:MeOH gradient elution from 96:4 to 93:7) gave 20 mg of a white solid (59% yield); 1H-NMR (400
MHz, DMSO-d6) δ 12.20 (s, 1H), 8.37 (s, 1H), 7.77 (br s, 1H), 7.75–7.64 (m, 3H), 7.54 (t, J = 7.7 Hz, 1H),
7.47 (d, J = 2.0 Hz, 1H), 7.21 (dd, J = 8.6, 2.0 Hz, 1H), 4.54–4.41 (m, 1H), 3.61 (d, J = 13.7 Hz, 1H), 3.54
(d, J = 13.7 Hz, 1H), 3.14 (s, 3H), 3.01–2.91 (m, 1H), 2.82–2.72 (m, 1H), 2.37–2.26 (m, 1H), 2.02–1.90 (m,
1H), 1.84–1.67 (m, 3H), 1.61–1.48 (m, 1H); 13C-NMR (50 MHz, DMSO-d6)
δ 159.4, 157.4, 153.7, 140.2,
137.4, 133.7, 132.1, 130.9, 129.4, 129.2, 123.8, 120.3, 118.9, 118.5, 111.2, 110.9, 97.0, 61.0, 55.6, 54.8, 52.8,
32.8, 27.2, 24.4; ESI-MS: (m/z) 431.2 [M + H]+, 453.2 [M + Na]+, 429.2 [M
(100.0% purity).
−
H]-; HPLC: tr = 4.879 min
7-Chloro-N-methyl-N-(1-(3,3,3-trifluoropropyl)piperidin-3-yl)-9H-pyrimido[4,5-b]indol-4-amine (14k).
14k was prepared from 13b (55.0 mg, 0.17 mmol), trifluoropropanal (97.6 mg, 0.87 mmol), glacial AcOH
(20.9 mg, 0.35 mmol) and Na(OAc)3BH (73.8 mg, 0.35 mmol) in dry DCM (10 mL) according to general
procedure E in a reaction time of 3 h. Purification by flash column chromatography (SiO2, DCM:MeOH
gradient elution from 97.5:2.5 to 92.5:7.5) gave 38 mg of a white solid (53% yield); 1H-NMR (400 MHz,
DMSO-d6)
δ 12.20 (s, 1H), 8.39 (s, 1H), 7.76 (d, J = 8.7 Hz, 1H), 7.48 (d, J = 2.0 Hz, 1H), 7.26 (dd, J = 8.6,
2.0 Hz, 1H), 4.49–4.37 (m, 1H), 3.15 (s, 3H), 3.03–2.96 (m, 1H), 2.88–2.79 (m, 1H), 2.61–2.53 (m, 2H),

Molecules 2019, 24, 2331
25 of 31
2.51–2.41 (m, 2H, overlapping with DMSO-d5), 2.37–2.26 (m, 1H), 1.96–1.87 (m, 1H), 1.86–1.67 (m, 3H),
1.59–1.45 (m, 1H); 13C-NMR (101 MHz, DMSO-d6)
159.4, 157.4, 153.7, 137.3, 129.1, 127.2 (q, J = 276.9
δ
Hz), 123.7, 120.3, 118.5, 110.8, 97.0, 55.8, 54.7, 52.4, 50.4 (q), 32.6, 30.4 (q, J = 26.3 Hz), 27.2, 24.3; ESI-MS:
(m/z) 412.3 [M + H]+, 434.4 [M + Na]+, 410.3 [M − H]-; HPLC: tr = 7.463 min (97.2% purity).
2-(3-((7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidin-1-yl)acetonitrile (14l). 13b (40.0
mg, 0.13 mmol) was dissolved in dry DMF (2 mL). 2-Bromoacetonitrile (16.7 mg, 0.14 mmol) and
Et3N (38.5 mg, 0.38 mmol) were added and the mixture stirred at rt for 1.5 h. Saturated NaHCO3
solution (5 mL) was added and the mixture extracted with EtOAc (6
were diluted with additional EtOAc, washed with saturated NaHCO3 solution (3
over Na2SO4 and concentrated under reduced pressure. Purification of the residue by flash column
chromatography (SiO2, DCM:MeOH 96:4) gave 41 mg of a beige solid (91% yield); 1H-NMR (400 MHz,
×
2 mL). Combined organic layers
20 mL), dried
×
DMSO-d6)
2.0 Hz, 1H), 4.52–4.41 (m, 1H), 3.75 (s, 2H), 3.18 (s, 3H), 2.95–2.87 (m, 1H), 2.81–2.72 (m, 1H), 2.48–2.42
(m, 1H), 2.20–2.09 (m, 1H), 1.95–1.72 (m, 3H), 1.66–1.53 (m, 1H); 13C-NMR (101 MHz, DMSO-d6)
δ 12.22 (s, 1H), 8.41 (s, 1H), 7.76 (d, J = 8.6 Hz, 1H), 7.48 (d, J = 1.9 Hz, 1H), 7.27 (dd, J = 8.6,
δ
159.5, 157.4, 153.7, 137.4, 129.2, 123.8, 120.4, 118.4, 115.8, 110.8, 97.2, 54.4, 54.1, 51.3, 45.3, 32.8, 26.6, 24.1;
ESI-MS: (m/z) 355.0 [M + H]+, 376.9 [M + Na]+, 352.9 [M − H]-; HPLC: tr = 8.358 min (99.4% purity).
7-Chloro-N-(1-(cyclopropylmethyl)piperidin-3-yl)-N-methyl-9H-pyrimido[4,5-b]indol-4-amine (14m).
(Bromomethyl)cyclopropane (34.4 mg, 0.25 mmol) and Et3N (33.6 mg, 0.33 mmol) were added to a
suspension of 13b (70.0 mg, 0.22 mmol) in HPLC grade acetonitrile (10 mL). The mixture was stirred at
60 ◦C for 2 days and then concentrated under reduced pressure. Purification of the residue by flash
column chromatography (SiO2, DCM:2N NH3 in MeOH gradient elution from 98:2 to 91.5:8.5) gave 64
mg of a white solid (78% yield); 1H-NMR (400 MHz, DMSO-d6)
δ 12.22 (s, 1H), 8.39 (s, 1H), 7.80 (d, J
= 8.7 Hz, 1H), 7.47 (d, J = 2.0 Hz, 1H), 7.25 (dd, J = 8.6, 2.0 Hz, 1H), 4.49–4.38 (m, 1H), 3.14 (s, 3H),
3.12–3.06 (m, 1H), 2.94–2.87 (m, 1H), 2.30–2.12 (m, 3H), 1.92–1.65 (m, 4H), 1.60–1.45 (m, 1H), 0.91–0.78
(m, 1H), 0.51–0.36 (m, 2H), 0.13–0.00 (m, 2H); 13C-NMR (101 MHz, DMSO-d6)
δ 159.4, 157.4, 153.7,
137.3, 129.1, 123.8, 120.3, 118.6, 110.8, 97.0, 62.9, 56.1, 54.9, 52.8, 32.5, 27.6, 24.4, 8.3, 3.8, 3.6; ESI-MS: (m/z)
370.1 [M + H]+, 392.1 [M + Na]+, 368.2 [M − H]-; HPLC: tr = 4.318 min (100.0% purity).
7-Chloro-N-(1-(3-(dimethylamino)propyl)piperidin-3-yl)-N-methyl-9H-pyrimido[4,5-b]indol-4-amine
(14n). 13b (100.0 mg, 0.32 mmol) and 3-chloro-N,N-dimethylpropan-1-amine hydrochloride (65.1 mg,
0.41 mmol) were suspended in HPLC grade acetonitrile (15 mL). Et3N (96.1 mg, 0.95 mmol) was
added. The mixture was stirred at 90 ◦C for 2–3 days and then concentrated under reduced pressure.
Purification of the residue by flash column chromatography (SiO2, DCM:2N NH3 in MeOH 9:1) gave
50 mg of an off-white solid (39% yield); 1H-NMR (300 MHz, CDCl3)
δ 12.07 (br s, 1H), 8.54 (s, 1H), 7.69
(d, J = 8.6 Hz, 1H), 7.44 (d, J = 1.0 Hz, 1H), 7.21 (dd, J = 8.6, 1.2 Hz, 1H), 4.66–4.51 (m, 1H), 3.23 (s,
3H), 3.18–3.10 (m, 1H), 2.99–2.90 (m, 1H), 2.53–2.20 (m, 11H), 2.02–1.66 (m, 7H); 13C-NMR (101 MHz,
CDCl3) δ 160.3, 157.8, 153.2, 137.5, 130.8, 123.7, 121.2, 119.2, 111.4, 98.6, 58.0, 57.0, 56.8, 55.6, 53.8, 45.3,
33.1, 28.5, 25.0, 24.9; ESI-MS: (m/z) 401.4 [M + H]+, 399.4 [M − H]-; HPLC: tr = 4.318 min.
3-(3-((7-Chloro-9-methyl-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidin-1-yl)propanenitrile
(14o). NaH (8.1 mg of a 60% dispersion in mineral oil, 0.20 mmol) was added to a stirring suspension
of 14b (50.0 mg, 0.14 mmol) in dry THF (10 mL). The mixture was stirred at rt and under N2
atmosphere for 0.5 h. Methyl iodide (0.5 mL of a freshly prepared 0.4M solution in THF, 0.20 mmol)
was drop-added and the mixture stirred for 20 h at rt and under N2 atmosphere. Dimethylamine
(0.075 mL of a 2M solution in THF, 0.15 mmol) was added to quench excessive methyl iodide and
stirring continued for 1 h. Saturated NH4Cl solution (15 mL) was added to stop the reaction and the
mixture then basified with saturated NaHCO3 solution. EtOAc was added and phases were separated.
The organic layer was washed with saturated NaHCO3 solution (2 × 20 mL), dried over Na2SO4 and
concentrated under reduced pressure. Purification of the residue by flash column chromatography
(SiO2, DCM:MeOH 96.7:3.3 to 93.5:6.5) gave 31 mg of a light beige solid (60% yield); 1H-NMR (400

Molecules 2019, 24, 2331
26 of 31
MHz, DMSO-d6)
δ
8.46 (s, 1H), 7.83–7.74 (m, 2H), 7.38 (dd, J = 8.6, 1.3 Hz, 1H), 4.49–4.39 (m, 1H), 3.83
(s, 3H), 3.14 (s, 3H), 3.11–3.03 (m, 1H), 2.90–2.82 (m, 1H), 2.76–2.59 (m, 4H), 2.43–2.34 (m, 1H), 2.00–1.89
(m, 1H), 1.81–1.66 (m, 3H), 1.55–1.42 (m, 1H); 13C-NMR (101 MHz, DMSO-d6)
δ
159.3, 156.8, 153.5,
138.5, 129.5, 123.7, 120.8, 120.0, 118.0, 109.7, 96.7, 55.6, 54.9, 53.0, 52.2, 32.6, 27.9, 27.2, 24.3, 15.0; ESI-MS:
(m/z) 383.0 [M + H]+, 405.0 [M + Na]+; HPLC: tr = 4.740 min (100.0% purity).
Detailed Procedures for the Preparation of Compounds 15–17
3-(3-((7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)pyrrolidin-1-yl)propanenitrile (15). 13a
(60.0 mg, 0.20 mmol) and acrylonitrile (23.2 mg, 0.44 mmol) were stirred in dry MeOH (17 mL) at
rt overnight. Volatiles were removed under reduced pressure. Purification of the residue by flash
column chromatography (SiO2, DCM:MeOH 96:4 to 93:7) gave 51 mg of an off-white solid (72% yield);
1H-NMR (400 MHz, DMSO-d6)
1H), 7.29 (dd, J = 8.6, 1.9 Hz, 1H), 5.11–5.01 (m, 1H), 3.24 (s, 3H), 2.98–2.86 (m, 2H), 2.78–2.57 (m, 5H),
2.43–2.33 (m, 1H), 2.27–2.16 (m, 1H), 2.05–1.94 (m, 1H); 13C-NMR (101 MHz, DMSO-d6)
160.0, 157.3,
δ 12.22 (s, 1H), 8.41 (s, 1H), 7.84 (d, J = 8.6 Hz, 1H), 7.48 (d, J = 1.9 Hz,
δ
153.7, 137.4, 129.2, 123.8, 120.4, 119.8, 118.5, 110.8, 97.6, 56.8, 56.2, 52.9, 50.3, 33.3, 27.8, 16.5; ESI-MS:
(m/z) 355.0 [M + H]+, 377.0 [M + Na]+, 353.0 [M − H]-; HPLC: tr = 3.414 min (100.0% purity).
3-(4-((7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)azepan-1-yl)propanenitrile (16). 13c (65.0
mg, 0.20 mmol) and acrylonitrile (23.0 mg, 0.43 mmol) were stirred in HPLC grade MeOH (20 mL) at
rt and under N2 overnight. Additional acrylonitrile was added repeatedly, but conversion seized at
~ 80% as calculated by HPLC. Volatiles were removed under reduced pressure. Purification of the
residue by flash column chromatography (SiO2, DCM:MeOH 95:5) gave 50 mg of a beige solid (66%
yield); 1H-NMR (400 MHz, CDCl3)
7.21 (d, J = 8.5 Hz, 1H), 4.74–4.62 (m, 1H), 3.22 (s, 3H), 2.91 (t, J = 6.8 Hz, 2H), 2.87–2.71 (m, 4H), 2.52 (t,
J = 6.6 Hz, 2H), 2.13–1.87 (m, 5H), 1.80–1.67 (m, 1H); 13C-NMR (101 MHz, CDCl3)
160.0, 157.7, 153.0,
δ 12.59 (br s, 1H), 8.53 (s, 1H), 7.65 (d, J = 8.5 Hz, 1H), 7.44 (s, 1H),
δ
137.4, 130.8, 123.5, 121.1, 119.1, 119.0, 111.5, 98.4, 58.4, 54.8, 54.0, 51.7, 32.9, 32.5, 30.9, 25.7, 16.8; ESI-MS:
(m/z) 405.1 [M + Na]+, 381.1 [M − H]-; HPLC: tr = 3.102 min (98.4% purity).
3-(4-((7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)(methyl)amino)piperidin-1-yl)propanenitrile (17). 13d
(34.0 mg, 0.11 mmol) and acrylonitrile (8.6 mg, 0.16 mmol) were stirred in dry MeOH (10 mL) at rt and
under N2 atmosphere overnight. Volatiles were removed under reduced pressure. Purification of the
residue by flash column chromatography (SiO2, DCM:MeOH 97:3 to 95:5) gave 31 mg of a pale yellow
solid (78% yield); 1H-NMR (200 MHz, DMSO-d6)
7.48 (d, J = 1.9 Hz, 1H), 7.26 (dd, J = 8.6, 2.0 Hz, 1H), 4.41–4.19 (m, 1H), 3.14 (s, 3H), 3.07–2.91 (m, 2H),
δ 12.19 (s, 1H), 8.39 (s, 1H), 7.74 (d, J = 8.7 Hz, 1H),
2.73–2.53 (m, 4H), 2.19–1.65 (m, 6H); 13C-NMR (50 MHz, DMSO-d6)
δ 159.6, 157.5, 153.8, 137.4, 129.2,
123.7, 120.4, 120.1, 118.6, 110.9, 97.2, 55.5, 52.7, 52.2, 32.5, 28.3, 15.2; ESI-MS: (m/z) 369.0 [M + H]-; 391.0
[M + Na]+, 367.0 [M − H]-; HPLC: tr = 3.474 min (100.0% purity).
Detailed Procedures for the Preparation of Intermediates 19–23 and Compound 24
tert-Butyl-1H-pyrrolo[2,3-c]pyridine-1-carboxylate (19). A solution of 1H-pyrrolo[2,3-c]pyridine (18
(500.0 mg, 4.23 mmol) in dry THF (5 mL) was stirred under N2 atmosphere and with ice-cooling. Boc
anhydride (1108.4 mg, 5.08 mmol) was added dropwise. The mixture was left to warm to rt and
stirred overnight under N2 atmosphere. After diluting with EtOAc the mixture was washed with
)
saturated NaHCO3 solution (2
concentrated under reduced pressure. Purification of the residue by flash column chromatography
(SiO2, DCM:MeOH 97.5:2.5) gave 846 mg of a yellow oil (92% yield); 1H-NMR (300 MHz, DMSO-d6)
×
20 mL) and saturated NaCl solution (20 mL), dried over Na2SO4 and
δ
9.25 (s, 1H), 8.34 (d, J = 5.3 Hz, 1H), 7.86 (d, J = 3.6 Hz, 1H), 7.63 (dd, J = 5.3, 1.1 Hz, 1H), 6.77 (dd, J =
3.6, 0.6 Hz, 1H), 1.64 (s, 9H); 13C-NMR (75 MHz, DMSO-d6)
115.7, 106.5, 84.8, 27.6; HPLC: tr = 2.259 min.
δ 148.4, 141.7, 136.5, 135.5, 131.5, 129.5,
tert-Butyl-octahydro-1H-pyrrolo[2,3-c]pyridine-1-carboxylate (20). 19 (746.0 mg, 3.42 mmol) was
dissolved in glacial AcOH (50 mL) and PtO2 (150.0 mg, 20% (m/m)) was added. The mixture was stirred

Molecules 2019, 24, 2331
27 of 31
in a reactor charged with 5 bar of H2 pressure at rt for 35 h, then diluted with EtOAc and filtered over a
pad of celite rinsing with EtOAc. The filtrate was concentrated under reduced pressure, redissolved in
DCM and washed with saturated NaHCO3 solution (2
×
20 mL) adding saturated NaCl solution to
improve phase separation. Combined aqueous layers were re-extracted with DCM (25 mL). Combined
organic layers were dried over Na2SO4 and concentrated under reduced pressure to give 680 mg of a
yellow oil (88% crude yield), which was used in the next step without further purification; GC-MS
method A: tr = 4.974 min, (m/z) 226 [M].
tert-Butyl-6-(2-cyanoethyl)octahydro-1H-pyrrolo[2,3-c]pyridine-1-carboxylate (21). 20 (340.0 mg, 1.50
mmol) was dissolved in HPLC grade MeOH (50 mL) and acrylonitrile (175.4 mg, 3.31 mmol) was
added. The mixture was stirred at rt and under N2 atmosphere overnight. Volatiles were removed
under reduced pressure. Purification of the residue by flash column chromatography (SiO2, petroleum
ether:EtOAc 35:65) gave 350 mg of a yellow oil (83% yield); 1H-NMR (300 MHz, CDCl3)
1H), 3.43–3.18 (m, 2H), 2.99–2.86 (m, 1H), 2.65 (t, J = 7.2 Hz, 2H), 2.60–2.48 (m, 1H), 2.44 (t, J = 6.8 Hz,
2H), 2.33–1.54 (m, 7H), 1.40 (s, 9H); 13C-NMR (75 MHz, CDCl3)
154.5, 154.3, 118.9, 118.8, 79.3, 79.1,
δ 3.91–3.73 (m,
δ
55.0, 53.8, 53.4, 53.1, 49.2, 48.6, 45.4, 44.9, 35.1, 34.5, 28.5, 26.7, 25.8, 25.7, 25.5, 15.8; GC-MS method A: tr
= 8.701 min, (m/z) 279 [M].
3-(Octahydro-6H-pyrrolo[2,3-c]pyridin-6-yl)propanenitrile (22). 21 (300.0 mg, 1.07 mmol) was dissolved
in dry DCM (6 mL) under Ar atmosphere. 4N HCl in dioxane (2.7 mL) was added to the stirring
solution resulting in a waxy precipitate. The reaction progress was monitored by a ninhydrin stained
TLC. After full consumption of 21, demineralized water was added to dissolve the waxy precipitate.
The pH of the aqueous layer was adjusted to 14 with 50% NaOH(aq). Phases were separated and
the aqueous layer was extracted with DCM (15
×
15 mL). Combined organic layers were dried over
Na2SO4 and concentrated under reduced pressure. 160 mg of an orange oil (83% yield), which was
used in the next step without further purification. A partial hydrolysis of the nitrile group to an amide
group was observed in the NMR spectra of the crude product. A small batch was purified by flash
column chromatography for analytical purposes (SiO2, DCM:2N NH3 in MeOH 9:1); 1H-NMR (400
MHz, CDCl3)
δ 3.82–3.52 (m, 1H), 3.22–3.13 (m, 1H), 3.12–3.05 (m, 1H), 3.04–2.95 (m, 1H), 2.94–2.88 (m,
1H), 2.72–2.60 (m, 3H), 2.49 (t, J = 6.9 Hz, 2H), 2.45–2.38 (m, 1H), 2.16–2.07 (m, 1H), 2.01–1.93 (m, 1H),
1.91–1.82 (m, 1H), 1.64–1.54 (m, 2H), 1.49–1.40 (m, 1H); 13C-NMR (75 MHz, CDCl3) δ 118.9, 57.8, 53.7,
53.3, 51.9, 44.2, 35.8, 31.2, 27.1, 16.0; GC-MS method B: tr = 14.130 min, (m/z) 179 [M].
3-(1-(7-Chloro-9-tosyl-9H-pyrimido[4,5-b]indol-4-yl)octahydro-6H-pyrrolo[2,3-c]pyridin-6-yl)propa-
nenitrile (23). 10 (200.0 mg, 0.51 mmol), 22 (109.7 mg, 0.61 mmol) and DIPEA (210.9 mg, 1.63 mmol)
were mixed with dry DMF (6 mL). The mixture was stirred at 80 ◦C for 1 h and was then left to cool to
rt. Saturated NaCl solution (15 mL) was added and the mixture extracted with EtOAc (3
×
25 mL).
Combined organic layers were washed with saturated NaCl solution (3 20 mL), dried over Na2SO4
×
and concentrated under reduced pressure. Purification of the residue by flash column chromatography
(SiO2, petroleum ether:(EtOAc + MeOH 95 + 5) 4:6) gave 175 mg of a beige solid (64% yield); 1H-NMR
(300 MHz, CDCl3)
δ 8.56–8.48 (m, 2H), 8.10 (d, J = 8.4 Hz, 2H), 7.77 (br s, 1H), 7.36 (dd, J = 8.5, 1.2 Hz,
1H), 7.27 (d, 2H, overlapping with CHCl3 signal), 4.65–4.48 (m, 1H), 4.24–4.06 (m, 1H), 3.53–3.41 (m,
1H), 3.17–3.01 (m, 1H), 2.82–2.52 (m, 4H), 2.49–2.27 (m, 7H), 1.98–1.69 (m, 4H); 13C-NMR (75 MHz,
CDCl3)
δ 158.0, 156.9, 154.2, 145.7, 136.0, 135.6, 132.2, 129.8, 128.2, 124.2, 123.5, 120.7, 118.8, 114.5, 100.3,
57.5, 53.5, 53.4, 50.8, 34.6, 29.8, 26.8, 21.8, 15.8. Signal overlap assumed at 50.8; ESI-MS: (m/z) 534.9 [M +
H]+, 556.8 [M + Na]+, 532.9 [M − H]-; HPLC: tr = 7.197 min.
3-(3aRS,7aSR)-(1-(7-Chloro-9H-pyrimido[4,5-b]indol-4-yl)octahydro-6H-pyrrolo[2,3-c]pyridin-6-yl)-
propanenitrile (24). 23 (150.0 mg, 0.28 mmol) was dissolved in dry THF (10 mL) and KtBuO (220.2 mg,
1.96 mmol) was added. The mixture was stirred at rt and under N2 atmosphere for 75 min. Saturated
NaCl solution (25 mL) was added and the mixture extracted with EtOAc (3
organic layers were dried over Na2SO4 and concentrated under reduced pressure. Purification of the
×
25 mL). Combined

Molecules 2019, 24, 2331
28 of 31
residue by flash column chromatography (SiO2, DCM:MeOH 95:5) gave 59 mg of a light beige solid
(55% yield); 1H-NMR (300 MHz, pyridine-d5)
13.68 (br s, 1H), 8.84 (s, 1H), 8.23 (d, J = 8.8 Hz, 1H),
δ
7.81 (d, J = 2.0 Hz, 1H), 7.52 (dd, J = 8.7, 2.0 Hz, 1H), 4.95–4.86 (m, 1H), 4.42–4.22 (m, 1H), 4.03–3.86 (m,
1H), 3.18–3.02 (m, 1H), 2.74–2.53 (m, 5H), 2.50–2.25 (m, 3H), 1.98–1.62 (m, 4H); 13C-NMR (101 MHz,
DMSO-d6)
δ
156.9, 156.6, 153.8, 137.3, 128.7, 123.8, 120.3, 119.9, 118.5, 110.7, 96.0, 56.6, 53.2, 52.9, 49.1,
H]−; HPLC: tr =
48.4, 34.1, 26.7, 25.5, 14.9; ESI-MS: (m/z) 381.2 [M + H]+, 403.2 [M + Na]+, 379.2 [M
−
4.362 min (99.9% purity). Crystals suitable for X-ray determination were obtained by slow evaporation
of a solution of 24 in methanol and chloroform at 298 K under atmospheric pressure. CCDC 1,917,242
contains the supplementary crystallographic data. These data can be obtained free of charge via
http://www.ccdc.cam.ac.uk/conts/retrieving.html.
Supplementary Materials: The following are available online at: Comparison of JAK3 and GSK-3
β; MD
Simulation of the (3aR, 7aS)-enantiomer of compound 24; ATP binding competition of 14b; JAK3 inhibition by
compounds 14b and 24; metabolism in HLM of compounds 14b and 24; structure determination of compound 24
The MD-movies, full-length raw-trajectories and the conformations used for pKa calculations are freely available
at https://doi.org/10.5281/zenodo.3248885.
.
Author Contributions: S.A., T.P., F.A., M.K., M.F., D.S., S.A.L., and P.K. conceived and designed the experiments;
S.A. performed synthesis; T.P. performed molecular modelling; F.A. and M.K. performed biological assays; M.F.
performed preliminary synthetic experiments; D.S. performed X-ray crystallography; S.A., T.P., and P.K. analyzed
the data; S.A., T.P. and P.K. wrote the paper.
Funding: This study was supported by the Federal Ministry of Education and Research (BMBF) within the
BioPharma—Neuroallianz consortium (Neuro-T8B project). T.P. acknowledges the Orion Research Foundation sr
for financial support.
Acknowledgments: The authors acknowledge Katharina Bauer and Jens Strobach for the biological assays of
some synthesized compounds and the CSC–IT Center for Science, Finland, for computational resources.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
Manning, G.; Whyte, D.B.; Martinez, R.; Hunter, T.; Sudarsanam, S. The protein kinase complement of the
human genome. Science 2002, 298, 1912–1934. [CrossRef] [PubMed]
2.
Manning, G.; Genomic Overview of Protein Kinases; WormBook. The C. Elegans Research Community,
WormBook. Available online: http://www.wormbook.org (accessed on 13 December 2005). [CrossRef]
Sutherland, C. What Are the Bona fide GSK3 Substrates? Int. J. Alzheimer’s Dis. 2011, 2011, 23.
Embi, N.; Rylatt, D.B.; Cohen, P. Glycogen synthase kinase-3 from rabbit skeletal muscle. Eur. J. Biochem.
1980, 107, 519–527. [CrossRef] [PubMed]
3.
4.
5.
Wang, Y.; Roach, P.J. Inactivation of rabbit muscle glycogen synthase by glycogen synthase kinase-3.
Dominant role of the phosphorylation of Ser-640 (site-3a). J. Biol. Chem. 1993, 268, 23876–23880. [PubMed]
Cohen, P.; Frame, S. The renaissance of GSK3. Nat. Rev. Mol. Cell Biol. 2001, 2, 769–776. [CrossRef]
Woodgett, J.R. Molecular cloning and expression of glycogen synthase kinase-3/factor A. Embo. J. 1990, 9,
2431–2438. [CrossRef] [PubMed]
6.
7.
8.
9.
MacAulay, K.; Doble, B.W.; Patel, S.; Hansotia, T.; Sinclair, E.M.; Drucker, D.J.; Nagy, A.; Woodgett, J.R.
Glycogen Synthase Kinase 3α-Specific Regulation of Murine Hepatic Glycogen Metabolism. Cell Metab. 2007,
6, 329–337. [CrossRef]
Hoeflich, K.P.; Luo, J.; Rubie, E.A.; Tsao, M.-S.; Jin, O.; Woodgett, J.R. Requirement for glycogen synthase
kinase-3β in cell survival and NF-κB activation. Nature 2000, 406, 86–90. [CrossRef]
10. Kerkela, R.; Kockeritz, L.; MacAulay, K.; Zhou, J.; Doble, B.W.; Beahm, C.; Greytak, S.; Woulfe, K.; Trivedi, C.M.;
Woodgett, J.R.; et al. Deletion of GSK-3 in mice leads to hypertrophic cardiomyopathy secondary to
β
cardiomyoblast hyperproliferation. J. Clin. Investig. 2008, 118, 3609–3618. [CrossRef]
11. Beurel, E.; Grieco, S.F.; Jope, R.S. Glycogen synthase kinase-3 (GSK3): Regulation, actions, and diseases.
Pharmacol. Ther. 2015, 148, 114–131. [CrossRef]
12. Patel, P.; Woodgett, J.R. Chapter eight—Glycogen synthase kinase 3: A kinase for all pathways? In Current
Topics in Developmental Biology; Jenny, A., Ed.; Academic Press: Cambridge, MA, USA, 2017; Volume 123,
pp. 277–302.

Molecules 2019, 24, 2331
29 of 31
13. Flanagan, M.E.; Blumenkopf, T.A.; Brissette, W.H.; Brown, M.F.; Casavant, J.M.; Shang-Poa, C.; Doty, J.L.;
Elliott, E.A.; Fisher, M.B.; Hines, M.; et al. Discovery of CP-690,550: A potent and selective Janus kinase
(JAK) inhibitor for the treatment of autoimmune diseases and organ transplant rejection. J. Med. Chem. 2010
53, 8468–8484. [CrossRef] [PubMed]
,
14. Clark, J.D.; Flanagan, M.E.; Telliez, J.B. Discovery and Development of Janus Kinase (JAK) inhibitors for
inflammatory diseases. J. Med. Chem. 2014, 57, 5023–5038. [CrossRef] [PubMed]
15. Xeljanz: Highlights of Prescribing Information. Available online: https://www.accessdata.fda.gov/
drugsatfda_docs/label/2018/203214s018lbl.pdf (accessed on 19 March 2019).
16. Chrencik, J.E.; Patny, A.; Leung, I.K.; Korniski, B.; Emmons, T.L.; Hall, T.; Weinberg, R.A.; Gormley, J.A.;
Williams, J.M.; Day, J.E.; et al. Structural and thermodynamic characterization of the TYK2 and JAK3 kinase
domains in complex with CP-690550 and CMP-6. J. Mol. Biol. 2010, 400, 413–433. [CrossRef] [PubMed]
17. Sivaprakasam, P.; Han, X.; Civiello, R.L.; Jacutin-Porte, S.; Kish, K.; Pokross, M.; Lewis, H.A.; Ahmed, N.;
Szapiel, N.; Newitt, J.A.; et al. Discovery of new acylaminopyridines as GSK-3 inhibitors by a structure
guided in-depth exploration of chemical space around a pyrrolopyridinone core. Bioorg. Med. Chem. Lett.
2015, 25, 1856–1863. [CrossRef] [PubMed]
18. Jiang, J.K.; Ghoreschi, K.; Deflorian, F.; Chen, Z.; Perreira, M.; Pesu, M.; Smith, J.; Nguyen, D.T.;
Liu, E.H.; Leister, W.; et al. Examining the chirality, conformation and selective kinase inhibition of
3-((3R,4R)-4-methyl-3-(methyl(7H-pyrrolo[2,3-d]pyrimidin-4-yl)amino)piperidin-1-yl)-3-oxopropanenitrile
(CP-690,550). J. Med. Chem. 2008, 51, 8012–8018. [CrossRef]
19. Fleming, F.F.; Yao, L.; Ravikumar, P.C.; Funk, L.; Shook, B.C. Nitrile-containing pharmaceuticals: Efficacious
roles of the nitrile pharmacophore. J. Med. Chem. 2010, 53, 7902–7917. [CrossRef] [PubMed]
20. Wang, Y.; Du, Y.; Huang, N. A survey of the role of nitrile groups in protein–ligand interactions. Future Med.
Chem. 2018, 10, 2713–2728. [CrossRef]
21. Heider, F.; Ansideri, F.; Tesch, R.; Pantsar, T.; Haun, U.; Döring, E.; Kudolo, M.; Poso, A.; Albrecht, W.;
Laufer, S.A.; et al. Pyridinylimidazoles as dual glycogen synthase kinase 3β/p38α mitogen-activated protein
kinase inhibitors. Eur. J. Med. Chem. 2019, 175, 309–329. [CrossRef]
22. Zegzouti, H.; Zdanovskaia, M.; Hsiao, K.; Goueli, S.A. ADP-Glo: A bioluminescent and homogeneous ADP
monitoring assay for kinases. Assay Drug Dev. Technol. 2009, 7, 560–572. [CrossRef]
23. Ghose, A.K.; Viswanadhan, V.N.; Wendoloski, J.J. Prediction of hydrophobic (lipophilic) properties of small
organic molecules using fragmental methods: An analysis of ALOGP and CLOGP methods. J. Phys. Chem.
A 1998, 102, 3762–3772. [CrossRef]
24. Roos, K.; Wu, C.; Damm, W.; Reboul, M.; Stevenson, J.M.; Lu, C.; Dahlgren, M.K.; Mondal, S.; Chen, W.;
Wang, L.; et al. OPLS3e: Extending force field coverage for drug-like small molecules. J. Chem. Theory
Comput. 2019, 15, 1863–1874. [CrossRef] [PubMed]
25. Bauer, S.M.; Gehringer, M.; Laufer, S.A. A direct enzyme-linked immunosorbent assay (ELISA) for the
quantitative evaluation of Janus Kinase 3 (JAK3) inhibitors. Anal. Methods 2014, 6, 8817–8822. [CrossRef]
26. Bourdonnec, B.L.; Leister, L.K.; Ajello, C.A.; Cassel, J.A.; Seida, P.R.; O’Hare, H.; Gu, M.; Chu, G.-H.;
Tuthill, P.A.; DeHaven, R.N.; et al. Discovery of a series of aminopiperidines as novel iNOS inhibitors. Bioorg.
Med. Chem. Lett. 2008, 18, 336–343. [CrossRef] [PubMed]
27. Showalter, H.D.H.; Bridges, A.J.; Zhou, H.; Sercel, A.D.; McMichael, A.; Fry, D.W. Tyrosine kinase inhibitors.
16. 6,5,6-tricyclic benzothieno[3,2-d]pyrimidines and pyrimido[5,4-b]- and -[4,5-b]indoles as potent inhibitors
of the epidermal growth factor receptor tyrosine kinase. J. Med. Chem. 1999, 42, 5464–5474. [CrossRef]
[PubMed]
28. Tichý, M.; Pohl, R.; Xu, H.Y.; Chen, Y.-L.; Yokokawa, F.; Shi, P.-Y.; Hocek, M. Synthesis and antiviral activity of
4,6-disubstituted pyrimido[4,5-b]indole ribonucleosides. Bioorg. Med. Chem. 2012, 20, 6123–6133. [CrossRef]
[PubMed]
29. Tichý, M.; Pohl, R.; Tloušt’ová, E.; Weber, J.; Bahador, G.; Lee, Y.-J.; Hocek, M. Synthesis and biological activity
of benzo-fused 7-deazaadenosine analogues. 5- and 6-substituted 4-amino- or 4-alkylpyrimido[4,5-b]indole
ribonucleosides. Bioorg. Med. Chem. 2013, 21, 5362–5372. [CrossRef] [PubMed]

Molecules 2019, 24, 2331
30 of 31
30. Zhao, Y.; Bai, L.; Liu, L.; McEachern, D.; Stuckey, J.A.; Meagher, J.L.; Yang, C.-Y.; Ran, X.; Zhou, B.;
Hu, Y.; et al. Structure-based discovery of 4-(6-methoxy-2-methyl-4-(quinolin-4-yl)-9H-pyrimido[4,5-b]indol-
7-yl)-3,5-dimethylisoxazole (cd161) as a potent and orally bioavailable bet bromodomain inhibitor. J. Med.
Chem. 2017, 60, 3887–3901. [CrossRef] [PubMed]
31. Reader, J.C.; Matthews, T.P.; Klair, S.; Cheung, K.-M.J.; Scanlon, J.; Proisy, N.; Addison, G.; Ellard, J.; Piton, N.;
Taylor, S.; et al. Structure-guided evolution of potent and selective chk1 inhibitors through scaffold morphing.
J. Med. Chem. 2011, 54, 8328–8342. [CrossRef]
32. Arnott, E.A.; Chan, L.C.; Cox, B.G.; Meyrick, B.; Phillips, A. POCl3 chlorination of 4-quinazolones. J. Org.
Chem. 2011, 76, 1653–1661. [CrossRef]
33. Xu, H.; Fan, L.-L. One-pot N-arylation of indoles directly from N-arylsulfonylindoles via consecutive
deprotection and SNAr reactions with activated aryl halides. Chem. Pharm. Bull. 2009, 57, 321–323.
[CrossRef]
34. Kulagowski, J.J.; Blair, W.; Bull, R.J.; Chang, C.; Deshmukh, G.; Dyke, H.J.; Eigenbrot, C.; Ghilardi, N.;
Gibbons, P.; Harrison, T.K.; et al. Identification of Imidazo-pyrrolopyridines as novel and potent JAK1
inhibitors. J. Med. Chem. 2012, 55, 5901–5921. [CrossRef] [PubMed]
35. Guo, Q.; Yu, C.; Zhang, C.; Li, Y.; Wang, T.; Huang, Z.; Wang, X.; Zhou, W.; Li, Y.; Qin, Z.; et al. Highly
selective, potent, and oral mtor inhibitor for treatment of cancer as autophagy inducer. J. Med. Chem. 2018
61, 881–904. [CrossRef] [PubMed]
,
36. Gehringer, M.; Pfaffenrot, E.; Bauer, S.; Laufer, S.A. Design and Synthesis of tricyclic jak3 inhibitors with
picomolar affinities as novel molecular probes. ChemMedChem 2014, 9, 277–281. [CrossRef] [PubMed]
37. Hopkins, B.T.; Scott, D.; Conlon, P.; Jenkins, T.J.; Powell, N.; Guan, B.; Curervo, J.H.; Wang, D.; Taveras, A.
Heterocyclic tyrosine kinase inhibitors. Patent WO2012058645A1, 3 May 2012.
38. Thorarensen, A.; Dowty, M.E.; Banker, M.E.; Juba, B.; Jussif, J.; Lin, T.; Vincent, F.; Czerwinski, R.M.;
Casimiro-Garcia, A.; Unwalla, R.; et al. Design of a janus kinase 3 (JAK3) specific inhibitor
1-((2S,5R)-5-((7H-Pyrrolo[2,3-d]pyrimidin-4-yl)amino)-2-methylpiperidin-1-yl)prop-2-en-1-one (PF-06651600)
allowing for the interrogation of JAK3 signaling in humans. J. Med. Chem. 2017, 60, 1971–1993. [CrossRef]
[PubMed]
39. Eid, S.; Turk, S.; Volkamer, A.; Rippmann, F.; Fulle, S. KinMap: A web-based tool for interactive navigation
through human kinome data. BMC Bioinf. 2017, 18, 16. [CrossRef] [PubMed]
40. Bateman, A.; Martin, M.J.; Orchard, S.; Magrane, M.; Alpi, E.; Bely, B.; Bingley, M.; Britto, R.; Bursteinas, B.;
Busiello, G.; et al. UniProt: A worldwide hub of protein knowledge. Nucleic Acids Res. 2019, 47, D506–D515.
41. Sievers, F.; Higgins, D.G. Clustal omega for making accurate alignments of many protein sequences. Protein
Sci. 2018, 27, 135–145. [CrossRef]
42. Sievers, F.; Wilm, A.; Dineen, D.; Gibson, T.J.; Karplus, K.; Li, W.Z.; Lopez, R.; McWilliam, H.; Remmert, M.;
Soding, J.; et al. Fast, scalable generation of high-quality protein multiple sequence alignments using Clustal
Omega. Mol. Syst. Biol. 2011, 7, 539. [CrossRef]
43. Bochevarov, A.D.; Watson, M.A.; Greenwood, J.R.; Philipp, D.M. Multiconformation, density functional
theory-based pka prediction in application to large, flexible organic molecules with diverse functional groups.
J. Chem. Theory Comput. 2016, 12, 6001–6019. [CrossRef]
44. Klicic´, J.J.; Friesner, R.A.; Liu, S.-Y.; Guida, W.C. Accurate prediction of acidity constants in aqueous solution
via density functional theory and self-consistent reaction field methods. J. Phys. Chem. A 2002, 106, 1327–1335.
[CrossRef]
45. Yu, H.S.; Watson, M.A.; Bochevarov, A.D. Weighted averaging scheme and local atomic descriptor for pka
prediction based on density functional theory. J. Chem. Inf. Model. 2018, 58, 271–286. [CrossRef] [PubMed]
46. Sastry, G.M.; Adzhigirey, M.; Day, T.; Annabhimoju, R.; Sherman, W. Protein and ligand preparation:
Parameters, protocols, and influence on virtual screening enrichments. J. Comput.-Aided Mol. Des. 2013, 27,
221–234. [CrossRef] [PubMed]
47. Bowers, K.J.; Edmond, C.; Xu, H.; Dror, R.O.; Eastwood, M.P.; Gregerson, B.A.; Klepeis, J.L.; Kolossvary, I.;
Moraes, M.A.; Sacerdoti, F.D.; et al. Scalable algorithms for molecular dynamics simulations on commodity
clusters. In Proceedings of the ACM/IEEE Conference on Supercomputing (SC06), Tampa, FL, USA, 11–17
November 2006; IEEE: Tampa, FL, USA, 2006.
