Highly enantioselective borane reduction of heteroaryl and heterocyclic ketoxime ethers catalyzed by novel spiroborate ester derived from diphenylvalinol: Application to the synthesis of nicotine analogues

Article abstract of DOI:10.1021/jo800204n

(Chemical Equation Presented) An asymmetric synthesis for the preparation of nonracemic amines bearing heterocyclic and heteroaromatic rings is described. A variety of important enantiopure thionyl and arylalkyl primary amines were afforded by the borane-mediated enantioselective reduction of O-benzyl ketoximes using 10% of catalyst 10 derived from (S)-diphenylvalinol and ethylene glycol with excellent enantioselectivity, in up to 99% ee. The optimal condition for the first asymmetric reduction of 3- and 4-pyridyl-derived O-benzyl ketoxime ethers was achieved using 30% of catalytic loading in dioxane at 10°C. (S)-N-ethylnornicotine (3) was also successfully synthesized from the TIPS-protected (S)-2-amino-2-pyridylethanol in 97% ee.

Full text of DOI:10.1021/jo800204n

Highly Enantioselective Borane Reduction of Heteroaryl and
Heterocyclic Ketoxime Ethers Catalyzed by Novel Spiroborate Ester
Derived from Diphenylvalinol: Application to the Synthesis of
Nicotine Analogues
Kun Huang, Francisco G. Merced, Margarita Ortiz-Marciales,* Héctor J. Meléndez,
Wildeliz Correa, and Melvin De Jesús
Department of Chemistry, UniVersity of Puerto Rico—Humacao, CUH Station,
Humacao, Puerto Rico 00791
margarita.ortiz1@upr.edu
ReceiVed January 26, 2008
An asymmetric synthesis for the preparation of nonracemic amines bearing heterocyclic and heteroaromatic
rings is described. A variety of important enantiopure thionyl and arylalkyl primary amines were afforded

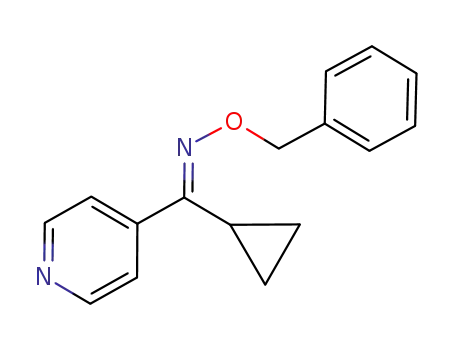

by the borane-mediated enantioselective reduction of O-benzyl ketoximes using 10% of catalyst 10 derived
from (S)-diphenylvalinol and ethylene glycol with excellent enantioselectivity, in up to 99% ee. The
optimal condition for the first asymmetric reduction of 3- and 4-pyridyl-derived O-benzyl ketoxime ethers
was achieved using 30% of catalytic loading in dioxane at 10 °C. (S)-N-ethylnornicotine (3) was also
successfully synthesized from the TIPS-protected (S)-2-amino-2-pyridylethanol in 97% ee.
Introduction
Nicotinic acetylcholine receptors (nAChRs) are a group of
ligand-gated ion channel receptors that play a vital role in
different biological processes, in particular, those related to the
electrical transmission at the neuromuscular junction and central
nervous system (CNS) functions.1–6 Several studies have
demonstrated that (S)-nicotine (2 in Figure 1) and analogues
* To whom correspondence should be addressed. Tel.: 787-852-3222. Fax:
787-850-9422.
(1) (a) Sine, S. M. Neurobiology 2002, 53, 431–446. (b) Tonder, J. E.; Olesen,
P. H. Curr. Med. Chem. 2001, 8, 651. (c) Jensen, A. A.; Frolund, B.; Liljefors,
T.; Krogsgaard-Larsen, P. J. Med. Chem. 2005, 48, 4705.
(2) (a) Lloyd, G. K.; Williams, M. J. Pharm. Exp. Ther. 2000, 292, 461. (b)
Cosford, N. D. P.; Blecher, L.; Herbaut, A.; Mccallum, J. S.; Venier, J. M.;
Dawson, H.; Whitten, J. P.; Adams, P.; Chavez-Noriega, L.; Correa, L. D.; Crona,
J. H.; Mahaffy, L. S.; Menzaghi, L. S.; Rao, T. S.; Reid, R.; Sacaan, S. I.; Santori,
E.; Stauderman, K. A.; Whelan, K.; McDonald, I. A. J. Med. Chem. 1996, 39,
3235. (c) Galzi, J. L.; Changeux, J. P. Neuropharmacology 1995, 34, 563.
FIGURE 1. Nicotine and analogues.
display potent biological activity in mammals by modulation
of nAChRs2 which, in addition, regulate the release of other
important neurotransmitters, such as catecholamines (dopamine,
10.1021/jo800204n CCC: $40.75
Published on Web 05/01/2008
2008 American Chemical Society
J. Org. Chem. 2008, 73, 4017–4026 4017

Huang et al.
norepinephrine), glutamate, γ-aminobutyric acid (GABA), and
serotonin (5-hydroxytriptamine). In the past decade, intense
research efforts in the area of neurobiology and pharmacology
of nicotine and related nAChR agonists and antagonists have
led to exciting developments in drug discovery for the treatment
of Parkinson’s and Alzheimer’s (AD) diseases, schizophrenia,
attention deficit/hyperactivity, and Tourette’s syndrome.3,4 Ago-
nist SIB-1508Y (5) and ABT-418 (6), as well as other potentially
active drugs, are presently in clinical trial for AD and Parkin-
son’s diseases.5 Several nicotine-derived drug candidates are
also being developed for the treatment of nicotine addition, as
analgesic and anesthetic agents.1c,6 Novel competitive antagonist
N-n-nicotinium analogues (7) have been, recently, found to
possess selective binding to nAChR subtypes depending on the
lipophilicity of the alkyl groups, opening a new area of selective
antagonists.7 Moreover, (S)-nicotine has been, recently, dem-
onstrated to inhibit amyloid formation by ꢀ-peptides.5a,8 Con-
sequently, new nonaddictive nicotine analogues that can prevent
or retard the development of Alzheimer’s disease will be of
interest in the future. (S)-Nicotine is more bioactive than the
(R) enantiomer,9 as it is also observed for related alkaloid
compounds. Surprisingly, appropriate methods for the enanti-
oselective synthesis of nicotinic derivatives are scarce,3e,f and
usually, the desired enantiomer is obtained by costly resolution
methods.2a Hence, convenient and versatile asymmetric synthetic
methods that permit the introduction of a chiral pyrrolidine-
based ring skeleton, offering diverse structural features in the
design of new enantiopure nicotinic compound, are needed.
In general, enantioenriched compounds with a stereogenic
carbon center R to the amino group are being extensively used
as key intermediaries in the synthesis of a large variety of
pharmaceuticals,10 chiral auxiliaries,11 catalysts,12 and resolving
agents.13 Accordingly, the development of facile and efficient
synthetic strategies that provide highly enantiopure amines at
low cost has received, recently, an increasing amount of
attention.14 Organoborane reagents, especially oxazaborolidine-
borane complexes, have achieved wide recognition for the
asymmetric reduction of ketones due to their outstanding
enantioselectivity, predictable absolute stereochemistry, and low
environmental impact.12 Noteworthy, the use of these chiral
boron-based reagents for the CdN reduction under catalytic
conditions remains limited due to their relatively modest
enantioselectivity and lack of reproducibility in some cases.12–17
Although the asymmetric reduction of oxime ethers with borane-
based catalysts offers a facile and direct approach to obtain
enantioenriched primary amines, more than an stoichiometric
amount of in situ prepared oxazaborolidine has been employed
to obtain a high degree of enantioselectivity.12,14–17 Itsuno et
al.16 described the first catalytic reduction of acetophenone
O-benzyl oxime using the B-H oxazaborolidine-borane com-
plex prepared in situ by the reaction of 10 mol % of (S)-
diphenylvalinol with 1 equiv of borane, achieving only 52% ee
of (S)-1-phenylethanamine. Fontaine et al.17c used 2.5 equiv of
diphenylvalinol-B-H oxazaborolidine for the reduction of
arylalkyl ketoxime O-benzyl ethers, achieving excellent enan-
tioselectivity and good yield. When the amount of diphenylvali-
