ORTEP3. 1-xylene formula C68.60H61.20N4O8, M ¼ 1069.66, F(000) ¼
2259.200, colourless block, size 0.32 ꢃ 0.34 ꢃ 0.44 mm3, monoclinic, space
group P21/c, Z ¼ 4, a ¼ 17.7349(2) A, b ¼ 16.9022(2) A, c ¼ 19.1495(2) A, a
¼ 901, b ¼ 92.6081(6)1, g ¼ 901, V ¼ 5734.29(11) A3, Dcalc. ¼ 1.239 Mg
The intercalation of both rows as well as the densely packed
arrangement of the parallel stripes seems to be driven by max-
imisation of the surface coverage. The two vectors defining the 2D
unit cell have lengths of 3.5 ꢂ 0.2 and 0.9 ꢂ 0.1 nm, respectively
and open an angle of 50 ꢂ 31.
m
ꢁ3. Minimal/maximal transmission 0.97/0.97, m ¼ 0.081 mmꢁ1. The
COLLECT suite has been used for data collection and integration. From
a total of 50 388 reflections (Ymax ¼ 27.8581), 13 631 were independent
(merging r ¼ 0.033). From these, 9239 were considered as observed (I 4
3.0s(I)) and were used to refine 802 parameters. The structure was solved by
direct methods using the program SIR92. Least-squares refinement against
F was carried out on all non-hydrogen atoms using the program CRYS-
TALS. R ¼ 0.0839 (observed data), wR ¼ 0.0867 (all data), GOF ¼ 1.0531.
Minimal/maximal residual electron density ¼ ꢁ0.46/1.12 e Aꢁ3. Chebychev
polynomial weights were used to complete the refinement. Restraints have
been used to control the refinement of the disordered solvent molecules and
one tert-butyl group in the case of the single crystal obtained from technical
xylene. Plots were produced using ORTEP3.
The reconstruction of the underlying Au surface can still be
observed (see contents entry image) which is indicative of a
weak interaction between molecule and substrate.21 More
importantly, this image shows that the molecules are attached
to the Au with one chromophore, while the other remains
separated from the substrate. The structural analogy of im-
mobilized 1 with its solid state structure suggests a comparable
spacing of approximately 0.7 nm from the surface for the
upper chromophore. While the conservation of the spatial
separation of both chromophores in these surface immobilized
cyclophanes and the predominant interaction of the metal
surface with only one of the two p-systems are promising
results on the way towards surface decoupled chromophores,
the parallel arrangement of the main axis of both NDI
1 M. M. Pellegrin, Recl. Trav. Chim. Pays-Bas, 1899, 18, 457.
2 F. Vogtle, Cyclophane-Chemistry, Teubner, Stuttgart, 1990.
¨
3 Modern Cyclophane Chemistry, ed. R. Gleiter and H. Henning,
Wiley-VCH, Weinheim, 2004.
4 D. J. Cram and J. M. Cram, Acc. Chem. Res., 1971, 4, 204.
5 T. Kawashima, T. Otsubo, Y. Sakata and S. Misumi, Tetrahedron
Lett., 1978, 51, 5115.
6 (a) S. I. Pascu, T. Jarrosson, C. Naumann, S. Otto, G. Kaiser and J. K.
M. Sanders, New J. Chem., 2005, 29, 80; (b) K. D. Johnstone, K.
Yamaguchi and M. J. Gunter, Org. Biomol. Chem., 2005, 3, 3008.
7 A. J. Blacker, J. Jazwinski, J.-M. Lehn, M. Cesario, J. Guilhem
and C. Pascard, Tetrahedron Lett., 1987, 28, 6057.
8 (a) G. D. Fallon, M. A.-P. Lee, S. J. Langford and P. J. Nichols,
Org. Lett., 2004, 6, 655; (b) J. G. Hansen, N. Feeder, D. G.
Hailton, M. J. Gunter, J. Becher and J. K. M. Sanders, Org. Lett.,
2000, 2, 449; (c) T. Iijima, S. A. Vignon, H. R. Tseng, T. Jarrosson,
J. K. M. Sanders, F. Marchioni, M. Venturi, E. Apostoli, V.
Balzani and J. F. Stoddart, Chem.–Eur. J., 2004, 10, 6375.
subunits may be less favourable considering Forster energy
¨
transfer as a potential quenching mechanism for the decoupled

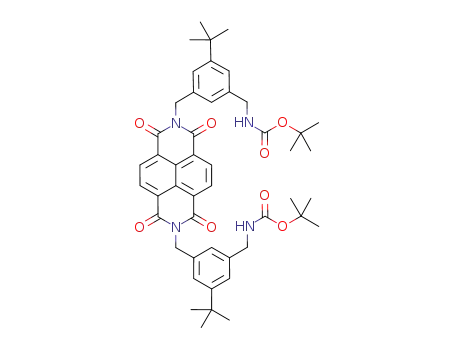

chromophore.22 However, the synthesis described here is
ideally suited for the assembly of cyclophanes consisting of
two differently functionalized NDI subunits. Through steri-
cally demanding core substituents the intramolecular spatial
arrangement of both chromophores of the cyclophane may
become tuneable. Furthermore, the optical properties of both
NDIs can be tailored by these substituents.15
9 F. Jackel, M. D. Watson, K. Mullen and J. P. Rabe, Phys. Rev. B:
¨
Condens. Matter Mater. Phys., 2006, 73, 045423.
¨
In conclusion, the design, synthesis and characterization of
a new rigid NDI cyclophane are reported. Its immobilization
and self-assembly on Au(111) are discussed. The cyclophane is
perfectly sublimable and self-assembles to ordered patterns
driven by hydrogen bonds. Moreover the molecules adopt a
staged configuration on the surface with one chromophore
over the other. This system may be regarded as a model for the
design of separated platforms. Related cyclophane structures
are currently under investigation. Such systems are of great
interest for single molecule fluorescence studies using STM.
The authors from Basel acknowledge the support of the
Swiss National Center of Competence in Research ‘‘Nanoscale
Science’’ and of the Swiss National Science Foundation. The
authors from Kiel acknowledge support through SFB 677.
10 M. D. Watson, F. Jackel, N. Severin, J. P. Rabe and K. Mullen, J.
¨
¨
Am. Chem. Soc., 2004, 126, 1402.
11 R. E. Palmer and Q. Guo, Phys. Chem. Chem. Phys., 2002, 4, 4275.
12 J. V. Barth, Annu. Rev. Phys. Chem., 2007, 58, 375.
13 (a) H. Kuhn, Pure Appl. Chem., 1965, 11, 345; (b) K. H. Drexhage, M.
Fleck, F. P. Schafer and W. Sperling, Ber. Bunsen-Ges. Phys. Chem.,
¨
1966, 72, 1179; (c) X. H. Qiu, G. V. Nazin and W. Ho, Science, 2003,
299, 542; (d) Z.-C. Dong, X.-L. Guo, A. S. Trifonov, P. S. Dorozhkin,
K. Miki, K. Kimura, S. Yokoyama and S. Mashiko, Phys. Rev. Lett.,
´
2004, 92, 086801; (e) E. Cavar, M.-C. Blum, M. Pivetta, F. Patthey, M.
¨
Chergui and W.-D. Schneider, Phys. Rev. Lett., 2005, 95, 196102.
14 (a) R. Berndt, R. Gaisch, J. K. Gimzewski, B. Reihl, R. R.
Schlittler, W.-D. Schneider and M. Tschudy, Science, 1993, 262,
1425; (b) G. Hoffmann, L. Libioulle and R. Berndt, Phys. Rev. B:
Condens. Matter Mater. Phys., 2002, 65, 212107.
15 (a) F. Wurthner, S. Ahmed, C. Thalacker and T. Debaerdemaeker,
¨
Chem.–Eur. J., 2002, 8, 4742; (b) A. B"aszczyk, M. Fischer, C. von
Hanisch and M. Mayor, Helv. Chim. Acta, 2006, 89, 1986.
¨
16 P. Pengo, G. D. Pantos, S. Otto and J. K. Sanders, J. Org. Chem.,
2006, 71, 7063.
17 Further details concerning both X-ray structures of 1 are available
in the electronic supporting information.
18 (a) J. J. Reczek, K. R. Villazor, V. Lynch, T. M. Swager and B. L.
Iverson, J. Am. Chem. Soc., 2006, 128, 7995; (b) G. Kaiser, T.
Jarrosson, S. Otto, Y.-F. Ng, A. D. Bond and J. K. M. Sanders,
Angew. Chem., Int. Ed., 2004, 43, 1959; (c) S. Bhosale, A. L. Sisson,
Notes and references
z Crystal data and structure refinement for 1-CH2Cl2 and 1-xylene: The
crystals were measured on a Nonius KappaCCD diffractometer at 173 K
using graphite-monochromated Mo Ka-radiation with l ¼ 0.71073 A. 1-
CH2Cl2 formula C53H42Cl2N4O8, M ¼ 933.84, F(000) ¼ 972, colourless
3
ꢀ
plate, size 0.09 ꢃ 0.14 ꢃ 0.30 mm , triclinic, space group P1, Z ¼ 2, a ¼
P. Talukdar, A. Furstenberg, N. Banerji, E. Vauthey, G. Bollot, J.
¨
¨
Mareda, C. Roger, F. Wurthner, N. Sakai and S. Matile, Science,
2006, 313, 84.
11.2478(2) A, b ¼ 13.9007(2) A, c ¼ 14.9298(3) A, a ¼ 90.3583(11)1, b ¼
¨
110.9346(11)1, g ¼ 90.1421(12)1, V ¼ 2180.15(7) A3, Dcalc. ¼ 1.422 Mg mꢁ3
.
Minimal/maximal transmission 0.97/0.98, m ¼ 0.214 mmꢁ1. The COLLECT
suite has been used for data collection and integration. From a total of
20 283 reflections (Ymax ¼ 27.8711), 10 386 were independent (merging r ¼
0.041). From these, 6267 were considered as observed (I 4 1.0s(I)) and were
used to refine 622 parameters. The structure was solved by direct methods
using the program SIR92. Least-squares refinement against F was carried
out on all non-hydrogen atoms using the program CRYSTALS. R ¼ 0.0662
(observed data), wR ¼ 0.1089 (all data), GOF ¼ 1.1417. Minimal/maximal
residual electron density ¼ ꢁ1.09/0.43 e Aꢁ3. Chebychev polynomial
weights were used to complete the refinement. Plots were produced using
19 Further details concerning the UHV STM experiment together with
additional pictures are displayed in the supporting information: (a)
Experimental set-up and sublimation procedure; (b) STM pictures of
11; (c) Details of STM pictures of 1; (d) Au(111) reconstruction.
20 G. Dan Pantos, P. Pengo and J. K. M. Sanders, Angew. Chem., Int.
Ed., 2007, 46, 194.
21 F. Vonau, D. Aubel, L. Bouteiller, G. Reiter and L. Simon, Phys.
Rev. Lett., 2007, 99, 086103.
22 Principles of Fluorescence Spectroscopy, ed. J. R. Lakowicz,
Springer, New York, 2006, ch. 13, p. 443.
ꢀc
This journal is The Royal Society of Chemistry 2008
2372 | Chem. Commun., 2008, 2370–2372
