Z. Dikmen et al.
Journal of Photochemistry & Photobiology, A: Chemistry 419 (2021) 113456
Au3+ sensing.
DMF was used for all spectral analysis. First, 1 µM HPhTT solution in
DMSO was prepared as a fluorophore stock solution for further UV–vis
titration studies and 0.1 µM HPhTT stock solution was prepared for
fluorescent studies.
Eventhough synthesis of HPhTT molecule has been reported before,
there has not been found a view on the optical and fluorescent sensor
properties of the fluorophore [59,60]. As first reported herein, HPhTT is
a TTz containing small molecule that exhibits a multiple optical
response. Due to HPhTT has many advantage such as one step synthesis,
easy purification, high photo–chemical stability, determination of su-
perior properties of the dye would bring new usage areas such as sen-
sors, bioimaging etc. Here in, we report synthesis and usage of a dye as
multi – responsive fluorescent sensor for the detection of both Au3+ and
Fe3+ cations via fluorescent quenching and piperidine, AcO-, CN– and F-
anions via emission wavelength shifts. This dye also exhibits acid-
ochromic property. TTz unit of this molecule serve as ligand for metal
cations and electron serving cite for protons while phenolic–OH groups
act as anion and base sensitive part of the molecule. As a result of these
multiple stimuli responsive parts of the HPhTT, the dye can be used for
the detection of different kinds of analytes. Herein, for the first time, we
report an optical view of the photoluminescent sensing properties of
HPhTT dye to determine its possible usage areas.
An appropriate amount of corresponding cation and anion salts were
dissolved in DMSO to prepare 10 mM stock solutions of the metal ions. A
quartz cuvette of 10 µM HPhTT solution was titrated by related metal
stock solutions via addition of desired equivalent of cation solutions till a
plateau is reached in the collected spectra. Anion and piperidine titra-
tion studies were carried out as the same method. All measurements
were performed at room temperature.
2.4. Anion selectivity study
In order to determine the selectivity of different anions towards
HPhTT dye in DMSO, UV–vis and fluorescence spectroscopic studies
were carried out by using the tetrabutylammonium (TBA) salts of anions
(TBAX where X = F-, Cl-, I-, Br-, AcO-, CN–, HSO-4 and H2PO-4). Optical
response to titration of the HPhTT with anion salt solutions was also
examined by UV–vis absorption and fluorescent spectra in DMSO.
2. Experimental
2.5. Cation selectivity study
2.1. Materials and instrumentation
Cation selectivity of the HPhTT dye was determined by using metal
salt solutions prepared in DMSO. UV–vis and fluorescence spectra were
recorded to determine its selectivity on various cations. HPhTT dye was
also titrated with the studied cations in DMSO by recording the optical
response via UV–vis and fluorescence spectral analysis. Cations used for
All chemical solvents, reagents, cationic salts and anionic salts were
supplied commercially and used without any further purification. 4-Hy-
droxy benzaldehyde (98%), dithiooxamide (97%), trifluoroacetic acid
(TFA, 99%), hydrochloric acid (HCl, 37%), H3BO3 (99.5%), KOH (85%),
pyridine (ACS Reag.), piperidine (99%), cyclohexanone (CHp, ACS
Reag.) were purchased from Sigma-Aldrich. AgNO3 (99.5%), AlCl3
(99%), ZnCl2 (99%), FeCl3 (99%), SnCl2 (98%), NiCl2 (99.5%), CuCl2
(99%), Hg(NO3)2 (98.5%), CdCl2 (99.9%), dimethyl formamid (DMF,
99.8%), acetonitrille (ACN, 99.8%) and tetrabutylammonium salts
(TBAX): F- (75%, in H2O), Cl- (97%), I- (99%), AcO- (99%), CN– (95%),
HSO-4 (97%), H2PO-4 (99%) were purchased from Sigma-Aldrich.
KAuCl4.3H2O (98%) and TBABr (99%) were purchased from Acros Or-
ganics. MgCl2 (99%), Hg2(NO3)2 (98%), CoCl2 (98%), HCl (37%) were
purchased from Merck. Acetic acid (AcOH, 100%), KH2PO4 (99%) was
supplied from Reidel-de Haen. Dichloromethane (DCM, 99.9%), dime-
thylsulfoxide (DMSO, 99.9%) were supplied from Carlo Erba and
tetrahydrofuran (THF, 99.9%) was from Honeywell. 1H NMR spectrum
was recorded with Jeol ECZ 500R spectrometer at 80 ◦C. UV–vis spectra
were recorded on Perkin-Elmer Lambda 35. Photoluminescence (PL)
spectra were recorded with Perkin-Elmer LS-55 spectrophotometer in
the solid state by using a permeable filter due to high fluorescent in-
tensities of samples.
all of the measurements were obtained as chloride or nitrate salts (Au3+
Ag+, Al3+, Zn2+, Fe3+, Mg2+, Sn2+, Ni2+, Cu2+, Hg2+, Hg+, Cd2+, Co2+
Fe3+) and their solvents were prepared in DMSO.
,
,
2.6. Acidochromic property of the HPhTT
UV–vis and fluorescence spectra of HPhTT solutions in different pH
buffer and acid-base solutions (pH = 1, 3, 5, 7, 9, 11, 12, 13) were
recorded to show the acidochromic behaviour. Buffer solutions of
AcOH/AcOK for pH = 5; KH2PO4/ K2HPO4 for pH = 7; H3BO3/KH2BO3
for pH = 9 were used for the experiments. Buffer solutions were pre-
pared with procedures well described by using Perrin’s desciription
[62]. HPhTT solution in piperidine was also examined to observe the
effect of an organic base.
3. Results and discussions
A fluorescence sensor was designed to generate signal changes

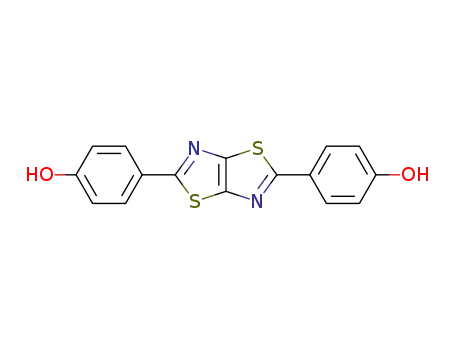

resulting from substrate interaction with the thiazolo-thiazole core
conjugated to phenolic –OH. The design of such thiazole based dye is
important because of the relatively more sensitive fluorescent switches
and electron or charge transfer (CT) of the TTz core. This fluorescence
sensor acts as donor–acceptor-donor (D-A-D) type sensor consisting
para-substituted phenols as donors (D) and TTz chromophore as
acceptor (A), thus, this structure significantly affects the switching
process, absorption and emission wavelengths. The synthesized fluo-
rescence sensor is a thiazolo-thiazole dye substituted symmetrically with
the receptor sensitive to analytes on the chromophore part. TTz based
sensor dye that is containing cation–acid sensitive part composing from
thiazolo-thiazole bicyclic ring, and anion–base sensitive phenolic–OH
part was designed and examined towards various analytes to exhibit its
multiresponsive properties. The sensitivity to the cationic analyte is
based on the nitrogen atoms of the TTz groups while the phenol groups
act as receptors. In order to test the possible applications of TTz chro-
mophoric derivatives having strong and analytically valuable effects on
the absorption and emission behaviour, the photophysical changes of
HPhTT dye were examined as a fluorescence sensor upon various anion
interaction and complexation of various metal cations in DMSO. TTz
2.2. Synthesis
HPhTT dye was synthesized according to the literature by modifi-
cations [60,61]. A solution prepared with 4-hydroxybenzaldehyde
(120.0 mmol, 15.0 g) and dithiooxamide (41.6 mmol, 5.0 g) was
refluxed in 10 mL pyridine for 5 h. The mixture was then cooled to room
temperature and precipitated with ethanol. HPhTT compound was
filtered and recrystallized in cyclohexanone as yellow needle like crys-
tals (yield: 74%). HPhTT product was characterized with 1H NMR in
DMSO‑d6: d = 10.16 ppm (–OH), 7.79–6.88 (8H-m, 3J = 9.00 Hz)
(Fig. S1).
2.3. Photophysical characterization and titrations of HPhTT
The photophysical properties of HPhTT solutions were determined
via UV–vis and fluorescent spectroscopies in four different solvents
(THF, DMF, DMSO, CHp) having different polarities. It is also worth to
mention that the solvents to study were very limited because of solu-
bility limitation of the HPhTT. Due to the better solubility in DMSO,
2
