Structural Characterization and Self-Association of
(Arylimido)vanadium(V) Triisopropoxides
Toshiyuki Moriuchi,* Kenta Ishino, Tomohiko Beppu, Masafumi Nishina, and Toshikazu Hirao*
Department of Applied Chemistry, Graduate School of Engineering, Osaka UniVersity,
Yamada-oka, Suita, Osaka 565-0871, Japan
Received March 24, 2008
(Arylimido)vanadium(V) triisopropoxides, [(p-RC6H4N)V(OiPr)3] (R ) NMe2, OMe, H, CN, NO2, Br), were prepared
by the reaction of VO(OiPr)3 with the aryl isocyanates without solvent. The structures of the (arylimido)vanadium(V)
triisopropoxides were characterized by single-crystal X-ray structure determination to elucidate the substituent effect
on the self-association properties. Controlled association of the (arylimido)vanadium(V) triisopropoxides to the µ-oxo-
bridged dimer complexes or the µ-imido-bridged dinuclear complex was achieved by changing the p-substituent on
the benzene rings, which regulates the nature of the imido bonds. Furthermore, the one-dimensional linear polymer
complex or the one-dimensional zigzag one through µ-oxo-bridging was formed in a solid state with the bimetallic
(arylimido)vanadium(V) complex, [(iPrO)3V(N-p-C6H4N)V(OiPr)3] or [(iPrO)3V(N-m-C6H4N)V(OiPr)3], respectively.
Introduction
On the other hand, only few examples for the preparation
of µ-imido-brigded vanadium(IV) complexes, cyclodivana-
dazenes, from (imido)vanadium(V) complexes have been
reported4a,d-f although the imido nitrogen is considered to
participate in the coordination to another metal center. A
substituent of the imido ligand is expected to influence the
properties of the imido bond sterically and electronically.
We herein report the structural characterization and self-
association of (arylimido)vanadium(V) triisopropoxides de-
pending on the p-substituents of the benzene rings.
Architectural control of transition metal-directed assembly
is one of the current research areas to create organized
nanostructures for advanced materials.1 Imido ligands are
recognized as a particularly suitable ligand for stabilization
of transition metal complexes in high oxidation states through
extensive ligand-to-metal π donation.2 (Imido)vanadium(V)
complexes have attracted much attention3,4 because of their
potential applications as catalysts for olefin polymerization,5
C-H activation,6 and other related reactions.7 (Imido)vana-
dium(V) complexes with alkoxide ligands are known to
dimerize through µ-oxo-bridging in the crystal structures.3e,m
(3) (a) Preuss, F.; Towae, W. Z. Naturforsch., B 1981, 36, 1130–1135. (b)
Preuss, F.; Towae, W.; Kruppa, V.; Fuchslocher, E. Z. Naturforsch., B
1984, 39, 1510–1517. (c) Maatta, E. A. Inorg. Chem. 1984, 23, 2560–
2561. (d) Preuss, F.; Becker, H.; Ha¨usler, H.-J. Z. Naturforsch., B 1987,
42, 881–888. (e) Devore, D. D.; Lichtenhan, J. D.; Takusagawa, F.;
Maatta, E. A. J. Am. Chem. Soc. 1987, 109, 7408–7416. (f) Carofiglio,
T.; Floriani, C.; Chiesi-Villa, A.; Guastini, C. Inorg. Chem. 1989, 28,
4417–4419. (g) Plass, W.; Verkade, J. G. Inorg. Chem. 1993, 32, 3762–
3765. (h) Hill, P. L.; Yap, G. P. A.; Rheingold, A. L.; Maatta, E. A.
J. Chem. Soc., Chem. Commun. 1995, 737–738. (i) Fickes, M. G.; Davis,
W. M.; Cummins, C. C. J. Am. Chem. Soc. 1995, 117, 6384–6385. (j)
Duan, Z.; Schmidt, M.; Young, V. G., Jr.; Xie, X.; McCarley, R. E.;
Verkade, J. G. J. Am. Chem. Soc. 1996, 118, 5302–5303. (k) Murphy,
V. J.; Turner, H. Organometallics 1997, 16, 2495–2497. (l) Witte, P. T.;
Meetsma, A.; Hessen, B. J. Am. Chem. Soc. 1997, 119, 10561–10562.
(m) Lutz, M.; Hagen, H.; Schreurs, A. M. M.; Spek, A. L.; van Koten,
G. Acta Crystallogr. 1999, C55, 1636–1639. (n) Montilla, F.; Pastor,
A.; Monge, A.; Gutie´rrez-Puebla, E.; Galindo, A. J. Chem. Soc., Dalton
Trans. 1999, 2893–2896. (o) Billen, M.; Hornung, G.; Preuss, F. Z.
Naturforsch., B 2003, 58, 975–989. (p) Yamada, J.; Nomura, K.
Organometallics 2005, 24, 3621–3623. (q) Du¨rr, S.; Bechlars, B.;
Radius, U. Inorg. Chim. Acta 2006, 359, 4215–4226.
* To whom correspondence should be addressed. E-mail: moriuchi@
chem.eng.osaka-u.ac.jp (T.M.), hirao@chem.eng.osaka-u.ac.jp (T.H.). Tel:
+81-6-6879-7413. Fax: +81-6-6879-7415.
(1) For reviews on this subject after 2000, see (a) Leininger, S.; Olenyuk,
B.; Stang, P. J. Chem. ReV. 2000, 100, 853–908. (b) Ziessel, R. Coord.
Chem. ReV. 2001, 216-217, 195–223. (c) Sun, S.-S.; Lees, A. J. Coord.
Chem. ReV. 2002, 230, 171–192. (d) Sun, W.-Y.; Yoshizawa, M.;
Kusukawa, T.; Fujita, M. Curr. Opin. Chem. Biol. 2002, 6, 757–764.
(e) Bu¨nzli, J.-C. G.; Piguet, C. Chem. ReV. 2002, 102, 1897–1928. (f)
Wu¨rthner, F.; You, C.-C.; Saha-Mo¨ller, C. R. Chem. Soc. ReV. 2004,
33, 133–146. (g) Kobuke, Y. Eur. J. Inorg. Chem. 2006, 233, 3–2351.
(h) Tanase, S.; Reedijk, J. Coord. Chem. ReV. 2006, 250, 2501–2510.
(i) Kleij, A. W.; Reek, J. N. H. Chem. Eur. J. 2006, 12, 4218–4227. (j)
Pitt, M. A.; Johnson, D. W. Chem. Soc. ReV. 2007, 36, 1441–1453. (k)
Cookson, J.; Beer, P. D. Dalton Trans. 2007, 1459–1472.
(2) (a) Wigley, D. E. In Prog. Inorg. Chem.; Karlin, K. D., Ed.; Wiley-
Interscience: New York, 1994; Vol. 42, pp 239-482. (b) Nugent, W. A.;
Mayer, J. M. Metal-Ligand Multiple Bonds; Wiley-Interscience: New
York, 1998.
7638 Inorganic Chemistry, Vol. 47, No. 17, 2008
10.1021/ic800528m CCC: $40.75  2008 American Chemical Society
Published on Web 08/06/2008

(Arylimido)Wanadium(V) Triisopropoxides
Results and Discussion
The (arylimido)vanadium(V) triisopropoxides bearing the
electron-withdrawing para-substituents are not always ob-
tained in good yields by general methods using a solvent.
To overcome this problem, a synthetic approach to (arylimi-
do)vanadium complexes was modified. The reaction of
VO(OiPr)3 with various para-substituted aryl isocyanates
without solvent at 140 °C was performed to afford the
corresponding (arylimido)vanadium(V) triisopropoxides, [(p-
RC6H4N)V(OiPr)3] (1: R ) NMe2, 88%; 2: R ) OMe, 87%;
3: R ) H, 72%; 4: R ) CN, 87%; 5: R ) NO2, 61%). By
using this synthetic approach, (arylimido)vanadium(V) tri-
isopropoxides were found to be obtained with ease in good
yields. In the 1H NMR spectra of the (arylimido)vanadium(V)
triisopropoxides, the aryl protons exhibited downfield shift
as compared with the corresponding anulines, probably
because of the electron-withdrawing nature of the imido bond
(1: 7.12 and 6.47 ppm, N,N-dimethyl-p-phenylenediamine:
6.66-6.59 ppm; 2: 7.15 and 6.72 ppm, p-anisidine: 6.71 and
6.62 ppm; 3: 7.24, 7.17, and 7.05 ppm, aniline: 7.13, 6.73
and 6.67 ppm; 4: 7.55 and 7.18 ppm, p-cyanoaniline: 7.42
and 6.66 ppm; 5: 8.12 and 7.21 ppm, p-nitroaniline: 8.04
and 6.65 ppm;).
The structural elucidation of the (arylimido)vanadium(V)
triisopropoxides was performed by the single-crystal X-ray
structure determination (Figure 1 and Table 1). The selected
bond lengths and angles are listed in Tables 2 and 3,
respectively. The solid state imido structure of 2 bearing the
electron-donating methoxy group was characterized by the
V(1)-N(1) distance of 1.677(2) Å and the nearly linear
V(1)-N(1)-C(1) angle of 177.3(2)°, suggesting the greater
participation of an sp-hybridized character in the nitrogen
of the imido bond. Furthermore, a dimeric structure, in which
each vanadium atom is coordinated in a trigonal-bipyramidal
geometry (τ ) 0.96)8 with the imido and bridging isopro-
poxide ligands in the apical positions, was observed in the
crystal packing (Figure 1b and Table 4). The V(1)-V(1*)
internuclear distance of 3.30 Å indicates the absence of any
bonding interaction between the vanadiums. The axial
V(1)-O(1*) bond is 0.40 Å longer than the equatorial
V(1)-O(1) bond in the bridging isopropoxy group. The long
axial V-O distance trans to the imido ligand suggests the
weaker coordination.

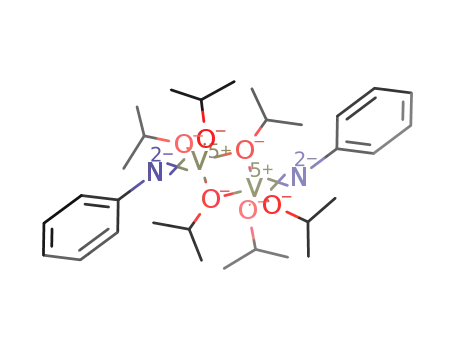

The dimer complexes were also formed in the case of 1
bearing the electron-donating dimethylamino group and the
nonsubstituted complex 3 in the crystals (Figure 1a and 1c,
respectively). Linearity of the imido angles slightly decreased
(1: V(1)-N(1)-C(1), 174.3(3)°; 3: V(1)-N(1)-C(1), 175.1(1)
and 175.6(1)°) although the V(1)-N(1) distance (1.678(3)
Å for 1, 1.673(1) and 1.674(1) Å for 3) equals the one
observed with 2. In these (arylimido)vanadium(V) triisopro-
poxides, the greater participation of an sp-hybridized char-
acter in the nitrogen of the imido bond is suggested, resulting
in the formation of the µ-oxo-bridged dimer complexes. The
molecular structure of 4 bearing the electron-withdrawing
