Article
Exploring the Anti-Cancer Mechanism of Novel
3,40-Substituted Diaryl Guanidinium Derivatives
Viola Previtali 1 , Helene B. Mihigo 1, Rebecca Amet 2, Anthony M. McElligott 3
,
Daniela M. Zisterer 2 and Isabel Rozas 1,
*
1
School of Chemistry, Trinity Biomedical Sciences Institute (TBSI), Trinity College Dublin (TCD),
152-160 Pearse Street, D02R590 Dublin 2, Ireland; Viola.Previtali@iit.it (V.P.); mihigoh@tcd.ie (H.B.M.)
School of Biochemistry and Immunology, Trinity Biomedical Sciences Institute (TBSI), Trinity College
Dublin (TCD), 152-160 Pearse Street, D02R590 Dublin 2, Ireland; ametr@tcd.ie (R.A.); dzistrer@tcd.ie (D.M.Z.)
Trinity Translational Medicine Institute, Trinity College and St James’s Hospital, D02R590 Dublin 8, Ireland;
Tony.McElligott@tcd.ie
2
3
*
Correspondence: rozasi@tcd.ie
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Received: 16 November 2020; Accepted: 16 December 2020; Published: 21 December 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: We previously identified a guanidinium-based lead compound that inhibited BRAF through
a hypothetic type-III allosteric mechanism. Considering the pharmacophore identified in this lead
compound (i.e., “lipophilic group”, “di-substituted guanidine”, “phenylguanidine polar end”),
several modifications were investigated to improve its cytotoxicity in different cancer cell lines.
Thus, several lipophilic groups were explored, the di-substituted guanidine was replaced by a secondary
amine and the phenyl ring in the polar end was substituted by a pyridine. In a structure-based
design approach, four representative derivatives were docked into an in-house model of an active
triphosphate-containing BRAF protein, and the interactions established were analysed. Based on these
computational studies, a variety of derivatives was synthesized, and their predicted drug-like
properties calculated. Next, the effect on cell viability of these compounds was assessed in cell line
models of promyelocytic leukaemia and breast, cervical and colorectal carcinomas. The potential of
a selection of these compounds as apoptotic agents was assessed by screening in the promyelocytic
leukaemia cell line HL-60. The toxicity against non-tumorigenic epithelial MCF10A cells was
also investigated. These studies allowed for several structure-activity relationships to be derived.
Investigations on the mechanism of action of representative compounds suggest a divergent effect on
inhibition of the MAPK/ERK signalling pathway.
Keywords:3,40-bis-guanidino; 3-amino-40-guanidino; diphenylether; phenylpyridylether; intramolecular
hydrogen bond; cancer cell viability; HL-60; BRAF; apoptosis
1. Introduction
Various interlinked signalling pathways are involved in cell proliferation, apoptosis or survival,
and these processes are even more relevant in the case of tumour formation [
in one of these signalling pathways, the Ras/RAF/MEK/ERK (MAPK/ERK) pathway, are observed
frequently in many cancers [ ]. Additionally, since mutations in RAF kinases are common events,
1]. Oncogenic mutations
2,3
these kinases (i.e., ARAF, BRAF and CRAF) have become very interesting therapeutic targets [4,5].
Most of the protein kinase inhibitors developed so far are ATP competitive and, based on the
conformation of the protein kinase they bind to, have been broadly classified as type I (bind to the
α
C-helix-IN/DFG-IN conformation), type II (bind to the
I/II (bind to the C-helix-OUT/DFG-IN conformation) [
known as type III protein kinase inhibitors, which do not compete with ATP. These inhibitors tend
α
C-helix-IN/DFG-OUT conformation), or type
α
6]. In addition, there are allosteric inhibitors,
Pharmaceuticals 2020, 13, 485; doi:10.3390/ph13120485
www.mdpi.com/journal/pharmaceuticals

Pharmaceuticals 2020, 13, 485
2 of 24
to exhibit the highest degree of kinase selectivity because they exploit binding sites and regulatory
mechanisms unique to particular kinases [7].
Previously, we had identified a 3,40-bis-guanidinium diphenyl derivative (
1
, Figure 1) that
demonstrated strong cytotoxicity, mediated through induction of apoptosis, in colorectal cancer cells
containing wild type(wt)-BRAF and mutated V600EBRAF [
]. Compound also inhibited ERK1/2
signalling, EGFR activation, as well as Src, STAT3 and Akt phosphorylation. We also showed that
did not inhibit ATP binding to BRAF, but a radiometric assay of BRAF activity indicated that this was
inhibited in vitro. From these studies, we hypothesised that could inhibit BRAF as a type III inhibitor.
We propose that the positively charged guanidines present in compound could interact with the
8,
9
1
1
1
1
negatively charged phosphates of the ATP present in the active state of all kinases [10].
Figure 1. Structural modifications proposed for the optimization of the compound 1.
Considering that only very recently a crystal structure of a BRAF protein kinase in complex
with an ATP analogue (AMP-PCP) and MEK has been resolved (PDB 6U2G) [11], we had previously
constructed a model that reproduced an active form of this kinase including ATP to model potential
type III inhibitors [12].This in-house model allowed us to explore the potential allosteric inhibition
through ATP binding of compound 1 and it was considered a good target model for structure-based
design when no crystallographic data was available.
Accordingly, in this article, we first present a computational study of a series of guanidine-based
di-aromatic systems representative of all the compounds proposed with a simplified version of our
in-house active BRAF model to explore their potential as type-III allosteric inhibitors. Additionally,
we describe the preparation of the compounds proposed and the study of the anti-proliferative and
pro-apoptotic activity on cancerous cell lines as well as their effect on the MAPK/ERK signalling pathway.
2. Results
Considering the structure of compound
1 (“link” -blue box-, “polar moiety” -red box- and
“hydrophobic moiety” -green box-; see Figure 1), we explored a number of modifications in the
different moieties, while maintaining the diaryl ether core due to its versatility and suitability for
synthesis. First, several “hydrophobic” substituents have been considered (green box in Figure 1),
since in our previously reported computational model [12], this section of the molecule seems to
interact with a hydrophobic pocket. Next, based on previous computational studies [9], the effect of
the length of the molecule on its activity has been studied by replacing the disubstituted guanidinium
in the “link” by a secondary amine (blue box in Figure 1). Additionally, we explored the effect of
substituting one of the phenyl rings by a pyridine to lock the orientation of the guanidinium by means
of intramolecular hydrogen bonds (IMHBs) [13]. Finally, in the “polar” region, different guanidine
surrogates (i.e., isourea and sulfamide) have been tested (red box in Figure 1).

Pharmaceuticals 2020, 13, 485
3 of 24
2.1. Molecular Modelling Studies
We had previously reported the docking of compound
1
into our in-house ATP-containing BRAF
model [12]; here, we are using a simplified model containing triphosphate (TP) instead of ATP since
the interactions of interest only occur with the phosphates and adjacent hydrophobic pocket. Thus,
in order to validate our TP-containing BRAF model, we first docked compound
1 (Figure 1) and
considering that similar outcomes were observed, we used the TP-containing structure and similar
conditions for the rest of the computational studies. Accordingly, a set of representative structures
of all the compounds proposed were selected; compound
ring as it was in compound , in compound the di-substituted guanidine of
secondary amine and compound 4 shows both modifications (Figure 2).
2
contains a pyridine instead of a phenyl
1
3
1 has been changed to a
Figure 2. Structures of the proposed new derivatives of 1 (compounds 2, 3 and 4), which docking to
the in-house triphosphate (TP)-containing BRAF simplified model was studied.
As in our previous modelling studies [12], we found that compound
1
interacts with BRAF
through an allosteric region found near the ATP binding site and with the TP system. The main
interactions established involved bifurcated hydrogen bonds (HBs) between the mono-substituted
guanidinium and two negatively charged O atoms of a phosphate (NH . . . O distances: 1.6, 2.9 and
2.7 Å, Figure S1) and a parallel HB interaction between the di-substituted guanidinium and the
carboxylate of Glu648 (NH . . . O distances: of 2.0 and 2.6 Å, Figure S1). Both sets of HBs are reinforced
by ionic interactions due to the charged nature of guanidinium, phosphate and carboxylate groups.
Additionally, interactions are observed in the lipophilic pocket with the (4-Cl,3-CF3)Ph moiety; thus,
the CF3 group interacts with Met620 and the Cl with Trp619 (Figure S1).
Likewise, when derivative
2 is docked into the TP-BRAF simplified model, it forms ionically
reinforced bifurcated HBs between the mono-substituted guanidinium and two negatively charged O
atoms of TP (Figure 3). Likewise, a bifurcated HB interaction between the di-substituted guanidinium
and Glu648 and van der Waals contacts at the lipophilic pocket with the (4-Cl,3-CF3)Ph moiety were
also found for compound 2 (Figure 3). The newly introduced pyridine seems to form a HB with Asn137
as well as an IMHB that locks the mono-substituted guanidinium (Figure 3). This conformational
restriction could result in increased affinity.
Replacement of the di-substituted guanidine by an -NH- leads to a significantly shorter molecule
as in system
3
(Figure 2). Upon docking to the TP-containing simplified BRAF, we observed that the
also fits within
mono-substituted guanidinium still forms the expected bifurcated HBs. Compound
3
the hydrophobic pocket of the target establishing weaker contacts (longer interaction distances) with
Met620 and Trp619. Additionally, the newly introduced -NH- group forms a HB with one of the O
atoms of Glu648 (Figure S2).
Finally, the docking study of compound
results observed for the mono-substituted guanidinium pyridine system in analogue
bifurcated HBs with the TP, IMHB between guanidinium and pyridine as well as contacts between the
4
(Figure 2) into the aforementioned target reproduce the
2
by establishing

Pharmaceuticals 2020, 13, 485
4 of 24
pyridine N and Asn137. Additionally, as the -NH- shortens the structure, similar interactions to those
seen for compound are observed, i.e., the -NH- group forms a HB with Glu648 and contacts within
the hydrophobic pocket are found (Figure S3).
3
Figure 3. Docking of derivative 2 in the TP-containing BRAF simplified model indicating the bifurcated
(up left, bottom left and right) and single (up right) hydrogen bond (HB) interactions observed.
Distances are expressed in Å.
All this work was carried out prior to the recent publication of the crystal structure of BRAF
containing an analogue of ATP (AMP-PCP) [11], and in order to validate our in-house BRAF-ATP
model [12] we now superimposed both the reported crystal structure with our model finding an RMSD
of 2.53 Å between them and with both ATP-like systems occupying the same pocket and with very
similar orientations (Figures S4 and S5). This level of similarity gives us confidence on the docking
studies performed with our BRAF-TP model.
The G-scores obtained for the best-poses obtained were very similar for the four compounds
studied (around 7.7 kcal/mol); hence, the interaction with the target was favoured in all the cases
−
but did not help to discriminate among the four compounds. In summary, according to the docking
studies all the compounds proposed seem to establish favourable interactions with BRAF, suggesting a
possible type III allosteric binding.
2.2. Synthesis
The synthesis of the analogues of compound
preparation of the corresponding N-aryl-N’-Boc-protected thioureas (12
previously developed in the group starting from N,N’-bis-(tert-butoxycarbonyl)thiourea 17 (Scheme 1) [
Given the diverse electron-withdrawing effect of differently substituted commercially available
anilines, different yields of the corresponding thioureas 12 16 were obtained (37–57%, see details
1
, 3,40-bis-guanidino diphenyl ethers
16) following a procedure
].
5–11, required the
–
8
–
in ESI). The corresponding Boc-protected mono-guanidines 18 and 19 were prepared by reaction
of commercially available 3,40-dianiline ether 20 and N,N’-bis-(tert-butoxycarbonyl)thiourea 17 in
the presence of HgCl2 and NEt3 yielding 18 and 19 as a mixture that was separated by column
chromatography in good and moderate yields (Scheme 1) [14].
Next, the N-aryl-N’-Boc-protected thioureas 12–16 were reacted with 18 or 19 under our standard
conditions (HgCl2 and NEt3) to yield the corresponding Boc-protected 3-arylguanidino-40-guanidino
(21–25) and 3-guanidino-40-arylguanidino (26–27) diphenyl ether derivatives (Scheme 1).
In order to prepare compound 3 and its analogues 28–30, the nitrophenyl precursor 31 was
synthesised by a SNAr reaction between commercially available 3-aminophenol and 1-fluoro-4-
nitrobenzene [15]. Compounds 32–35 were synthesized using a Buchwald–Hartwig cross-coupling;

Pharmaceuticals 2020, 13, 485
5 of 24
the success of this reaction depends on variables such as ligand, Pd source, base and solvent [16].
The conditions chosen (Pd2(dba)3 3 mol%, BINAP 3 mol%, NaOtBu 1.4 eq. in dry toluene (2 mL mmol−1
at 90 ◦C) afforded the proposed compounds 32–35 in high yields (62–87%, Scheme 2).
)
Scheme 1. Preparation of mono-substituted 3,4’-bis-guanidinium diphenyl ether derivatives.
With the intention of probing the effect of branching in the diphenyl ether core, we prepared the
fluoro derivative 36 for which we synthesised precursor 37 by using commercially available 3-bromo
-5-fluorophenol that in the presence of K2CO3 and DMF quantitatively reacted with 4-fluoronitrobenzene.
Then, 37 was used for the Buchwald–Hartwig coupling with 4-chloro-3-(trifluoromethyl)aniline to
afford compound 38 in good yield (Scheme 2).
Precursors 32–35 and 38 were then subjected to selective reduction of the nitro group to the amine
that will serve as handle for the introduction of the guanidine moiety. Nitro reduction of compounds 34
and 35 was achieved using catalytic hydrogenation (H2, Pd/C 10 mol%) yielding aniline derivatives 41
and 42; however, in the case of chloro-derivatives 32
,
33, and 38, selective reduction was achieved with
40, and 43 17]. Utilising our
the use of tin(II) chloride dihydrate (SnCl2 2H2O) to produce anilines 39
·
,
[
standard conditions, a guanidine moiety was introduced affording Boc-protected mono-guanidines
44–48 (Scheme 2).
In order to prepare the 3,40-bis-guanidino phenyloxypyridines
2, 4, and 49–52, the starting 5-(3-

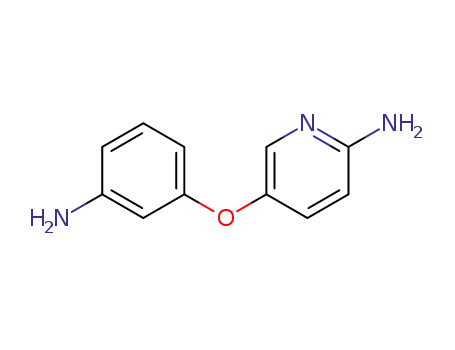

aminophenoxy)pyridin-2-amine (53) was synthesized. Thus, SNAr between 5-bromo-2-nitropyridine
and 3-nitrophenol yielded the previously reported mixture of isomers (54 and 55) [18], which were

Pharmaceuticals 2020, 13, 485
6 of 24
separated by chromatography. Further hydrogenation of 54 gave the desired product 53 in good yield
(Scheme 3) [15,19].
H
F
X
O
N
O
(iv) or (v)
(ii) or (iii)
(i)
R'
NO2
NO2
NO2
R
R
31, X= NH2, R= H (60%)
37, X= Br, R= F (99%)
32-35, R= H (62 - 87%)
38, R= F, R'= (3-CF3, 4-Cl)Ph 65%
HCl
NH
H
H
H
N
O
N
O
N
O
(vi)
NH2
(vii)
R'
R'
NBoc
NHBoc
R'
N
N
NH2
H
H
R
R
R
28, R= H, R'= (4-Cl)Ph (99%)
39-42, R= H (60 - 99%)
43, R= F, R'= (3-CF3, 4-Cl)Ph (70%)
44-48 (70 - 86%)
3, R= H, R'= (3-CF3, 4-Cl)Ph (80%)
29, R= H, R'= (3-CF3)Ph (90%)
30, R= H, R'= (3-SF5)Ph (62%)
36, R= F, R'= (3-CF3, 4-Cl)Ph (92%)
Conditions: (i) 3-Aminophenol or, for 37, 3-bromo-5-fluorophenol, K2CO3, DMF, 80 °C, 12 h; (ii) R-Br,
Pd2(dba)3, BINAP, NaOtBu, toluene, 90 °C, 24 h; (iii) for 38, 4-chloro-3-(trifluoromethyl)aniline, Pd2(dba)3,
BINAP, NaOtBu, toluene, 90 °C 24 h; (iv) H2, Pd/C, EtOH, rt, 24 h; (v) SnCl2.2H2O, EtOAc, 70 °C, 3 h; (vi)
N,N’-bis-(tert-butoxycarbonyl)-S-methylisothiourea, HgCl2, NEt3, CH2Cl2, 0 °C to rt; (vii) 0.2M
HCl/dioxane, 55 °C, 8 h.
Scheme 2. Preparation of 3-amino,4’-guanidine diphenyl ether derivatives.
Scheme 3. Preparation of 3,4’-bis-guanidine pehylpyridyl ether derivatives.

Pharmaceuticals 2020, 13, 485
7 of 24
Compound 53 was then reacted with Boc-protected thioureas 12
–16, under our standard conditions
to yield Boc-protected mono-guanidines 56–60 [8]. Subsequent guanidylation at position 2 of the
pyridine ring was carried out with commercial N,N’-bis-(tert-butoxycarbonyl)-S-methylisothiourea to
obtain Boc-protected compounds 61–65 (Scheme 3).
Preparation of the corresponding precursors for compound
4 required the synthesis of 3-((6-
nitropyridin-3-yl)oxy)aniline 66 through a SNAr between 5-bromo-2-nitropyridine and 3-aminophenol
(Scheme 4).
Scheme 4. Preparation of 3-amino-4’-guanidine phenylpiridyl ether derivatives.
Preparation of the arylanilino nitropyridine 67 was next attempted following the previous
conditions described for the synthesis of 32
reaction using of Xantphos and Cs2CO3 yielded compound 67 in good yield. Next, SnCl2
reduction conditions afforded compound 68 that was then subjected to guanidylation using
N,N’-bis-(tert-butoxycarbonyl)-S-methylisothiourea to obtain Boc-protected compound 69 (Scheme 4).
–
35 and 38 with poor results. However, Pd-catalysed
2H2O
·
With the aim of introducing diversity to the “polar” moiety of compound 3, we also explored the
substitution of the guanidinium system by an isouronium cation or a sulfamide (Scheme 5). Thus,
preparation of the 3-anilino-4’-O-isourea phenylozybenzene derivative 70 involved the use of the
previously synthesised compound 71 [20] as starting material for the synthesis of the intermediate 72
through the mentioned conditions for a Buchwald–Hartwig coupling (Pd2(dba)3, Xantphos, Cs2CO3,
toluene, 90 ◦C, 24 h).
Compound 72 was then deprotected with montmorillonite KSF to obtain the corresponding
phenol 73, which OH was then amidylated using standard conditions previously described by us [20
]
to yield the corresponding Boc-protected isouronium 74 (Scheme 5). Sulfamide 75 was synthesised by
treating amine 40 with sulfamoyl chloride (previously prepared from chlorosulfonyl isocyanate and
formic acid [21,22]) to afford compound 75 in good yield (Scheme 5).
All Boc-protected precursors were deprotected using HCl 4M/dioxane to yield compounds
2–11, 28–30, 36, 49–52 (Schemes 1–4) and SnCl4 to obtain compound 70. The purity of all the final
hydrochloride salts was determined by HPLC, where a minimum purity of 95% was required before
proceeding to biological testing (ESI).

Pharmaceuticals 2020, 13, 485
8 of 24
Scheme 5. Preparation of 3-amino-4’-isourea and 3-amino-4’-sulfamido diphenyl ether derivatives.
2.3. Predicted Physicochemical and In Vitro ADME Properties
Attention to physicochemical and pharmacokinetic properties of active molecules should be
given at the early stages of their design in order to shorten their development to a drug. However,
these properties are not always easy to be experimentally evaluated and, hence, computational
approaches represent a good solution to get a general idea of the potential of compounds as drugs.
Thus, to assess the drug-likeness of the compounds studied, we utilized SwissADME [23] and
ChemAxon’s Marvin [24] to computationally evaluate the mentioned properties and the calculated
values are reported in Tables S1–S3 (ESI). All proposed compounds have a molecular weight (MW)
<500 Da, except for 3,40-bis-guanidine phenyloxybenzenes
and 52, in which the MW exceeds by 7–10 units this threshold; such small exceptions are considered
acceptable [25]. The consensus logPo/w 23] for all synthesised compounds is reported in Table S2 (ESI)
7, 9, 10 and 11 or phenyloxypyridines 50
[
indicating that, overall, all the compounds have a logP < 5. Topological Polar Surface Area (TPSA),
which is an indicator of HB formation and a commonly used metric for a drug’s ability to permeate
cells, was calculated for all the synthesised molecules and all of them have values <140 Å2, which is
the limit suggested in the literature for poor cell membrane permeation [25–27]. Specifically, shorter
3-amino-40-guanidines have much lower TPSA (80–100 Å2) than 3,40-bis-guanidinium analogues
(120–135 Å2).
The BOILED egg graph presents a correlation between calculated logP and calculated TPSA and
is an intuitive simultaneous prediction of two key ADME parameters, i.e., the passive gastrointestinal
(GI) absorption and brain access (blood brain barrier, BBB) [23,28]. Compounds that fall into the white
part of the graph are likely to undergo GI absorption and those that fall into the yellow part of the
graph are likely to be brain permeant. Accordingly, all of our derivatives could undertake passive GI
absorption (except pentafluorosulfanyl derivative 30 and sulfamide 75), but none of them can cross the
BBB (Figure S6). In addition, SwissADME enables the estimation for a chemical to be a substrate of
the permeability glycoprotein (P-gp), which is the most important ATP-binding cassette transporter
responsible for an active efflux through biological membranes, e.g., from the GI wall to the lumen or
exiting the brain) [28
,29]. Thus, as reported in the legend of Figure S6, red dots indicate that all of our
compounds, except compounds 49–51 (blue dots), are non-substrates of P-gp (Table S3).

Pharmaceuticals 2020, 13, 485
9 of 24
The theoretical pKaH values of all the synthesised compounds calculated with Marvin are reported
in Table S1. The results indicate that exchanging the para mono-substituted guanidinium (compound
by an isouronium moiety (compound 70) results in a pKaH decrease (less basic molecule). Interestingly,
the pyridine derivatives (49 52 and ) show lower pKaH values than their diphenyl counterparts
and , respectively), probably due to the IMHB formed between the para guanidinium and the
pyridine ring.
Solubility is not an easy parameter to model in silico, but SwissADME gives an estimation
3)
–
,
2
4
(6–
9,
1
3
of the solubility class based on three predictors, two topological and one fragmental method [23].
According to this program, all our molecules are poorly soluble in aqueous environments (Table S2).
For the preclinical evaluation of our molecules, their solubility in EtOH/DMSO is still acceptable,
but future work will have to be carried out to achieve full water solubility.
Other numerical descriptors are used to assess drug-likeness including the number of HB acceptors
and donors (HBAs and HBDs) or the number of rotatable bonds (RotB) and the results obtained for this
set of compounds are shown in Table S1 [27]. According to these descriptors, in general, all studied
compounds fulfil drug-like conditions.
2.4. Biochemical Studies
2.4.1. Cell Viability in Cancerous and Non-Cancerous Cell Lines
Cell viability and proliferation assays were used to evaluate the in vitro cytotoxicity of all
synthesised compounds in a variety of different cancer cell lines using the alamarBlue® viability assay
and the results are presented in Tables 1 and 2. The sensitivity of cancer cells to drugs can often be
compromised by PIK3CA, Ras and BRAF mutations. To determine whether such mutations are critical
to the efficacy of our new compounds we tested them in a range of cancerous cell lines expressing
different mutations. Firstly, we used the HL-60 (human promyelocytic leukaemia, NRas mutated) cell
line for general cytotoxicity screening of all compounds. Next, the most active derivatives were studied
in MCF-7 (breast adenocarcinoma, Ras/RAF wild type, and PIK3CA mutant), HeLa (cervical carcinoma,
Ras/RAF and PIK3CA wild type), as well as HCT-116 and HKH-2 (colorectal carcinoma, KRas mutant
and mutated KRas disrupted, respectively) cell lines [
a non-tumorigenic epithelial cell line, was also assessed for one of the most promising compounds
). The graphs representing the viability results with the HL-60, MCF-7, HeLa, HCT-116, and HKH-2
cancer cell lines for compound and derivatives 3, and are shown in Figures S7–S10 (ESI).
8]. Lastly, toxicity against MCF-10A, which is
(4
1
2,
4
Sorafenib (a known inhibitor of protein kinases including VEGFR, PDGFR and RAF [30
as a positive control in all viability assays.
,31]) was used
Table 1. Effect on the viability of HL-60 cells (IC50
sorafenib with alamarBlue® assays.
,
µM) of compounds 1–11, 28–30, 36, 49–52, 70, 75 and
HL-60
IC50 ± SEM
2.53 ± 0.68
9.72 ± 0.9
2.36 ± 0.14
3.08 ± 0.15
3.48 ± 0.28
>100
HL-60
IC50 ± SEM
HL-60
IC50 ± SEM
Compounds.
Compounds.
Compounds.
Sorafenib
8
9
15.26 ±1.98
2.07 ± 0.33
8.85 ± 0.55
10.99 ±0.64
7.50 ± 0.05
4.64 ± 0.83
3.23 ± 0.36
4.07 ± 0.10
49
50
51
52
70
75
11.61 ±0.27
8.33 ± 0.32
9.37 ± 0.54
1.53 ± 0.23
4.22 ± 0.04
9.14 ± 0.69
17
2
3
4
5
10
11
28
29
30
36
6
7
>100
8.63 ± 0.51
(a) Cells were seeded at a density of 2
×
105 cells/mL (HL-60) in a 96-well plate and treated with different
concentrations of the compounds dissolved in EtOH or DMSO (1% v/v and 0.1% v/v, respectively). Sorafenib was
used as a reference and tested in the same manner. Once treated, cells were incubated for 72 h at 37 ◦C after
which they were treated with alamarBlue® and left in darkness in an incubator for 5 h. The resulting fluorescence
(
λexcitation = 544 nm, λemission = 590 nm) was read using a plate reader from which percentage viability was calculated.
IC50 values were calculated using Prism GraphPad Prism software from at least three independent experiments
performed in triplicate. Highlighted in grey are those IC50 values better than or similar to the control used, Sorafenib.

Pharmaceuticals 2020, 13, 485
10 of 24
Table 2. Effect in viability of MCF-7, HeLa, HCT116, and HKH-2 cancer cells (IC50
1–4, 70 and sorafenib on the alamarBlue® assays.
, µM) of compounds
MCF-7
IC50 ± SEM
HeLa
IC50 ± SEM
4.59 ± 0.45
9.48 ± 0.16
4.87 ± 0.27
4.33 ± 0.54
1.33 ± 0.08
HCT116
IC50 ± SEM
6.79 ± 0.18
9.96 ± 0.60
7.29 ± 0.53
15.88 ± 2.73
4.59 ± 0.40
HKH-2
IC50 ± SEM
4.43 ± 0.39
19.18 ± 0.84
8.09 ± 0.78
10.34 ± 0.74
2.88 ± 0.15
Compds.
Sorafenib
3.07 ± 0.10
9.30 ± 1.87
4.91 ± 1.04
2.02 ± 0.27
3.73 ± 0.35
7.32 ± 0.35
1
2
3
4
70
(a) Cells were seeded at a density of 25
×
103 cells/mL (MCF-7 and HeLa) or 1
×
105 cells/mL (HCT-116 and HKH-2)
in a 96-well plate and treated with different concentrations of the compounds dissolved in EtOH or DMSO (1% v/v
and 0.1% v/v, respectively). Sorafenib was used as a reference and tested in the same manner. Once treated, cells were
incubated for 72 h at 37 ◦C after which they were treated with alamarBlue® and left in darkness in an incubator for
5 h. The resulting fluorescence (λexcitation = 544 nm, λemission = 590 nm) was read using a plate reader from which
percentage viability was calculated. IC50 values were calculated using Prism GraphPad Prism software from at least
three independent experiments performed in triplicate. Highlighted in grey are those IC50 values better than or
similar to the control used, Sorafenib, in each particular cell line.
The results obtained with the HL-60 cell line (Table 1) for the 3,40-bis-guanidine derivatives
5–11
show, in general, more cytotoxicity than the previously tested compound
1
[8]. However, compounds
5
and , which carry 3-F and 3,4-diF phenyl groups, respectively, give IC50 values above 100
6
µM; this drop
in activity is a clear indication of the importance of the size and nature of the substituents on the
phenyl ring [32]. The presence of 2-F and 4-I substituents in the hydrophobic moiety of derivative
7
resulted in an IC50 value (8.63
(i.e., compound ), gave a four-fold increase in activity, indicating that the halogen in this hydrophobic
moiety could establish a halogen-bond with a Lewis base in the protein binding site. Additionally,
compound had decreased activity because of the absence of the 3-CF3 substituent; this is an indication
µM) similar to 1. Substitution of the 4-Cl in compound 1 by a 4-Br
9
8
that such a big and polarized halogen atom can only result in a beneficial increment in activity when a
bulky lipophilic substituent as CF3 is present at position 3.
Cytotoxicity results of compounds 10 and 11 (lipophilic moiety in 40-position of the phenyloxyphenyl
core instead of the 3-position) with HL-60 cells show that compound 10 maintains a similar IC50 value
as 7; however, 11 has a reduction of activity compared to 9.
Compound
shows increased cytotoxicity in HL-60 cells (IC50 = 3.08
3,40-bis-guanidine derivatives, removal of the 3-CF3 group in the lipophilic section caused decreased
activity in the shorter analogue 28 (7.50 M). Interestingly, removal of the 4-halogen in this lipophilic
section did not affect the IC50 value of compounds 29 and 30 compared to their analogue . This could
3
, which is a shorter version of
1
(-NH- link instead of a di-substituted guanidinium)
µM). Similar to what was observed for the
µ
3
be explained by the compensation of bulky and lipophilic effects when going from trifluoromethyl
(-CF3) to bulkier pentafluorosulfanyl (-SF5) substitution.
The 3,40-bis-guanidines phenyloxypyridines 49
–
52
cytotoxicity than the previously discussed derivatives. Compound
has an IC50 value of 2.36 M, a four-fold increased activity compared to
with a 3-CF3-4-Br phenyl system, shows a low IC50 of 1.53 M. Surprisingly, the introduction of a
pyridinoguanidinium system as in compound 49 (11.61 M) instead of a phenylguanidinium moiety
as in (>100 M) results in increased HL-60 cytotoxicity. Even though this is not the most active
,
2
and
4
show, overall, increased HL-60
, the pyridine analogue of
. Likewise, compound 52
2
1,
µ
1
µ
µ
3
µ
compound of the series, it is a clear indication of the importance of the pyridinoguanidinium system in
improving cytotoxicity in HL-60 cells.
Interestingly, compound
moiety has a relatively low IC50 value of 3.48
instead of the para guanidinium, shows similar cell viability as the guanidinium analogue
4
, which includes both a shorter -NH- link and the pyridinoguanidinium
M. Compound 70, with a -NH- link and an isouronium
. From these
µ
3
results we can deduce that the isouronium cation has a similar behaviour to the guanidinium cation,
as we had previously observed in the 3,40-bis-guanidinium series [20]. Finally, compound 75, where the

Pharmaceuticals 2020, 13, 485
11 of 24
para guanidinium is replaced by a sulfamide, shows a decreased cytotoxicity in HL-60 cells to 9.14 µM,
indicating the importance of the guanidinium or isouronium cations.
The IC50 values obtained for selected compounds in the MCF-7 cell line (Table 2, Figure S8)
were similar to the results obtained for the HL-60 cell line with most values in the low M range.
Compounds and (IC50 = 2.02 and 3.73 M, respectively) are still the most cytotoxic agents compared
to compound (IC50 of 9.30 M). The pyridine ring present in compounds and still appears
responsible for the improved activity, even though less accentuated than in the HL-60 cell line. Instead,
the isouronium version of compound , compound 70, has an increased IC50 in MCF-7 cells compared
with HL-60 cells indicating a certain degree of cell selectivity.
We have also evaluated the effect of compounds 4, and
line and the results are reported in Table 2 (Figure S9). In this cell line, compound
lowest IC50 value (1.33 M). The rest of the compounds maintained similar cytotoxic activity in HeLa
µ
3
4
µ
1
µ
4
2
3
2,
3,
1
on the viability of the HeLa cell
showed again the
4
µ
cells compared to HL-60 and MCF-7 cells.
It is known that sorafenib was originally developed as an inhibitor of the Ras effector RAF,
and there are studies showing that sorafenib enhances the therapeutic efficacy of rapamycin in certain
colorectal cancers [33]. The IC50 results in Table 2 (Figure S10) show that compound
in the HCT116 KRAS mutated cancer cell line (9.96 M) than in the HKH-2 KRAS wt isogenic form
(19.18 M). Remarkably, its cytotoxic effect is like that of sorafenib in HCT116 (6.79 M), but not in
HKH-2, where sorafenib has a much lower IC50. Similar activity in both cell lines is reached with
compound , while is revealed to be the most active of the series with an IC50 of 4.59 M in HCT116
and 2.88 M in HKH-2. Interestingly, compound , which has a phenyl group instead of the 2-pyridinyl
1 has more potency
µ
µ
µ
2
4
µ
µ
3
of compounds 2 and 4, shows poor cytotoxic activity in both cell lines.
Searching for a relationship between physicochemical properties and cytotoxicity, we observed a
trend between the calculated logP and the HL-60 IC50 values obtained for all synthesised compounds
(except the inactive
5 and 6, IC50 > 100 µM) (Figure S11). This supports our hypothesis that the
hydrophobic moiety of our molecules interacts with a specific allosteric hydrophobic pocket in protein
kinases, justifying the use of bulkier and more lipophilic substituents (larger logP) in order to obtain
improved anti-cancer activity (lower IC50 values).
Therefore, some structure–activity relationships (SARs) can be drawn from the cell viability assays
(Figure 4): (i) the hydrophobic moiety is necessary for the activity; particularly, bulky and lipophilic
substituents improve the cytotoxicity of these compounds (I- or Br- substitution at the 4-position better
than Cl-), and a substituent at the 3-position is required to maintain efficacy (CF3 or SF5); (ii) replacement
of the di-substituted guanidinium in compound
-NH- link results in compounds with better cytotoxicity; (iii) a mono-substituted guanidinium group as
in compound
(position 40 of the phenyloxyaryl core) gives the greatest cytotoxic activity; additionally,
1 (position 3 of the phenyloxyaryl core) by a shorter
1
incorporating a 2-pyridinyl instead of a phenyl group, attached to this guanidinium facilitates forming
an IMHB that seems to affect positively the cytotoxic activity.
-NH > gua
guanidinium ~ isouronium > sulfamide
-SF5 > -CF3
F3C
Cl
X
O
NH2
N NH2
- I > -Br > -Cl
N
H
bulky and lipophilic substituents
pyridine > benzene
Figure 4. Structure Activity Relationship (SAR) deduced from the analysis of the HL-60 cytotoxicity results.
Considering the promising cytotoxicity results obtained with the cancer cell lines, we also
evaluated the potential toxicity of the most efficient derivative (compound 4) in the non-cancerous cell

Pharmaceuticals 2020, 13, 485
12 of 24
line MCF10A (human mammary epithelial cell line). We observed that this compound
4
only shows
toxicity towards MCF10A at a high concentration of 100 µM while at lower concentrations of 10 and
1 µM the compound does not appear to affect in any way cell viability (Figure S12).
2.4.2. Apoptosis Assay in HL-60
We have previously reported that compound
M concentration after 48 h [ ]. Accordingly, in order to evaluate the apoptotic effect of the most
relevant derivatives ( , and ), HL-60 cells were treated with these compounds (at 5 M, 5 M,
and 4 M concentration, respectively) for 48 h, stained with annexin V-FITC/PI and analysed using
flow cytometry (Figure 5).
1
induces 68.9
±
0.1% apoptosis in HL-60 cells at a
10
µ
8
2
,
3
4
µ
µ
µ
3
2
4
Annexin V - FITC
Figure 5. Annexin V-FITC vs. PI flow cytometry analysis of HL-60 cancer cells treated with compounds
(5 M), (5 M) and (4 M) for 48 h. These figures are representative of three independent
3
µ
2
µ
4
µ
experiments. The viable cells, early apoptotic, necrotic and late apoptotic cells are represented by the
lower left, lower right, upper left and upper right quadrants, respectively.
The results presented in Figure 5 and Figure S13 show that, under these conditions, a more potent
induction of apoptosis was observed with
3
(82.5
±
11.3%) and
4
(92.7
±
5.5%) compared to compound 2
(30.7 11.6%). As the alamarBlue assay indirectly assesses cytotoxicity by quantifying cell viability and
±
proliferation, these data suggest that compound
of action.
2 may have a predominantly cytostatic mechanism
2.4.3. Effect on the MAPK/ERK Pathway
Taking into account the positive binding results obtained in the docking studies to the BRAF-ATP
model and the promising cytotoxicity shown in several cancer cells, we next explored the effect of
compounds with IC50 near to that of sorafenib (1, 2, 3, 4, 9, and 52) on the MAPK/ERK pathway.
Thus, using Western immunoblot analysis of HL-60 extracts, we investigated the expression and
phosphorylation levels of ERK (as an indication of ERK activation), which is the downstream effector
of the Ras/BRAF signalling pathway (Figure 6).

Pharmaceuticals 2020, 13, 485
13 of 24
Figure 6. Western immunoblot of HL-60 cell extracts following incubation with compounds 2, 3, 4,
9
,
52 and
vehicle [0.5% EtOH (v/v)], compounds 52
reference [ ]) for 16 h. Cells were lysed and equal amounts of protein were loaded and separated
1
(as a control). HL60 cells were seeded at 2
×
105 cells/mL and were treated with either
µM) or compound 1 (5 and (*) 10 µM, as in
,
2
,
9,
3
and (5
4
9
on 15% SDS-PAGE gels, transferred to PVDF membrane and probed with antibodies against total
and phosphorylated ERK. Anti-GAPDH was used as a loading control. Results are representative of
2 independent experiments.
We observed that compounds
pathway; however, compounds
and 10 M) in inhibiting ERK phosphorylation and therefore inhibiting the Ras/BRAF pathway.
These results may suggest that the potent cytotoxicity observed with these derivatives may be due to
different mechanisms of action. Therefore, compounds
9, and 52, which are all 3,40-bis-guanidino
phenyloxy(phenyl or pyridyl) analogues of with similar lipophilic moieties (3-CF3,4-(Br/Cl)-Ph),
may exert their cytotoxicity by interfering with the Ras/BRAF pathway. On the contrary, compounds
and
(shorter 3-amino-40-guanidino phenyloxy(phenyl or pyridyl) derivatives) may act in a different
signalling pathway or in the same pathway but through a different mechanism from compound
]. Pulikakos and co-workers have reported that the biochemical effect of a RAF inhibitor on
3
and
4
do not appear to interfere with the Ras/BRAF signalling
2,
9, and 52 have a similar effect as lead compound
1
(both at 5
µ
2,
1
3
4
1 [6
ERK signalling would be the combined outcome of different mechanisms [34], clearly indicating the
complexity of the biological target and opening the door to future studies to understand the mechanism
of action of these compounds.
3. Discussion
Considering the promising results previously obtained for lead compound
1 we explored several
modifications to improve its cytotoxicity in different cancer cell lines. Accordingly, we designed a
variety of compounds where different changes have been introduced: several lipophilic groups were
considered; the di-substituted guanidine was replaced by a secondary amine; the phenyl ring was
exchanged with a pyridine; and the mono-substituted guanidine in the polar side was switched to an
isourea or a sulfanylamide group.
Molecular docking was utilised to understand the interactions between the proposed biological
target and model compounds
1–4. Thus, considering the putative activity of 1 as a type-III kinase
inhibitor, compounds were docked into an in-house model of an active TP-containing BRAF kinase.
1–4
All final poses exhibit similar interactions between the lipophilic moiety and the lipophilic pocket,
as well as between the mono-substituted guanidinium and one of the phosphate groups of TP.
Based on this computational study, 3,40-bis-guanidino diphenyl ether derivatives
5–11 were
prepared by reacting the corresponding 3,40-diamino diphenyl ether with conveniently substituted
Boc-protected thioureas. Additionally, synthesis of the 3-amino-40-guanidino diphenyl ethers 3, 28–30
and 36 required the preparation of the corresponding starting diamines. Furthermore, preparation
of 3,40-bis-guanidino and 3-amino-40-guanidino phenylpyridyl ether derivatives
2, 49–52, and 4,
required different synthetic approaches involving Buchwald–Hartwig coupling. Finally, the 3-amino-40-
isouronium 70 and 3-amino-40-sulfonamido 75 derivatives were prepared following specific synthetic
routes. All compounds were obtained as hydrochloride salts and their purity was determined to be
>95% by HPLC before proceeding to biological testing.

Pharmaceuticals 2020, 13, 485
14 of 24
A screening of the cytotoxicity of all compounds was performed in the HL-60 cell line and the
more potent compounds were selected for further biological evaluation in MCF-7, HeLa, HCT116,
and HKH-2 cell lines. These cell viability studies revealed that these compounds can inhibit cell
proliferation in the low
compound . All modifications explored generated SAR information which helped to understand the
structural requirements for a more potent cytotoxicity. Cytotoxicity of compound was also evaluated
µM range, showing up to a nine-fold increase in cytotoxicity compared to lead
1
4
against non-tumorigenic MCF10A and the results show that, at active concentration in cancer cell lines,
compound 4 has no toxic effects to non-tumorigenic cells.
Flow cytometry in HL-60 cell lines was also performed to assess the apoptotic effect of compounds
2, 3, and 4. The results are in agreement with the corresponding structures; thus, mono-guanidinium
compounds (
compared to the bis-guanidinium compounds (1 and 2, around 60%7 and 30%, respectively).
With the aim of determining whether compounds 9, and 52 exert their anticancer activity
by interfering with the Ras/BRAF pathway (as previously suggested by us for lead compound ),
Western immunoblot analysis was performed with HL-60 cell extracts measuring the activation of
the downstream effector ERK. Thus, we observed that compounds
9, and 52 (3,40-bis-guanidine
phenyloxy(phenyl or pyridyl) derivatives) abrogates ERK activation, suggesting potential inhibition of
3 and 4) induce a stronger apoptotic effect in HL-60 cells (82% and 92%, respectively)
1–4,
1
1, 2,
the Ras/BRAF pathway; however, compounds
3 and 4 (shorter derivatives) do not act in the same way.
4. Materials and Methods
4.1. Computational Details
4.1.1. Ligand Optimization
All ligands were fully optimized at DFT level using the M06-2X functional with the 6-311+G*
basis set as implemented in the Gaussian16 package [35]. Frequency calculations were performed at
the same computational level to confirm that the resulting optimized structures were energetic minima.
The effect of water solvation was accounted for by using the SCRF-PCM approach implemented in
the Gaussian16 package including dispersion, repulsion and cavitation energy terms of the solvent in
the optimization.
4.1.2. Docking Experiments
The program AutoDock Vina 4.2 was used to carry out docking studies [36]. The ligands were
flexibly docked into the rigid in-house TP-containing BRAF model (see details in ESI). The corresponding
docking scores (G-scores) were measured in kcal/mol and are only indicative of the quality of the
interaction with the target; they do not provide a quantitative measure of binding. Poses obtained
from the docking were visualised with VMD [37].
4.2. Chemistry
4.2.1. 1-(4-Fluorophenyl)-2-(3-(4-guanidinophenoxy)phenyl)guanidine dihydrochloride (5)
Following Method A (see ESI), 21 (80 mg, 0.12 mmol) was dissolved in 4 M HCl in dioxane
(0.54 mL, 2.16 mmol) and in additi◦onal dioxane (0.07 mL) until a final concentration of 0.2 M was
reached. After 8 h stirring at 55 C, the reaction was adjudged complete (TLC), solvents were
evaporated and the residue was purified by silica gel (CH3Cl:MeOH) chromatography to afford the
pure hydrochloride salt as a white-yellow solid (35 mg, 76%). Mp: decomp. > 180 ◦C. δH (400 MHz,
CD3OD): 7.00 (dd, J = 8.3, 2.4, 1H, H-4), 7.04 (t, J = 2.1 Hz, 1H, H-2), 7.13–7.17 (m, 3H, H-8 and
H-80 and H-6), 7.19–7.24 (m, 2H, H-13 and H-130), 7.31 (d, J = 8.9 Hz, 2H, H-9 and H-90), 7.36–7.39
(m, 2H, H-12 and H-120), 7.47 (t, J = 8.1 Hz, 1H, H-5). δC (100 MHz, CD3OD): 116.5 (CH Ar, C-2),
117.8 (d, J = 23.3 Hz, 2 CH Ar, C-13 and C-130), 118.6 (CH Ar, C-4), 121.1 (CH Ar, C-6), 121.5 (2 CH Ar,
C-8 and C-80), 129.95 (d, J = 8.8 Hz, 2 CH Ar, C-12 and C-120), 128.96 (2 CH Ar, C-9 and C-90), 131.6 (qC),

Pharmaceuticals 2020, 13, 485
15 of 24
132.3 (d, J = 3.1 Hz, qC, C-11), 132.4 (CH Ar, C-5), 138.0 (qC), 156.6 (qC), 157.4 (qC), 158.4 (qC), 159.5 (qC),
163.2 (d, J = 246.1 Hz, qC, C-14). δF (376 MHz, CD3OD): 115.93 (m).
max(ATR)/cm−1: 3110 (NH),
−
ν
3052 (NH), 2922, 2330, 2134, 1655 (C=N), 1582 (C=N), 1505 (C-N), 1486, 1404, 1212 (C-O), 1066 (C-F),
834, 792, 552. HRMS (m/z ESI+): found: 379.1687 (M+ + H), C20H20N6OF requires: 379.1683. HPLC:
99.7% (tR: 22.9 min).
4.2.2. 1-(3:4-Di-fluorophenyl)-2-(3-(4-guanidinophenoxy)phenyl)guanidine dihydrochloride (6)
Following Method A (see ESI), 22 (53 mg, 0.08 mmol) was dissolved in 4 M HCl in dioxane (0.36 mL,
1.37 mmol) and in additional dioxane (0.06 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and
the residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the pure hydrochloride
salt as a white solid (34 mg, 90%). Mp: 158–160 ◦C. δH (400 MHz, CD3OD): 7.00 (dd, J = 8.3, 2.4 Hz, 1H,
H-4), 7.05 (t, J = 2.2 Hz, 1H, H-2), 7.13–7.20 (m, 4H, H-8 and H-80, H-6 and H-16), 7.32 (d, J = 8.9 Hz, 2H,
H-9 and H-90), 7.34–7.41 (m, 2H, H-12 and H-15), 7.47 (t, J = 8.1 Hz, 1H, H-5). δC (100 MHz, CD3OD):
116.3 (d, J = 19.7 Hz, C-12 or C-15), 116.5 (CH Ar, C-2), 118.6 (CH Ar, C-4), 119.5 (d, J = 18.8 Hz,
C-12 or C-15), 121.1 (CH Ar, C-6), 121.5 (2 CH Ar, C-8 and C-80), 123.4 (dd, J = 6.7, 3.7 Hz, C-16),
129.0 (2 CH Ar, C-9 and C-90), 131.6 (qC), 132.4 (CH Ar, C-5), 133.0 (dd, J = 8.3, 3.6 Hz, qC, C-11),
137.9 (qC), 150.8 (dd, J = 247.8, 12.6 Hz, qC, C-13 or C-14), 151.8 (dd, J = 248.7, 13.7 Hz, qC, C-13 or
C-14), 156.5 (qC), 157.4 (qC), 158.3 (qC), 159.5 (qC). δF (376 MHz, CD3OD):
ν
1211 (C-F), 1149, 972, 825, 771, 694, 649, 609, 587. HRMS (m/z ESI+): found: 397.1598 (M+ + H),
−
137.23 (m), 141.12 (m).
−
max(ATR)/cm−1: 3228 (NH), 3040 (NH), 2923, 2853, 1655 (C=N), 1579 (C=N), 1505, 1485, 1401, 1259,
C20H19N6OF2 requires: 397.1588. HPLC: 96.8% (tR: 23.2 min).
4.2.3. 1-(2-Fluoro-4-iodophenyl)-2-(3-(4-guanidinophenoxy)phenyl)guanidine dihydrochloride (7)
Following Method A (see ESI), 23 (357 mg, 0.44 mmol) was dissolved in 4 M HCl in dioxane
(2 mL, 7.92 mmol) and in additional dioxane (0.2 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and
the residue was purified by silica gel chromatography (CH3Cl:MeOH) to afford the pure hydrochloride
salt as a white solid (210 mg, 83%). Mp: decomp. > 180 ◦C. δH (400 MHz, CD3OD): 6.99–7.01 (m, 2H,
H-2 and H-4), 7.11–7.14 (m, 1H, H-6), 7.15 (d, J = 8.9 Hz, 2H, H-8 and H-80), 7.20 (t, J = 8.2 Hz,
1H, H-5), 7.33 (d, J = 8.9 Hz, 2H, H-9 and H-90), 7.44–7.49 (m, 1H, H-15), 7.64–7.66 (m, 1H, H-16),
7.69 (dd, J = 9.6, 1.8 Hz, 1H, H-13). δC (100 MHz, CD3OD): 93.4 (d, J = 7.5 Hz, qC, C-14), 116.4 (CH Ar,
C-2), 118.6 (CH Ar, C-4), 121.0 (CH Ar, C-6), 121.5 (2 CH Ar, C-8 and C-80), 124.1 (d, J = 12.4 Hz, qC,
C-11), 127.3 (d, J = 22.2 Hz, CH Ar, C-13), 128.9 (2 CH Ar, C-9 and C-90), 130.9 (CH Ar, C-5), 131.5 (qC),
132.4 (CH Ar, C-15), 136.0 (d, J = 3.9 Hz, CH Ar, C-16), 137.9 (qC), 156.4 (qC), 158.0 (d, J = 254.4 Hz, qC,
C-12), 157.3 (qC), 158.3 (qC), 159.5 (qC). δF (376, CD3OD):—121.10 (t, J = 8.9 Hz).
ν :
max(ATR)/cm−1
3318 (NH), 3098 (NH), 2958, 1661 (C=N), 1620, 1579, 1485, 1214 (C-F), 1149, 625, 609, 576 (C-I), 566.
HRMS (m/z ESI+): found 505.0646 (M+ + H), C20H19N6OFI requires: 505.0649. HPLC: 99.2% (tR:
25.3 min).
4.2.4. 1-(4-Bromophenyl)-2-(3-(4-guanidinophenoxy)phenyl)guanidine dihydrochloride (8)
Following Method A (see ESI), 24 (212 mg, 0.29 mmol) was dissolved in 4 M HCl in dioxane
(1.30 mL, 5.22 mmol) and in additional dioxane (0.12 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and the
residue was purified by flash chromatograp◦hy to afford the pure hydrochloride salt as a light-yellow
solid (128 mg, 87%). Mp: decomp. > 110 C. δH (400 MHz, CD3OD): 6.99 (dd, J = 8.2, 2.3 Hz, 1H,
H-4), 7.03 (t, J = 2.2 Hz, 1H, H-2), 7.12–7.16 (m, 3H, H-6 and H-8 and H-80), 7.27 (d, J = 8.7 Hz, 2H,
H-12 and H-120 or H-13 and H-130), 7.31 (d, J = 8.8 Hz, 2H, H-9 and H-90), 7.46 (t, J = 8.1 Hz, 1H, H-5),
7.61 (d, J = 8.7 Hz, 2H, H-12 and H-120 or H-13 and H-130). δC (100 MHz, CD3OD): 116.3 (CH Ar, C-2),
118.5 (CH Ar, C-4), 120.9 (CH Ar, C-6), 121.5 (2 CH Ar, C-8 and C-80), 121.7 (qC, C-14), 127.9 (2 CH Ar,

Pharmaceuticals 2020, 13, 485
16 of 24
C-12 and C-120 or C-13 and C-130), 128.9 (2 CH Ar, C-9 and C-90), 131.5 (qC), 132.4 (CH Ar, C-5),
134.1 (CH Ar, C-12 and C-120 or C-13 and C-130), 135.8 (qC), 138.0 (qC), 156.2 (qC), 157.4 (qC), 158.3 (qC),
159.5 (qC). ν
max(ATR)/cm−1: 3124 (NH), 3044 (NH), 1655, 1571 (C=N), 1504 (C=N), 1484, 1405,
1213 (C-O), 1070 (C-Br), 1010, 617-567. HRMS (m/z APCI+): found: 439.0857 (M+ + H), C20H20BrN6O
requires: 439.0876. HPLC: 99.8% (tR: 24.8 min).
4.2.5. 1-(4-Bromo-3-(trifluoromethyl)phenyl)-2-(3-(4-guanidinophenoxy)phenyl)guanidine
dihydrochloride (9)
Following Method A (see ESI), 25 (566 mg, 0.70 mmol) was dissolved in 4 M HCl in dioxane
(3.15 mL, 12.6 mmol) and in additi◦onal dioxane (0.35 mL) until a final concentration of 0.2 M was
reached. After 8 h stirring at 55 C, the reaction was adjudged complete (TLC), solvents were
evaporated and the residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the
pure hydrochloride salt as a white solid (361 mg, 89%). Mp: decomp. >136 ◦C. δH (400 MHz, CD3OD):
6.99 (dd, J = 8.0, 1.9 Hz, 1H, H-4), 7.06 (t, J = 2.1 Hz, 1H, H-2), 7.14–7.16 (m, 3H, H-8 and H-80
and H-6), 7.32 (d, J = 8.9 Hz, 2H, H-9 and H-90), 7.46 (t, J = 8.1 Hz, 1H, H-5), 7.51 (dd, J = 8.6, 2.4 Hz,
1H, H-16), 7.74 (d, J = 2.4 Hz, 1H, H-12), 7.88 (d, J = 8.6 Hz, 1H, H-15). δC (100 MHz, CD3OD):
116.2 (CH Ar, C-2), 118.3 (qC, C-14), 118.5 (CH Ar, C-4), 120.8 (CH Ar, C-6), 121.5 (2 CH Ar, C-8 and
C-80), 123.9 (d, J = 260.3 Hz, qCF3), 125.3 (m, CH Ar, C-12), 128.9 (2 CH Ar, C-9 and C-90), 130.5 (CH Ar,
C-16), 131.6 (qC), 132.3 (d, J = 31.7 Hz, qC, C-13), 132.4 (CH Ar, C-5), 136.9 (qC), 137.8 (CH Ar,
C-15), 138.0 (qC), 156.1 (qC), 157.3 (qC), 158.3 (qC), 159.6 (qC). δF (376 MHz, CD3OD):—64.73 (s).
ν
max(ATR)/cm−1: 3119 (NH), 3053 (NH), 1663 (C=O), 1584 (C=N), 1478, 1412, 1320 (C-F), 1238, 1214,
1174, 1129 (CF3), 1099 (C-Br), 1023, 828, 581—558. HRMS (m/z ESI+): found 507.0766 (M+ + H),
C21H19N6OF3Br requires: 507.0756. HPLC: 99.9% (tR: 26.3 min).
4.2.6. 1-(2-Fluoro-4-iodophenyl)-2-(4-(3-guanidinophenoxy)phenyl)guanidine dihydrochloride (10)
Following Method A (see ESI), 26 (310 mg, 0.39 mmol) was dissolved in 4 M HCl in dioxane
(1.73 mL, 6.93 mmol) and in additional dioxane (0.17 mL) until a final concentration of 0.2 M was
reached. After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated
and the residue was purified by flash chromatography to afford the pure hydrochloride salt as a white
◦
solid (198 mg, 88%). Mp: decomp. >150 C. δH (400 MHz, CD3OD): 6.97 (t, J = 2.1 Hz, 1H, H-2),
7.00 (dd, J = 8.2, 2.3 Hz, 1H, H-4), 7.08 (dd, J = 7.6, 1.5 Hz, 1H, H-6), 7.16 (d, J = 8.8 Hz, 2H, H-8 and
H-80), 7.22 (t, J = 8.2 Hz, 1H, H-5 or H-15), 7.36 (d, J = 8.8 Hz, 2H, H-9 and H-90), 7.47 (t, J = 8.1 Hz, 1H,
H-5 or H-15), 7.66 (d, J = 9.1 Hz, 1H, H-16), 7.70 (dd, J = 9.6, 1.7 Hz, 1H, H-13). δC (100 MHz, CD3OD):
93.5 (d, J = 7.5 Hz, qC, C-14), 116.6 (CH Ar, C-2), 118.6 (CH Ar, C-4), 121.3 (CH Ar, C-6), 121.6 (2 CH Ar,
C-8 and C-80), 124.0 (d, J = 12.5 Hz, qC, C-11), 127.3 (d, J = 22.2 Hz, C-13), 128.7 (2 CH Ar, C-9 and C-90),
131.1 (CH Ar, C-5 or C-15), 131.6 (qC), 132.4 (CH Ar, C-5 or C-15), 136.0 (d, J = 3.9 Hz, C-16), 137.7 (qC),
156.8 (qC), 157.3 (qC), 157.9 (qC), 158.2 (d, J = 254.5 Hz, qC, C-12), 159.5 (qC). δF (376 MHz, CD3OD):
−
121.04 (t, J = 8.8 Hz). ν
max(ATR)/cm−1: 3335 (NH), 3265 (NH), 3180 (NH), 3052, 2868, 2325, 1616 (C=N),
1560 (C=N), 1504, 1400, 1226 (C-F), 1162, 1109, 971, 875, 789, 684—573 (C-I). HRMS (m/z ESI+): found:
505.0645 (M+ + H), C20H19N6OFI requires: 505.0649. HPLC: 99.9% (tR: 25.9 min).
4.2.7. 1-(4-Bromo-3-(trifluoromethyl)phenyl)-2-(4-(3-guanidinophenoxy)phenyl)guanidine
dihydrochloride (11)
Following Method A (see ESI), 27 (148 mg, 0.18 mmol) was dissolved in 4 M HCl in dioxane
(0.81 mL, 3.24 mmol) and in additional dioxane (0.10 mL) until a final concentration of 0.2 M was
reached. After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated
and the residue was purified by flash chromatography to afford the pure hydrochloride salt as a white
solid (100 mg, 94%). Mp: decomp. > 95 ◦C. δH (400 MHz, CD3OD): 6.98–7.02 (m, 2H, H-2 and H-4),
7.09 (ddd, 1H, J = 8.0, 1.9, 0.9 Hz, H-6), 7.17 (d, J = 8.9 Hz, 2H, H-8 and H-80), 7.41 (d, J = 9.0 Hz, 2H,
H-9 and H-90), 7.49 (t, J = 8.0 Hz, 1H, H-5), 7.55 (dd, J = 8.5, 2.6 Hz, 1H, H-16), 7.77 (d, J = 2.6 Hz, 1H,

Pharmaceuticals 2020, 13, 485
17 of 24
H-12), 7.91 (d, J = 8.6 Hz, 1H, H-15). δC (100 MHz, CD3OD): 116.6 (CH Ar, C-2 or C-4), 118.5 (qC, C-14),
118.6 (CH Ar, C-2 or C-4), 121.3 (CH Ar, C-6), 121.6 (2 CH Ar, C-8 and C-80), 123.9 (d, J = 272.8 Hz,
qCF3), 125.5 (q, J = 5.6 Hz, CH Ar, C-12), 128.5 (2 CH Ar, C-9 and C-90), 130.8 (CH Ar, C-16),
131.7 (qC), 132.3 (q, J = 31.6 Hz, qC, C-13), 132.4 (CH Ar, C-5), 136.7 (qC), 137.7 (qC), 137.8 (CH Ar,
C-15), 156.5 (qC), 157.3 (qC), 157.9 (qC), 159.6 (qC). δF (376 MHz, CD3OD):—64.30 (s). ν :
max(ATR)/cm−1
3309 (NH), 3116 (NH), 3053 (NH), 2837, 2280, 1663 (C=N), 1577 (C=N), 1505, 1486, 1405, 1320,
1258 (C-O), 1214 (CF3), 1129, 1023 (C-Br), 829, 595—575. HRMS (m/z ESI+): found: 507.0750 (M+ + H),
C21H19N6OBrF3 requires: 507.0756. HPLC: 99.9% (tR: 26.6 min).
4.2.8. 1-(4-(3-((4-Chlorophenyl)amino)phenoxy)phenyl)guanidine hydrochloride (28)
Following Method A (see ESI), 44 (97 mg, 0.18 mmol) was dissolved in 4 M HCl in dioxane
(0.53 mL, 2.10 mmol) and in additional dioxane (0.9 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and the
residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the pure hydrochloride salt
as a purple solid (69 mg, 99%). Mp: 50–52 ◦C. δH (400 MHz, CD3OD): 6.51 (dd, J = 8.3, 1.9 Hz, 1H, H-4),
6.73 (t, J = 2.2 Hz, 1H, H-2), 6.85 (dd, J = 7.8, 1.8 Hz, 1H, H-6), 7.05 (d, J = 8.9 Hz, 2H, H-12 and H-120),
7.08 (d, J = 8.9 Hz, 2H, H-8 and H-80), 7.18 (d, J = 8.9 Hz, 2H, H-13 and H-130), 7.22 (t, J = 8.2 Hz, 1H,
H-5), 7.27 (d, J = 8.9 Hz, 2H, H-9 and H-90). δC (100 MHz, CD3OD): 108.6 (CH Ar, C-2), 111.8 (CH Ar,
C-4), 113.7 (CH Ar, C-6), 120.0 (2 CH Ar, C-12 and C-120), 120.7 (2 CH Ar, C-8 and C-80), 126.1 (qC,
C-14), 128.8 (2 CH Ar, C-9 and C-90), 130.1 (2 CH Ar, C-13 and C-130), 130.6 (qC), 131.5 (CH Ar, C-5),
143.4 (qC), 146.7 (qC), 158.4 (qC), 158.5 (qC), 158.9 (qC). ν
max(ATR)/cm−1: 3297 (N-H), 3126 (N-H),
1688, 1586 (C=N), 1502, 1485 (C-N), 1325, 1216 (C-O), 1142 (C-Cl), 997, 972, 823, 770, 689, 604, 588,
570. HRMS (m/z ESI+): found 353.1177 (M+ + H. C19H18N4OCl requires: 353.1169). HPLC: 98.0% (tR:
32.3 min).
4.2.9. 1-(4-(3-((4-Chloro-3-(trifluoromethyl)phenyl)amino)phenoxy)phenyl)guanidine hydrochloride (3)
Following Method A (see ESI), 45 (112 mg, 0.18 mmol) was dissolved in 4 M HCl in dioxane
(0.54 mL, 2.16 mmol) and in additional dioxane (0.36 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and the
residue was purified by flash chromatography to afford the pure hydrochloride salt as a light brown solid
(59 mg, 80%). Mp: 58–60 ◦C. δH (400 MHz, CD3OD): 6.62 (dd, J = 8.7, 2.3 Hz, 1H, H-4), 6.78 (t, J = 2.2 Hz,
1H, H-2), 6.90 (dd, J = 8.1, 2.1 Hz, 1H, H-6), 7.11 (d, J = 8.9 Hz, 2H, H-8 and H-8’), 7.24 (dd, J = 8.8,
2.8 Hz, 1H, H-16), 7.27–7.31 (m, 3H, H-9, H-9’ and H-5) 7.36–7.39 (m, 2H, H-12, H-15). δC (100 MHz,
CD3OD): 109.8 (CH Ar, C-2), 113.1 (CH Ar, C-4), 114.8 (CH Ar, C-6), 116.1 (q, J = 5.6 Hz, CH Ar, C-12),
121.0 (2 CH Ar, C-8 and C-8’), 121.5 (CH Ar, C-16), 122.1 (qC, C-14), 124.4 (d, J = 272.5 Hz, qCF3),
129.0 (2 CH Ar, C-9 and C-9’), 129.6 (q, J = 31.0, qC, C-13), 131.0 (qC), 131.8 (CH Ar, C-5), 133.4 (CH Ar,
C-15), 144.4 (qC), 145.3 (qC), 158.2 (qC), 158.4 (qC), 159.2 (qC). δF (376 MHz, CD3OD):—64.18 (s).
ν
max(ATR)/cm−1: 3295 (NH), 3163, 2923, 2853, 2400, 1664 (C=O), 1595 (C=N), 1504, 1482, 1441, 1333,
1258, 1217 (CF3), 1127, 1112 (C-Cl), 1027, 999, 977, 825. HRMS (m/z ESI+): found 421.1044 (M+ + H.
C20H17ClF3N4O requires: 421.1043). HPLC: 97.8% (tR: 32.9 min).
4.2.10. 1-(4-(3-((3-(Trifluoromethyl)phenyl)amino)phenoxy)phenyl)guanidine hydrochloride (29)
Following Method A (see ESI), 46 (371 mg, 0.63 mmol) was dissolved in 4 M HCl in dioxane
(1.90 mL, 7.56 mmol) and in additional dioxane (1.25 mL) until a final concentration of 0.2 M was
reached. After 6 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated
and the residue was purified by flash chromatography to afford the pure hydrochloride salt as a
white solid (242 mg, 90%). Mp: 93–95 ◦C. δH (400 MHz, CD3OD): 6.59 (dd, J = 8.1, 2.3 Hz, 1H, H-4),
6.78 (t, J = 2.2 Hz, 1H, H-2), 6.90 (dd, J = 7.9, 1.9 Hz, 1H, H-6), 7.07–7.13 (m, 3H, H-8 and 80 and H-12
or H-14), 7.26–7.30 (m, 5H, H-9 and 90, H-12 or H-14, H-16 and H-5 or H-15), 7.37 (t, J = 8.3 Hz, 1H,
H-5 or H-15). δC (100 MHz, CD3OD): 109.4 (CH Ar, C-2), 112.6 (CH Ar, C-4), 113.9 (q, J = 4.0 Hz, CH Ar,

Pharmaceuticals 2020, 13, 485
18 of 24
C-12 or C-14), 114.6 (CH Ar, C-6), 117.3 (q, J = 4.0 Hz, CH Ar, C-12 or C-14), 119.9 (d, J = 280.7 Hz,
qCF3), 120.9 (2 CH Ar, C-8 and C-80), 121.2 (CH Ar, C-16), 128.9 (2 CH Ar, C-9 and C-90), 130.8 (qC),
131.1 (CH Ar, C-5 or C-15), 131.7 (CH Ar, C-5 or C-15), 132.6 (d, J = 31.9 Hz, qC, C-13), 145.7 (qC),
145.9 (qC), 158.3 (qC), 158.4 (qC), 159.1 (qC). δF (376 MHz, CD3OD): 64.42 (s). ν :
max(ATR)/cm−1
−
3301 (NH), 3135 (NH), 1665, 1587 (C=N), 1490, 1486, 1335 (C-N), 1216 (C-O), 1161, 1116 (CF3), 1067 (C-Cl),
976, 836, 785, 689. HRMS (m/z ESI+): found 387.1438 (M+ + H. C20H18N4OF3 requires: 387.1433).
HPLC: 97.5% (tR: 31.7 min).
4.2.11. 1-(4-(3-((3-(Pentafluorosulfanyl)phenyl)amino)phenoxy)phenyl)guanidine hydrochloride (30)
Following Method A (see ESI), 47 (272 mg, 0.42 mmol) was dissolved in 4 M HCl in dioxane
(1.27 mL, 5.06 mmol) and in additional dioxane (0.83 mL) until a final concentration of 0.2 M was reached.
After 6 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and
the residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the pure hydrochloride
◦
salt as an orange solid (127 mg, 62%). Mp: 104–106 C. δH (400 MHz, CD3OD): 6.61 (dd, J = 8.2,
2.3 Hz, 1H, H-4), 6.78 (t, J = 2.2. Hz, 1H, H-2), 6.90 (dd, J = 8.1, 2.1 Hz, 1H, H-6), 7.11 (d, J = 8.9 Hz,
H-8 and H-80), 7.22–7.31 (m, 5H, H-9 and H-90, H-5 or H-15, H-14 and H-16), 7.34–7.38 (m, 1H, H-5 or
H-15), 7.44 (t, J = 2.2 Hz, 1H, H-12). δC (100 MHz, CD3OD): 109.6 (CH Ar, C-2), 112.9 (CH Ar, C-4),
114.6 (CH Ar, C-6), 114.9 (p, J = 4.6 Hz, CH Ar, C-12), 118.0 (p, J = 4.7 Hz, CH Ar, C-14), 120.8 (CH Ar,
C-16), 120.9 (2 CH Ar, C-8 and C-80), 128.8 (2 CH Ar, C-9 and C-90), 130.6 (CH Ar, C-5 or C-15),
130.8 (qC), 131.8 (CH Ar, C-5 or C-15), 145.6 (qC), 145.7 (qC), 155.9 (p, J = 16.4 Hz, qC, C-13), 158.2 (qC),
158.3 (qC), 159.2 (qC). δF (376 MHz, CD3OD): 64.34 (s). ν
max(ATR)/cm−1: 3273 (NH), 3150 (NH),
−
1669, 1593 (C=N), 1487 (C-N), 1218 (C-O), 834 (SF5), 567. HRMS (m/z ESI+): found 445.1124 (M+ + H.
C19H18N4OSF5 requires: 445.1121). HPLC: 95.4% (tR: 32.3 min).
4.2.12. 1-(4-(3-((4-Chloro-3-(trifluormethyl)phenyl)amino)-5-fluorophenoxy)phenyl)guanidine
hydrochloride (36)
Following Method A (see ESI), 48 (166 mg, 0.26 mmol) was dissolved in 4 M HCl in dioxane
(0.78 mL, 3.12 mmol) and in additional dioxane (0.51 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and
the residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the pure hydrochloride
◦
salt as a light brown solid (114 mg, 92%). Mp: 92–94 C. δH (600 MHz, CD3OD): 6.31 (dt, J = 9.9,
2.1 Hz, 1H, H-4), 6.55 (s, 1H, H-2), 6.58 (dt, J = 10.7, 2.0 Hz, 1H, H-6), 7.16 (d, J = 8.8 Hz, 2H, H-8 and
H-80), 7.29 (dd, J = 8.8, 2.7 Hz, 1H, H-16), 7.32 (d, J = 8.8 Hz, 2H, H-9 and H-90), 7.40 (d, J = 2.6 Hz,
1H, H-12), 7.43 (d, J = 8.7 Hz, 1H, H-15). δC (150 MHz, CD3OD): 99.4 (d, J = 25.7 Hz, CH Ar, C-4),
100.3 (d, J = 25.5 Hz, CH Ar, C-6), 103.8 (d, J = 2.6 Hz, CH Ar, C-2), 117.4 (q, J = 5.5 Hz, CH Ar,
C-12), 121.8 (2 CH Ar, C-8 and C-80), 122.7 (CH Ar, C-16), 123.4 (qC, C-14), 124.3 (d, J = 272.2 Hz,
qCF3), 128.9 (2 CH Ar, C-9 and C-90), 129.8 (q, J = 31.0, qC, C-13), 131.7 (qC), 133.5 (CH Ar, C-15),
143.4 (qC), 146.7 (d, J = 13.2 Hz, qC, C-1 or C-3), 157.1 (qC), 158.4 (qC), 160.7 (d, J = 13.7 Hz, qC, C-1 or
C-3), 165.8 (d, J = 243.4 Hz, qC, C-5). δF (376 MHz, CD3OD):
−
64.67 (s), 112.53 (s). ν :
max(ATR)/cm−1
−
3285 (NH), 3139 (NH), 1666, 1601 (C=N), 1504, 1476, 1323 (CF3), 1216 (C-O), 1112 (C-F), 1020 (C-Cl),
994, 823, 660. HRMS (m/z ESI+): found 439.0945 (M+ + H. C20H16N4OF4Cl requires: 439.0943). HPLC:
95.7% (tR: 33.1 min).
4.2.13. 1-(3,4-Di-fluorophenyl)-3-(3-((6-guanidinopyridin-3-yl)oxy)phenyl)guanidine dihydrochloride
(49)
Following Method A (see ESI), 61 (176 mg, 0.25 mmol) was dissolved in 4 M HCl in dioxane
(1.14 mL, 4.54 mmol) and in additional dioxane (0.11 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and the
residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the pure hydrochloride salt
as a white solid (101 mg, 84%). Mp: decomp. above 110 ◦C. δH (400 MHz, CD3OD): 6.62 (dd, J = 7.5,

Pharmaceuticals 2020, 13, 485
19 of 24
2.4 Hz, 1H, H-4), 6.77–6.81 (m, 1H, H-17), 6.93 (dd, J = 8.0, 1.8 Hz, 1H, H-6), 6.99 (d, J = 8.9 Hz, 1H,
H-9), 7.00–7.13 (m, 3H, H-2, H-13 and H-16), 7.25 (t, J = 8.1 Hz, 1H, H-5), 7.49 (dd, J = 8.9, 2.9 Hz, 1H,
H-8), 8.05 (d, J = 2.9 Hz, 1H, H-11). δC (100 MHz, CD3OD): 112.0 (d, J = 18.8 Hz, CH Ar, C-13 or C-16),
112.4 (CH Ar, C-2), 113.0 (CH Ar, C-4), 116.4 (CH Ar, C-9), 118.0 (CH Ar, C-6), 118.1 (d, J = 17.9 Hz,
CH Ar, C-13 or C-16), 119.1 (dd, J = 5.6, 3.1 Hz, CH Ar, C-17), 131.3 (CH Ar, C-5), 131.4 (CH Ar, C-8),
138.5 (CH Ar, C-11), 143.9 (dd, J = 7.4, 2.2 Hz, qC, C-12), 146.6 (qC), 147.2 (dd, J = 240.4, 12.9 Hz,
qC, C-14 or C-15), 150.1 (qC), 151.1 (qC), 151.4 (dd, J = 245.1, 13.4 Hz, qC, C-14 or C-15), 152.5 (qC),
157.4 (qC), 159.0 (qC). δF (376 MHz, CD3OD):
−
139.72 (m), 149.19 (m). ν
max(ATR)/cm−1: 3313 (NH),
−
3154 (NH), 2922, 2861, 1682, 1625 (C=N), 1507, 1473 (C-F), 1375, 1228 (C-F), 1166, 1146 (C-O), 866, 830,
770, 570, 557. HRMS (m/z ESI+): found 398.1548 (M+ + H. C19H18N7OF2 requires: 398.1541). HPLC:
99.8% (tR: 23.6 min).
4.2.14. 1-(2-Fluoro-4-iodophenyl)-3-(3-((6-guanidinopyridin-3-yl)oxy)phenyl)guanidine
dihydrochloride (50)
Following Method A (see ESI), 62 (104 mg, 0.13 mmol) was dissolved in 4 M HCl in dioxane
(0.58 mL, 2.32 mmol) and in additional dioxane (0.10 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and the
residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the pure hydrochloride salt
as a white solid (67 mg, 89%). Mp: decomp. above 120 ◦C. δH (400 MHz, CD3OD): 6.98 (ddd, J = 8.3,
2.4, 0.7 Hz, 1H, H-4), 7.02 (t, J = 2.2 Hz, 1H, H-2), 7.11–7.18 (m, 3H, H-5 or H-16, H-6 and H-9),
7.46 (t, J = 8.1 Hz, 1H, H-5 or H-16), 7.61–7.64 (m, 2H, H-17 and H-8), 7.67 (dd, J = 9.7, 1.8 Hz, 1H,
H-14), 8.16 (d, J = 2.9 Hz, 1H, H-11). δC (100 MHz, CD3OD): 92.7 (qC, C-15), 115.5 (CH Ar, C-2),
115.6 (CH Ar, C-9), 117.6 (CH Ar, C-4), 120.9 (CH Ar, C-6), 127.2 (d, J = 22.2 Hz, CH Ar, C-14),
127.3 (d, J = 14.1 Hz, qC, C-12), 130.6 (CH Ar, C-5 or C-16), 132.1 (CH Ar, C-8), 132.5 (CH Ar, C-5 or
C-16), 136.0 (CH Ar, J = 3.9 Hz, C-17), 138.7 (qC), 139.1 (CH Ar, C-11), 149.2 (qC), 151.2 (qC), 156.2 (qC),
156.9 (qC), 157.9 (qAr, J = 253.9 Hz, C-13), 159.4 (qC). δF (376 MHz CD3OD):—121.55 (t, J = 8.3 Hz).
ν
max(ATR)/cm−1
: 3277 (NH), 3122 (NH), 2923, 2849, 1680, 1660, 1623–1570 (C=N), 1474 (C-F),
1227 (C-O), 1160, 1026, 945, 600 (C-I). HRMS (m/z ESI+): found 506.0609 (M+ + H. C19H18N7OFI
requires: 506.0602). HPLC: 98.1% (tR: 25.7 min).
4.2.15. 1-(4-Bromophenyl)-3-(3-((6-guanidinopyridin-3-yl)oxy)phenyl)guanidine dihydrochloride (51)
Following Method A (see ESI), 63 (184 mg, 0.24 mmol) was dissolved in 4 M HCl in dioxane
(1.08 mL, 4.4 mmol) and in additional dioxane (0.12 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and the
residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the pure hydrochloride salt
as a white solid (113 mg, 92%). Mp: decomp. above 124 ◦C. δH (400 MHz, CD3OD): 6.99–7.01 (m, 1H,
H-4), 7.04 (bs, 1H, H-2), 7.14–7.16 (m, 2H, H-6 and H-9), 7.28 (d, J = 8.5 Hz, 2H, H-13 and H-130 or H-14
and H-140), 7.48 (t, J = 8.1 Hz, 1H, H-5), 7.60–7.63 (m, 3H, H-13 and H-130 or H-14 and H-140and H-8),
8.16 (d, J = 2.6 Hz, 1H, H-11). δC (100 MHz, CD3OD): 115.6 (CH Ar, C-6 or C-9), 115.8 (CH Ar, C-2),
118.0 (CH Ar, C-4), 121.1 (CH Ar, C-6 or C-9), 121.7 (qC, C-15), 127.9 (CH Ar, C-13 and C-130 or C-14
and C-140), 132.1 (CH Ar, C-8), 132.5 (CH Ar, C-5), 134.1 (CH Ar, C-13 and C-130 or C-14 and C-140),
135.7 (qC), 138.2 (qC), 139.0 (CH Ar, C-11), 149.2 (qC), 151.2 (qC), 156.1 (qC), 156.8 (qC), 159.4 (qC).
ν
max(ATR)/cm−1: 3256 (NH), 3114 (NH), 2971, 1680, 1660, 1619 (C=N), 1566 (C=N), 1474, 1376 (C-N),
1226 (C-O), 1069 (C-Br), 1010, 832, 637—584. HRMS (m/z ESI+): found 440.0837 (M+ + H. C19H19N7OBr
requires: 440.0834). HPLC: 97.5% (tR: 25.2 min).
4.2.16. 1-(4-Bromo-3-(trifluoromethyl)phenyl)-3-(3-((6-guanidinopyridin-3-yl)oxy)phenyl) guanidine
dihydrochloride (52)
Following Method A (see ESI), 64 (358 mg, 0.44 mmol) was dissolved in 4 M HCl in dioxane
(2 mL, 7.97 mmol) and in additional dioxane (0.2 mL) until a final concentration of 0.2 M was reached.

Pharmaceuticals 2020, 13, 485
20 of 24
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and the
residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the pure hydrochloride salt
as a white solid (225 mg, 88%). Mp: decomp. above 170 ◦C. δH (400 MHz, CD3OD): 6.66 (dd, J = 8.1,
2.4 Hz, 1H, H-4), 6.96 (dd, J = 8.0, 1.9 Hz, 1H, H-6), 7.04 (d, J = 8.9 Hz, 1H, H-9), 7.08 (t, J = 2.1 Hz,
1H, H-2), 7.20 (dd, J = 8.6, 2.5 Hz, 1H, H-17), 7.28 (t, J = 8.1 Hz, 1H, H-5), 7.48 (d, J = 2.5, 1H,
H-13), 7.56 (dd, J = 8.9, 2.9 Hz, 1H, H-8), 7.60 (d, J = 8.6 Hz, 1H, H-16), 8.10 (d, J = 2.7 Hz, 1H,
H-11). δC (100 MHz, CD3OD): 111.8 (d, J = 1.8 Hz, qC, C-15), 112.4 (CH Ar, C-2), 113.3 (CH Ar, C-4),
115.5 (CH Ar, C-9), 117.8 (CH Ar, C-6), 122.4 (q, J = 5.5 Hz, CH Ar, C-13), 124.4 (d, J = 272.6 Hz,
qCF3), 127.7 (CH Ar, C-17), 130.9 (d, J = 30.8 Hz, qC, C-14), 131.4 (CH Ar, C-5), 131.6 (CH Ar, C-8),
136.6 (CH Ar, C-16), 138.6 (CH Ar, C-11), 146.1 (qC), 147.2 (qC), 148.9 (qC), 151.8 (qC), 152.4 (qC),
156.9 (qC), 159.0 (qC). δF (376 MHz, CD3OD):—63.96 (s).
ν
max(ATR)/cm−1: 3281 (NH), 3142 (NH),
2922, 2849, 1680, 1625 (C=N), 1566 (C=N), 1473, 1319, 1227 (CF3), 1129 (C-Br), 1023, 832, 592-583.
HRMS (m/z ESI+): found 508.0710 (M+ + H. C20H18N7OF3Br requires: 508.0708). HPLC: 99.8% (tR:
27.5 min).
4.2.17. 1-(4-Chloro-3-(trifluoromethyl)phenyl)-3-(3-((6-guanidinopyridin-3-yl)oxy)phenyl) guanidine
dihydrochloride (2)
Following Method A (see ESI), 65 (113 mg, 0.15 mmol) was dissolved in 4 M HCl in dioxane
(0.67 mL, 2.70 mmol) and in additional dioxane (0.10 mL) until a final concentration of 0.2 M was
reached. After 6 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated
and the residue was purified by flash chromatography to afford the pure hydrochloride salt as a
white solid (63 mg, 79%). Mp: 169–171 ◦C. δH (400 MHz, CD3OD): 6.93 (dd, J = 8.3, 2.3 Hz, 1H, H-4),
7.06 (t, J = 2.1 Hz, 1H, H-2), 7.11–7.13 (m, 2H, H-6 and H-9), 7.44 (t, J = 8.2 Hz, 1H, H-5), 7.53 (dd, J = 8.6,
2.5 Hz, 1H, H-17), 7.60–7.65 (m, 2H, H-16 and H-8), 7.69 (d, J = 2.4 Hz, 1H, H-13), 8.15 (d, J = 2.9 Hz, 1H,
H-11). δC (100 MHz, CD3OD): 115.1 (CH Ar, C-2), 115.6 (CH Ar, C-9), 117.1 (CH Ar, C-4), 120.5 (CH Ar,
C-6), 123.9 (d, J = 272.5 Hz, qCF3) 124.5 (q, J = 5.5 Hz, CH Ar, C-13), 129.9 (qC, C-15), 130.1 (CH Ar,
C-17), 130.2 (d, J = 34.7 Hz, qC, C-14), 132.0 (CH Ar, C-8 or C-16), 132.3 (CH Ar, C-5), 134.0 (CH Ar,
C-8 or C-16), 138.3 (qC), 139.0 (CH Ar, C-11), 139.7 (qC), 149.1 (qC), 151.3 (qC), 155.5 (qC), 156.9 (qC),
159.3 (qC). δF (376 MHz, CD3OD):—64.24 (s).
ν
max(ATR)/cm−1: 3297 (NH), 3121 (NH), 2923, 2854,
1625 (C=N), 1581 (C=N), 1474 (CF3), 1320, 1227 (C-O), 1130 (C-Cl), 1032, 832, 589, 557. HRMS (m/z ESI+):
found: 464.1222 (M+ + H. C20H18N7OF3Cl requires: 464.1213). HPLC: 96.9% (tR: 26.8 min).
4.2.18. 1-(5-(3-((4-Chloro-3-(trifluoromethyl)phenyl)amino)phenoxy)pyridin-2-yl)guanidine
hydrochloride (4)
Following Method A (see ESI), 69 (200 mg, 0.32 mmol) was dissolved in 4 M HCl in dioxane
(0.96 mL, 3.86 mmol) and in additional dioxane (0.65 mL) until a final concentration of 0.2 M was reached.
After 8 h stirring at 55 ◦C, the reaction was adjudged complete (TLC), solvents were evaporated and
the residue was purified by silica gel chromatography (CHCl3:MeOH) to afford the pure hydrochloride
salt as a white solid (136 mg, 93%). Mp: 89–91 ◦C. δH (400 MHz, CD3OD): 6.60 (dd, J = 8.2, 2.3 Hz,
1H, H-4), 6.75 (t, J = 2.2 Hz,1H, H-2), 6.90 (dd, J = 8.1, 2.0 Hz, 1H, H-6), 7.08 (d, J = 8.9 Hz, 1H, H-9),
7.24 (dd, J = 8.7, 2.7 Hz, 1H, H-17), 7.29 (t, J = 8.1 Hz, 1H, H-5), 7.37–7.39 (m, 2H, H-13 and H-16),
7.59 (dd, J = 8.9, 2.9 Hz, 1H, H-8), 8.13 (d, J = 2.9 Hz, 1H, H-11). δC (100 MHz, CD3OD): 108.7 (CH Ar,
C-2), 112.2 (CH Ar, C-4), 114.7 (CH Ar, C-6), 115.5 (CH Ar, C-9), 116.2 (q, J = 5.5 Hz, CH Ar, C-13),
121.8 (CH Ar, C-17), 122.4 (qC, C-15), 124.3 (d, J = 272.4 Hz, qCF3), 129.6 (d, J = 31.0 Hz, qC, C-14),
131.8 (CH Ar, C-8), 132.0 (CH Ar, C-5), 133.4 (CH Ar, C-16), 138.7 (CH Ar, C-11), 144.2 (qC), 145.6 (qC),
148.8 (qC), 151.8 (qC), 156.9 (qC), 159.4 (qC). δF (376 MHz, CD3OD):—64.15 (s).
ν :
max(ATR)/cm−1
3264 (NH), 2923, 2863, 1684, 1629, 1595, 1474 (C=N), 1400, 1332, 1229 (C-O), 1129 (CF3), 1115 (C-Cl),
977, 998. HRMS (m/z ESI+): found 422.0987 (M+ + H. C19H16N5OClF3 requires: 422.0995). HPLC:
98.6% (tR: 33.3 min).

Pharmaceuticals 2020, 13, 485
21 of 24
4.2.19. 4-(3-((4-Chloro-3-(trifluoromethyl)phenyl)amino)phenoxy)phenyl carbamimidate
hydrochloride (70)
To a stirred solution of 74 (205 mg, 0.33 mmol, 1eq) in EtOAc was added SnCl4 (0.15 mL,
1.32 mmol, 4 eq). After 2 h of stirring at room temperature, the solvent and the excess of SnCl4 were
evaporated in vacuo. The remaining liquid was purified by silica gel chromatography(CHCl3:Acetone)
to afford the pure hydrochloride salt (130 mg, 86%) as a colourless gum. δH (400 MHz, DMSO-d6):
6.61 (dd, J = 7.6, 2.3 Hz, 1H, H-4), 6.76 (t, J = 2.2 Hz, 1H, H-2), 6.92 (dd, J = 7.8, 1.7 Hz, 1H, H-6),
7.16 (d, J = 9.1 Hz, 2H, H-8 and H-80 or H-9 and H-90), 7.30–7.34 (m, 2H, H-5 and H-16),
7.37 (d, J = 9.0 Hz, 2H, H-8 and H-80 or H-9 and H-90), 7.40 (d, J = 2.7 Hz, 1H, H-12), 7.50 (d, J = 8.8 Hz,
1H, H-15), 8.61 (bs, 4H, NH), 8.88 (bs, NH). δC (100 MHz, DMSO-d6): 107.8 (CH Ar, C-2), 111.2 (CH Ar,
C-4), 113.1 (CH Ar, C-6), 114.7 (q, J = 5.5 Hz, CH Ar, C-12), 119.4 (qC, C-14), 120.4 (CH Ar, C-5 or C-16),
120.5 (2 CH Ar, C-8 and C-80 or C-9 and C-90), 122.0 (d, J = 227.5 Hz, qCF3), 123.1 (2 CH Ar, C-8 and
C-80 or C-9 and C-90), 127.2 (d, J = 30.7 Hz, qC, C-13), 130.9 (CH Ar, C-5 or C-16), 132.7 (CH Ar, C-15),
142.8 (qC), 143.5 (qC), 145.2 (qC), 155.2 (qC), 157.6 (qC), 161.1 (qC). δF (376 MHz, CD3OD):—61.59 (s).
ν
max(ATR)/cm−1: 3285 (NH), 2924, 2854, 1693, 1655, 1593 (C=N), 1481 (C-N), 1400, 1258, 1231, 1195,
1175 (C-O), 1128 (CF3), 1111 (C-Cl), 1027, 824, 681, 665. HRMS (m/z ESI+): found: 422.0883 (M+ + H.
C20H16N3O2ClF3 requires: 422.0883). HPLC: 96.2% (tR: 32.2 min).
4.2.20. 4’-Sulfonamide-3-[4-chloro-3 trifluoromethylphenylamino]diphenylether (75)
Compound 40 (100 mg, 0.26 mmol, 1 eq.), sulfamoyl chloride (30 mg, 0.26 mmol, 1 eq.) and
NEt3 (0.05 mL, 0.29 mmol, 1.1 eq.) were dissolved in CH2Cl2 (2 mL) and stirred at overnight at
room temperature. The mixture was then washed with water and the organic layer extracted with
EtOAc, washed with brine, dried over MgSO4, concentrated under vacuum and purified by silica
gel chromatography (hexanes:EtOAc) to get 75 as a light brown solid (95 mg, 80%). Mp: 124–126 ◦C.
δH (400 MHz, CD3OD): 6.54 (dd, J = 8.2, 2.3 Hz, 1H, H-4), 6.69 (t, J = 2.2 Hz, 1H, H-2), 6.84 (dd, J = 8.1,
2.1 Hz, 1H, H-6), 6.99 (d, J = 9.0 Hz, 2H, H-8 and H-80), 7.21–7.26 (m, 4H, H-9 and H-90, H-16,
H-5), 7.34–7.38 (m, 2H, H-12, H-15). δC (100 MHz, CD3OD): 109.1 (CH Ar, C-2), 112.2 (CH Ar, C-4),
113.8 (CH Ar, C-6), 116.1 (q, J = 5.5 Hz, C-12, CH Ar), 121.1 (2 CH Ar, C-8 and C-80), 121.2 (CH Ar, C-16),
121.9 (qC, C-14), 123.2 (2 CH Ar, C-9 and C-90), 124.4 (d, J = 272.5 Hz, qCF3), 129.7 (d, J = 30.9 Hz, qC,
C-13), 131.5 (CH Ar, C-5), 133.3 (CH Ar, C-15), 136.1 (qC), 144.6 (qC), 145.1 (qC), 154.4 (qC), 160.5 (qC).
δF (376 MHz, CD3OD):—64.19 (s). ν
max (ATR)/cm−1: 3404 (NH), 3279 (NH), 1596 (S=O), 1489 (S=O),
1143 (C-O), 1153 (CF3), 1125 (C-N), 830 (C-Cl), 821. HRMS (m/z ESI−): found: 456.0397 (M−—H.
C19H14N3O3SClF3 requires: 456.0397). HPLC: 99.3% (tR: 35.4 min).
4.3. Biochemistry
4.3.1. Cell Viability Studies (alamarBlue)
Cells were counted and seeded in 96-well plates at a density of 2
×
105 cells/mL for HL-60,
105 cells/mL for HCT116 and HKH-2, all of
2.5 × 104 cells/mL for MCF-7, MCF10A and HeLa, 1
×
them in their respective media. The 96-well plates were then treated with a 1:100 dilution of stock
concentrations of drugs or EtOH (1% v/v)/DMSO (0.1% v/v) as vehicle control in triplicate. Three blank
wells containing 200 µL RPMI with no cells were also set-up as blanks. After a 72 h incubation, 20 µL
of alamarBlue was added to each well. The plates were incubated in darkness at 37 ◦C for 4–5 h using
a Molecular Devices microplate reader, the fluorescence (F) was then read at an excitation wavelength
of 544 nm and an emission wavelength of 590 nm. Cell viability was then determined by subtracting
the mean blank fluorescence (Fb) from the treated sample fluorescence (Fs) and expressing this as a
percentage of the fluorescence of the blanked vehicle control (Fc). This is demonstrated in the equation
below. The results were then plotted as a nonlinear regression, sigmoidal dose-response curves on
Prism, from which the IC50 value for each drug was determined.

Pharmaceuticals 2020, 13, 485
22 of 24
4.3.2. Flow Cytometry
Apoptosis was analysed using annexin V fluorescein isothiocyanate (FITC) and propidium iodide
(PI). HL-60 cells were seeded at a density of 2
105 cells/mL in 12 well plates. Cells were then treated
with either vehicle (0.5% ethanol), (5 M), (5 M), or (4 M) for 48 h. Following treatment,
×
2
µ
3
µ
4
µ
HL60 cells were collected and washed with annexin V binding buffer (5 mM HEPES, 70 mM NaCl,
1.25 mM CaCl2 pH 7.4) and stained with annexin V-FITC (iQ Corporation, Groningen, The Netherlands)
for 20 min. Following washing with annexin V binding buffer, cells were resuspended in PI (0.5 µg/mL)
in binding buffer and analysed on BD FACS Canto II flow cytometer (BD Sciences) using FloJo software
(Ashland, OR, USA).
4.3.3. Western Blotting
HL60s were seeded in T25 flasks at 50
EtOH (v/v)], or 52 (5 M), as well as
×
104 cells/mL and cells were treated with either vehicle [0.5%
(10 M as reported [ ]). After 16 h, cells were collected and
1–
4,
9
µ
1
µ
9
washed with PBS. Cell pellets were re-suspended in cold cell lysis buffer (radio-immunoprecipitation
assay buffer) supplemented with 1% phosphatase inhibitor cocktail 2 and 3 (Sigma) and 10% protease
inhibitor (Roche). Cells were lysed for 30 min on ice. Protein concentration was then determined by
BCA assay. Lysates were boiled with Laemmli sample buffer [Tris-HCL 50 mM (pH 6.7), glycerol 10%
(w/v), sodium dodecyl sulphate 2% (w/v), bromophenol blue 0.02% (w/v)] containing DTT 50
µM for
10 min at 90 ◦C. Moreover, 20
µg of lysates were resolved by sodium dodecyl sulphate polyacrylamide
gel electrophoresis (SDS-PAGE) and transferred onto PVDF transfer membrane (EMD Millipore).
Membranes were blocked with 5% non-fat milk and probed with primary antibodies for ERK and
phospho-ERK (Cell Signalling). Anti-GAPDH was used as a loading control (Calbiochem).
5. Conclusions
Taking all of these results into account, the following SARs were drawn in terms of HL-60
cytotoxicity; for example, for a good cytotoxicity bulky substituents (4-Br/Cl and 3-CF3) in the phenyl
ring of the hydrophobic moiety are needed; replacement of the di-substituted guanidinium as in
compound 1 by a shorter -NH- link is also beneficial; a mono-substituted guanidinium group at the
position 40 of the phenyloxyaryl core gives good cytotoxic activity; additionally, substituting one of
the phenyl rings by a 2-pyridinyl to facilitate IMHB seems also to increase the cytotoxic activity in
the 3,40-bis-guanidinium series. On the negative side, in the bis-guanidinium diphenyl ether series,
when only one substituent is kept in the phenyl ring of the hydrophobic moiety (4-Br or 4-F as in
8 or
5
) or both are very small (3,4-diF as in ), cytotoxicity decreases or is completely abolished. This is not
6
the case either in the amino-guanidinium diphenyl ether or in the bis-guanidinium phenyloxypyridine
series where mono-substituted or di-fluoro phenyl rings in the hydrophobic moiety still exhibit good
HL-60 cytotoxicity (i.e., compounds 28–30 or 49 and 51).
Future work will be required to investigate the molecular target(s) of our guanidinium derivatives,
but nonetheless, while compound
molecule , compounds and can be considered excellent hit molecules in the search for new
anticancer therapies.
2, 9, and 52 seem to be improved derivatives of previous lead
1
3
4
Supplementary Materials: The following are available online at http://www.mdpi.com/1424-8247/13/12/485/s1,
synthetic details (general information, general procedures, characterisation of intermediates); computational
details (Figure S1, Figure S2, Figure S3, Figure S4 and Figure S5); theoretical physicochemical and pharmacokinetic
parameters (Table S1, Table S2, and Table S3, Figure S6); biochemical protocols (Figure S7, Figure S8, Figure S9,
Figure S10, Figure S11, Figure S12, Figure S13); NMR spectra of final salts; and HPLC chromatograms of final salts.
Author Contributions: Conceptualization, V.P., A.M.M., D.M.Z., and I.R.; Formal analysis, V.P., H.B.M., R.A.,
and I.R.; Funding acquisition, A.M.M., D.M.Z., and I.R.; Investigation, V.P., H.B.M., and R.A.; Methodology,
V.P.; Supervision, A.M.M., D.M.Z., and I.R.; Writing—original draft, V.P., and I.R.; Writing—review and editing,
V.P., H.B.M., R.A., A.M.M., D.M.Z., and I.R. All authors have read and agreed to the published version of
the manuscript.

Pharmaceuticals 2020, 13, 485
23 of 24
Funding: This research was funded by the School of Chemistry at Trinity College Dublin (V.P.), the Irish Research
Council (GOIPG/2017/834, H.B.M.), and the John Scott PhD fellowship from the School of Biochemistry &
Immunology and the School of Medicine at Trinity College Dublin (R.A.).
Acknowledgments: Thanks are given to the Irish Centre for High-End Computing (ICHEC) for the provision of
computational facilities.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
Hanahan, D.; Weinberg, R.A. The hallmarks of cancer. Cell 2000, 100, 57–70. [CrossRef]
Roberts, P.J.; Der, C.J. Targeting the Raf-MEK-ERK mitogen-activated protein kinase cascade for the treatment
of cancer. Oncogene 2007, 26, 3291–3310. [CrossRef] [PubMed]
3.
Davies, H.; Bignell, G.R.; Cox, C.; Stephens, P.; Edkins, S.; Clegg, S.; Teague, J.; Woffendin, H.; Garnett, M.J.;
Bottomley, W.; et al. Mutations of the BRaf gene in human cancer. Nature 2002, 417, 949–954. [CrossRef]
[PubMed]
4.
5.
6.
7.
8.
9.
Michaloglou, C.; Vredeveld, L.C.; Mooi, W.J.; Peeper, D.S. BRaf (E600) in benign and malignant human
tumours. Oncogene 2008, 27, 877–895. [CrossRef] [PubMed]
Wimmer, R.; Baccarini, M. Partner exchange: Protein-protein interactions in the Raf pathway. Trends Biochem. Sci.
2010, 35, 660–668. [CrossRef]
Agianian, B.; Gavathiotis, E. Current insights of BRaf inhibitors in cancer. J. Med. Chem. 2018, 61, 5775–5793.
[CrossRef]
Zhang, J.; Yang, P.L.; Gray, N.S. Targeting cancer with small molecule kinase inhibitors. Nat. Rev. Cancer
2009, 9, 28–39. [CrossRef]
Diez-Cecilia, E.; Kelly, B.; Perez, C.; Zisterer, D.M.; Nevin, D.K.; Lloyd, D.G.; Rozas, I. Guanidinium-based
derivatives: Searching for new kinase inhibitors. Eur. J. Med. Chem. 2014, 81, 427–441. [CrossRef]
Diez-Cecilia, E.; Carson, R.; Kelly, B.; van Schaeybroeck, S.; Murray, J.T.; Rozas, I. Probing a
3,4’-bis-guanidinium diaryl derivative as an allosteric inhibitor of the Ras pathway. Bioorg. Med. Chem. Lett.
2015, 25, 4287–4292. [CrossRef]
10. Trujillo, C.; Previtali, V.; Rozas, I. A theoretical model of the interaction between phosphates in the ATP
molecule and guanidinium systems. Theor. Chem. Acc. 2016, 135, 260. [CrossRef]
11. Liau, N.P.D.; Wendorff, T.J.; Quinn, J.G.; Steffek, M.; Phung, W.; Liu, P.; Tang, J.; Irudayanathan, F.J.; Izadi, S.;
Shaw, A.S.; et al. Negative regulation of RAF kinase activity by ATP is overcome by 14-3-3-induced
dimerization. Nat. Struct. Mol. Biol. 2020, 27, 134–141. [CrossRef]
12. Previtali, V.; Trujillo, C.; Boisson, J.-C.; Khartabil, H.; Hénon, E.; Rozas, I. Development of the first model of
a phosphorylated, ATP/Mg2+-containing B-Raf monomer by molecular dynamics simulations: A tool for
structure-based design. Phys. Chem. Chem. Phys. 2017, 19, 31177–31185. [CrossRef]
13. Kelly, B.; O’Donovan, D.H.; O’Brien, J.; Blanco, F.; Rozas, I. Pyridin-2-yl Guanidine derivatives:
Conformational control induced by intramolecular hydrogen bonding interactions. J. Org. Chem. 2011
76, 9216–9227. [CrossRef] [PubMed]
,
14. Dardonville, C.; Goya, P.; Rozas, I.; Alsasua, A.; Martín, M.I.; Borrego, M.J. New aromatic iminoimidazolidine
derivatives as alpha1-adrenoceptor antagonists: A novel synthetic approach and pharmacological activity.
Bioorg. Med. Chem. 2000, 8, 1567–1577. [CrossRef]
15. Okaniwa, M.; Hirose, M.; Imada, T.; Ohashi, T.; Hayashi, Y.; Miyazaki, T.; Arita, T.; Yabuki, M.; Kakoi, K.;
Kato, J.; et al. Design and synthesis of novel DFG-out RAF/vascular endothelial growth factor receptor 2
(VEGFR2) inhibitors. 1. Exploration of [5,6]-fused bicyclic scaffolds. J. Med. Chem. 2012, 55, 3452–3478.
[CrossRef] [PubMed]
16. Surrya, D.S.; Buchwald, S.L. Dialkylbiaryl phosphines in Pd-catalyzed amination: A user’s guide. Chem. Sci.
2011, 2, 27–50. [CrossRef] [PubMed]
17. Bellamy, F.D.; Ou, K. Selective reduction of aromatic nitro compounds with stannous chloride in non acidic
and non aqueous medium. Tetrahedron Lett. 1984, 25, 839–842. [CrossRef]
18. Ishimoto, K.; Fukuda, N.; Nagata, T.; Sawai, Y.; Ikemoto, T. Development of a scalable synthesis of a
vascular endothelial growth factor receptor-2 kinase inhibitor: Efficient construction of a 6-Etherified
[1,2,4]Triazolo[1,5-a]pyridine-2-amine core. Org. Process Res. Dev. 2014, 18, 122. [CrossRef]

Pharmaceuticals 2020, 13, 485
24 of 24
19. Oguro, Y.; Cary, D.R.; Miyamoto, N.; Tawada, M.; Iwata, H.; Miki, H.; Hori, A.; Imamura, S. Design, synthesis,
and evaluation of novel VEGFR2 kinase inhibitors: Discovery of [1,2,4]triazolo[1,5-a]pyridine derivatives
with slow dissociation kinetics. Biorg. Med. Chem. 2013, 21, 4714–4729. [CrossRef]
20. Previtali, V.; Trujillo, C.; Amet, R.; Zisterer, D.M.; Rozas, I. Effect of isouronium/ guanidinium substitution on
the efficacy of a series of novel anti-cancer agents. Med. Chem. Comm. 2018, 9, 735–743. [CrossRef]
21. Appel, R.; Berger, G. Hydrazinsulfonsäure-amide, I. Über das Hydrazodisulfamid. Eur. J. Inorg. Chem. 1958
91, 1339–1341. [CrossRef]
,
22. Shahani, V.M.; Ball, D.P.; Ramos, A.V.; Li, Z.H.; Spagnuolo, P.A.; Haftchenary, S.; Schimmer, A.D.; Trudel, S.;
Gunning, P.T. A 2,6,9-hetero-trisubstituted purine inhibitor exhibits potent biological effects against multiple
myeloma cells. Bioorg. Med. Chem. 2013, 21, 5618–5628. [CrossRef] [PubMed]
23. Daina, A.; Michielin, O.; Zoete, V. SwissADME: A free web tool to evaluate pharmacokinetics, drug-likeness
and medicinal chemistry friendliness of small molecules. Sci. Rep. 2017, 7, 42717. [CrossRef] [PubMed]
24. Marvin was used for calculating basicity (pKaH) of chemical structures, Marvin 17.21.0, ChemAxon.
Available online: https://www.chemaxon.com (accessed on 28 June 2019).
25. Wu, P.; Nielsen, T.E.; Clausen, M.H. Small-molecule kinase inhibitors: An analysis of FDA-approved drugs.
Drug Discov. Today 2016, 21, 5–10. [CrossRef] [PubMed]
26. Ertl, P.; Rohde, B.; Selzer, P. Fast calculation of molecular polar surface area as a sum of fragment-based
contributions and its application to the prediction of drug transport properties. J. Med. Chem. 2000
43, 3714–3717. [CrossRef] [PubMed]
,
27. Davis, A.; Ward, S.E. The Handbook of Medicinal Chemistry: Principles and Practice; Royal Society of Chemistry:
London, UK, 2014.
28. Daina, A.; Zoete, V. A Boiled-Egg to predict gastrointestinal absorption and brain penetration of small
molecules. Chem. Med. Chem. 2016, 11, 1117–1121. [CrossRef] [PubMed]
29. Montanari, F.; Ecker, G.F. Prediction of drug-ABC-transporter interaction-Recent advances and future
challenges. Adv. Drug Deliv. Rev. 2015, 86, 17–26. [CrossRef]
30. Wilhelm, S.M.; Adnane, L.; Newell, P.; Villanueva, A.; Llovet, J.M.; Lynch, M. Preclinical overview of
sorafenib, a multikinase inhibitor that targets both Raf and VEGF and PDGF receptor tyrosine kinase
signaling. Mol. Cancer Ther. 2008, 7, 3129–3140. [CrossRef]
31. Keating, G.M.; Santoro, A. Sorafenib: A review of its use in advanced hepatocellular carcinoma. Drugs 2009
69, 223–240. [CrossRef]
,
32. Barrett, S.D.; Bridges, A.J.; Dudley, D.T.; Saltiel, A.R.; Fergus, J.H.; Flamme, C.M.; Delaney, A.M.; Kaufman, M.;
LePage, S.; Leopold, W.R. The discovery of the benzhydroxamate MEK inhibitors CI-1040 and PD 0325901.
Bioorg. Med. Chem. Lett. 2008, 18, 6501–6504. [CrossRef]
33. Gulhati, P.; Zaytseva, Y.Y.; Valentino, J.D.; Stevens, P.D.; Kim, J.T.; Sasazuki, T.; Shirasawa, S.; Lee, E.Y.;
Weiss, H.L.; Dong, J.; et al. Sorafenib enhances the therapeutic efficacy of rapamycin in colorectal cancers
harboring oncogenic KRAS and PIK3CA. Carcinogenesis 2012, 33, 1782–1790. [CrossRef] [PubMed]
34. Karoulia, Z.; Wu, Y.; Ahmed, T.; Xin, Q.; Bollard, J.; Krepler, C.; Wu, X.; Zhang, C.; Bollag, G.; Herlyn, M.; et al.
An integrated model of RAF inhibitor action predicts inhibitor activity against oncogenic BRAF signaling.
Cancer Cell. 2016, 30, 485–498. [CrossRef] [PubMed]
35. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.;
Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016.
36. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring
function, efficient optimization and multithreading. J. Comput. Chem. 2010, 31, 455–461. [CrossRef] [PubMed]
37. Humphrey, W.; Dalke, A.; Schulten, K. VMD-visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38.
[CrossRef]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional
affiliations.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
