UPDATES
Synthesis of Benzimidazole-Substituted Arylboronic Acids via Aerobic Oxidation
lowed to stir at 1208C under an argon atmosphere, and
monitored by TLC. After 2 was completely converted into
2-MIDA, the reaction mixture was cooled down to room
temperature. To the above reaction mixture were added 1,2-
aryldiamine (1, 0.55 mmol; 1.1 equiv.) and potassium iodide
(0.10 mmol, 0.20 equiv.) in one portion. The reaction mix-
ture was exposed to air, and allowed to stir at 808C in an
open flask until 2-MIDA was completely consumed. On the
complete consumption of 2-MIDA, the reaction mixture was
cooled to room temperature and 3.0 mL of NaOH (1.0N,
3.0 mmol, 6.0 equiv.) were added to the above reaction mix-
ture. The reaction mixture was stirred at room temperature.
After the complete consumption of 3-MIDA, the reaction
mixture was diluted with water (5.0 mL), was extracted with
CH2Cl2 to remove the remaining 1,2-aryldiamine 1 and
other organic impurities. The combined basic aqueous layer
was filtered to remove the residual 4 molecular sieves.
The filtrate was further acidified with 1N HCl until the pH
of the solution became 6–7, where the desired product was
precipitated. The precipitate was collected by filtration to
provide the desired boronic acid 3.
Scheme 5. Sequential aerobic oxidative cyclization/cross-
coupling reactions of MIDA boronates
This sequential one-pot protocol was further ap-
plied to the cross-coupling reactions of benzimida-
zole-substituted heteroarylboronic acids, which turned
out to be unstable, and thus, not able to be isolated in
analytically pure forms. When MIDA boronates, pre-

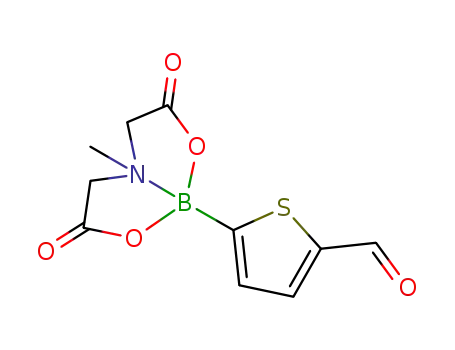

pared via aerobic oxidative cyclization of N-phenyl-
1,2-phenylenediamine and either formyl thienyl or
furyl MIDA boronate, were subjected to cross-cou-
pling reaction with aryl bromide, the desired coupling
products 6 were obtained in good yields over three
steps with only one separation step.
In conclusion, we have developed a highly efficient
method for the synthesis of benzimidazole-substituted
arylboronic acids through metal-free aerobic oxida-
tive condensation of 1,2-arylenediamines and the
MIDA boronate of formylarylboronic acid in the
presence of KI as a nucleophilic catalyst. Further-
more, we developed a simple one-pot protocol for the
synthesis of benzimidazole-substituted arylboronic
acids through the following sequence: MIDA boro-
nate formation, aerobic oxidative cyclization using
KI, and subsequent removal of the MIDA moiety.
Various types of aromatic aldehydes with boronic acid
functionalities were applicable to this protocol, and
the desired boronic acids were obtained in high
yields. In addition, we successfully demonstrated the
utility of this protocol for the direct application of the
resulting boronic acids to Suzuki–Miyaura coupling
reaction without the isolation of any intermediates.
For the preparation of 3-MIDA, after the complete con-
sumption of 2-MIDA, the reaction mixture was concentrat-
ed under reduced pressure and the crude product was fur-
ther purified by solid column chromatography on silica gel
to afford the corresponding benzimidazole 3-MIDA.
Acknowledgements
This work was supported by a National Research Foundation
of Korea (NRF) grant funded by the Korean Government
(NRF-2013R1A1A1008434 and NRF-20100020209). We are
also thankful for financial support from another NRF grant
(NRF-2014M2A84021398).
References
[1] For recent reviews on biological activities of com-
pounds based on benzimidazole scaffolds, see: a) P.
Singla, V. Luxami, K. Paul, RSC Adv. 2014, 4, 12422;
b) Y. Bansal, O. Silakari, Bioorg. Med. Chem. 2012, 20,
6208.
[2] For recent examples of biologically active 2-aryl-(1H)-
benzimidazole derivatives, see: a) X. M. Ye, A. W. Car-
ofalo, R. D. Lawler, J. Y. Fukuda, A. W. Konradi, R.
Holcomb, K. I. Rossiter, D. W. G. Wone, J. Wu, Patent
WO 2006113140, 2006; b) D. Powell, M.-E. Lebrun, S.
Bhat, Y. K. Ramtohul, U.S. Patent 0,021,532, 2011; c) J.
Liu, J. M. Balkovec, A. D. Krikorian, D. Guiadeen,
G. X.-Q. Yang, T. Jian, Y. Yu, R. P. Nargund, P. Vachal,
Patent WO 2012044567, 2014.
[3] a) X. Ouyang, X. Zhang, Z. Ge, Dyes Pigments 2014,
103, 39; b) X. Ouyang, D. Chen, S. Zeng, X. Zhang, S.
Su, Z. Ge, J. Mater. Chem. 2012, 22, 23005.
[4] a) M. E. Welsch, S. A. Synder, B. R. Stockwell, Curr.
Opin. Chem. Biol. 2010, 14, 347; b) M. D. Bruke, S. L.
Schreiber, Angew. Chem. 2004, 116, 48; Angew. Chem.
Int. Ed. 2004, 43, 46.
Experimental Section
General Procedure
To a solution of formyl-substituted arylboronic acid (2,
0.50 mmol; 1.0 equiv.) in DMF (4.0 mL) were added N-
methyliminodiacetic acid (MIDA, 1.5 mmol; 3.0 equiv.) and
200 mg of 4 molecular sieves. The reaction mixture was al-
[5] G. A. Molander, K. Ajayi, Org. Lett. 2012, 14, 4242.
Adv. Synth. Catal. 2015, 357, 2951 – 2956
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
2955
