purification. The biotransformation with P. glucozyma CBS 5766
was performed in a batch mode: 4.5 g Lꢀ1 of 1 was converted into
(2S,3S)-2 (2.75 g after purification) having a de = 86% and ee > 99%.
autoclave was pressurized (50 atm). At the end the autoclave was
vented and the mixture was analyzed by NMR spectra and HPLC.
By asymmetric hydrogenation of substrate 4 using (ꢀ)-tetraMe
BITIOP–Ru(II) complex we have obtained the product 5 with an
(R)-configuration.32
3. Conclusion
4.4. Microorganisms: culture conditions
We have shown that biotransformations of ethyl 2-(benzami-
domethyl)-3-oxobutanoate 1 with different yeasts lead to different
products with satisfactory yields and high stereoselectivity. Under
optimized conditions, K. marxianus var. lactis CL 69 gave the
(2R,3S)-ethyl 2-(benzamidomethyl)-3-hydroxybutanoate 2 with
ee > 99% and de = 98%, while P. glucozyma CBS 5766 allowed for
the production of (2S,3S)-2 with ee > 99% and de = 86%. These bio-
transformations are easier to perform and have better yields and
reaction times compared with the ones catalyzed by cell plants26
and have much higher stereoselectivities than the ones catalyzed
by dehydrogenases from K. marxianus CBS 6556 and KCTC 7155
using ethyl 2-phthalimidomethyl-3-oxobutanoate as substrate.27,28
Strains from official collections or from our collection (Microbi-
ologia Industriale Milano) were routinely maintained on malt ex-
, , pH 5.5). To obtain cells for
tract (8 g Lꢀ1 agar 15 g Lꢀ1
biocatalytic activity tests, the microorganisms were cultured in
500 mL Erlenmeyer flasks containing 100 mL of medium and were
incubated for 48 h at 28 °C on a reciprocal shaker (100 spm). The
yeasts were grown on malt extract with 5 g Lꢀ1 Difco yeast extract,
except P. glucozyma CBS 5766 grown on malt extract with 50 g Lꢀ1
Difco yeast extract. Fresh cells from submerged cultures were cen-
trifuged (5000 rpm per 100) and washed with 0.1 M phosphate buf-
fer, pH 7, prior to use.
4. Experimental
4.5. Bioreduction conditions
4.1. Ethyl 2-(benzamidomethyl)-3- hydroxybutanoate 2
General procedure for the screening: reductions were carried
out in 10 mL screw-capped test tubes with a reaction volume of
3 mL with cells (20 g Lꢀ1, dry weight) suspended in 0.1 M phos-
phate buffer, pH 7, containing 5% of glucose and 4 g Lꢀ1 of ethyl
2-(benzamidomethyl)-3-oxobutanoate as substrate 1. The reac-
tions were carried out at 28 °C with magnetic stirring.
Optimization studies were carried out with K. marxianus var.
lactis CL69 and P. glucozyma CBS 5766. The desired amount of cells
was suspended in different 0.1 M phosphate buffers containing
glucose and neat substrate was added to reach the desired concen-
tration; the suspensions obtained were magnetically stirred at dif-
ferent temperatures.
The biotransformation was stopped by centrifugation of the cel-
lular suspension; the liquid fraction was extracted with ethyl ace-
tate. The organic extracts were dried over Na2SO4, and the solvent
was removed under reduced pressure. After flash chromatography
on silica gel eluted with CH2Cl2–di-iso-propyl ether (2:1) the pure
products were obtained.
The standard was obtained by reduction with NaBH4 (1:5) in
ethanol. The absolute configuration was assigned in accordance
with the literature.29,30
4.2. Preparation of N-(3-oxobutyl)benzamide 4
N-(3-Oxobutyl)benzamide 4 was obtained by biotransforma-
tion. Therefore, 2 g Lꢀ1 of ethyl 2-(benzamidomethyl)-3- oxobut-
anoate 1 and 10 g Lꢀ1 of lipase from Candida cylindracea were
added in 0.1 M phosphate buffer, pH 7. The biotransformation
was carried out at 30 °C under magnetic stirring. After 72 h, the
reaction was extracted three times with ethyl acetate. The col-
lected organic phases were dried over Na2SO4 and reduced under
vacuo. The crude extract was purified with preparative TLC on sil-
ica gel (Kiesel 60 with fluorescent indicator) and was characterized
by mass spectroscopy (Thermo Finnigan LCQ Advantage system)
and 1H NMR (Varian 200 MHz). 1H NMR(CDCl3): d = 2.20 (s, CH3);
2.81–2.85 (t, CH2); 3.68–3.74 (q, CH2); 6.89 (br, NH); 7.41–7.77
(m, C6H5). C11H13NO2 calculated: 191.23, found 214.08
(M++Na(23)).
4.6. Analytical methods
Five hundred microliters of the crude reaction mixture were ex-
tracted with ethyl acetate. The organic phases were dried on
Na2SO4 and were analyzed. The course of the reaction was moni-
tored by TLC on silica gel Kiesel 60 with fluorescent indicator
(CH2Cl2:diethyl ether = 2:1) and the molar conversion and diaste-
reoisomeric and enantiomeric excess were determined by chiral
HPLC analysis (Merck-Hitachi L-7100 equipped with Detector
UV6000LP) on CHIRALPACK AD column (hexane:iso-propa-
nol = 90:10, flow:0.6 mL minꢀ1, detector: diode array).

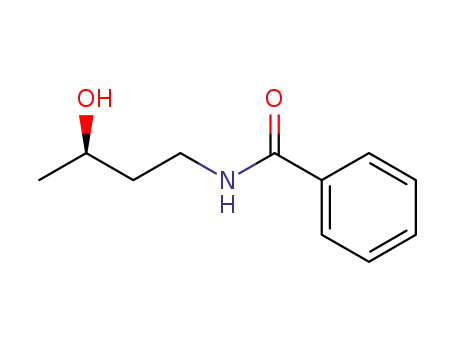

4.3. Preparation of N-(3-hydroxybutyl)benzamide 5
The N-(3-oxobutyl)benzamide was reduced by NaBH4 (1:5) in
ethanol. The reaction was maintained at room temperature under
magnetic stirring. After 12 h, were added water and CH2Cl2 to re-
cover the product 5. The organic extract was dried over Na2SO4
and concentrated in vacuo. The product was purified via prepara-
tive TLC and was analyzed. 1H NMR(CDCl3): d = 1.27 (d, CH3);
1.65–1.77 (m, CH2); 3.27–3.42 (m, CH); 3.91–3.95 (m, CH2); 6.80
(br, NH); 7.41–7.80 (m, C6H5), C11H15NO2 calculated: 193.25, found
216.0 (M++Na(23)).
The absolute configuration was assigned by catalytic asymmet-
ric hydrogenation with Ru(II) complexes prepared with (ꢀ)-tet-
raMe BITIOP31 as a chiral ligand.
In a Schlenk tube sealed under argon the substrate was added to
the precatalyst followed by 20 mL of a solvent, the solution was
stirred for 30 min and then transferred to an autoclave with a
cannula.
