molecules
Article
Synthesis, Docking, and In Vitro Anticoagulant
Activity Assay of Hybrid Derivatives of
Pyrrolo[3,2,1-ij]Quinolin-2(1H)-one as New Inhibitors
of Factor Xa and Factor XIa
Nadezhda Novichikhina 1, Ivan Ilin 2,3, Anna Tashchilova 2,3, Alexey Sulimov 2,3
,
Danil Kutov 2,3, Irina Ledenyova 1, Mikhail Krysin 1,
*
, Khidmet Shikhaliev 1, Anna Gantseva 4,
Ekaterina Gantseva 4, Nadezhda Podoplelova 5,6 and Vladimir Sulimov 2,3
1
Department of Organic Chemistry, Faculty of Chemistry, Voronezh State University, 1 Universitetskaya sq.,
394018 Voronezh, Russia; podaneva_nadya@mail.ru (N.N.); irairachem@yandex.ru (I.L.);
chocd261@chem.vsu.ru (K.S.)
Research Computing Center, Lomonosov Moscow State University, 119992 Moscow, Russia;
2
ivan.ilyin@srcc.msu.ru (I.I.); at@dimonta.com (A.T.); as@dimonta.com (A.S.); dk@dimonta.com (D.K.);
vs@dimonta.com (V.S.)
Dimonta, Ltd., 117186 Moscow, Russia
3
4
Faculty of Physics, Lomonosov Moscow State University, 119992 Moscow, Russia;
gantceva.ar16@physics.msu.ru (A.G.); katia_gantseva@mail.ru (E.G.)
Russian Children’s Clinical Hospital of the Pirogov Russian National Research Medical University of the
5
Ministry of Healthcare of the Russian Federation, 119571 Moscow, Russia; podoplelovan@yandex.ru
Center for Theoretical Problems of Physicochemical Pharmakology, 119991 Moscow, Russia
6
*
Correspondence: kaf261@rambler.ru; Tel.: +7-903-651-7482
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editor: Athina Geronikaki
Received: 29 March 2020; Accepted: 17 April 2020; Published: 19 April 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: Coagulation factor Xa and factor XIa are proven to be convenient and crucial protein targets
for treatment for thrombotic disorders and thereby their inhibitors can serve as effective anticoagulant
drugs. In the present work, we focused on the structure–activity relationships of derivatives of
pyrrolo[3,2,1-ij]quinolin-2(1H)-one and an evaluation of their activity against factor Xa and factor XIa.
For this, docking-guided synthesis of nine compounds based on pyrrolo[3,2,1-ij]quinolin-2(1H)-one
was carried out. For the synthesis of new hybrid hydropyrrolo[3,2,1-ij]quinolin-2(1H)-one derivatives,
we used convenient structural modification of both the tetrahydro- and dihydroquinoline moiety by
varying the substituents at the C6,8,9 positions. In vitro testing revealed that four derivatives were
able to inhibit both coagulation factors and three compounds were selective factor XIa inhibitors.
An IC50 value of 3.68
XIa inhibitor.
µM for was found for the best factor Xa inhibitor and 2 µM for the best factor
Keywords: pyrroloquinolinones; anticoagulants; molecular docking; factor Xa; factor XIa
1. Introduction
Thrombotic disorders greatly affect global health, being the leading cause of mortality and
morbidity [1]. These disorders are mainly caused by abnormal regulation of hemostasis, an important
system that controls perfusion and prevents blood loss caused by vascular damage. The main molecular
effect of hemostasis activation is the formation of thrombin, an enzyme capable of converting soluble
fibrinogen into insoluble strands of fibrin, which, in turn, provide the foundation of the clot. This main
enzyme appears as a result of prothrombin conversion catalyzed by prothrombinase complex, in which
the activated form of coagulation factor Xa (FXa) plays a key role. FXa activation occurs through either
Molecules 2020, 25, 1889; doi:10.3390/molecules25081889
www.mdpi.com/journal/molecules

Molecules 2020, 25, 1889
2 of 16
an extrinsic pathway with the participation of tissue factor and factor VII or an intrinsic pathway
with the participation of factor VII and factor IXa. Activation of the latter enzyme is caused by factor
XIa (FXIa). FXa, FXIa, and thrombin are the most attractive targets in modern pharmacology of
antithrombotic medications. Inhibition of thrombin is of less priority because besides hemostasis, this
enzyme is involved in other signaling cascades and regulates the clotting process directly instead of
through the amplification stage, as FXa and FXIa do [2,3].
Despite the proven efficacy, existing antithrombotic agents, or anticoagulants, possess a number
of limitations. Therapy based on warfarin suffers from the need for constant monitoring of the drug
plasma concentration, an indirect action mechanism influencing a variety of coagulation factors,
and a high risk of bleeding [4]. Because of the high molar mass and poor oral bioavailability, heparin
and its fractional form are parenteral medications, which are not suitable for the treatment of chronic
thrombotic diseases. Modern non-vitamin K antagonist oral anticoagulants achieve their effect through
direct inhibition of key coagulation factors, such as thrombin or FXa. They do not possess the
abovementioned issues, but, despite this, their medical use is associated with the risk of life-threatening
bleeding events, which require urgent administration of a specific reversal agent. The absence of such a
reversal agent is a strong limitation to the widespread application of existing direct FXa inhibitors and
direct thrombin inhibitors [
the case of rivaroxaban and apixaban [
of dabigatran [ ] complicate their use. There is therefore a need for the search for novel safer FXa
5]. Moreover, such serious adverse effects as drug withdrawal syndrome in
6] and an enhanced risk for myocardial infarction in the case
7
inhibitors, probably belonging to other chemical classes. Several recent studies confirmed that FXIa
can be an even more convenient target for anticoagulant therapy in terms of efficacy and safety than
FXa or thrombin. Therefore, the search for FXIa inhibitors is also of significant priority.
FXa is a two-chained serine protease causing cleavage of Arg-Thr and then Arg-Ile bonds in
prothrombin. The heavy chain contains a trypsin-like protease domain and consists of 303 amino acids.
The light one is comprised of 139 amino acids. The first strategies to block FXa were built around using
basic amidine-based compounds mainly interacting with the Asp189 of S1 binding pocket. However,
owing to the poor bioavailability of high basic compounds, medicinal chemists thereafter focused on
low basic and non-basic inhibitors. In such FXa inhibitors, P1 moieties contain aromatic electron-poor
systems and interact with Tyr228 through
π stacking and Asp189 through anion–π interaction.
Examples of these P1 motifs include mono-halogen-substituted benzene, methoxy-substituted benzene,
and substituted heterocycles. P4 moieties of most FXa inhibitors contain aromatic groups often
coupled with a saturated heterocyclic fragment. There are a variety of scaffolds by which the P1
moiety and P4 moiety can be oriented in the proper manner to bind to the corresponding pockets.
The two main features of any scaffold common for effective FXa inhibitors are the ability to form V-
or L-shaped molecules and the presence of hydrogen bond donors/acceptors to interact with Gly216
and/or Gly218 [8]. Figure 1 depicts the structure of the active site of FXa and the crucial residues,
which known FXa inhibitors interact with.
FXIa represents a disulfide-linked homodimer in which each monomer consists of 607 amino
acids. Each subunit consists of a heavy chain and a light chain. The latter contains a trypsin-like
catalytic domain similar to other trypsin-like serine proteases [9]. The S1 pocket represents the deep
hollow, with Asp189 placed not at the base, as in FXa, but a bit higher in the wall of the pocket. The
S10 pocket is placed opposite to the catalytic triad Asp102, His57, and Ser195, near a disulfide bridge
formed by Cys40-Cys58. The S20 pocket contains the
β-chain, which includes the residues Arg39,
His40, and Leu41, where polar interactions of inhibitors are often observed, as well as the residues
Ile151 and Tyr143 [9].
Known FXIa inhibitors in crystal complexes from PDB occupy all mentioned pockets and exhibit a
Y-like shape. The geometry of the active center of factor XIa with its inhibitor is shown in Figure 2. P1
moieties often contain aromatic rings with deactivating substituents. The phenylalanine-like scaffold
present in some inhibitors occupies the hydrophobic S10 pocket and forms a hydrogen bond with
Ser195. In the experimental structures, in addition to the neutral terminal fragments of the inhibitors,

Molecules 2020, 25, 1889
3 of 16
end-charged moieties are also applied to interact with charged residues, Asp189 in the S1 pocket and
Arg37 in the S20 pocket.
Figure 1. The active site of FXa with a bound nanomolar inhibitor (PDB ID: 3CEN). Hydrogen bonds
are shown as yellow dotted lines. Buried residues are labeled by the lower font size.
Figure 2. The active site of the FXIa with an inhibitor (PDB ID: 4CRC). Hydrogen bonds are shown as
yellow dotted lines.
Computational chemistry is immensely useful to reduce the costs and time required for the
discovery of new actives. Molecular docking [10,11] is a key tool in computational drug design that is
able to predict the geometry of a protein–ligand complex and the binding affinity by relying upon the
structure of the target biomolecule [12]. It may be applied for various tasks ranging from docking-based
virtual screening for high-throughput sampling chemical space to lead optimization [13]. Despite
the proven usefulness and efficacy in an accurate prediction of a bound conformation of the ligand,
molecular docking possesses a few limitations among which the relatively high false-positive rate is
the main one [14,15]. To solve this issue, some post-docking procedures aimed at a more accurate
estimation of binding energy are often applied. One possible method to improve energy estimation
and to reduce the false-positive rate is semiempirical postprocessing based on the PM7 method,
thus accounting for solvent effects in the frame of the COSMO model, as shown by recent studies.

Molecules 2020, 25, 1889
4 of 16
In the present study, continuing our previous work on the search for compounds with anticoagulant
activity, we designed and synthesized derivatives of pyrrolo[3,2,1-ij]quinolin-2(1H)-one as potential
inhibitors of FXa and FXIa. The design of the analogs was mainly based on the molecular hybridization
paradigm, implying that the combination of structural features from known active molecules is used
for lead optimization [16]. The synthesis of new derivatives of pyrrolo[3,2,1-ij]quinolin-2(1H)-one
was reached by using a novel diversification of substitutes at the C6,7,8 positions. To test the activity
of the synthesized compounds, amidolytic assays were applied to determine the IC50 values for the
best inhibitors.
2. Results and Discussion
2.1. Design of Pyrrolo[3,2,1-Ij]quinolin-2(1H)-One-Based Derivatives
In our previous work [17
found to be perspective FXa inhibitors, with IC50 values in the range of 0.7 to 40
inhibitors represent hybrid molecules consisting of dihydroquinoline ( ) [18], pyrrolidinone (
and rhodanine ( ) [20] (see Figure 3), which are known to be active moieties of different inhibitors of
coagulation factors.
,
18], derivatives of pyrrolo[3,2,1-ij]quinolin-2(1H)-one (PQ,
M. These identified
) [19],
1) were
µ
2
3
4
Figure 3. An example of the molecular hybridization strategy. Structure of hybrid FXa inhibitors found
in our previous study ( ) and structural fragments of some known inhibitors of coagulation factors:
1
1,2-dihydroquinoline (2), pyrrolidinone (3), and rhodanine (4).
1,2,3,4-Tetrahydroquinolines (5,6) with phenyl and methyl substituents [18,21] as well as
1,2-dihydroquinolines containing N-acetylaminomethyl groups at C4 (
8) [22] (see Figure 4) are
also proven to form a structural basis for compounds with anticoagulant activity. Inhibitory activity
against factor FXa was also detected for other 1,2,3,4-tetrahydroquinolines [23]. On the other hand,
the introduction of piperazine fragments into the structure of biologically active compounds is
considered as one of the most promising directions in medicinal chemistry for the construction of
hybrid molecules [24–26].
Following the hybridization strategy and combing structural fragments, we thereby designed
the focused library of new hybrid PQs, which can be divided into two classes: C6 aryl-substituted
pyrroloquinolindiones (PQD) and piperazinylmethyl-PQD derivatives (Figures 3 and 4—structures
7
and ). The total size of the focused virtual library was 40 compounds, 16 derivatives of aryl-substituted
9
PQD and 24 derivatives of piperazinylmethyl-PQD derivatives. Virtual aryl-substituted PQD-based
derivatives mainly differ in the position and substituent type introduced in the aryl group as well
as in the substituents in the benzene ring of PQD at C9,10. For both places, the aryl fragment
and the benzene ring of PQD, a methyl group, halogens, and a methoxy group were used as

Molecules 2020, 25, 1889
5 of 16
substituents. The design of virtual piperazinylmethyl-PQD derivatives implied varying substituents
at the second nitrogen atom in piperazine as well as at C9 of PQD. Monohalogen-substituted aryl
groups, methylenebenzodioxole, an acetylethyl group, an acetylpropyl group, and methylenebenzene
were applied for an introduction in the piperazine fragment and a methyl group and a fluorine atom
were used as C9 substituents. We considered only the Z configuration of a double bond between
pyrroloquinoline and rhodamine. All derivatives were drawn manually in MarvinSketch and saved in
the united sdf-file for further preparation.
Figure 4. Substituted 1,2,3,4-tetrahydroquinolines (5,6
), and hybrid moieties studied in this work as the basis for FXa and FXIa inhibitors (
boxes).
)
,
N-acetylaminomethyl-1,2-dihydroquinoline
(8
7
and –shown in
9
Derivatives of PQs with a tetrahydroquinoline fragment 7a
of pyrroloquinolindiones 10 with rhodanine 11 (Scheme 1).
–c were obtained by the condensation
Recently, we showed that the amination of 5-bromo-6-methylene-PQD 12 with monosubstituted
piperazines 13 proceeds according to the tele-substitution scheme with the formation of
6-piperazinylmethyl-PQD 14
was selected to obtain PQD 14a, c–f (Scheme 2).

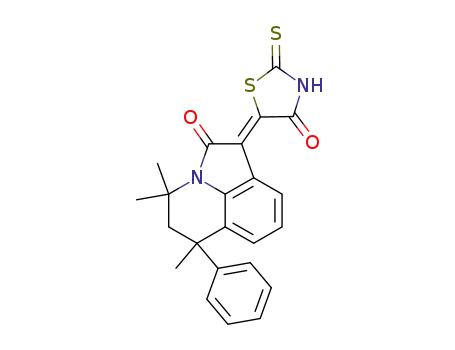

Condensation of PQD 14a,c with rhodanine 11 in acetic acid led to the desired
6-piperazinylmethyl-2,4-dihydro-1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene-2-thioxothiazolidin-4-ones
9a-f. In the 1H NMR spectra of compounds , the signals of C9-H protons were shifted to the low-field
region (8.21–8.53 ppm) compared with their position for the initial PQD 14a, c (7.25–7.55 ppm).
[27]. This unusual conjugated nucleophilic addition-elimination reaction
–
f
9
–
f
The signals of these protons in tetrahydroquinoline derivatives 7a, c were also located at 8.51 and
8.74 ppm. The low-field shift is due to the anisotropic effect of the rhodanine carbonyl group. Thus,
the condensation of PQD 10,14 with rhodanine 11 led to the formation of compounds 7,9 with Z
configuration and formal trans-arrangement of the carbonyl groups.

Molecules 2020, 25, 1889
6 of 16
Scheme 1. Synthesis of tetrahydro-1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene-2-thioxothiazolidin-4-ones
7a–c.
Scheme 2. Synthetic route to dihydro-1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene-2-thioxothiazolidin-4-ones
9a–f. (i): K2CO3, KI, MeCN, reflux [27]; (ii): AcOH, reflux.
2.2. Results of Virtual Screening and In Vitro Testing
Prepared virtual compounds were docked into both FXa and FXIa with the SOL program. Primary
results indicated that among the studied molecules, there are potential dual inhibitors capable of
inhibiting both the target protein since the scoring function values are good for both FXa and FXIa. In
the case of FXa, the visual inspection of the binding modes helped to reject a few compounds with
too long P1-moieties, which did not fit into the S1 pocket. The inspection for poses docked into FXIa
resulted in the rejection of compounds that showed the wrong orientation, out of the active site.
For the 25 best potential inhibitors of FXa and for the 19 best FXIa inhibitor candidates, post-docking
procedures were applied to calculate the binding energies more accurately. Considering all the criteria
together, we selected the abovementioned nine compounds for synthesis. Among them, the ratio
between C6 benzene-substituted PQDs and C6 piperazinylmethyl-substituted PQDs was 3:6. After
their synthesis, all nine compounds were checked in an amydolityc assay against both FXa and FXIa.
Rivaroxaban, an oral direct Factor Xa inhibitor, was used as the reference substance. The percent
inhibition at 30
FXIa, both calculated and experimental, are listed in Table 1.
µ
M of rivaroxaban for FXa was 94
±
3.9 and 4
±
4.6 for FXIa. The results for FXa and

Molecules 2020, 25, 1889
7 of 16
Table 1. Predicted and observed inhibition values for the nine synthesized derivatives of PQ against
FXa and FXIa. The larger the value of percent inhibition, the more active the ligand.
Factor Xa
Binding
Kunction Enthalpy
Factor XIa
Binding
Function Enthalpy
Scoring
Scoring
Percent
Inhibition
at 30 µM
Percent
Inhibition
at 30 µM
Compound
#
Structure
in SOL,
kcal/mol
by PM7,
kcal/mol
in SOL,
by PM7,
kcal/mol
kcal/mol
CH3
CH3
CH3
N
1
7a
−6.22
−5.77
−4.6
−4.9
74 ± 8.8
33 ± 1.6
−4.40
−4.61
−26.20
−17.74
100 ± 0.3
7 ± 3.1
O
N
O
S
S
CH3
N
CH3
H3
C
CH3
2
3
7b
7c
O
O
N
S
S
Cl
CH3
N
H3
C
CH3
−6.12
−4.52
47 ± 1.7
−5.64
−33.20
87 ± 1.4
CH3
O
N
O
S
S
O
N
O
N
CH3
O
CH3
CH3
CH3
4
5
6
9a
9b
9c
−5.70
−5.74
−5.53
−42.69
−43.62
−78.71
0
−4.12
−5.67
−4.82
−20.07
−32.29
−26.69
0
N
O
O
N
S
S
N
N
CH3
O
CH3
CH3
9 ± 4
20 ± 7
54 ± 1.6
96 ± 2.2
N
O
O
N
S
S
O
N
O
N
CH3
F
CH3
CH3
N
O
N
O
S
S
O
O
N
N
CH3
O
7
9d
−6.17
−50.13
56 ± 5
−5.35
−20.05
49 ± 0.6
CH3
CH3
N
O
O
N
S
S
F
N
N
CH3
O
CH3
CH3
8
9
9e
9f
−5.89
−6.21
−43.47
−45.44
69 ± 1
37 ± 2
−6.57
−5.84
−22.50
−25.71
71 ± 2.1
N
O
N
O
S
S
O
O
N
N
F
64 ± 2
CH3
CH3
N
O
O
N
S
S

Molecules 2020, 25, 1889
8 of 16
Relying upon the results, some structure–activity relationships of PQ-based derivatives were
revealed. In the case of the three found FXa inhibitors based on C6 benzene-substituted PQDs (7a
7b
,
,
and 7c), we found that the introduction of a methyl group at C10 of PQD is explicitly associated with
decreasing activity and this is probably due to the improper orientation of 2-thioxothiazolidine-4-one
in the S4 pocket as can be seen from the docking pose (Figure S1). Because of the presence of a methyl
group, thioxothiazolidineone is arranged out-of-plane of the scaffold, which hinders 7b interacting with
aromatic residues of the pocket and destabilizes its structure. Among the second group of derivatives,
compounds based on mercapto-substituted PQDs, there were no significant actives despite the good
calculated properties. The calculated binding enthalpies are shown to describe the observed inactivity
better and are associated with the lower false-positive rate. The results for the piperazinylmethyl
substituted derivatives of PQD clearly indicate two peculiarities. The first one is that an introduction of
a methoxy group at C9 can clearly be attributed to increasing activity, which seems to be related to the
formation of a hydrogen bond between an oxygen atom of this group and Gly218NH in the docking
studies. The second conclusion confirms the known fact that applying halogen-substituted benzene as
the P1 moiety for inhibition of FXa is more effective in terms of activity than a simple phenyl group.
From the nine synthesized derivatives of PQ, seven candidates were active against FXIa at 30 µM.
Surprisingly, all identified FXa inhibitors were also active against FXIa. We assume that the higher
number of actives inhibiting FXIa can be partly explained by the fact that FXIa possesses a larger active
site in comparison with the active site of FXa. The inactivity of 7b from all C6 benzene-substituted
derivatives of PQD can be possibly explained by the destabilizing effect of a methyl group distorting a
plane formed by thioxothiazolidineone and the scaffold as described above. Structural comparison of
9a and 9c allows the conclusion that the introduction of a methoxy group at the C9 position results
in the loss of activity against FXIa. Analysis of the best docking pose of 9a and 9c revealed that the
presence of a methoxy group at C9 may lead to a clash with Lys192, making it impossible for 9a to
reproduce the binding mode of 9c. As can be seen from Figure S2, a fluorine atom of 9c lies very close
to a hydrogen atom of Lys192 and replacing this fluorine with a bulkier methoxy group should lead to
steric hindrance. 9a is therefore not able to place its positively charged moiety containing piperazine
into the negatively charged S1 pocket and form tight contacts with FXIa. This hypothesis does not
conflict with the observed activity for 9b, which also contains a methoxy group at C9, since there is a
difference in the length of the fragments containing piperazine between 9c and 9b, allowing the latter
to occupy the S1 pocket without close contact near the methoxy group and Lys192. In general, the
observed activity for the rest of the piperazinylmethyl-substituted PQDs is consistent with the overall
number of negatively charged residues, which are able to interact with positively charged piperazine.
2.3. Determining IC50 Values and Mechanism of Inhibition
For the four best FXIa inhibitors, 7a, 7c, and 9c, additional measurements were performed to
determine the IC50 values. The kinetics of hydrolysis of the specific substrate S2765 or S2366 by
factor Xa and XIa, respectively, in the buffer solution and in the presence of various concentrations of
compounds was measured. The results are presented in Figure 5. The values of IC50 are shown in
Table 2.
Table 2. Results of the experimental measurements of the IC50 values of factor XIa inhibition for
various compounds.
Compound
Inhibition of Hydrolysis Rate Specific to the Factor XIa Substrate in the Buffer System IC50, µM
7a
7c
9c
4.30 ± 0.346
9.42 ± 0.986
5.31 ± 0.355

Molecules 2020, 25, 1889
9 of 16
1,2
1,0
0,8
0,6
0,4
0,2
0,0
1,2
1,0
0,8
0,6
0,4
0,2
0,0
0
5
10
15
20
25
30
0
5
10
15
20
25
30
Concentration 9c, uM
Concentration 7a, uM
Figure 5. The dependence of inhibition of factor XIa-induced chromogenic substrate hydrolysis on the
inhibitor concentration.
3. Material and Methods
3.1. Molecular Docking Studies with Semiempirical Postprocessing
All docking simulations were performed in the SOL program. This program applies the rigid rotor
approximation and the genetic algorithm for conformational sampling. SOL performs the grid-based
docking for which a set of grids is constructed by an auxiliary program, SOLGRID. SOL’s scoring
function is physics based and applies the MMFF94 force field for energy estimation for electrostatic
and van-der-Waals terms and the generalized Born solvation model to account for solvent effects. The
entropy term is assessed as a loss of torsional degrees of freedom. Other features of SOL and a more
detailed description can be found in articles [28
,29] and its application for the design of inhibitors
in [21 22 30 31]. As in popular docking programs with stochastic sampling, docking solutions from SOL
,
,
,
undergo cluster analysis to estimate for the given ligand whether the exploration of the conformational
space was reliable at selected parameters of the genetic algorithm. The high population of the first
cluster, which is formed by the best docking pose, and a low number of clusters are the main clues
pointing out the reliability of docking results. Otherwise, repeated docking with increased parameters
is a must.
To predict the anticoagulant activity by docking, we retrieved high-quality structures of target
proteins from PDB: Structure of FXa from the 3CEN complex and FXIa from 4CRC. Both crystal
complexes possess good resolution (<2.0 Å) and no missing residues. Protein structures were manually
cleaned from native ligands, water molecules, and salt ions. Their protonation was made in the Aplite
program. Extracted native ligands were protonated in Avogadro [32]. Validation of the prepared
protein structures was performed by the docking of native ligands and docking of known FXa and FXIa
inhibitors. Both docking procedures for native ligands (the FXA ligand into prepared FXa from 3CEN
and the OTM ligand into prepared FXIa from 4CRC) were successful, with RMSD values between
the best docking pose and the native conformation less than 1.4 Å. To study the known binders, we
retrieved 10 crystal complexes of FXa and 10 complexes of FXIa with high active inhibitors. The mean
score for the known FXa inhibitors was
−
6.76
±
0.44 kcal/mol and the mean score for the known FXIa
inhibitors was
of candidates.
−
5.53
±
0.56 kcal/mol. These values further served as a score cutoff for the selection
A more accurate estimation of the binding affinities was performed by applying semiempirical
postprocessing for compounds that scored best. Postprocessing consisted of the following steps.
Firstly, we performed local optimization of the protein–ligand complex by using the PM7 method [33
]
with varying positions of all ligand atoms (taken from the best docking pose from SOL) and fixing
protein atoms. To obtain the heat of formation of the optimized complex, single self-consistent field
calculation with consideration of the solvent effects in the frame of the COSMO model [34] (1SCF +
COSMO) was performed. The heat of formation of the unbound ligand was calculated by a similar
way with local optimization of its low energy conformation obtained from OpenBabel [35] at the

Molecules 2020, 25, 1889
10 of 16
first step and with subsequent 1SCF + COSMO calculation at the second step. Computing the heat
of formation of unbound protein was carried out by direct 1SCF + COSMO calculation with no
preliminary optimization. Finally, binding enthalpy was calculated by an equation:
∆Hbind = ∆HPL − (∆HP + ∆HL)
where ∆HP, ∆HL, and ∆HPL are the heats of formation of an unbound protein, an unbound ligand,
and their complex, respectively. All calculations related to postprocessing were carried out in
the MOPAC program [36]. To perform calculations including thousands of atoms, the MOZYME
module [37], which replaces the standard SCF procedure with a localized molecular orbital method,
was applied.
3.2. Virtual Screening of Focused Library
Designed virtual derivatives of pyrrolo[3,2,1-ij]quinolin-2(1H)-one (see Section 2.1) were drawn
manually by using MarvinSketch and protonated with ChemAxon Protonation module at pH 7.4 [38].
Low-probability protomers were rejected from the protonated 2D library with a simple Python script.
OpenBabel was used for generating 3D coordinates. Because of additional protomers, the focused
library was enlarged from 40 to 62 molecules.
The prepared library of pyrrolo[3,2,1-ij]quinolin-2(1H)-ones was subjected to virtual screening
with the following approach. To begin with, all compounds were docked into FXa and FXIa with the
SOL program at standard parameters: Number of independent runs of 50, population size of 30,000,
mating pool size of 70, and number of generations of 1000. Compounds that showed a low population
of the first cluster were re-docked with heightened parameters (number of runs of 100, population size
of 300,000/3000,000) in order to increase the reliability of the docking simulation. After docking, the
binding modes of the top compounds with scoring function values close to the mean score showed
by known inhibitors or better were visually inspected to reject compounds exhibiting the wrong
occupation of the protein active site. PyMOL [39] was applied for both visual inspection and making
figures. Compounds with good binding modes were subjected to semiempirical postprocessing to
predict the binding affinity more precisely. Finally, the best virtual candidates were supposed to
be synthesized.
3.3. Synthesis
3.3.1. Instrumentation
1
NMR H and 13C spectra were registered on a Bruker DRX
−
500 (500.13 and 125.76 MHz,
respectively) spectrometer (Bruker Corporation, Billerica, MA, USA) in DMSO-d6, and the internal
standard was TMS. Melting points were determined on Stuart SMP 30 (Cole-Palmer, Staffordshire,
UK). To control the reagent and products individuality, qualitative analysis of reaction mass was
performed by TLC on Merck TLC Silicagel 60 F254 chromatographic plate (Merck KGaA, Darmstadt,
Germany); eluents: Methanol, chloroform, and their mixtures in various rations. The chromatograms
were developed by UV and iodine vapor.
Product purity was monitored by high performance liquid chromatography with high-resolution
mass spectrometric electrospray ionization detection (HPLC-HRMS-ESI) in combination with UV
detection. The analyzes were performed on an Agilent 1260 Infinity chromatograph (Agilent
Technologies, Santa Clara, CA, USA) and Agilent 6230 TOF LC/MS high-resolution time-of-flight mass
detector. The ionization block was double electrospray; the signals were recorded in positive polarity;
nebulizer N2 20 psig; desiccant gas N2, 6 mL/min, 325 ◦C; mass detection range is 50–2000 daltons.
Capillary voltage 4.0 kV, fragmentator +191 V, skimmer +66 V, OctRF 750 V. Poroshell 120 EC-C18
column (4.6
×
50 mm; 2.7 µm) was used. Gradient elution: acetonitrile/water (0.1% formic acid); flow
rate 0.4 mL/min. Software for processing research results-MassHunter Workstation/Data Acquisition
V.06.00.

Molecules 2020, 25, 1889
11 of 16
3.3.2. Chemicals
Starting 4,4,6-trimethyl-6-phenyl-5,6-dihydro-1H-pyrrolo[3,2,1-ij]quinoline-1,2(4H)-dione (10a),
4,4,6,9-tetramethyl-6-phenyl-5,6-dihydro-1H-pyrrolo[3,2,1-ij]quinoline-1,2(4H)-dione (10b), 6-(4-chlorophenyl)
-4,4,6,8-tetramethyl-5,6-dihydro-1H-pyrrolo[3,2,1-ij]quinoline-1,2(4H)-dione (10c) were provided by
Alinda Chemical Ltd., Moscow, Russian Federation. 5-Bromo-8-methoxy-4,4-dimethyl-6-methylene-5,6
-dihydro-1H-pyrrolo[3,2,1-ij]quinoline-1,2(4H)-dione (12a), 5-bromo-8-fluoro-4,4-dimethyl-6-methylene
-5,6-dihydro-1H-pyrrolo[3,2,1-ij]quinoline-1,2(4H)-dione (12b), 8-methoxy-4,4-dimethyl-6-((4-phenylpiperazine
-1-yl)methyl)-1H-pyrrolo[3,2,1-ij]quinolin-1,2(4H)-dione (14b) were prepared according to the reported
procedure [27]. Other reagents were purchased from commercial suppliers and used as received.
8-R-4,4-dimethyl-6-((4-R1-piperazine-1-yl)methyl)-1H-pyrrolo[3,2,1-ij]quinolin-1,2(4H)-diones
14a,c–f were obtained by our previously published procedure [27].
Ethyl 4-((8-Methoxy-4,4-dimethyl-1,2-dioxo-2,4-dihydro-1H-pyrrolo[3,2,1-ij]quinolin-6-yl)methyl)piperazine-1
-carboxylate 14a. 0.75 g; yield 61 %; m.p. 156–158 oC; 1H NMR,
δ
(ppm): 1.16 (3H, t, J = 7.1 Hz, CH3CH2);
1.60 (6H, s, 2CH3); 2.32–2.40 (4H, m, CH2N); 3.20–3.42 (m, CH2N + H2O); 3.62 (3H, s, CH3O); 4.01
(2H, q, J = 7.1 Hz, CH3C 2); 5.64 (1H, s, H-5); 6.88 (1H, d, J = 2.4 Hz, H-7(9)); 7.25 (1H, d, J = 2.4 Hz,
H-7(9)). 13C NMR,
H
δ
(ppm): 15.0, 27.5, 43.9, 52.6, 56.2, 56.3, 59.5, 61.2, 106.7, 115.2, 119.9, 120.0, 124.4,
135.1, 142.5, 155.0, 156.1, 158.1, 183.3. HPLC-HRMS-ESI, m/z ([M + H]+), calcd for C22H27N3O5 + H+
414.2025, found 414.2022.
Ethyl 4-((8-Fluoro-4,4-dimethyl-1,2-dioxo-2,4-dihydro-1H-pyrrolo[3,2,1-ij]quinolin-6-yl)methyl)piperazine-1
-carboxylate 14c. 0.81 g; yield 69%; m.p. 120–122 ◦C; 1H NMR,
δ
(ppm): 1.17 (3H, t, J = 7.1 Hz, C
1.62 (6H, s, 2CH3); 2.28–2.42 (4H, m, CH2N); 3.15–3.42 (m, CH2N + H2O); 4.02 (2H, q, J = 7.1 Hz,
CH3CH2); 5.68 (1H, s, H-5); 7.12–7.25 (1H, m, H-7(9)); 7.38–7.55 (1H, m, H-7(9)).13C NMR,
(ppm):
H3CH2);
δ
15.0, 27.6, 43.9, 52.6, 56.5, 59.4, 61.2, 109.5, 109.7, 115.7, 118.9, 119.1, 120.4, 120.5, 124.0, 135.7, 144.5,
155.0, 158.1, 160.0, 182.5. HPLC-HRMS-ESI, m/z ([M + H]+), calcd for C21H24FN3O4 + H+ 402.1825,
found 402.1824.
6-((4-Benzo[d][1,3]dioxol-5-ylmethyl)piperazine-1-yl)methyl)-8-methoxy-4,4-dimethyl-1H-pyrrolo[3,2,1-ij]quinolin
-1,2(4H)-dione 14d. 0.95 g; yield 67 %; m.p. 158–160 ◦C; 1H NMR,
δ (ppm): 1.62 (6H, s, 2CH3); 2.23–2.50
(4H, m, CH2N + DMSO-d5); 3.15–3.25 (2H, m, CH2N); 3.25–3.48 (m, CH2N + H2O); 3.72 (3H, s,
CH3O); 5.59 (1H, s, H-5); 6.69–6.72 (1H, m, CHarom); 6.78–6.82 (2H, m, CHarom); 6.87 (1H, d, J = 2.0 Hz,
H-7(9)); 7.24 (1H, d, J = 2.0 Hz, H-7(9)). 13C NMR,
δ (ppm): 27.5, 52.9, 53.0, 56.2, 56.3, 59.7, 62.1, 101.2,
106/6, 108.3, 109.5, 115.1, 120.0, 120.1, 122.4, 124.8, 132.5, 134.7, 142.5, 146.6, 147.6, 156.1, 158.1, 183.3.
HPLC-HRMS-ESI, m/z ([M + H]+), calcd for C27H29N3O5 + H+ 476.2182, found 476.2185.
6-((4-(4-Fluoropheny)lpiperazine-1-yl)methyl)-8-methoxy-4,4-dimethyl-1H-pyrrolo[3,2,1-ij]quinolin-1,2(4H)-dione
◦
1
14e. 0.79 g; yield 62 %; m.p. 180–182 C; H NMR,
δ (ppm): 1.62 (6H, s, 2CH3); 2.52–2.58 (4H,
m, CH2N); 3.02–3.08 (4H, m, CH2N); 3.27–3.33 (m, CH2N + H2O); 3.72 (3H, s, CH3O); 5.67 (1H, s,
H-5); 5.96 (2H, s, OCH2O); 6.98 (1H, d, J = 2.3 Hz, H-7(9)); 6.90–6.94 (2H, m, CHarom); 6.99–7.04
(2H, m, CHarom); 7.30 (1H, d, J = 2.3 Hz, H-7(9)). 13C NMR,
δ (ppm): 27.6, 49.6, 52.8, 56.2, 56.3, 59.6,
106.7, 115.2, 115.6, 115.8, 117.6, 116.7, 120.1, 124.7, 134.9, 142.5, 148.4, 155.5, 153.1, 157.4, 158.1, 183.3.
HPLC-HRMS-ESI, m/z ([M + H]+), calcd for C25H26FN3O3 + H+ 436.2032, found 436.2034.
6-((4-Benzo[d][1,3]dioxol-5-ylmethyl)piperazine-1-yl)methyl)-8-fluoro-4,4-dimethyl–1H-pyrrolo[3,2,1-ij]quinolin
-1,2(4H)-dione 14f. 0.91 g; yield 66 %; m.p. 160–162 ◦C; 1H NMR,
δ (ppm): 1.60 (6H, s, 2CH3); 2.25–2.46
(6H, m, CH2N); 3.20 (2H, s, CH2N); 3.22–3.35 (m, CH2N + H2O); 5.63 (1H, s, H-5); 5.96 (2H, s, OCH2O);
6.69–6.72 (1H, m, CHarom); 6.79–6.82 (2H, m, CHarom); 7.18 (1H, dd, J = 7.2 Hz (HF), J = 2.3 Hz, H-7(9));
7.84 (1H, dd, J = 10.3 Hz (HF), J = 2.3 Hz, H-7(9)). 13C NMR,
δ
(ppm): 27.6, 52.9, 53.0, 56.5, 59.5, 62.1,
101.2, 108.3, 109.5, 109.6, 115.6, 115.7, 118.9, 119.1, 120.5, 122.3, 124.3, 132.5, 135.3, 144.5, 146.6, 147.6,

Molecules 2020, 25, 1889
12 of 16
158.0, 158.1, 160.0, 182.5 HPLC-HRMS-ESI, m/z ([M + H]+), calcd for C26H26FN3O4 + H+ 464.1981,
found 464.1984.
General procedure for the synthesis of (2,4,5,6-tetrahydro-1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene)
-2-thioxothiazolidin-4-ones 7a–c
A mixture of the corresponding pyrroloquinolinedione (10a–c, 1.5 mmol) and rhodanine (11, 1.5
mmol) in n-BuOH (15 mL) containing 1–2 drops of acetic acid was refluxed for 7–10 h and cooled. The
resulting precipitate was filtered, washed with i-PrOH and dried.
(Z)-2-Thioxo-5-(4,4,6-trimethyl-2-oxo-6-phenyl-2,4,5,6-tetrahydro-1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene)thiazolidin
◦
1
-4-one 7a. 0.38 g; yield 60 %; m.p. 269–271 C; H NMR,
δ
(ppm): 0.72 (3H, s, C6-CH3); 1.63 (3H,
s, C4-CH3); 1.71 (3H, s, C4-CH3); 2.15 (1H, d, J = 14.3 Hz, C5-H); 2.52 (1H, d, J = 14.3 Hz, C5-H);
7.05–7.08 (2H, m, CHarom); 7.15–7.27 (4H, m, CHarom); 7.47 (1H, dd, J = 7.8 Hz, J = 0.5 Hz, H-7); 8.74
(1H, dd, J = 7.8 Hz, J = 0.5 Hz, H-9); 13.95 (1H, br. s, NH). 13C NMR,
δ (ppm): 24.9, 28.0, 30.5, 39.6,
50.8, 54.2, 118.5, 122.5 124.6, 126.3, 126.3, 126.6, 128.2, 131.2, 134.3, 141.2, 147.9, 165.5, 169.4, 199.9.
HPLC-HRMS-ESI, m/z ([M + H]+), calcd for C23H20N2O2S2 + H+ 421.1040, found 421.1042.
(Z)-5-(4,4,6,9-Tetramethyl-2-oxo-6-phenyl-2,4,5,6-tetrahydro-1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene)-2-thioxothiazolidin
-4-one 7b. 0.31 g; yield 48 %; m.p. 246–248 ◦C; 1H NMR,
δ
(ppm): 0.73 (3H, s, C6-CH3); 1.60 (3H, s,
C4-CH3); 1.68 (3H, s, C4-CH3); 2.12 (1H, d, J = 14.3 Hz, C5-H); 2.28 (3H, s, C9-CH3); 2.46–2.52 (m,
C5-H + DMSO-d5); 7.02 (1H, d, J = 8.1 Hz, H-7(8)); 7.08 (2H, d, J = 7.8 Hz, CHarom); 7.13–7.17 (1H,
m, CHarom); 7.22–7.26 (2H, m, CHarom); 7.36 (1H, d, J = 8.1 Hz, CHarom); 13.95 (1H, br. s, NH). 13
C
NMR,
δ (ppm): 23.8, 25.3, 26.0, 28.3, 31.1, 51.4, 54.5, 119.1, 123,6, 125.9, 126.2, 127.1, 128.6, 131.1, 134.3,
138.6, 141.6, 148.6, 167.1, 168.3, 199.3. HPLC-HRMS-ESI, m/z ([M + H]+), calcd for C24H22N2O2S2 + H+
435.1197, found 435.1194.
(Z)-5-(6-(4-Chlorophenyl)-4,4,6,8-tetramethyl-2-oxo-2,4,5,6-tetrahydro-1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene)
◦
1
-2-thioxothiazolidin-4-one 7c. 0.39 g; yield 56 %; m.p. 288–290 C; H NMR,
δ (ppm): 0.72 (3H, s,
C6-CH3); 1.60 (3H, s, C4-CH3); 1.66 (3H, s, C4-CH3); 2.10 (1H, d, J = 14.3 Hz, C5-H); 2.32 (3H, s,
C8-CH3); 2.46–2.50 (m, C5-H + DMSO-d5); 7.08 (2H, d, J = 8.3 Hz, CHarom); 7.20–7.31 (3H, m, CHarom);
8.51 (1H, s, H-9); 13.94 (1H, br. s, NH).. 13C NMR,
δ (ppm): 21.7, 25.5, 28.3, 30.7, 51.2, 54.4, 119.0, 125.2,
125.9, 127.4, 128.6, 129.0, 131.3, 131.7, 131.9, 139.4, 147.5, 165.8, 168.8, 200.3. HPLC-HRMS-ESI, m/z ([M
+ H]+), calcd for C24H21ClN2O2S2 + H+ 469.0807, found 469.0808.
General procedure for the synthesis of 5-(8-R-4,4-Dimethyl-2-oxo-6-((4-R1-piperazin-1-yl)methyl)
-2,4-dihydro-1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene)-2-thioxothiazolidin-4-ones 9a–f
A mixture of the corresponding pyrroloquinolinedione (14a–f, 1.2 mmol) and rhodanine (11,
1.2 mmol) in acetic acid (15 mL) was refluxed for 5–10 h and cooled. The resulting precipitate was
filtered off, washed with cold i-PrOH and recrystallized from i-PrOH/acetic acid.
(Z)-Ethyl 4-((8-methoxy-4,4-dimethyl-2-oxo-1-(4-oxo-2-thioxothiazolidin-5-ylidene)-2,4-dihydro-1H-pyrrolo[3,
2,1-ij]quinolin-6-yl)methyl)piperazine-1-carboxylate 9a. 0.35 g; yield 55 %; m.p. 264–266 ◦C; 1H NMR,
δ
(ppm): 1.18 (3H, t, J = 7.1 Hz, CH3CH2); 1.64 (6H, s, 2CH3); 2.49–2.54 (m, CH2N + DMSO-d5);
3.20–3.45 (m, CH2N + H2O); 3.77 (3H, s, CH3O); 4.03 (2H, q, J = 7.1 Hz, CH3CH2); 5.67 (1H, s, H-5);
7.14 (1H, d, J = 2.4 Hz, H-7); 8.21 (1H, d, J = 2.4 Hz, H-9); 13.50 (1H, br. s, NH). 13C NMR,
(ppm):
δ
14.4, 26.8, 48.0, 51.9, 55.4, 56.4, 58.2, 60.7, 111.5, 113.3, 116.9, 117.7, 123.4, 123.8, 134.3, 134.6, 135.8, 154.4,
154.9, 166.2, 170.8, 200.5. HPLC-HRMS-ESI, m/z ([M + H]+), calcd for C25H28N4O5S2 + H+ 529.1575,
found 529.1580.
(Z)-5-(8-Methoxy-4,4-dimethyl-2-oxo-6-((4-phenylpiperazin-1-yl)methyl)-2,4-dihydro-1H-pyrrolo[3,2,1-ij]quinolin
◦
1
-1-ylidene)-2-thioxothiazolidin-4-one 9b. 0.41g; yield 64%; m.p. 274–276 C; H NMR,
δ (ppm) (low

Molecules 2020, 25, 1889
13 of 16
solubility in DMSO): 1.67 (6H, s, 2CH3); 2.65–2.85 (4H, m, CH2N); 3.10–3.45 (m, CH2N + H2O); 3.77 (3H,
s, CH3O);5.73 (1H, s, H-5); 6.70–7.00 (3H, m, CHarom); 7.15–7.30 (3H, m, CHarom); 8.25 (1H, s, H-9);
13.25 (1H, br. s, NH). 13C NMR,
δ (ppm): 27.0, 41.3, 48.2, 52.2, 55.9, 56.4, 58.5, 112.4, 113.6, 115.4, 117.3,
118.0, 118.8, 124.5, 128.8, 134.9, 150.9, 155.3, 166.5, 171.0, 200.4. HPLC-HRMS-ESI, m/z ([M + H]+), calcd
for C28H28N4O3S2 + H+ 533.1677, found 533.1674.
(Z)-Ethyl 4-((8-Fluoro-4,4-dimethyl-2-oxo-1-(4-oxo-2-thioxothiazolidin-5-ylidene)-2,4-dihydro-1H-pyrrolo[3,2,
1-ij]quinolin-6-yl)methyl)piperazine-1-carboxylate 9c. 0.36 g; yield 58 %; m.p. 167–169 ◦C; 1H NMR,
δ
(ppm): 1.18 (3H, t, J = 7.1 Hz, CH3CH2); 1.66 (6H, s, 2CH3); 2.52–2.56 (4H, m, CH2N); 3.20–3.40 (m,
CH2N + H2O); 4.04 (2H, q, J = 7.1 Hz, CH3CH2); 5.74 (1H, s, H-5); 7.35 (1H, dd, J = 10.0 Hz (HF),
J = 2.4 Hz, H-7); 8.30 (1H, dd, J = 10.0 Hz (HF), J = 2.4 Hz, H-9); 13.20 (1H, br. s, NH). 13C NMR,
δ
(ppm): 14.5, 26.9, 42.8, 51.9, 56.7, 58.0, 60.8, 112.6, 112.9, 113.0, 113.2, 117.0, 118.1, 118.2, 121.8, 123.1,
135.5, 136.7, 138.1, 154.5, 157.0, 158.9, 166.3, 171.7, 200.7. HPLC-HRMS-ESI, m/z ([M + H]+), calcd for
C24H25FN4O4S2 + H+ 517.1375, found 517.1374.
(Z)-5-(6-((4-(Benzo[d][1,3]dioxol-5-ylmethyl)piperazin-1-yl)methyl)-8-methoxy-4,4-dimethyl-2-oxo-2,4-dihydro
-1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene)-2-thioxothiazolidin-4-one 9d. 0.43 g; yield 61 %; m.p. 165–167 ◦C;
1H NMR,
δ (ppm): 1.63 (6H, s, 2CH3); 2.75–3.05 (4H, m, CH2N); 3.25–3.45 (m, CH2N + H2O); 3.85–4.05
(2H, m, CH2N); 5.61 (1H, s, H-5); 6.03 (2H, s, OCH2O); 6.89–6.90 (1H, m, CHarom); 6.94–6.96 (1H, m,
CHarom); 6.97–6.99 (1H, m, CHarom); 7.02 (1H, d, J = 2.4 Hz, H-7); 8.43 (1H, d, J = 2.4 Hz, H-9); NH not
detected. 13C NMR,
δ (ppm): 26.9, 50.1, 51.1, 55.4, 56.1, 57.9, 59.5, 101.1, 108.1, 110.3, 111.6, 112.0, 117.1,
117.7, 119.9, 124.2, 133.6, 133.8, 147.3, 147.4, 154.7, 166.8, 205.0. HPLC-HRMS-ESI, m/z ([M + H]+), calcd
for C30H30N4O5S2 + H+ 591.1732, found 591.1731.
(Z)-5-(6-((4-(4-Fluorophenyl)piperazin-1-yl)methyl)-8-methoxy-4,4-dimethyl-2-oxo-2,4-dihydro-1H-pyrrolo[3,
2,1-ij]quinolin-1-ylidene)-2-thioxothiazolidin-4-one 9e. 0.36 g; yield 54 %; m.p. 263–265 ◦C; 1H NMR,
δ
(ppm): 1.66 (6H, s, 2CH3); 2.60–2.80 (4H, m, CH2N); 3.10–3.20 (2H, m, CH2N); 3.23–3.42 (m, CH2N +
H2O); 3.47–3.55 (2H, m, CH2N); 5.73 (1H, s, H-5); 6.94–6.98 (2H, m, CHarom); 7.02–7.07 (2H, m, CHarom);
7.16 (1H, d, J = 2.4 Hz, H-7); 8.22 (1H, d, J = 2.4 Hz, H-9); 12.85 (1H, br. s, NH). 13C NMR,
δ (ppm):
26.9, 48.4, 52.0, 55.3, 56.4, 57.8, 111.6, 112.8, 115.1, 115.3, 117.0, 117.1, 117.2, 117.5, 122.8, 123.4, 134.3,
135.0, 136.9, 147.4, 154.9, 155.1, 157.0, 166.3, 172.2, 201.5. HPLC-HRMS-ESI, m/z ([M + H]+), calcd for
C28H27FN4O3S2 + H+ 551.1583, found 551.1585.
(Z)-5-(6-((4-(Benzo[d][1,3]dioxol-5-ylmethyl)piperazin-1-yl)methyl)-8-fluoro-4,4-dimethyl-2-oxo-2,4-dihydro-
1H-pyrrolo[3,2,1-ij]quinolin-1-ylidene)-2-thioxothiazolidin-4-one 9f. 0.42 g; yield 61 %; m.p. 276–278 ◦C; 1H
NMR, δ (ppm): 1.65 (6H, s, 2CH3); 2.85–3.05 (4H, m, CH2N); 3.20–3.40 (m, CH2N + H2O); 3.92–4.05
(2H, m, CH2N); 5.66 (1H, s, H-5); 6.04 (2H, s, OCH2O); 6.90–7.00 (3H, m, CHarom); 7.24 (1H, dd, J = 10.0
Hz (HF), J = 2.6 Hz, H-7); 8.53 (1H, dd, J = 10.1 Hz (HF), J = 2.6 Hz, H-9); NH not detected. 13C NMR,
δ
(ppm) (low solubility in DMSO): 27.2, 50.6, 51.6, 56.6, 58.1, 60.3, 101.2, 108.2, 110.2, 112.7, 112.9, 118.1,
123.8, 124.3, 134.6, 147.5. HPLC-HRMS-ESI, m/z ([M + H]+), calcd for C29H27FN4O4S2 + H+ 579.1532,
found 579.1529.
3.4. In Vitro Assays
The kinetics of factor Xa and XIa inhibition was determined from the hydrolysis reaction of a
specific substrate by the enzyme in the presence of the tested substances. Chromogenic substrate is a
peptide that reacts with proteolytic enzymes under the formation of color. Attached to the peptide part
of the chromogenic substrate is a chemical group of p-nitroaniline (pNa), which when released after
the enzyme cleavage, gives rise to color. The rate of pNa formation, i.e., the increase in absorbance
per second, is measured photometrically at 405 nm.

Molecules 2020, 25, 1889
14 of 16
The hydrolysis of the chromogenic peptide substrate by the proteolytic enzyme follows in general
the Michaelis–Menten kinetics. This means that if the substrate is present at a sufficiently high
concentration or if a comparatively small fraction of the substrate is hydrolyzed, the rate of product
(color) formation is proportional to the activity of the enzyme.
The chromogenic substrates S2765 (Chromogenix-Instrumentation Laboratory Company, Bedford,
MA, USA) for factor Xa and S2366 (Chromogenix-Instrumentation Laboratory Company, Bedford, MA,
USA) for factor Xa were used for registering the accumulation of p-nitroaniline as a colored product
by a spectrophotometer THERMOmax Microplate Reader (Molecular Devices Corporation, San Jose,
CA, USA).
Firstly, all compounds were diluted in DMSO in a concentration of 1.5 mM. Then, compound
solutions in DMSO were diluted 25-fold in water buffer (20mM HEPES, 140mM NaCl and 0.1%
polyethylene glycol 6000Da, pH 7.4), mixed with factor Xa or XIa, warmed up for 5 min at 37 C, and
added to plate well containing S2765 or S2366, respectively. The final solution in wells contained
2.5 nM of factor Xa or 0.8 nM of factor XIa, 100 uM of S2765 or S2366, 30 uM of potencial inhibitor, and
2% of DMSO.
The hydrolysis rate was monitored spectrophotometrically at 405 nm (absorption maximum of
the reaction product p-nitroaniline). The results of these measurements were implied to measure the
kinetics of factor Xa inhibition by various inhibitors.
The initial rate was determined as the slope of the linear part of the kinetic curve over the first 3
min of measurement. The inhibitory effect was expressed as the percentage of reduction of the initial
hydrolysis rate. The reaction rate in the absence of any inhibitor was taken as 100%. Each result is
the mean of three parallel determinations
performed and IC50 was determined.
±
SE. For the most promising compounds, the titration was
The processing of results was performed using the GraphPad Prism (GraphPad, San Diego, CA,
USA) and OriginPro 8 (OriginLab Corporation, Suite, Northampton, MA, USA).
4. Conclusions
Herein, we developed
a convenient path for the synthesis of new hybrid di-
and tetrahydropyrrolo[3,2,1-ij]quinolin-1-ylidene-2-thioxothiazolidin-4-ones’ condensation of
polyfunctional pyrrolo[3,2,1-ij]quinolindiones with rhodanine. The structure of the obtained
compounds determined the wide possibilities of its directed optimization by varying the substituents
both in the pyrroloquinoline and in the rhodamine fragments. Moreover, a few synthesized hybrid
molecules were proven to be active against factor Xa and factor XIa.
Supplementary Materials: The following are available online, Figure S1, Figure S2, the NMR spectra, data of
HPLC-MS-ESI analysis of PQ 7, 9, 14.
Author Contributions: K.S. conceived and designed the experiments; I.I. wrote a draft; M.K. wrote the final form;
N.N. and I.L. performed the synthetic part of the study; N.P., A.G. and E.G. performed experimental testing;
A.S., V.S., D.K. interpreted and analyzed the data; I.I. and A.T. performed docking studies and semi-empirical
postprocessing. All authors have read and agreed to the published version of the manuscript.
Funding: This research was funded by Russian Science Foundation, agreement No 18–74–10097.
Conflicts of Interest: The authors declare no conflict of interest.
References and Notes
1.
2.
3.
Wendelboe, A.M.; Raskob, G.E. Global Burden of Thrombosis. Circ. Res. 2016, 118, 1340–1347. [CrossRef]
[PubMed]
De Candia, M.; Lopopolo, G.; Altomare, C. Novel factor Xa inhibitors: A patent review. Expert Opin. Ther. Pat.
2009, 19, 1535–1580. [CrossRef] [PubMed]
Gailani, D.; Broze, G.J.J. Factor XI activation in a revised model of blood coagulation. Science 1991, 253,
909–912. [CrossRef] [PubMed]

Molecules 2020, 25, 1889
15 of 16
4.
5.
6.
Yeh, C.H.; Hogg, K.; Weitz, J.I. Overview of the new oral anticoagulants: Opportunities and challenges.
Arterioscler. Thromb. Vasc. Biol. 2015, 35, 1056–1065. [CrossRef] [PubMed]
Ansell, J.E. Reversing the Effect of Oral Anticoagulant Drugs: Established and Newer Options. Am. J.
Cardiovasc. Drugs 2016, 16, 163–170. [CrossRef] [PubMed]
Patel, M.R.; Hellkamp, A.S.; Lokhnygina, Y.; Piccini, J.P.; Zhang, Z.; Mohanty, S.; Singer, D.E.; Hacke, W.;
Breithardt, G.; Halperin, J.L.; et al. Outcomes of discontinuing rivaroxaban compared with warfarin in
patients with nonvalvular atrial fibrillation: Analysis from the ROCKET AF trial (Rivaroxaban Once-Daily,
Oral, Direct Factor Xa Inhibition Compared With Vitamin K Antagonism for Preventio). J. Am. Coll. Cardiol.
2013, 61, 651–658. [CrossRef]
7.
Polzin, A.; Dannenberg, L.; Wolff, G.; Helten, C.; Achilles, A.; Hohlfeld, T.; Zeus, T.; Kelm, M.; Massberg, S.;
Petzold, T. Non-vitamin K oral anticoagulants (NOAC) and the risk of myocardial infarction: Differences
between factor IIa and factor Xa inhibition? Pharmacol. Ther. 2019, 195, 1–4. [CrossRef]
Patel, N.R.; Patel, D.V.; Murumkar, P.R.; Yadav, M.R. Contemporary developments in the discovery of
selective factor Xa inhibitors: A review. Eur. J. Med. Chem. 2016, 121, 671–698. [CrossRef]
Quan, M.L.; Pinto, D.J.P.; Smallheer, J.M.; Ewing, W.R.; Rossi, K.A.; Luettgen, J.M.; Seiffert, D.A.; Wexler, R.R.
Factor XIa Inhibitors as New Anticoagulants. J. Med. Chem. 2018, 61, 7425–7447. [CrossRef]
8.
9.
10. Sulimov, V.B.; Kutov, D.C.; Sulimov, A. V Advances in docking. Curr. Med. Chem. 2019, 26, 7555–7580.
[CrossRef]
11. Sulimov, A.V.; Kutov, D.C.; Sulimov, V.B. Supercomputer docking. Supercomput. Front. Innov. 2019, 6, 26–50.
[CrossRef]
12. Meng, X.Y.; Zhang, H.X.; Mezei, M.; Cui, M. Molecular docking: A powerful approach for structure-based
drug discovery. Curr. Comput. Aided Drug Des. 2011, 7, 146–157. [CrossRef] [PubMed]
13. Fan, J.; Fu, A.; Zhang, L. Progress in molecular docking. Quant. Biol. 2019, 7, 83–89. [CrossRef]
14. Lyu, J.; Wang, S.; Balius, T.E.; Singh, I.; Levit, A.; Moroz, Y.S.; O’Meara, M.J.; Che, T.; Algaa, E.; Tolmachova, K.;
et al. Ultra-large library docking for discovering new chemotypes. Nature 2019, 566, 224–229. [CrossRef]
[PubMed]
15. Chen, Y.C. Beware of docking! Trends Pharmacol. Sci. 2015, 36, 78–95. [CrossRef] [PubMed]
16. Fraga, C.A.M. Drug hybridization strategies: Before or after lead identification? Expert Opin. Drug Discov.
2009, 4, 605–609. [CrossRef]
17. Sulimov, V.B.; Gribkova, I.V.; Kochugaeva, M.P.; Katkova, E.V.; Sulimov, A.V.; Kutov, D.C.; Shikhaliev, K.S.;
Medvedeva, S.M.; Krysin, M.Y.; Sinauridze, E.I.; et al. Application of molecular modeling to development of
new factor Xa inhibitors. Biomed Res. Int. 2015, 2015. [CrossRef]
18. Ilin, I.S.; Lipets, E.N.; Sulimov, A.V.; Kutov, D.C.; Shikhaliev, K.S.; Potapov, A.Y.; Krysin, M.Y.; Zubkov, F.I.;
Sapronova, L.V.; Ataullakhanov, F.I.; et al. New factor Xa inhibitors based on 1,2,3,4-tetrahydroquinoline
developed by molecular modelling. J. Mol. Graph. Model. 2019, 89, 215–224. [CrossRef]
19. Young, R.J.; Borthwick, A.D.; Brown, D.; Burns-Kurtis, C.L.; Campbell, M.; Chan, C.; Charbaut, M.;
Chung, C.; Convery, M.A.; Kelly, H.A.; et al. Structure and property based design of factor Xa inhibitors:
Pyrrolidin-2-ones with biaryl P4 motifs. Bioorg. Med. Chem. Lett. 2008, 18, 23–27. [CrossRef]
20. Nicolaes, G.A.F.; Kulharia, M.; Voorberg, J.; Kaijen, P.H.; Wroblewska, A.; Wielders, S.; Schrijver, R.;
Sperandio, O.; Villoutreix, B.O. Rational design of small molecules targeting the C2 domain of coagulation
factor VIII. Blood 2014, 123, 113–120. [CrossRef]
21. Quan, M.L.; Wong, P.C.; Wang, C.; Woerner, F.; Smallheer, J.M.; Barbera, F.A.; Bozarth, J.M.; Brown, R.L.;
Harpel, M.R.; Luettgen, J.M.; et al. Tetrahydroquinoline derivatives as potent and selective factor XIa
inhibitors. J. Med. Chem. 2014, 57, 955–969. [CrossRef]
22. Fjellstrom, O.; Akkaya, S.; Beisel, H.-G.; Eriksson, P.-O.; Erixon, K.; Gustafsson, D.; Jurva, U.; Kang, D.;
Karis, D.; Knecht, W.; et al. Creating novel activated factor XI inhibitors through fragment based lead
generation and structure aided drug design. PLoS ONE 2015, 10, e0113705. [CrossRef] [PubMed]
23. Santana-Romo, F.; Lagos, C.F.; Duarte, Y.; Castillo, F.; Moglie, Y.; Maestro, M.A.; Charbe, N.; Zacconi, F.C.
Innovative Three-Step Microwave-Promoted Synthesis of N-Propargyltetrahydroquinoline and 1,2,3-Triazole
Derivatives as a Potential Factor Xa (FXa) Inhibitors: Drug Design, Synthesis, and Biological Evaluation.
Molecules 2020, 25, 491. [CrossRef] [PubMed]

Molecules 2020, 25, 1889
16 of 16
24. Shaquiquzzaman, M.; Verma, G.; Marella, A.; Akhter, M.; Akhtar, W.; Khan, M.F.; Tasneem, S.; Alam, M.M.
Piperazine scaffold: A remarkable tool in generation of diverse pharmacological agents. Eur. J. Med. Chem.
2015, 102, 487–529. [CrossRef] [PubMed]
25. Rathi, A.K.; Syed, R.; Shin, H.-S.; Patel, R. V Piperazine derivatives for therapeutic use: A patent review
(2010-present). Expert Opin. Ther. Pat. 2016, 26, 777–797. [CrossRef] [PubMed]
26. Brito, A.F.; Moreira, L.K.S.; Menegatti, R.; Costa, E.A. Piperazine derivatives with central pharmacological
activity used as therapeutic tools. Fundam. Clin. Pharmacol. 2019, 33, 13–24. [CrossRef] [PubMed]
27. Novichikhina, N.P.; Shestakov, A.S.; Potapov, A.Y.; Kosheleva, E.A.; Shatalov, G.V.; Verezhnikov, V.N.;
Vandyshev, D.Y.; Ledeneva, I.V.; Shikhaliev, K.S. Synthesis of 4H-pyrrolo[3,2,1-ij]quinoline-1,2-diones
containing a piperazine fragment and study of their inhibitory properties against protein kinases. Russ. Chem.
Bull. 2020, 4, 787–792.
28. Sulimov, A.V.; Kutov, D.C.; Oferkin, I.V.; Katkova, E.V.; Sulimov, V.B. Application of the docking program
SOL for CSAR benchmark. J. Chem. Inf. Model 2013, 53, 1946–1956. [CrossRef]
29. Katkova, E. V Investigation of influence of genetic algorithm parameters on the docking effectivness with
the SOL program (in Russian). Numer. methods Program. 2012, 13, 536–550.
30. Sinauridze, E.I.; Romanov, A.N.; Gribkova, I.V.; Kondakova, O.A.; Surov, S.S.; Gorbatenko, A.S.; Butylin, A.A.;
Monakov, M.Y.; Bogolyubov, A.A.; Kuznetsov, Y.V.; et al. New synthetic thrombin inhibitors: Molecular
design and experimental verification. PLoS ONE 2011, 6, e19969. [CrossRef]
31. Sulimov, V.B.; Katkova, E.V.; Oferkin, I.V.; Sulimov, A.V.; Romanov, A.N.; Roschin, A.I.; Beloglazova, I.B.;
Plekhanova, O.S.; Tkachuk, V.A.; Sadovnichiy, V.A. Application of molecular modeling to urokinase inhibitors
development. Biomed Res. Int. 2014, 2014, 625176. [CrossRef] [PubMed]
32. Hanwell, M.D.; Curtis, D.E.; Lonie, D.C.; Vandermeersch, T.; Zurek, E.; Hutchison, G.R. Avogadro:
An advanced semantic chemical editor, visualization, and analysis platform. J. Cheminform. 2012, 4,
17. [CrossRef] [PubMed]
33. Stewart, J.J. Optimization of parameters for semiempirical methods VI: More modifications to the NDDO
approximations and re-optimization of parameters. J. Mol. Model. 2013, 19, 1–32. [CrossRef] [PubMed]
34. Klamt, A.; Schuurmann, G. COSMO: A new approach to dielectric screening in solvents with explicit
expressions for the screening energy and its gradient. J. Chem. Soc. Perkin Trans. 1993, 2, 799–805. [CrossRef]
35. O’Boyle, N.M.; Banck, M.; James, C.A.; Morley, C.; Vandermeersch, T.; Hutchison, G.R. Open Babel: An open
chemical toolbox. J. Cheminform. 2011, 3, 33. [CrossRef] [PubMed]
36. Stewart, J.J.P. MOPAC2016, Stewart Computational Chemistry. Available online: http://openmopac.net
(accessed on 20 October 2018).
37. Stewart, J.J.P. Application of localized molecular orbitals to the solution of semiempirical self-consistent field
equations. Int. J. Quantum Chem. 1996, 58, 133–146. [CrossRef]
38. Marvin A Full Featured Chemical Editor for Making Science. Available online: http://www.chemaxon.com
(accessed on 20 October 2018).
39. DeLano, W.L. The PyMOL Molecular Graphics System, Version 1.4.1; Schrodinger, LLC: Portland, OR, USA, 2010.
Sample Availability: Samples of the compounds 7, 9, 14 are available from the authors.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
