Pd-EnCatTM TPP30 as a Catalyst for the Generation of Highly
Functionalized Aryl- and Alkenyl-Substituted Acetylenes via
Microwave-Assisted Sonogashira Type Reactions
Jörg Sedelmeier,[a] Steven V. Ley,*[a] Heiko Lange,[a] and Ian R. Baxendale[a]
Keywords: Cross-coupling / Heterogeneous catalysis / Reusable catalyst / Palladium / Microwave chemistry / Enynes

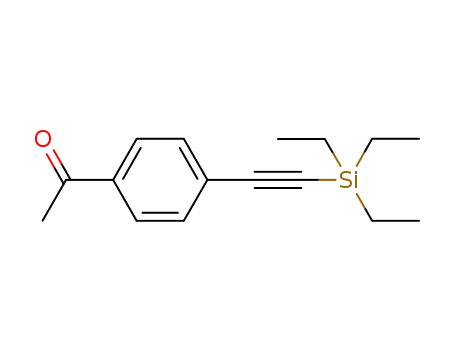

We report a rapid microwave-assisted Sonogashira cross-
coupling of aryl iodides and bromides with terminal alkynes
using Pd-EnCatTM TPP30. Both electron-rich and electron-
deficient aryl halides reacted smoothly with a broad variety
of terminal alkynes in MeCN at 100–120 °C. The coupling
products were obtained in good to excellent yields and in
high purity. This reaction can be performed under copper-
sphere. Furthermore, the encapsulated catalyst can be reco-
vered and recycled by a simple filtration of the reaction mix-
ture. It can be reused in further reactions with only minor
decrease in activity. Additionally, we were able to produce a
variety of enyne derivatives under modified conditions em-
ploying the same Pd-EnCatTM source.
(© Wiley-VCH Verlag GmbH & Co. KGaA, 69451 Weinheim,
and DMF-free conditions and does not require an inert atmo- Germany, 2009)
tices. This type of heterogeneous catalyst was successfully
Introduction
applied in hydrogenation reactions as well as in various
C–C bond-forming reactions like Suzuki, Heck, and Stille
cross-couplings.[10a,10b,11] Very recently, the use of Pd-En-
CatTM was applied to Sonogashira coupling reactions
mainly with phenylacetylene reacting with aryl iodides.[12]
We were interested in extending these studies to include a
larger range of acetylenes and effect coupling with more
readily available aryl bromides to define a robust and easy
to operate process that would tolerate wide functionality.
As a consequence we report herein various copper-free
Sonogashira reactions between a broad variety of mainly
aryl bromides and some aryl iodides and various terminal
alkynes as well as some reactions of olefinic halides with
terminal alkynes catalyzed by Pd-EnCatTM TPP30 using
microwave activation.
The Sonogashira cross-coupling reaction is a powerful
method for C–C bond formation.[1] This reaction has found
a variety of applications ranging from the preparation of
fine chemicals to the synthesis of biologically active sub-
stances.[2] Traditionally, this transformation is carried out
in polar, high-boiling solvents such as DMF, NMP and
DMSO, with a complex palladium catalyst in conjunction
with a copper co-catalyst.[3] The difficult removal of the sol-
vent and the oxidative homo-coupling of acetylenes (Glaser
coupling)[4] in the presence of copper(I) salts renders these
protocols less than straightforward to employ. In addition,
the palladium complexes are often costly, not necessarily
readily available and their use in large-scale reactions can
be problematic. As a result of these problems, several modi-
fications to the Sonogashira coupling procedure have been
published, among them reactions in ionic liquids,[5] reac-
tions in water,[6] polymer- and zeolite-supported catalytic
reaction systems,[7] various copper-free conditions[8] and the
use of microwave irradiation.[9]
Results and Discussion
More recently, commercially available Pd-EnCatTM cata-
lysts have been described as an advanced palladium source
for cross-coupling reactions reducing palladium leaching
and being easier to handle, recover and reuse.[10] The pos-
sibility to recover and to reuse this catalyst system is highly
desirable as this leads to more sustainable chemical prac-
For the optimization of the reaction, different catalyst
forms and ratios, solvents, bases, and conditions for the mi-
crowave heating were examined. Because heterogeneous ca-
talysis often suffers from unfavourable kinetics compared to
the homogeneous processes, and because the encapsulated
catalyst itself often needs prior activation, we decided to
use microwave irradiation as a method of heating. In order
to avoid thermal decomposition using high power micro-
wave irradiation, the microwave vial was simultaneously
cooled by flowing a compressed air stream around the mi-
crowave cavity. This procedure repeatedly resulted in prod-
ucts with significantly higher purity.[10a,10b,13]
[a] Innovative Technology Centre, Department of Chemistry, Uni-
versity of Cambridge,
Lensfield Road, Cambridge, CB2 1EW, United Kingdom
Fax: +44-1223-336-442
E-mail: svl1000@cam.ac.uk
Supporting information for this article is available on the
WWW under http://dx.doi.org/10.1002/ejoc.200900344.
4412
© 2009 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Eur. J. Org. Chem. 2009, 4412–4420

Microwave-Assisted Sonogashira Cross-Coupling Reactions
