Reactions of [Cp*RuCl]4 and [(p-cymene)RuCl 2]2 with the tridentate ligand [Ph(pz)B(μ-O)(μ-pz) B(pz)Ph]-

Article abstract of DOI:10.1021/om901022d

The reaction of the tridentate [N,O,N] (pyrazol-l-yl)borate ligand [Ph(pz)B(μ-O)(μ-pz)B(pz)Ph]^- ([L¹]") with [Cp*RuCl]₄ and [(p-cym)RuCl₂]₂ gives the Ru^II complexes [Cp*Ru(L¹)] and [(p-cym)Ru(L ¹)]Cl, respectively (pz = pyrazolyl, Cp* = pentamethylcyclopentadienyl, p-cym = p-cymene). In order to avoid degradation of the [(p-cym)Ru(L¹)]+ complex in solution, its Cl- counterion has been exchanged for PF₆-, [B(C₆F₅) ₄]-, tosylate, and triflate. When the reaction between [L ¹]- and [(p-cym)RuCl₂]₂ is carried out in the presence of 4 equiv Of TlPF₆, the dinuclear pyrazolyl-bridged complex [(p-cym)Ru(μ-Cl)(μ-pz)₂Ru(p-cym)]PF₆ and the mononuclear species [(p-cym)Ru(L²)] are obtained ([L ²]²- = [Ph(pz)B(μ-O)(μ-OB(Ph)O)B(pz)Ph] ²-). In a targeted synthesis, the lithium salt of the novel ligand [L²]²was prepared from 2 equiv of Lipz and 2,4,6-Ph ₃B₃O₃ and successfully transformed into [(p-cym)Ru(L²)]. [Cp*Ru(L¹)], [(p-cym)Ru(L ¹)]PF₆, and [(p-cym)Ru(L²)] have been characterized by NMR spectroscopy, X-ray crystallography, and (spectro)electrochemistry. One-electron oxidation of [Cp*Ru(L ¹)] by electrochemical or chemical ([Cp₂F _e]PF₆) means leads to the Ru^III species [Cp*Ru(L¹)]PF₆, which has been isolated and fully characterized (E₁/₂(Ru^II/Ru^III) = -0.39 V; CH₂Cl₂, vs FcH/FcH+). A comparison of the solid-state structures of [Cp*Ru(L¹)] and [Cp*Ru(L ^l)]PF₆ reveals that oxidation of the ruthenium center results in a lengthening of the average Ru-Cp* distances and a shortening of all Ru-L¹ bond lengths. According to the X-ray data, the angle strain within [p-cym)Ru(L¹)]PF₆ is higher than in [(P-cym)Ru(L²)], which could account for the fact that [L ¹]- is apparently less stable than [L²]²-.

Full text of DOI:10.1021/om901022d

966 Organometallics 2010, 29, 966–975
DOI: 10.1021/om901022d
Reactions of [Cp*RuCl]4 and [(p-cymene)RuCl2]2 with the Tridentate
Ligand [Ph(pz)B(μ-O)(μ-pz)B(pz)Ph]-
€
Elena V. Mutseneck, Christian Reus, Frauke Schodel, Michael Bolte,
Hans-Wolfram Lerner, and Matthias Wagner*
€
Institut fu€r Anorganische und Analytische Chemie, Goethe-Universitat Frankfurt, Max-von-Laue-Strasse 7,
D-60438 Frankfurt (Main), Germany
Received November 25, 2009
The reaction of the tridentate [N,O,N] (pyrazol-1-yl)borate ligand [Ph(pz)B(μ-O)(μ-pz)B(pz)Ph]-
([L1]-) with [Cp*RuCl]4 and [(p-cym)RuCl2]2 gives the RuII complexes [Cp*Ru(L1)] and [(p-cym)-
Ru(L1)]Cl, respectively (pz = pyrazolyl, Cp* = pentamethylcyclopentadienyl, p-cym = p-cymene). In
order to avoid degradation of the [(p-cym)Ru(L1)]þ complex in solution, its Cl- counterion has been
exchanged for PF6-, [B(C6F5)4]-, tosylate, and triflate. When the reaction between [L1]- and [(p-cym)Ru-

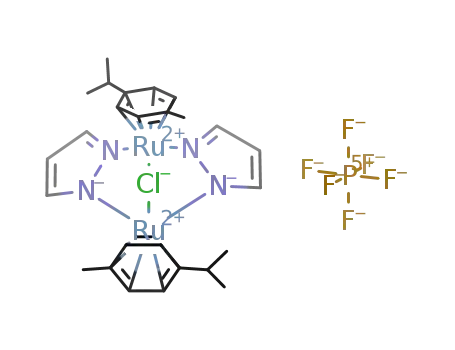

Cl2]2 is carried out in the presence of 4 equiv of TlPF6, the dinuclear pyrazolyl-bridged complex [(p-cym)-
Ru(μ-Cl)(μ-pz)2Ru(p-cym)]PF6 and the mononuclear species [(p-cym)Ru(L2)] are obtained ([L2]2-
=
[Ph(pz)B(μ-O)(μ-OB(Ph)O)B(pz)Ph]2-). In a targeted synthesis, the lithium salt of the novel ligand [L2]2-
was prepared from 2 equiv of Lipz and 2,4,6-Ph3B3O3 and successfully transformed into [(p-cym)Ru(L2)].
[Cp*Ru(L1)], [(p-cym)Ru(L1)]PF6, and [(p-cym)Ru(L2)] have been characterized by NMR spectroscopy,
X-ray crystallography, and (spectro)electrochemistry. One-electron oxidation of [Cp*Ru(L1)] by electro-
chemical or chemical ([Cp2Fe]PF6) means leads to the RuIII species [Cp*Ru(L1)]PF6, which has been
isolated and fully characterized (E1/2(RuII/RuIII) =-0.39 V; CH2Cl2, vs FcH/FcHþ). A comparison of the
solid-state structures of [Cp*Ru(L1)] and [Cp*Ru(L1)]PF6 reveals that oxidation of the ruthenium center
results in a lengthening of the average Ru-Cp* distances and a shortening of all Ru-L1 bond lengths.
According to the X-ray data, the angle strain within [(p-cym)Ru(L1)]PF6 is higher than in [(p-cym)Ru(L2)],
which could account for the fact that [L1]- is apparently less stable than [L2]2-
.
Introduction
acceptor properties of scorpionate ligands is to replace
one or more pyrazolyl rings by phosphorus-,4-8 oxygen-,9-23
Tris(pyrazol-1-yl)borates (“scorpionates”) are among the
most prominent ligands in coordination chemistry, which is
due to the fact that they are not only readily accessible but
also very versatile.1,2 For example, introduction of appro-
priate substituents into the 3-positions of the pyrazolyl rings
allows extensive control over the steric demand of the ligands
and thus over their ability to kinetically stabilize reactive
complex fragments. In contrast, an adjustment of the ligand
field strengths of tris(pyrazol-1-yl)borates is much harder to
achieve, because electronic substituent effects on the donor
properties of the pyrazolyl rings turned out to be rather
modest.3 Thus, a more efficient way to alter the donor/
