Synthesis of New 2-Substituted 5-Hydroxypyrano[2,3-d][1,3]oxazine-4,7-diones

Article abstract of DOI:10.1134/S1070363220040325

Abstract: The reaction of carboxylic acid amides with malonyl chloride in acetonitrile or tetrahydrofuran without heating leads to the formation of previously unknown 2-substituted 5-hydroxypyrano[2,3-d][1,3]oxazines. The structure of the obtained compoun

Full text of DOI:10.1134/S1070363220040325

ISSN 1070-3632, Russian Journal of General Chemistry, 2020, Vol. 90, No. 4, pp. 757–759. © Pleiades Publishing, Ltd., 2020.
Russian Text © The Author(s), 2020, published in Zhurnal Obshchei Khimii, 2020, Vol. 90, No. 4, pp. 650–653.
LETTERS
TO THE EDITOR

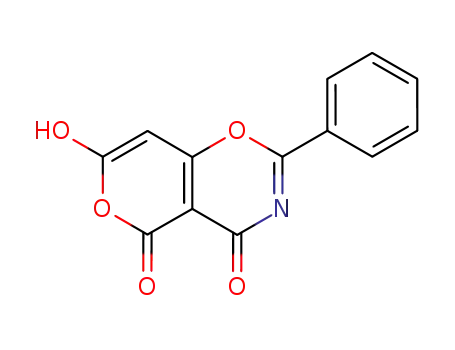

Synthesis of New 2-Substituted
5-Hydroxypyrano[2,3-d][1,3]oxazine-4,7-diones
V. O. Komissarova,*, N. M. Chernova, G. L. Starovab, T. L. Semakovaa, G. V. Ksenofontovaa,
V. E. Zakhsa, and I. P. Yakovleva
a St. Petersburg State University of Chemistry and Pharmacy, St. Petersburg, 197376 Russia
b St. Petersburg State University, St. Petersburg, 198504 Russia
*e-mail: vladimir.olegovich51@gmail.com
Received February 5, 2020; revised February 7, 2020; accepted February 8, 2020
Abstract—The reaction of carboxylic acid amides with malonyl chloride in acetonitrile or tetrahydrofuran without
heating leads to the formation of previously unknown 2-substituted 5-hydroxypyrano[2,3-d][1,3]oxazines. The
structure of the obtained compounds was established by high resolution mass spectrometry, NMR spectroscopy,
and X-ray analysis.
Keywords: pyrano[2,3-d][1,3]oxazine, malonyl chloride, X-ray analysis
DOI: 10.1134/S1070363220040325
Oxo derivatives of 1,3-oxazines are important reagents
for organic synthesis. Molecules of 1,3-oxazin-4-ones
possess three electrophilic centers, and their reactions
with nucleophiles lead to the formation of various acyclic
and heterocyclic compounds, in particular malonamic
acid derivatives exhibiting hypotensive activity [1] and
1,2,4-triazoles with antiviral activity [2]. On the other
hand, related fused structures, pyranooxazines, have been
poorly studied.
unknown heterocyclic system, pyrano[2,3-d][1,3]-
oxazines 4a–4h [4] (Scheme 1).
Thus, we have found that carboxylic acid amides
2a–2h react with 2 equiv of malonyl chloride in
acetonitrile or tetrahydrofuran at room temperature
to afford 2-substituted 5-hydroxypyrano[2,3-d][1,3]-
oxazine-4,7-diones [5]. The presence of five electrophilic
centers in their molecules makes them valuable substrates
for reactions with various nucleophiles and potential
precursors to new privileged heterocyclic structures.
Ziegler and Meindl [3] previously reported the reaction
of carboxylic acid amides 2a and 2b with malonyl
chloride (1), which led to the formation of 2-substituted
4-hydroxypyrano[3,4-e][1,3]oxazine-5,7diones 3a and 3b
(Scheme 1). The reactions were carried out under fairly
harsh conditions, on heating without a solvent.
In continuation of studies in this field, amides 2a–2h
were reacted with malonyl chloride 1 at a molar ratio
of 1 : 2 in acetonitrile or tetrahydrofuran 20–25°C. The
isolated products were characterized by high-resolution
mass spectrometry and NMR. According to the HRMS
data, compounds 4a and 4b had the same elemental
compositions as pyranooxazines 3a and 3b described in
[3]. However, the X-ray analysis of a single crystal of
p-bromophenyl derivative 4e (Fig. 1) showed that the
isolated compounds are representatives of previously
Fig. 1. Structure of the molecule of 2-(4-bromophenyl)-5-
hydroxypyrano[2,3-d][1,3]oxazine-4,7-dione (4e) in crystal
according to the X-ray diffraction data.
757

758
KOMISSAROV et al.
Scheme 1.
O
O
O
O
O
Cl
Cl
O
50ꢀ70o
C
N
O
2
+
R
without solvent
NH2
2a 2h
R
OH
3a, 3b
ꢀ
1
O
O
20ꢀ25oC
MeCN or THF
N
OH
R
O
O
4a 4h
ꢀ
R = Ph (ɚ), 4-MeC6H4 (b), 4-MeOC6H4 (c), 4-NO2C6H4 (d), 4-BrC6H4 (e), 3-MeOC6H4 (f),
PhCH=CH (g), furan-2-yl (h).
5-Hydroxy-2-phenylpyrano[2,3-d][1,3]oxazine-4,7-
spectrum, δC, ppm: 49.66, 89.27, 93.73, 115.39, 129.83,
131.81, 154.38, 159.93, 163.49, 165.63, 167.68, 168.77.
Mass spectrum: m/z 286.0341 [M – H]–; calculated for
C14H8NO6: 286.0357.
dione (4a). A solution of 9.4 g (20 mmol) of malonyl
chloride in 25 mL of anhydrous tetrahydrofuran was
slowly added dropwise to a cold suspension of 4 g
(10 mmol) of amide 2a in 25 mL of anhydrous
tetrahydrofuran. Amide 2a dissolved during the addition
process. The mixture was stirred for 18 h at room
temperature, and the precipitate was filtered off, washed
with tetrahydrofuran, and dried. Yield 5.7 g (67%), mp
5-Hydroxy-2-(4-nitrophenyl)pyrano[2,3-d][1,3]-
oxazine-4,7-dione (4d). Yield 4.15 g (57%), mp 214–
216°C. 1H NMR spectrum, δ, ppm: 5.57 s (1H, 6-H), 8.15 d
(2H, Harom, J = 8.8 Hz), 8.42 d (2H, Harom, J = 8.8 Hz),
13.30 s (1H, OH). 13C NMR spectrum, δC, ppm: 83.07,
89.83, 124.65, 129.56, 139.35, 150.30, 159.59, 159.99,
163.97, 168.72, 170.97. Mass spectrum: m/z 301.0114
[M – H]–; calculated for C13H6N2O7: 301.0102.
1
218–220°C. H NMR spectrum, δ, ppm: 5.50 s (1H,
6-H), 7.52 m (2H, Ph), 7.79 m (1H, Ph), 8.20 m (2H, Ph),
12.77 br.s (1H, OH). 13C NMR spectrum, δC, ppm: 88.53,
93.38, 127.32, 128.07, 131.59, 135.01, 154.43, 154.68,
165.87, 167.59, 168.46. Mass spectrum: m/z 256.0248
[M – H]–; calculated for C13H6NO5: 256.0251.
2-(4-Bromophenyl)-5-hydroxypyrano[2,3-d][1,3]-
oxazine-4,7-dione (4e). Yield 4.15 g (62%), mp 220–
222°C. 1H NMR spectrum, δ, ppm: 5.52 s (1H, 6-H), 7.86
d (2H, Harom, J = 8.5 Hz), 8.10 d (2H, Harom, J = 8.5 Hz),
12.89 br.s (1H, OH). 13C NMR spectrum, δC, ppm: 89.77,
93.92, 128.28, 129.53, 131.13, 133.04, 154.13, 159.78,
165.04, 167.36, 168.74. Mass spectrum: m/z 333.9357
[M – H]–; calculated for C13H6NO5Br: 333.9357.
Compounds 4b–4h were synthesized in a similar way.
5-Hydroxy-2-(4-methylphenyl)pyrano[2,3-d]-
[1,3]oxazine-4,7-dione (4b). Yield 5.79 g (72%), mp
210–212°C. 1H NMR spectrum, δ, ppm: 2.44 s (3H, Me),
5.47 s (1H, 6-H), 7.46 d (2H, Harom, J = 8.3 Hz), 8.09 d
(2H, Harom, J = 8.3 Hz), 12.65 br.s (1H, OH). 13C NMR
spectrum, δC, ppm: 21.53, 88.66, 93.32, 129.46, 130.08,
130.51, 143.77, 154.39, 154.64, 165.92, 167.72, 168.59.
Mass spectrum: m/z 270.0401 [M – H]–; calculated for
C14H8NO5: 270.0408.
5-Hydroxy-2-(3-methoxyphenyl)pyrano[2,3-d][1,3]-
oxazine-4,7-dione (4f). Yield 5.33 g (70%), mp 224–
1
226°C. H NMR spectrum, δ, ppm: 3.87 s (3H, MeO),
5.50 s (1H, 6-H), 7.35 m (1H), 7.56 pseudo-t (1H, J =
7.8 Hz), 7.62 m (1H), 7.78 m (1H, Harom), 12.77 br.s
(1H, OH). 13C NMR spectrum, δC, ppm: 55.98, 89.87,
93.69, 113.36, 121.62, 121.82, 130.29, 131.10, 154.19,
159.75, 160.07, 165.54, 167.40, 168.52. Mass spectrum:
m/z 286.0361 [M – H]–; calculated for C14H8NO6:
286.0357.
5-Hydroxy-2-(4-methoxyphenyl)pyrano[2,3-d]-
[1,3]oxazine-4,7-dione (4c). Yield 5.94 g (78%), mp
1
221–223°C. H NMR spectrum, δ, ppm: 3.81 s (3H,
MeO), 5.53 s (1H), 6.97 d (2H, Harom, J = 8.8 Hz), 7.85 d
(2H, Harom, J = 8.8 Hz), 12.84 br.s (1H, OH). 13C NMR
RUSSIAN JOURNAL OF GENERAL CHEMISTRY Vol. 90 No. 4 2020

SYNTHESIS OF NEW 2-SUBSTITUTED
759
1158.59(5) Å3; Z = 4; μ(MoKα) = 3.568 mm–1; dcalc
=
1.927 g/cm3. Total of 11710 reflection intensities were
measured in the range 6.624° ≤ 2θ ≤ 55°), including 2661
independent reflections (Rint= 0.0400, Rσ = 0.0317) which
were used in all calculations; final divergence factors:
R1 = 0.0275 [reflections with I > 2σ(I)], wR2 = 0.0658
(all independent reflections). The X-ray diffraction data
were deposited to the Cambridge Crystallographic Data
Centre (CCDC entry no. 1941265).
5-Hydroxy-2-(2-phenylethenyl)pyrano[2,3-d][1,3]-
oxazine-4,7-dione (4g). Yield 5.04 g (65%), mp 110–
1
112°C. H NMR spectrum, δ, ppm: 5.60 s (1H, 6-H),
7.05 d (1H, CH=CH, J = 16.1 Hz), 7.47 m (3H, Harom),
7.88 m (2H, Harom), 7.99 d (1H, CH=CH, J = 16.1 Hz),
12.86 br.s (1H, OH). 13C NMR spectrum, δC, ppm: 89.59,
93.33, 118.47, 128.65, 129.59, 132.02, 134.33, 146.88,
154.33, 159.89, 166.21, 167.43, 168.68. Mass spectrum:
m/z 282.0409 [M – H]–; calculated for C15H8NO5:
282.0408.
CONFLICT OF INTEREST
The authors declare the absence of conflict of interest.
REFERENCES
2-(Furan-2-yl)-5-hydroxypyrano[2,3-d][1,3]-
oxazine-4,7-dione (4h). Yield 6.77 g (76%), mp 178–
180°C. 1H NMR spectrum, δ, ppm: 5.45 s (1H), 6.91 d
(1H, HFu, J = 3.8 Hz), 7.75 d (1H, HFu, J = 3.8 Hz), 8.25 s
(1H, HFu), 12.73 br.s (1H, OH). 13C NMR spectrum,
δC, ppm: 89.40, 93.14, 114.55, 122.19, 143.76, 151.01,
153.71, 157.47, 159.74, 167.50, 168.61. Mass spectrum:
m/z 246.0037 [M – H]–; calculated for C11H4NO6:
246.0044.
1. Lalaev, B.Yu., Yakovlev, I.P., Kuz’mich, N.N., Kse-
nofontova, G.V., and Zakhs, V.E., Russ. J. Gen.
Chem., 2010, vol. 80, no. 10, p. 2043.
https://doi.org/10.1134/S1070363210100269
2. Zaharia, V., Silvestru, A., Palibroda, N., and Mogosan, C.,
Farmacia, 2011, vol. 59, no. 5, p. 624.
1
The H and 13C NMR spectra were recorded from
3. Ziegler, E. and Meindl, H., Monatsh. Chem., 1964,
vol. 95, p. 1318.
solutions in DMSO-d6 on a BrukerAvance III spectrometer
at 400 and 100 MHz, respectively; the chemical shifts
were measured relative to the residual proton and carbon
signals of the solvent. The high resolution mass spectra
(negative electrospray ionization) were obtained with a
Bruker micrOTOF instrument. The purity of the isolated
compounds was checked, and the progress of reactions
was monitored, by TLC on Silica gel 60 F254 plates
(Merck) using ethanol–ethyl acetate (4 : 1) as eluent; spots
were visualized under UV light. The melting points were
measured in capillary tubes and are uncorrected.
https://doi.org/10.1007/BF00904729
4. Komissarov, V.O., Chernov, N.M., and Yakovlev, I.P.,
Abstracts of Papers, VII Vserossiiskaya nauchnaya kon-
ferentsiya studentov i aspirantov s mezhdunarodnym
uchastiem “Innovatsii v zdorov’e natsii” (VIIth All-Rus-
sian Scientific Conf. of Students and Postgraduate Stu-
dents with International Participation “Innovations and
National Health”), St. Petersburg, 2019, p. 227.
5. Komissarov, V.O., Chernov, N.M., Ksenofontova, G.V.,
Semakova, T.L., and Yakovlev, I.P., RU Patent
no. 2705183 C1, 2019; Byull. Izobret., 2019, no. 31.
X-Ray analysis of compound 4e. The X-ray diffrac-
tion data for compound 4e were obtained at the Center
for X-Ray Diffraction Studies (St. Petersburg State
University) on a Supernova diffractometer (Dual,
Cuatzero, Atlas) at 100(2) K. Single crystals of 4e were
grown from a solution in acetonitrile. The structure was
solved using Olex2 [6], SHELXS [7], and SHELXL [8].
Monoclinic crystal system, C13H6NO5Br, M 336.10, space
group P21/c (no. 14); unit cell parameters: a = 8.7492(2),
b = 11.0703(3), c = 12.0221(3) Å; β = 95.733(3)°; V =
6. Dolomanov, O.V., Bourhis, L.J., Gildea, R.J,
Howard, J.A.K., and Puschmann, H., J.Appl. Crystallogr.,
2009, vol. 42, p. 339.
https://doi.org/10.1107/S0021889808042726
7. Sheldrick, G.M., Acta Crystallogr., Sect. A,
2008, vol. 64, p. 112.
https://doi.org/10.1107/S0108767307043930
8. Sheldrick, G.M., Acta Crystallogr., Sect. C,
2015, vol. 71, p. 3.
https://doi.org/10.1107/S2053229614024218
RUSSIAN JOURNAL OF GENERAL CHEMISTRY Vol. 90 No. 4 2020
