Intramolecular Hydrogen Bonds
Preorganize an Aryl-triazole Receptor
into a Crescent for Chloride Binding
Semin Lee, Yuran Hua, Hyunsoo Park, and Amar H. Flood*
Department of Chemistry, Indiana UniVersity, 800 East Kirkwood AVenue,
Bloomington, Indiana 47405
aflood@indiana.edu
Received March 10, 2010
ABSTRACT
Aryl-triazole pentads have been preorganized with intramolecular hydrogen bonds to enhance chloride binding. This outcome highlights the
dual hydrogen bond donor and acceptor properties of 1,2,3-triazoles.
Recent studies on macrocyclic triazolophanes,1aryl-triazole
foldamers,1b,2 and other triazole-containing molecules3 have
shown that C-H· · ·X- hydrogen bonds are strong enough
to play a major role in the field of anion supramolecular
chemistry.4 Triazolophanes have unexpectedly large halide
binding constants, which take advantage of macrocyclic
preorganization5 to direct four triazole C-H donors and
four phenylene C-H donors into the central cavity. On
the other hand, flexible aryl-triazole oligomers containing
the same number or more of C-H donors have binding
constants that are weaker by orders of magnitude com-
pared to rigid triazolophanes.1b,2 Such effects were also
observed between indole-based macrocycles and foldamers.6
Thus, preorganizing the conformation of receptors is crucial
for obtaining high binding affinities. Herein, we demonstrate
a strategy to preorganize the conformations of aryl-triazole
pentads using intramolecular hydrogen bonds to increase the
Cl- affinity without forming macrocycles.
(1) (a) Li, Y.; Flood, A. H. Angew. Chem., Int. Ed. 2008, 47, 2649–
2652. (b) Li, Y.; Flood, A. H. J. Am. Chem. Soc. 2008, 130, 12111–12122.
(c) Li, Y.; Pink, M.; Karty, J. A.; Flood, A. H. J. Am. Chem. Soc. 2008,
130, 17293–17295. (d) Li, Y.; Vander Griend, D. A.; Flood, A. H. Supramol.
Chem. 2009, 21, 111–117. (e) Zahran, E.; Hua, Y.; Li, Y.; Flood, A. H.;
Bachas, L. G. Anal. Chem. 2010, 82, 368–375. (f) Hua, Y.; Flood, A. H.
Chem. Soc. ReV. 2010, 39, 1262–1271.
(2) (a) Juwarker, H.; Lenhardt, J. M.; Pham, D. M.; Craig, S. L. Angew.
Chem., Int. Ed. 2008, 47, 3740–3743. (b) Hecht, S.; Meudtner, R. M. Angew.
Chem., Int. Ed. 2008, 47, 4926–4930. (c) Wang, Y.; Li, F.; Han, Y. M.;
Wang, F. Y.; Jiang, H. Chem.sEur. J. 2009, 15, 9424–9433. (d) Juwarker,
H.; Lenhardt, J. M.; Castillo, J. C.; Zhao, E.; Krishnamurthy, S.; Jami-
olkowski, R.; Kim, K.-H.; Craig, S. L. J. Org. Chem. 2009, 74, 8924–
8934
.
(3) (a) Fisher, M. G.; Gale, P. A.; Hiscock, J. R.; Hursthouse, M. B.;
Light, M. E.; Schmidtchen, F. P.; Tong, C. C. Chem. Commun. 2009, 3017–
3019. (b) Zheng, H.; Zhou, W.; Lv, J.; Yin, X.; Li, Y.; Liu, H.; Li, Y.
Chem.sEur. J. 2009, 15, 13253–13262. (c) Romero, T.; Caballero, A.;
Ta´rraga, A.; Molina, P. Org. Lett. 2009, 11, 3466–3469. (d) Mullen, K. M.;
Mercurio, J.; Serpell, C. J.; Beer, P. D. Angew. Chem., Int. Ed. 2009, 48,
4781–4784. (e) Gassensmith, J. J.; Matthys, S.; Lee, J.-J.; Wojcik, A.;
Kamat, P. V.; Smith, B. D. Chem.sEur. J. 2010, 16, 2916–2921.
(4) Sessler, J. L.; Gale, P. A.; Cho, W.-S. Anion Receptor Chemistry;
RSC Publishing: Cambridge, U.K., 2006.
(5) Bandyopadhyay, I.; Raghavachari, K.; Flood, A. H. ChemPhysChem
2009, 10, 2535–2540.
(6) (a) Chang, K.-J.; Moon, D.; Lah, M. S.; Jeong, K.-S. Angew. Chem.,
Int. Ed. 2005, 44, 7926–7929. (b) Chang, K.-J.; Kang, B.-N.; Lee, M.-H.;
Jeong, K.-S. J. Am. Chem. Soc. 2005, 127, 12214–12215.
10.1021/ol1005856  2010 American Chemical Society
Published on Web 04/07/2010

Intramolecular hydrogen bonds have been used in various
types of foldamers7 to preorganize their conformations and
assist folding. For instance, aromatic oligo-amide,8 -urea,9
and -hydrazide10 foldamers have been synthesized. Hydrogen
bonds have also been used to achieve high yield macrocy-
clizations.11 Isophthalamides with intramolecular hydrogen
bonds12 and oligoindoles with metal binding13 showed an
increase in the anion binding constant. Recently, triazole
C-H· · ·O hydrogen bonds have been investigated with the
aid of X-ray crystallography.14 Therein, it was also observed
that the triazole C-H group forms intermolecular hydrogen
bonds with triazole N2/N3 atoms in the crystal. It is
noteworthy that the N3 of a triazole could serve as a hydrogen
bond acceptor. We envisioned, therefore, that the triazole’s
N3 nitrogen could be used as an intramolecular hydrogen
bonding site to preorganize aryl-triazole pentads.
phenyls for the purpose of solubility. Pentad 2, which does
not have hydroxyl groups, was prepared as a control.
Synthetic routes for pentads 1 and 2 are shown in Scheme
1. Diiodoresorcinol (3) was protected with tetrahydropyran
(THP) groups using dihydropyran (DHP) with a catalytic
amount of pyridinium p-toluenesulfonate (PPTS) to give 4.
Sonogashira coupling of 4 with trimethylsilylacetylene
followed by desilylation provided diacetylene 5 in 95% yield.
5 was “clicked”16 with aryl azide 6, and then the THP groups
were removed to afford pentad 1 in a moderate yield. Aryl
triazole pentad 2 was prepared by click reaction between 6
and 7. All compounds were fully characterized.17 2D NOESY
studies on 1 (strong Ha,b and Hb,c cross peaks) and 2 (medium
Ha,b, Hb,c, and Hb,f cross peaks) are consistent with greater
preorganization of 1.17
The 1H NMR titration (Figure 1) of 1 and 2 with
tetrabutylammonium chloride (TBACl) in CD2Cl2 provides
insight into the structures of the resulting complexes in
solution. The downfield position of the -OH 1H NMR signal
in pentad 1 (10.9 ppm), compared to 3 (5.4 ppm), indicates
that it is deshielded by hydrogen bonding. Upon addition of
TBACl, pentads 1 and 2 both showed large downfield shifts
of the triazoles’ Hb and central phenylene’s Ha protons. The
R-CH2 proton of the TBA+ cation peak also shifted in both
titrations indicating that TBA+ is involved in the solution-
phase equilibria. Additionally, the -OH signal of 1 did not
have a large peak shift, which implies that it does not have
a direct interaction with Cl-.

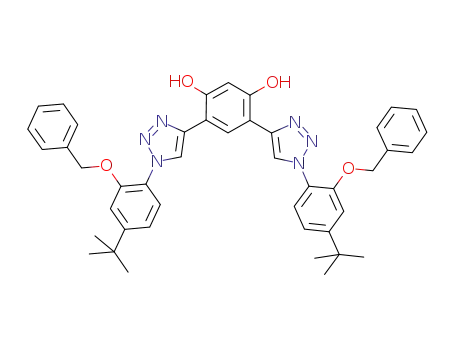

Pentad 1 (Scheme 1) was designed to have two hydroxyl
groups on the central phenylene that could form hydrogen
Scheme 1. Syntheses of Pentads 1 and 2
1
Quantitative analysis of the H NMR titration data was
achieved using combinations of the following equilibria
P + Cl- ) P · Cl- Ka
(1)
TBA+ + Cl- ) TBA+ · Cl-
(2)
(3)
Kion
P + TBA+ · Cl- ) P · Cl- · TBA+
Kipc
P · Cl- + TBA+ ) P · Cl- · TBA+
(P: Pentad 1 or 2)
ꢀ
Kipc
(4)
bonds with the triazoles on either side. Although electron-
donating groups on phenylene have been shown15 to decrease
the binding affinity in previous studies on triazolophanes,1b
we assumed that preorganization would be the dominant
factor in this case. t-Butyl groups were used on the terminal
In addition to formation of the 1:1 complex (P·Cl-, Ka),
we included the ion pairing,18 both competitive with TBACl
(11) (a) Akine, S.; Taniguchi, T.; Nabeshima, T. Tetrahedron Lett. 2001,
42, 8861–8864. (b) Gallant, A. J.; MacLachlan, M. J. Angew. Chem., Int.
Ed. 2003, 42, 5307–5310. (c) Yuan, L.; Feng, W.; Yamato, K.; Sanford,
A. R.; Xu, D.; Guo, H.; Gong, B. J. Am. Chem. Soc. 2004, 126, 11120–
11121. (d) Chen, Y.-Q.; Wang, X.-Z.; Shao, X.-B.; Hou, J.-L.; Chen, X.-
Z.; Jiang, X.-K.; Li, Z.-T. Tetrahedron 2004, 60, 10253–10260.
(12) (a) Santacroce, P. V.; Davis, J. T.; Light, M. E.; Gale, P. A.; Iglesias-
Sa´nchez, J. C.; Prados, P.; Quesada, R. J. Am. Chem. Soc. 2007, 129, 1886–
1887. (b) Davis, J. T.; Gale, P. A.; Okunola, O. A.; Prados, P.; Iglesias-
Sa´nchez, J. C.; Torroba, T.; Quesada, R. Nat. Chem. 2009, 1, 138–144.
(13) Caltagirone, C.; Mulas, A.; Isaia, F.; Lippolis, V.; Gale, P. A.; Light,
M. E. Chem. Commun. 2009, 6279–6281.
(7) (a) Jestin, J.-L.; Pecorari, F. Foldamers: Structure, Properties and
Applications; Wiley-VCH: Weinheim, Germany, 2007. (b) Saraogi, I.;
Hamilton, A. D. Chem. Soc. ReV. 2009, 38, 1726–1743.
(8) (a) Hamuro, Y.; Geib, S. J.; Hamilton, A. D. Angew. Chem., Int. Ed.
1994, 33, 446–448. (b) Berl, V.; Huc, I.; Khoury, R. G.; Krische, M. J.;
Lehn, J.-M. Nature 2000, 407, 720–723. (c) Gong, B.; Zeng, H.; Zhu, J.;
Yua, L.; Han, Y.; Cheng, S.; Furukawa, M.; Parra, R. D.; Kovalevsky, A. Y.;
Mills, J. L.; Skrzypczack-Jankun, E.; Martinovic, S.; Smith, R. D.; Zheng,
C.; Szyperski, T.; Zeng, X. C. Proc. Natl. Acad. Sci. U.S.A. 2002, 99, 11583–
11588.
(9) (a) Sinkeldam, R. W.; van Houtem, M. H. C. J.; Koeckelberghs, G.;
Vekemans, J. A. J. M.; Meijer, E. W. Org. Lett. 2006, 8, 383–385. (b)
Zhang, A.; Han, Y.; Yamato, K.; Zeng, X. C.; Gong, B. Org. Lett. 2006, 8,
803–806.
(14) Zhu, Y.-Y.; Wang, G.-T.; Wang, R.-X.; Li, Z.-T. Cryst. Growth
Des. 2009, 9, 4778–4783.
(15) Bryantsev, V. S.; Hay, B. P. Org. Lett. 2005, 7, 5031–5034.
(16) (a) Rostovtsev, V. V.; Green, L. G.; Fokin, V. V.; Sharpless, K. B.
Angew. Chem., Int. Ed. 2002, 41, 2596–2599. (b) Tornøe, C. W.;
Christensen, C.; Meldal, M. J. Org. Chem. 2002, 67, 3057–3064.
(17) Supporting Information.
(10) (a) Li, C.; Wang, G.-T.; Yi, H.-P.; Jiang, X.-K.; Li, Z.-T.; Wang,
R.-X. Org. Lett. 2007, 9, 1797–1800. (b) Cai, W.; Wang, G.-T.; Xu, Y.-
X.; Jiang, X.-K.; Li, Z.-T. J. Am. Chem. Soc. 2008, 130, 6936–6937.
Org. Lett., Vol. 12, No. 9, 2010
2101

kJ mol-1)12 and indole (∆∆G ) 9.1 kJ mol-1)13 receptors.
All three systems are consistent with the entropy content of
rotation about sp2-sp2 single bonds.21 While the C-H
hydrogen bond of 1 will also be enhanced by polarization,17
preorganization seems to dominate.
The intramolecular hydrogen bond is observed in the X-ray
crystal structure of pentad 8 (Figure 2)17 where the backbone
Figure 2. Crystal structure of pentad 8. Non-hydrogen atoms are
drawn with 50% probability ellipsoids.
is preorganized into a crescent. Two OH· · ·N3 hydrogen
bonds are formed, and the triazole C-H forms a hydrogen
bond with the benzylether’s oxygen atom.14
In conclusion, intramolecular hydrogen bonds between
hydroxyl groups and triazole N3 preorganize the pentad
backbone for Cl- binding to enhance the binding constant.
Such intramolecular hydrogen bonds could be further
extended to preorganize foldamers and receptors.
Figure 1.
1H NMR titration (5 mM CD2Cl2, 298 K) of 1 and 2
with increasing equivalents of TBACl.
(Kion)19 and as the ion-paired complex (P·Cl-·TBA+, Kipc or
Kipc′). The latter was inferred from peak shifts of the TBA+
signal.17 Data fittings (Table 1)17 were conducted using
HypNMR.20 Fitting of the data for 2 is based on the
Acknowledgment. We acknowledge support from the
NSF (CHE-0844441) and the Chemical Sciences, Geo-
sciences, and Biosciences Division, Office of Basic Energy
Sciences, Office of Science, US DOE.
Note Added after ASAP Publication. Scheme 1 con-
tained errors in the version published ASAP April 7, 2010;
the correct version reposted April 12, 2010.
Table 1. Equilibrium Constants (M-1) and Free Energies
1
(kJ·mol-1) Obtained from Fitting the H NMR Data
Supporting Information Available: Syntheses, experi-
mental procedures, tables of X-ray crystallography, and
titration data. This material is available free of charge via
the Internet at http://pubs.acs.org.
Ka
Kion
Kipc
Kipc′
(∆G)
(∆G)
(∆G)
(∆G)
46800 ( 2500
(-26.6)
1000 ( 250
(-17.1)
72000 ( 5000
(-27.7)
72000 ( 5000
(-27.7)
360 ( 10
(-14.6)
8 ( 1
550 ( 80
(-15.6)
550 ( 80
(-15.6)
1
2
OL1005856
(18) (a) Huang, F.; Jones, J. W.; Slebodnick, C.; Gibson, H. W. J. Am.
Chem. Soc. 2003, 125, 14458–14464. (b) Sessler, J. L.; Gross, D. E.; Cho,
W. S.; Lynch, V. M.; Schmidtchen, F. P.; Bates, G. W.; Light, M. E.; Gale,
P. A. J. Am. Chem. Soc. 2006, 128, 12281–12288. (c) Huang, F.; Jones,
J. W.; Gibson, H. W. J. Org. Chem. 2007, 72, 6573–6576.
(19) Alunni, S.; Pero, A.; Reichenbach, G. J. Chem. Soc., Perkin Trans.
2 1998, 1747–1750.
(-5.2)
assumption that Kipc′ (1) is equal to Kipc′ (2), i.e., complexes
1·Cl- and 2·Cl- have similar structures.
The anion binding strength (Table 1) of preorganized
pentad 1 is ∼50 times greater than 2 (∆∆G ) 9.5 kJ mol-1).
This enhancement is similar to isophthalamide (∆∆G ) 8.2
(20) Frassineti, C.; Ghelli, S.; Gans, P.; Sabatini, A.; Moruzzi, M. S.;
Vacca, A. Anal. Biochem. 1995, 231, 374–382.
(21) Mammen, M.; Shakhnovich, E. I.; Whitesides, G. M. J. Org. Chem.
1998, 63, 3168–3175.
2102
Org. Lett., Vol. 12, No. 9, 2010
