Inorg. Chem. 2010, 49, 5079–5093 5079
DOI: 10.1021/ic100163g
Tetrahedral and Square Planar Ni[(SPR2)2N]2 complexes, R = Ph & iPr Revisited:
Experimental and Theoretical Analysis of Interconversion Pathways, Structural
Preferences, and Spin Delocalization
Dimitrios Maganas,†,|| Alexios Grigoropoulos,† Sarah S. Staniland,‡,# Spyros D. Chatziefthimiou,§
Andrew Harrison,‡ Neil Robertson,*,‡ Panayotis Kyritsis,*,† and Frank Neese*,||
†Inorganic Chemistry Laboratory, Department of Chemistry, National and Kapodistrian University of Athens, GR-157
71 Athens, Greece, ‡School of Chemistry and EaStChem, University of Edinburgh, West Mains Road, Edinburgh EH9
3JJ, United Kingdom, §EMBL-Hamburg c/o Deutsches Elektronen-Synchrotron, Hamburg, Germany, and
||Institute of Theoretical and Physical Chemistry, Wegelerstrasse 12, D-53115 Bonn, Germany. # Present address:
School of Physics and Astronomy, University of Leeds, Woodhouse Lane, Leeds LS2 9JT, United Kingdom.
Received January 27, 2010
Sulfur-containing mono- or bidentate types of ligands, usually form square planar Ni(II)S4 complexes. However, it has
already been established that the bidentate L- dithioimidodiphosphinato ligands, [R2P(S)NP(S)R02]-, R, and R0 = aryl or
0
alkyl, can afford both tetrahedral and square planar, NiS4-containing, homoleptic NiR,R L2 complexes, owing to an apparent
structural flexibility, which has not, so far, been probed. In this work, the literature tetrahedral Ni[R2P(S)NP(S)R2]2
complexes, R = Ph (NiPh,PhL2, 1Td) and R = iPr (NiiPr,iPrL2, 2) as well as the newly synthesized Ni[iPr2P(S)NP(S)Ph2]2
complex (NiiPr,PhL2, 3), have been studied by UV-vis, IR, and 31P NMR spectroscopy. Complex 3 was shown by X-ray
crystallography to be square planar, and magnetic studies confirmed that it is diamagnetic in the solid state. However, it
becomes paramagnetic in solution, as it shows a similar UV-vis spectrum to one of the tetrahedral 1Td and 2 complexes.
The crystal structure of the potassium salt of the asymmetric ligand, [iPr2P(S)NP(S)Ph2]K, has also been determined and
0
compared to those of the protonated iPr2P(S)NHP(S)Ph2 ligand and complex 3. All three, 1Td, 2, and3, NiR,R L2 complexes
show strong paramagnetic effects in their solution 31P NMR spectra. The magnetic properties of paramagnetic complexes 1
and 2 in the solid state were investigated on oriented crystals, and their analysis afforded remarkably small values of the
spin-orbit coupling constant (λ) and orbital reduction factor (k) parameters, implying significant delocalization of unpaired
electronic density toward the ligands. The above experimental findings are combined with data from standard density
functional theory and correlated multiconfiguration ab initio theoretical methods, in an effort to investigate the interplay
between the square planar and tetrahedral geometries of the NiS4 core, the mechanistic pathway for the spin-state
interconversion, the degree of covalency of the Ni-S bonds, and the distribution of the spin density in this type of system.
0
The analysis provides justification for the structural flexibility of such ligands, affording NiR,R L2 complexes with variable
metallacycle conformation and NiS4 core geometries. Of particular importance are the large zero-field splitting values
estimated by both experimental and theoretical means, which have not, as yet, been verified by direct methods, such as
electron paramagnetic resonance spectroscopy. The findings of our work confirm earlier observations on the feasibility of
synthesizing either tetrahedral or square planar NiS4 complexes containing the same type of ligands. They can also form
the basis of investigating structure-properties relationships in other NiS4-containing systems.
Introduction
experimental and theoretical investigations have established
that the electronic properties of these metalloproteins are
highly dependent on the contribution of the sulfur valence
orbitals to the “redox active” molecular orbitals of the active
site, whichis a measureofthe covalencyofthe M-S bonds.3,4
Crystallographic studies in the past few years have estab-
lished that the active site of a range of nickel enzymes show
A common feature in structural bioinorganic chemistry is
the presence of sulfur-containing ligands in the active site of
metalloproteins and metalloenzymes, most usually in the
form of cysteine thiolate, S(Cys), or sulfide, S2- 1,2
Recent
.
*To whom correspondence should be addressed. E-mail: Kyritsis@
chem.uoa.gr (P.K.), neil.robertson@ed.ac.uk (N.R.), neese@thch.uni-bonn.
de (F.N.).
(1) Holm, R. H.; Kennepohl, P.; Solomon, E. I. Chem. Rev. 1996, 96,
2239–2314.
(2) Rees, D. C.; Howard, J. B. Science 2003, 300, 929–931.
(3) Solomon, E. I.; Gorelsky, S. I.; Dey, A. J. Comput. Chem. 2006, 27,
1415–1428.
(4) Solomon, E. I. Inorg. Chem. 2006, 45, 8012–8025.
r
2010 American Chemical Society
Published on Web 05/12/2010
pubs.acs.org/IC

5080 Inorganic Chemistry, Vol. 49, No. 11, 2010
Maganas et al.
remarkable variation in nickel coordination, and although
the presence of Ni-S bonds in their active sites is rather
prominent, they do not contain intact NiS4 cores.5 However,
an artificial intact [Ni(II)S(Cys)4] center has beengeneratedby
replacing Fe(II) by Ni(II) in the active site of rubredoxin. The
Ni-substituted rubredoxin has been studied by X-ray
crystallography6 and spectroscopic methods,7,8 with an aim
of elucidating the structural and electronic properties of the
metal site. In this case, the protein scaffold provides a rigid
structural framework, imposing a tetrahedral (Td) Ni(II)S4
metal core, rather similar to the structure of the Fe(II)S4 site in
native rubredoxins.6,8 On the other hand, extensive inorganic
synthetic work has shown that Ni(II)S4-containing complexes
usually exhibit square planar (SP) geometry, whereas the Td
geometry is rather rare.9 It should be stressed that the
interchange between SP and Td geometries in NiS4-contain-
ing complexes is not yet fully elucidated, despite promising
theoretical efforts concerning tetra-coordinate transition-
metal complexes.10
effects that favor the SP or Td geometry in NiS4 systems,
given that, depending on the nature of the peripheral R
groups, both geometries have been observed in such com-
plexes under specific experimental conditions. More specifi-
cally, the Td geometry is preferred when the ligand is
symmetric, i.e., both P atoms bear the same peripheral groups
(R = R0), as it can be deduced from the crystal structures of
NiMe,MeL2,23 NiPh,PhL2 (1Td),9,24 and NiiPr,iPrL2 (2).25 The
structure of NinBu,tBuL2, in which each P atom is bonded to
n
t
one Bu and one Bu group, has also revealed a Td NiS4
core.26 It should be noted that, based on spectroscopic data,
NiPh,PhL2 was the first Ni(II)S4 complex reported to adopt a
Td geometry.27 On the other hand, the complexes with
i
asymmetric ligands (R = Ph and R0 = Me or Pr) contain
a SP NiS4 core: the structure of NiMe,PhL2 has already been
reported,9 whereas the synthesis and structural characteriza-

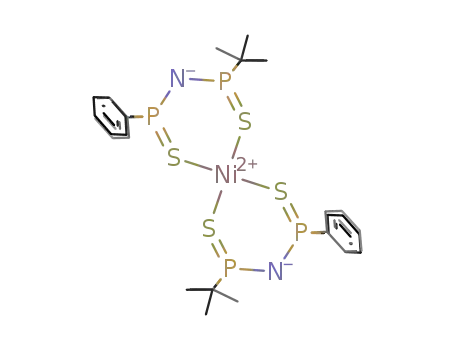

tion of NiiPr,PhL2 (3) is described herein.
The only exemption to the above general trend is
NiPh,PhL2, which has been also crystallized in a form contain-
ing a SP NiS4 core (1SP) and THF molecules.28 To the best of
our knowledge, NiPh,PhL2 is the only NiS4 complex that has
been reported, up to date, to adopt, under different conditions,
both a Td and a SP geometry in the solid state. Such Ni(II)
systems are expected to exhibit not only stereoisomerism but
also spin isomerism, as the Td complexes are typically para-
magnetic (S=1), whereas the SP ones are usually diamagnetic
(S=0),29 although some exceptions have been documented
by the identification of rare paramagnetic SP Ni(II) com-
plexes.30,31 In that respect, it is of interest to note that the
ability of the dichalcogenated imidodiphosphinato ligands to
form stereoisomers upon coordination to Ni(II) might be a
general trend, since the corresponding Ni[iPr2P(Se)NP-
(Se)iPr2]2 complex also affords both Td and SP polymorphs.32
With the aim of advancing our previous investigations on
A search in the Cambridge Structural Database11 reveals
that only a handful out of over 800 complexes bearing the
Ni(II)S4 core are not SP but instead display Td geometry. The
mononuclear Td Ni(II)S4 complexes, that have been structu-
rally characterizedup to date, can be dividedinto two groups:
(i) Ni(II) complexes bearing monodentate arylthiolato ligands
of the [Ni(SAr)4]2- general type,12-18 and (ii) Ni(II) com-
plexes bearing bidentate dithioimidodiphosphinato ligands,
Ni[R2P(S)NP(S)R02]2, R, R0 = aryl or alkyl (denoted as
0
NiR,R L2). The latter type of ligands are considered to be
inorganic analogues ofβ-diketonates, and they readily form a
wealth of M(II)L2 coordination compounds, containing six-
membered chelating rings, that exhibit extensive delocaliza-
tion of π-electronic density among the S-P-N-P-S
fragment.19-22 Furthermore, their wide S S “bite” range
3 3 3
(ca. 4 A) allows them to satisfy the stereochemical require-
analogous complexes of Mn(II) and Co(II) 33,34
, we sought to
˚
ments of different geometries.
explore the structural preferences and the electronic proper-
0
0
The family of the NiR,R L2 complexes offers significant
advantages in elucidating the electronic and stereochemical
ties of NiR,R L2 complexes, both in the solid state and in
solution, by employing magnetization, spectroscopic, and
standard density functional theory (DFT) and correlated
multiconfiguration ab initio theoretical methods. The ques-
tions addressed in this work are: (i) the interplay between SP
and Td geometries of the NiS4 core, depending on the nature
of the peripheral R groups as well as the mechanistic pathway
