Cytoprotective effects evaluation of A novel danshensu derivative DEX-018
against oxidative stress injury in HUVECs
Honglei Xu,a,# Kun He,a,# Yi Li,b Yulong Tao,c Chunfang Xu,c Zhenlin Hu,a Tingfang Wang,d,*
Chuan Zhang,a,d,*
a School of Pharmacy, Second Military Medical University, Shanghai 200433, China
bShanghai University of Traditional Chinese Medicine, Shanghai 201203, China
c
Department of Pharmacy, Changzheng Hospital, Second Military Medical University,
Shanghai 200003, China
dSchool of Medicine, Shanghai University, Shanghai 200444, China
* Correspondence to: Tingfang Wang, School of Medicine, Shanghai University, No. 99,
Shangda Road, Shanghai 200444, Shanghai, China, email address: wtf66@126.com; Chuan
Zhang, School of Pharmacy, Second Military Medical University, No. 325, Guohe Road,
Shanghai 200433, Shanghai, China; School of Medicine, Shanghai University, No. 99,
Shangda
Road,
Shanghai
200444,
Shanghai,
China,
email
address:
zhangchuan@smmu.edu.cn
#Honglei Xu and Kun He contributed equally as the first authors.
Ⓒ 2020 The Pharmaceutical Society of Japan

Ischemic heart disease (IHD) is one of the most common cardiovascular diseases with
high morbidity and mortality. Danshensu (DSS) is widely used in the treatment of
coronary heart disease. In this study, the carboxy group of DSS was esterified with
edaravone to synthesize the novel DSS derivative DEX-018 to achieve a synergistic
protective effect and overcome the structural deficiency of DSS. The pharmacological
effect of DEX-018 against tert-butyl hydrogen peroxide (t-BHP) induced oxidative
damage in human umbilical vein endothelial cells (HUVECs) was evaluated. The results
demonstrated that pretreatment with DEX-018 significantly increased cell viability and
superoxide dismutase (SOD) activity and decreased the lactate dehydrogenase (LDH)
leakage rate, malondialdehyde (MDA) level and intracellular reactive oxygen species
(ROS) level. In addition, DEX-018 inhibited cell apoptosis and reversed the expression
of apoptosis-related proteins (Bcl-2, Bax, and caspase-3) in HUVECs stimulated by
t-BHP. Further study on the mechanism of DEX-018 revealed that the expression of
p-Akt and p- extracellularꢀsignal-regulated kinase 1/2 (ERK1/2) was increased, which
suggested that DEX-018 may protect HUVECs against t-BHP induced oxidative injury
via the Akt and ERK1/2 signaling pathways. To further validate the correlation, CCK8
was used to detect cell viability after treatment with DEX-018 plus Akt inhibitor
(MK2206) and PI3K inhibitor (LY294002). Compared with DEX-018 alone, MK2206 or
LY294002 significantly decreased cell viability of HUVECs, indicating that the
protective effect of DEX-018 against t-BHP induced oxidative injury was significantly
weakened. It was further verified that the antioxidant and anti-apoptotic effects of
DEX-018 were partly related to the phosphadylinositol 3-kinase (PI3K)/Akt signaling
pathway.
Key words danshensu; derivative; antioxidant; apoptosis; phosphadylinositol 3-kinase
(PI3K)/Akt signaling pathway
Biological and Pharmaceutical Bulletin Advance Publication

INTRODUCTION
Cardiovascular diseases are major causes of morbidity and mortality worldwide,
accounting for approximately one third of all deaths.1) Ischemic heart disease (IHD), as one
of the most common cardiovascular diseases, is caused by an imbalance between the
myocardial oxygen supply and the metabolic demand of the myocardium.2) Great progress
has been made in the treatment of IHD in the clinic, such as thrombolytic drug therapy,
percutaneous coronary intervention (PCI) and coronary artery bypass grafting (CABG), while
the consequent ischemia/reperfusion (I/R) injury that results in irreversible myocardial
damage is inevitable and seriously impacts the effects of therapeutic for IHD.3-5) The
mechanisms underlying the pathogenesis of I/R injury are complex, multifactorial, and not
fully understood.6) Several mechanisms of this type of reperfusion injury, such as oxidative
stress, intracellular Ca2+ overload, mitochondrial dysfunction, apoptosis and
inflammation-induced cardiomyocyte death, have been suggested. Among these, oxidative
stress is an important mechanisms.6, 7) Pharmacological cardioprotective strategies is an
effective way to prevent cardiomyocytes necrosis and thereby salvaging the jeopardized
myocardium.8) Unfortunately, the mortality and morbidity associated with I/R injury remain
unacceptably high. The latest research has suggested that multipathway and/or multitarget
strategies have a strong therapeutic effect in reducing ischemic death and improving
ischemia-related morbidity and mortality.9) Thus, it is urgent to develop novel drugs with
multiple pharmacologic actions to protect against I/R.
Chinese herbal medicines have been widely used in China and other Asian countries for a
long time, and have attracted increasing attention for the treatment of IHD under the guidance
of multitarget strategies.7) Danshen, the dried root of Salvia miltiorrhiza, which is one of the
most popular Chinese herbs, has been widely used for the treatment of IHD and other
cardiovascular disorders. Danshensu (DSS) is one of the most widely used water-soluble
active ingredients of Danshen. Numerous studies have shown that DSS can improve
microcirculation, inhibit platelet adhesion and aggregation, and it has antioxidant,
anti-inflammatory and other pharmacological activities.10-12) Unfortunately, the further
development and clinical application of DSS have been impeded by its poor bioavailability,
Biological and Pharmaceutical Bulletin Advance Publication

which may be due to its high hydrophilicity, poor absorption, and low pharmacological
potency.13) Therefore, to overcome its flaws and enhance its therapeutic efficacy, the structure
of DSS needs to be modified. Recently, many DSS derivatives have been designed and
synthesized to yield better drug candidates with enhanced activities.14)
Increasing evidence indicates that oxidative stress is the major pathological process leading
to myocardial injury after reperfusion. Hence, inhibiting oxidative damage would be a crucial
therapeutic strategy for treating I/R injury. Edaravone (3-methyl-1-phenyl-2-pyrazolin-5-one,
EDA) is a free radical scavenger that has been clinically used for the treatment of ischemic
stroke.15) It has been identified as a potential protective agent for cardiovascular diseases
resulting from inflammation, oxidative stress and/or cytokine-induced apoptosis.16)
Therefore, we designed the compound DEX-018 (Fig. 1), which consists of the DSS and
edaravone pharmacophore. We esterified the carboxy of DSS with EDA. to obtain compound
DEX-018 and expected the new compound to be hydrolyzed by esterase to yield DSS and
EDA. DSS and EDA were generated after hydrolysis, and DSS not only retained its
pharmacological activity, but also exhibited a stronger antioxidant effect; thus a synergistic
protective effect was achieved. The fat solubility of DSS was also enhanced. The
pharmacodynamics of DEX-018 against tert-butyl hydrogen peroxide (t-BHP) induced
oxidative damage in human umbilical vein endothelial cells (HUVECs) was studied in vitro,
to investigate the cardioprotective effects and possible mechanisms of DEX-018.
MATERIALS AND METHODS
Chemistry The synthesis of the final product DEX-018 was carried out following the
synthesis procedure shown in Chart 1. In brief, the esterification reaction of sodium
danshensu (DSSNa) with anhydrous methanol in the presence of a catalytic amount of
concentrated sulfuric acid gave intermediate 1, which was then reacted with benzyl bromide
and potassium carbonate in DMF to give intermediate 2. The methyl ester of 2 was
hydrolyzed with NaOH in tetrahydrofuran to give the desired carboxylic acid intermediate 3.
The hydroxy group of 3 was esterified with acetic anhydride in dichloromethane to yield
intermediate 4. The carboxylic group of 4 was converted to the corresponding acid chloride
Biological and Pharmaceutical Bulletin Advance Publication

by reacting it with oxalyl chloride. The corresponding acid chloride was unstable and reacted
immediately with edaravone to afford intermediate 5. The removal of the benzyl protecting
group of intermediate 5 by catalytic hydrogenolysis over 10% Pd/C gave the final product
DEX-018. The corresponding data for the synthetic intermediates and final compound can be
found in the Supplementary Materials.
Reagents and antibodies Human umbilical vein endothelial cells (HUVECs) were
purchased from Cell Bank of Shanghai Branch of Chinese Academy of Sciences (Shanghai,
China). Fetal bovine serum (FBS) was obtained from Gibco Life Technologies Co.
(Australia). Dulbecco's modified Eagle's medium (DMEM) and phosphate buffered solution
(PBS) were purchased from HyClone (Thermo Fisher). HUVECs were cultured in DMEM
supplemented with 10% FBS and 1% penicillin streptomycin, at 37℃ with 5% CO2 in a
humidified incubator. Cells in the exponential phase were collected for subsequent
experiments. Tert-butyl hydroperoxide (t-BHP) was purchased from Sigma-Aldrich (Beverly,
MA, USA). Antibodies against total- and p-ERK1/2, total- and p-Akt, caspase-3, Bcl-2 and
Bax were purchased from Cell Signaling Technology (Danvers, MA). β-actin antibody was
obtained from Abcam (Cambridge, MA, USA).
Cell viability assay The effect of the synthesized conjugate on the viability of t-BHP
treated HUVECs was investigated by Cell Counting Kit-8 (CCK8) analysis supplied by the
manufacturer (Dojindo Laboratories, Kumamoto, Japan). Cells were seeded in 96-well plates
at a density of 4×104 cells per well and allowed to attach overnight in DMEM containing 10%
FBS. Then, the HUVECs were pretreated with DSS (50 μM), EDA (200 μM) or different
concentrations of DEX-018 for 24 h before exposure to t-BHP (150 μM) for 2 h. Then, 100
µL of CCK-8 solution was added to each well and incubated at 37℃ for 1h. The cells were
pretreated with LY294002 (a PI3K inhibitor, 2 μM) and MK2206 (an Akt inhibitor, 2 μM) for
1 h, and then incubated with DEX-018 (50 μM, 100 μM) for 24 h before stimulated by t-BHP
(150 μM) for 2 h. The absorbance was measured at 450 nm (Bio-Rad Instruments, USA).
Adhesion assay A total of 5×105 HUVECs per well were allowed to adhere in 6-well
plates overnight. And then, pretreated with DSS (50 μM) and different concentrations of
DEX-018 (5 μM, 50 μM, 100 μM) for 24 h before exposure to t-BHP (150 μM) for 2.5 h. The
Biological and Pharmaceutical Bulletin Advance Publication

cell suspension of each sample was transferred to a 96-well plate. The cells were fixed with 4%
paraformaldehyde for 10 min at room temperature and washed twice with PBS, and then the
residual adherent cells were stained with Hoechst 33342 for 15 min. The number of adherent
cells was counted at a fluorescence microscope (100× magnification) .
Lactate dehydrogenase (LDH) release assay HUVECs in 6-well plates were pretreated
with DSS, EDA and DEX-018 for 24 h and then stimulated with t-BHP (150 μM) for 2.5 h.
The cell culture medium supernatant of each sample was transferred to a 96-well plate, and
LDH release was detected using an LDH cytotoxicity detection kit (Beyotime Biotech, China)
according to the manufacturer’s instructions. The absorbance value at 490 nm was measured
with a microplate reader.
Measurement of reactive oxygen species (ROS), malondialdehyde (MDA) and superoxide
dismutase (SOD) A total of 3×105 HUVECs per well were incubated in 24-well plates
overnight. The HUVECs were washed twice with PBS. Then, the cells were stained with
2′,7′-dichlorofluorescein diacetate (DCFH-DA) (10 μM) at 37℃ for 20 min after being
stimulated with t-BHP (150 μM) for 2.5 h. ROS generation in HUVECs was detected by
confocal microscopy.
To further elucidate the antioxidant activity of DEX-018 on t-BHP induced oxidative injury,
malondialdehyde (MDA) production and intracellular superoxide dismutase (SOD) were
quantified after t-BHP incubation. HUVECs in 6-well plates were pretreated with DSS, EDA
and DEX-018 for 24 h, then stimulated with t-BHP (150 μM) for 2.5 h. The MDA level was
measured with an MDA assay kit (Beyotime Biotech, China), and SOD activity was assessed
using hydroxylamine method with a total SOD assay kit.
Analysis of t-BHP induced apoptosis of HUVECs To assess the anti-apoptotic activity of
DEX-018, Hoechst staining was performed to observe the morphological changes in cells
treated with the indicated concentrations of DEX-018 compared with t-BHP treated cells. A
total of 7×104 HUVECs per well were allowed to adhere to 24-well plates overnight. Then,
the cells were pretreated with DSS and different concentrations of DEX-018 for 24 h before
exposure to t-BHP (150 μM) for 2.5 h. Subsequently, after washing 2 times with PBS, the
cells were stained with Hoechst 33342 for 15 min. The morphological changes were observed
Biological and Pharmaceutical Bulletin Advance Publication

by fluorescence microscopy.
Western blot assay For whole cell extraction, cells were washed twice with ice-cold PBS
and lysed in RIPA buffer with protease & phosphatase inhibitor. After centrifugation (4 °C,
15 min, 12,000 x g), the supernatant was collected and the samples were prepared for
Western blot analysis. Total proteins were extracted from HUVECs and the protein levels
were measured by using the Bradford assay (Beyotime Biotech, China). The proteins were
separated using 12% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE)
and transferred onto blotted onto polyvinylidene diuoride (PVDF) membranes. The
membranes were incubated with primary antibodies including p-Akt (1:1000), Akt (1:1000),
Bcl-2 (1:1000), Bax (1:1000), p-ERK1/2 (1:1000, Abcam), anti-ERK1/2 (1:1000, Abcam),
caspase-3 (1:1000), and β-actin（1:1000）at 4°C overnight. The membranes were then washed
in TBST and incubated with appropriate horseradish peroxidase (HRP) -conjugated
secondary antibodies in the dark for 1 h at room temperature. The blots were visualized with
an Odyssey Fc. detection system (LI-COR) and the band intensity was analyzed by scanning
densitometry with a Tanon Image System (Tanon, China).
Statistical analysis The data were obtained from at least three independent experiments
and are shown as the means ± SEMs. Statistical analysis was performed using GraphPad
Prism 5.0 software with one-way ANOVA or t-test. P < 0.05 was considered statistically
significant.
RESULTS
Protective effects of DEX-018 on t-BHP- injured HUVECs First, the protective effect of
different concentrations of DSS on the oxidative damage induced by t-BHP was investigated.
As shown in Fig. 2A, DSS significantly inhibited the decline in cell viability induced by
t-BHP, and 50 μM DSS had the best protective effect; therefore, so we chose 50 μM DSS as
the positive control for subsequent experiments.
The protective effects of DEX-018 on the viability of t-BHP treated HUVECs were
investigated by CCK8 analysis. DSS served as a positive control in the experiments. To
evaluate the optimal concentration for the following study, HUVECs were incubated with
Biological and Pharmaceutical Bulletin Advance Publication

different concentrations of DEX-018 (5 μM, 50 μM, 100 μM, 200 μM) before t-BHP induced
for 2 h. As shown in Fig. 2B, t-BHP (150 μM) treatment decreased cell viability to
approximately 60%, but pretreatment for 24 h with different concentrations of DEX-018
significantly attenuated t-BHP induced oxidative injury and improved cell viability. DEX-018
was observed to have a better protective effect on HUVECs than DSS at the same
concentration. Thus, 100 μM DEX-018 was used for subsequent experiments.
t-BHP leads to LDH release, which is often used as an indicator of cytotoxicity.17, 18) To
further confirm the protective effect of DEX-018 against t-BHP induced cell oxidative
damage, LDH leakage was measured in HUVECs pretreated with DEX-018. LDH release
was observed after stimulation with t-BHP (150 μM) for 2 h. The loss of cell viability
induced by t-BHP was accompanied by a significant increase in LDH release, reflecting that
t-BHP reduced the membrane integrity in HUVECs. In contrast, pretreatment with DEX-018
(50 μM, 100 μM) and DSS decreased LDH release, and DEX-018 (100 μM) exhibited higher
activity than DSS and EDA (Fig. 2C).
DEX-018 improved adhesion function in t-BHP induced HUVECs The effects of
DEX-018 on adhesion function were observed by performing a cell adhesion test. As shown
in Fig. 3, the number of adherent cells was significantly reduced after incubation with 150
μM t-BHP for 3 h. Pretreatment with 50 μM or 100 μM DEX-018 greatly increased the
number of adherent cells compared with that in the model group. The results indicated that
DEX-018 significantly improved the adhesion of HUVECs treated with by t-BHP.
Antioxidant activity of DEX-018 on t-BHP-injured HUVECs To demonstrate the
protective effect of DEX-018 on t-BHP induced oxidative damage in HUVECs, SOD and
MDA were measured. SOD activity and MDA production reflect the ability to scavenge ROS
and prevent lipid peroxidation. MDA, which participates in the onset of atherosclerosis and
has mutagenic and cytotoxic effects, is widely used for the assessment of lipid peroxidation.19)
DEX-018 significantly increased SOD activity and decreased MDA level compared with
those in the model group, and DEX-018 was as effective or more effective than DSS and
EDA (Fig. 4A, B). These results demonstrated the antioxidant properties of the compound,
which might be one of the mechanisms underlying its cardioprotective effect.
Biological and Pharmaceutical Bulletin Advance Publication

It has been reported that reactive oxygen species (ROS) are related to a variety of
cardiovascular diseases and appears to be an early and critical event in oxidant-induced
cytotoxicity.20) We further used DCFH-DA, a ROS fluorescence probe emitting green
fluorescence upon oxidation by ROS, to measure the intracellular ROS level. As shown in Fig.
4C, only weak fluorescence was observed in the control group compared with the t-BHP
group. DEX-018 reduced t-BHP induced intracellular ROS generation significantly in a
concentration-dependent manner, and DEX-018 at the concentration of 100 µM decreased
ROS almost to the control level. In addition, the antioxidant effect of DEX-018 (100 μM) was
better than that of DSS.
DEX-018 attenuated t-BHP induced apoptosis in HUVECs To measure the anti-apoptotic
activity of DEX-018, Hoechst 33342 staining was performed to observe the nuclear
morphological changes induced by t-BHP. As shown in Fig. 5A, typical apoptotic features,
such as nuclei-shrunk and nuclear condensation, which are indicated by the red arrows, were
significantly exhibited in the t-BHP group. Compared with the t-BHP group, the
administration of DEX-018 (5 μM, 50 μM, 100 μM) and DSS resulted in a
concentration-dependent decrease in cell apoptosis. Meanwhile, apoptosis-related proteins,
such as Bcl-2, Bax and caspase-3, were analyzed by Western blotting,. caspase-3 is
considered to be the most important executioner caspases and is activated by the initiator
caspases.21) In addition, Bcl-2 family members are critical for the regulation of apoptosis, and
Bcl-2 and Bax are the most important regulatory genes in the Bcl-2 family for determining
cells survival or apoptosis.22, 23) As shown in Fig. 5B, the expression of Bcl-2 and the
Bcl-2/Bax ratio induced by t-BHP were significantly decreased compared with those in the
control group, and the expression of Bax and caspase-3 was increased. Meanwhile, like DSS,
DEX-018 pretreatment effectively reversed this phenomenon.
PI3K/Akt activation was involved in the protective effect of DEX-018 on t-BHP induced
HUVECs injured
To further investigate the possible underlying mechanisms, the
involvement of Akt and ERK1/2 was detected by Western blot analysis. As shown in Fig. 6A,
and Fig. 6B, pretreatment with DEX-018 significantly increased the expression of p-Akt and
p-ERK1/2 compared with that in the t-BHP group. The PI3K/Akt signaling cascades play
Biological and Pharmaceutical Bulletin Advance Publication

important roles in both the apoptosis and survival of cardiomyocytes, and the activation of
the PI3K/Akt signaling pathway inhibits apoptosis and protects the heart and brain from
ischemia/reperfusion injury.24) To confirm that the anti-apoptotic effect of DEX-018, we
examined the effects of the coadministration of DEX-018 and LY294002 (a PI3K inhibitor,
2 μM) or MK2206 (an Akt inhibitor, 2 μM) on t-BHP induced apoptosis. As shown in Fig. 6C,
pretreatment with LY294002 or MK2206 significantly reversed the beneficial effect of
DEX-018 on t-BHP induced cell death. The results showed that PI3K and Akt inhibitors
significantly attenuated the protective effects of DEX-018, demonstrating that the inhibition
of cell apoptosis with DEX-018 was dependent on PI3K/Akt pathway activation to some
extent.
DISCUSSION
Danshensu, has extensive pharmacological effects and potential clinical application value.
However, the instability of the phenolic hydroxyl leads to poor liposolubility and low
bioavailability; this, it cannot easily pass through the blood-brain barrier. Previous reports
have suggested that edaravone suppresses oxidative stress and protectes the heart against
septic myocardial injury and dysfunction by activating the HIF-1α/HO-1 pathway.15, 25) In the
present study, we introduced edaravone, a powerful free radical scavenger, into the structure
of DSS based on multitarget strategy. The new derivative DEX-018 was synthesized by
esterification of the carboxy group of DSS and the hydroxyl group of edaravone. DEX-018
not only increased the stability and liposolubility of these compounds, but also exhibited an
increased antioxidant effect, allowing it to achieve synergistic cardioprotective effects.
Vascular endothelial injury is considered to be the initial event of the development and
progression of cardiovascular diseases (CVDs). Endothelial cells are very sensitive to
oxidative stress in the development of CVDs and impaired endothelial function partly results
from increased oxidative stress.26) Endothelial cell apoptosis is closely associated with many
diseases such as coronary arteriosclerotic cardiopathy, hypertension and diabetes. HUVECs
are commonly considered a tool in the study for the mechanisms involved in the pathogenesis
of cardiovascular diseases.27) In this study, we established a stable t-BHP induced injury
Biological and Pharmaceutical Bulletin Advance Publication

model to investigate the protective effect and the possible mechanism of DEX-018 in
HUVECs.
In this study, the results showed that DEX-018 significantly increased cell viability and
reduced LDH leakage in t-BHP induced oxidative damage in HUVECs and had a similar or
even better effect than DSS in increasing cellular activity. DEX-018 was proven to have a
marked cellular protective effect and anti-apoptotic activity by regulating the expression of
the apoptosis-associated proteins Bcl-2/Bax and caspase-3. Based on the obtained results, the
novel compound protected HUVECs against apoptosis induced by t-BHP. It is well-known
that the members of the Bcl-2 family play important roles the in mitochondria-dependent
activation of caspase cascades,28) which are composed of a series of anti- or pro-apoptotic
regulators. Bcl-2 protein is known to promote cell survival and suppress cell death, whereas
Bax is a pro-apoptotic protein that promotes or accelerates cell death.29) Our data
demonstrated that DEX-018 markedly increased the level of Bcl-2 and decreased the
Bax/Bcl-2 ratio and the level of the apoptosis-associated protein caspase-3 compared with
those in the in t-BHP group. In addition, vascular endothelial cell adhesion and injury are
important in the initial period of IHD, and it was found that the adhesion of HUVECs
induced by t-BHP was significantly impaired by pretreatment with DEX-018.
It is well known that ROS are related to various cardiovascular diseases and that ROS
production appears to be an early and critical event that leads to myocardial I/R injury in
oxidant-induced cytotoxicity.30) SOD activity and MDA production reflect the capability to
scavenge ROS and prevent lipid peroxidation. The results suggested that DEX-018 showed
potential antioxidant activity, which was characterized by increased SOD activity and
decreased MDA levels in t-BHP induced HUVECs. However, there was no significant
difference in SOD activity or MDA production between cells treated with DEX-018 and
those treated with DSS. Whereas, there may be another way for the novel compound to act as
an antioxidant agent. Therefore, the mechanism of the antioxidant activity of DEX-018 needs
further investigation. Ischemia/reperfusion injury occurs when blood and oxygen supply to
the ischemic heart is restored, leading to an "explosion" of ROS in mitochondria, which
promotes the aggravation of ischemic tissue injury.31) Therefore, it is of great significance to
Biological and Pharmaceutical Bulletin Advance Publication

detect intracellular ROS levels. We further investigated intracellular ROS levels. Our results
indicated that pretreatment with DEX-018 significantly reduced t-BHP induced intracellular
ROS production in a concentration-dependent manner. In addition, the effect of DEX-018
was better than those of DSS. The above experiments indicated that these compounds exerted
potent protective effects against oxidative damage.
The PI3K/Akt pathway is one of the well-documented pathways involved in protection
against oxidative stress and plays a critical role in promoting cell survival in the heart.32) Akt
regulates cell survival by phosphorylating different substrates to directly or indirectly regulate
apoptosis. The ERK1/2 pathway is one of the three major MAPK signaling pathways. The
activation ERK1/2 is related to myocardial apoptosis, and the inhibition of ERK1/2 is
beneficial for cardiac functional recovery.33) In the present study, we found that compared
with t-BHP group, DEX-018 group exhibited significantly increased protein phosphorylation
of Akt and decreased protein phosphorylation of ERK1/2, suggesting that the protective effect
of DEX-018 was at least partly due to its ability to regulate the PI3K/Akt and ERK1/2
signaling pathways. Our results clearly demonstrated that DEX-018 plus LY294002 (PI3K
inhibitor) group and DEX-018 plus MK2206 (Akt inhibitor) group significantly diminished
the protective role of DEX-018, further confirming the role of the PI3K/Akt pathway in
mediating the protective effect of DEX-018 against t-BHP induced oxidative injury in
HUVECs.
Taken together, the results showed that DEX-018 protected HUVECs against
t-BHP-induced oxidative injury by regulating the PI3K/Akt and ERK1/2 signaling pathways,
which suggested that the novel danshensu derivative DEX-018 can protect against vascular
endothelial cell injury and may reduce the incidence of cardiovascular disease. Further study
is in progress and the novel compound merits further investigation as a potential
cardiovascular protective candidate.
Acknowledgements: This work was supported by Youth Scientific Research Project of
Shanghai Health and Family Planning Commission (No. 20184Y0033), and grant from the
National Key Research and Development Plan (No. 2018YFC1707304).
Biological and Pharmaceutical Bulletin Advance Publication

Conflict of interest: The authors declare no conflict of interest.
Supplementary Materials: The online version of this article contains supplementary
materials.
Biological and Pharmaceutical Bulletin Advance Publication

REFERENCES
1) Benjamin EJ, Muntner P, Alonso A, Bittencourt MS, Callaway CW, Carson AP,
Chamberlain AM, Chang AR, Cheng S, Das SR, Delling FN, Djousse L, Elkind MSV,
Ferguson JF, Fornage M, Jordan LC, Khan SS, Kissela BM, Knutson KL, Kwan TW,
Lackland DT, Lewis TT, Lichtman JH, Longenecker CT, Loop MS, Lutsey PL, Martin
SS, Matsushita K, Moran AE, Mussolino ME, O'Flaherty M, Pandey A, Perak AM,
Rosamond WD, Roth GA, Sampson UKA, Satou GM, Schroeder EB, Shah SH, Spartano
NL, Stokes A, Tirschwell DL, Tsao CW, Turakhia MP, VanWagner LB, Wilkins JT, Wong
SS, Virani SS. Heart Disease and Stroke Statistics-2019 Update: A Report From the
American Heart Association. Circulation, 139, e56-e528 (2019).
2) Moran AE, Forouzanfar MH, Roth GA, Mensah GA, Ezzati M, Flaxman A, Murray CJ,
Naghavi M. The global burden of ischemic heart disease in 1990 and 2010: the Global
Burden of Disease 2010 study. Circulation, 129, 1493-1501 (2014).
3) Hausenloy DJ, Yellon DM. Myocardial ischemia-reperfusion injury: a neglected
therapeutic target. J Clin Invest, 123, 92-100 (2013).
4) Jiang F, Yang J, Zhang L, Li R, Zhuo L, Sun L, Zhao Q. Rosuvastatin reduces
ischemia-reperfusion injury in patients with acute coronary syndrome treated with
percutaneous coronary intervention. Clin Cardiol, 37, 530-535 (2014).
5) Kalavrouziotis D, Rodes-Cabau J, Bagur R, Doyle D, De Larochelliere R, Pibarot P,
Dumont E. Transcatheter aortic valve implantation in patients with severe aortic stenosis
and small aortic annulus. J Am Col Cardiol, 58, 1016-1024 (2011).
6) Turer AT, Hill JA. Pathogenesis of myocardial ischemia-reperfusion injury and rationale
for therapy. Am J Cardiol, 106, 360-368 (2010).
7) Wang D, Wang J, Liu Y, Zhao Z, Liu Q. Roles of Chinese herbal medicines in ischemic
heart diseases (IHD) by regulating oxidative stress. Int J Cardiolo, 220, 314-319 (2016).
8) Hausenloy DJ, Garcia-Dorado D, Botker HE, Davidson SM, Downey J, Engel FB,
Jennings R, Lecour S, Leor J, Madonna R, Ovize M, Perrino C, Prunier F, Schulz R,
Sluijter JPG, Van Laake LW, Vinten-Johansen J, Yellon DM, Ytrehus K, Heusch G,
Ferdinandy P. Novel targets and future strategies for acute cardioprotection: Position
Paper of the European Society of Cardiology Working Group on Cellular Biology of the
Heart. Cardiovasc Res, 113, 564-585 (2017).
9) Davidson SM, Ferdinandy P, Andreadou I, Botker HE, Heusch G, Ibanez B, Ovize M,
Schulz R, Yellon DM, Hausenloy DJ, Garcia-Dorado D. Multitarget Strategies to Reduce
Myocardial Ischemia/Reperfusion Injury: JACC Review Topic of the Week. JACC, 73,
89-99 (2019).
10) Liu XH, Pan LL, Jia YL, Wu D, Xiong QH, Wang Y, Zhu YZ. A novel compound DSC
suppresses lipopolysaccharide-induced inflammatory responses by inhibition of
Akt/NF-kappaB signalling in macrophages. Eur J Phamacol, 708, 8-13 (2013).
11) Zhou X, Chan SW, Tseng HL, Deng Y, Hoi PM, Choi PS, Or PM, Yang JM, Lam FF, Lee
SM, Leung GP, Kong SK, Ho HP, Kwan YW, Yeung JH. Danshensu is the major marker
for the antioxidant and vasorelaxation effects of Danshen (Salvia miltiorrhiza)
water-extracts produced by different heat water-extractions. Phytomedicine, 19,
Biological and Pharmaceutical Bulletin Advance Publication

1263-1269 (2012).
12) Wang L, Wu Y, Zhou J, Ahmad SS, Mutus B, Garbi N, Hammerling G, Liu J, Essex
DW. Platelet-derived ERp57 mediates platelet incorporation into a growing thrombus by
regulation of the alphaIIbbeta3 integrin. Blood, 122, 3642-3650 (2013).
13) Guo XJ, Fan XJ, Qiao B, Ge ZQ. A lipophilic prodrug of Danshensu: preparation,
characterization, and in vitro and in vivo evaluation. Chin J Nat Med, 15, 355-362
(2017).
14) Jia Y, Dong X, Zhou P, Liu X, Pan L, Xin H, Zhu YZ, Wang Y. The synthesis and
biological evaluation of novel Danshensu-cysteine analog conjugates as
cardiovascular-protective agents. Eur J Med Chem, 55, 176-187 (2012).
15) Okamura K, Tsubokawa T, Johshita H, Miyazaki H, Shiokawa Y. Edaravone, a free
radical scavenger, attenuates cerebral infarction and hemorrhagic infarction in rats with
hyperglycemia. Neurol Res, 36, 65-69 (2014).
16) Ji L, Liu Y, Zhang Y, Chang W, Gong J, Wei S, Li X, Qin L. The antioxidant edaravone
prevents cardiac dysfunction by suppressing oxidative stress in type 1 diabetic rats and in
high-glucose-induced injured H9c2 cardiomyoblasts. Can J Physiol Pharmacol, 94,
996-1006 (2016).
17) Zhao W, Feng H, Sun W, Liu K, Lu JJ, Chen X. Tert-butyl hydroperoxide (t-BHP)
induced apoptosis and necroptosis in endothelial cells: Roles of NOX4 and
mitochondrion. Redox Biol, 11, 524-534 (2017).
18) Lv H, Liu Q, Zhou J, Tan G, Deng X, Ci X. Daphnetin-mediated Nrf2 antioxidant
signaling pathways ameliorate tert-butyl hydroperoxide (t-BHP)-induced mitochondrial
dysfunction and cell death. Free Radic Biol Med, 106, 38-52 (2017).
19) Hori M, Nishida K. Oxidative stress and left ventricular remodelling after myocardial
infarction. Cardiovasc Res, 81, 457-464 (2009).
20) Valko M, Leibfritz D, Moncol J, Cronin MT, Mazur M, Telser J. Free radicals and
antioxidants in normal physiological functions and human disease. Int J Biochem Cell
Biol, 39, 44-84 (2007).
21) Lee YJ, Shu MS, Kim JY, Kim YH, Sim KH, Sung WJ, Eun JR. Cilostazol protects
hepatocytes against alcohol-induced apoptosis via activation of AMPK pathway. PLoS
One, 14, e0211415 (2019).
22) Zhang C, An R, Bao YW, Meng XM, Wang TQ, Sun HN, Pan FM, Zhang C. Inhibitory
effects of octreotide on the progression of hepatic fibrosis via the regulation of Bcl-2/Bax
and PI3K/AKT signaling pathways. Int Immunopharmacol, 73, 515-526 (2019).
23) Misao J, Hayakawa Y, Ohno M, Kato S, Fujiwara T, Fujiwara H. Expression of bcl-2
protein, an inhibitor of apoptosis, and Bax, an accelerator of apoptosis, in ventricular
myocytes of human hearts with myocardial infarction. Circulation, 94, 1506-1512
(1996).
24) Zhang J, Deng Z, Liao J, Song C, Liang C, Xue H, Wang L, Zhang K, Yan G. Leptin
attenuates cerebral ischemia injury through the promotion of energy metabolism via the
PI3K/Akt pathway. J Cereb Blood Flow Metab, 33, 567-574 (2013).
25) Kikuchi K, Tancharoen S, Takeshige N, Yoshitomi M, Morioka M, Murai Y, Tanaka E.
The efficacy of edaravone (radicut), a free radical scavenger, for cardiovascular disease.
Biological and Pharmaceutical Bulletin Advance Publication

Int J Mol Sci, 14, 13909-13930 (2013).
26) Wang YK, Hong YJ, Wei M, Wu Y, Huang ZQ, Chen RZ, Chen HZ. Curculigoside
attenuates human umbilical vein endothelial cell injury induced by H2O2. J
Ethnopharmacol, 132, 233-239 (2010).
27) Jia D, Li T, Chen X, Ding X, Chai Y, Chen AF, Zhu Z, Zhang C. Salvianic acid A sodium
protects HUVEC cells against tert-butyl hydroperoxide induced oxidative injury via
mitochondria-dependent pathway. Chem Biol Interact, 279, 234-242 (2018).
28) Woo HJ, Jun do Y, Lee JY, Woo MH, Yang CH, Kim YH. Apoptogenic activity of
2alpha,3alpha-dihydroxyurs-12-ene-28-oic acid from Prunella vulgaris var. lilacina is
mediated via mitochondria-dependent activation of caspase cascade regulated by Bcl-2 in
human acute leukemia Jurkat T cells. J. Ethnopharmacol, 135, 626-635 (2011).
29) Xin H, Liu XH, Zhu YZ. Herba leonurine attenuates doxorubicin-induced apoptosis in
H9c2 cardiac muscle cells. Eur. J. Pharmacol, 612, 75-79 (2009).
30) Cadenas S. ROS and redox signaling in myocardial ischemia-reperfusion injury and
cardioprotection. Free Radic Biol Med, 117, 76-89 (2018).
31) Kurian GA, Rajagopal R, Vedantham S, Rajesh M. The Role of Oxidative Stress in
Myocardial Ischemia and Reperfusion Injury and Remodeling: Revisited. Oxid Med Cell
Longev, 2016, 1656450 (2016).
32) Zhang H, Zhang X, Zhang J. MiR-129-5p inhibits autophagy and apoptosis of H9c2 cells
induced by hydrogen peroxide via the PI3K/AKT/mTOR signaling pathway by targeting
ATG14. Biochem Biophys Res Commun, 506, 272-277 (2018).
33) Ba L, Gao J, Chen Y, Qi H, Dong C, Pan H, Zhang Q, Shi P, Song C, Guan X, Cao Y,
Sun H. Allicin attenuates pathological cardiac hypertrophy by inhibiting autophagy via
activation of PI3K/Akt/mTOR and MAPK/ERK/mTOR signaling pathways.
Phytomedicine, 58, 152765 (2019).
Biological and Pharmaceutical Bulletin Advance Publication

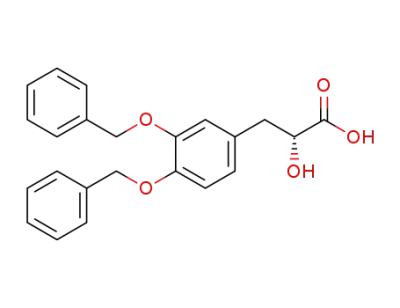

Fig.1. Design strategies for danshensu derivative DEX-018.
Biological and Pharmaceutical Bulletin Advance Publication

Chart 1. Synthesis of the DEX-018
Biological and Pharmaceutical Bulletin Advance Publication

Fig.2. Protective effects of DEX-018 on injured HUVECs induced by t-BHP. Cells were pretreated with
different concentrations of DSS and DEX-018 for 24 h and then stimulated with or without t-BHP (150 μM)
for 2h. (A) Effects of different concentrations of DSS on cell viability induced by t-BHP in HUVECs. (B)
Effects of different concentrations of DEX-018 on cell viability induced by t-BHP in HUVECs. (C) Effects
of DEX-018 on LDH leakage. The data were represented as the means ± SEM in three independent
experiments, *p<0.05 and **p<0.01 vs t-BHP group. ##p<0.01 vs control group.
Biological and Pharmaceutical Bulletin Advance Publication

Fig.3. Effects of DEX-018 on cell adhesion induced by t-BHP in HUVECs. Cells were pretreated with
DSS (50 μM) or different concentrations of DEX-018 (5, 50, 100 μM) for 24 h and then stimulated with or
without t-BHP (150 μM) for 2h.
Biological and Pharmaceutical Bulletin Advance Publication

Fig.4 Antioxidant activity of DEX-018 on injured HUVECs induced by t-BHP. The cells were incubated
with different concentrations of DSS or DEX-018 for 24 h, then stimulated with or without t-BHP (150 μM)
for 2h. (A) Effects of DEX-018 on SOD activity. (B) Effects of DEX-018 on MDA level. (C) The levels of
ROS in HUVECs cells after pretreated with DEX-018. The data were represented as the means ± SEM of
#
three independent experiments, *p<0.05 or **p<0.01 vs t-BHP group; p<0.05 vs control group. EDA:
Edaravone.
Biological and Pharmaceutical Bulletin Advance Publication

Fig.5. DEX-018 inhibited t-BHP induced apoptosis in HUVECs. (A) Effects of DEX-018 on apoptosis in
HUVECs induced by t-BHP (150 μM). Apoptosis of HUVECs was observed with Hoechst33342 nuclear
staining. Arrowheads in the pictures indicate the nuclei of apoptotic cells. Scale bar: 50 μm. (B) Effects of
DEX-018 on the expression of Bcl-2, Bax and caspase-3 were measured by Western blot. Densitometric
#
data were expressed as the means ± SEM of three independent experiments; p < 0.05 vs control group,
and *p <0.05 vs t-BHP group.
Biological and Pharmaceutical Bulletin Advance Publication

Fig.6. PI3K/Akt signaling pathway was involved in the DEX-018 treated HUVECs induced with t-BHP. (A)
(B) p-Akt, Akt, ERK1/2, p-ERK1/2 were measured by Western blot. (C) Effects of MK2206 (2 μM) and
LY294002 (2 μM) on cell viability induced by t-BHP in HUVECs. The data were represented as the means
#
± SEM of three independent experiments, p<0.05 and ##p<0.01 vs control group; *p<0.05 and **p<0.01
vs t-BHP group; &p<0.05 vs DEX-018 treated group; MK: MK2206 (Akt inhibitor), LY:LY294002 (PI3K
inhibitor).
Biological and Pharmaceutical Bulletin Advance Publication
