Pure and Saturated Red Electroluminescent Polyfluorenes
with Dopant/Host System and PLED Efficiency/Color
Purity Trade-Offs
By Lei Chen, Baohua Zhang, Yanxiang Cheng, Zhiyuan Xie, Lixiang Wang,* Xiabin Jing,
and Fosong Wang
Compared to inorganic and small molec-
ular organic light-emitting diodes, PLEDs
can be conveniently manufactured by solu-
tion processing techniques such as spin
coating or ink-jet printing, which is very
important for low cost, flexible and large-
area displays. For full color displays, three
basic color-red, green and blue are required.
Compared with green and blue emissive
polymers, the development of red EL con-
jugated polymers is far behind in terms of
both color purity and EL efficiency. Most
red-emitting conjugated polymers are real-
ized by incorporating red fluorophores,
such as 2,1,3-benzothiadiazole deriva-
tives,[7–9] 2,1,3-benzoselenadiazole deriva-
tives,[9–11] 2,1,3-naphthaselenadiazole,[12]
cyanovinyl-containingunits,[13,14] 3,4-diphe-
nylmaleimide derivatives[15] and phenothi-
azine derivatives,[16] perylene-containing
dyes,[17] etc., into backbones, side chains
or end groups of conjugated polymers.
Due to the nature of red emissive mate-
rials, the red fluorophores emitting
longer wavelength are more extensively
π-conjugated or stronger polar com-
Three kinds of red electroluminescent (EL) polymers based on polyfluorene
as blue host and 2,1,3-benzothiadiazole derivatives with different emission
wavelengths as red dopant units on the side chain are designed and synthe-
sized. The influence of the photoluminescence (PL) efficiencies and emission
wavelengths of red dopants on the EL efficiencies and color purities of the
resulting polyfluorene copolymers of dopant/host system is investigated by
adjusting the electron donating ability of the donor units in D-π-A-D typed
2,1,3-benzothiadiazole derivatives. The devices of these red-emitting poly-
mers realize remarkable EL efficiency/color purity trade-offs. The single-layer
devices with the configuration of ITO/PEDOT:PSS/Polymer/Ca/Al show pure
red emission at 624 nm with a luminous efficiency of 3.83 cd A−1 and CIE
of (0.63, 0.35) for PFR1, saturated red emission at 636 nm with a luminous
efficiency of 2.29 cd A−1 and CIE of (0.64, 0.33) for PFR2, respectively. By
introduction of an additional electron injection layer PF-EP(Ethanol soluble
phosphonate-functionalized polyfluorene), high performance pure and satu-
rated red emission two-layer devices (ITO/PEDOT:PSS/Polymer/PF-EP/LiF/
Al) were achieved with maximum luminous efficiencies of 5.50 cd A−1 and CIE
of (0.62, 0.35) for PFR1, 3.10 cd A−1 and CIE of (0.63, 0.33) for PFR2, respec-
tively, which are the best results for pure and saturated fluorescent red EL
polymers reported so far.
pounds, which usually have lower fluorescence quantum yields
(ΦPL). Meanwhile, they are highly susceptible to concentra-
tion quenching in solid state because of the intermolecular
dipole–dipole interactions or π–π stacking.[18] So, the devices
of red polymers with red enough emission wavelengths to
achieve excellent CIE coordinates usually show inferior EL effi-
ciencies. Until now, all of the fluorescent pure and saturated
red-emitting polymers show EL efficiencies no more than
2.0 cd A−1.[12,16,19,20]
Recently, our group has reported a new approach to design
high efficiency EL polymers of dopant/host system with molec-
ular dispersion feature by covalently attaching small amounts
of dopant units to the side chain of polyfluorene host.[21–25] By
this means, the problems of phase separation in physical blend
material systems[26–28] and voltage dependence of the EL spec-
trum existing in multilayer devices[29–32] will be avoided due
to the homogeneous distribution of the dopant units in the
polymer host. Meanwhile, the concentration quenching effect
aforementioned will be partly suppressed because of the low
1. Introduction
Since the pioneering work of Burroughes et al. in 1990,[1]
polymer light emitting diodes (PLEDs) based on conjugated poly-
mers have attracted widely research interest for their potential
applications in full color flat-panel displays and illuminations.[2–6]
∗
[ ] Dr. L. Chen, Dr. B. Zhang, Prof. Y. Cheng, Prof. Z. Xie,
Prof. L. Wang, Prof. X. Jing, Prof. F. Wang
State Key Laboratory of Polymer Physics and Chemistry
Changchun Institute of Applied Chemistry
Chinese Academy of Sciences
Changchun 130022 (P. R. China)
E-mail: lixiang@ciac.jl.cn
Dr. L. Chen, Dr. B. Zhang
Graduate School of the Chinese Academy of Sciences
Beijing 100039 (P. R. China)
DOI: 10.1002/adfm.201000840
©
wileyonlinelibrary.com
Adv. Funct. Mater. 2010, 20, 3143–3153
2010 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim
3143

www.afm-journal.de
www.MaterialsViews.com
content of dopant units, so highly efficient blue,[21] green,[22]
red[23] and white[24,25] PLEDs have been realized by using
dopant/host strategy. However, for red-emitting polymers,[23]
the key problem in our previous report is that we haven’t real-
ized the EL efficiency/color purity trade-offs. We find that highly
efficient PLED (5.10 cd A−1) is not red enough (orange-red
emission at 615 nm, CIE of (0.59, 0.39)), and deep-red PLED
at 645 nm is not so efficient (1.70 cd A−1), which is clearly cor-
responding to the PL efficiencies and emission wavelengths of
the red dopant units. Thus, optimization of red dopant units
is very important for realizing red PLEDs EL efficiency/color
purity trade-offs.
In this article, we report a series of red EL polymers based
on polyfluorene as blue host and 2,1,3-benzothiadiazole deriva-
tives with fine-tuned PL efficiencies and emission wavelengths
as red dopant units on the side chain, aiming at tuning the
EL efficiencies and color purities of the resulting polyfluorene
copolymers of dopant/host system and realizing the optimiza-
tion of red PLEDs EL efficiency/color purity trade-offs. The dif-
ference between this article and previous study is on achieving
excellent PLEDs EL efficiency/color purity trade-offs for red
fluorescent polymers based on polyfluorene as blue host and
2,1,3-benzothiadiazole derivatives as red dopant. As a result,
the single-layer devices of these polymers (ITO/PEDOT:PSS/
Polymer/Ca/Al) show pure red emission at 624 nm with a
luminous efficiency of 3.83 cd A−1 and CIE of (0.63, 0.35) for
PFR1, and saturated red emission at 636 nm with a lumi-
nous efficiency of 2.29 cd A−1 and CIE of (0.64, 0.33) for PFR2
respectively. Furthermore, by using ethanol soluble phospho-
nate-functionalized polyfluorene (PF-EP) as the electron injec-
tion layer (EIL) reported in our previous study,[33] high per-
formance two-layer devices (ITO/PEDOT:PSS/Polymer/PF-EP/
LiF/Al) are obtained with maximum luminous efficiencies
of 5.50 cd A−1 and CIE of (0.62, 0.35) for pure red emission
(PFR1), and 3.10 cd A−1 and CIE of (0.63, 0.33) for saturated red
emission (PFR2), respectively. To the best of our knowledge,
these are the highest efficiencies of pure and saturated red fluo-
rescent EL polymers reported so far.
2. Result and Discussion
2.1. Molecular Design
We designed a series of saturated red emission model com-
pounds (MCs), as shown in Scheme 1, by introducing different
alkoxy groups to increasing the electron donating ability of
4-(5-(4-(N-phenyl-N-(4-methoxy)phenylamino)phenyl)thienyl-2)-
7-(4-(diphenylamino)phenyl)-2,1,3-benzothiadiazole (MC-R2)
reported in our previous work, which show high PL efficiency
(59%), but orange-red emission at 620 nm. Firstly, we designed
MCR1 by incorporating two methoxy groups to the triphe-
nylamine segment of MC-R2, which will lead to about 10 nm
redshift according to our experience.[24,34] Secondly, we designed
MCR2 by changing the thiophene unit of MC-R2 to 3,4-ethylene-
dioxythiophene (EDOT) unit, which will lead to more than 10 nm
redshift due to the stronger electron-donating effect of the eth-
ylenedioxy bridge compared to dialkoxy groups.[35] Thirdly, for
comparison, we designed MCR3 by adopting above-mentioned
two modifications at the same time. Thus, we hope to obtain
saturated red dopants with fine-tuned PL efficiencies and emis-
sion wavelengths. Then we obtained red polymers through
covalently attaching these red dopant units to the side chain of
polyfluorene using alkyl spacers. The contents of the red dopant
units have been controlled to be 0.3 mol% in order to achieve
almost complete energy transfer from polyfluorene host to red
dopant units and suppress the concentration quenching effect.
Thus, high EL efficiencies of these polymers with superior CIE
coordinates will be expected.
2.2. Synthesis and Characters
The synthetic routes of the red MCs, monomers and cor-
responding polymers are outlined in Scheme 2. The tert-
butyldimethylsilyl (TBS) group protected intermediates were
all synthesized by Stille coupling. The TBS groups are stable
H3CO
OCH3
H3CO
host
λ = 615 nm ΦPL= 59%
λ = 631 nm ΦPL= 45%
0.997
0.003 n
C8H17
C8H17
C6H13
N
N
N
N
S
S
N
N
N
N
dopant
O
R
S
S
MC-R2
MCR1
OCH3
OCH3
N
N
PFR1 R1 =
S
N
N
S
OCH3
λ = 640 nm ΦPL= 37%
λ = 650 nm ΦPL= 31%
O
O
O
O
N
N
PFR2 R2 =
PFR3 R3 =
H3CO
H3CO
OCH3
S
N
N
S
O
O
O
O
OCH3
N
N
N
N
S
S
N
N
N
N
N
N
S
S
S
OCH3
N
N
MCR2
MCR3
S
OCH3

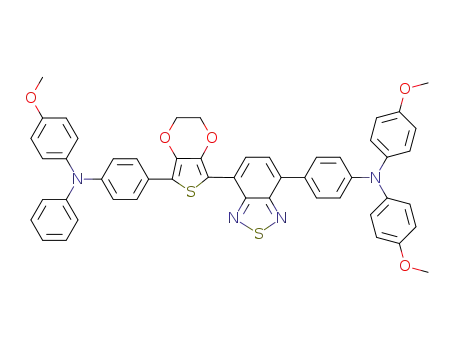

Scheme 1. Chemical structure of red model compounds and polymers.
©
