10.1002/anie.201809756
Angewandte Chemie International Edition
COMMUNICATION
Supramolecular Electropolymerization
Thomas K. Ellis,§ Melodie Galerne,§ Joseph J. Armao IV, Artem Osypenko, David Martel, Mounir
Maaloum, Gad Fuks, Emilie Moulin, Odile Gavat, and Nicolas Giuseppone*
Abstract: Gaining control over supramolecular polymerization
mechanisms is of high fundamental interest to understand self-
assembly and self-organization processes at nanoscale. It is also
expected to significantly impact the design and improve the efficiency
of advanced materials and devices. Up to now, supramolecular
polymerization has been shown to take place from unimers in solution,
mainly by variations of temperature or of concentration. Here we show
that supramolecular nucleation-growth of triarylamine monomers can
be triggered by electrochemistry in various solvents. The involved
mechanism offers new opportunities to precisely address in space
and time the nucleation of supramolecular polymers at an electrode.
To illustrate the potential of this methodology, we grow and orient
supramolecular nanowires over several tens of micrometers in
between different types of commercially available electrodes
proved to involve a nucleation/growth process composed of four
elementary steps: (i) photoexcitation of a catalytic amount of
triarylamines and subsequent oxidation to their radical cations,
with concomitant reduction of the chlorinated solvent producing
chloride counterions; (ii) formation of
a
nucleus of
triarylammonium radicals in a double columnar arrangement
involving hydrogen bonds; (iii) stacking of neutral triarylamines
onto the nucleus and subsequent growth of the primary fibril;
(iv) lateral secondary aggregations of fibrils by van der Waals
forces to reach larger bundles of fibers.
Based on this mechanism, we envisioned to suppress the light-
irradiation step and to replace it by a direct electrochemical
oxidation (Figure 1a). We first checked the possibility to oxidize 1
using light irradiation in the presence of a high concentration of
commonly used electrolytes ([1] = 1 mM; [electrolyte] = 100 mM
in 1,1,2,2-tetrachloroethane (TCE)). By probing the system with
UV-Vis-NIR spectroscopy, we confirmed the effective photo-
induced oxidation in the presence of tetrabutylammonium
perchlorate (TBAClO4), hexafluorophosphate (TBAPF6), or
chloride (TBACl) (section S5.1, Figure S5). Indeed, as already
described extensively,[8,11] one of the typical signatures
submitted to
a single DC electric field, reaching a precision
unprecedented in the literature.
Because supramolecular bonds are labile in essence,
supramolecular polymers are highly dynamic chemical objects.[1,2]
The kinetics of formation and dissociation of such polymers can
be partially controlled by intensive parameters (e.g. temperature,
concentration, mechanical stress) or by modifying in situ their
supramolecular recognition units.[3] This toolbox is of particular
interest for the design of responsive materials.[4,5] However, one
drawback of such an intrinsic dynamics is that gaining control over
their polydispersity index is particularly difficult. To improve that
aspect, recent seminal works have been developed to access
living supramolecular polymerization processes.[6,7] Another very
challenging aspect of supramolecular polymerization concerns its
precise control in space (i.e. with a spatial resolution approaching
the size of the polymer itself). In this direction, the possibility to
precisely address the nucleation and growth of supramolecular
polymers by electrochemistry attracted our attention.
+
associated to radical cation 1• , and further to the self-assembly
process, is the appearance of a stable absorption band around
750 nm (Figure 1b, dashed line). We then performed cyclic
voltammetry (CV) at a scan rate of 100 mV∙s-1 for TAA 1 in TCE
and in the presence of TBAPF6 (Figure 1c), showing a first
oxidation associated with radical cation 1•+ (E1/2 = -71 mV), and a
second oxidation leading to the corresponding dication 12+ (E1/2
=
704 mV).[13] Spectroelectrochemistry was also performed on this
solution, showing the expected UV-Vis spectrum of 1•+ as it
passes over the first oxidation potential (Figure 1d). The resulting
spectrum perfectly matches with the one observed upon photo-
irradiation (Figure 1b, plain line). We further tested whether the
wires can self-assemble electrochemically from 1 and 1•+ in the
presence of the electrolyte and in the dark. For that, we probed
by 1H NMR spectroscopy the behavior of a solution of 1 in
deuterated chloroform (5 mM) and in the presence of TBAPF6
(100 mM), while holding a potential of 0.2 V vs Fc/Fc+ (Ferrocene
/ Ferrocenium reference redox couple) for 30 min. This time
period of electro-oxidation involves the production of
approximately 1% of 1•+ in the solution as determined by
The rational design of the present study rests on the

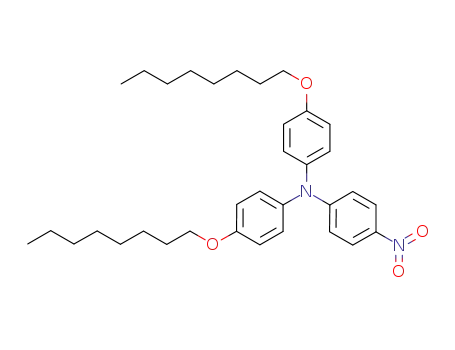

supramolecular polymerization of triarylamine molecules (TAA)
substituted with (an) amide function(s), such as molecule 1 in
Figure 1.[8–10] We have previously shown that, in chlorinated
solvents, light-triggered oxidation of TAA to the corresponding
+
radical cation (TAA• ) can promote supramolecular polymerization.
The associated mechanism was thoroughly investigated by a
number of experimental and theoretical means,[11,12] and it was
1
coulometry (section S5.2. Figure S7). H NMR spectrum shows
that, after this electrochemical treatment at constant
concentration and temperature, the aromatic proton resonance
signals of the triarylamine fully disappear. A similar behavior was
observed when electro-oxidation of 1 was performed in the
absence of electrolyte with a high potential of 25 V held for 30 min
[a]
Dr. Thomas K. Ellis, Melodie Galerne, Dr. Joseph J. Armao IV, Dr.
Artem Osypenko, Dr. David Martel, Prof. Dr. Mounir Maaloum, Dr.
Gad Fuks, Dr. Emilie Moulin, Odile Gavat, and Prof. Dr. Nicolas
Giuseppone*
in TCE-d (Figure S8a). The disappearance of the NMR signals
2
SAMS research group – University of Strasbourg – Institut Charles
Sadron, CNRS – 23 rue du Loess, BP 84047, 67034 Strasbourg
Cedex 2, France
E-mail: giuseppone@unistra.fr
after the oxidation of a small percentage of the triarylamine
molecules is a typical signature of a nucleation step involving
radical cations and followed by the formation of large and rigid
anisotropic stacks involving all the remaining neutral TAAs as
elucidated in our previous works.[8,11]
§
These authors contributed equally to this work.
Supporting information for this article is given via a link at the end of
the document.
