Highly active single-component neutral nickel ethylene polymerization catalysts: The influence of electronic effects and spectator ligands

Article abstract of DOI:10.1021/om100658j

A series of neutral nickel complexes [6-CHN(2,6-ⁱPr ₂C₆H₃)-2-(2-NO₂C₆H ₄)-C₆H₃O-κ²- N,O]Ni(Ph)(PPh₃) (6a), [6-CHN(2,6-ⁱPr₂C ₆H₃)-2-(C₆F₅)-C₆H ₃O-κ²-N,O]Ni(R)(L) (R = Ph, L = PPh₃ (6b-PPh₃); R = Me, L = pyridine (6b-Py); R = CH₂Ph, L = PMe₃ (6b-¹Bz); R = η³-CH₂Ph (6b-³Bz)), and [6-CHN(2,6-ⁱPr₂C ₆H₃)-2-(2-OCH₃C₆H ₄)-C₆H₃O-κ²-N,O]Ni(Ph) (PPh₃) (6c) based on 2-nitrophenyl-, pentafluorophenyl-, and 2-methoxyphenyl-substituted salicylaldimine ligands, respectively, have been synthesized and characterized by ¹H NMR, ¹³C NMR, and elemental analysis. The solid structures of 6a, 6b-PPh₃, 6b-Py, and 6b-¹Bz have been further confirmed by X-ray crystallography. By combining the benefits of both electronic and steric factors, all the complexes with electron-withdrawing groups proved to be highly active single-component catalysts for ethylene polymerization, producing polymer with moderate molecular weights. Among these catalysts, 6b-PPh₃ exhibited very high productivity of up to 5.87 × 10⁶ g PE/mol_Ni·h under optimal conditions. Compared with 6b-PPh₃ and 6b-Py, 6b- ³Bz requires lower temperature and ethylene pressure to show high productivity. The branching number, M_w, and T_m of the polymer can be readily manipulated by variation of reaction conditions and catalyst structure.

Full text of DOI:10.1021/om100658j

6282 Organometallics 2010, 29, 6282–6290
DOI: 10.1021/om100658j
Highly Active Single-Component Neutral Nickel Ethylene
Polymerization Catalysts: The Influence of Electronic Effects and
Spectator Ligands
Hong-Liang Mu,†,‡ Wei-Ping Ye,† Dong-Po Song,†,‡ and Yue-Sheng Li*,†
†State Key Laboratory of Polymer Physics and Chemistry, Changchun Institute of Applied Chemistry,
Chinese Academy of Sciences, Changchun 130022, People’s Republic of China, and Graduate School of the
‡
Chinese Academy of Sciences, Changchun Branch, People’s Republic of China
Received July 7, 2010
A series of neutral nickel complexes [6-CHN(2,6-iPr2C6H3)-2-(2-NO2C6H4)-C6H3O-κ2- N,O]Ni-

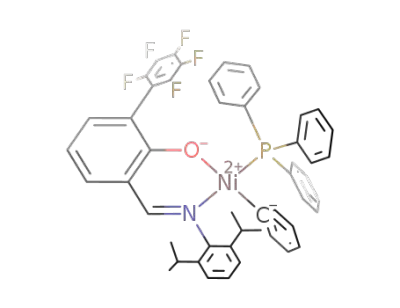

(Ph)(PPh3) (6a), [6-CHN(2,6-iPr2C6H3)-2-(C6F5)-C6H3O-κ2-N,O]Ni(R)(L) (R = Ph, L = PPh3
(6b-PPh3); R=Me, L=pyridine (6b-Py); R=CH2Ph, L=PMe3 (6b-1Bz); R=η3-CH2Ph (6b-3Bz)),
and [6-CHN(2,6-iPr2C6H3)-2-(2-OCH3C6H4)-C6H3O-κ2-N,O]Ni(Ph)(PPh3) (6c) based on 2-nitrophenyl-,
pentafluorophenyl-, and 2-methoxyphenyl-substituted salicylaldimine ligands, respectively, have been synthe-
sized and characterized by 1H NMR, 13C NMR, and elemental analysis. The solid structures of 6a, 6b-PPh3,
6b-Py, and 6b-1Bz have been further confirmed by X-ray crystallography. By combining the benefits of both
electronic and steric factors, all the complexes with electron-withdrawing groups proved to be highly active
single-component catalysts for ethylene polymerization, producing polymer with moderate molecular weights.
Among these catalysts, 6b-PPh3 exhibited very high productivity of up to 5.87 ꢀ 106 g PE/molNi h under
3
optimal conditions. Compared with 6b-PPh3 and 6b-Py, 6b-3Bz requires lower temperature and ethylene
pressure to show high productivity. The branching number, Mw, and Tm of the polymer can be readily
manipulated by variation of reaction conditions and catalyst structure.
