Water-SOluble manganeSe(III) COrrOleS anD COrreSPOnDIng (nItrIDO)manganeSe(V) COmPlexeS
617
(acetonitrile:H2O, 50:50): m/z 350 [M]2+/2, 370.5 [M +
CH3CN]2+/2.
[M]-. UV-vis (acetonitrile): λmax, nm (log ε) 432 (41.5),
548 (4.2), 584 (6.9). 2e. Rf (silica, KCl(H2O, sat.):H2O:
acetonitrile, 1:1:8) = 0.31. MS ESI+ (acetonitrile:H2O,
50:50): m/z 640 [M]2+. UV-vis (methanol): λmax, nm
(log ε) 432 (78.6), 552 (17.8), 588 (23.7).
Preparation of the (nitrido)Mn(V) complexes of
5,10,15-tris(o-pyridyl)corrole (2c); of 10-(pentafluoro-
phenyl)-5,15-bis(N-methyl-o-pyridylium)corrole (1e); of

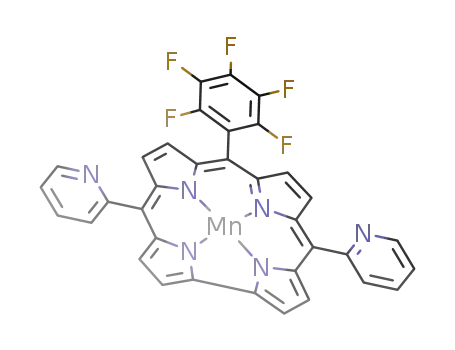

10-(pentafluorophenyl)-5, 15-bis(o-pyridyl)corrole (1c);
and of 5,10,15-tris(N-methyl-o-pyridylium)corrole (2e).
Based on the previously published procedure [2b] sam-
ples 10 mg (17 µmol) of 1b; 2b; 1d or 2d (14 µmol) were
added to a 25 mL flask and dissolved in 10 mL of metha-
nol. 15 equiv. (7 µL, 17.6 µmol) of NH4OH and 6 equiv.
(3.7 mL, 70.7 µmol) of NaOCl were added to the solu-
tion. Immediately, the solution color changed from green
to purple-green. The reaction was monitored by UV-vis.
The solution was dried by sodium sulfate, filtered and
evaporated to dryness, affording 2c (9.5 mg, 93%), 1c
(9.3 mg, 91%), 1e (9.2 mg, 90%) and 2e (7.6 mg, 85%).
Crystallography
The diffraction measurements were carried out on a
Nonius KappaCCD diffractometer, using graphite mono-
chromated MoKα radiation (λ = 0.7107 Å). Crystal
data: (C37H35MnN8O2)3+·3I-, orthorhombic, space group
Pbcn, MW = 1059.37, a = 10.0388(2), b = 18.7942(5),
c = 20.1470(7) Å, V = 3801.2(2) Å3, T =110(2) K, Z = 4,
Dcalc = 1.851 g.cm-3, µ(MoKα) = 2.83 mm-1, 4531 unique
reflections, R1 = 0.068 for 3677 reflections with Io >
2σ(Io), wR2 = 0.221 for all unique data.
1
2c. Rf (silica, ethyl acetate/methanol, 1:1) = 0.68. H
NMR (500 MHz, CD3CN): δH, ppm 9.14 (2H, d, 3J(H,H) =
4.03 Hz, pyrrole-H), 9.09 (2H, d, 3J(H,H) = 5.50 Hz, pyr-
role-H), 9.04 (1H, br s, pyridine-H), 8.96 (2H, d, 3J(H,H) =
RESULTS AND DISCUSSION
The corrole ligands 1a and 2a were prepared via the
condensation of 5-(2-pyridyl)dipyrromethane with either
pentafluorophenylbenzaldehyde or 4-pyridinecarboxal-
dehyde, followed by subsequent oxidation by DDQ, as
described by Saltsman and co-workers [9]. This was fol-
lowed by insertion of manganese to afford complexes 1b
and 2b, which were N-methylated by iodomethane, lead-
ing to the water-soluble complexes 1d and 2d (Scheme 1).
This reaction scenario is preferable to the N-alkylation/
metal insertion route (indicated by the broken arrows
in Scheme 1), since we observed that the inner nitro-
gen atoms in the free-base corroles also react with
3
4.77 Hz, pyrrole-H), 8.79 (2H, d, J(H,H) = 4.03 Hz,
pyrrole-H), 8.61 (2H, d, 3J(H,H) = 4.40 Hz, pyrrole-H),
8.44 (2H, d, 3J(H,H) = 7.89 Hz, pyridine-H), 8.17 (2H, t,
3
3J(H,H) = 7.52 Hz, pyridine-H), 8.13 (1H, t, J(H,H) =
7.15 Hz, pyridine-H), 7.70-7.65 (4H, m, pyridine-H).
MS (MALDI-TOF) LD- (acetonitrile): m/z 595 [M]-. UV-
vis (methanol): λmax, nm (log ε) 434 (65.6), 546 (4.8),
588 (12.4). 1e. Rf (silica, ethyl acetate:methanol, 1:1) =
0.80. 1H NMR (500 MHz, CD3CN): δH, ppm 9.37 (1H, d,
3
3J(H,H) = 6.05 Hz, pyridine-H), 9.33 (1H, d, J(H,H) =
3
4.77 Hz, pyrrole-H), 9.20 (1H, d, J(H,H) = 6.24 Hz,
1
pyridine-H), 9.10–9.07 (1H, m, pyridine-H), 9.03 (1H,
d, 3J(H,H) = 7.70 Hz, pyridine-H), 8.89 (1H, t, 3J(H,H) =
7.70 Hz, pyridine-H), 8.82–8.78 (3H, m, pyrrole-H),
iodomethane (easily observable by new H NMR reso-
nances at <0 ppm due to N-CH3 moieties). Treatment of
complexes 1d and 2d with bleach/ammonia led to the
(nitrido)manganese(V) corroles 1e and 2e, respectively.
The analogous complexes 1c and 2c, with non-alkylated
pyridine substituents, were also prepared by the same
procedure, from 1b and 2b, respectively.
The manganese(III) complexes are paramagnetic and
the constitution of these compounds can hence not be
confirmed by 1H NMR spectroscopy. On the other hand,
changes in the electronic spectra are very distinctive
when it comes to the transformation of manganese(III) to
(nitrido)manganese(V) corroles. This is shown in Fig. 1,
for the transformation of 1b to 1c. While the electronic
spectra of the manganese(III) corroles is characteristi-
cally rich throughout the visible range (bands I → VI
in Boucher's nomenclature) [10], the products display
a sharp Soret band and a prominent absorption centered
about 580 nm that is distinctive of (nitrido)manganese(V)
porphyrinoids.
3
8.71 (1H, d, J(H,H) = 4.58 Hz, pyrrole-H), 8.69 (2H,
d, 3J(H,H) = 4.03 Hz, pyrrole-H), 8.67 (1H, t, 3J(H,H) =
4.95 Hz, pyrrole-H), 8.62 (1H, t, 3J(H,H) = 7.70 Hz,
pyridine-H), 8.46–8.40 (2H, m, pyridine-H), 4.38 (s)
and 4.37 (3H, s, CH3), 3.79 (s) and 3.77 (3H, s, CH3).
19F NMR (282 MHz, CD3CN): δF, ppm -140.55–-141.37
3
(2F, m, ortho-F), -157.74 (1F, t, J(F,F) = 20.9 Hz,
para-F), -165.25–-165.32 (2F, m, meta-F). MS ESI+
(acetonitrile:H2O, 50:50): m/z 357 [M]+/2. UV-vis (meth-
anol): λmax, nm (log ε) 430 (3.3), 582 (1.1). 1c. Rf (silica,
1
ethyl acetate) = 0.85. H NMR (500 MHz, CD3CN): δH,
3
ppm 9.16 (2H, d, J(H,H) = 3.67 Hz, pyrrole-H), 9.09
3
(2H, br s, pyridine-H), 8.99 (2H, d, J(H,H) = 4.40 Hz,
pyrrole-H), 8.82 (2H, d, 3J(H,H) = 3.67 Hz, pyrrole-H),
8.59 (2H, d, 3J(H,H) = 4.40 Hz, pyrrole-H), 8.44 (2H, d,
3
3J(H,H) = 7.70 Hz, pyridine-H), 8.18 (2H, t, J(H,H) =
7.34 Hz, pyridine-H), 7.74–7.68 (2H, m, pyridine-H).
19F NMR (282 MHz, CD3CN): δF, ppm -140.45 (1F, dd,
3J(F,F) = 25.6 Hz, 4J(F,F) = 7.9 Hz, ortho-F), -141.09 (1F,
dd, 3J(F,F) = 25.4 Hz, 4J(F,F) = 7.9 Hz, ortho-F), -158.87
(1F, t, 3J(F,F) = 19.7 Hz, para-F), -165.90–-166.45 (2F, m,
meta-F). MS (MALDI-TOF) LD- (acetonitrile): m/z 684
The most valuable tool regarding unambiguous identi-
fication of a (nitrido)manganese(V) moiety in 1c and 2c
is NMR spectroscopy, which is characterized by high-
resolution resonances indicative of diamagnetic com-
plexes. The diamagnetism by itself is fully (and only)
