First Halogen Anion-Bridged (MMX)n-Type One-Dimensional Coordination Polymer
Built upon d10-d10 Dimers
Tianle Zhang,*,† Changpeng Ji,† Kaili Wang,† Daniel Fortin,‡ and Pierre D. Harvey*,‡
†College of Chemistry and Chemical Engineering, Huazhong University of Science and Technology, Wuhan,
‡
ꢀ
ꢀ
Hubei 430074, People’s Republic of China, and Departement de Chimie, Universite de Sherbrooke, Sherbrooke,
Quebec J1K, 2R1, Canada
Received August 9, 2010
The complex [Ag2(PhPPy2)2(NCCH3)2](ClO4)2 [PhPPy2 = bis(2-pyridyl)phenylphosphine] reacts with NH4Cl to
form an insoluble one-dimensional polymer of the type (MMX)n, {[Ag2(PhPPy2)2Cl](ClO4)}n. The binuclear unit,
Ag2(PhPPy2)22þ, exhibits two PhPPy2 tridentate ligands bridging the two Ag atoms in a head-to-tail fashion with C2h
˚
symmetry, and the Ag Ag distance [3.0942(11) A, X-ray] suggests argentophilic interactions. Each Ag center
adopts a distorted trigonal-bipyramidal geometry, coordinated by one P atom and two pyridyl arms at the equatorial
3 3 3
˚
positions and interacting with one Cl ion and one Agion at the axial positions. The short Ag-Cl bond length [2.5791(7) A]
indicates the presence of some covalent character. The solid-state absorption bands spread all the way to 600 nm
have been interpreted by means of density functional theory (DFT) and time-dependent DFT (B3LYP), and the lowest-
energy excited states are assigned to metal/halide-to-pyridyl charge transfer, consistent with the d10 electronic
configuration of Ag. The calculated oscillator strengths are low because of the poor molecular orbital overlaps in the
charge-transfer components. The novel material exhibits a luminescence band centered at about ∼520 nm.
Introduction
magneticproperties. Froma structuralpoint of view, the con-
struction of these materials is based upon the square-planar
geometry about the metal, with the remaining axial positions
occupied by the bridging halide and neighboring metal.11-20
Moreover, species belonging to this same family of halogen-
bridged polymers of dimers is a mixed-metal (Pt6Rh2Cl)n
polymer in which two dimers are bridged by a Cl ion and two
others are not.21,22 The metal atoms in the (MMX)n polymers
Unidimensional halide-bridged coordination oligomers1,2
and polymers3-10 built upon dimetallic fragments, (MMX)n,
are of current interest primarily because of their metallic and
*To whom correspondence should be addressed. E-mail: tlzhang@mail.
hust.edu.cn (T.Z.), Pierre.Harvey@USherbrooke.ca (P.D.H.). Tel: 1-819-
821-7092 (P.D.H.). Fax: 86-27-87543632 (T.Z.), 1-819-821-8017 (P.D.H.).
(1) Yin, C.-X.; Huang, G.-C.; Kuo, C.-K.; Fu, M.-D.; Lu, H.-C.; Ke,
J.-H.; Shih, K.-N.; Huang, Y.-L.; Lee, G.-H.; Yeh, C.-Y.; Chen, C.-H.; Peng,
S.-M. J. Am. Chem. Soc. 2008, 130, 10090–10092.
(11) Kitagawa, H.; Onodera, N.; Ahn, J.-S.; Mitani, T.; Toriumi, K.;
Yamashita, M. Synth. Met. 1997, 86, 1931–1932.
(12) Kitagawa, H.; Onodera, N.; Ahn, J.-S.; Mitani, T.; Kim, M.; Ozawa,
Y.; Toriumi, K.; Yasui, K.; Manabe, T.; Yamashita, M. Mol. Cryst. Liq.
Cryst. Sci. Technol., Sect. A 1996, 311–316.
(2) Matsunaga, S.; Takizawa, K.; Kawakami, D.; Iguchi, H.; Takaishi, S.;
Kajiwara, T.; Miyasaka, H.; Yamashita, M.; Matsuzaki, H.; Okamoto, H.
Eur. J. Inorg. Chem. 2008, 3269–3273.
(3) Guijarro, A.; Castillo, O.; Welte, L.; Calzolari, A.; Miguel, P. J. S.;
(13) Ebihara, M.; Fuma, Y. Acta Crystallogr., Sect. C: Cryst. Struct.
Commun. 2006, 62, m556–558.
ꢀ
ꢀ
Gomez-Garcia, C. J.; Olea, D.; di Felice, R.; Gomez-Herrero, J.; Zamora, F.
Adv. Funct. Mater. 2010, 20, 1451–1457.
(4) Calzolari, A.; Alexandre, S. S.; Zamora, F.; di Felice, R. J. Am. Chem.
Soc. 2008, 130, 5552–5562.
(5) Iguchi, H.; Takaishi, S.; Miyasaka, H.; Yamashita, M.; Matsuzaki,
H.; Okamoto, H.; Tanaka, H.; Kuroda, S. Angew. Chem., Int. Ed. 2010, 49,
552–555.
(14) Chakravarty, A. R.; Cotton, F. A. Polyhedron 1985, 4, 1957–1958.
ꢀ
ꢀ
(15) Barral, M. C.; Jimenez-Aparicio, R.; Perez-Quintanilla, D.; Priego,
J. L.; Royer, E. C.; Torres, M. R.; Urbanos, F. A. Inorg. Chem. 2000, 39, 65–
70.
ꢀ
(16) Tejel, C.; Ciriano, M. A.; Lopez, J. A.; Lahoz, F. J.; Oro, L. A.
Organometallics 1997, 16, 4718–4727.
(6) Iguchi, H.; Takaishi, S.; Kajiwara, T.; Miyasaka, H.; Yamashita, M.;
Matsuzaki, H.; Okamoto, H. J. Inorg. Organomet. Polym. 2009, 19, 85–90.
(7) Iguchi, H.; Takaishi, S.; Kajiwara, T.; Miyasaka, H.; Yamashita, M.;
Matsuzaki, H.; Okamoto, H. J. Am. Chem. Soc. 2008, 130, 17668–17669.
(8) Yamashita, M.; Takaishi, S.; Kobayashi, A.; Kitagawa, H.; Matsuzaki,
H.; Okamoto, H. Coord. Chem. Rev. 2006, 250, 2335–2346.
(9) Mitsumi, M.; Yoshida, Y.; Kohyama, A.; Kitagawa, Y.; Ozawa, Y.;
Kobayashi, M.; Toriumi, K.; Tadokoro, M.; Ikeda, N.; Okumura, M.;
Kurmoo, M. Inorg. Chem. 2009, 48, 6680–6691.
(17) Mitsumi, M.; Kitamura, K.; Morinaga, A.; Ozawa, Y.; Kobayashi,
M.; Toriumi, K.; Iso, Y.; Kitagawa, H.; Mitani, T. Angew. Chem., Int. Ed.
2002, 41, 2767–2771.
(18) Abe, M.; Sasaki, Y.; Yamaguchi, T.; Ito, T. Bull. Chem. Soc. Jpn.
1992, 65, 1585–1590.
(19) Das, B. K.; Chakravarty, A. R. Polyhedron 1991, 10, 491–494.
(20) Togano, T.; Mukaida, M.; Nomura, T. Bull. Chem. Soc. Jpn. 1980,
53, 2085–2086.
(21) Uemura, K.; Yamasaki, K.; Fukui, K.; Matsumoto, K. Eur. J. Inorg.
Chem. 2007, 809–815.
(10) Chaia, Z. D.; Rusjan, M. C.; Castro, M. A.; Donnio, B.; Heinrich, B.;
Guillon, D.; Baggio, R. F.; Cukiernik, F. D. J. Mater. Chem. 2009, 19, 4981–
4991.
(22) Uemura, K.; Fukui, K.; Arai, S.; Matsumoto, K.; Nishikawa, H.;
Oshio, H. Angew. Chem., Int. Ed. 2005, 44, 5459–5464.
r
2010 American Chemical Society
Published on Web 11/10/2010
pubs.acs.org/IC

11070 Inorganic Chemistry, Vol. 49, No. 23, 2010
Zhang et al.

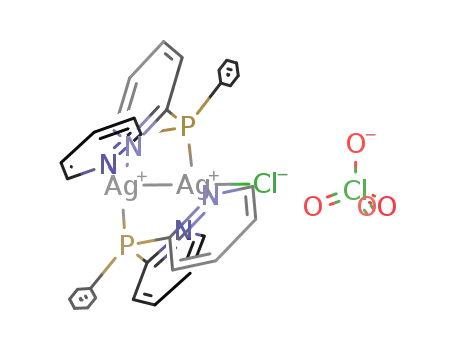

Chart 1
