Directed Zirconation
tmp4Zr: An Atom-Economical Base for the Metalation of
Functionalized Arenes and Heteroarenes**
Masilamani Jeganmohan and Paul Knochel*
The functionalization of aromatic and heterocyclic ring
systems is of central importance in synthetic organic chemis-
try, beacuse polyfunctional unsaturated units are present in
numerous pharmaceuticals and advanced materials.[1]
Directed metalation is a convenient method for performing
such synthetic tasks. Whereas directed lithiations have been
very popular,[2] the recent development of kinetically highly
active 2,2,6,6-tetramethylpiperidyl (tmp) bases[3,4] of various
transition metals (Mn,[5] Fe,[6] and Ln[7]) that can be solubi-
lized by complexation with lithium chloride allows a unique
and simple preparation of polyfunctional Mn, Fe, or La
unsaturated organometallic complexes. Early-transition-
metal organometallic complexes have a particular reactivity
pattern.[8,9] Especially, complexes derived from Ti and Zr are
attractive due to their unusual reaction chemistry, the low cost
of these metals, and their low toxicity.[9] Herein, we report a
new THF-soluble kinetically highly active zirconium base:[10]
tmp4Zr·4MgCl2·6LiCl (abbreviated as tmp4Zr (1)) which for
the first time allows a direct zirconation of various function-
alized aromatics and heterocycles of type 2 (scheme 1).
Remarkably, this base is especially atom economical regard-
ing the amount of transition-metal (0.25 equiv) and the use of
tmp groups.[11] All four tmp groups are used effectively in the
metalation process allowing the preparation of a range of new,
highly functionalized tetraorganozirconium derivatives of
type 3 under mild reaction conditions (Scheme 1). Thus, the
reaction of ethyl 3-fluorobenzoate (2a, 1 equiv) with 1
(0.25 equiv) at 258C for 45 min provides the tetraarylzirco-
nium reagent 3a in over 95% yield (as indicated by iodolysis
or allylation of reaction aliquots). The zirconated reagent 3a
displays a remarkable reactivity. Its allylation with ethyl (2-
bromomethyl)acrylate (1.05 equiv, CuCN·2LiCl (5 mol%),
08C, 1 h) furnished the diester 5a, isolated in 88% yield
(Scheme 2). The addition to benzaldehyde (1.05 equiv, 08C,
2 h) led to the lactone 5b in 86% yield. A direct palladium-
catalyzed cross-coupling without further transmetalation[12a]
using [Pd(PPh3)4] (3 mol%, 258C, 8 h) afforded the biphenyl
derivative 5c in 77% yield. Styrene oxide was opened by the
zirconium reagent 3a at 508C within 1 h providing after
workup the annelated lactone 5d in 65% yield. Interestingly,
the new tetraarylzirconium species (3a) reacts smoothly with
CO2 (1 atm, 508C, 8 h) furnishing the corresponding acid 5e,
isolated in 84% yield.[12b,c] Similarly, a range of zirconated
aromatic substrates undergo this carboxylation reaction as
well leading to the polyfunctional benzoic acids (5 f–j) in 79–
89% yields (Scheme 2).
A range of substituted benzoates were zirconated with 1
(0.25 equiv) at temperatures between À158C and 258C (see
entries 1–10 of Table 1). The resulting zirconated aromatics
2b–j react with various electrophiles. Thus, a copper(I)-
catalyzed acylation[12d] with 2-chlorobenzoyl chloride
(1.0 equiv, CuCN·2LiCl (25 mol%), À208C, 1 h) gave the
benzophenone 5k in 82% yield (entry 1 of Table 1). The
addition of 2b to cyclohexane carbaldehyde (1.0 equiv, 08C,
2 h) led to the lactone 5l in 76% yield (Table 1, entry 2). A
palladium-catalyzed cross-coupling of the zirconated aromat-
ics 2c–e with various aryl iodides proceeded in each case
directly without the need of an additional transmetalation,
furnishing the functionalized biphenyls 5m–o in 78–81%
yields (Table 1, entries 3–5). The stannylation of the tetraar-
ylzirconium reagent derived from 2 f using Me3SnCl
(1.0 equiv, 08C, 2 h) gave the arylstannane 5p in 75% yield
(Table 1, entry 6). Whereas, the zirconation of 3-fluoroanisole
(2g) with 1 at 258C led to a substantial formation of
benzyne,[9d] this decomposition pathway can be avoided by
performing the zirconation of 2g at À208C (0.25 equiv of 1,

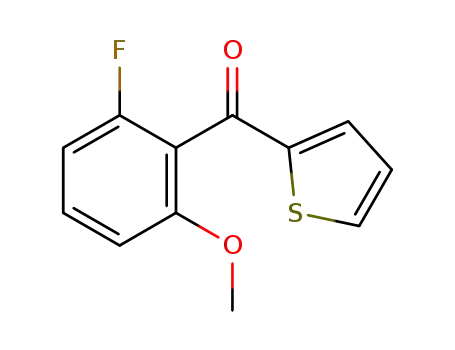

3 h). Quenching of the resulting tetraarylzirconium com-
pound with thiophene-2-carbonyl chloride (1.0 equiv, CuCN·
2LiCl (25 mol%), À208C, 1 h) led to the ketone 5q in 83%
yield (Table 1, entry 7). The benzonitrile 2h was metalated by
1 (0.25 equiv, 08C, 45 min) in position 2. A cross-coupling
Scheme 1. Preparation of 1 and its reaction with aromatics or hetero-
cycles of type 2.
[*] Dr. M. Jeganmohan, Prof. Dr. P. Knochel
Department Chemie, Ludwig-Maximilians-Universitꢀt Mꢁnchen
Butenandtstrasse 5–13, Haus F, 81377 Mꢁnchen (Germany)
Fax: (+49)89-2180-77680
E-mail: Paul.Knochel@cup.uni-muenchen.de
[**] We thank the European Research Council (ERC) for financial
support. M.J. thanks the Humboldt Foundation for a fellowship. We
also thank BASF AG (Ludwigshafen), W. C. Heraeus GmbH
(Hanau), and Chemetall GmbH (Frankfurt) for the generous gift of
chemicals. tmp4Zr=tmp4Zr·4MgCl2·6LiCl; tmp=2,2,6,6-tetrame-
thylpiperidyl.
Supporting information for this article is available on the WWW
