Identification of the first inhibitor of the GBP1:PIM1 interaction. Implications for the development of a new class of anticancer agents against paclitaxel resistant cancer cells

Article

pubs.acs.org/jmc

Identiﬁcation of the First Inhibitor of the GBP1:PIM1 Interaction.

Implications for the Development of a New Class of Anticancer

Agents against Paclitaxel Resistant Cancer Cells

∥ ,◆

Mirko Andreoli,^†,◆Marco Persico,^‡,◆Ajay Kumar,

Nausicaa Orteca,^‡Vineet Kumar,^§

Antonella Pepe,^§Sakkarapalayam Mahalingam,^○Antonio E. Alegria,^⊥Lella Petrella,^#Laima Sevciunaite,^#

Alessia Camperchioli,^#Marisa Mariani,^†Antonio Di Dato,^‡Ettore Novellino,^‡Giovanni Scambia,^▽

Sanjay V. Malhotra,*^,§Cristiano Ferlini,*^,†and Caterina Fattorusso*^,‡

^†Danbury Hospital Research Institute, 24 Hospital Avenue, Danbury, Connecticut 06810, United States

^‡Department of Pharmacy, University of Napoli “Federico II”, Via D. Montesano 49, 80131 Napoli, Italy

^§Laboratory of Synthetic Chemistry, Leidos Biomedical Research, Inc., Frederick National Laboratory for Cancer Research, 1050

Boyles Street, Frederick, Maryland 21702, United States

∥

̀

School of Environmental Aﬀairs, Universidad Metropolitana, Avenue Ana G. Mendez, San Juan, Puerto Rico PR 00928, United

States

^⊥Department of Chemistry, University of Puerto Rico at Humacao, 100 Road 908, Humacao, Puerto Rico PR 00791, United States

^#Laboratory of Molecular Oncology, Jean Paul II^ndResearch Foundation, Largo A. Gemelli 1, 86100 Campobasso, Italy

^▽Department of Obstetrics and Gynecology, Catholic University of the Sacred Heart, Largo A. Gemelli 8, 00168 Roma, Italy

^○Department of Chemistry, Purdue University, 560 Oval Drive, West Lafayette, Indiana 47907, United States

S

* Supporting Information

ABSTRACT: Class III β-tubulin plays a prominent role in the

development of drug resistance to paclitaxel by allowing the

incorporation of the GBP1 GTPase into microtubules. Once in

the cytoskeleton, GBP1 binds to prosurvival kinases such as

PIM1 and initiates a signaling pathway that induces resistance

to paclitaxel. Therefore, the inhibition of the GBP1:PIM1

interaction could potentially revert resistance to paclitaxel. A

panel of 44 4-azapodophyllotoxin derivatives was screened in

the NCI-60 cell panel. The result is that 31 are active and the

comparative analysis demonstrated speciﬁc activity in paclitax-

el-resistant cells. Using surface plasmon resonance, we were able to prove that NSC756093 is a potent in vitro inhibitor of the

GBP1:PIM1 interaction and that this property is maintained in vivo in ovarian cancer cells resistant to paclitaxel. Through

bioinformatics, molecular modeling, and mutagenesis studies, we identiﬁed the putative NSC756093 binding site at the interface

between the helical and the LG domain of GBP1. According to our results by binding to this site, the NSC756093 compound is

able to stabilize a conformation of GBP1 not suitable for binding to PIM1.

tissue dependent and can be modiﬁed in response to

microenvironmental stimuli.^2,3In fact, the microenvironment

surrounding cancer cells can trigger the expression of speciﬁc

tubulin subtypes, such as βIII-tubulin, able to induce the

emergence of drug resistance. The overexpression of βIII-

tubulin isotype³⁻⁵is an example of this survival mechanism,

which is not limited to this protein acting as a single driver of

the resistant phenotype but it involves a multimolecular

complex that is able to activate a cytoskeletal gateway for the

incorporation into microtubules of pro-survival kinases such as

PIM1 and NEK6.^6,7Crucial element of this gateway is the

INTRODUCTION

■

Drug resistance is the most relevant clinical problem in the

management of solid malignancies. In many cases, after an

initial response to treatment, cancer cells develop a resistant

phenotype which is ultimately responsible for the fatal

progression of the disease. Mechanisms that induce drug

resistance are complex and rely on multiple functional

pathways. Microtubule targeted agents (MTAs) are the

chemotherapeutics most commonly used for the management

of solid malignancies. Unfortunately, treatment with MTAs

eventually induces drug resistance. Microtubules are formed by

heterodimers of α/β tubulin isotypes.¹In mammals, multiple

genes encode for at least seven α and six β tubulin genes.

Microtubule composition of the diﬀerent tubulin isotypes is

Received: April 9, 2014

Published: September 11, 2014

7916

dx.doi.org/10.1021/jm5009902 | J. Med. Chem. 2014, 57, 7916−7932

Journal of Medicinal Chemistry

Article

large-GTPase GBP1, whose incorporation into microtubules is

facilitated by the presence of βIII-tubulin.^6,7For this reason, it

would be desirable to control βIII-tubulin role by switching oﬀ

such a gateway of drug resistance and possibly restores

sensitivity to MTAs. The present study was aimed at identifying

speciﬁc inhibitors of such functional gateway, that is,

compounds able to interfere with the involved protein−protein

interaction network.

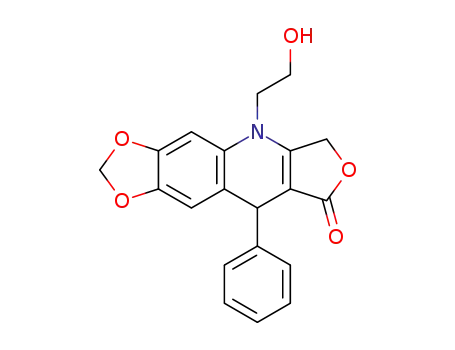

Scheme 1. Representative Example of the Synthesis of

Azapodophyllotoxin Derivatives

Over the last two decades, there has been signiﬁcant interest

in developing therapeutics and chemical probes that inhibit

speciﬁc protein:protein interactions. Although developing small

molecules that are capable of occluding the large, often

relatively featureless protein:protein interaction interface has

been challenging, there are increasing numbers of examples of

small molecules that function in this manner with reasonable

potency.⁸⁻¹⁰Natural products and their derivatives have

historically been invaluable as a source of therapeutic agents.

Among these podophyllotoxins are the ﬁrst and perhaps the

best known example of the use of a lignan as a lead compound,

a cytotoxic aryltetralin lactone originally obtained from

Podophyllum peltatum L. and related species.^11,12Although

the semisynthetic derivatives etoposide, etoposide phosphate,

and teniposide are currently used in clinic for the treatment of a

variety of malignancies, there are side eﬀects associated with the

use of these agents in clinic (including myelosuppression,

neutropenia, and nausea).¹³To overcome these limitations, we

modiﬁed the original structure and prepared a small set of

azapodophyllotoxins (APTs) which showed reduced toxicity

and high cancer inhibitory activity.^14,15Motivated by these

results, we have now prepared a larger set of APTs and tested

for their potential to inhibit the activity of GBP1 function.

The data presented herein demonstrate that some APTs are

selectively more active in the cell lines most resistant to MTAs

like paclitaxel. The ability of the identiﬁed analogues in

preventing the formation of the GBP1:PIM1 complex was

tested, and compound NSC756093 was found active. The

molecular bases of this inhibition were investigated using

bioinformatics, molecular modeling, and mutagenesis studies,

and a putative binding site and mechanism of action was

hypothesized. Results obtained could potentially allow the

development of a new generation of compounds active on

MTA-resistant tumors.

in the NCI-60 panel of cell lines¹⁵(see Experimental Section

for details; the methodology for NCI-60 cell line screening is

also described at http://dtp.nci.nih.gov/branches/btb/ivclsp.

html).

Brieﬂy, the panel is organized into nine subpanels

representing diverse histologies: leukemia, melanoma, lung,

colon, kidney, ovary, breast, prostate, and central nervous

system. The results of the reference drugs carboplatin

(NSC241240), cisplatin (NSC119875), and paclitaxel

(NSC125793) are publicly available at http://dtp.nci.nih.gov.

Sensitivity of NCI-60 cells to paclitaxel is summarized in

Supporting Information, Figure 1SI. The screening was a two-

stage process, beginning with the evaluation of all compounds

against the 60 cell lines at a single dose of 10 μM. There were

31 compounds that exhibited signiﬁcant growth inhibition and

they were evaluated against the NCI-60 at ﬁve concentration

levels to a ﬁnal concentration of 0.1 nM (for more active

compounds, see Supporting Information, Figures 2SI−5SI).

The results were then analyzed according to the principles of

the COMPARE analysis.¹⁷Activity of each compound

measured as GI₅₀is ranked with a Z-score within the cell

lines of the NCI-60 panel. Each Z-score is calculated with the

formula z = (x − μ/σ), where x is the GI₅₀in a given cell line

for a drug, μ is the average of the GI₅₀of the same drug within

the NCI-60 panel, and σ is the standard deviation. To perform

the COMPARE analysis, all these values were correlated with a

Spearman test with the Z-scores of another reference drug,

resulting in a ρ coeﬃcient. A positive ρ value indicates an

overlapping mechanism of action with signiﬁcant cross-

resistance/sensitivity as compared with the reference drug.

On the contrary, a negative ρ value signiﬁes an increased

activity in the cells which are resistant to the reference drug.

As a ﬁrst analysis, we analyzed the 31 active 4-APTs using as

references cisplatin (NSC119875) (Figure 1A), carboplatin

(NSC241240) (Figure 1B), and paclitaxel (NSC125973)

(Figure 1C). As expected, there was a strong correlation (ρ >

0.8) in the NCI-60 panel for carboplatin and cisplatin (Figure

1A,B) because the two drugs have a similar mechanism of

action.

RESULTS AND DISCUSSION

■

Chemistry. The OH-functionalized derivatives of 4-aza-2,3-

didehydropodophyllotoxin at the N atom in ring “‘C’”, i.e., the

N-(2-hydroxy-ethyl)-2,3-didehydroazapodophyllotoxins, were

synthesized in one step by simple reﬂuxing in ethanol as

reported previously (Scheme 1).¹⁶

Hydroxy-functionalized 2,3-didehydroazapodophyllotoxin

derivatives were prepared, in two simple steps, by reacting

commercially available substituted anilines with 2-chloroethyl-

chloroformate in dry dichloromethane in the presence of

pyridine followed by reacting with KOH in ethanol. These

arylamino alcohols are not stable for long periods of time at

room temperature and, therefore, they were synthesized freshly

before use. The overall yields of products through our protocol

were in the 50−70% range. Structures were corroborated with

the help of ¹H, COSY, ¹³C, NMR, as well as ¹H NMR coupled

with deuterium exchange experiments, FTIR spectroscopy, and

HRMS.¹⁴

On the contrary, the 31 active 4-APT compounds exhibited a

signiﬁcant negative correlation as compared with paclitaxel

(Figure 1C) but not with either cisplatin or carboplatin (Figure

1A,B). This ﬁnding suggests that 4-APTs are more active in

paclitaxel-resistant cells.

To better characterize these compounds we also ran a

COMPARE analysis for the 21 most active 4-APTs using the

mechanistic set of NCI-reference compounds¹⁸(Supporting

Information, Figure 6SI). All the compounds capable of

Cell Based Assays. A panel of 44 4-azapodophyllotoxins

(4-APTs) whose structure is reported in Table 1 was screened
