449
quantum yield (Φf) of TP (10%) is larger than that of PP. These
results imply that the introduction of the electron-donating ³-
extended chromophores into the dithienophosphole core im-
proves the light-harvesting and fluorescence properties in the
visible region considerably. In addition, the absorption and
fluorescence maxima of TP are significantly red-shifted relative
to those of 1 (-abs = 345 nm, -em = 422 nm) and terthiophene
(-abs = 352 nm, -em = 428 nm), supporting effective ³-exten-
sion in TP (Figure S2).15 The first one-electron oxidation
potentials (EOX) of TP (1.25 V vs. NHE) and PP (1.52 V
vs. NHE) were determined by differential pulse voltammetry
8
6
4
2
0
(Table S1).15 From the EOX and the excitation energy (E0-0
)
−2
values, the excited-state oxidation potentials (EOX*) of TP
and PP were estimated to be ¹1.48 and ¹1.62 V vs. NHE
(Table S1).15 Taking into account the energy levels of the CB of
0
0.1
0.2
0.3
0.4
0.5
Voltage/ V
¹
¹
TiO2 (¹0.5 V vs. NHE)9 and I /I3 couple (0.5 V vs. NHE),9
electron injection from the dye excited singlet state to the CB of
TiO2 and charge shift from I to the resulting dye radical cation
Figure 3. Current-voltage characteristics of the TiO2/TP
(solid line) and TiO2/PP (dashed line) electrodes under an
irradiation of 100 mW cm AM 1.5G sunlight and TiO2/TP
¹
¹2
(1.25 V vs. NHE) are thermodynamically feasible both in the TP
and PP cells. DFT calculations were employed to gain insight
into the equilibrium geometry and electronic structures for the
HOMO and LUMO of TP and the SOMO of TP radical cation
(Figure S3).15 The optimized geometry has no negative fre-
quencies, implying that optimized geometries are in the global
energy minima. The LUMO is localized mainly over the
dithienophosphole including the anchoring group, whereas the
HOMO of TP and the SOMO of TP radical cation are
delocalized except for the anchoring group. For TP, 70% of the
electron density in the HOMO is located on the two terthiophene
units, and 10% of the electron density in the LUMO is
distributed on the phosphinic acid group. For PP, 37% of the

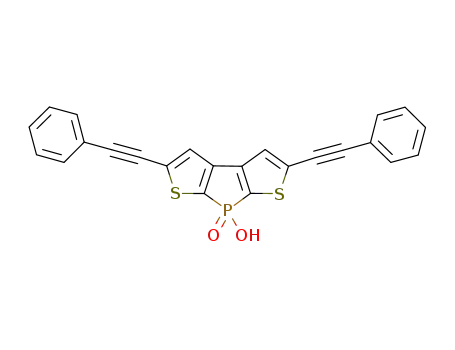

HOMO is localized on the two phenylacetylene units, and 14%
of the LUMO lies on the phosphinic acid group. These results
indicate that the HOMO-LUMO excitation of TP shifts the
electron distribution from the chromophores to phosphinic acid
group more obviously than PP, thus allowing an efficient
photoinduced electron transfer from TP to the TiO2 electrode
and slow charge recombination from the electron in the CB to
the dye radical cation due to the remoteness.10
TP and PP were sensitized onto mesoporous P-25 based
TiO2 electrodes with chenodeoxycholic acid (CDCA) (denoted
as TiO2/TP and TiO2/PP, respectively). Little shift and broad-
ening of the absorption peak of TP on the TiO2 are noted in
comparison with that in THF (Figure S4),15 showing little
aggregation of TP on the TiO2 electrode. On the other hand, 3
did not bind to a bare TiO2 electrode (Figure S5). Therefore, 1-
hydroxy-1-oxodithienophosphole acts as an anchoring group to
the TiO2 surface through its phosphinic acid unit. To get
information on the binding mode of the molecules adsorbed on
the TiO2 electrode, attenuated total reflectance-Fourier transform
infrared (ATR-FTIR) spectra were measured for powders of TP
and PP as well as TiO2/TP and TiO2/PP (Figure S6).15 ATR-
FTIR spectra of TP and PP reveal the characteristic bands of
¯(P=O) and ¯(P-OH) of the phosphinic acid group at around
1200 and 960 cm¹1, respectively.11 However, these bands
disappear and a peak corresponding to ¯(O-P-O) at around
1040-1060 cm¹1 emerges for the spectra of TiO2/TP and TiO2/
PP.11 These results demonstrate that the two equivalent P-O
bonds are formed through a bidentate coordination of the
phosphinate to the TiO2 surface.11 To further shed light on
(solid line with circles) and TiO2/PP (dashed line with triangles)
electrodes in the dark. Electrolyte: 0.5 M LiI and 0.01 M I2 in
CH3CN.
adsorption state of the dyes on the TiO2 surface, X-ray
photoelectron spectroscopy (XPS) measurements were per-
formed for TiO2/TP and TiO2/PP together with TP and PP
(Figure S7).15 The O1s XPS spectra of TP and PP were curve-
fitted into two chemically different O1s subpeaks (Figures S7a
and S7b and Table S2).15 The peaks arising at around 531 and
533 eV can be assigned to the oxygen atoms of P=O and of
P-OH in the phosphinic acid, respectively.11c,12 The spectra of
TiO2/TP and TiO2/PP also exhibit two different peaks,
respectively (Figures S7c and S7d and Table S2).15 The peaks
at 530.2 eV stem from the oxygen atoms in TiO2.9,12 The peaks
at 531.2-531.6 eV can be attributed to the oxygen atoms of
P-O-Ti bonds.12 It is noteworthy that the peaks derived from the
O atoms of P-OH at around 533 eV disappear in the spectra of
TiO2/TP and TiO2/PP. Consequently, we can conclude that the
two oxygens in the phosphinate bind to the TiO2 surface with the
same binding energy through a bidentate coordination, which is
in good agreement with the results of the ATR-FTIR measure-
ments (vide supra). Given the surface area of P-25 (54 m2 g¹1),9
the packing densities (Γ) of TP and PP on the actual TiO2
¹10
¹10
surface area are determined to be 1.9 © 10
and 2.0 © 10
mol cm¹2. Assuming that TP and PP molecules are densely
packed onto the TiO2 surface yielding a full monolayer without
CDCA, the calculated Γ values are 2.4 © 10¹10 and 3.2 © 10
¹10
mol cm¹2. The experimental Γ values are considerably lower
than the calculated Γ values, implying that the dye molecules
are isolated from each other by the intercalation of CDCA
molecules, thereby reducing dye aggregation.
Current-voltage characteristics of the TiO2/TP and TiO2/
PP electrodes were evaluated under standard AM 1.5 conditions
(100 mW cm¹2) (Figure 3). An © = 1.8% value of the TP cell
was obtained with a JSC of 7.4 mA cm¹2, a VOC of 0.46 V, and a
ff of 0.54, whereas an © = 0.56% value of the PP cell was
obtained with a JSC of 2.3 mA cm¹2, a VOC of 0.44 V, and a ff of
0.54. The large © value of the TP cell relative to the PP cell is
consistent with the difference in the light-harvesting properties
of TP and PP (vide infra).
Chem. Lett. 2010, 39, 448-450
© 2010 The Chemical Society of Japan
