J. Chem. Sci. Vol. 123, No. 6, November 2011, pp. 937–942. ꢀ Indian Academy of Sciences.
Di(1H-benzo[d][1,2,3]triazol-1-yl)methane: An efficient ligand for copper
and amine-free palladium-catalysed Sonogashira coupling reaction
JASPAL SINGH and AKHILESH KUMAR VERMA∗
Synthetic Organic Chemistry Research Laboratory, Department of Chemistry, University of Delhi,
Delhi 110007, India
e-mail: averma@acbr.du.ac.in
Abstract. An efficient Pd-catalysed Sonogashira coupling reaction was achieved in the absence of copper
and amine with inorganic base using phosphene-free, air stable di(1H-benzo[d][1,2,3]triazol-1-yl)methane as
ligand. The cross coupling of electron-rich, electron-defficient and hindered aryl halides with terminal alkynes
afforded the internal alkynes in good to excellent yields.
Keywords. Palladium; terminal alkynes; benzotriazole; amine-free; copper-free.
1. Introduction
homocoupling reaction of acetylenes.10 To overcome
these drawbacks, many phosphine and copper-free
palladium-catalysed Sonogashira coupling protocols
have been developed.11 Recently a copper-free Sono-
gashira cross-coupling reaction was reported using
combination of phosphine and amine along with large
amount of tetra-n-butyl ammonium salt as an activa-
tor.12a,c Recently, Mino et al. described hydrazone li-
gands for such cross-coupling.12b Development of an
efficient, inexpensive, copper-, phosphine- and amine-
free catalytic system is considerable. In continua-
tion of our efforts on the designing of benzotriazole
based ligands for the coupling reactions, and syn-
thetic elaboration of heterocycles by using palladium-
catalysed coupling reactions,13a−h here we are report-
ing Di(1H-benzo[d][1,2,3]triazol-1-yl)methane (L4)
as new air-stable and phosphine-free ligand for
palladium-catalysed Sonogashira cross-coupling reac-
tion without using copper and amine (scheme 1).
Transition metal-catalysed reactions play an important
role in the synthesis of various organic substrates, natu-
ral products and pharmaceutically viable molecules.1
Among all the metals, palladium has emerged as a power-
ful tool2 for the cross coupling reaction like Heck,
Negishi, Suzuki and Sonogashira coupling reactions.3
The conjugated π systems resulting from alkynylation
reactions are building blocks often encountered within
natural products, pharmaceutical molecules, synthetic
agrochemicals, and molecular materials.4,5 During last
decade Sonogashira reaction has become one of the most
widely used method for the synthesis of aryl or vinyl ace-
tylenes from aryl or vinyl halides and terminal alkynes.
Many applications of Sonogashira coupling of aryl
halides with terminal alkynes have been reported in
the literature since 1975.5,6 A large number of efforts
have been directed to explore new catalytic systems.
The most common catalytic system for this reac-
tion is the combination of palladium and phosphines
such as PdCl2(PPh3)2, PdCl2/PPh3, and Pd(PPh3)4
with CuI as the co-catalyst and amines as the sol-
vents under degassed condition.7 Successful exam-
ples include replacement of triphenylphosphine with
some special phosphines to enhance the catalytic effi-
ciency.8 However, many phosphine ligands are air-
sensitive and expensive, resulting in significant limits
on their synthetic applications.9 Furthermore, the pres-
ence of CuI can result in the formation of some Cu(I)
acetylides in situ that can readily undergo oxidative
2. Experimental
2.1 General procedure for Sonogashira
cross-coupling reaction of terminal alkynes
with aryl halides
A flask was charged with Pd(OAc)2 (3 mol%), L4
(6 mol%) and 1.0 mmol of aryl halide in 1.5 mL of
DMSO. After stirring at room temperature for 15 min,
terminal alkyne (1.5 equiv.) and K2CO3 (2.5 equiv.)
were added to the flask, and the reaction mixture
was stirred at 80◦C for 10–12 h. After completion of
∗For correspondence
937

938
Jaspal Singh and Akhilesh Kumar Verma
Scheme 1. Sonogashira coupling reaction using di(1H-benzo[d][1,2,3]triazol-1-yl)methane (L4).
reaction as indicated by thin-layer chromatography (TLC), 3. Results and discussion
water (10 mL) was added to the reaction mixture. It
was then extracted with ethyl acetate (2 × 10 mL). Firstly, with the above precedents in mind, in order to
The combined organic layer was dried over anhydrous optimize the reaction conditions we undertook an inten-
Na2SO4 and was concentrated under reduced pressure. sive screening of variety of ligands and reaction vari-
The crude was then purified by column chromatog- ables. We first chose electron-rich p-bromoanisole (2a)
raphy on silica gel (100–200 mesh) using petroleum and penylacetylene (1a) as model reaction to screen
ether/ethyl acetate (98:2) as eluent to afford the desired the catalyst systems to optimize the reaction condi-
pure products.
tions. Initially, a series of ligands, benzotriazole and its
Table 1. Optization of Sonogashira reaction conditions.a
Entry
Solvent
Temp
(◦C)
Ligand
(L)
Base
Yield
(%)b
1
2
3
4
5
6
7
8
DMF
DMF
DMF
DMF
DMF
DMF
DMF
DMF
DMF
80
80
80
80
60
80
80
80
80
80
80
80
80
80
80
80
L1
L2
L3
L4
L4
L4
L4
L4
L4
L4
L4
L4
L4
L4
L4
L4
K2CO3
K2CO3
K2CO3
K2CO3
K2CO3
Na2CO3
pyridine
Et3N
38
45
20
85
62
45
trace
65
9
Cs2CO3
KOH
78
10
11
12
13
14
15
16
DMF
DMF
trace
trace
68
38
60
75
90
KOtBu
K2CO3
K2CO3
K2CO3
K2CO3
K2CO3
CH3CN
Dioxane
DME
DMA
DMSO
aReaction conditions: 1.0 mmol of 1-bromo-4-methoxy-
benzene 2a, 1.5 mmol of phenylacetylene 1a, 2.5 equiv. of
base, 3 mol% of Pd(OAc)2, 6 mol% of ligand and 1.5 mL of
solvents. bIsolated yield

Metal-catalyzed C–C coupling reaction
939
derivatives (L1–L4) were examined (table 1, entries 1–4). lene. The addition of benzotriazole (L1) enhanced the
It was found that without ligand less than 10% of the yield of the coupling product 3a up to 38% (table 1,
desired cross-coupling product 3a was obtained, along entry 1). In order to achieve the best results in cross-
with 40% homo-coupling product of the phenylacety- coupling reaction, three derivatives of benzotriazole,
Table 2. Pd/L4 catalysed cross-coupling reaction of alkynes with aryl halides.a
Entry
Aryl halide
Product
Yield (%)b
1
2
3
4
5
2a
2b
2c
2d
2e
3a
90c
88
3a
3b
3b
3c
86c
82
84
6
7
8
9
2f
2g
2h
2i
3d
3e
3f
81c
87
92
80
3g
10
2j
3h
80
11
12
13
14
2k
2l
3i
3j
3k
3l
86
84
82
81
2a
2c
15
16
2l
3m
3b
81
2m
45d
aReaction conditions: 1.0 mmol of aryl halides, 1.5 mmol of terminal alkyne, 2.5 equiv. of
K2CO3, 3 mol% of Pd(OAc)2, 6 mol% of Ligand L4, and 1.5 mL of DMF at 80◦C, 10–12 h.
c
d
bIsolated yield. Reaction was carried out at 80◦C for 2–4 h. Reaction was carried out at
110◦C for 15 h.
1a
1b
1c
1d

940
Jaspal Singh and Akhilesh Kumar Verma
having more electron density and probable binding site, product was obtained (table 1, entries 10 and 11). It
1-H-benzotriazolylmethanol L2, 1-((1H-imidazol-1- can be observed from the table 1 that amongst the
yl)methyl)-1H-benzo[d][1,2,3]triazole L3, and di(1H- bases tested (table 1, entries 4, 6–11), K2CO3 was found
benzo[d][1,2,3]triazol-1-yl)methane L4, were tested as most suitable and amongst various solvents DMSO was
ligands and were found more effective than ligand L1 proved to be the best solvent (table 1, entries 4, 12–16).
in the cross-coupling reaction (table 1, entries 2, 3, and
Subsequently, selected terminal alkynes 1a–d, were
4). It was observed that in a series of reactions with reacted with various aryl iodides and bromides 2a–l
3 mol% of Pd(OAc)2 and 6 mol% of ligand L2, L3 under the optimized reaction conditions (table 2). All
and L4 in DMF at 80◦C using 2.5 equiv K2CO3, coup- the aryl halides with electron-releasing and electron-
ling product 3a was obtained in 45, 20 and 85% yields withdrawing groups were successfully coupled with ter-
respectively (table 1, entries 2, 3 and 4). Product 3a minal alkynes and afforded the corresponding cross-
was obtained in 62% yield at 60◦C (table 1, entry 5). coupling products in 80–92% yields. It is noteworthy
It is evident from the table 1 that ligand L4 was found that a variety of functional groups (nitro, keto, bromo,
more effective than ligand L1, L2 and L3. A signifi- and aldehydic) substituted aryl halides tolerate the reac-
cant effect of bases was found in the reaction. When tion condition, and afforded the coupling products in
Na2CO3 was used as a base 3a was obtained only in good yields in short reaction time using low catalyst
45% yield (table 1, entry 6). Pyridine was found in- loading (3 mol%).
effective; however Et3N afforded the coupling product
It is interesting to note that the reaction of aryl
in 65% yield under these reaction conditions (table 1, iodides with 2a, were very rapid at high temperature
entries 7 and 8). Cs2CO3 afforded the coupling prod- (80◦C) and gave excellent yields of the desired prod-
uct in 78% yield (table 1, entry 9). With strong bases ucts in 2–4 h (table 2, entries 1, 3, and 6), while
such as KOH and KOtBu, trace amount of the coupling the substituted alkynes 1b–d, having electron releasing
Table 3. Pd/L4 catalysed selective cross-coupling reaction of alkynes with o-iodo-
bromobenzene.a
Entry
1
Alkynes
Product
Yield (%)b
79
1e
1a
5a
5b
2
3
82
80
1b
1f
5c
5d
5e
4
5
60
65
1g
aReaction conditions: 1.0 mmol of 1-bromo-2-iodobenzene, 1.5 mmol of terminal alkyne,
2.5 equiv. of K2CO3, 4 mol% of Pd(OAc)2, 8 mol% of Ligand L4, and 1.5 mL of DMSO at
80◦C for 8 h. bIsolated yield.

Metal-catalyzed C–C coupling reaction
941
Scheme 2. Sonogashira coupling reaction of 1-(2-iodophenyl)-1H-indole 6a–b.
substituent, afforded the desired coupling products in Supporting information
longer duration (table 2, entries 12–16). The efficacy of
Characterization data and copies of 1H and 13C NMR spec-
tra of all the synthesized compounds are given as electro-
nic supporting information (see www.ias.ac.in/chemsci).
the catalyst system was also tested on aryl chloride 2m,
and it was found that the reaction of aryl chloride with
1a gave the desired product 3a in 45% yield at 110◦C
after 15 h.
Acknowledgements
Furthermore, the optimized combination of
Pd(OAc)2 and L4 was further tested with 1-bromo-2-
iodobenzene 4 and terminal alkynes 1a–b, 1e–g. It is
evident from the table 3 that the reaction outcome was
not much affected by the steric hindrance derived from
the ortho-substituents (table 3, entries 4 and 5).
Having the results on coupling of aryl halides and
1-bromo-2-iodobenzene benzenes in our hand, we fur-
ther investigated the coupling of more difficult and

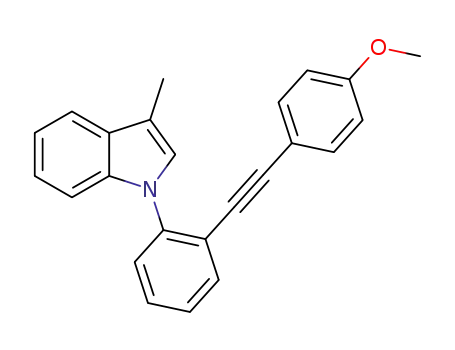

large molecules 1-(2-iodophenyl)-1H-indoles 6a–b as
shown in scheme 2. Fortunately, the results indicated
that the present catalyst system also displayed the high
catalytic activity to catalyse the cross-coupling of ter-
minal alkynes 1a–c with 1-(2-iodophenyl)-1H-indole
6a–b using 5 mol% of Pd(OAc)2, 10 mol% of L4 and
afforded the coupling products 7a–e in 76–80% yields
at 110◦C.
We gratefully acknowledge the Department of Science
and Technology (DST), Council of Scientific and Indus-
trial Research (CSIR), New Delhi, and University of
Delhi, Delhi for the financial support. JS is thankful to
CSIR, for the SRF.
References
1. Reviews on transition metal catalysed reactions, see: (a)
Magano J and Dunetz J R 2011 Chem. Rev. 111 2177 and
references cited therein; (b) Chen X, Engle K M, Wang
D and Yu J Q 2009 Angew. Chem. Int. Ed. 48 5094; (c)
Ackermann L, Vicente R and Kapdi A R 2009 Angew.
Chem. Int. Ed. 48 9792; (d) Nakamura I and Yamamoto
Y 2004 Chem. Rev. 104 2127; (e) Gladysz J A 2011
Chem. Rev. 111 1167
2. (a) Martin R and Buchwald S L 2008 Acc. Chem. Res.
41 1461; (b) Fu G C 2008 Acc. Chem. Res. 41 1555;
(c) Chinchilla R and Njera C 2007 Chem. Rev. 107 874;
(d) Molnar A 2011 Chem. Rev. 111 2251; (e) Islam S
M, Mondal P, Tuhinab K and Roya A S 2010 J. Chem.
Technol. Biotechnol. 85 999 and references cited therein
3. (a) Suzuki A 2011 Angew. Chem. Int. Ed. 50 6722; (b)
Negishi E I 2011 Angew. Chem. Int. Ed. 50 6738; (c)
Wu X F, Anbarasan P, Neumann H and Beller M 2010
Angew. Chem. Int. Ed. 49 9047; (d) Niphakis M J and
Georg G I 2011 Org. Lett. 13 196; (e) Ioannidou H A,
Kizas C and Koutentis P A 2011 Org. Lett. 13 3466; (f)
Proutiere F and Schoenebeck F 2011 Angew. Chem. Int.
Ed. 50 8192
4. Conclusion
In summary, we have developed a general method
for rapid Sonogashira cross-coupling reaction of
aryl halides with terminal alkynes using Pd(OAc)2
and di(1H-benzo[d][1,2,3]triazol-1-yl)methane (L4) as
new air stable and inexpensive ligand. The advantage of
this protocol includes omission of copper, easy hand-
ling of catalyst and high catalytic activity for electron-
poor as well as electron-rich aryl halides under mild and
convenient conditions. Further investigations to expand
the scope of the designed ligands are ongoing and will
be reported in due course.
4. (a) Paterson I, Davies R D M and Marquez R 2001
Angew. Chem. Int. Ed. 40 603; (b) Yoshimura F, Kawata
S and Hirama M 1999 Tetrahedron Lett. 40 8281; (c)
Graham A E, McKerrecher D, Davies D H and Taylor
R J K 1996 Tetrahedron Lett. 37 7445; (d) Nicolaou K
C and Dai W M 1991 Angew. Chem. Int. Ed. Engl. 30

942
Jaspal Singh and Akhilesh Kumar Verma
1387; (e) Maier M E 1995 Synlett. Issue 1 13; (f) Gris-
A, Botella L, Najera C and Pacheco M C 2004 Syn-
thesis 10 1713; (j) Wolf C and Lerebours R 2004 Org.
Biomol. Chem. 22 161; (l) Fukuyama T, Shinmen M,
Nishitani S, Sato M and Ryu I 2002 Org. Lett. 4 1691;
(m) Böhm V P and Hermann W A 2000 Eur. J. Org.
Chem. Issue 22 3679; (n) Méry D, Heuzé K and Astruc
D 2003 Chem. Commun. Issue 15 1934; (o) Nájera C,
Gil-Moltó J, Karlström S and Falvello L R 2003 Org.
Lett. 5 1451; (p) Alonso D A, Nájera C and Pacheco M
C 2003 Adv. Synth. Catal. 345 1146; (q) Ngassa F N,
Gomez J M, Haines B E, Ostach M J, Hector J W,
Hoogenboom L J and Page C E 2010 Tetrahedron 66
7919; (r) Chen H J, Lin Z Y, Li M Y, Lian R J, Xue Q W,
Chung J L, Chen S C and Chen Y J 2010 Tetrahedron 66
7755; (s) Fleckenstein C A and Plenio H 2008 Green.
Chem. 10 563; (t) Islam S M, Mondal P, Roy A S,
Mondal S and Hossain D 2010 Tetrahedron Lett. 51 2067;
(u) Kuang Y Y and Chen F E 2009 Helv. Chim. Acta
92 897
som J W, Gunawardena G U, Kingberg D and Huang D
1996 Tetrahedron 52 6453; (g) Bunz U H F 2000 Chem.
Rev. 100 1605; (h) Tour J M 2000 Acc. Chem. Res. 33
791; (i) Brunsveld L, Meijer E W, Prince R B and Moore
J S 2001 J. Am. Chem. Soc. 123 7978
5. For reviews, see the following: (a) Sonogashira, K.
In Metal-catalyzed cross-coupling reactions 1998; F
Diederich and P J Stang (eds); New York: Wiley-VCH;
Chapter 5; pp 203; (b) Doucet H and Hierso J C 2007
Angew.Chem. Int. Ed. 46 834; (c) Chinchilla R and
Najera C 2007 Chem. Rev. 107 874; (d) Negishi E I and
Anastasia L 2003 Chem. Rev. 103 1979
6. (a) Sonogashira K, Tohda Y and Hagihara N 1975 Tetra-
hedron Lett. 16 4467; (b) Cassar L 1975 J. Organomet.
Chem. 93 253; (c) Dieck H A and Heck F R 1975
J. Organomet. Chem. 93 259
7. For selected papers on the palladium/phosphine/CuI/
amine system for the Sonogashira cross-coupling reac-
tions, see: (a) Thorand S and Krause N 1998 J.
Org. Chem. 63 8551; (b) Hundertmark T, Litter A F,
9. Pignolet L H (ed) 1983 Homogeneous catalysis with
metal phosphine complexes, New York; Plenum
Buchwald S L and Fu G C 2000 Org. Lett. 2 1729; (c) 10. (a) Siemsen P, Livingston R C and Diederich F 2000
Hierso J C, Fihri A, Amardeil R and Meunier P 2004
Org. Lett. 6 3473; (d) Novák Z, Szabó A, Répási J and
Angew. Chem. Int. Ed. 39 2632; (b) Li J H, Liang Y and
Zhang X D 2005 Tetrahedron 61 1903
Kotschy A 2003 J. Org. Chem. 68 3327; (e) Son S U, 11. (a) Li J H, Zhang X D and Xie Y X 2005 Eur. J. Org.
Jang Y, Park J, Na H B, Park H M, Yun H J, Lee J and
Hyeon T 2004 J. Am. Chem. Soc. 126 5026; (f) Adjabeng
G, Brenstrum T, Frampton C S, Robertson A J, Hillhous
Chem. Issue 20 4256; (b) Liang Y, Xie Y X and Li J H
2006 J. Org. Chem. 71 379; (c) Yi C and Hua R 2006
J. Org. Chem. 71 2535
J, McNulty J and Capretta A 2004 J. Org. Chem. 69 12. (a) Liang B, Dai M, Chen J and Yang Z 2005 J.
5082; (g) Elangovan A, Wang Y H and Ho T I 2003 Org.
Lett. 5 1841; (h) Remmele H, Köllhofer A and Plenio H
2003 Organometallics 22 4098; (i) Batey R A, Shen M
and Lough A 2002 Org. Lett. 4 1411; (j) Lee D H, Jung
Org. Chem. 70 391; (b) Mino T, Shirae Y, Saito T,
Sakamoto M and Fujita T 2006 J. Org. Chem. 71 9499;
(c) Komaromi A and Novak Z 2008 Chem. Commun.
Issue 40 4968 and references therein
J Y and Jin M J 2010 Green. Chem. 12 2024; (k) Roy S 13. (a) Verma A K, Singh J, Sankar V K, Chaudhary R and
and Plenio H 2010 Adv. Synth. Catal. 352 1014
Chandra R 2007 Tetrahedron Lett. 48 4207; (b) Verma A
K, Singh J and Chaudhary R 2007 Tetrahedron Lett. 48
7199; (c) Verma A K, Kesharwani T, Singh J, Tandon V
and Larock R C 2009 Angew. Chem., Int. Ed. 39 2632;
(d) Verma A K, Singh J and Larock R C 2009 Tetrahe-
dron 65 8434; (e) Jha R R, Chaudhary R, Chandra R and
Verma A K 2011 J. Indian Chem. Soc. 88 1; (f) Verma
A K, Rustagi V, Aggarwal T and Singh A P 2010 J. Org.
Chem. 75 7691; (g) Verma A K, Joshi M and Singh V
P 2011 Org. Lett. 13 1630; (h) Verma A K, Shukla S P,
Singh J and Rustagi V 2011 J. Org. Chem. 76 5670
8. For selected papers on Pd/Ligand and copper free condi-
tions (a) Choudary B M, Madhi S, Chowsari N S,
Kantam M L and Sreedhar B 2002 J. Am. Chem. Soc.
124 14127; (b) Herrmann W A 2002 Angew. Chem.,
Int. Ed. 41 1290; (d) Nájera C, Gil-Moltó J, Karl-
ström S and Falvello L R 2003 Org. Lett. 5 1451; (e)
Soheili A, Albaneze-Walker J, Murry J A, Dormer P
G and Hughes D L 2003 Org. Lett. 5 4191; (f) Rau
S, Lamm K, Goerls H, Schoeffel J and Walther D
2004 J. Organomet. Chem. 689 3582; (h) Alonso D
