Zorbax StableBond C-18 column (4.6 mm ꢁ 50 mm, 3.5 μm) with a flow
rate of 0.5 or 1.0 mL/min. Solvent A was 0.05% trifluoroacetic acid (TFA)
in water (H2O). Solvent B was 0.05% TFA in acetonitrile (ACN), and a
linear gradient of 5% B to 95% B over 10 min was used. ESI or APCI mass
spectrometry (MS) was performed on an LC/MSD TrapXCl Agilent
Technologies instrument or on a 6130 quadrupole LC/MS Agilent
Technologies instrument equipped with a diode array detector. In each
case, purity of compounds was confirmed to be g95% by the analytical
HPLC trace displaying only a single peak during analysis. Microwave
irradiation was carriedout ina CEM Discover synthesizer with 150 W max
power. 1H and 13C NMR spectra were recorded on a Varian spectrometer
operating at 400 and 100 MHz, respectively. Chemical shifts are reported
relative to chloroform (δ 7.26), dichloromethane (δ 5.32), or deuterium
oxide (δ 4.79) for 1H NMR and chloroform (δ 77.0) or dichloromethane
(δ 54.0) for 13C NMR.
yield) as a syrup. 1H NMR (400 MHz, CDCl3): δ 7.03 (t, J = 10.4 Hz,
1H), 6.93 (bs, 1H), 4.57ꢀ4.51 (m, 2H), 3.75 (s, 3H), 3.73 (s, 3H),
3.67ꢀ3.55 (m, 2H), 2.24ꢀ2.14 (m, 2H), 1.52ꢀ1.42 (m, 6H),
1.00ꢀ0.92 (m, 12H). 13C NMR (100 MHz, CDCl3): δ 172.9, 172.6,
172.4, 172.2, 171.8(x2), 171.5, 57.6, 52.2, 49.2, 48.8, 31.1, 30.9, 19.0
(ꢁ2), 17.9 (ꢁ2), 17.8, 17.2. MS m/z = 437.2 [M + H]+.
Bisamide Disulfide 4b. The following reagents and conditions
were used: 2,20-dithiobispropionic acid (350 mg, 1.66 mmol), serine
derivative 4a (531 mg, 3.41 mmol), CDMT (599 mg, 3.41 mmol) in
EtOAc (15 mL); NMM (842 mg, 8.32 mmol) in EtOAc (10 mL); TLC
(EtOAc), 1 h. Workup B and flash column chromatography using silica
gel and EtOAc afforded 4b (501 mg, 73% yield) as a waxy solid. 1H NMR
(400 MHz, CDCl3): δ 7.43ꢀ7.34 (m, 2H), 4.74ꢀ4.63 (m, 2H),
3.87ꢀ3.81 (m, 4H), 3.80 (s, 3H), 3.78 (s, 3H), 3.72ꢀ3.67 (m, 2H),
1.46ꢀ1.41 (m, 6H). 13C NMR (100 MHz, CDCl3): δ 173.4, 172.3,
171.8, 170.9(x2), 63.3, 62.5, 62.4, 56.1, 55.1 (ꢁ2), 52.8, 17.4, 16.7, 16.4.
MS m/z = 437.3 [M + Na]+.
2,20-Dithiobispropionic Acid. Iodine (5.72 g, 22.5 mmol) was
added in portions to a solution of racemic thiolactic acid (2.39 g, 22.5
mmol) in water (H2O) (12 mL). The resulting reaction mixture was
heated to 100 °C under microwave irradiation for 30 min, after which
TLC [1:1 hexane (Hex)/ethyl acetate (EtOAc)] showed reaction
completion. The reaction was quenched by addition of a saturated
aqueous solution of sodium thiosulfate (Na2S2O3) and the mixture
extracted with EtOAc twice. The combined organic layers were washed
twice with Na2S2O3 and once with brine, dried over magnesium sulfate
(MgSO4), and concentrated. The crude mixture was purified by
recrystallization from toluene, affording 2 (1.61 g, 70% yield) as white
crystals. 1H NMR (400 MHz, CDCl3): δ 9.66 (bs, 2H), 3.57 (m, 2H),
1.50 (d, J = 7.2 Hz, 6H). 13C NMR (100 MHz, CDCl3): δ 178.8, 47.5,
46.8, 16.6. MS (m/z) = 210.1 (M + 1)+.
Bisamide Disulfide 5b. The following reagents and conditions
were used: 2,20-dithiobispropionic acid (400 mg, 1.90 mmol), phenyla-
lanine derivative 5a (841 mg, 3.90 mmol), CDMT (685 mg, 3.90 mmol)
in EtOAc (15 mL); NMM (962 mg, 9.51 mmol) in EtOAc (10 mL);
TLC (EtOAc), 1 h. Workup A and flash column chromatography using
silica gel and 35% EtOAc in hexanes afforded 5b (945 mg, 94% yield) as
a syrup. 1H NMR (400 MHz, CDCl3): δ 7.31ꢀ7.12 (m, 10H), 6.98 (bs,
1H), 6.64 (bs, 1H), 4.93ꢀ4.82 (m, 2H), 3.74ꢀ3.70 (m, 6H), 3.56ꢀ3.43
(m, 2H), 3.19ꢀ2.99 (m, 4H), 1.41ꢀ1.37 (m, 3H), 1.33ꢀ1.23 (m, 3H).
13C NMR (100 MHz, CDCl3): δ 171.9, 171.6, 171.4, 129.3, 129.2, 128.5
(ꢁ2), 127.1, 53.6, 53.4, 52.4, 50.1, 49.4, 48.8, 47.7, 37.9, 37.7 (ꢁ2), 37.6,
17.3, 16.7 (ꢁ2). MS m/z = 533.1 [M + H]+.
General Procedure for the Coupling of Bisacid Disulfide 2 with
Amino Acid Methyl Ester Hydrochlorides 2aꢀ6a. Synthesis of Com-
pounds 2bꢀ6b. A mixture of the bisacid disulfide 2,20-dithiobispro-
pionic acid (1 equiv), the amino acid methyl ester hydrochloride 2aꢀ6a
(2.05 equiv), and 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT) (2.05
equiv) in EtOAc was cooled to 0 °C. To this cooled mixture was added
slowly a solution of N-methylmorpholine (NMM) (5 equiv) in EtOAc.
The resulting reaction mixture was allowed to stir at 0 °C for 5 min and at
room temperature for 1ꢀ2 h while being monitored by TLC.
Workup A. Reaction mixture was diluted EtOAc and H2O. The phases
were separated, and the organic layer was washed twice with 1 M HCl,
once with brine, dried over MgSO4, and concentrated. Crude product
was purified by flash column chromatography to afford the bisamide
disulfide compound.

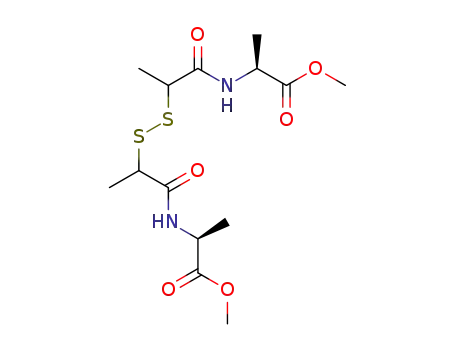

Bisamide Disulfide 6b. The following reagents and conditions
were used: 2,20-dithiobispropionic acid (300 mg, 1.43 mmol), glycine
derivative 6a (367 mg, 2.92 mmol), CDMT (513 mg, 2.92 mmol) in
EtOAc (10 mL); NMM (722 mg, 7.13 mmol) in EtOAc (10 mL); TLC
(3:1 EtOAc/Hex), 2 h. Workup B and flash column chromatography
using silica gel and 75% EtOAc in hexanes afforded 6b (385 mg, 77%
yield) as a syrup. 1H NMR (400 MHz, CDCl3): δ 7.16 (bs, 2H), 4.23
(dd, J = 18 Hz, 6.0 Hz, 1H), 4.10 (d, J = 5.6 Hz, 1H), 3.77 (s, 3H), 3.76 (s,
3H), 3.67 (q, J = 7.2 Hz, 1H), 3.61 (q, J = 7.2 Hz, 1H), 1.49 (d, J = 7.2 Hz,
3H), 1.45 (d, J = 7.2 Hz, 1H). 13C NMR (100 MHz, CDCl3): δ 172.4,
172.2, 171.0 (ꢁ2), 52.5, 49.6, 47.8, 41.4, 17.2, 16.7. MS m/z = 353.1
[M + H]+.
Synthesis of Analogues 2ꢀ5. A solution of the racemic bisamide
disulfide compounds 2bꢀ5b (1 equiv) in 20% H2O in tetrahydrofuran
(THF) (v/v) was thoroughly degassed by bubbling argon through the
solution for 5ꢀ10 min. Tributylphosphine (Bu3P) (3.5 equiv) was
added slowly and the resulting reaction mixture allowed to stir at room
temperature for 5 min and monitored by TLC. The reaction mixture was
diluted with ethanol (EtOH), 2 M sodium hydroxide (NaOH) added,
and stirring continued for 1 h.
Workup A. The reaction mixture was diluted with EtOH and
concentrated under reduced pressure. The residue was taken up in
H2O, extracted twice with EtOAc, and the organic layers were discarded.
The aqueous layer was acidified with 1 M HCl and extracted twice with
EtOAc. The combined organic layers were dried over MgSO4 and
concentrated to afford the 1 analogue.
Workup B. The reaction mixture was diluted with EtOH and
concentrated under reduced pressure. The residue was taken up in
H2O, extracted twice with EtOAc, and the organic layers were dis-
carded. The aqueous layer was acidified with 1 M HCl and concentrated
under reduced pressure. The solid residue was extracted with EtOH,
and the insoluble salts were filtered. The filtrate was concentrated to
afford the 1 analogue.
Workup B. Reaction mixture was filtered, and the insoluble salts were
rinsed with EtOAc. The filtrate was concentrated and the residue
purified by flash column chromatography to afford the bisamide
disulfide compound.
Bisamide Disulfide 2b. The following reagents and conditions
were used: 2,20-dithiobispropionic acid (400 mg, 1.90 mmol), alanine
derivative 2a (544 mg, 3.90 mmol), CDMT (685 mg, 3.90 mmol) in
EtOAc (15 mL); NMM (962 mg, 9.51 mmol) in EtOAc (10 mL); TLC
(1:1 Hex/EtOAc), 2 h. Workup A and flash column chromatography
using silica gel and 75% EtOAc in hexanes afforded 2b (714 mg, 95%
yield) as a syrup. 1H NMR (400 MHz, CDCl3): δ 7.16 (t, J = 9.6 Hz,
1H), 6.80 (bs, 1H), 4.65ꢀ4.58 (m, 2H), 3.76 (s, 6H), 3.63ꢀ3.52 (m,
2H), 1.54ꢀ1.41 (m, 12H). 13C NMR (100 MHz, CDCl3): δ 174.3,
173.5, 173.2, 171.6, 171.5, 52.2, 49.6, 48.7, 48.5, 48.2, 18.2, 18.1, 18.0,
17.9, 17.2, 16.7. MS m/z = 381.1 [M + H]+.
Bisamide Disulfide 3b. The following reagents and conditions
were used: 2,20-dithiobispropionic acid (400 mg, 1.90 mmol), valine
derivative 3a (654 mg, 3.90 mmol), CDMT (685 mg, 3.90 mmol) in
EtOAc (15 mL); NMM (962 mg, 9.51 mmol) in EtOAc (10 mL); TLC
(1:1 Hex/EtOAc), 2 h. Workup A and flash column chromatography
using silica gel and 40% EtOAc in hexanes afforded 3b (803 mg, 94%
Ala-tiopronin (2). The following reagents and conditions were
used: bisamide disulfide 2b (700 mg, 1.84 mmol), 20% H2O in THF
