1106
Helvetica Chimica Acta – Vol. 94 (2011)
133.7; 118.0; 68.8; 61.5; 41.9; 41.7; 25.6; 17.9; ꢀ 4.5; ꢀ 5.01. ESI-MS: 259 (5, [M þ H]þ), 281 (70, [M þ
Na]þ). HR-MS: 281.1561 (C13H26NaO3Siþ; calc. 281.1548).
(tert-Butyl)(dimethyl){[(1S)-1-phenylprop-2-en-1-yl]oxy}silane (6). To a stirred soln. of 8 [7b]
(0.25 g, 1.86 mmol) in CH2Cl2 (3.5 ml), 1H-imidazole (0.25 g, 3.67 mmol) was added at 08, and the
mixture was stirred for 5 min; then, TBS-Cl (0.30 g, 2.04 mmol) was added, and the mixture was stirred
for 0.5 h at r.t. The mixture was diluted with CH2Cl2 (4 ml), and the org. layer was washed with H2O
(5 ml), followed by brine (5 ml). The combined org. layers were dried (Na2SO4), evaporated in vacuo,
and purified by CC (SiO2; 1% AcOEt/hexane) to afford 6 (0.37 g, 80%). Colorless oil. [a]2D5 ¼ ꢀ46.0 (c ¼
0.25, CHCl3). IR (neat): 3450, 2930, 2860, 1710, 1676, 1390, 1219, 830. 1H-NMR (300 MHz, CDCl3): 7.38
(d, J ¼ 7.3, 1 H); 7.31 – 7.17 (m, 4 H); 5.95 – 5.84 (m, 1 H); 5.27 (td, J ¼ 1.3, 16.9, 1 H); 5.15 (d, J ¼ 5.6,
1 H); 5.04 (td, J ¼ 1.3, 10.1, 1 H); 0.93 (s, 9 H); 0.14 (s, 3 H); 0.08 (s, 3 H). 13C-NMR (75 MHz, CDCl3):
141.6; 128.1; 126.9; 125.9; 125.5; 113.3; 75.8; 25.8; 18.3; ꢀ 4.6; ꢀ 4.8. ESI-MS: 271 (70, [M þ Na]þ).
Methyl (3R,5E,7S)-3,7-Bis{[(tert-butyl)(dimethyl)silyl]oxy}-7-phenylhept-5-enoate (4). To a soln. of
5 (0.24 g, 0.93 mmol) and 6 (0.34 g, 1.37 mmol) in CH2Cl2 (5 ml), 10 mol-% Grubbsꢂ catalyst II (A;
0.078 g, 0.09 mmol) was added and stirred at r.t. for 24 h under N2. Most of the solvent was then distilled
off, and the concentrated soln. was left to be stirred at r.t. for 2 h under air bubbling in order to
decompose the catalyst. The mixture was evaporated to dryness to give a brown residue, which was
purified by CC (SiO2; 1% AcOEt/hexane) to give 4 (0.26, 60%) as a yellow color liquid, and dimethyl

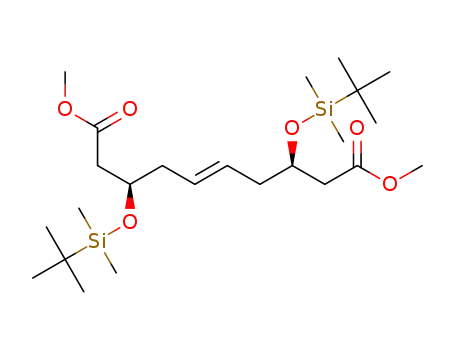

(3R,5E,8R)-3,8-bis{(tert-butyl)(dimethyl)silyl]oxy}dec-5-enedioate (12) (0.022, 5%) as colorless syrup.
Data of 4: [a]2D5 ¼ ꢀ40.8 (c ¼ 0.75, CHCl3). IR (neat): 3452, 2931, 2857, 1742, 1634, 1253, 1087, 835,
775. 1H-NMR (300 MHz, CDCl3): 7.31 – 7.16 (m, 5 H); 5.72 – 5.55 (m, 1 H); 5.54 – 5.35 (m, 1 H); 5.11 (d,
J ¼ 5.2, 1 H); 4.24 – 4.12 (m, 1 H); 3.64 (s, 3 H); 2.47 – 2.34 (m, 2 H); 2.28 – 2.17 (m, 2 H); 0.93 (s, 9 H);
0.86 (s, 9 H); 0.087 (s, 3 H); 0.08 (s, 3 H); 0.06 (s, 3 H); 0.05 (s, 3 H). 13C-NMR (75 MHz, CDCl3): 172.1;
137.0; 128.1; 126.8; 125.8; 124.7; 117.7; 75.3; 69.0; 51.4; 41.8; 40.2; 25.6; 25.8;17.9; 17.5; ꢀ 4.2; ꢀ 4.5; ꢀ 4.7;
ꢀ 5.0. ESI-MS: 501 (100, [M þ Na]þ). HR-MS: 501.2821 (C26H46NaO4Siþ2 ; calc. 501.2832).
Data of 12: [a]2D5 ¼ ꢀ53.1 (c ¼ 0.5, CHCl3). IR (neat): 3078, 2932, 2858, 1711, 1644, 1433, 1254, 1090,
1
834, 776. H-NMR (300 MHz, CDCl3): 5.72 – 5.57 (m, 2 H); 4.31 (quint., J ¼ 5.8, 2 H); 3.82 (s, 6 H);
2.58 – 2.53 (m, 4 H); 2.39 (t, J ¼ 5.2, 4 H); 1.04 (s, 18 H); 0.23 (s, 6 H); 0.20 (s, 6 H). 13C-NMR (75 MHz,
CDCl3): 172.3; 129.2; 69.8; 51.8; 42.4; 40.9; 25.8; 18.2; ꢀ 4.0; ꢀ 5.1. ESI-MS: 489 (28, [M þ H]þ), 511
(100, [M þ Na]þ). HR-MS: 511.2892 (C24H48NaO6Siþ2 ; calc. 511.2887).
Conversion of 12 to 4. To a soln. of 12 (0.010 g, 0.02 mmol) and 6 (0.007 g, 0.02 mmol) in CH2Cl2
(1 ml), 10 mol-% A (0.004 g, 0.047 mmol) was added, and the mixture was stirred at r.t. for 24 h under
N2. Most of the solvent was then distilled off, and the concentrated soln. was left to be stirred at r.t. for 2 h
under air bubbling in order to decompose the catalyst. The mixture was evaporated to dryness to give a
brown residue, which was purified by CC (SiO2; 1% AcOEt/hexane) to give 4 (0.005, 60%).
Methyl (3R,5R,6S,7R)-3,7-Bis{[(tert-butyl)(dimethyl)silyl]oxy}-5,6-dihydroxy-7-phenylheptanoate
(3). To a stirred soln. of 4 (0.24 g, 0.50 mmol) in acetone/H2O 4 :1 (2 ml), NMO (0.11 ml, 1 mmol)
and 2 ml of 1m toluene soln. of OsO4 were added at r.t., and the mixture was stirred for 24 h. The reaction
was quenched with Na2SO3 (0.2 g), the mixture was filtered and washed with AcOEt, and the resulting
filtrate was washed with H2O (4 ml), followed by brine (4 ml). The combined org. layers were dried
(Na2SO4), evaporated in vacuo, and purified by CC (SiO2; 5% AcOEt/hexane) to afford 3 (0.19 g, 75%).
Syrupy liquid. [a]D25 ¼ ꢀ34.1 (c ¼ 0.2, CHCl3). IR (neat): 3451, 2856, 1739, 1639, 1254, 836, 777, 700.
1H-NMR (500 MHz, CDCl3): 7.57 – 7.38 (m, 5 H); 5.10 (d, J ¼ 4.5, 1 H); 4.54 – 4.39 (m, 1 H); 4.22 (d, J ¼
10.5, 1 H); 3.83 (s, 3 H); 3.54 – 3.43 (m, 1 H); 3.38 (br. s, OH); 2.70 – 2.54 (m, 3 H); 2.09 – 1.87 (m, 1 H);
1.12 (s, 9 H); 0.97 (s, 9 H); 0.30 (s, 3 H); 0.21 (s, 3 H); 0.02 (s, 3 H); 0.09 (s, 3 H). 13C-NMR (75 MHz,
CDCl3): 171.3; 141.0; 128.4; 127.6; 126.2; 78.7; 66.6; 65.5; 64.7; 51.4; 42.7; 41.1; 25.9; 25.8; 18.2; 17.9; ꢀ 4.4;
ꢀ 4.6; ꢀ 4.77; ꢀ 5.02. ESI-MS: 513 (42, [M þ H]þ), 535 (100, [M þ Na]þ). HR-MS: 535.2891
(C26H48NaO6Siþ2 ; calc. 535.2887).
(4R,6R)-6-[(1R,2R)-1,2-Dihydroxy-2-phenylethyl]-4-hydroxytetrahydro-2H-pyran-2-one (1). To a
stirred soln. of 3 (0.16 g, 0.31 mmol) in MeCN (2 ml), Amberlyst 15 (0.005 g) was added at r.t. and stirred
for 2 h. The mixture was filtered and washed with AcOEt, and the resulting filtrate was evaporated in
vacuo and purified by CC (SiO2; 35% AcOEt/hexane) to afford 1 (0.073 g, 93%). Colorless needles.
[a]2D5 ¼ ꢀ63.1 (c ¼ 0.3, CHCl3). IR (neat): 3423, 2920, 2850, 1720, 1656, 1460, 1219, 606. 1H-NMR
